Product Description
【specification】
Voltage: AC220-240V / AC100-130V
Frequency: 50Hz / 60Hz
Output power: 750W
Temperature range: 100 ° C to 480 ° C
Temperature stability: ± 2 ° C
Air flow: 150 liters per minute (maximum)
【Product Description】

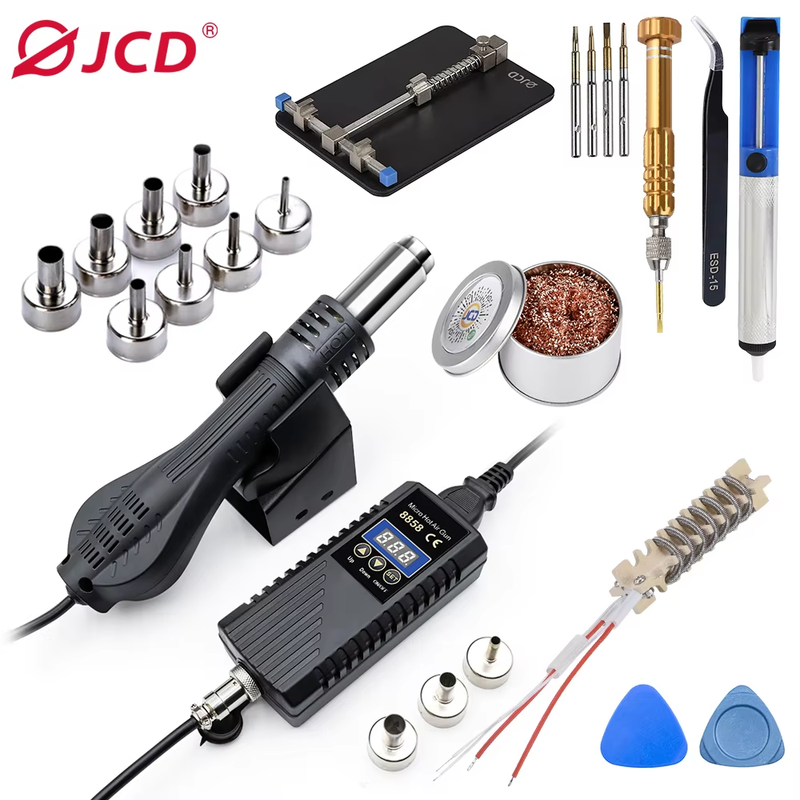

1. Portable handheld digital LED display
2. Adjust the keyboard to control the air flow and temperature
3. For nozzle replacement, refer to the instructions for the three types of nozzles (large, medium, and small) that come with the product.
4. If the temperature is below 70 ℃, the rotation can be stopped automatically.
5. High quality strength and long service life
6. Safe welding of QFP, PLCC, BGA and other temperature sensitive components
7. Intelligent guidance and cold air flow function
8. The green line, high quality silicon body and excellent heat dissipation extend the service life and save energy.
9. Portable and digital LED Bga reworkstation with brushless fan, 100W ~ 650W technical data.
Hot air gun1)Turn on the power and adjust the temperature knob. If the temperature does not reach a predetermined value, the indicator light will turn on. Wait for a while, when the temperature reaches a certain value, the indicator light goes off.
2) Adjust the temperature and air flow of the hot air gun according to the shape and working conditions of the nozzle.3) Do not put too much force when attaching nozzle. In addition, to prevent damage to the electric wire or high temperature glass, please do not strongly strike the work table with welding iron.4) Please be careful of high temperature operation. Please do not use the hot air gun near the flammable gas or the object. Pay attention to personal safety. Replace or leave the component. Don't forget to turn the power off and cooling. If you do not use this product for a long time, please remove the power plug.Soldering:1) Turn on the power and adjust the temperature knob. If the temperature does not reach a predetermined value, the indicator light will turn on. Wait for a while, when the temperature reaches a certain value, the indicator light goes off.2) In the welding process, the temperature of the soldering station can be adjusted. When the solder is hard to dissolve, the temperature can be raised appropriately.3) Rosin is flux and can improve welding quality and efficiency.4) In the welding process, first, the soldering pen is coated with tin, and the soldering point is heated using the soldering pen, and the welding wire is placed at the soldering point.5) When the welding is complete, the tin is coated on the soldering pen for protection.
