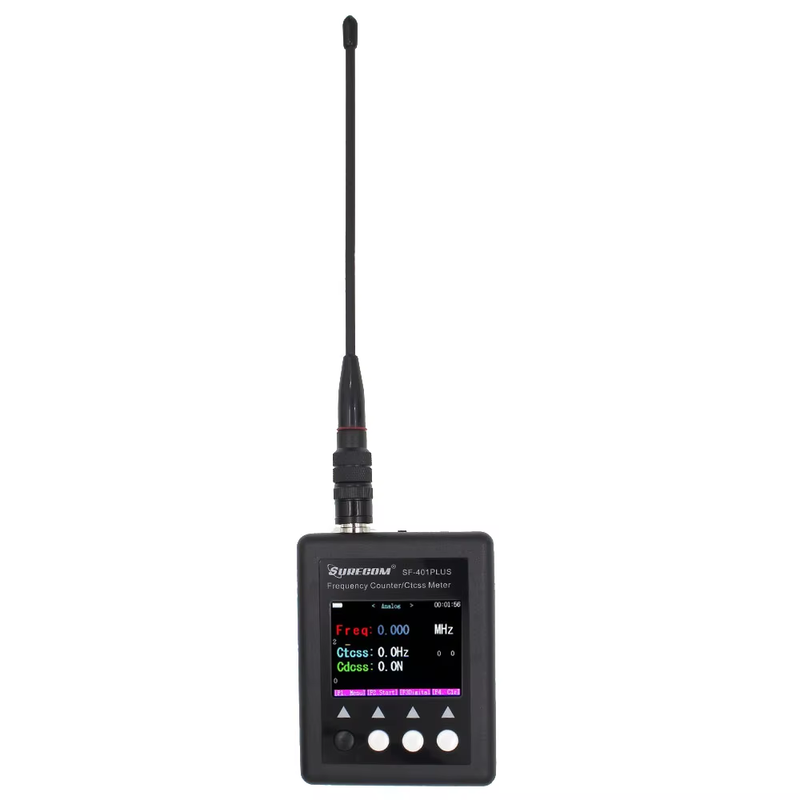

SF-401Plus Digital Radio Tester 27Mhz-3000Mhz Frequency Counter SF401 PLUS with CTCCSS/DCS Decoder for walkie talkie
SF-401Plus Digital Radio Tester 27Mhz-3000Mhz Frequency Counter SF401 PLUS with CTCCSS/DCS Decoder for walkie talkie| New Version SURECOM SF401plus Portable Frequency Counter with CTCCSS/DCS Tester New Function for Digital Radio Introduction: The frequency meter capable of measuring the parameters of the frequency of the continuous carrier signal walkie-talkies , with signal strength indicator. it is the tool of choice for maintenance personnel,test frequency and signal strength of wireless enthusiasts. This portable frequency counter is designed for counting continuous wave signal comes from Two-way Radio. There are easy ranges for you to choose. The ranges cover most of the frequency of the two way radios you want to measure. Its four-button control is easy to use and its small size allows you to carry it anywhere you like.
Feature & Specification: Frequency range: 27Mhz-3000Mhz CTCSS/DCS Decoder LCD Dim level setting Frequency digital 0000.000 or 0000.0000 Work by TCXO(Temperature Compensate X'tal (crystal) Oscillator) 2 - 2.5ppm Rresponse time: 0.2s. Color Display Build-in Li-ion battery Net Weight: 113g 4 buttons control Auto power off 1-9minutes Chaging battery LED indicator
(Do not direct Connection Walkie talkie RF output by cable ,HIGH RF output will damage FREQUENCY counter )
Specifications: |
|
| TFT LCD: | 320 x 240 pixels | Frequency Range: | 27Mhz -3Ghz | Li-ion Battery build-in : | 3.7V 600mah | current consumption: | 10ma | TCXO crystal Oscillator | +- 2.5ppm | Change in: | Micro usb +5V | impedance input: | 50 Ohm (BNC) | Weight: | 113g | Dimensions size : | 70 x 30 x 90mm |
SF-401/PLUS CTCSSCTCSS (Hz) |
|
| 50.0 | 97.4 | 151.4 | 192.8 | 55.0 | 100.0 | 156.7 | 196.6 | 67.0 | 103.5 | 159.8 | 199.5 | 69.3 | 107.2 | 162.2 | 203.5 | 71.9 | 110.9 | 165.5 | 206.5 | 74.4 | 114.8 | 167.9 | 210.7 | 77.0 | 118.8 | 171.3 | 218.1 | 79.7 | 123.0 | 173.8 | 225.7 | 82.5 | 127.3 | 177.3 | 229.1 | 85.4 | 131.8 | 179.9 | 233.6 | 88.5 | 136.5 | 183.5 | 241.8 | 91.5 | 141.3 | 186.2 | 250.3 | 94.8 | 146.2 | 189.9 | 254.1 |
CDCSS Standard | sf401
check |
| Standard | sf401
check |
| Standard | sf401
check |
| Standard | sf401
check | 23 | 23 | 143 | 143 |
| 266 | 465 | 465 | 25 | 25 |
| 145 | 271 | 271 | 466 | 466 | 26 | 26 | 152 | 152 |
| 274 | 503 | 503 | 31 | 31 | 155 | 155 | 306 | 306 | 506 | 506 | 32 | 32 | 156 | 156 | 311 | 311 | 516 | 516 |
| 36 | 162 | 162 | 315 | 315 | 532 | 532 | 43 | 43 | 165 | 165 |
| 325 | 546 | 546 | 47 | 47 | 172 | 172 | 331 | 331 | 565 | 565 | 51 | 51 | 174 | 174 |
| 332 | 606 | 606 |
| 53 | 205 | 205 | 343 | 343 | 612 | 612 | 54 | 54 |
| 212 | 346 | 346 | 624 | 624 | 65 | 65 | 223 | 223 | 351 | 351 | 627 | 627 | 71 | 71 |
| 225 |
| 356 | 631 | 631 | 72 | 72 | 226 | 226 | 364 | 364 | 632 | 632 | 73 | 73 | 243 | 243 | 365 | 365 | 654 | 654 | 74 | 74 | 244 | 244 | 371 | 371 | 662 | 662 | 114 | 114 | 245 | 245 | 411 | 411 | 664 | 664 | 115 | 115 |
| 246 | 412 | 412 | 703 | 703 | 116 | 116 | 251 | 251 | 413 | 413 | 712 | 712 |
| 122 |
| 252 | 423 | 423 | 723 | 723 | 125 | 125 |
| 255 | 431 | 431 | 731 | 731 | 131 | 131 | 261 | 261 | 432 | 432 | 732 | 732 | 132 | 132 | 263 | 263 | 445 | 445 | 734 | 734 | 134 | 134 | 265 | 265 | 464 | 464 | 743 | 743 |
| 754 | 754 |
Package Contents 1x SF401 plus Frequency Counter1 x UHF Antenna 1x User Manual1x USB charger cable 1x USB AC adapter 100-240V
|
