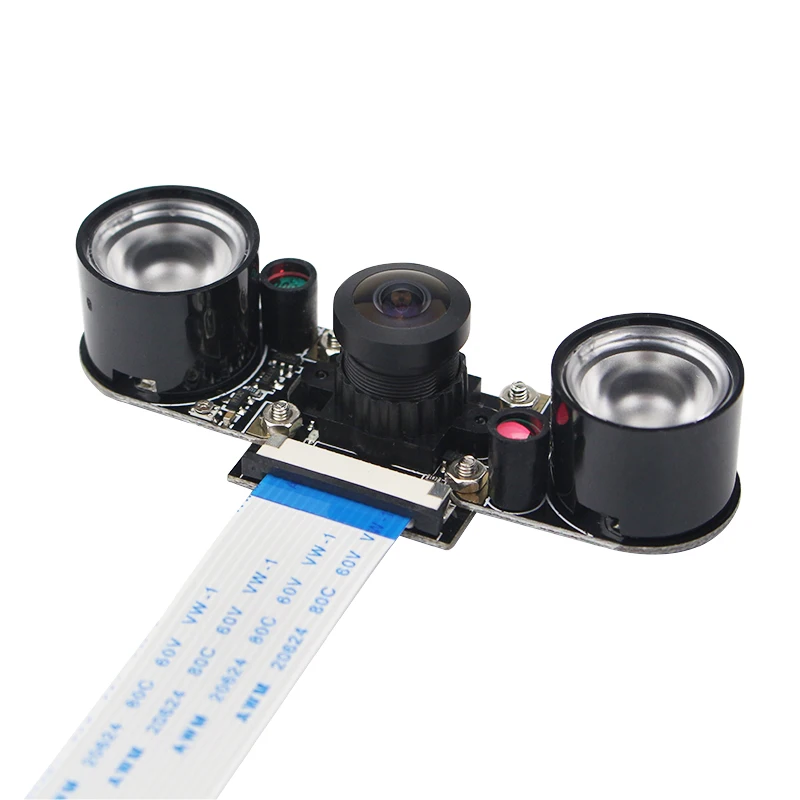

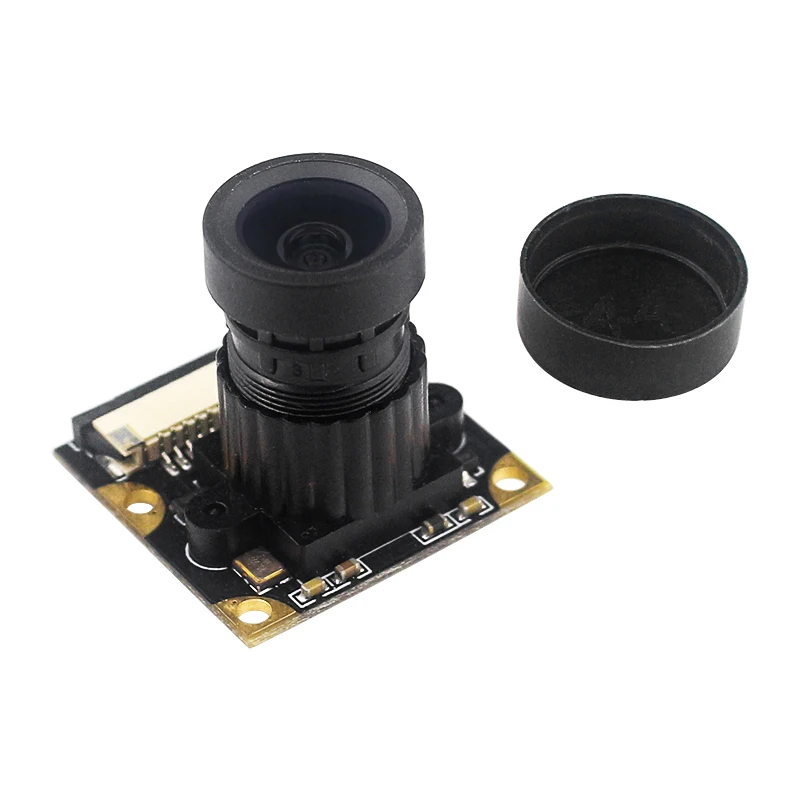

Product Description

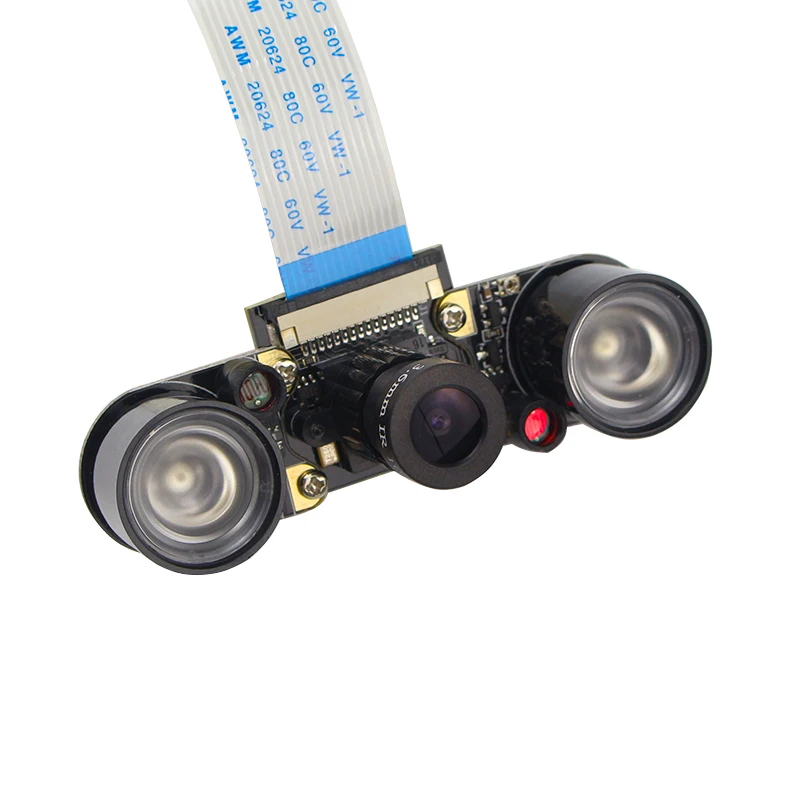

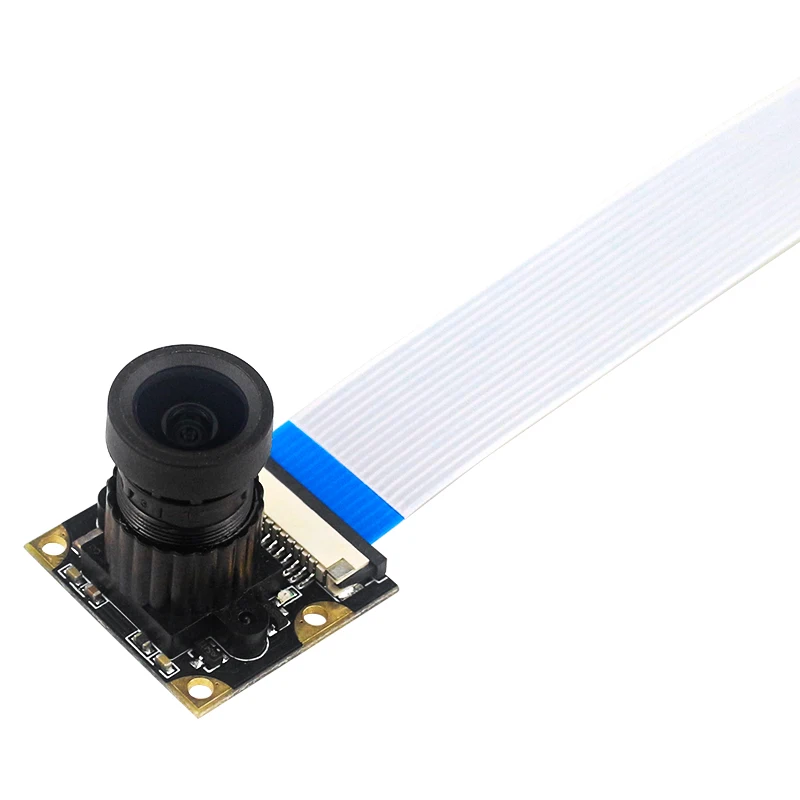

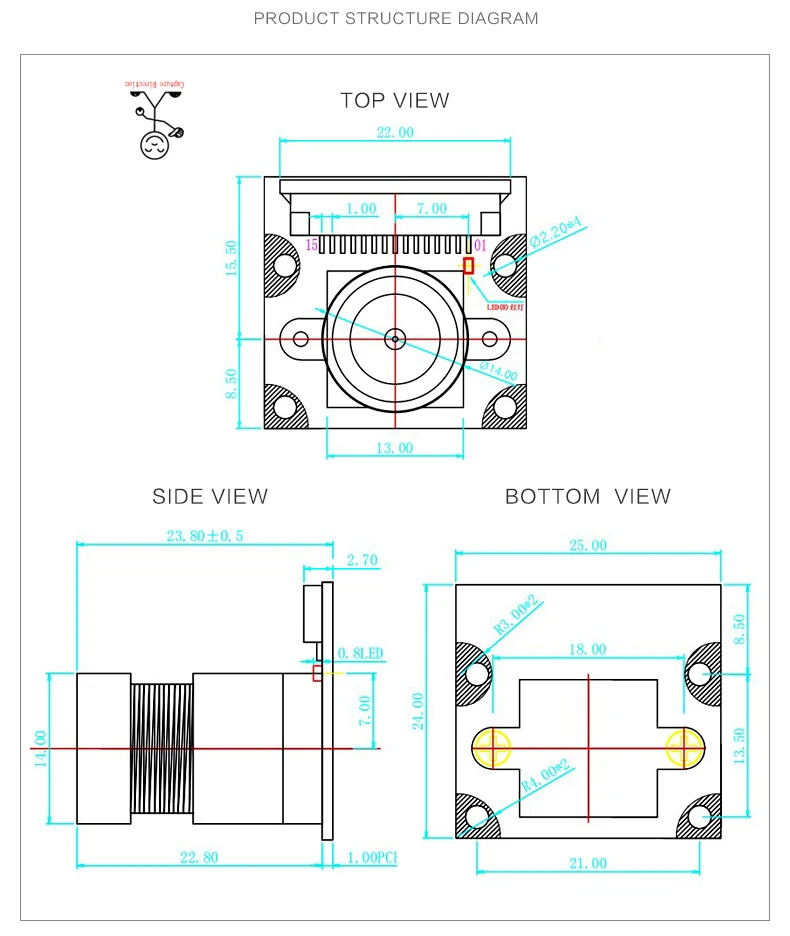

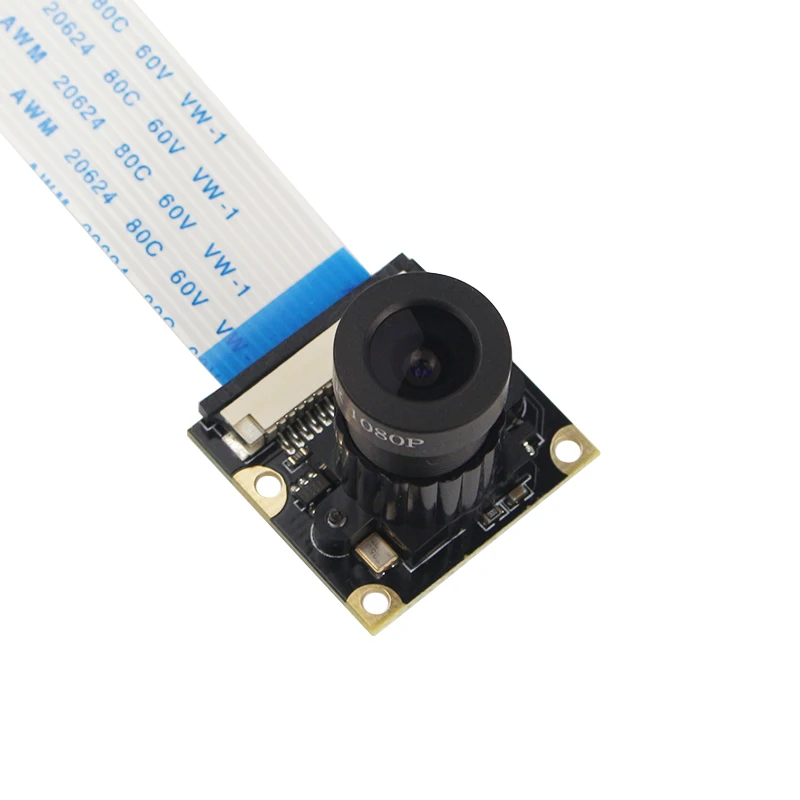

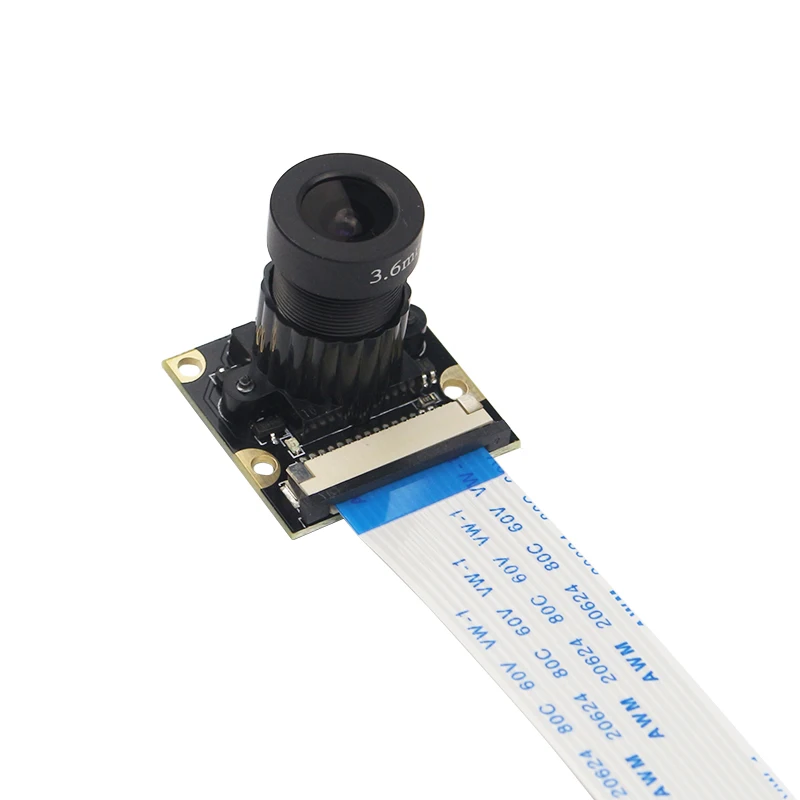

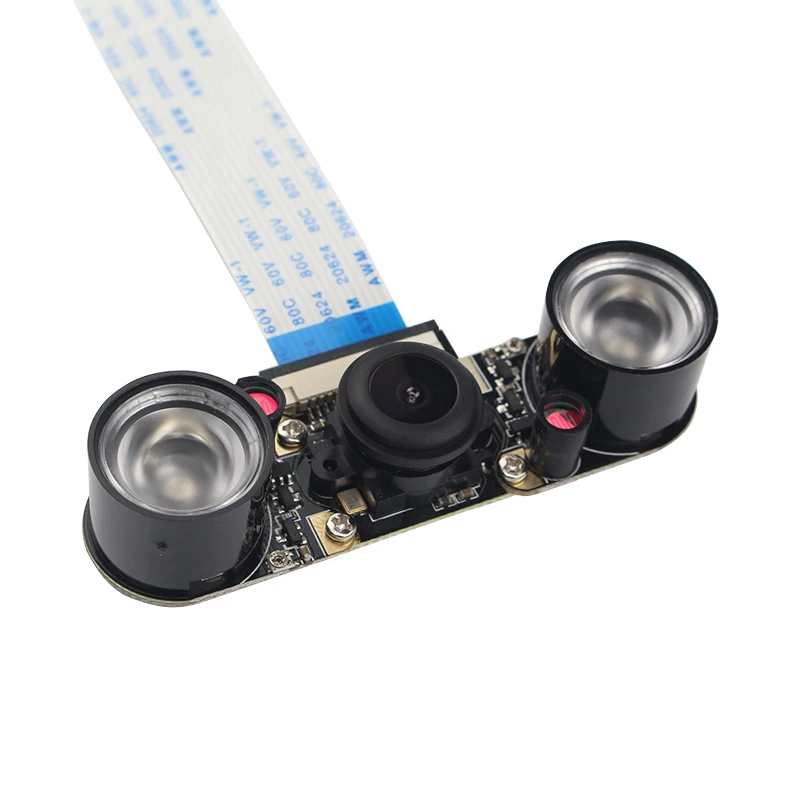

Option 1 / 2（OV5647 5MP 75° Night Vision Camera）
Specification :
1. Sensor : OV5647
2. Pixel : 5 megapixel
3. CMOS size: 1 / 4inch
4. Aperture (F): 1.8
5. Focal Length: 3.6mm adjustable
6. Diagonal angle: 75 degree
7. Sensor best resolution: 1080p
8. 4 screw holes : used for attachment and provides 3.3V power output
9. Dimension: 25mm x 24mm
10. Resolution: 2592x1944
Feature:
1. Night vison camera ( must use with the infrared led light together )
2. Adjustable focal
3. Supports all revisions of the Raspberry Pi
4. Support Raspberry Pi 4B/3B+/3B/Zero (need to use other flat cable for Pi Zero )
Package list :
【A1 75 】
1 x 75 Degree Night Vision Camera
1 x 15 cm FFC Cable

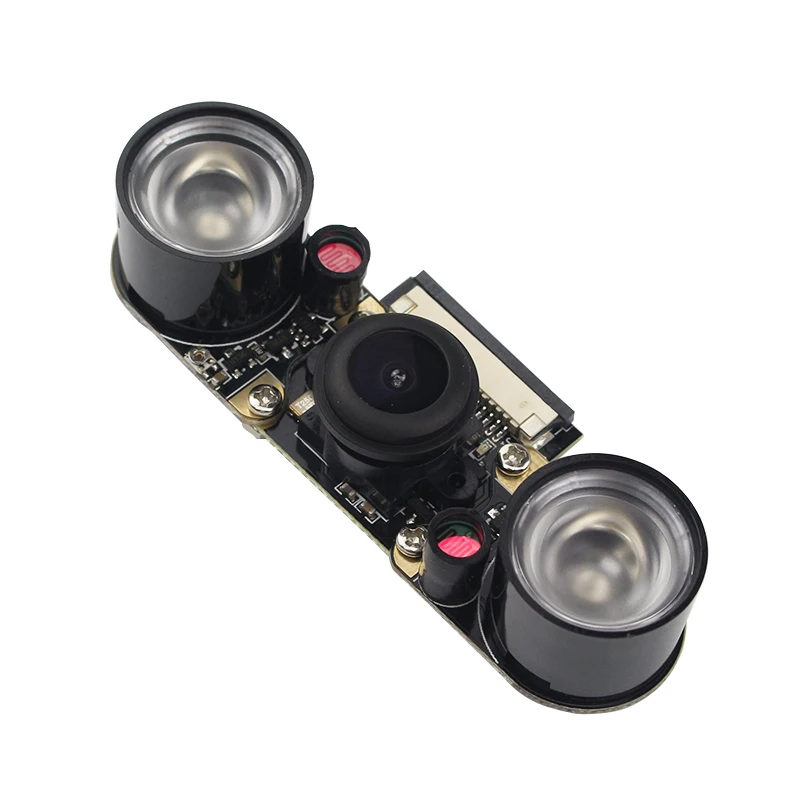

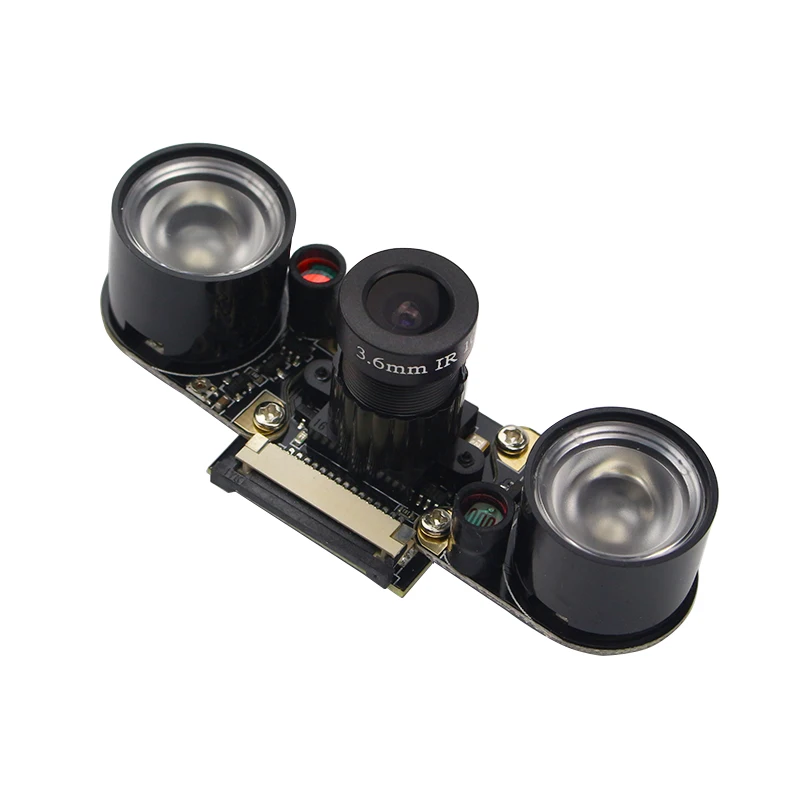

【A2 75 】
1 x 75 Degree Night Vision Camera
1 x 15 cm FFC Cable
2 x Infrared Light

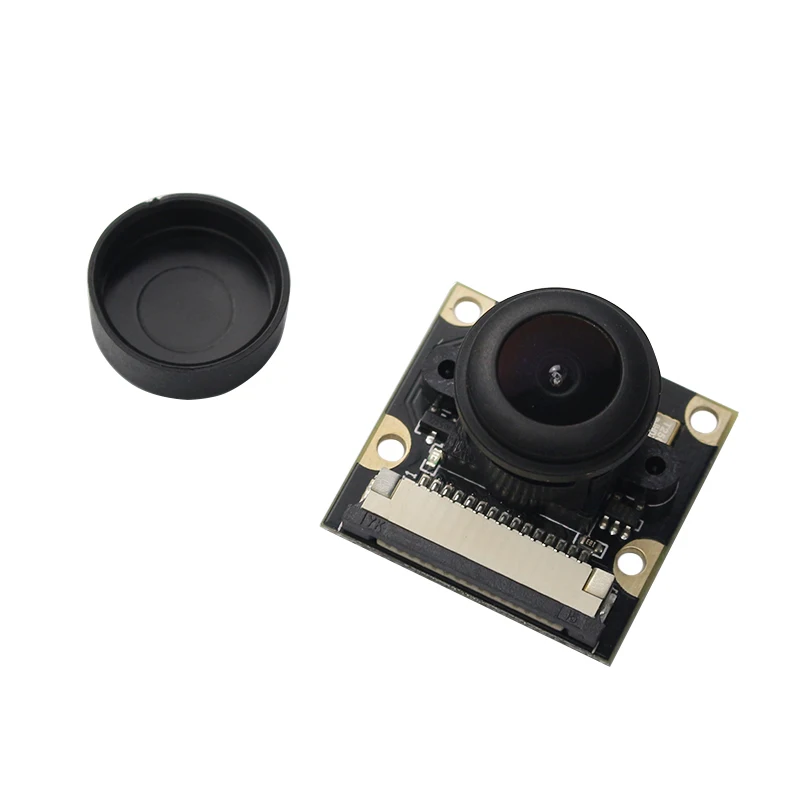

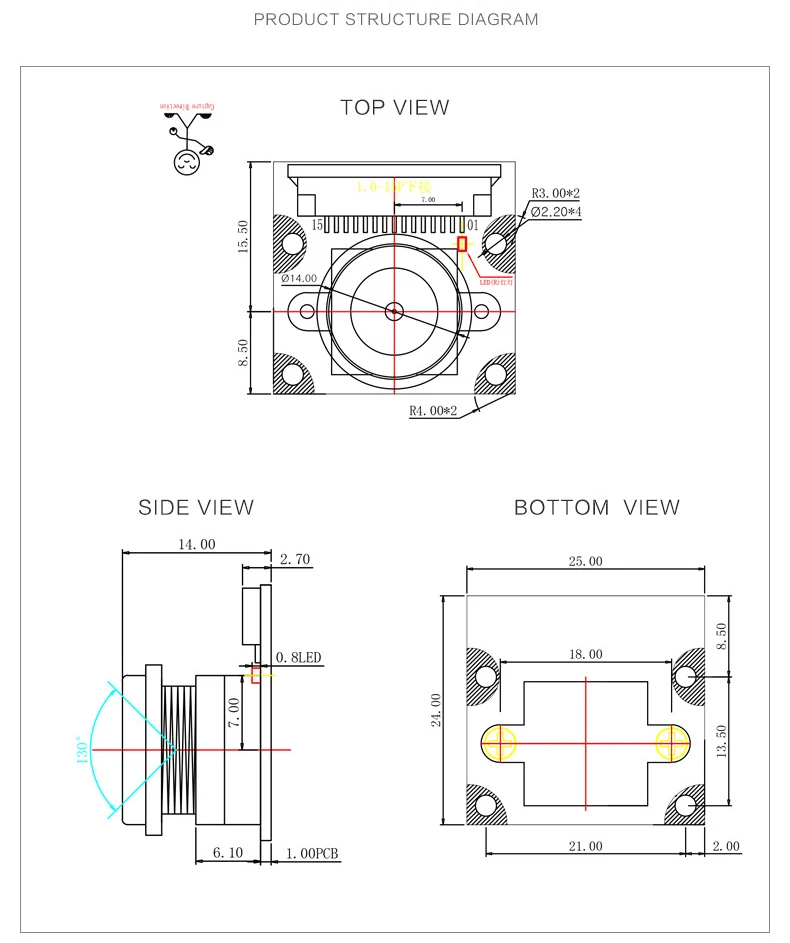

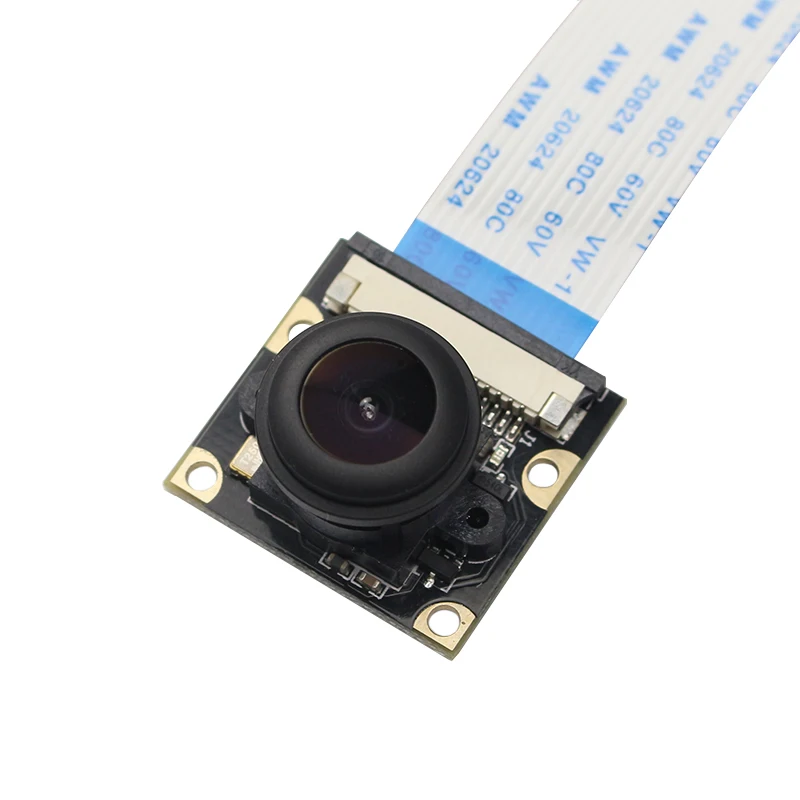

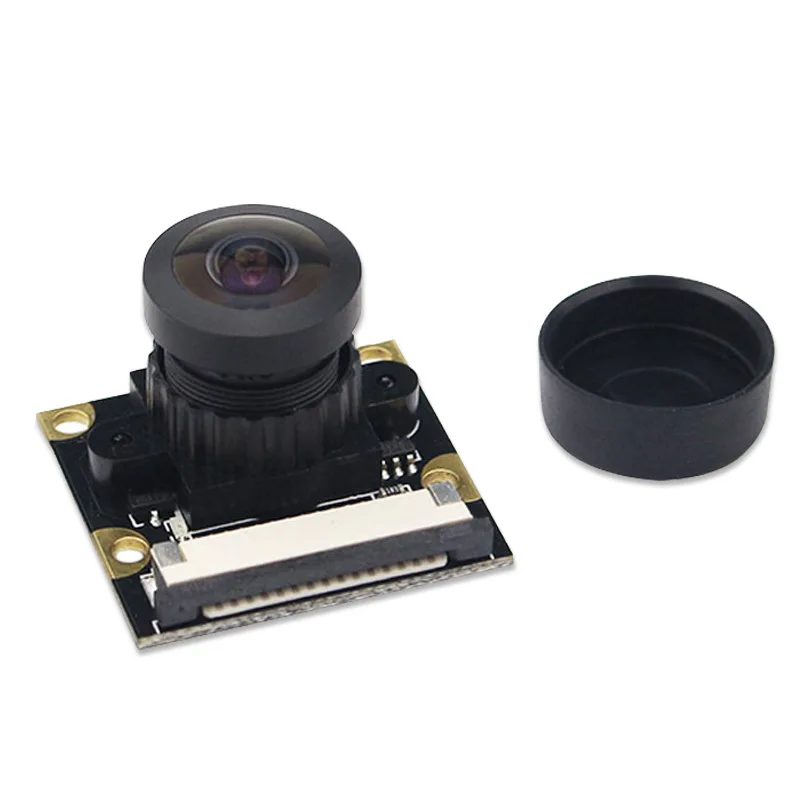

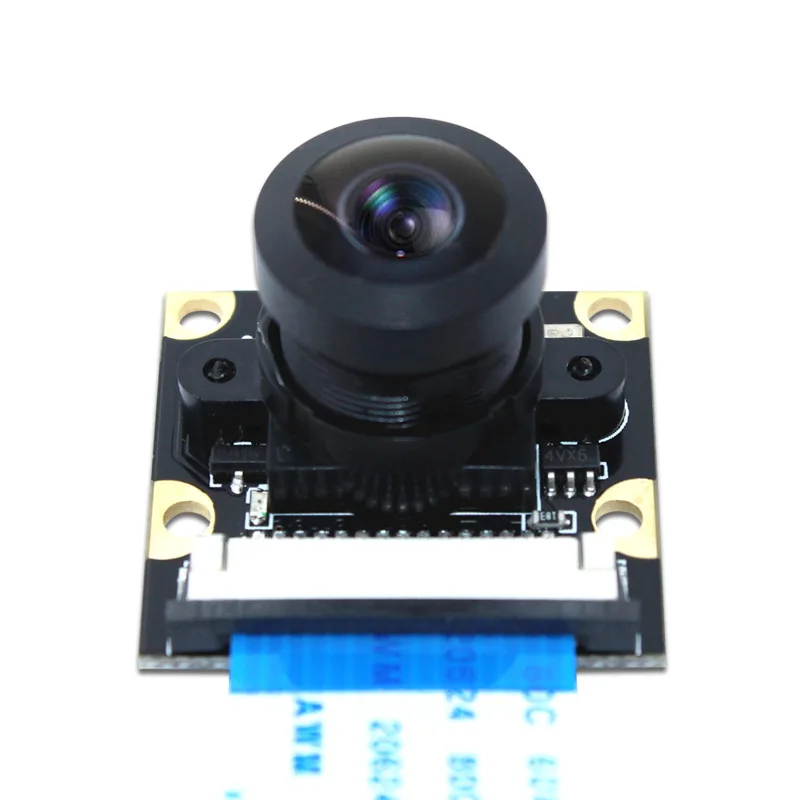

Option 3 / 4（OV5647 5MP 130° Night Vision Camera）
Features :
1. Fisheye lens, 130 degree wide angle view, can be used for monitoring , wecams , 3D printer or take a wide field of view photo , video
2. Night vision camera ( need to use with the infrared lights )
3. Compatible for all version of Raspberry Pi
Note : The field of view has difference with actual due to the resolution and measuring.
Specification :
1. 5 megapixel OV5647 sensor
2. CMOS size : 1/4inch
3. Sensor best resolution : 1080p
4. 4 screw holes : Use for attach infrared LED lights and connect the power
5. Focal length : 2.35
6. Focal: 1.85mm (adjustable)
7. Diagonal angle : 130 degree approx
8. Resolution: 2592x1944
9. Dimension: 25mm x 24mm x 17mm
Package list :
【B1 130 】
1 x 130 Degree Night Vision Camera
1 x 15 cm FFC Cable

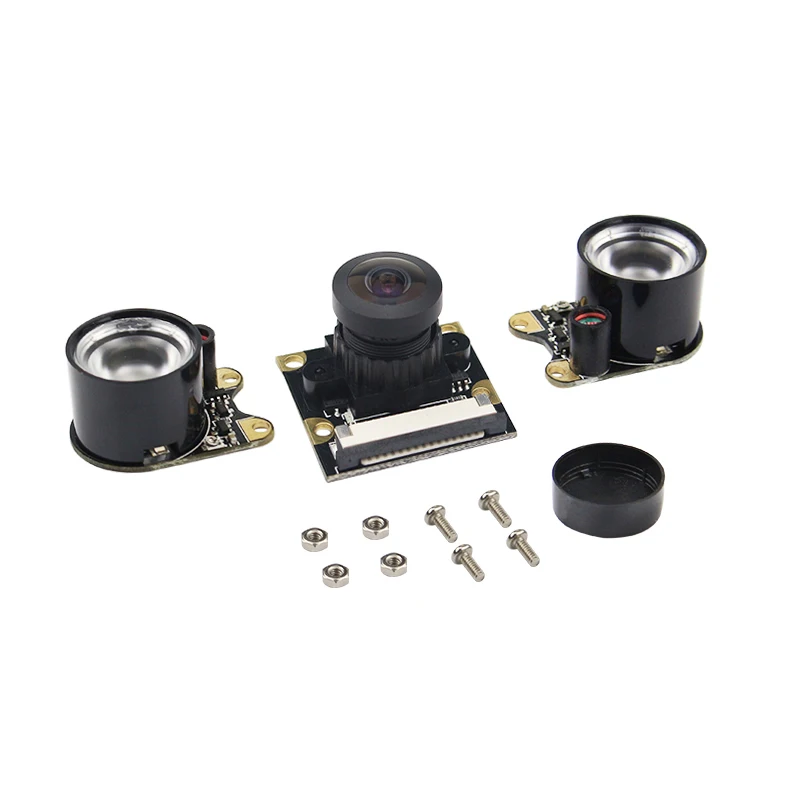

【B2 130 】
1 x 130 Degree Night Vision Camera
1 x 15 cm FFC Cable
2 x Infrared Light

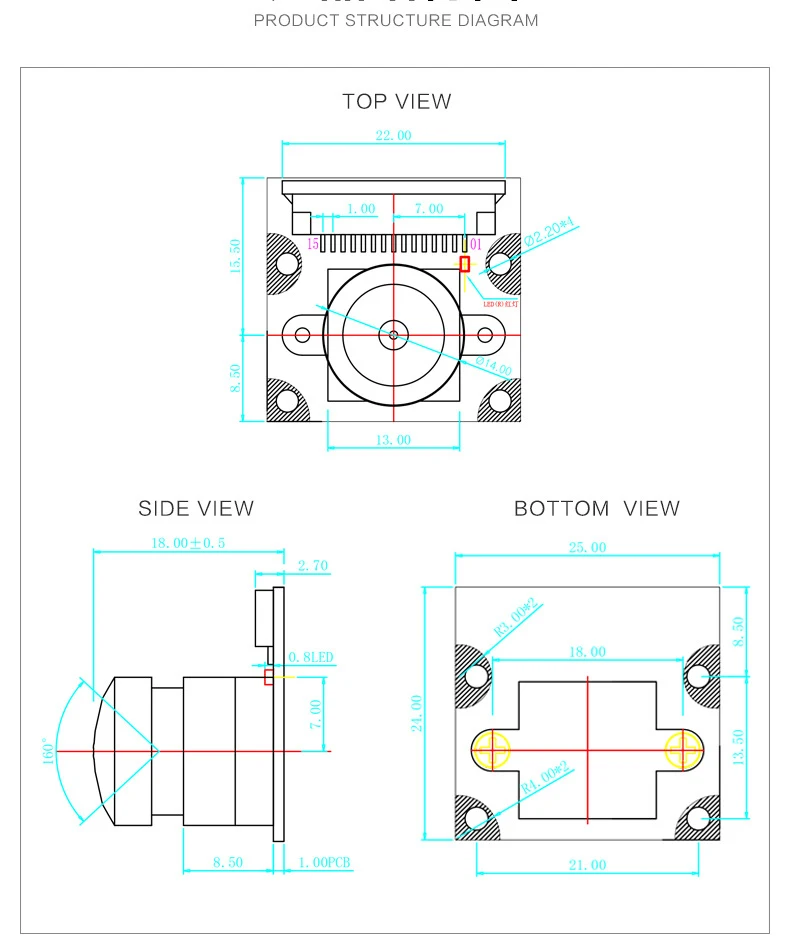

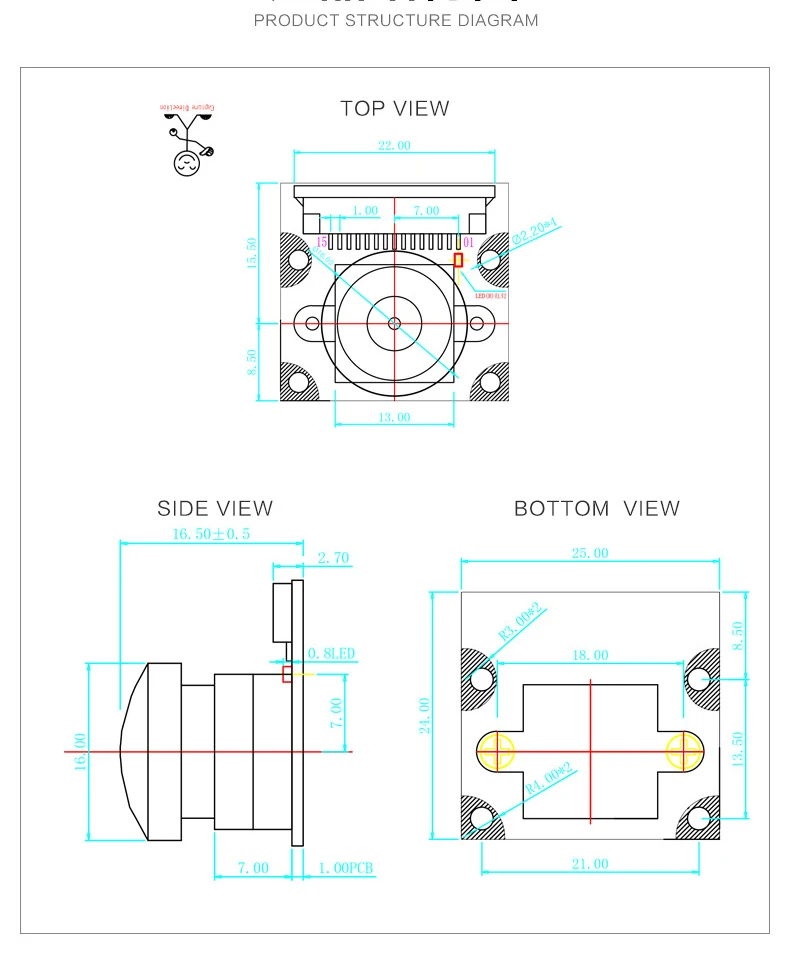

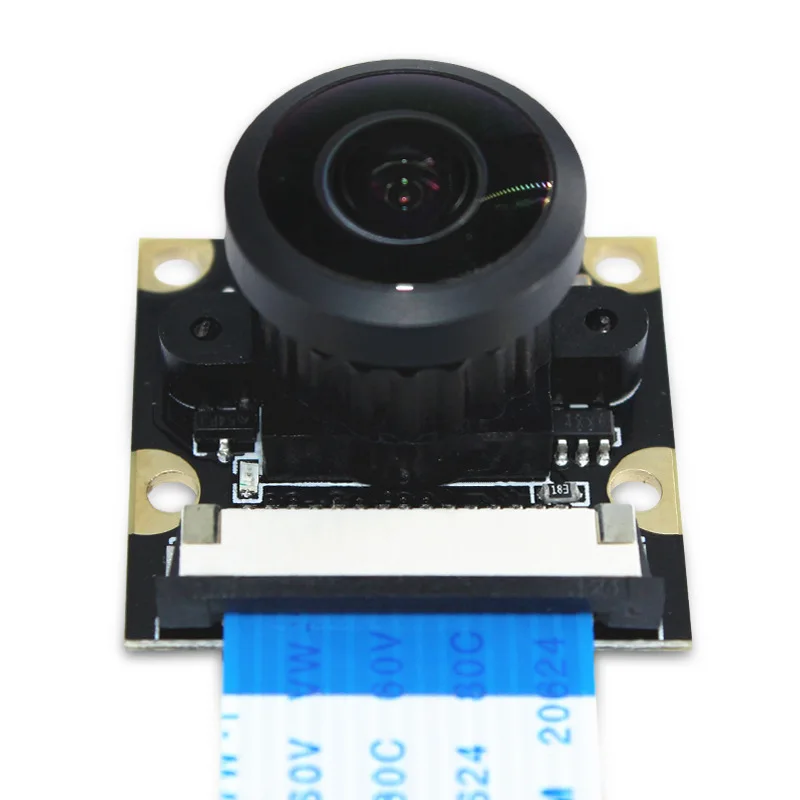

Option 5 / 6（OV5647 5MP 160° Night Vision Camera）
Specification :
1. Fisheye lens, wide angle view , 160 degree, can be used for monitoring , wecams , 3D printer or take a wide field of view photo , video
2. Night vision camera ( need to use with the infrared lights )
3. Compatible for Raspberry Pi 4 Model B/3B+/3B
Feature：
1. Pixels: 5 megapixels
2. Sensor: OV5647
3. Focal: 3.15mm adjustable
4. Field of view: 160 degree
5. Power: 3.3V
6. Size: 25mm x 24mm x 17mm
7. Resolution: 2592x1944
Package list :
【C1 160 】
1 x 160 Degree Night Vision Camera
1 x 15 cm FFC Cable
【C2 160 】
1 x 160 Degree Night Vision Camera
1 x 15 cm FFC Cable
2 x Infrared Light

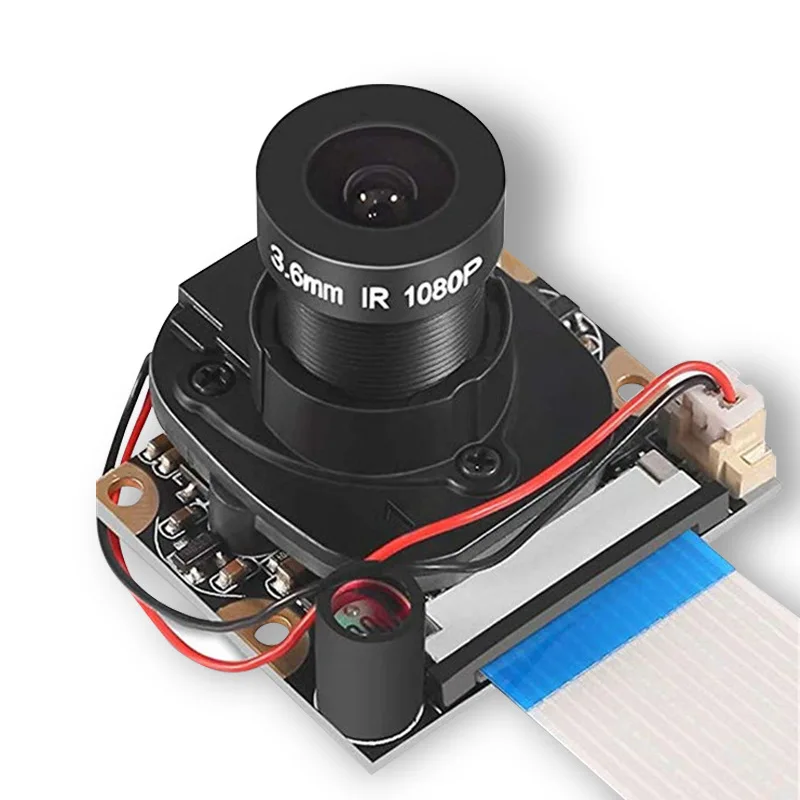

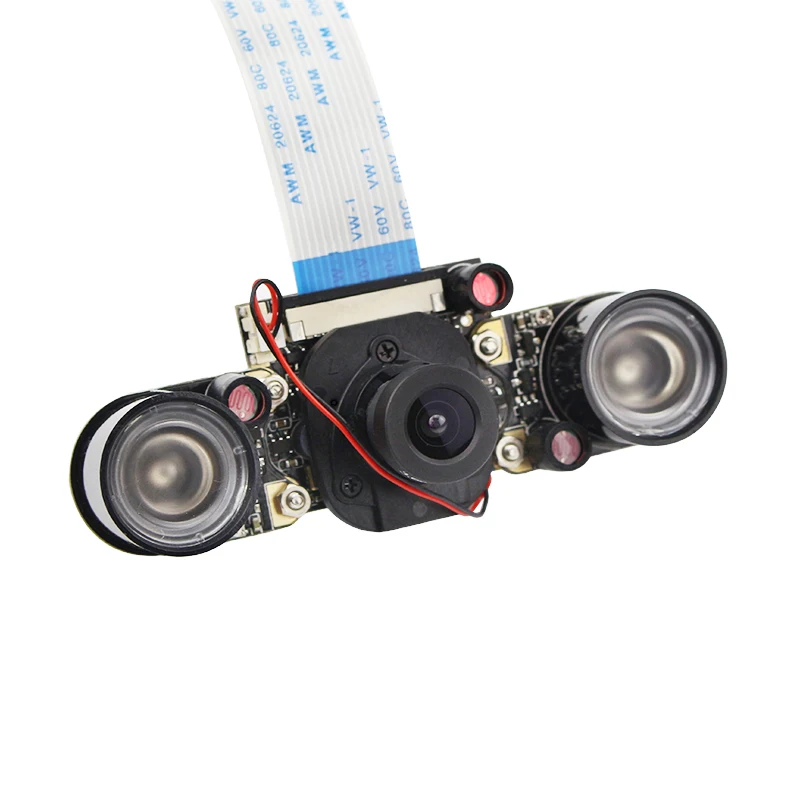

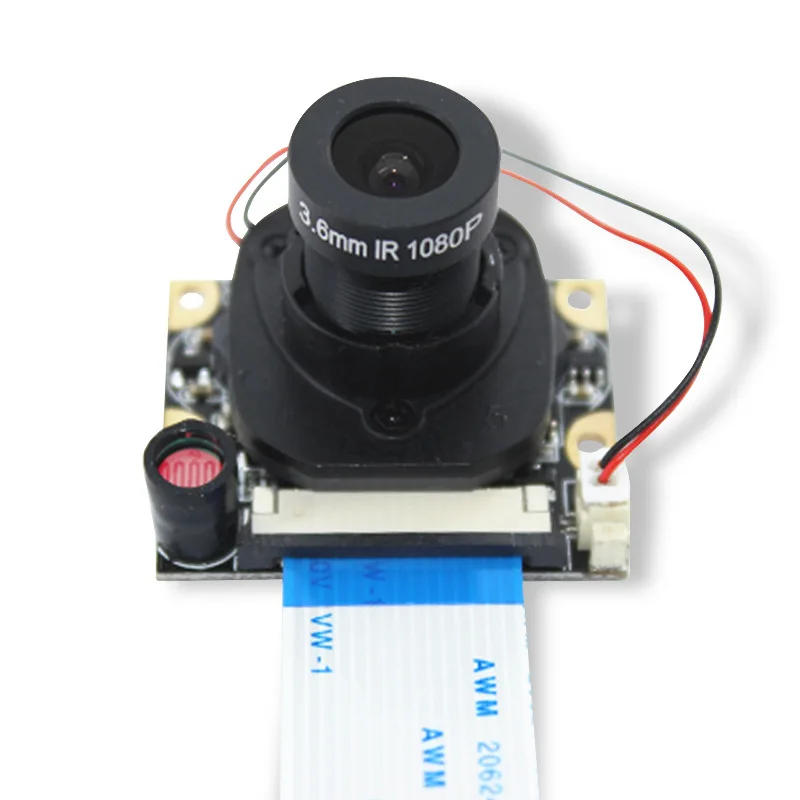

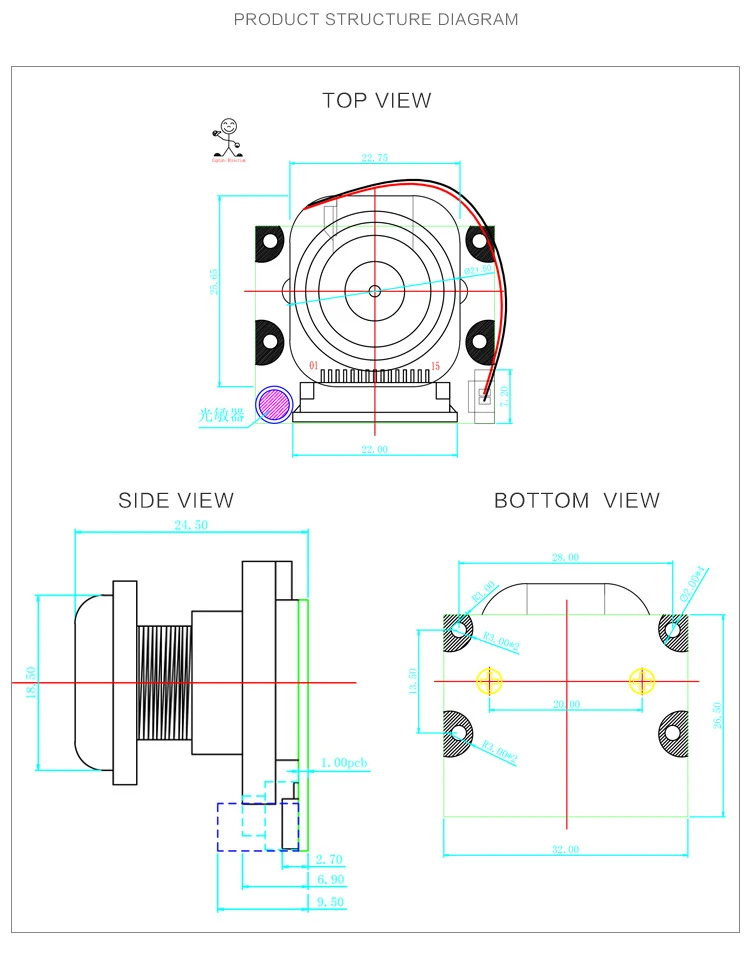

Option 7 / 8（OV5647 5MP 75° IR CUT Night Vision Camera）
Introduction:
The Raspberry Pi Camera is with IR-CUT function, so it can use in both day and night with normal color. When the camera at day light will switch to day mode, the camera image is a normal color image. When the camera at night will switch to night mode , the camera can normally identify the infrared fill light of the light. You can get the best imaging whatever it is in the daytime or at night.
Specification:
1. 5 megapixel OV5647 sensor
2. CMOS size: 1/4 inch
3. Aperture (F): 1.2
4. Focal Length: 3.6mm adjustable
5. Field of View: 75 degree
6. Sensor best resolution: 1080p
7. 4 screw holes to fix the IR lights and holder:
(1). Used for attachment
(2). Provides 3.3V power output
8. Size: 26.5x32 mm
9. Resolution: 2592x1944
Features:
1. Supports all revisions of the Raspberry Pi
2. Embedded removable IR-CUT filter, eliminating color distortion in the daylight ( by automatic or manual )
3. Comes with / without infrared LED, supports night visio
4. Supports connecting infrared LED and / or fill flash LED
Package list :
【D1 75 IRCUT】
1 x 75 Degree IR CUT Night Vision Camera
1 x 15 cm FFC Cable

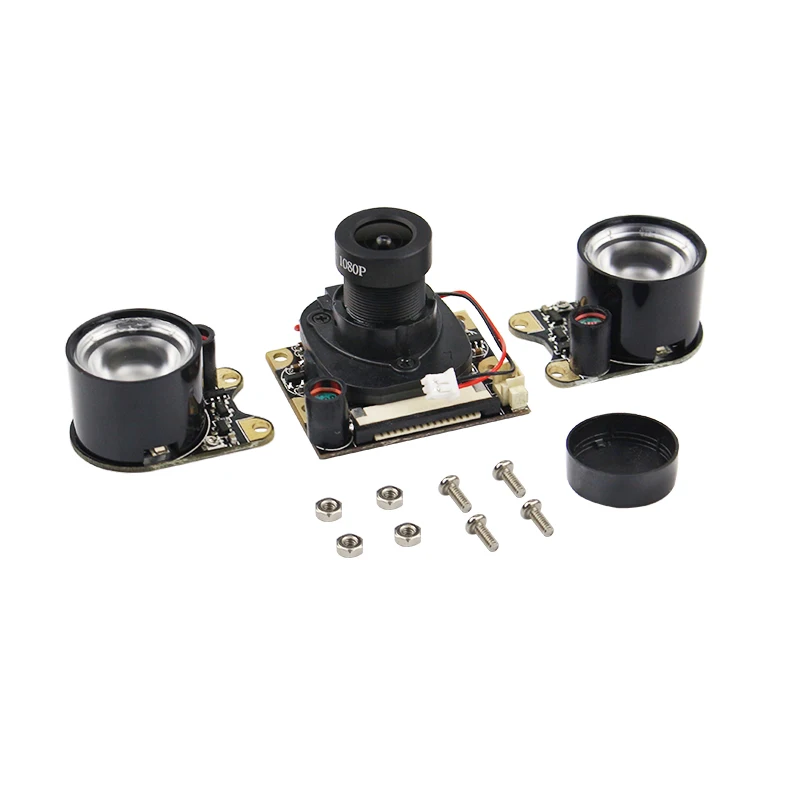

【D2 75 IRCUT】
1 x 75 Degree IR CUT Night Vision Camera
1 x 15 cm FFC Cable
2 x Infrared Light

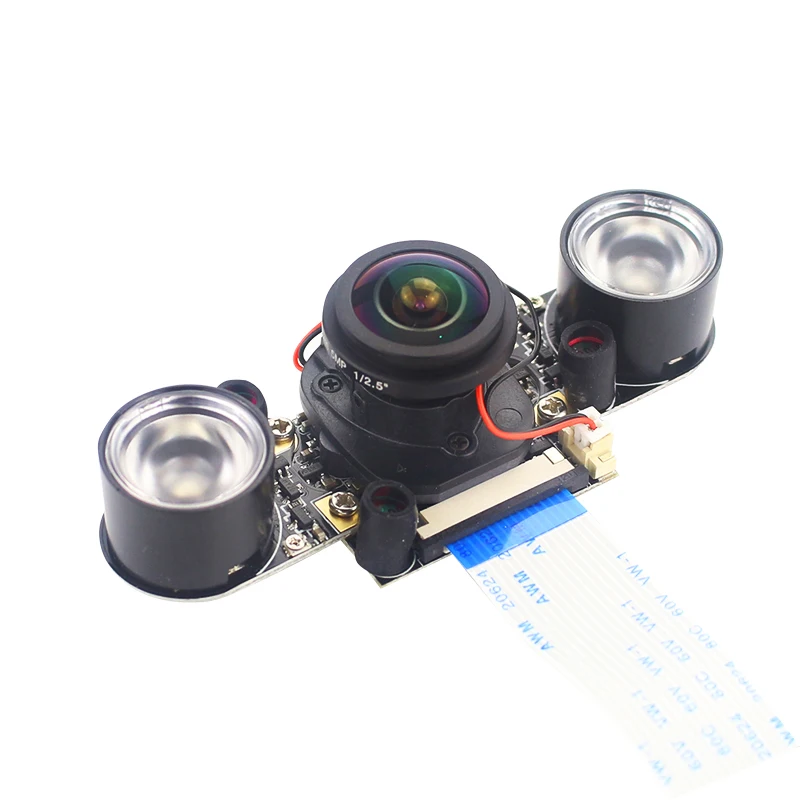

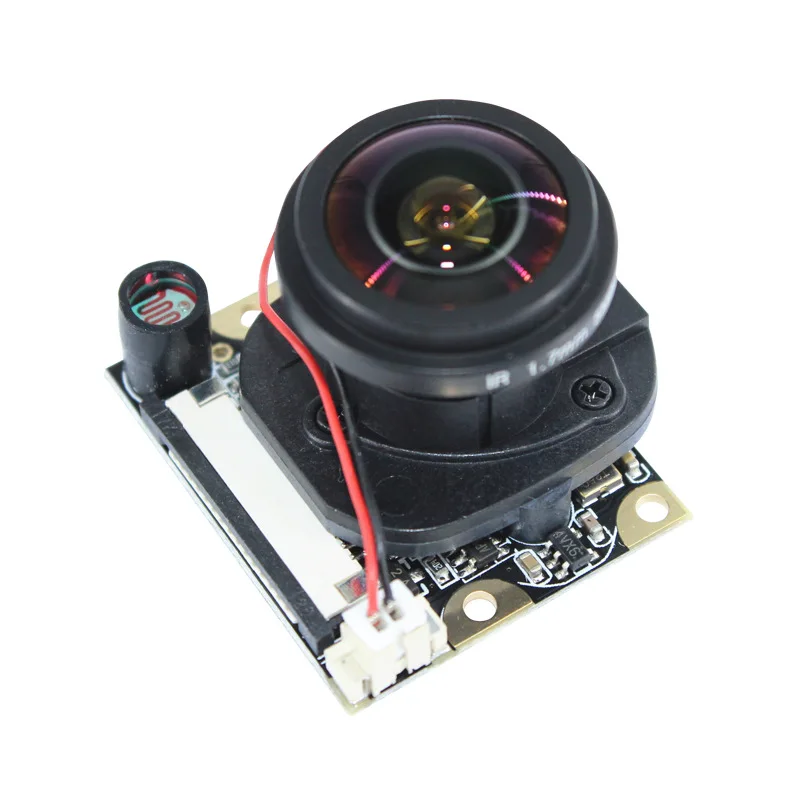

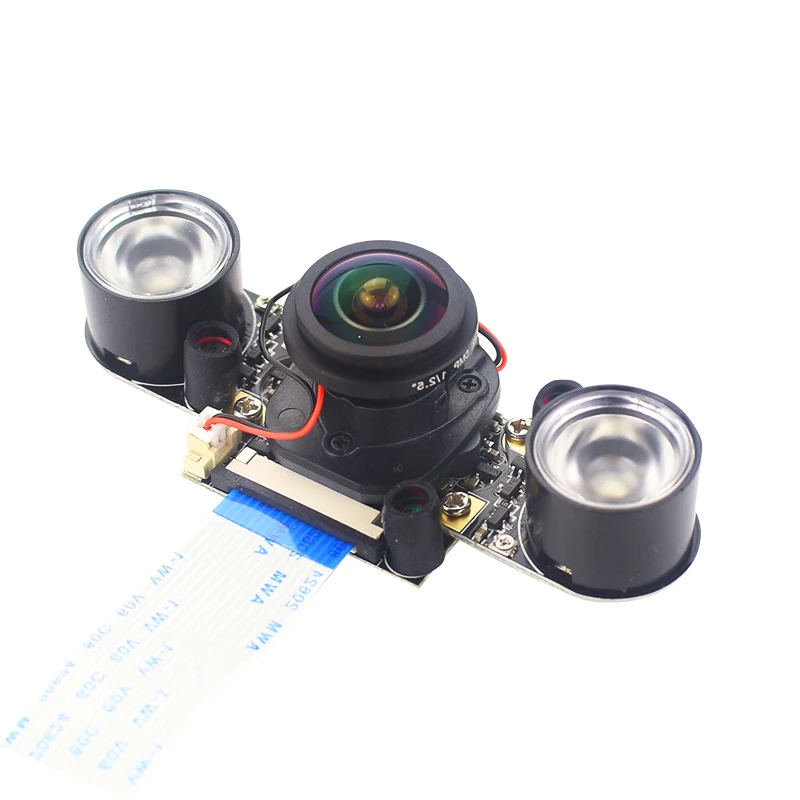

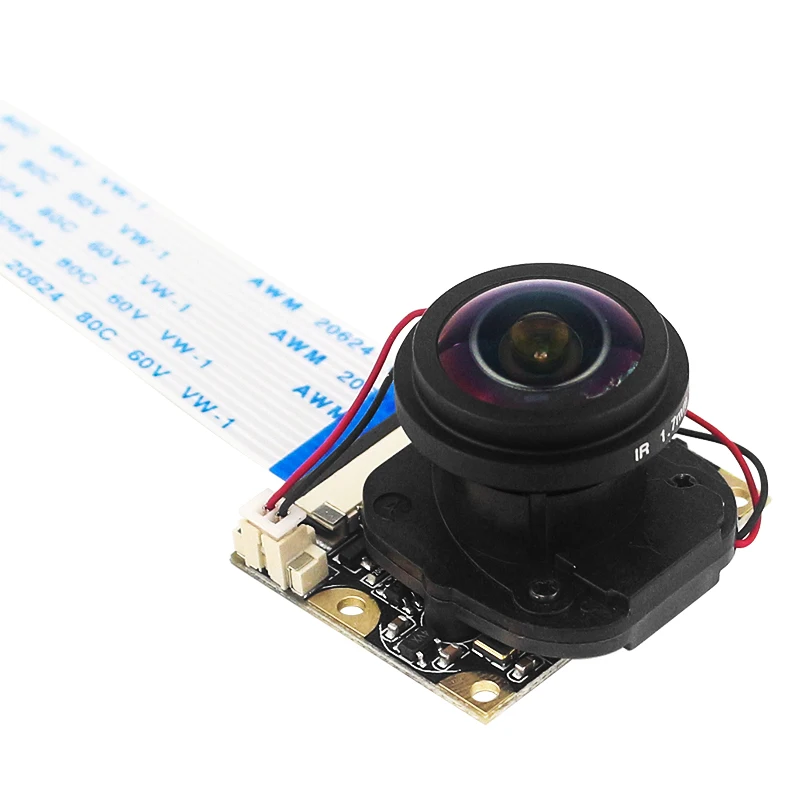

Option 9 / 10（OV5647 5MP 175° IR CUT Night Vision Camera）
Introduction:
The Raspberry Pi Camera is with IR-CUT function, so it can use in both day and night with normal color. When the camera at day light will switch to day mode, the camera image is a normal color image. When the camera at night will switch to night mode , the camera can normally identify the infrared fill light of the light. You can get the best imaging whatever it is in the daytime or at night.
Specification:
1. 5 megapixel OV5647 sensor
2. CMOS size: 1/4 inch
3. Aperture (F): 1.2
4. Focal Length: 3.6mm adjustable
5. Field of View: 175 degree
6. Sensor best resolution: 1080p
7. 4 screw holes to fix the IR lights and holder:
(1). Used for attachment
(2). Provides 3.3V power output
8. Size: 26.5x32 mm
9. Resolution: 2592x1944
Features:
1. Supports all revisions of the Raspberry Pi
2. Embedded removable IR-CUT filter, eliminating color distortion in the daylight ( by automatic or manual )
3. Comes with / without infrared LED, supports night visio
4. Supports connecting infrared LED and / or fill flash LED
Package list :
【175 Degrees IR CUT】
1 x 175 Degree IR CUT Night Vision Camera
1 x 15 cm FFC Cable
【175 Degrees IR CUT Set】
1 x 175 Degree IR CUT Night Vision Camera
1 x 15 cm FFC Cable
2 x Infrared Light
Option 11（OV5647 5MP 75° Non Night Vision Camera）
Specification:
1. Sensor : OV5647
2. Pixel : 5 megapixel
3. CMOS size: 1 / 4inch
4. Aperture (F): 1.8
5. Focal Length: 3.6mm adjustable
6. Diagonal angle: 75 degree
7. Sensor best resolution: 1080p
8. Power supply: Support 3.3V external power
supply
9. 4 screw holes : Used for fixing position, fix
LED light and provides 3.3V power output
10. Dimension: 25mm x 24mm x 23.8mm
11. Resolution: 2592x1944
12. Do not support night vision
Package list :
【F 75 】
1 x 75 Degree Non Night Vision Camera
1 x 15 cm FFC Cable

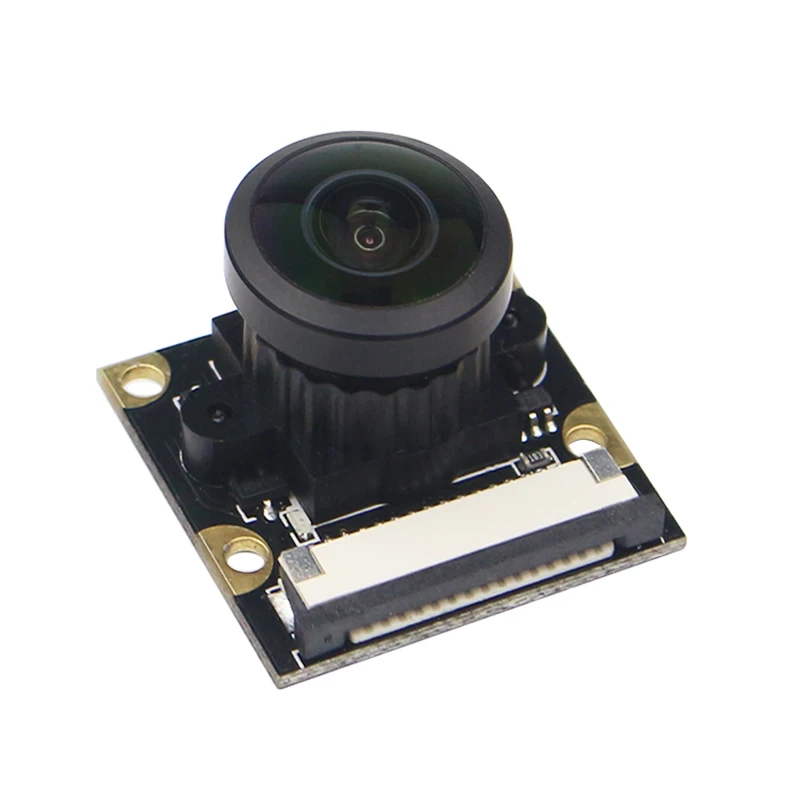

Option 12（OV5647 5MP 130° Non Night Vision Camera）
Specification:
1. Sensor : OV5647
2. Pixel : 5 megapixel
3. CMOS size: 1 / 4inch
4. Aperture (F): 2.35
5. Focal Length: 1.85mm adjustable
6. Diagonal angle: 130 degree
7. Sensor best resolution: 1080p
8. Power supply: Support 3.3V external power
supply
9. 4 screw holes : Used for fixing position, fix
LED light and provides 3.3V power output
10. Dimension: 25mm x 24mm x 17mm
11. Resolution: 2592x1944
12. Do not support night vision
Package list :
【G 130 】
1 x 130 Degree Non Night Vision Camera
1 x 15 cm FFC Cable

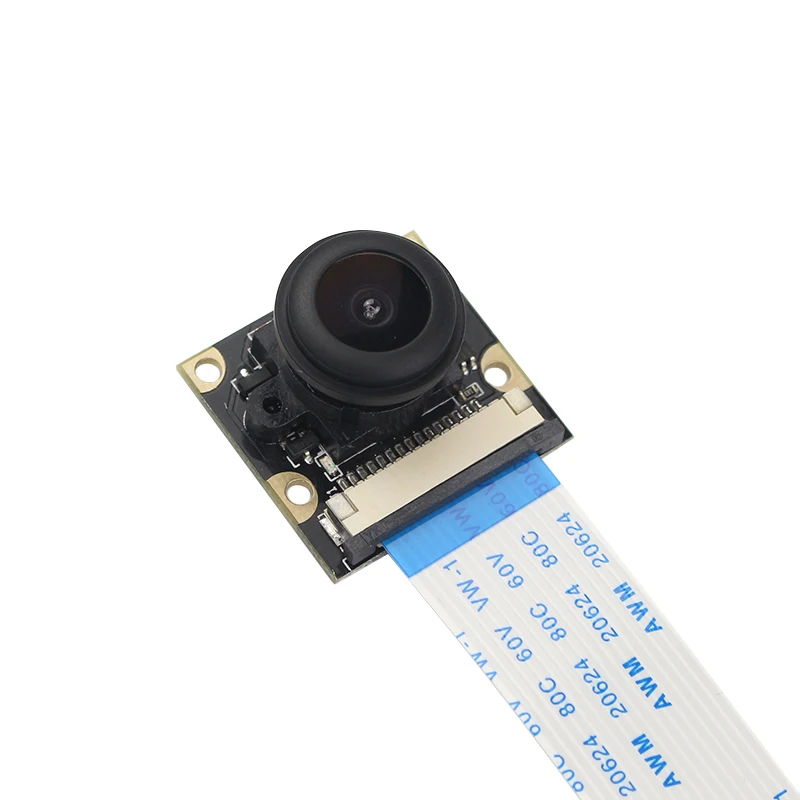

Option 13（OV5647 5MP 220° Non Night Vision Camera）
Specification:
1. 5 megapixel OV5647 sensor
2. CCD size : 1/4inch
3. Sensor best resolution : 1080p
4. 4 screw holes: used for attachment , connect 3.3V power output
5. Focal length : 2.1
6. Diagonal angle : 220 degree
7. Dimension: 25mm x 24mm
Package list :
【H 220 】
1 x 220 Degree Non Night Vision Camera
1 x 15 cm FFC Cable

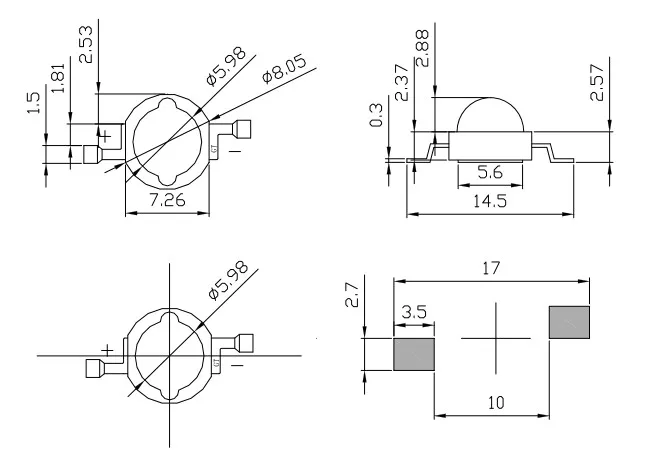

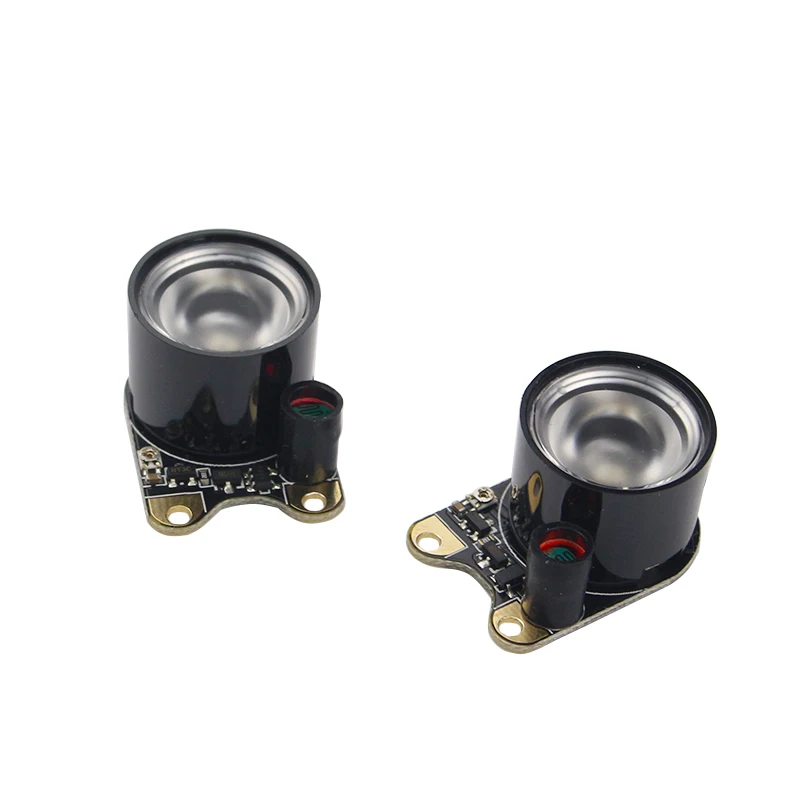

Option 14（2pcs IR Lights）
Package list :
2 x Infrared Night Vision Light
