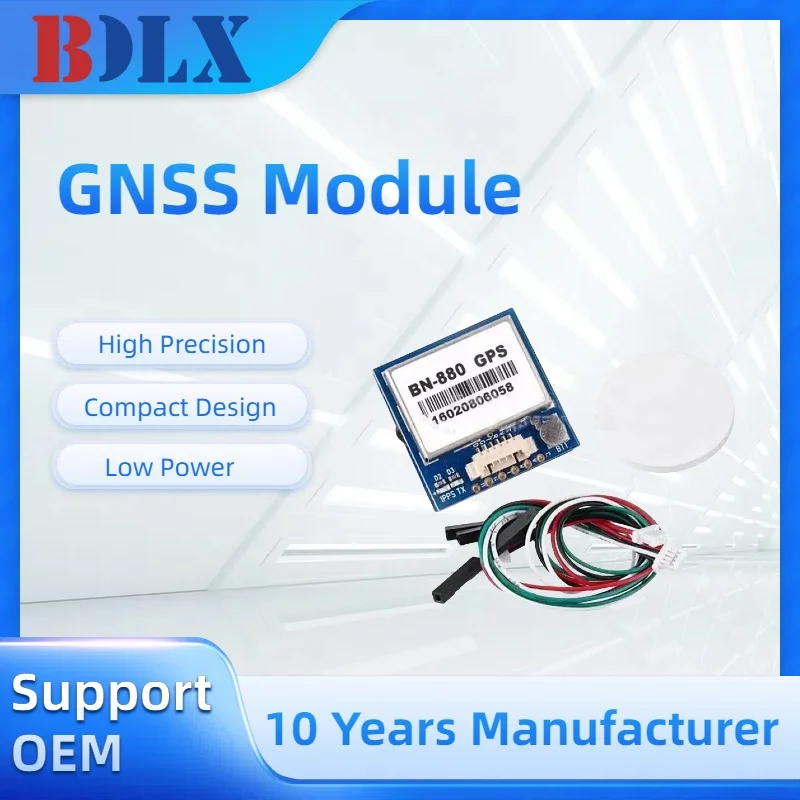

BN-880 BN880 Dual GPS GLONASS Module M8030-KT High Precision Antenna with TTL Level for FPV Drone RC Racing Quadcopter UAV GNSSSpecification
Electrical Characteristics
Receiving Format : GPS,GLONASS,Galileo,BeiDou,QZSS and SBAS
Frequency : GPS L1,GLONASS L1,BeiDou B1,SBAS L1,Galileo E1
Channels : 72 Searching Channel
Sensitivity
Tracking : -167dBm
Reacquisition : -160dBm
Cold start : -148dBm
Hot start : -156dBm
Accuracy
Position Horizontal : 2.0 m CEP 2D RMS SBAS Enable (Typical Open Sky)
Velocity : 0.1m/sec 95% (SA off)
Timing : 1us synchronized to GPS time
Acquisition Time
Cold Start : 26s
Warm start : 25s
Hot start : 1s
Data and Update Rate
Support Rate : 4800bps to 921600bps,Default 9600bps
Data Level : TTL or RS-232,Default TTL level
Data Protocol : NMEA-0183 or UBX, Default NMEA-0183
Single GNSS : 1Hz-18Hz
Concurrent GNSS : 1Hz-10Hz,Default 1Hz
Operational Limits
Altitude : 50,000m Max
Velocity : 515m/s Max
Acceleration : Less than 4g
Power consumption
VCC : DC Voltage 3.0V-5.5V,Typical: 5.0V
Current : Capture 50mA/5.0V
Operating temp : -40 °C ~ +85°C
Storage Temp : -40°C ~ +105°C
Indicator :
TX LED:blue.The data output, TX LED flashing
PPS LED:red.PPS LED not bright when GPS not fixed,flashing when fixed
Wiring:
GND,TX output,RX input,VCC(3.0v-5.5v)
BN-220 GPS Module:
Dimension : 22mm*20mm*6mm
Weight : 5.3g
Connector : 1.00mm spacing between the 4pins patch seat
Specification:
Electrical Characteristics
Chipset : M8030-KT
Receiving Format : GPS,GLONASS,BeiDou,QZSS and SBAS
Frequency : GPS L1,GLONASS L1,BeiDou B1,SBAS L1
Channels : 72 Searching Channel
Sensitivity
Tracking : -167dBm
Reacquisition : -160dBm
Cold start : -148dBm
Hot start : -156dBm
Accuracy
Position Horizontal : 2.0 m CEP 2D RMS SBAS Enable (Typical Open Sky)
Velocity : 0.1m/sec 95% (SA off)
Timing : 1us synchronized to GPS time
Acquisition Time
Cold Start : 26s
Warm start : 25s
Hot start : 1s
Data and Update Rate
Support Rate : 4800bps to 921600bps,Default 9600bps
Data Level : TTL or RS-232,Default TTL level
Data Protocol : NMEA-0183, Default NMEA-0183
Single GNSS : 1Hz-18Hz
Concurrent GNSS : 1Hz-10Hz,Default 1Hz
Operational Limits
Altitude : 50,000m Max
Velocity : 515m/s Max
Acceleration : Less than 4g
Power consumption
VCC : DC Voltage 3.0V-5.5V,Typical: 5.0V
Current : Capture 50mA/5.0V
Operating temp : -40 °C ~ +85°C
Storage Temp : -40°C ~ +105°C
Indicator :
TX LED:blue.The data output, TX LED flashing
PPS LED:red.PPS LED not bright when GPS not fixed,flashing when fixed
Wiring:
GND,TX output,RX input,VCC(3.0v-5.5v)
Pin Description:
PIN
PIN Name
I/O
Description
1
GND
G
Ground
2
TX
O
Serial Data Output.
3
RX
I
Serial Data Input.
4
VCC
I
DC 3.6V - 5.5V supply input,Typical: 5.0V
BN-880 GPS Description:
Model:BN-880
Power Supply: DC Voltage 2.8V~6.0V,Typical:3.3V or 5.0V
Consumption: Capture 50mA@5V
Receiving Format: GPS,GLONASS,BeiDou
Receiving Channel: 72 Searching Channel
Receiving Sensitivity: Trace -167dBm
Capture-148dBm
Positioning Time: Cold Start:avg26s
Warm Start:avg25s
Hot Start:avg3s
Level Positioning Precison: 2m At Open Wind
Output Frequency: 1Hz-10Hz,Default 1Hz
Speed Precison: 0.1 m/s (Without Aid)
Acceleration Precison: 0.1 m/s (Without Aid)
Dynamic Characteristics: Max Height:18000m
Max Speed:5153m/s
Max Acceleration:4G
UART Interface:UART Port: TXDA and RXDA
Support Rate: 4800bps to 115200bps,Default 38400dps
Working Temperature: -40-+85
Storage Temperature: -40-+85
Size: 28mm x 28mm x 10mm
Weight: 10g
The Module's Pins: SDA,GND,TX,RX,VCC,SCL
Features:
GPS Module,Dual Module Compass
With electronic compass IC HMC5883
1.25mm spacing between the 6pins patch seat
