Product Description
Raspberry Pi Compute Module 4
High Speed, Large RAM, Low Power, Boosted Performance
Raspberry Pi Compute Module 4harnesses the compute power of the popular Raspberry Pi 4 Model B, bringing it to a smaller form factor suitable for integration into products.
Raspberry Pi Compute Module 4incorporates a quad-core ARM Cortex-A72 processor, dual video output, and a wide selection of other interfaces. Available in 32 variants, with a range ofRAMandeMMC Flashoptions, and with or withoutwireless connectivity.

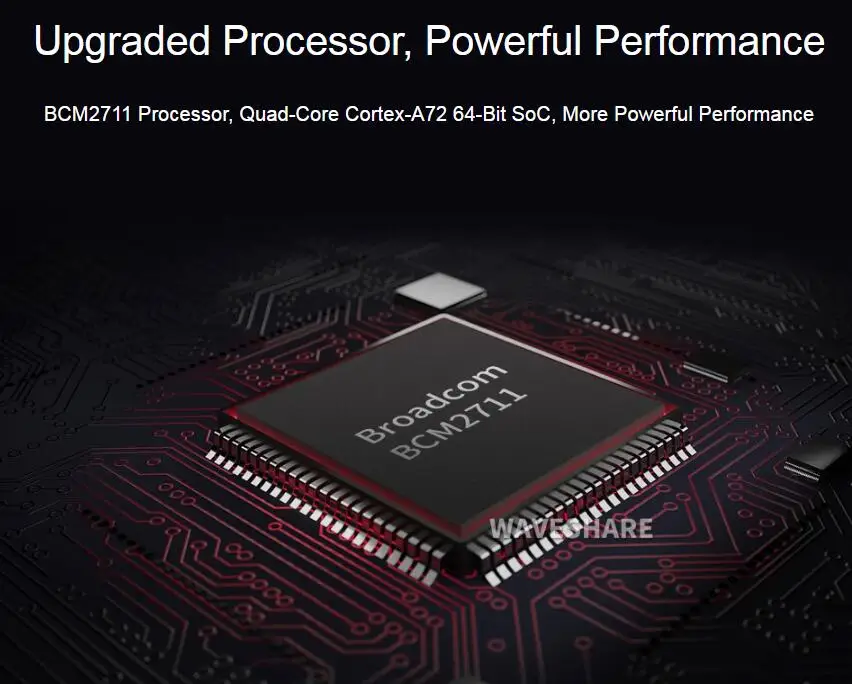

Completely Upgraded, More PowerfulUpgraded processor BCM2711, quad-core Cortex-A72 (ARM v8) 64-bit SoC, more powerful performance
More options for RAM (1GB/2GB/4GB/8GB), competent for large-scale data compilation
Faster eMMC Flash storage, up to 100 MBytes/s data rate, which is four times faster than the CM3+
Option for fully certified radio module, the same one used on Pi4B, supports either PCB trace antenna or external antenna, more suitable for industrial applications
Adopts B to B connectors, more stable than the Goldfinger edge connector of previous generations
Onboard new Gigabit Ethernet PHY supporting IEEE1588, suitable for network applications
Onboard new PCIe Gen 2 x1 interface, allows connecting more useful modules
PROCESSOR | Broadcom BCM2711 quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz |
MEMORY | 1GB, 2GB, 4GB or 8GB LPDDR4 (depending on variant) |
STORAGE | 0GB (Lite), 8GB, 16GB or 32GB eMMC Flash (depending on variant) |
CONNECTIVITY | Optional wireless LAN, 2.4GHz and 5.0GHz IEEE 802.11b/g/n/ac wireless, Bluetooth 5.0, BLE with onboard and external antenna options |
Onboard Gigabit Ethernet PHY supporting IEEE1588 | |
1 × USB 2.0 interface | |
PCIe Gen 2 x1 interface | |
28 GPIO signals | |
SD card interface for SD card (for use only with Compute Module 4 variants without eMMC) | |
VIDEO | Dual HDMI interface (up to 4Kp60 supported) |
2-lane MIPI DSI display interface | |
2-lane MIPI CSI camera interface | |
4-lane MIPI DSI display interface | |
4-lane MIPI CSI camera interface | |
MULTIMEDIA | H.265 (4Kp60 decode); H.264 (1080p60 decode, 1080p30 encode); OpenGL ES 3.0 graphics |
INPUT POWER | 5V DC |
OPERATING VOLTAGE | -20°C ~ 85°C ambient |
DIMENSIONS | 55 × 40 × 4.7mm |
High Speed WiFi And BluetoothDual-Band WiFi And Bluetooth5.0 BLE Raido Module, Surf The Web Anywhere
Supports Either PCB Trace Antenna Or External Antenna, Suitable For Industrial Applications
Onboard Resources
Ordering CodesMODEL | WIRELESS | RAM | EMMC FLASH |
CM4 | 1 = Yes | 01 = 1GB | 000 = 0GB (Lite) |
Example:CM4104032, Compute Module 4 with onboard wireless, 4GB RAM, and 32GB eMMC Flash | |||
CM4 | 1 | 04 | 032 |
WIRELESS | RAM | EMMC FLASH | PART NUMBER |
× | 1GB | 0GB (Lite) | CM4001000 |
× | 1GB | 8GB | CM4001008 |
× | 1GB | 16GB | CM4001016 |
× | 1GB | 32GB | CM4001032 |
× | 2GB | 0GB (Lite) | CM4002000 |
× | 2GB | 8GB | CM4002008 |
× | 2GB | 16GB | CM4002016 |
× | 2GB | 32GB | CM4002032 |
× | 4GB | 32GB | CM4004032 |
× | 8GB | 32GB | CM4008032 |
PCB/ext | 1GB | 0GB (Lite) | CM4101000 |
PCB/ext | 2GB | 0GB (Lite) | CM4102000 |
PCB/ext | 2GB | 8GB | CM4102008 |
PCB/ext | 2GB | 16GB | CM4102016 |
PCB/ext | 2GB | 32GB | CM4102032 |
PCB/ext | 4GB | 0GB (Lite) | CM4104000 |
PCB/ext | 4GB | 8GB | CM4104008 |
PCB/ext | 4GB | 16GB | CM4104016 |
PCB/ext | 4GB | 32GB | CM4104032 |
PCB/ext | 8GB | 32GB | CM4108032 |
