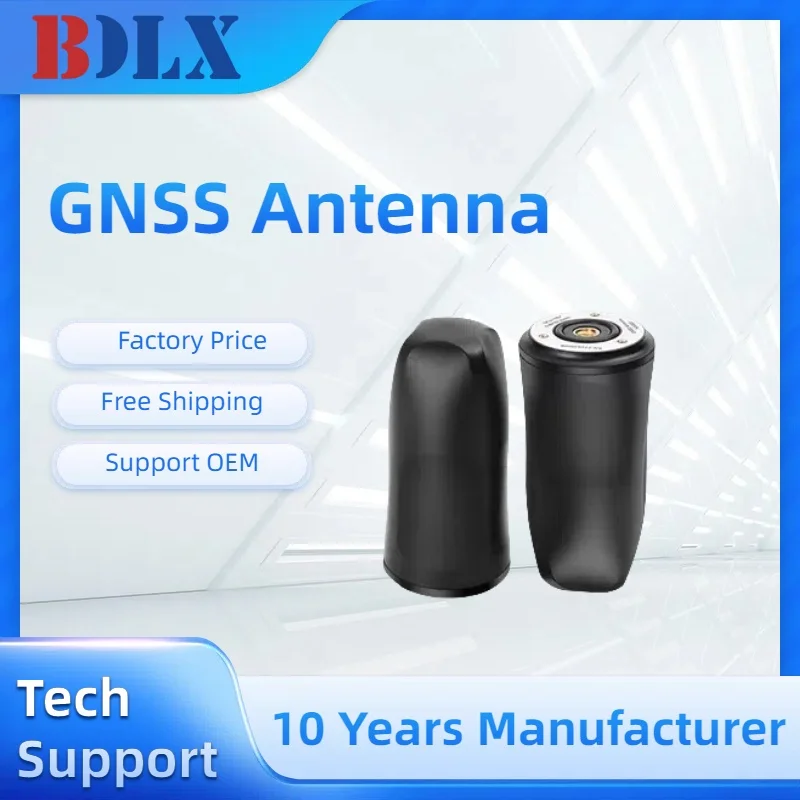

HX-609 High-precision 4-arm spiral antenna GNSS Beidou navigation GPS module active RTK differential positioning GPS UAV Antenna
Products Description
Form of antenna
Gluestick
Patch Architecture
Quadrifilar Helix
working Frequency
1164MHz~1300MHz1525MHz~1621MHz LNA Gain* 32±3.0dB Peak Gain ≥1.5 dBi Supported positioning signal bands GPS: L1 L2 L5;
BDS: B1 B2 B3;
GLONASS: L1 L2;
GALILEO: E1 E2 E5a E5b E6;
L-Band SIZE Φ40*82.6 Weight ≤18g VSWR ≤1.5 Connector SMA-J Ploriaztion RHCP Axial ratio ≤1.5dB Radiation pattern 360° impedance 50ohm Output VSWR ≤1.8:1 typ. 2.0:1max Radome ABS+PC Noise Figure ≤1.5 dB@25°C , Typ Waterproof IP67 Operation Voltage 3.0~12V DC Operation Current ≤30mA Phase-center accuracy ≤2.0mm Phase-center repeatability ≤1.0mm Humidity 95% No-condensing Application Scenario It is applied in the field of surveying and mapping to achieve the static millimeter-level positioning accuracy in the process of engineering lofting, topographic mapping and various control measurements.
