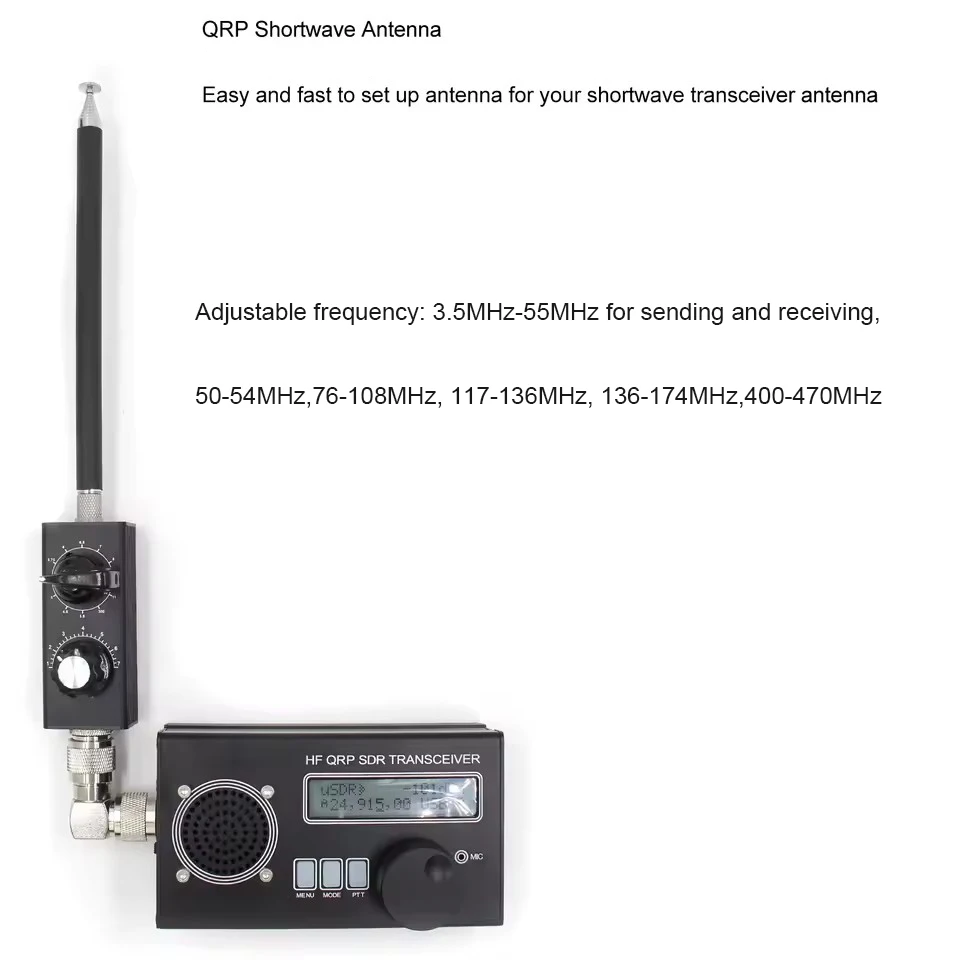

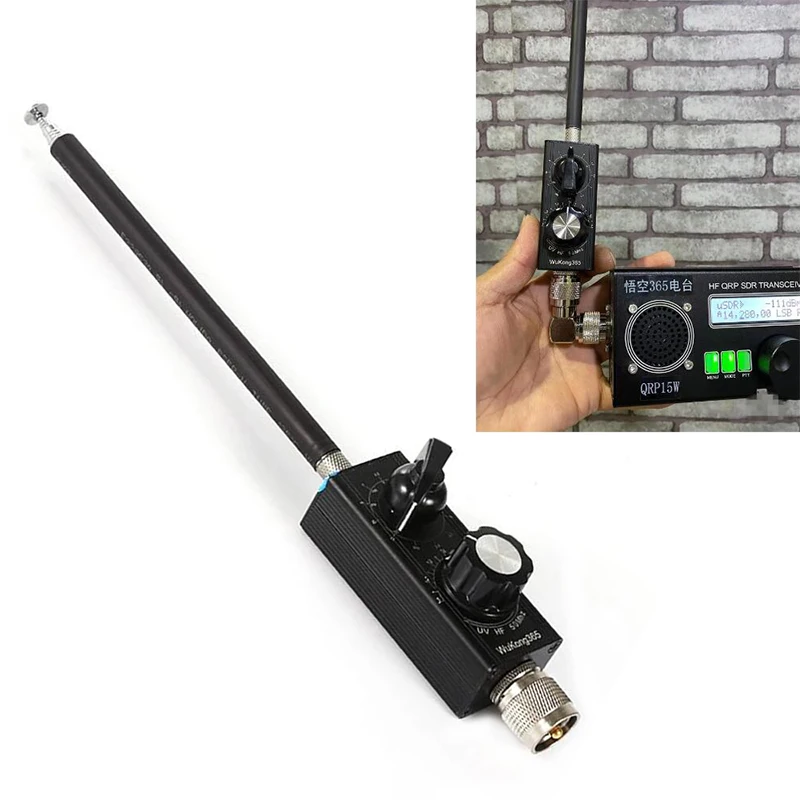

Mini-ANT 20W QRP Shortwave Antenna 5-55MHz for Yaesu FT-817 818 ICOM 703 K1 USDX

Product Description

Mini-ANT 20W QRP Shortwave Antenna HF Antenna 5MHz-55MHz Full-Band Tuned Antenna for Yaesu FT-817 818 ICOM 703 K1 K2 USDX MCHF

Specifications:
- Adjustable frequency: 3.5MHz-55MHz for sending and receiving,

50-54MHz,76-108MHz, 117-136MHz, 136-174MHz,400-470MHz
- VSWR less than 1.5 at 7MHz/10MHz/14MHz/21MHz
- Power: 20W
- FM 76mhz-108mhz reception
- Can receive UHF VHF frequencies. With transmitting assistance funciton
- Adjust frequency via its knob; and the band switch selects the short-wave high and low bands
- Stretched size 140cm/55.1" (including tuner). Made of stainless steel
- Unstretched size around 30cm/11.8" (including tuner). Tuner size 10 x 3 x 3cm/3.9 x 1.2 x 1.2" (LxWxT)

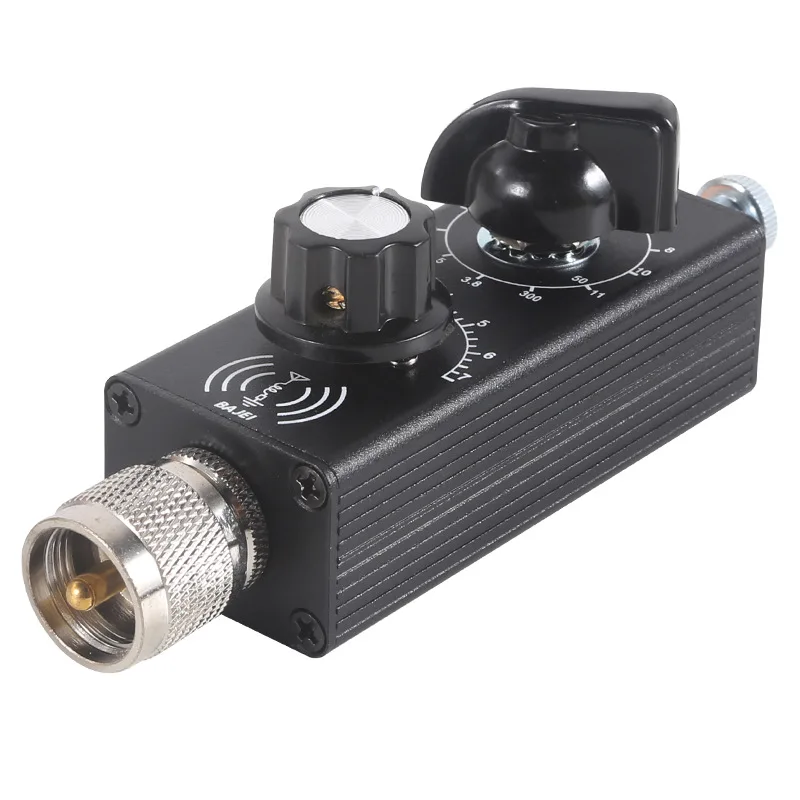

- Top with M4 male connector. Output M male or BNC male connector

How to use the small whip antenna:

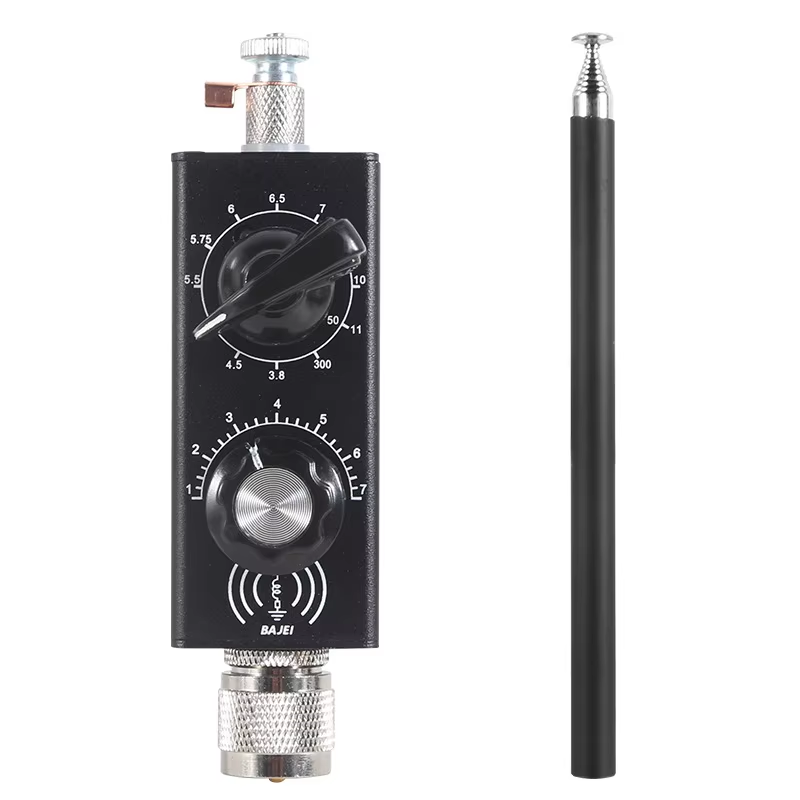

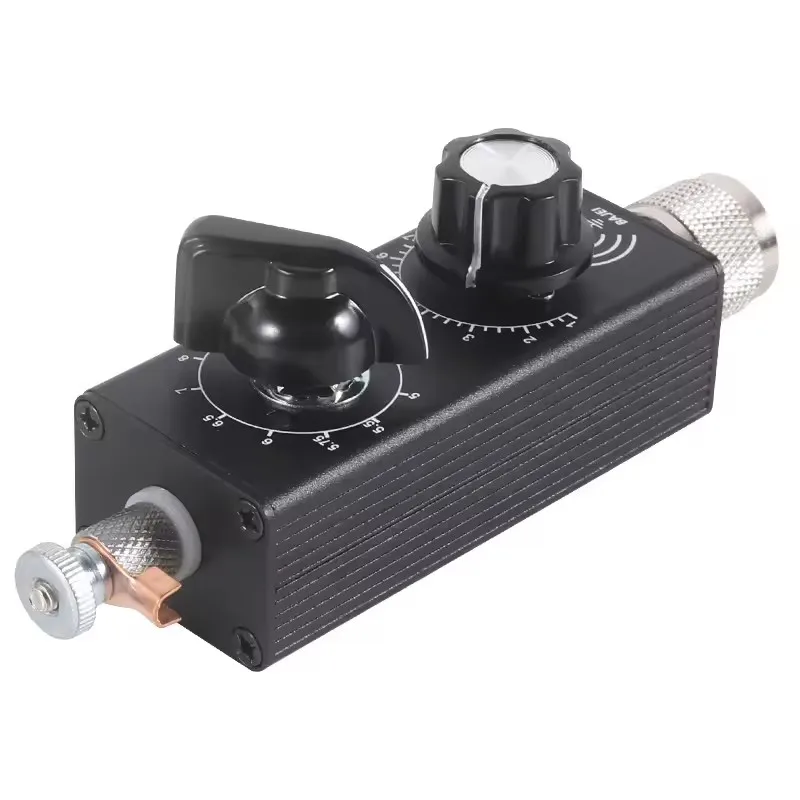

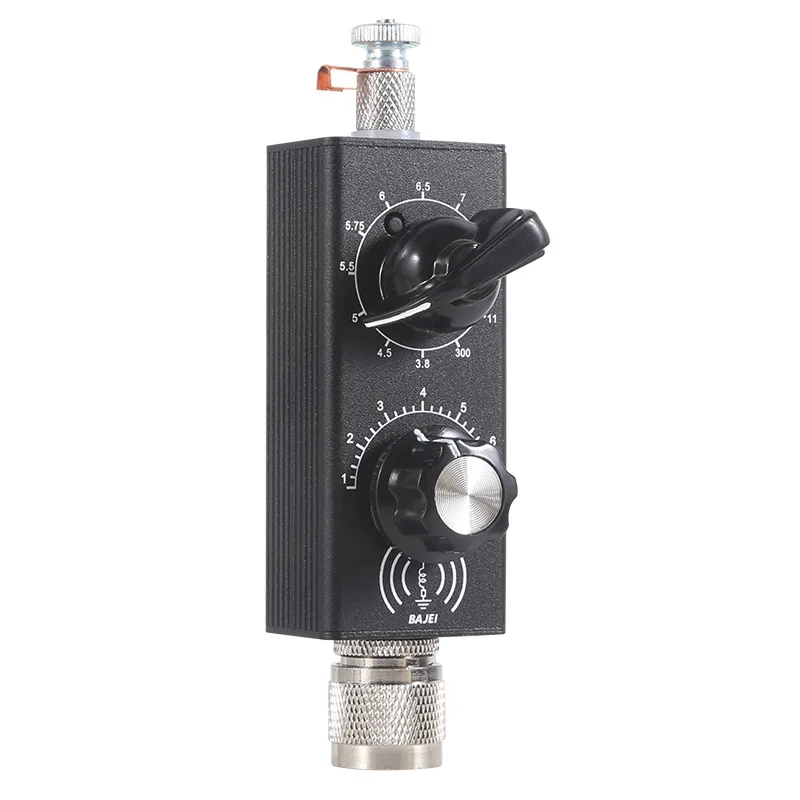

1. The knob above is the band switch of each frequency. The knob below is for fine adjustment of frequency and vibration point. The upper outer ring 11 and inner ring 50 represent the common position of 11 – 50MHz. 8 and FM represent 8MHz and FM bands can use this position. And so on. Then select the knob below to fine tune to find the best standing wave suggestion link talent to check the vibration point.

2. Expand the use method: remove the rod antenna. Connect a 20 meter long line. Long lines are erected high or on the roof. The tuning method is the same as above. The launch efficiency will be improved several times!

Package Included:
- 1 x Tuner
- 1 x Antenna
