Product Description
Features:

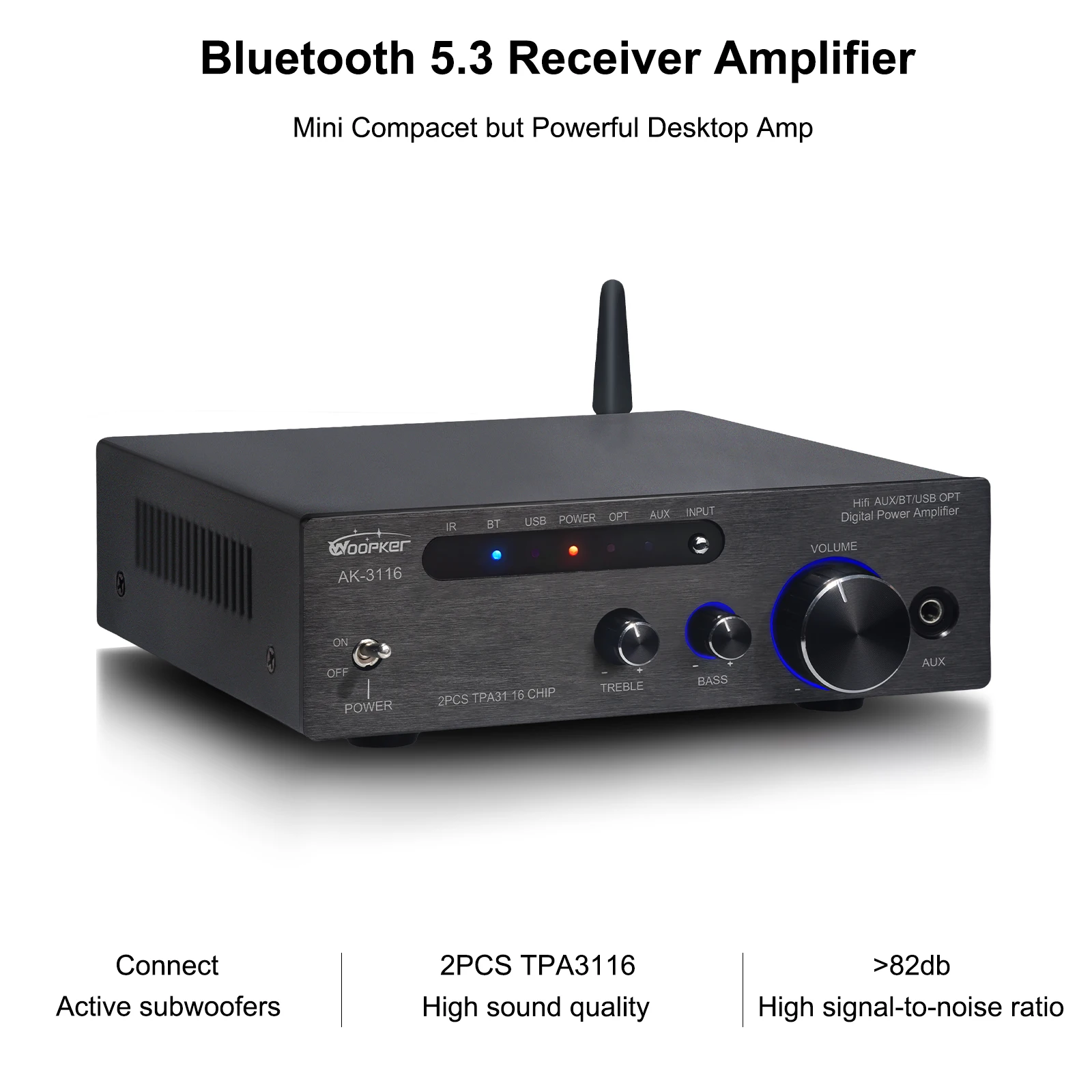

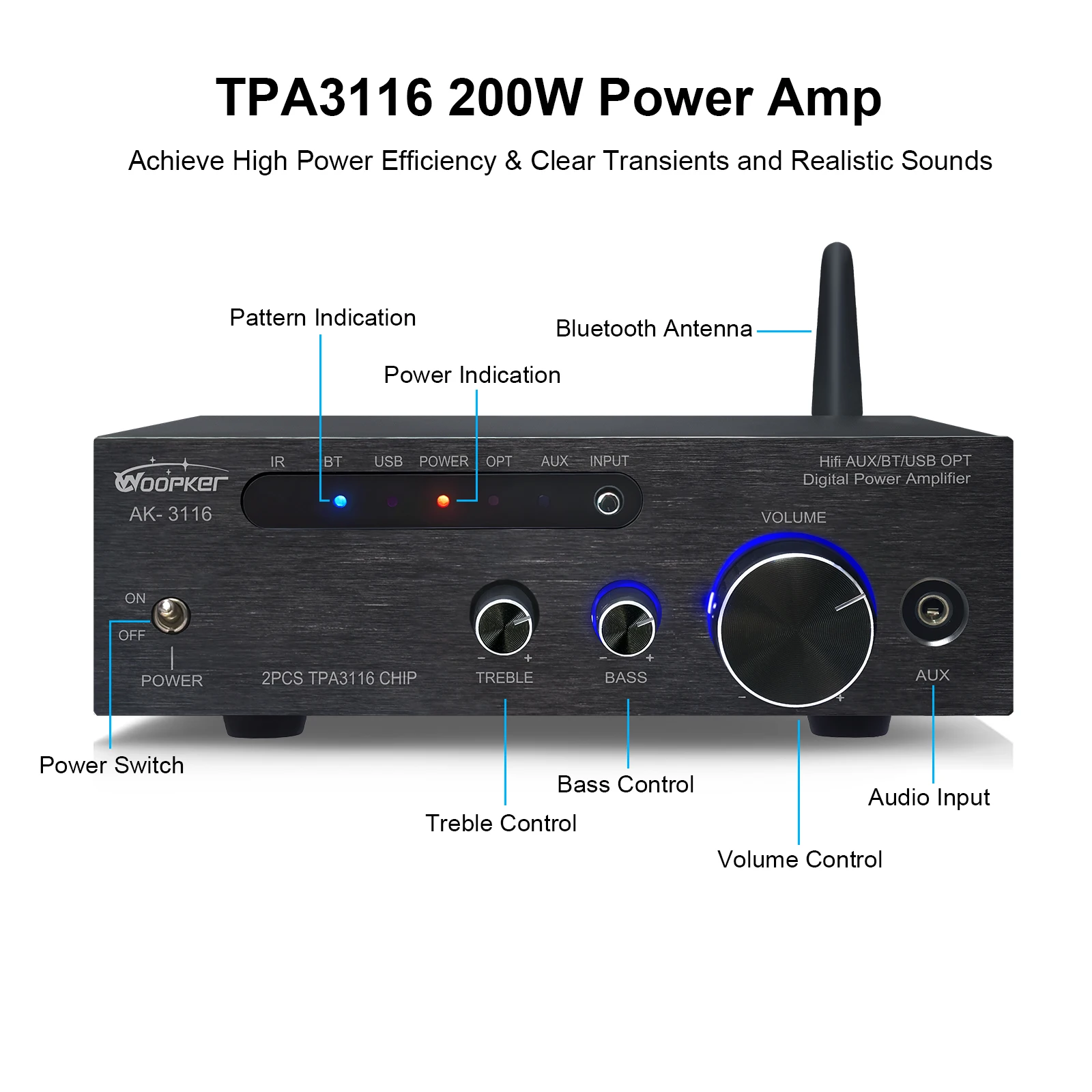

● Using chip TPA3116D2, designed for customers who pursue HiFi sound, a small and compact design but practical and powerful small HiFi Bluetooth wireless amplifier;

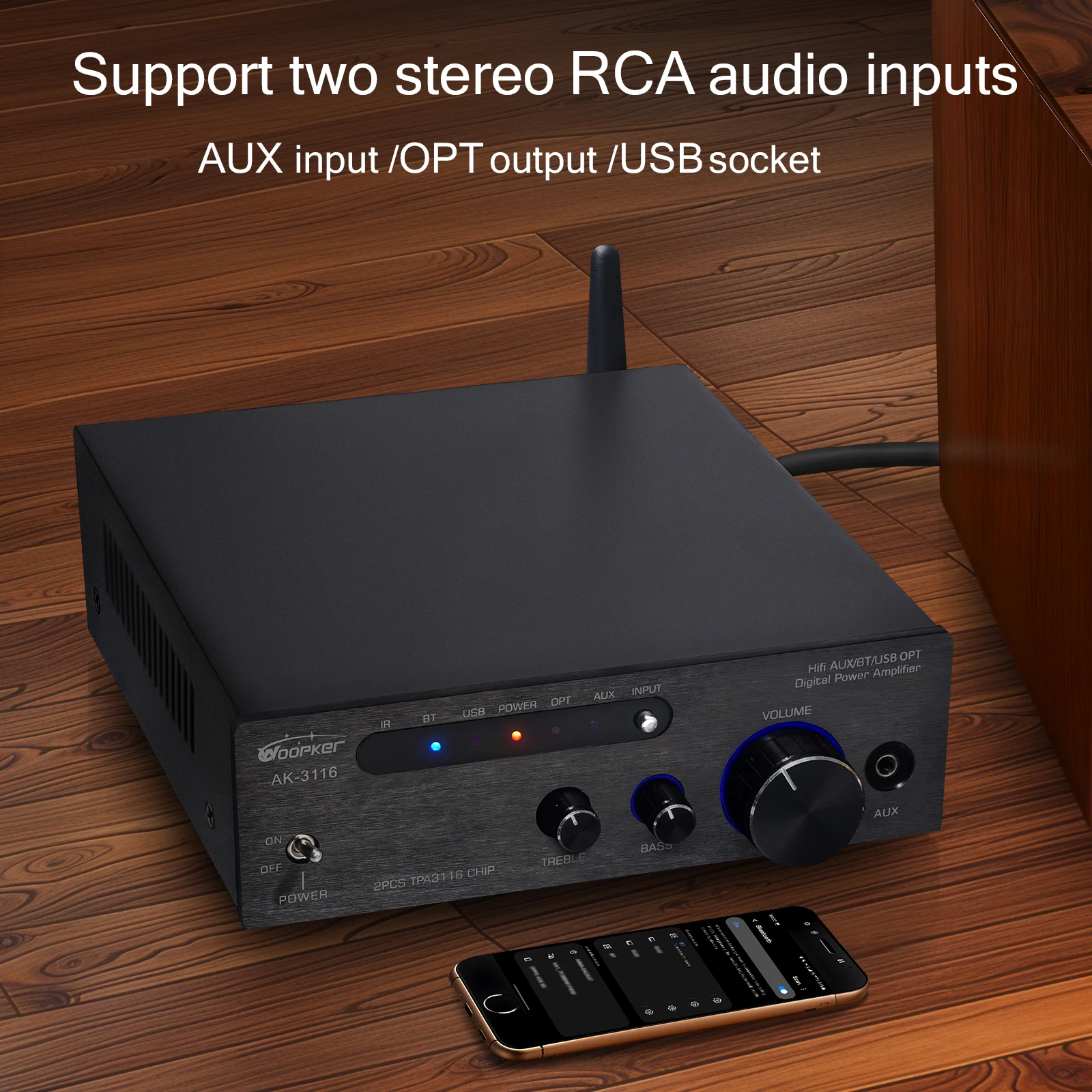

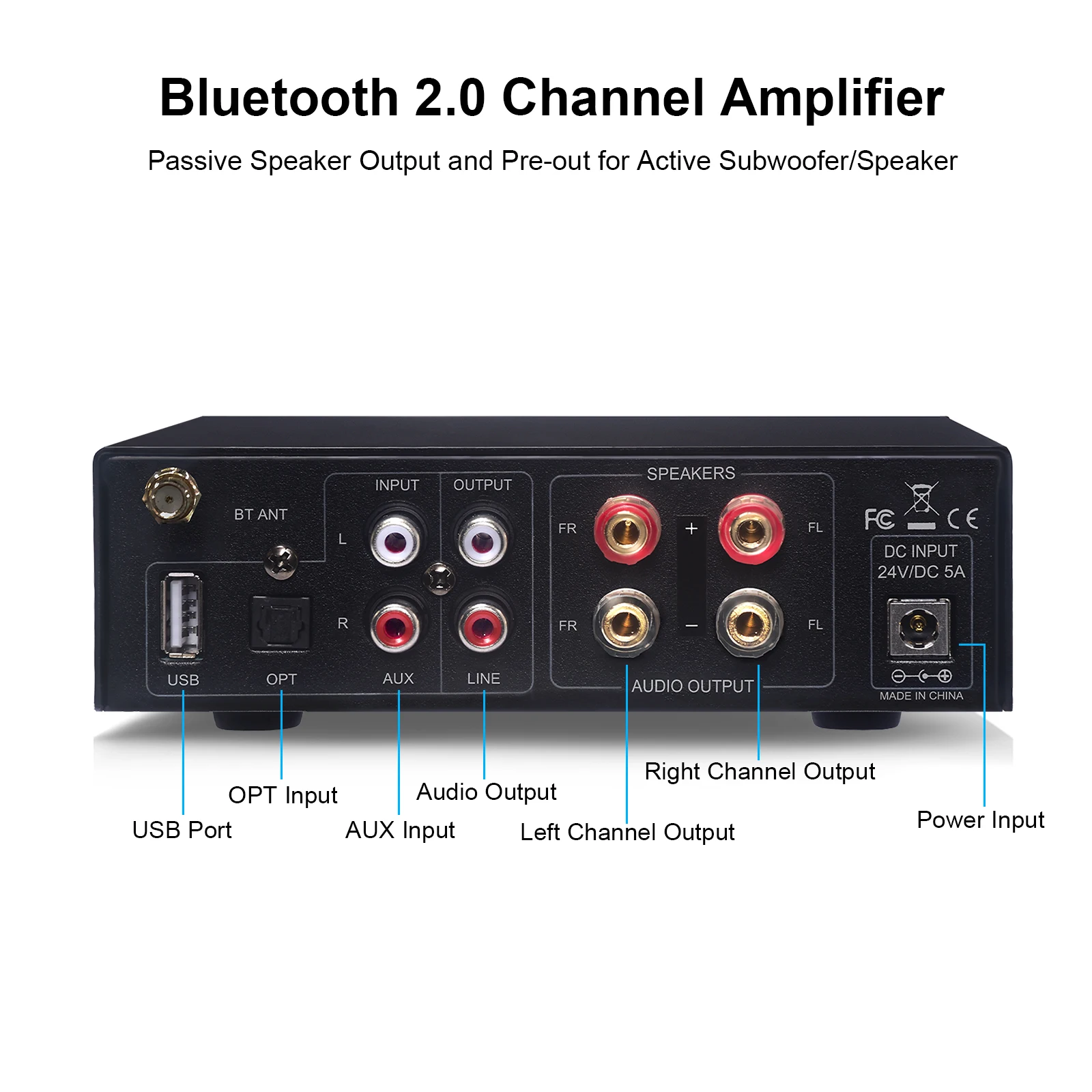

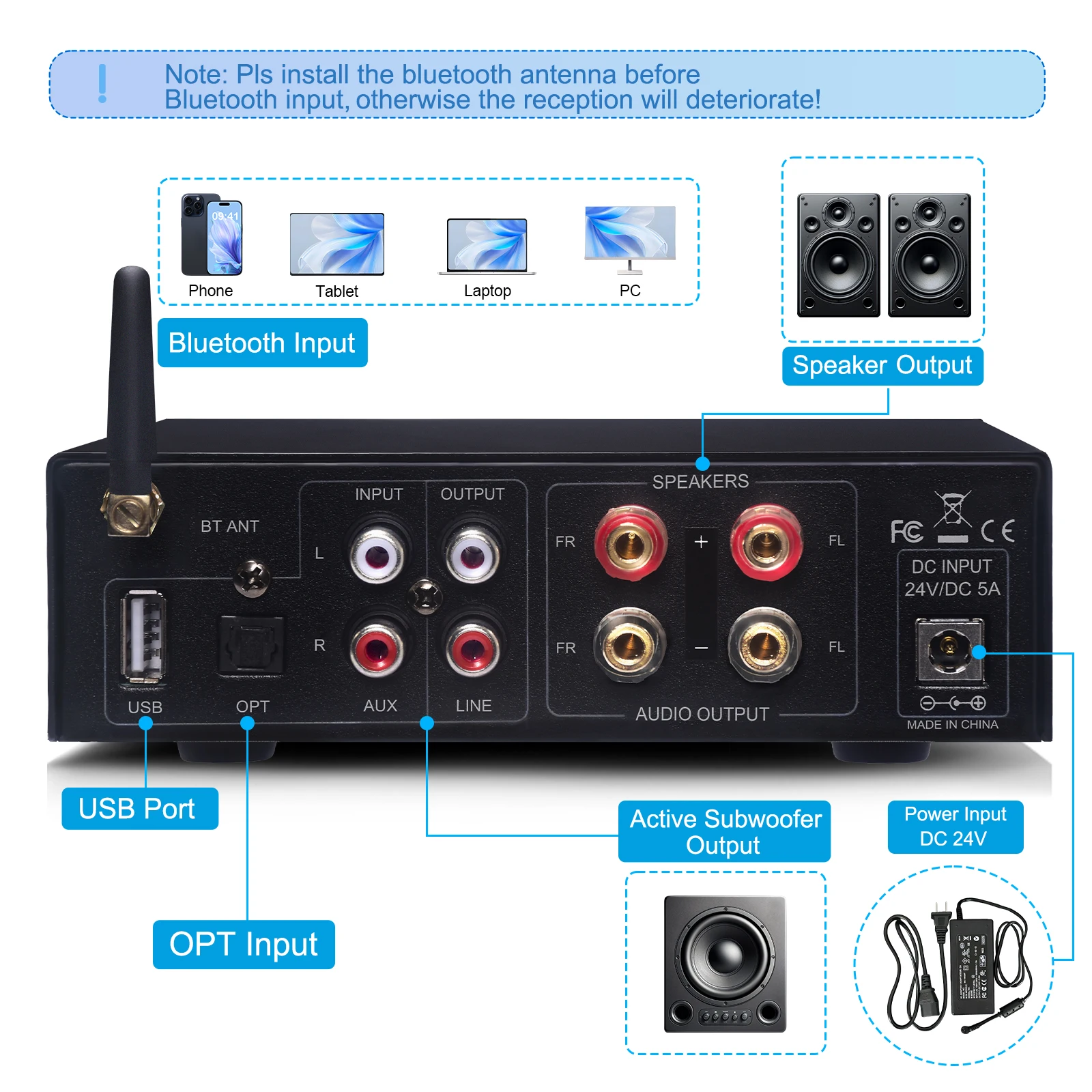

● Support two stereo RCA audio inputs, one AUX input and OPT output, with USB socket

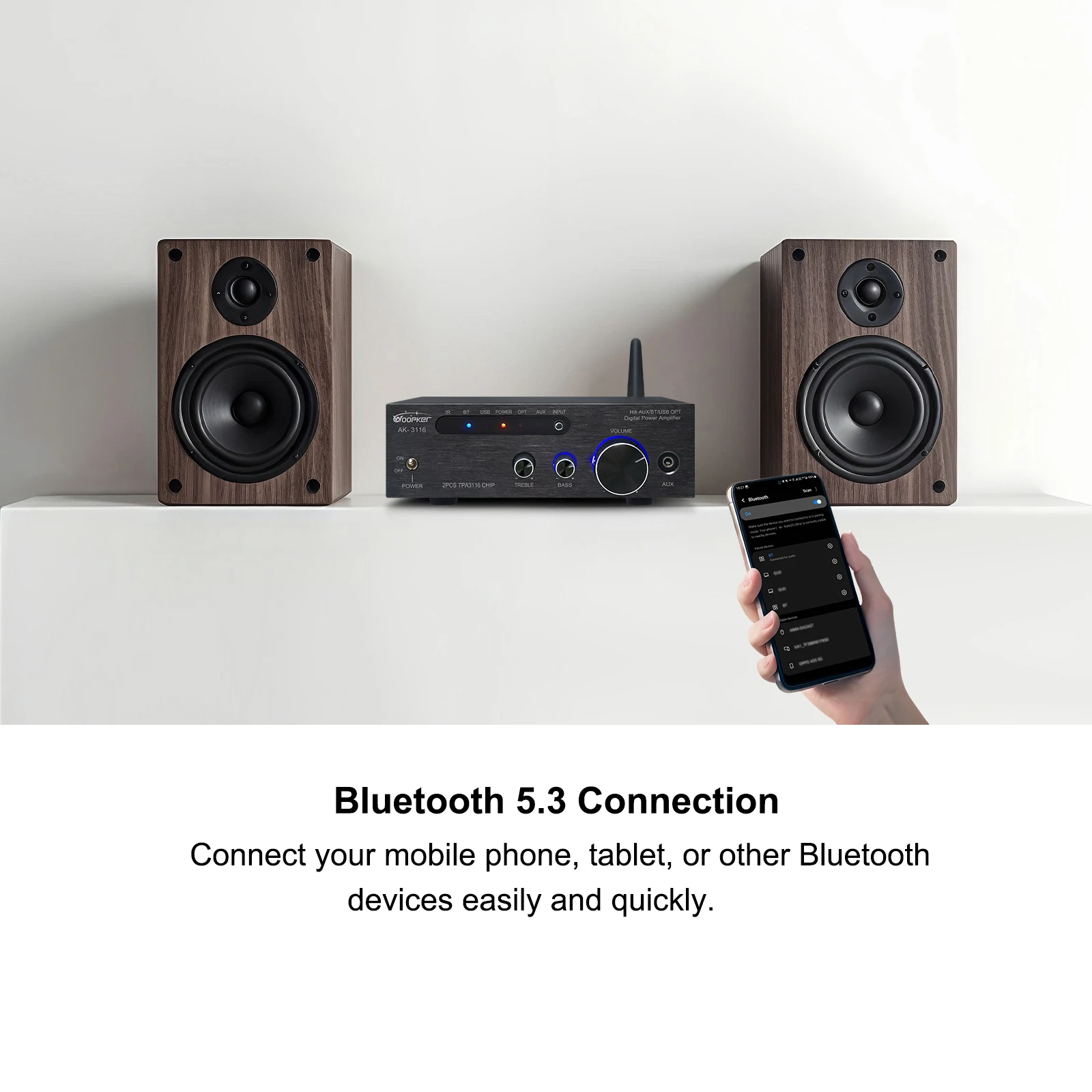

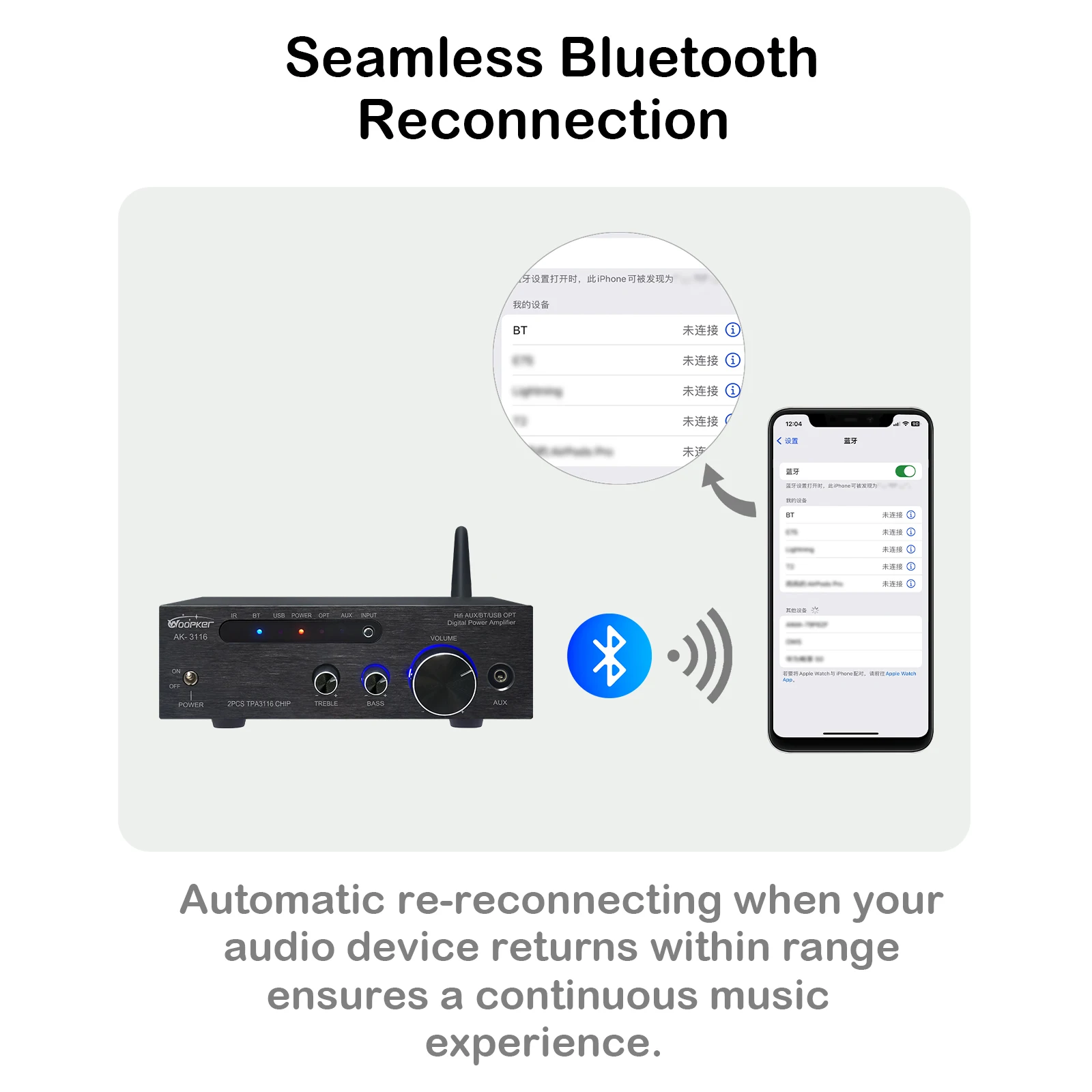

● Bluetooth 5.3 core, with a longer connection range to ensure low signal latency. No popping sound and no noise when establishing a Bluetooth connection;

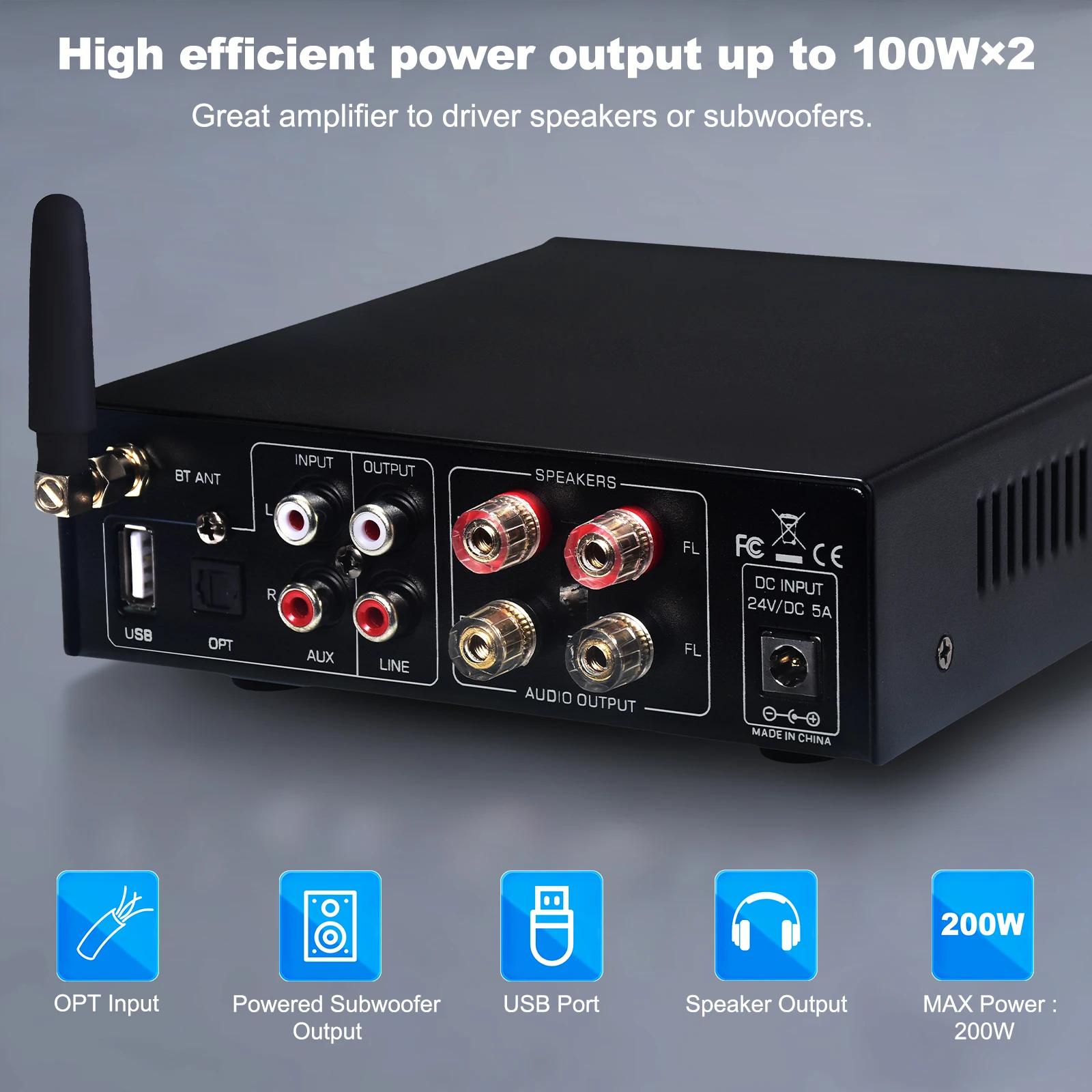

●Maximum output 100W x 2 speakers (both active and passive speakers can be connected, only for active subwoofers), it is not recommended to use a power supply below 24V;
● Advanced circuit design, built-in speaker protection circuit, most suitable for bookshelf/computer/desktop/speaker in your home;
● We offer friendly customer service, you can contact us with any questions!
Specifications:
Model: AK-3116 Audiophile Digital Amplifier
Power Amplifier Chip: TPA3116*2
Power Supply Voltage: DC24V, current 5A or more, voltage socket 5.5*2.1mm, external negative internal positive (recommended DC24V5A-8A)
Output Impedance: 4-8 ohms
Rated Power: 100W+100W
Sound Channel: 2.0
Frequency Response: 20-20KHz
Distortion: 0.1%
Signal-to-noise Ratio: >82db
Sensitivity: 82db
Left and Right Channel Bass Adjustment Range:+12db-14db

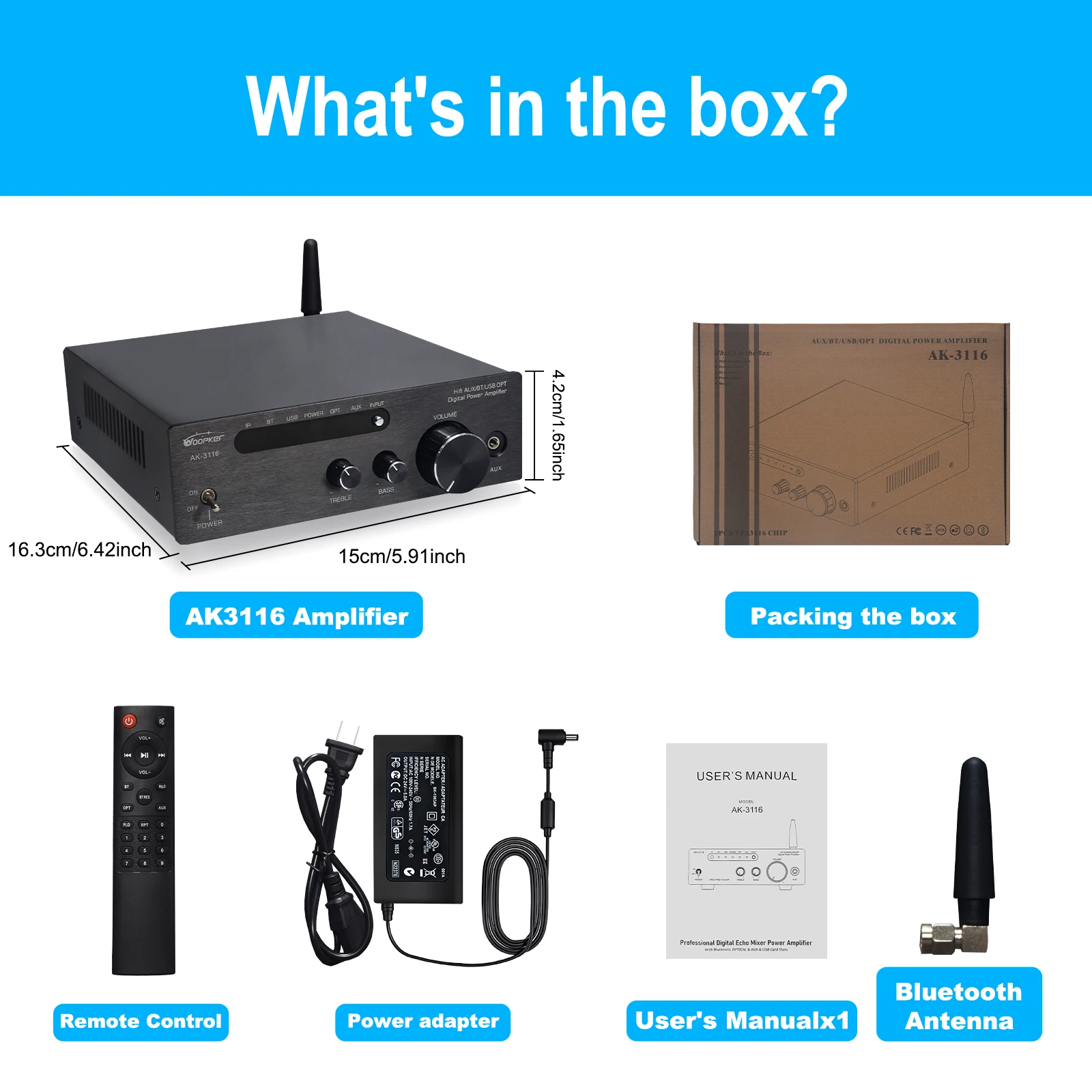

Products Included:
1 × AK-3116 Power Amplifier
1 × Detachable Bluetooth Antenna
1 × 24V/5A Power Adapter
1 × Power Cable
1 × Remote Controller (Batteries are not included)
1 × Manual
Precautions for use:
1. Do not use cheap audio signal lines. These lines are not shielded per se and generate high-frequency noise. The louder the potentiometer turns, the louder the noise.
2. The correct order of use is to connect the notebook power supply to the amplifier first, and then have the notebook power supply connected to the mains. The wrong way is to connect the notebook power supply to the mains first, and then connect the notebook plug to the digital amplifier. Because there are filter capacitors inside the digital function, they will produce 0.1 seconds of low-voltage small sparks, although it does not affect the performance, but in this way, the habit is not good.
3. Try to use a high current power supply. If only 2-3A power supply is used, the output performance will be greatly reduced.
Tips:
For sufficient output power, the higher the supply voltage, the higher the relative power if the audio input is sufficient and the supply voltage/current is sufficient. Speakers with different impedance have different output power. Please note that the higher the speaker resistance, the lower the relative sound power if the voltage and current are sufficient!
About Signal Sources
The most common signal sources are cell phones and computers. The quality of audio signals from different brands and models of cell phones and computers varies. Generally speaking, if the audio signal comes directly from the computer's motherboard, it is of poor quality and cannot be heard at low volume, but it will be obvious when amplified by an amplifier.
If you are not satisfied with the sound quality of the computer itself, you can go to the store and purchase a USB decoder (a statement for external USB sound cards) to improve the audio source and greatly reduce the noise. Evaluating the source of the noise is relatively simple, leave the input signal out, increase the volume of the amplifier and listen to the noise in the speakers, if there is no noise, the noise is coming from the source or the signal line.
