Product Description

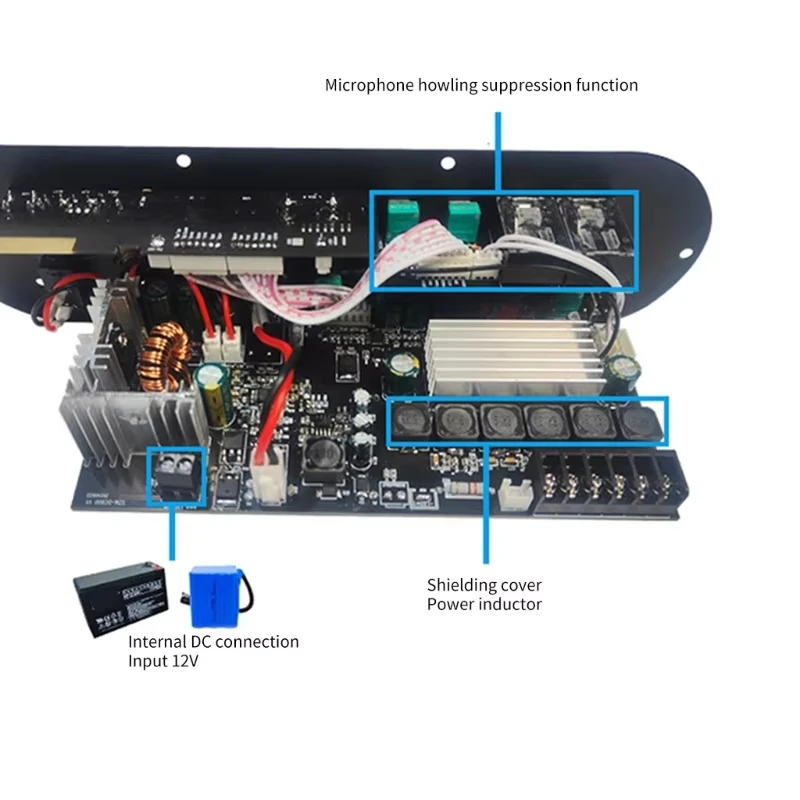

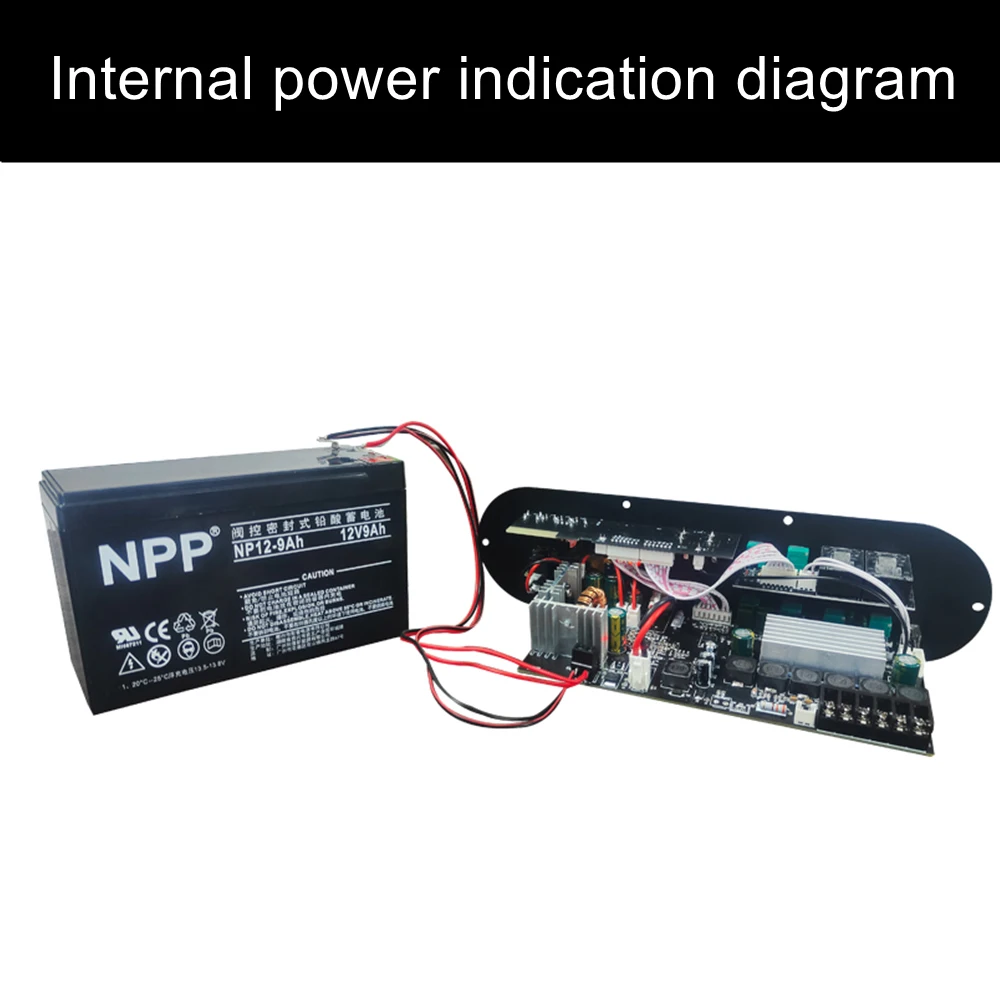

The D1000 and D900 Bluetooth power amplifier boards both 2.1 channel, with an output power of 50W + 50W + 100W. Notably, the D1000 power amplifier board comes with the added functionality of being able to connect to a battery, providing greater flexibility in usage scenarios.
In contrast, the D100W, D20, and D10 Bluetooth power amplifier boards are all 1.0 channel devices. Specifically, the D100W has an output power ranging from 100W to 300W, making it suitable for applications that require relatively high power output. The D20 offers an output power between 60W and 200W, striking a balance between power and versatility. The D10, on the other hand, has an output power of 30W to 120W, which is more appropriate for setups with lower power demands.

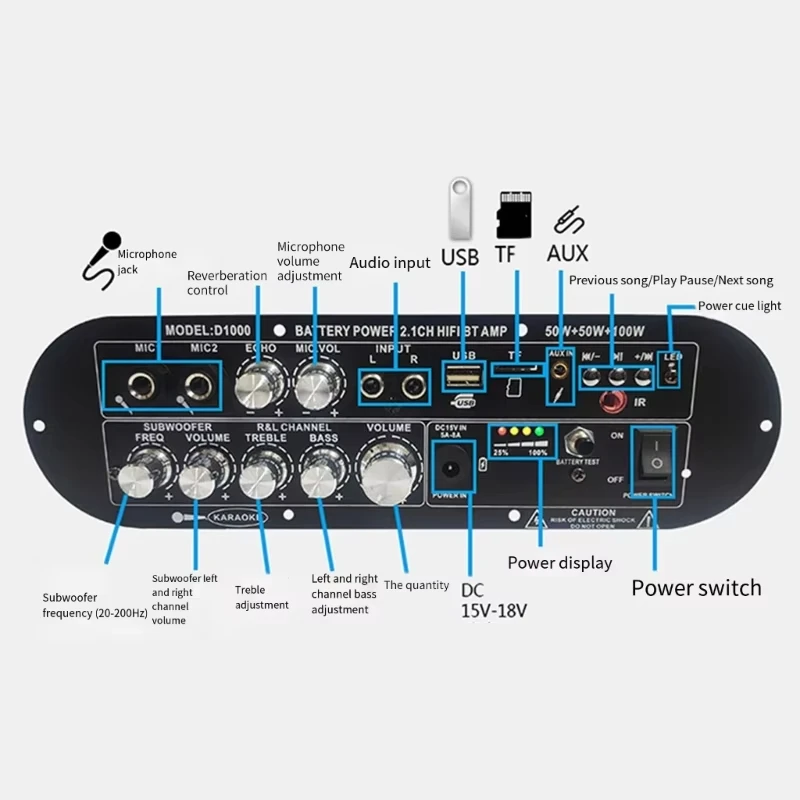

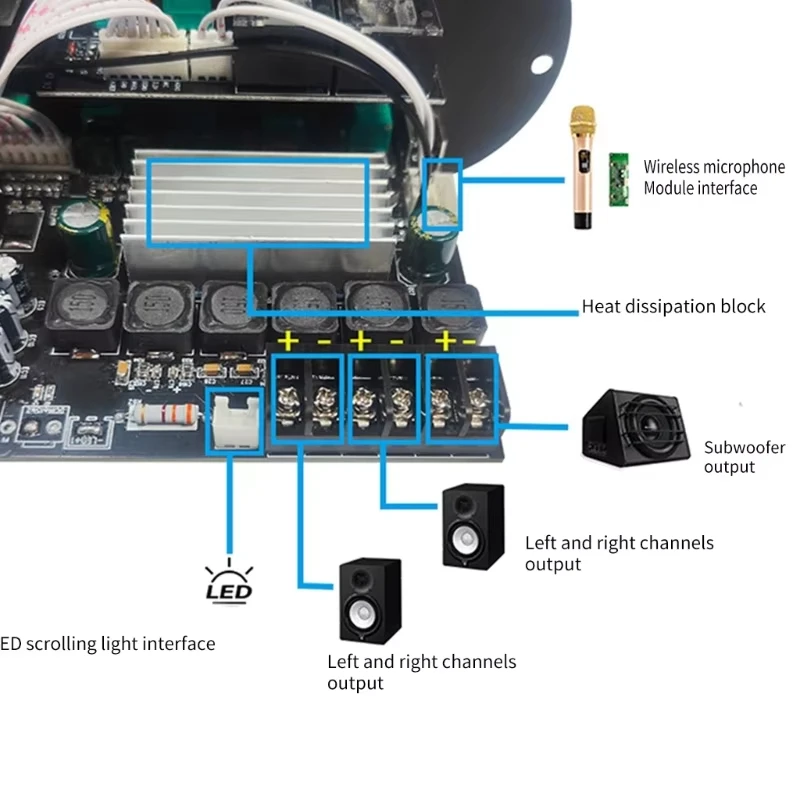

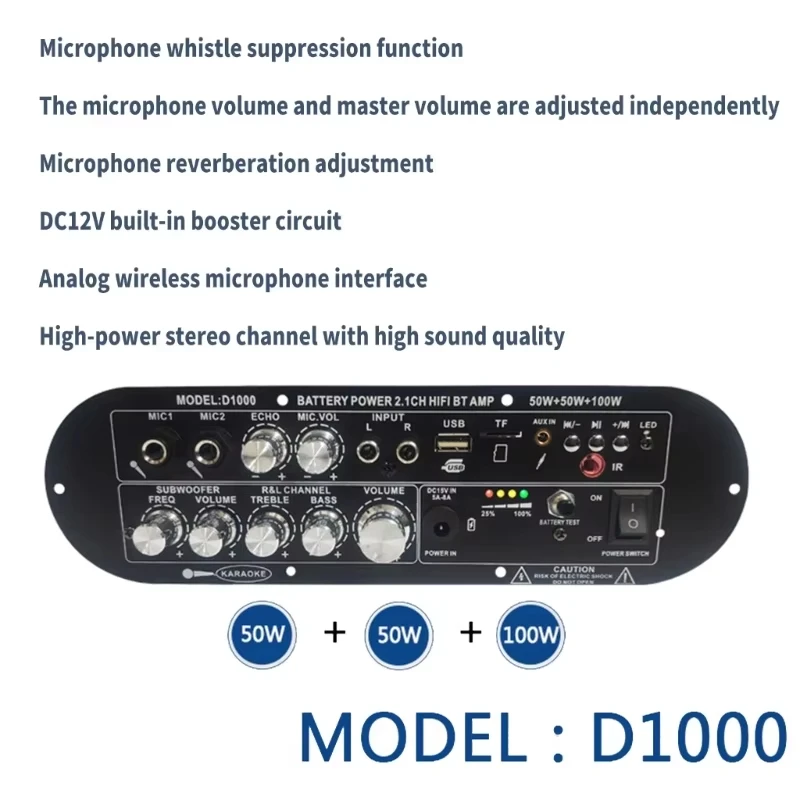

D1000
There will be enough output power with enough audio input and enough supply voltage/current!
The higher the power supply voltage the higher the output power, the lower the speaker impedance the higher the output power!
Please make sure that the power of the adapted power supply is greater than the actual working power of the amplifier!
Features:
● With over-voltage, under-voltage, overheating, circuit protecting.
● For home entertainment, parties, performances, auditory-visual studios and other place that require strong bass effects. Also suitable for outdoor activity, traveling and other occasions that require portable auditory.
Specificities:
Bluetooth Version: 5.0 (unobstructed 10 meters)
Input Sensitivity: 500mV
Input Method: Bluetooth+AUX+MIFM+USB+TF Card
Channel: 2.1
Amplifier Chip: Original imported IC
Power Supply: DC 15~18V/5A or above (rechargeable)
Suitable for Speakers: 20~100W, 4~8 ohms
Output Power: Left and Right Channel ≤ 50w Subwoofer ≤ 100W
Protection Mechanism: Over-voltage, under-voltage, over-temperature, DC detection, short-circuit protection
Heatsink Size: 50*25*10(mm)

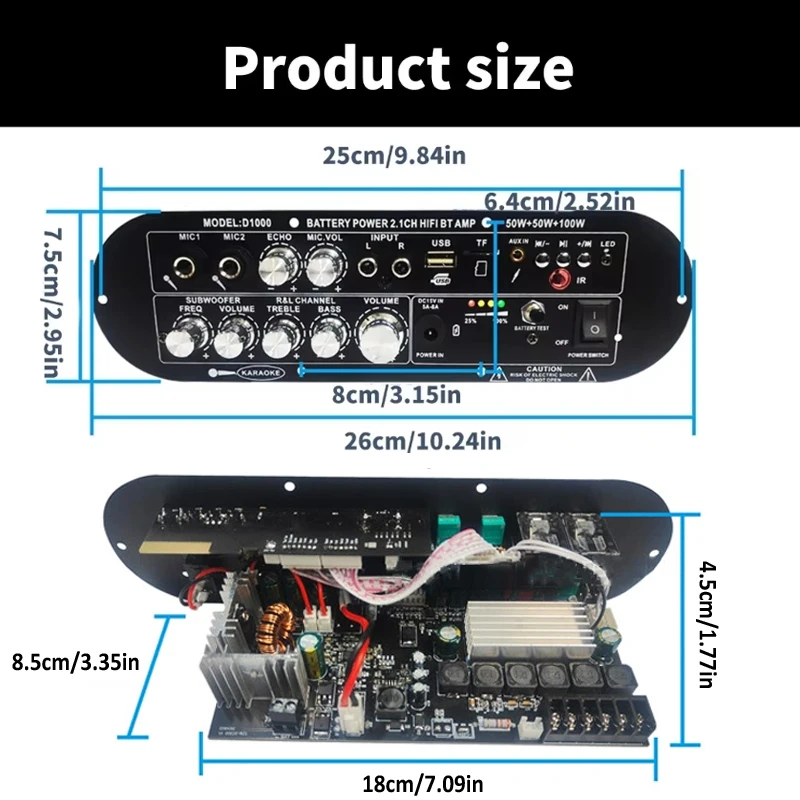

Product Size: 260*85*75(mm)
D900
Sufficient output power will only be available if the audio input is sufficient and the supply voltage/current is sufficient.
The higher the power supply voltage, the higher the output power, the lower the speaker impedance, the higher the output power!
Please make sure that the power of the power supply is greater than the actual working power of the amplifier!
Features:
● Microphone squawk suppression function
● Microphone volume and master volume are both independently adjustable
● High-end aluminum alloy brushed panel
● Analog wireless microphone board interface
● Support bass effect adjustment
Specifications:
Color: Gold
Material: Metal+Plastic
Bluetooth version: 5.0 (unobstructed, 10 meters)
Channels: 2.1
Input sensitivity: 500mV
Applicable speakers: 20-100W, 4-8 ohms
Output power: left and right channels Less than 50w, subwoofer Less than 100W
Applicable power supply: DC 12-24V/5A or above (the higher the voltage, the greater the output power)
Protection mechanism: overvoltage, undervoltage, overheating, AC/DC detection, short circuit protection
Multiple inputs: Bluetooth/AUX/USB/TF card/K song/reverberation adjustment
Microphone volume and master volume are independently adjustable.
Plug Type:US Plug, it applies to Canada, India, Mexico, Thailand, Taiwan, the United States, the Philippines and so on./EU Plug,it applies to Indonesia, Germany, France, Spain, Italy and so on.
Voltage:AC110V/AC220V

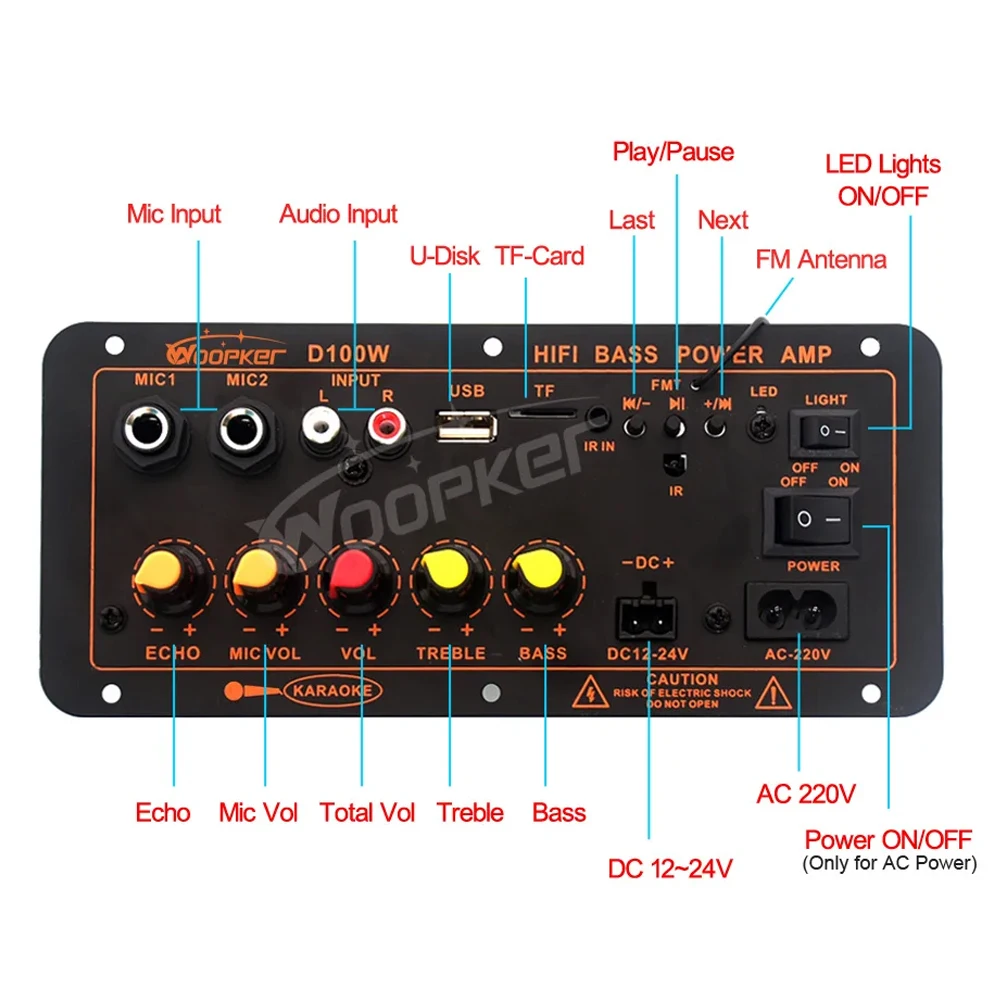

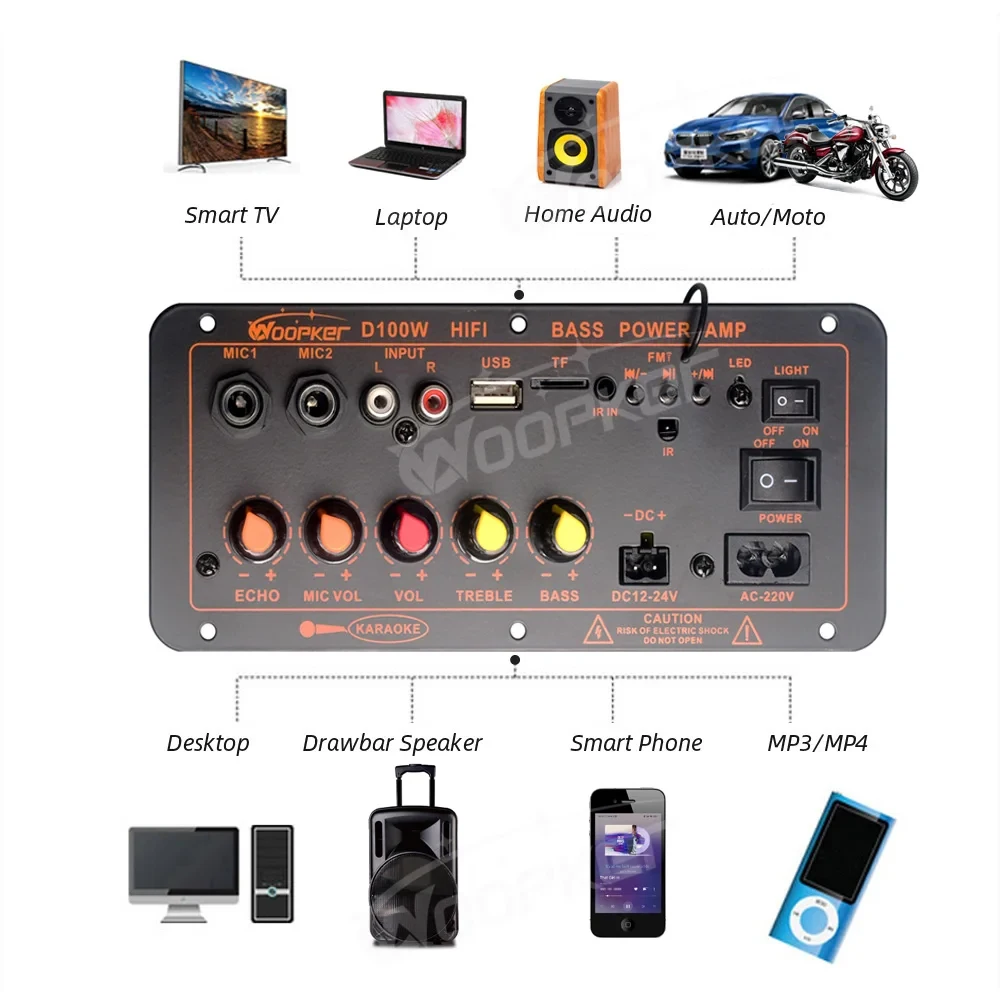

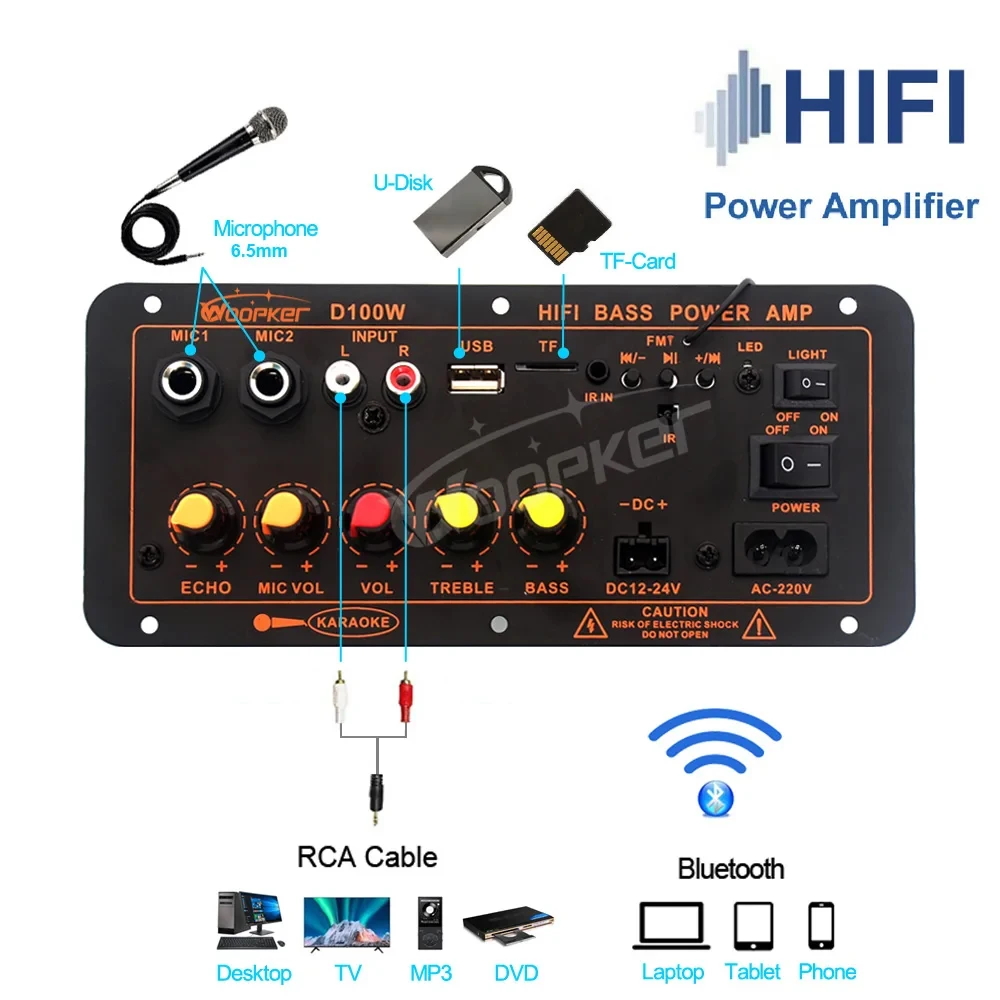

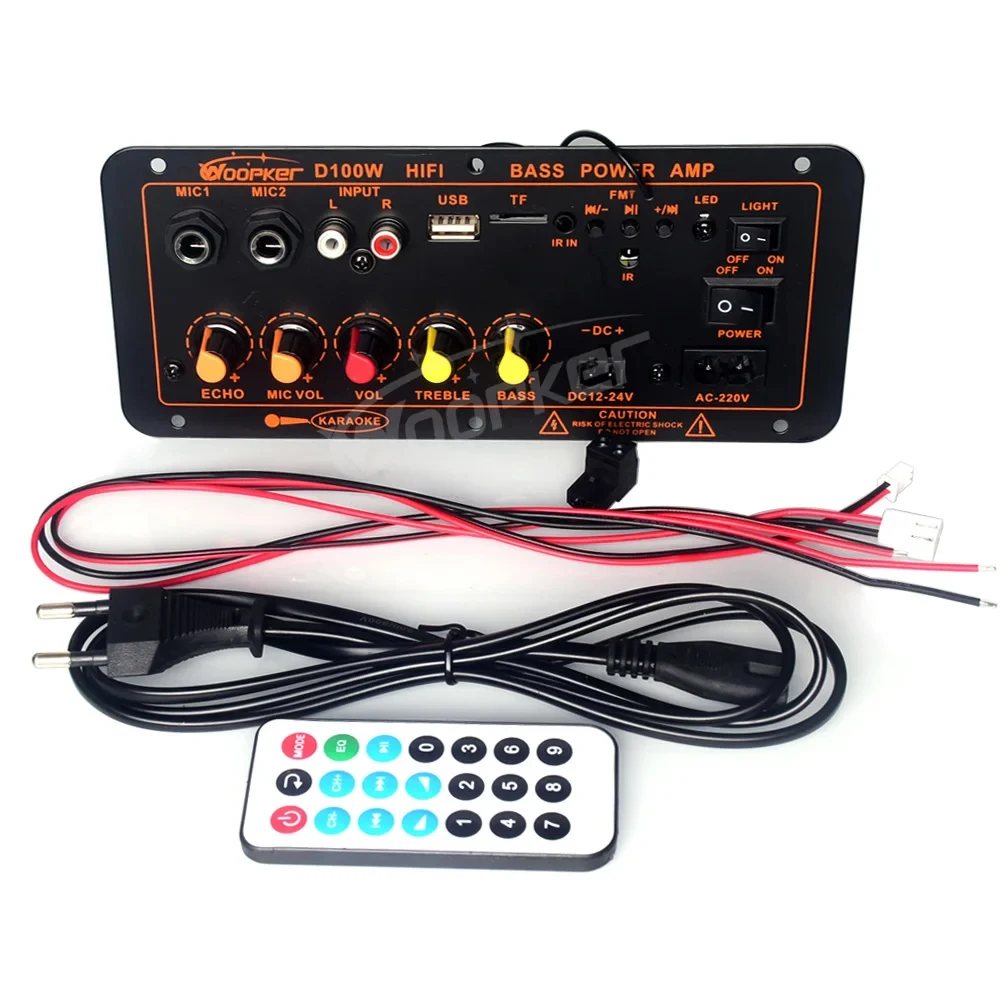

D100W
How to use ?

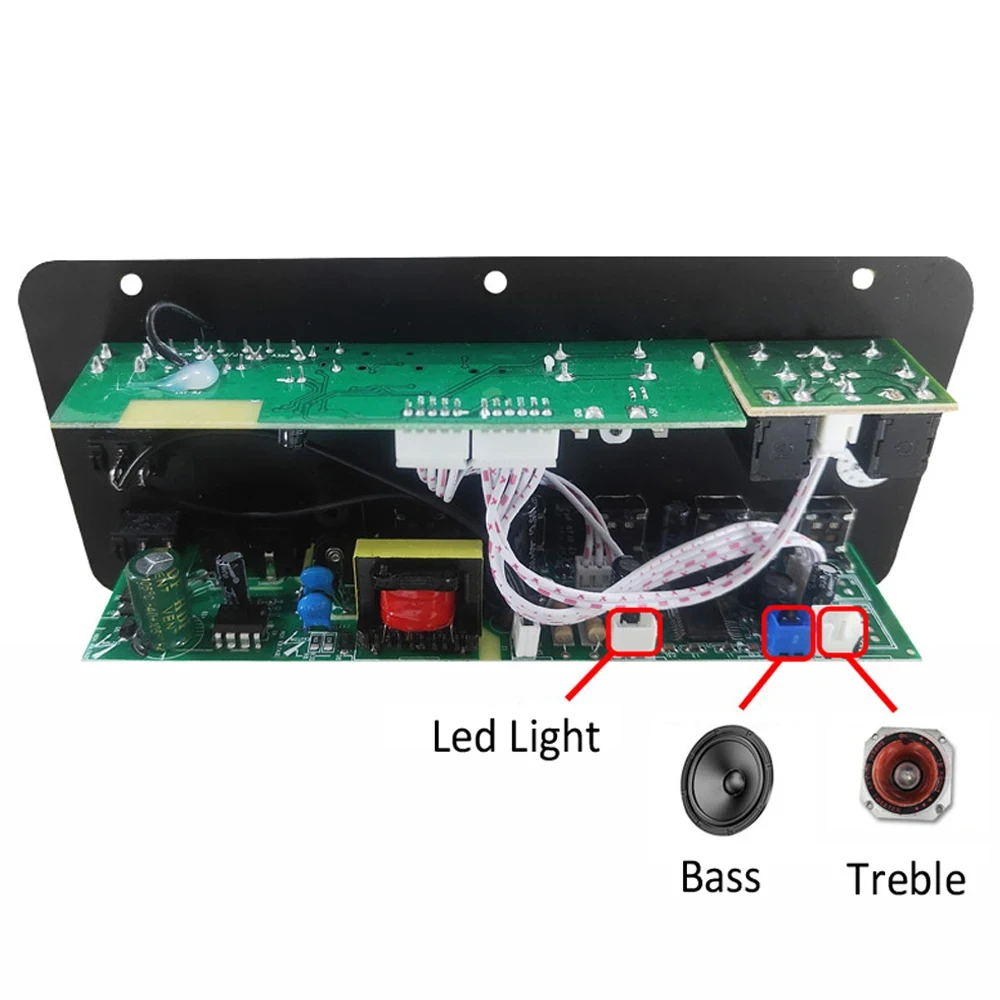

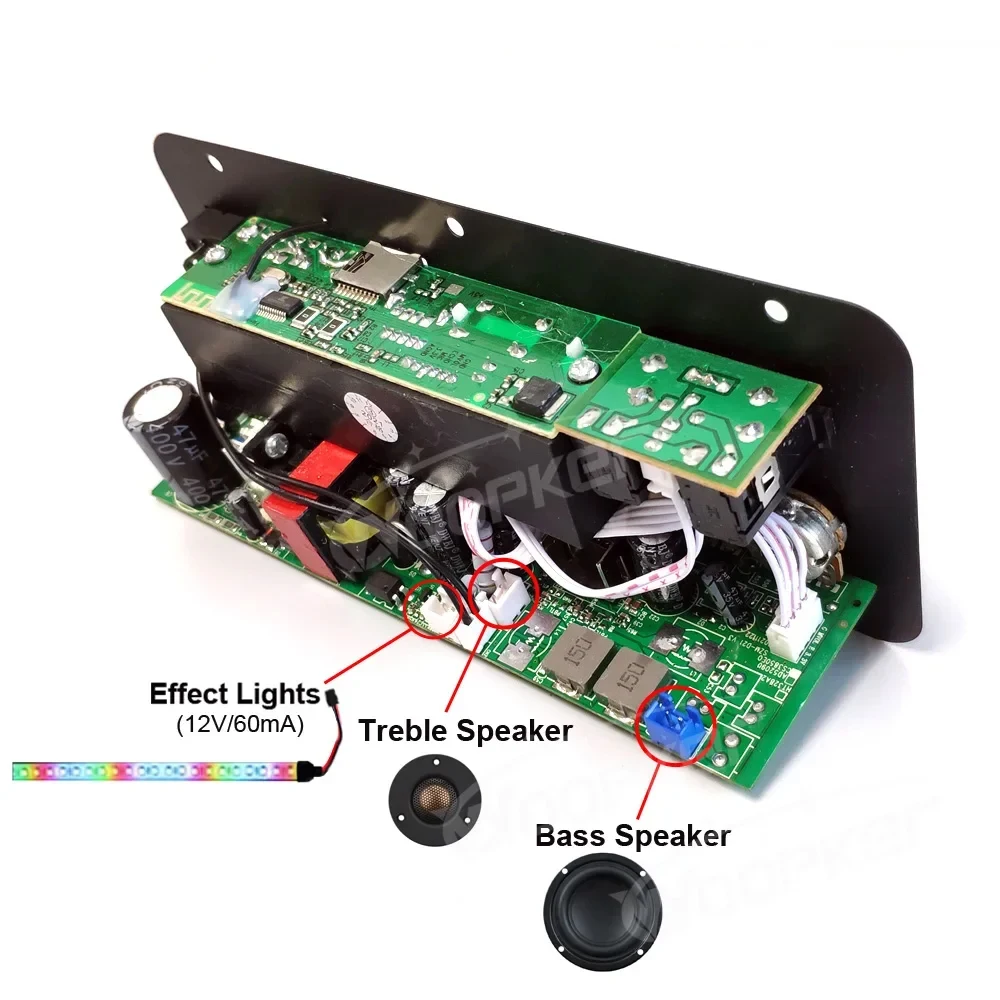

Different from 2.0 channel amplifier which use Left and Right same speakers, this 1.0 mono amplifier board, its 2 output interface frequency are different, the high-frequency interface is connected to the Treble Speaker, and the low-frequency interface is connected to the Bass Speaker, so as to achieve the stereo tone reverberation effect.
TIPS: Don't connect ordinary 2.0 speakers, otherwise the side connected to the bass will feel weak, cuz ordinary speakers cannot achieve bass effect.
Features:
● Support reading and play the MP3 songs in TF-card and U-disk.
● Support independent adjustment of Treble, Bass and Master volume.
● With AUX Audio input, can be connected to PC, Phone, TV or DVD.
● Dual Mic input, adjustable reverb, with Bluetooth and FM radio.

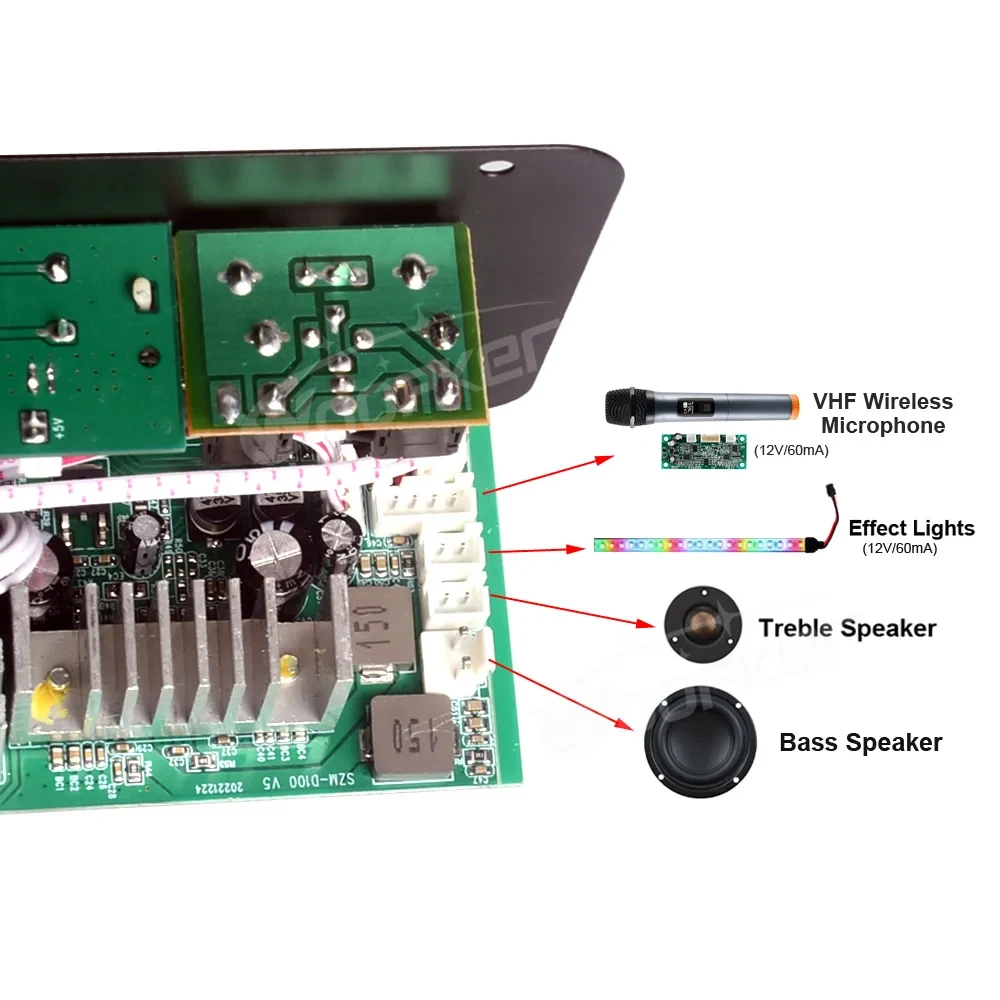

● Support Wired Mic and Wireless Microphone Board(not included).
Descriptions:
Model: D100W
Bluetooth Version: 5.0
Audio Channel: 1.0
Rated impedance: 4-8Ω
Rated Power: 100W
Power Range: 100-300W
Distortion: 0.03%
S/N Rate: 92db
Battery of Remote: CR2025 x1(Not Included!)
Feature: FM Radio / Treble / Bass
Voltage: AC 220V, DC 12V~24V

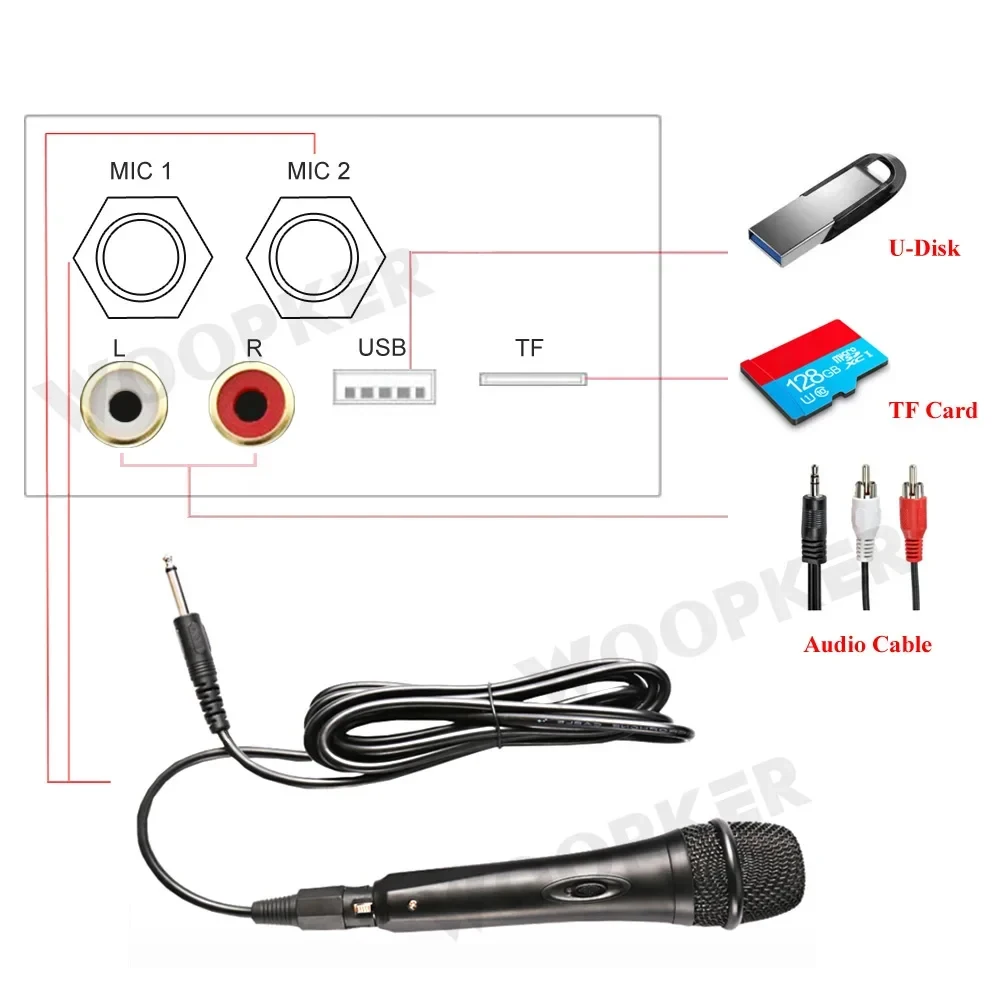

Input: Bluetooth/3.5mm AUX/U-Disk/TF/6.5mm MIC
Note:
1. Support AC 210-230V or DC 12V-24V. (Warning: Pls select only 1 power supply method)
2. If connect DC Power, the current must over 3A.
3. The mic port not support guitar. for better effect, phantom power is recommended.

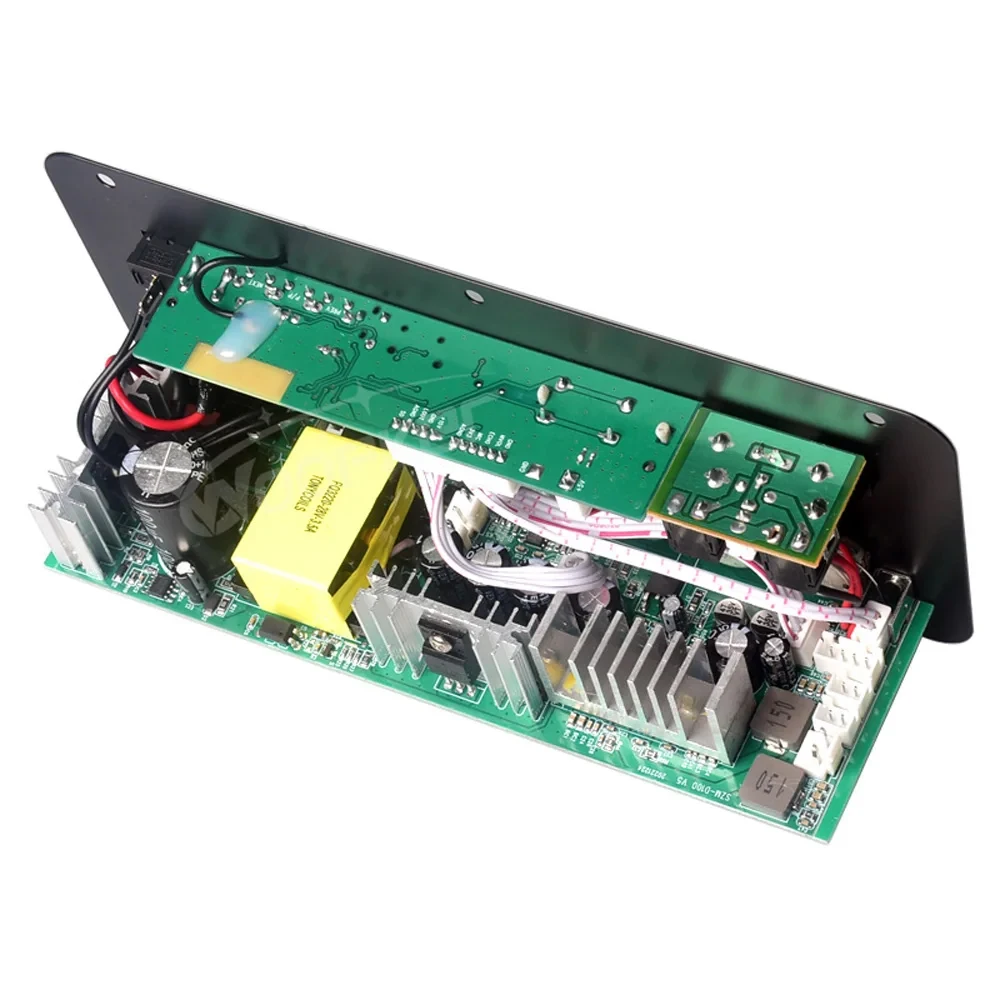

4. DIY product, the circuit board on the back will be hidden, pls focus your attention on its sound effect.
5. The Power button just for AC power mode. Not valid in DC mode.

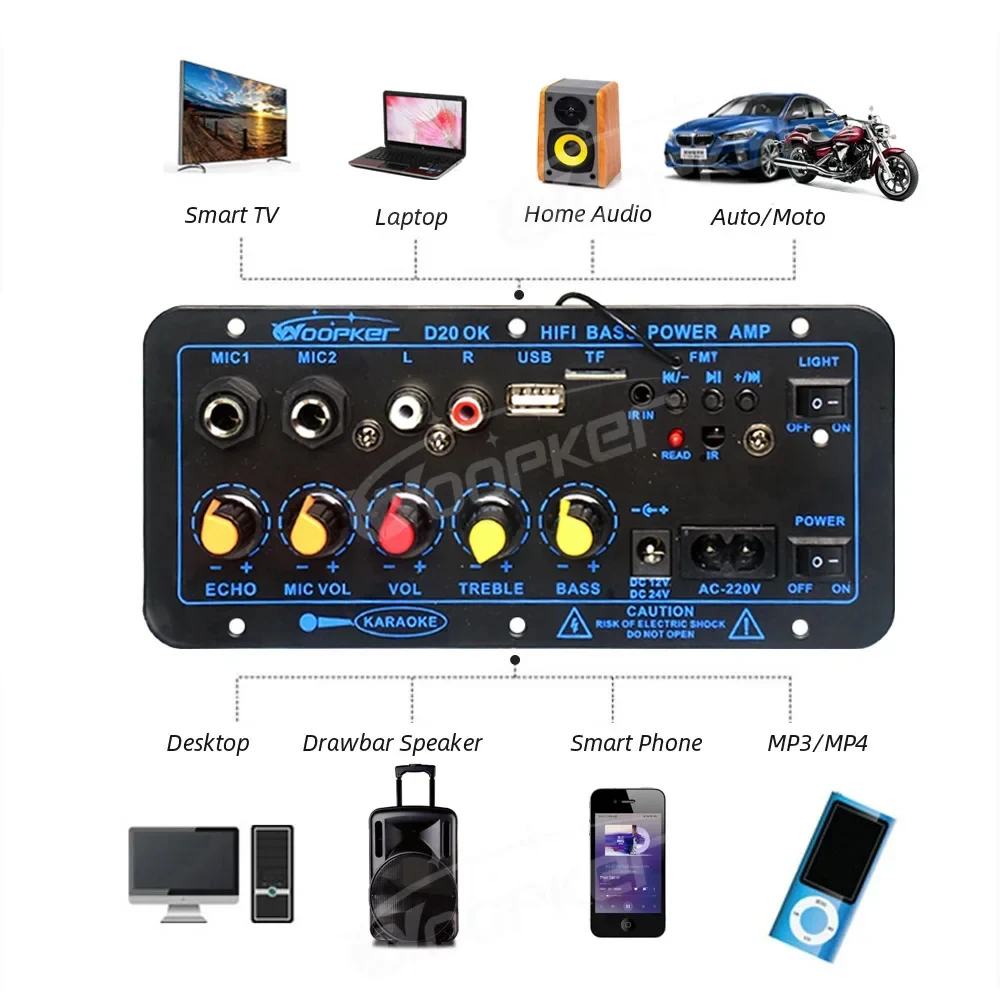

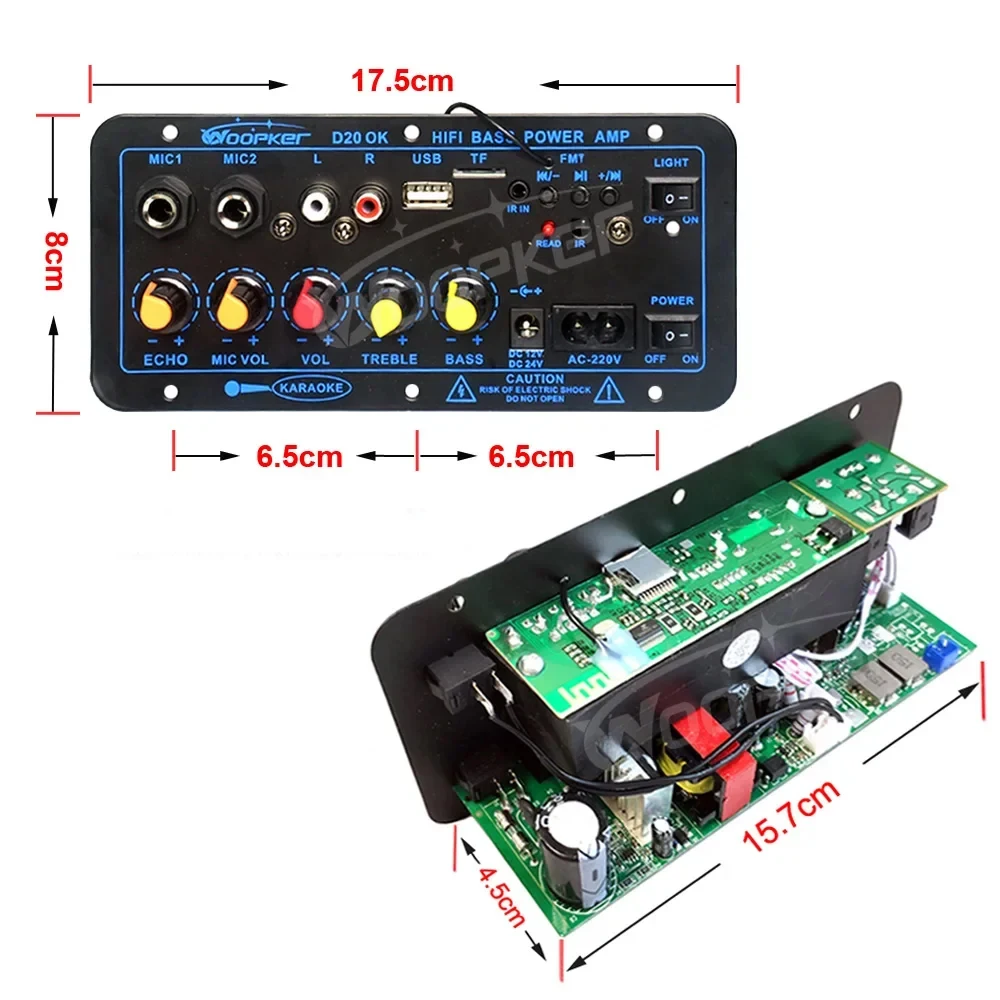

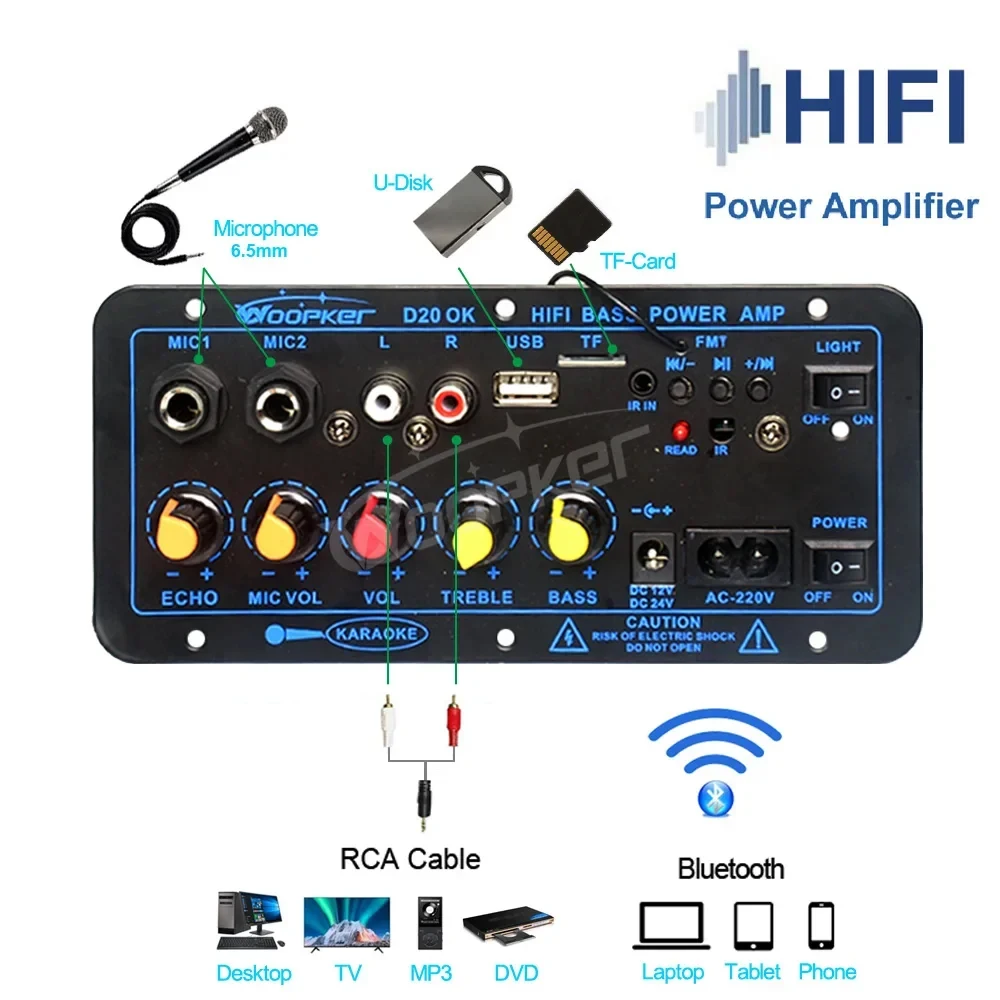

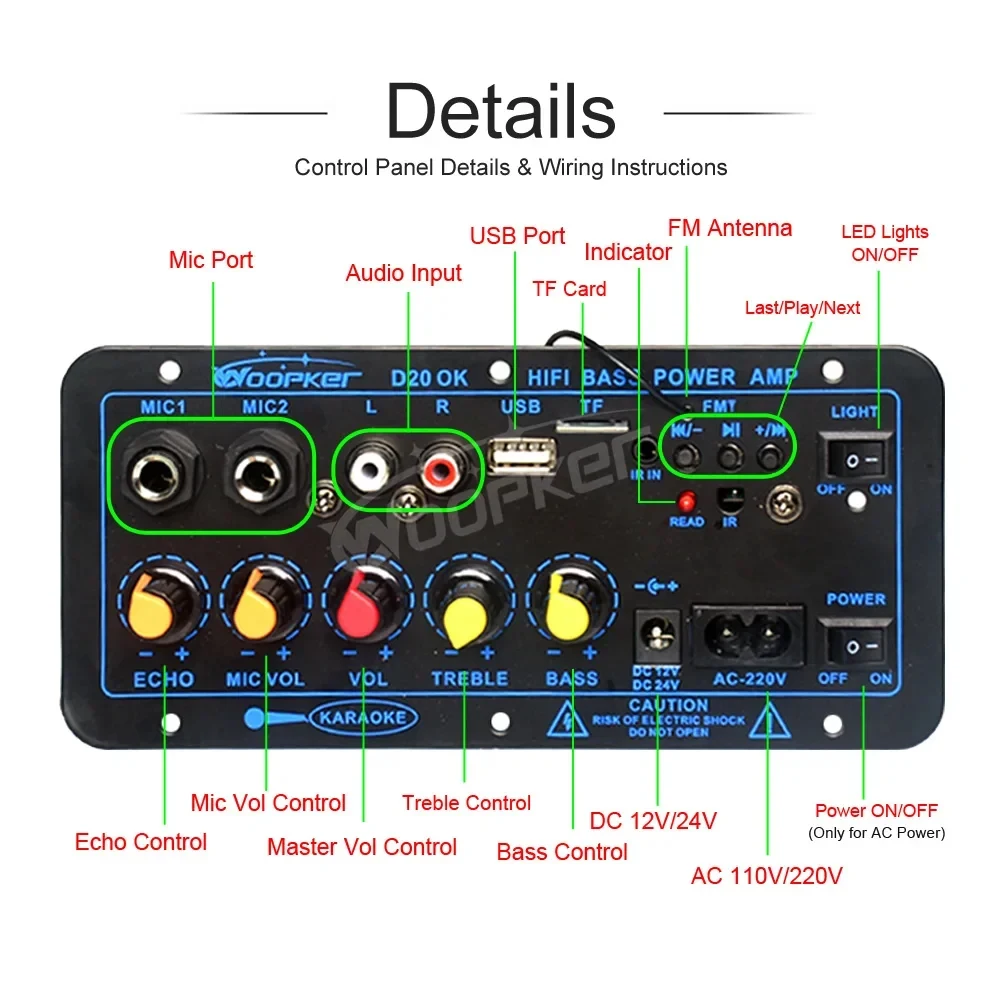

D20
Features:
● High Power, maximum support 200W, bring better experience.
● Can connect the Treble and Bass at the same time.
● Can Play Music from TF card, U disk, Bluetooth.
● Small size, can be installed anywhere you want.

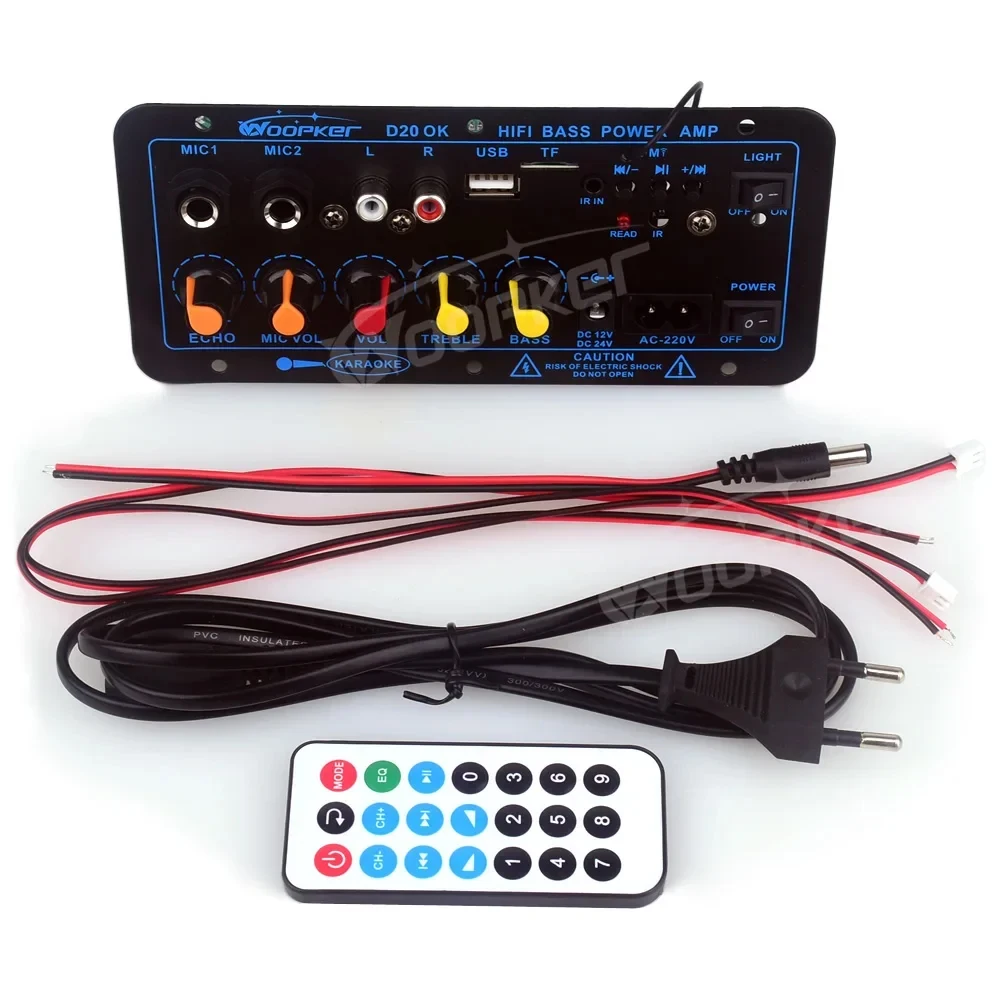

● Full function Remote, Use the numeric keys to control directly.
Specification:
Model: D20

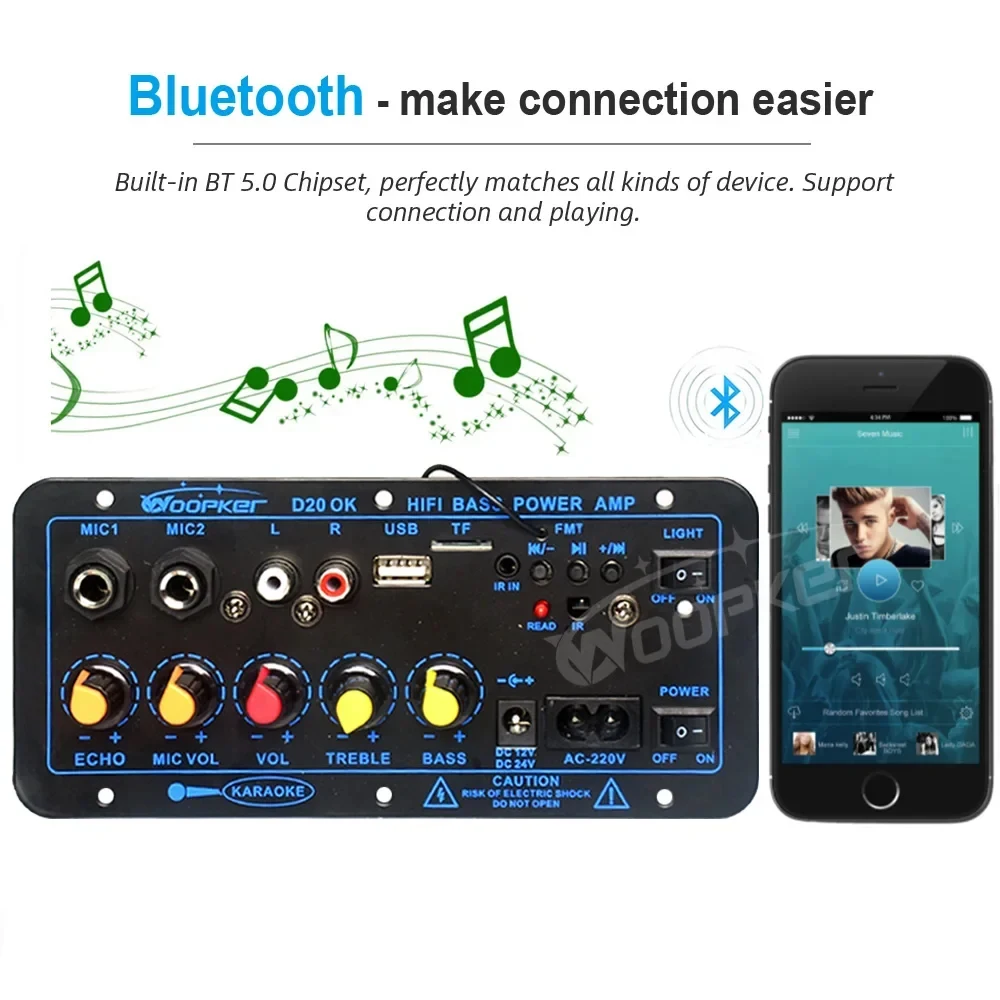

Bluetooth: V5.0
Audio Channel: 1.0
Rated impedance: 4 ohm
Rated Power: 80W
Power Range: 60-200W (Deponds on Voltage)
Input: Bluetooth/Lotus/U-Disk/TF/MIC
Battery of Remote: CR2025 x1(Not Included!)
Feature: FM Radio / HIFI
Voltage: AC 110/220V, DC 12V/24V
Matching Speaker:
Impedance: 4-6 ohm
Rated Power: Less than 60W
✦ Mode Button = Long Press Play Button
Note:
1. Support AC 110/220V or DC 12V/24V.
Warning: Pls select only 1 power supply method.
2. If connect DC Power, the current must over 3A.
3. The mic port not support guitar. for better effect, phantom power is recommended.
4. DIY product, the circuit board on the back will be hidden, pls focus your attention on its sound effect.
5. The Power button just for AC power mode. Not valid in DC mode.

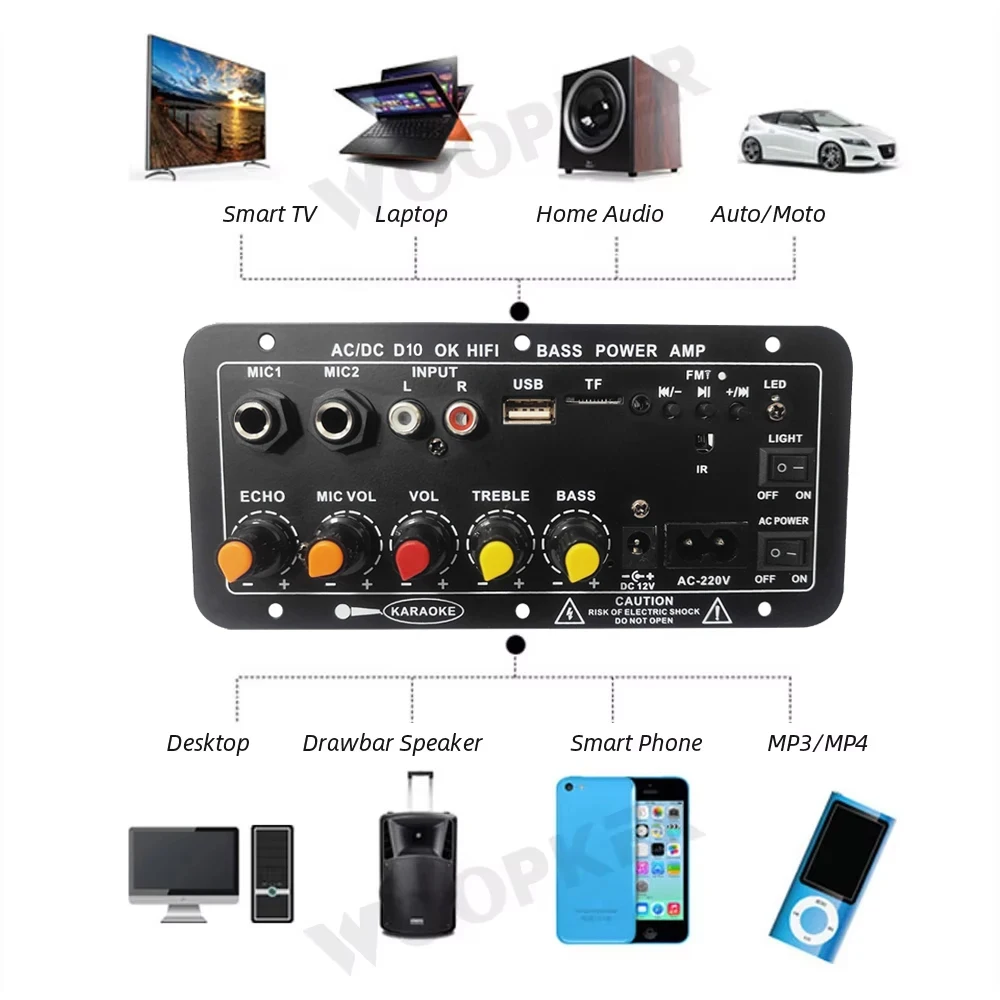

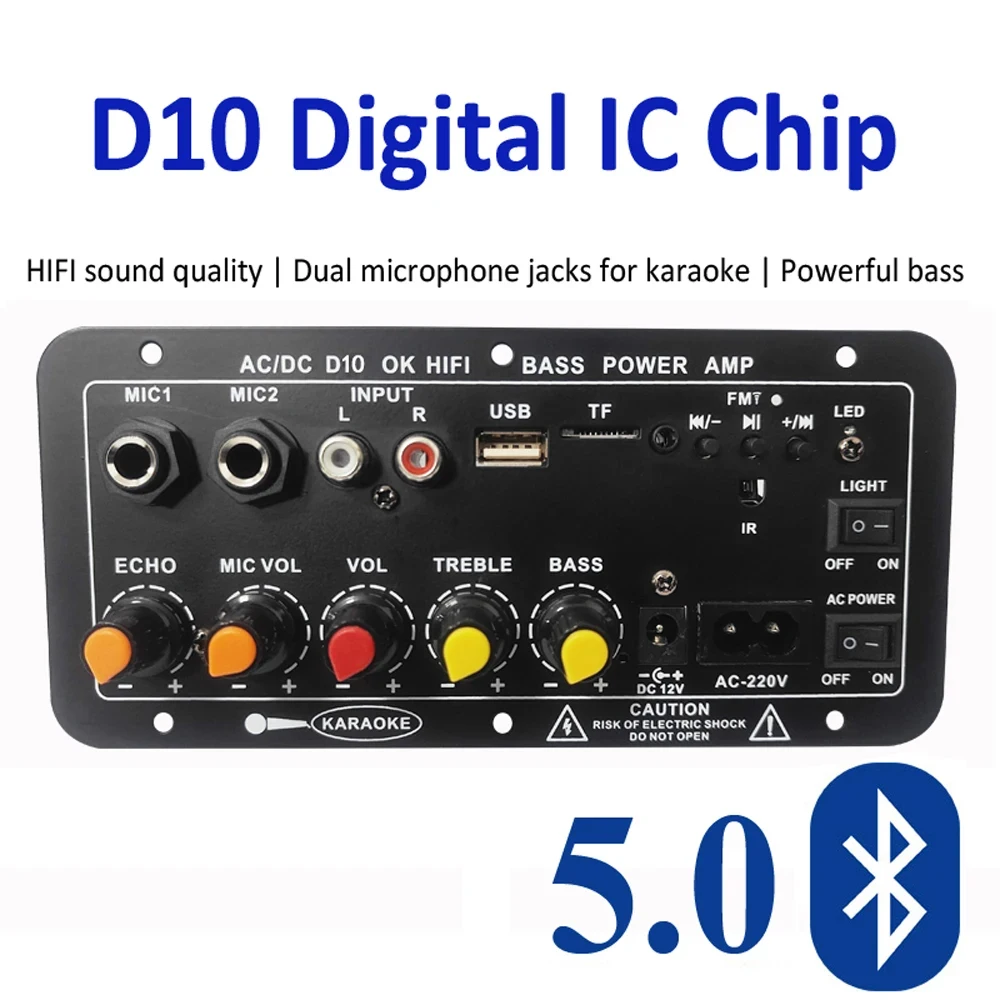

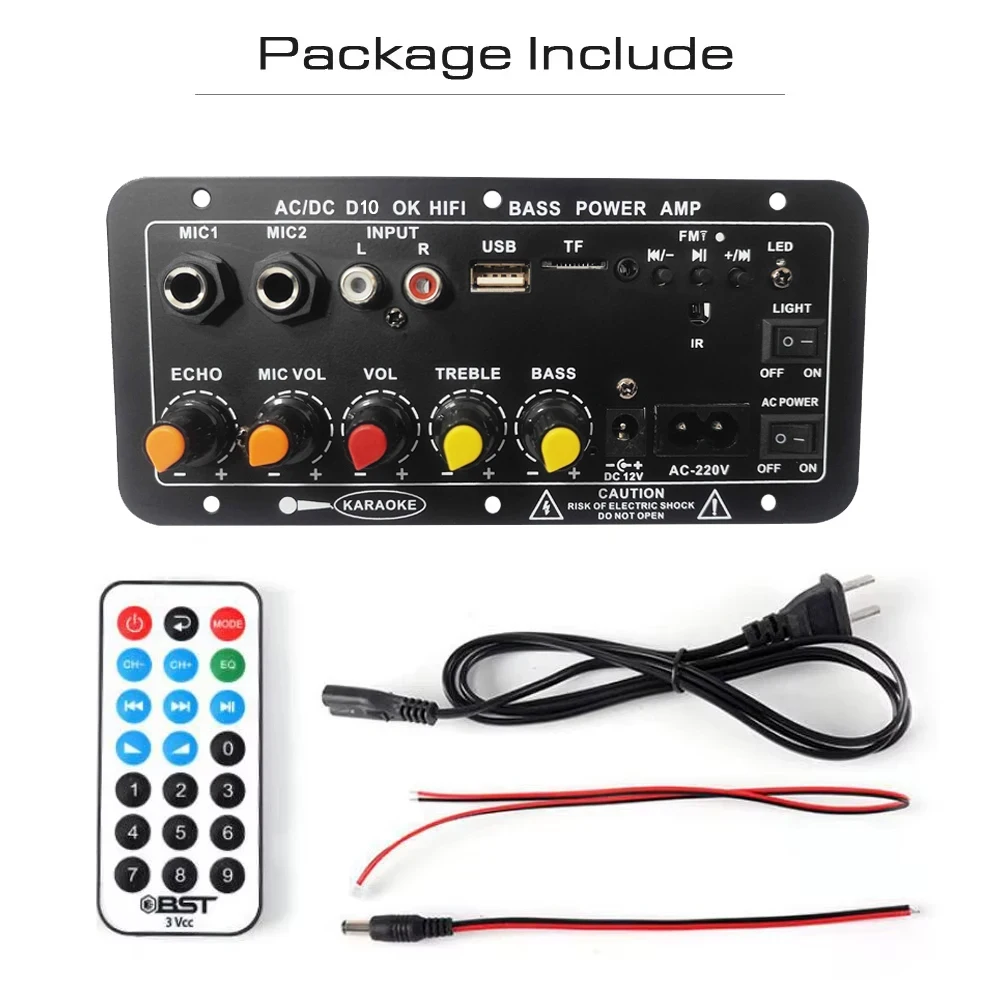

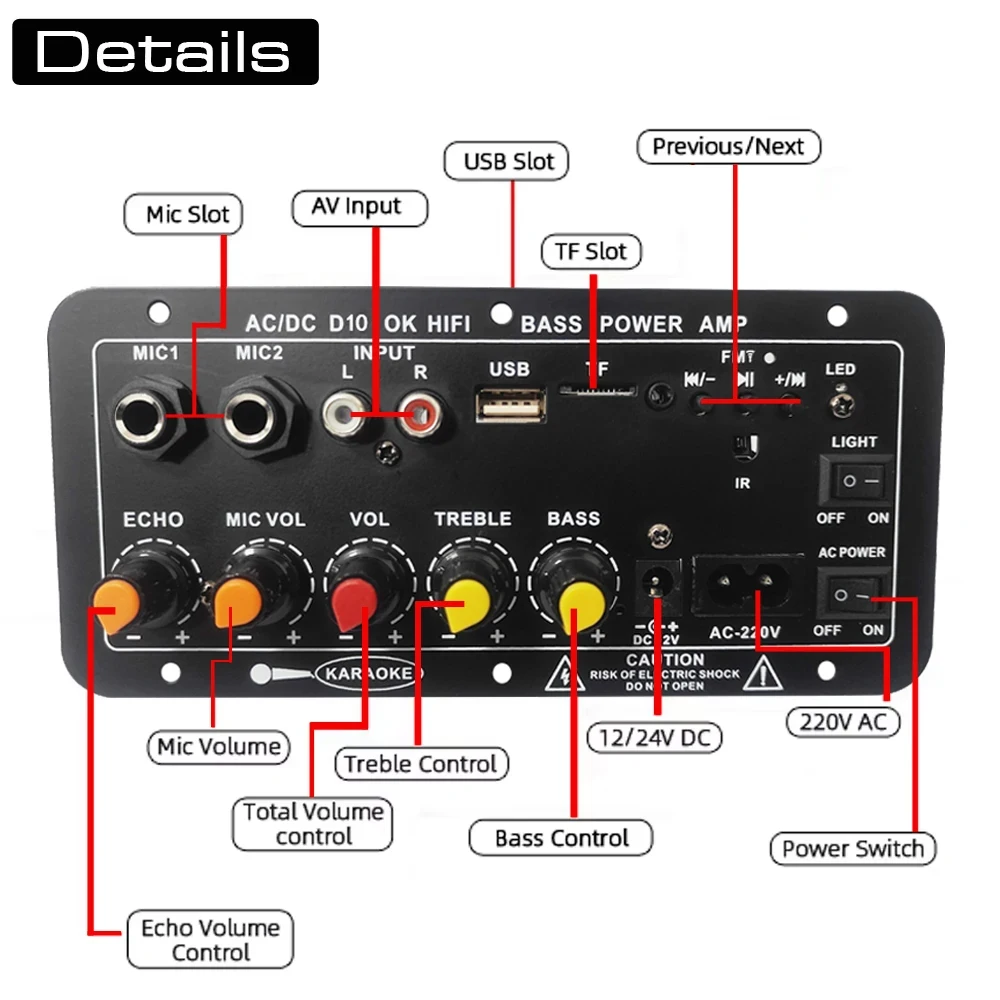

D10
Feature:
● Support reading MP3 songs in TF-card / U-disk.
● Independent adjustment of Treble, Bass and Master volume.
● Built-in Bluetooth Receiver and FM Radio Function.
● With AUX input port, can be connected to the PC/Phone/CD.
● Dual microphone input, adjustable reverb.
● Support Voltage AC 110V/ 220V or DC 12V/ 24V.

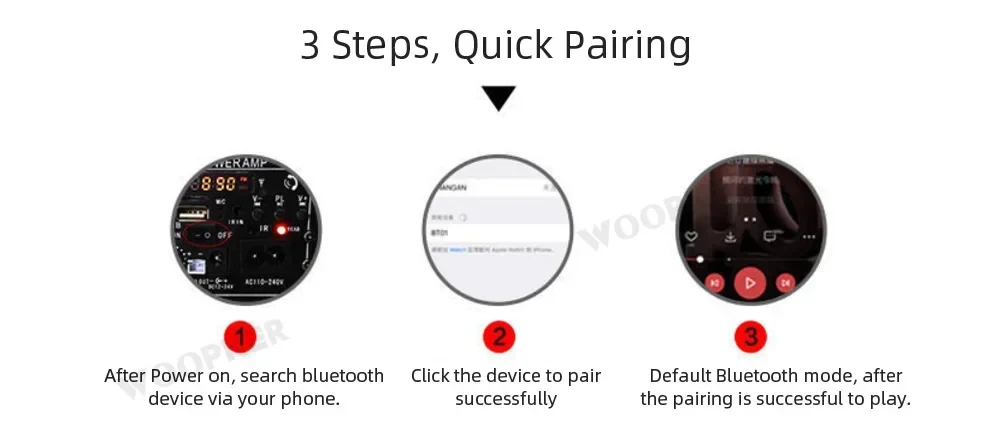

How to Connect Bluetooth ?
1. Press ''MODE'' button to switch it to Bluetooth status.
2. Open phone Bluetooth, search the Bluetooth device and connect.
3. You can use it after pairing successfully.
Description:
Model: D10
Bluetooth: V5.0
Audio Channel: 1.0
Feature: FM Radio / Treble / Bass
Voltage: AC 110/220V, DC 12V/24V
Power: 30-120W (Deponds on Voltage)
Input: Bluetooth/Lotus/U-Disk/TF/MIC
How to use Radio ?
1. Hang up the Radio Antenna.
2. Press ''MODE'' button to switch it to the radio state.
3. Press the ''Play'' button to search the entire channel and save.
4. Press the previous / next track to switch to use.
TIPS: This is not professional radio, no good effect, pls understand!
TIPS:
1. Support AC 110V / 220V, automatic adaptation.
2. If connect to DC 12V-24V, the Current needs more than 3A.
Warning: Pls select only one connection method !!!
Notice:
Please turn off the small master volume before test, then increase the volume slowly after power-on.
-> If the sound is intermittent or hoarse and distorted during increasing the volume, it means the speaker and amplifier are not matched. Please use small sound or change a suitable one.
