Product Description
Feature:

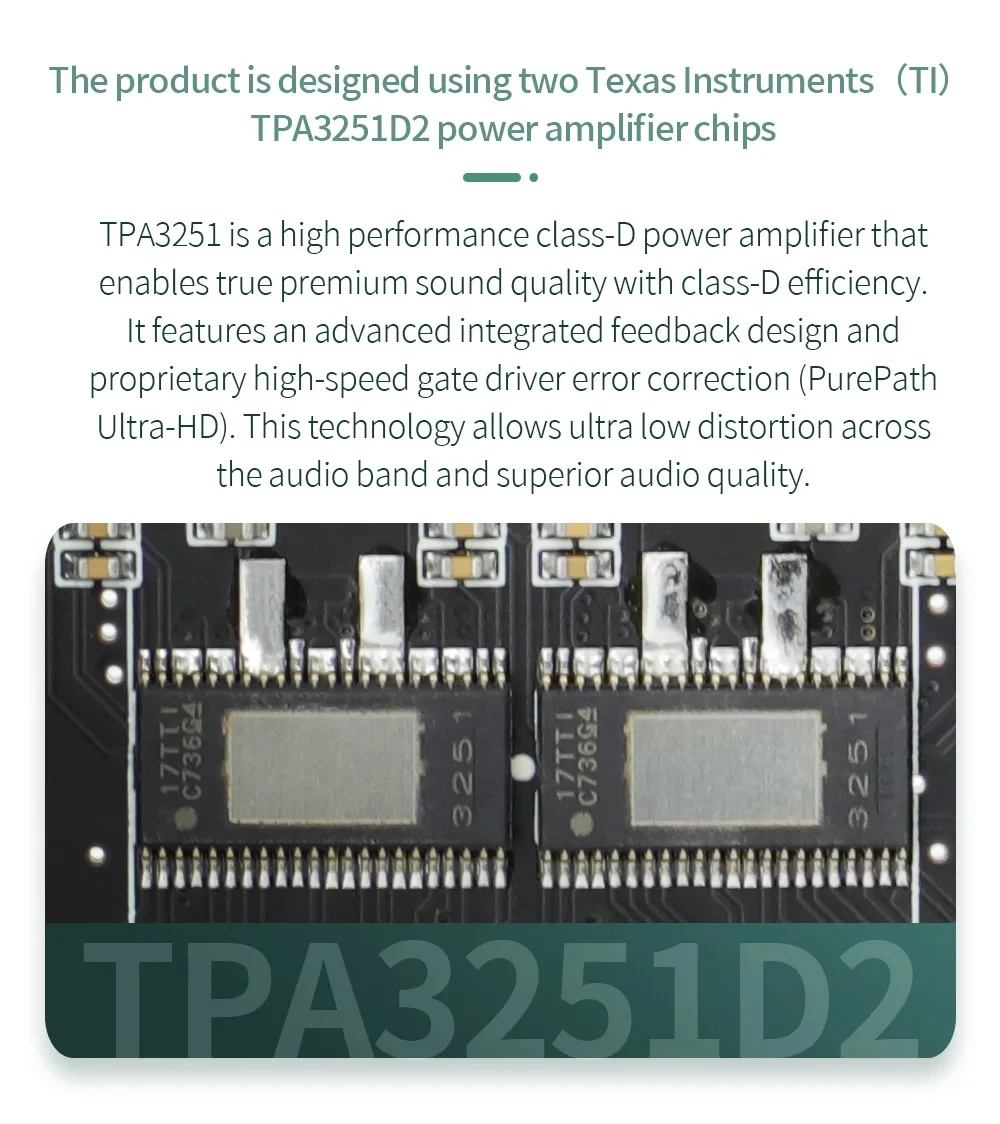

● Original Imported TPA3251D2 Power Amplifier Chip
This amplifier adopts the original imported TPA3251D2 Class D power amplifier chip. As a high-performance Class D amplifier, it offers Class D efficiency while delivering genuine high-quality sound. The chip is equipped with an advanced integrated feedback design and proprietary high-speed gate driver error correction (Pure Path™ HD). This technology enables the device to maintain ultra-low distortion across the entire audio frequency range, while presenting clear sound quality.

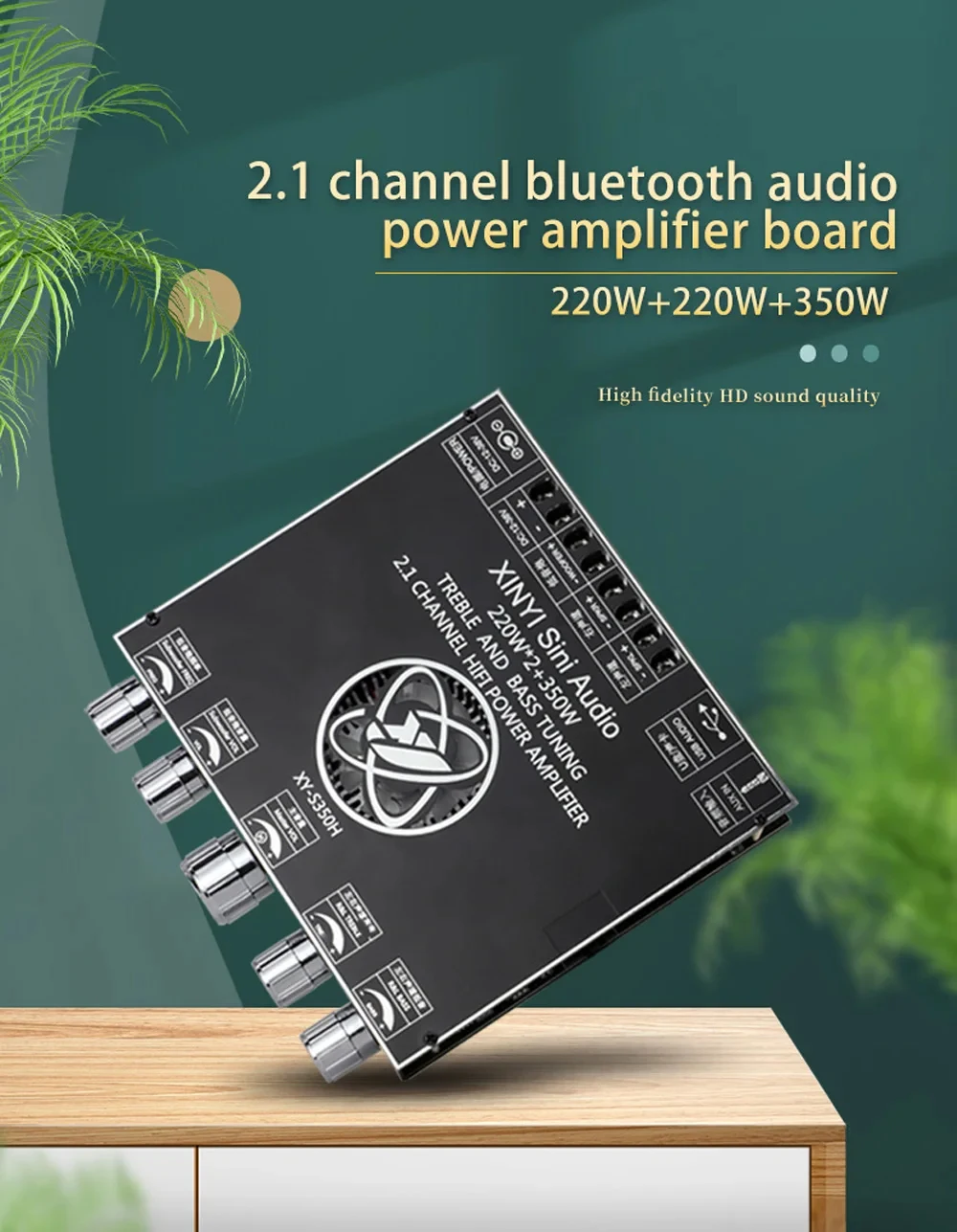

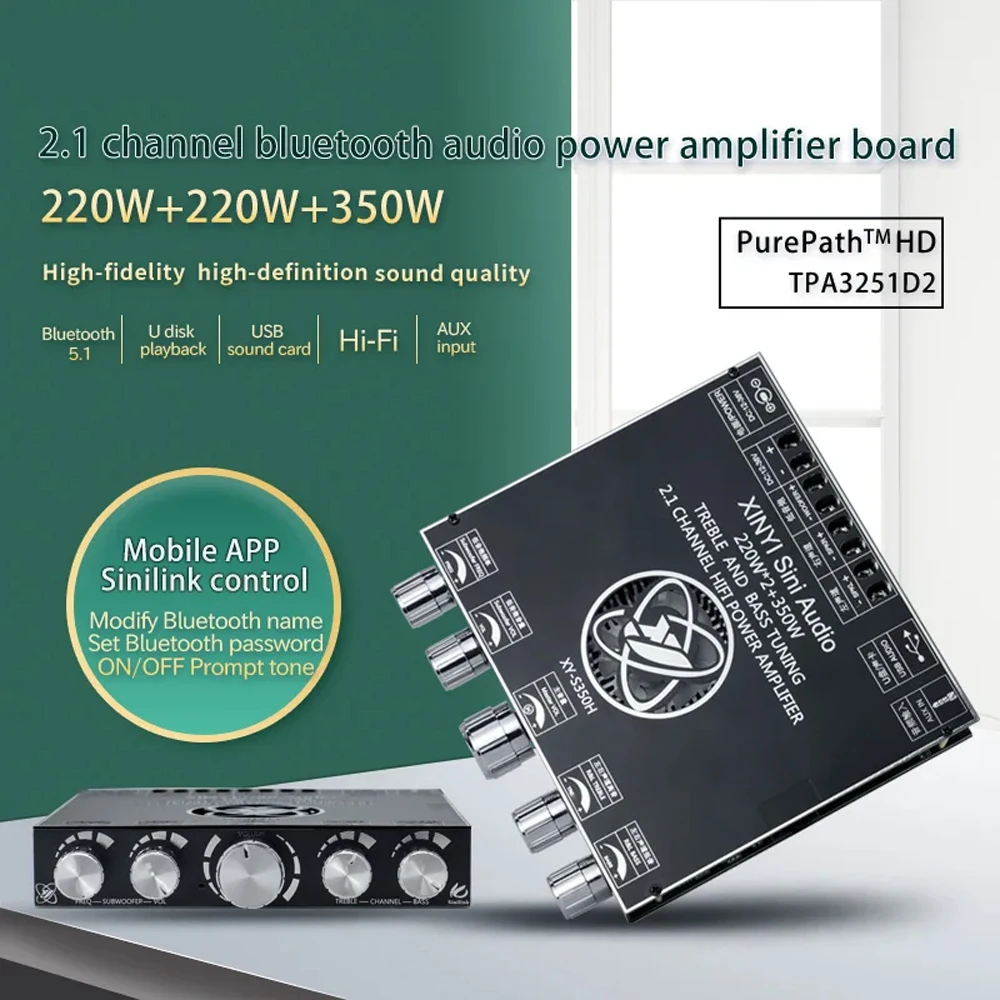

● Bluetooth 5.1 Audio Power Amplifier Module
It features a Bluetooth 5.1 audio power amplifier module with 2.1 dual-channel stereo output. The output power is 220W×2 (left and right channels) + 350W (subwoofer), providing HiFi sound quality. The treble is clear and transparent, the midrange is soft and delicate, and the bass is powerful and impactful.

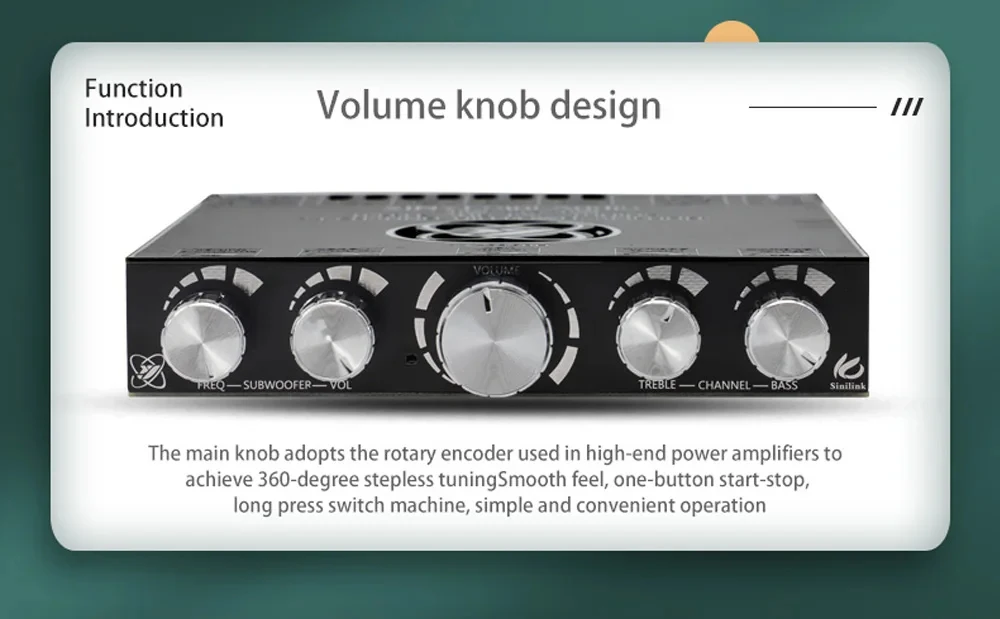

● Classic Design with Multi-Functional Main Knob
The amplifier has a classic appearance, and its main knob uses a rotary encoder that is commonly applied in high-end amplifiers, enabling 360-degree stepless adjustment. The knob has a smooth touch feel, and supports one-key start/stop (long press to start and stop), making operation simple and convenient.

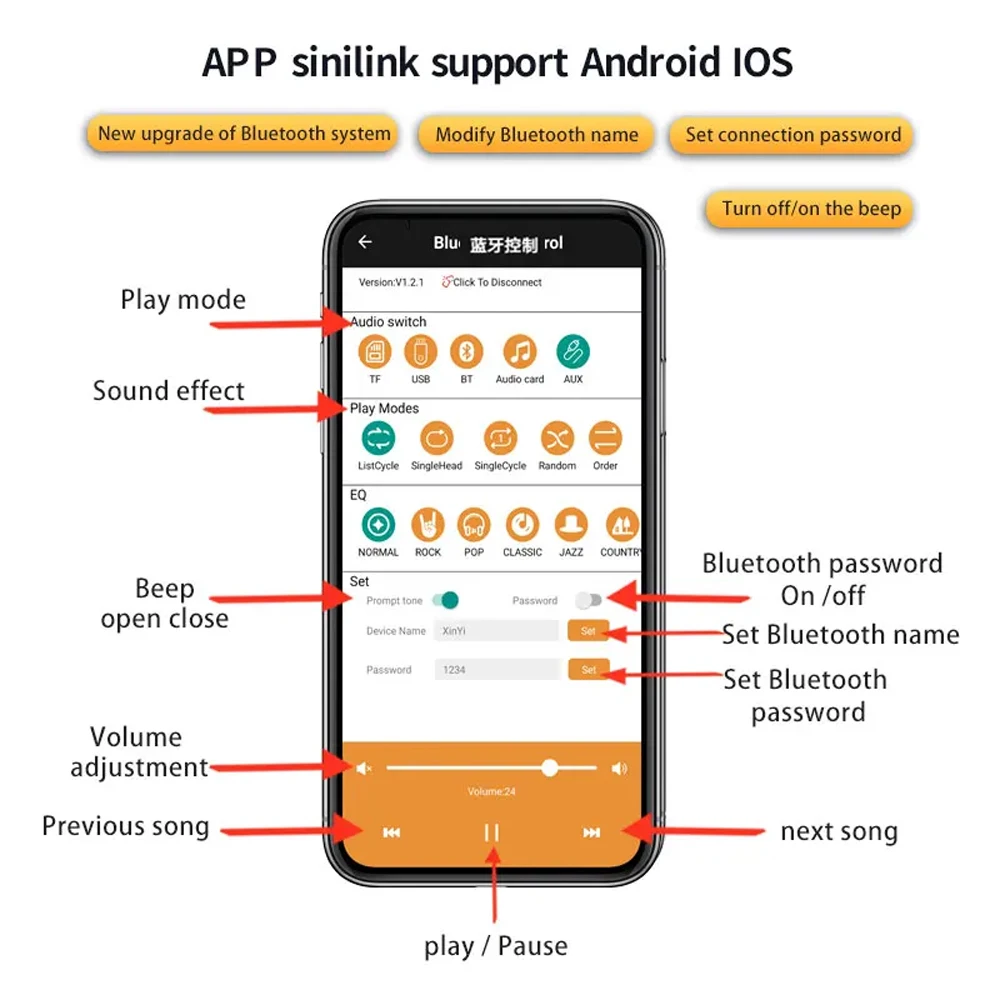

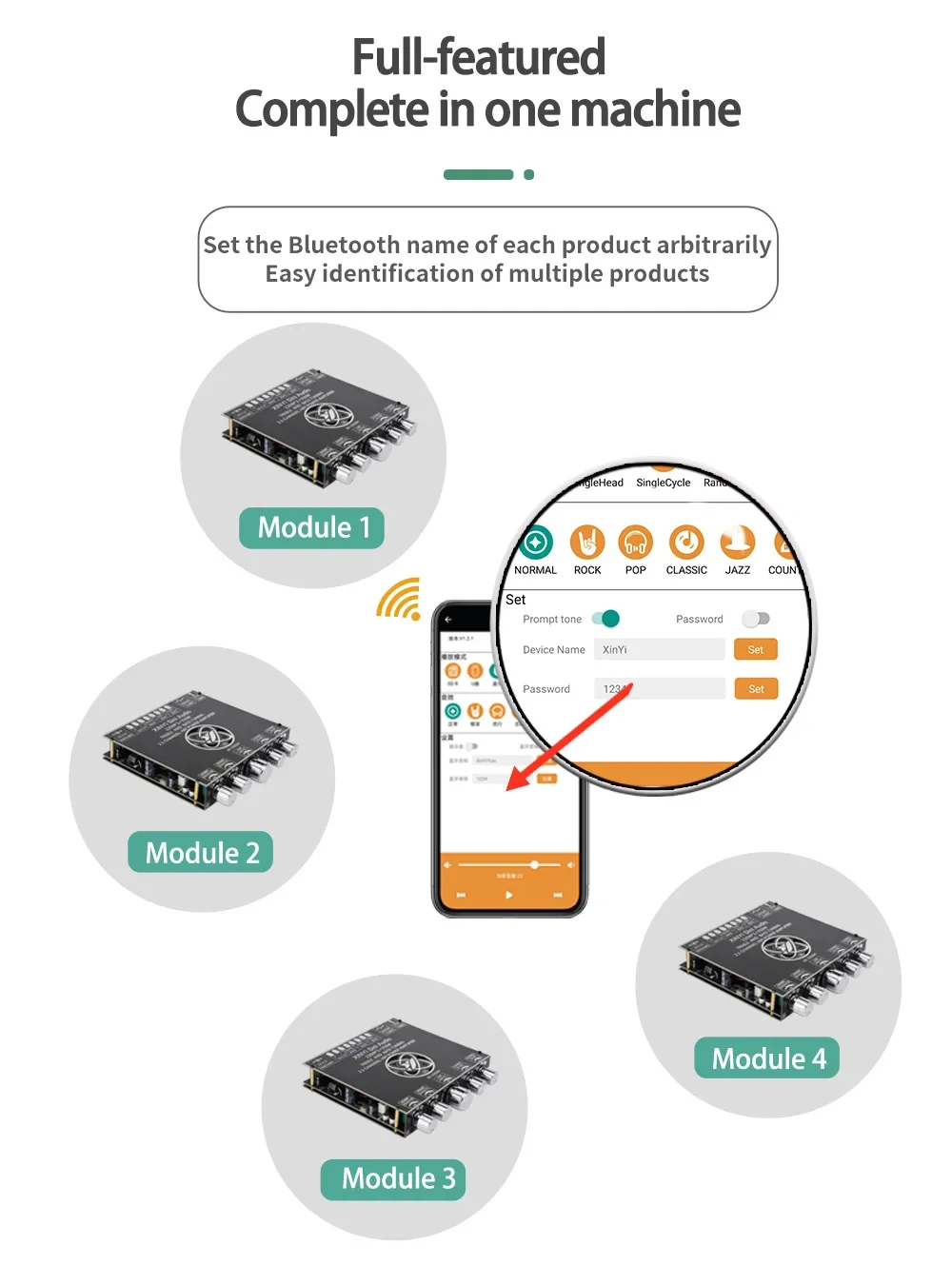

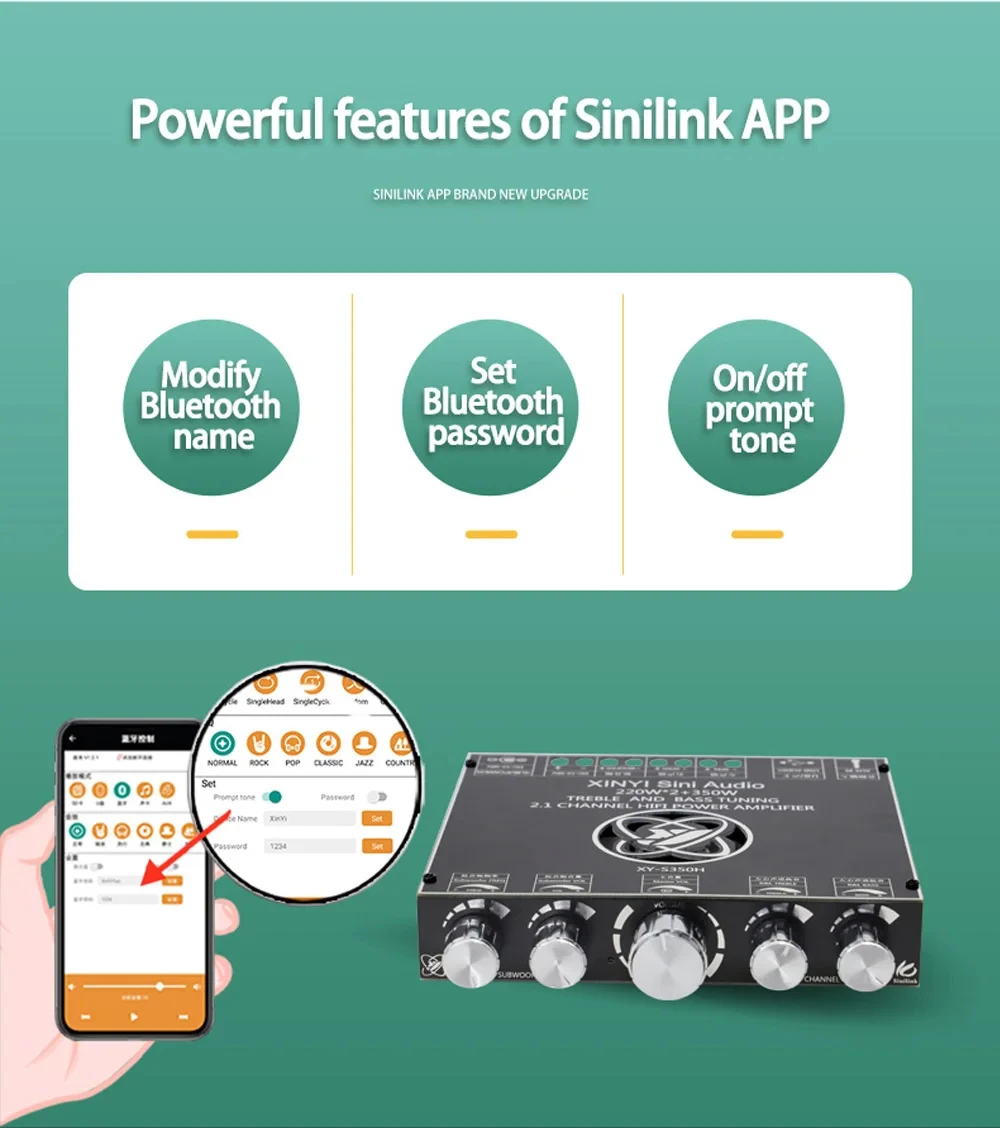

● Mobile App Control Support
It supports control via a mobile app—the newly upgraded Sini Link app. The app allows users to modify the Bluetooth name, set a Bluetooth password, and turn the tone function on or off.
● Supported Audio Inputs
The supported audio input methods include Bluetooth 5.1, AUX, USB sound card, and USB flash drive (note: the USB flash drive must use the FAT32 file system, and the maximum supported capacity is 32GB).

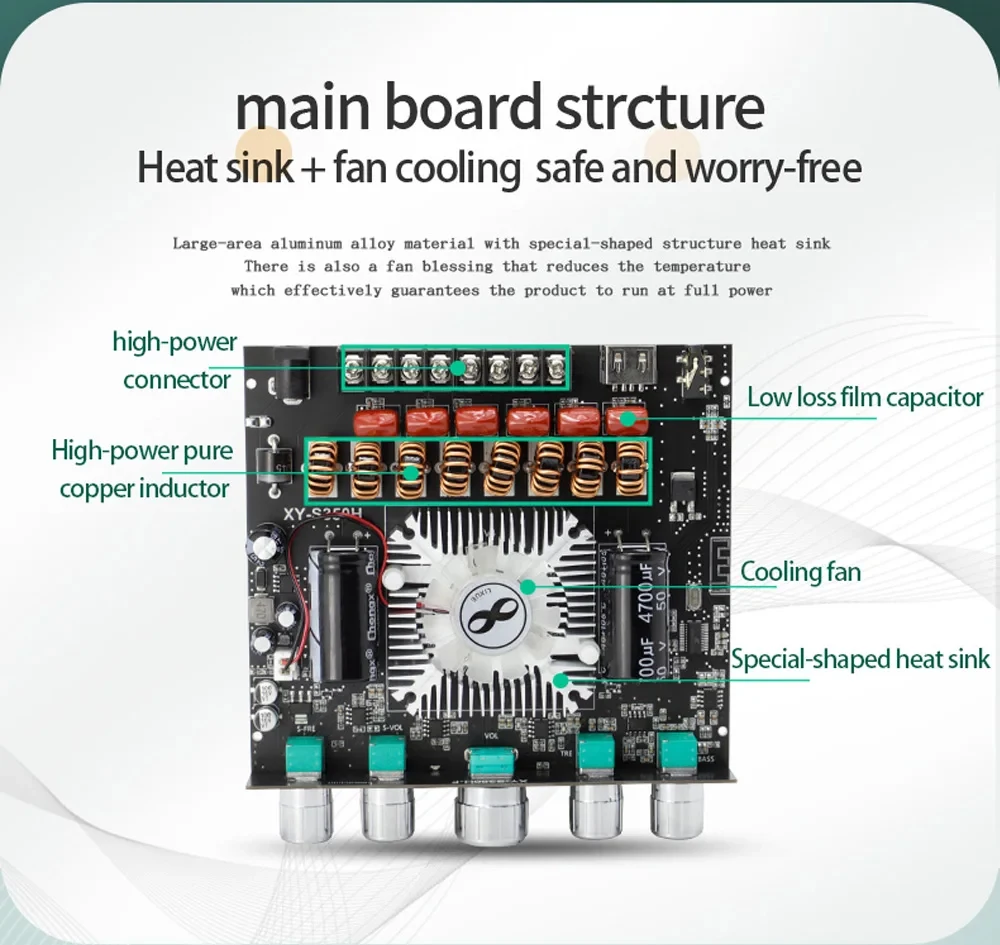

● Heat Dissipation Mechanism
It adopts a heat dissipation mechanism combining a heat sink and a fan, ensuring safe use. A large-area aluminum alloy heat sink with a special-shaped structure and fan support are used to reduce the device temperature, effectively ensuring the product can operate at full power.

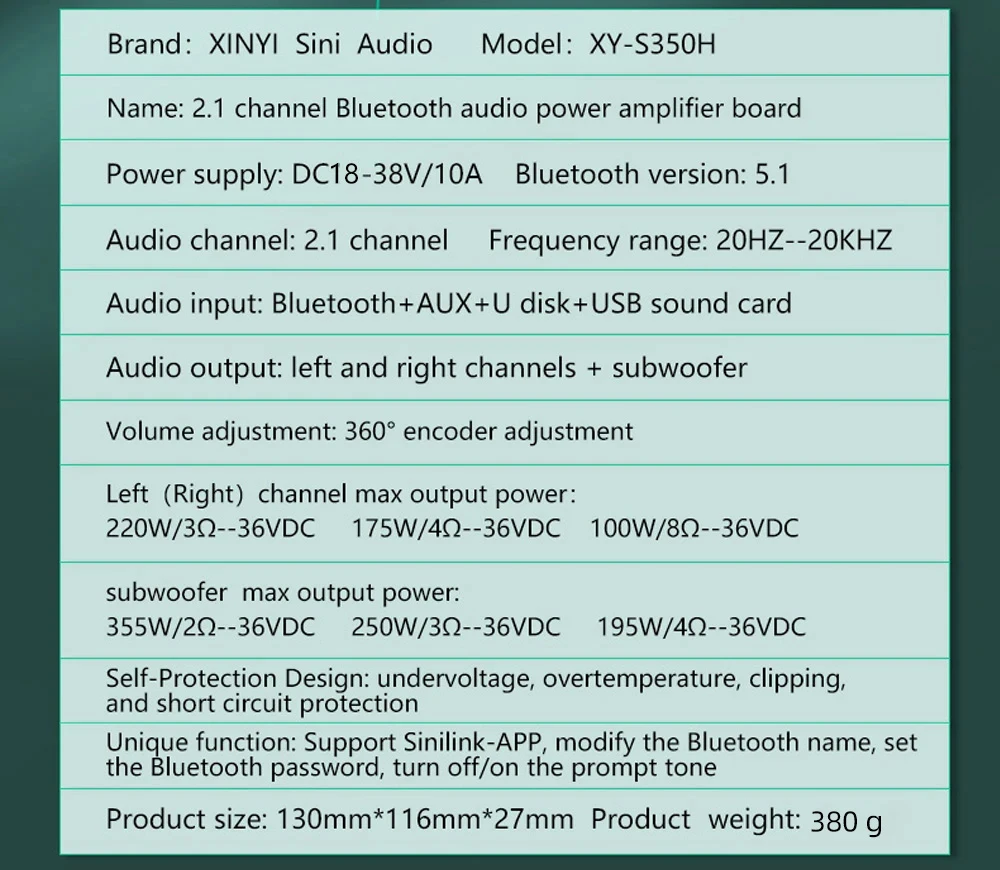

Specification:
Product model: XY-S350H
Power supply:DC18-38V/10A and above
Bluetooth-compatible version: 5.1
Audio channel: 2.1 channels

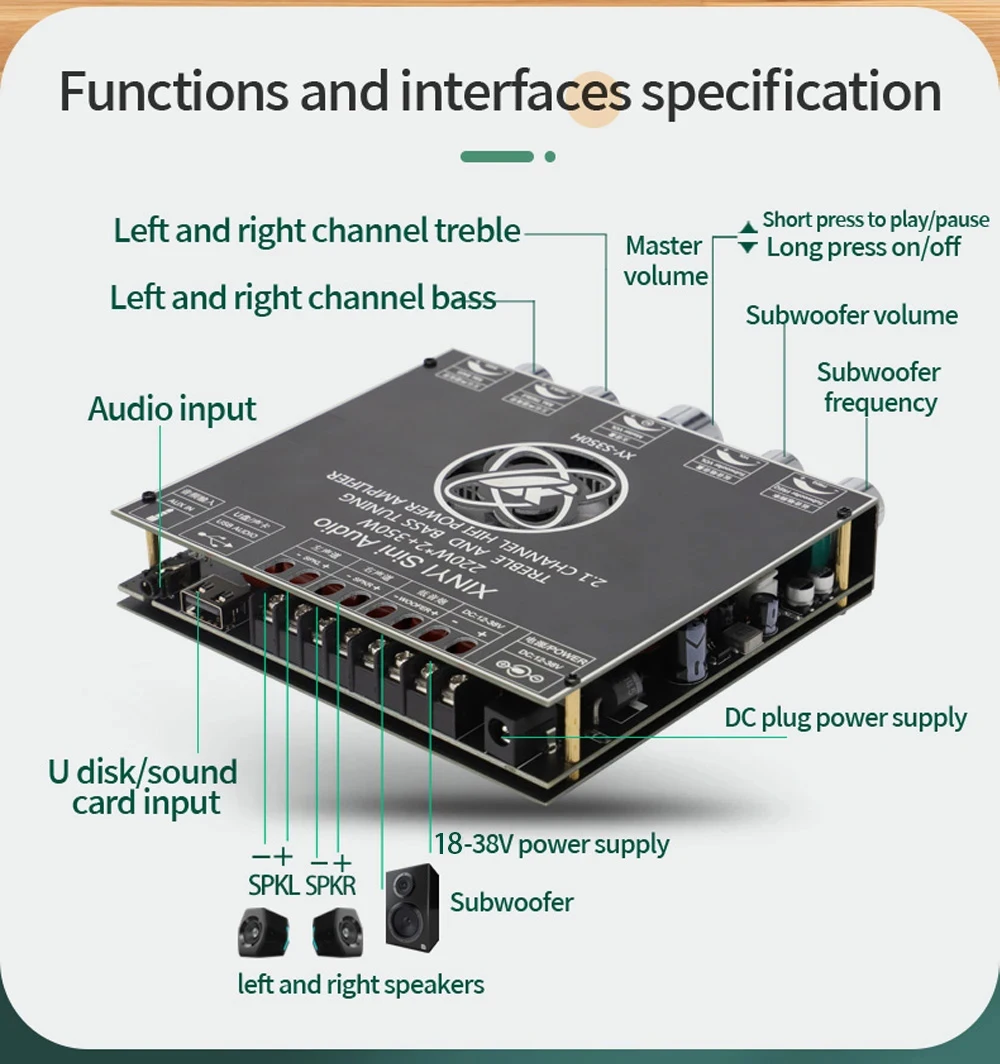

Audio input: Bluetooth-compatible + AUX + USB flash disk + USB sound card
Audio output: left and right channels + subwoofer
Frequency range: 20Hz -- 20KHz
Volume adjustment: high-end encoder knob adjustment, smooth feel
Maximum output power of left and right channels:
220W/3Ω--36VDC
175W/4Ω--36VDC
100W/8Ω--36VDC
Maximum output power of subwoofer:
355W/2Ω--36VDC
250W/3Ω--36VDC
195W/4Ω-36VDC
Protection mechanism: overvoltage, undervoltage, clipping, short circuit, overheating and other protection
Unique functions: support sinlink app, modify Bluetooth-compatible name, set Bluetooth-compatible password, and turn off / on prompt tone

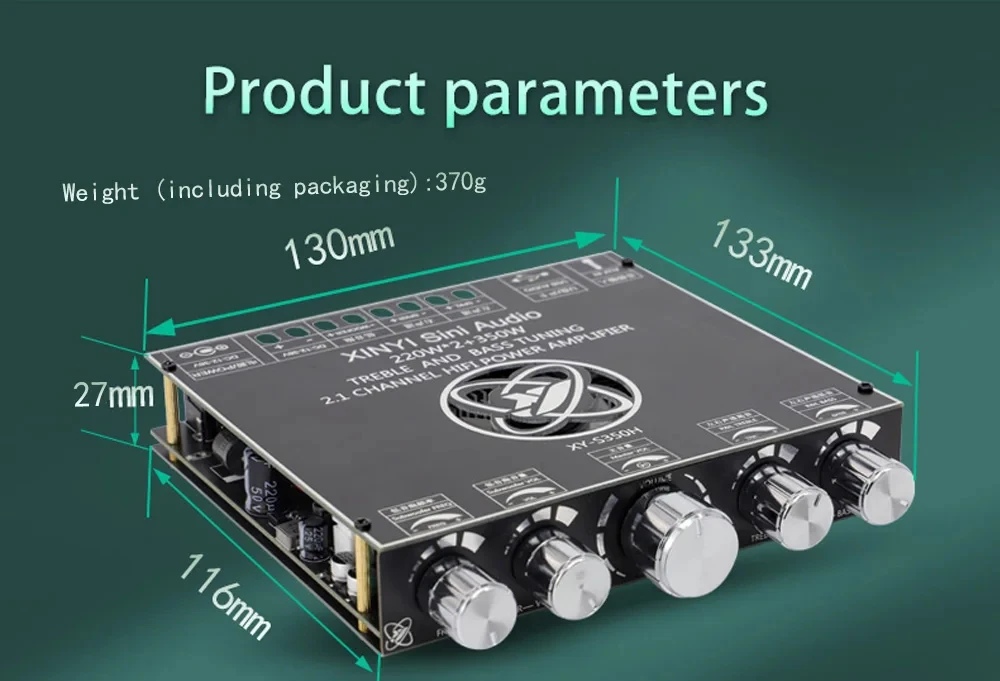

Product size: 130mm * 116mm * 27mm/5.1X4.6X1.1in
Precautions for modifying Bluetooth-compatible name:
1. Enter the name to be modified in the Bluetooth-compatible name text box and click settings (limited to 10 characters)
2. After setting successfully, go to mobile phone settings - > Bluetooth-compatible and find the Bluetooth-compatible name of the currently available device.
3 Then, click the setting icon behind the Bluetooth-compatible name to enter the setting page, and click Cancel pairing
4. Finally, power on the Bluetooth-compatible power amplifier board again, search in the mobile phone settings - Bluetooth-compatible, and the modified Bluetooth-compatible device name will appear. Just connect
Bluetooth-compatible password setting steps:
Click the Bluetooth-compatible password button to open the Bluetooth-compatible password. After the Bluetooth-compatible password is turned on, it defaults to 1234. If you want to modify it, enter a new password in the text box (Note: the password must be 4 numbers), click Set, and you will be prompted that the setting is successful, the password will be set, and the connection password of power amplifier board will take effect again.
Note:
The mobile phone system will remember the paired Bluetooth-compatible device and connect Bluetooth-compatible directly after restarting the power amplifier board; The pairing password is required only when the pairing is cancelled and the Bluetooth-compatible connection is searched again.
