Product Description

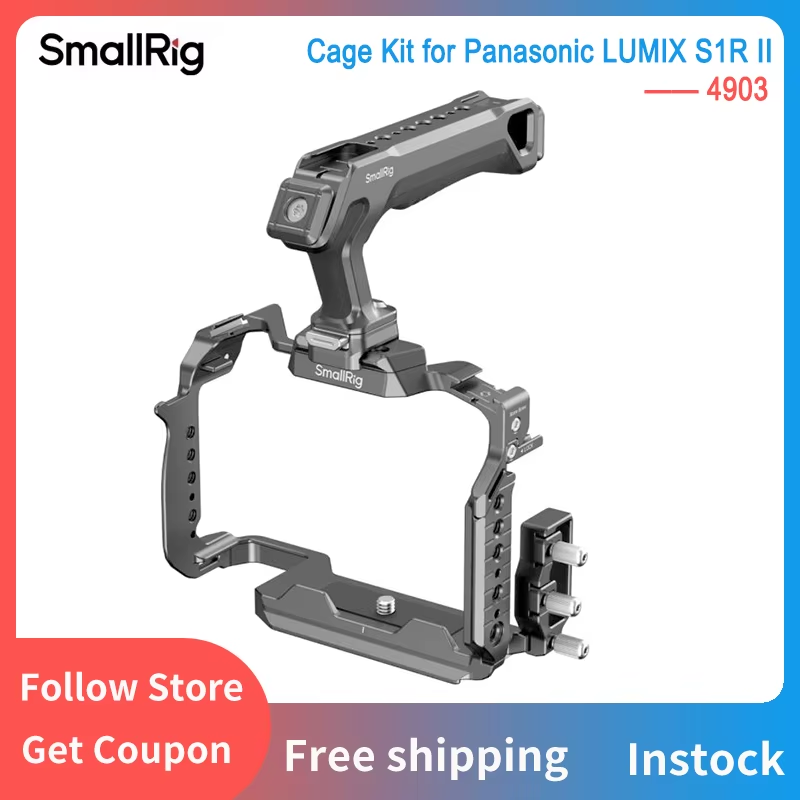

SmallRig 4903 Camera Cage Kit for Panasonic LUMIX S1R II with Top Handle HDMI&USB-C Cable Clamp w Arca-Swiss Quick-Release Plate
I. Product Name:
Product Name in Package: SmallRig Cage Kit for Panasonic LUMIX S1R II 4903
Product Name in Marketing: SmallRig Cage Kit for Panasonic LUMIX S1R II 4903
II. Key Features:
1.Portable, dedicated handheld kit for Panasonic LUMIX S1R II;
2.HawkLock H21 Quick Release NATO clamp top handle;
3.Thumbscrew-tightened cable clamp fixes HDMI & USB-C cables at the same time;
4.Multiple mounting points support monitor, microphone, LED video light, etc.;
5.Arca-Swiss quick-release plate for Arca-Swiss tripods and DJI RS 2/ RSC 2 / RS 3 / RS 3 Pro / RS 4 / RS 4 Pro gimbals.
III. Product Description
SmallRig Cage Kit for Panasonic LUMIX S1R II 4903 is designed to assist with handheld shooting and attach accessories. It includes a cage, a HDMI & USB-C cable clamp and a top handle, in which, the top handle, ergonomically designed to enhance grip, connects to the cage via NATO clamp and the thumbscrew-tightened cable clamp can fix HDMI & USB-C cables at the same time. Among the accessory mounting points, 1/4"-20 threaded holes support Side Handle 3323 ; cold shoe mounts suit SSD Holder BSH2343,microphone, LED video light, monitor, etc; and ARRI 3/8"-16 locating holes fit Monitor Mount 2903B. It also comes with a HawkLock H21 NATO rail on the left for Side Handle 4485 and strap holes on both sides, which are compatible with hand strap. Besides, a magnetic wrench is included for easy disassembly and assembly.
Notes:
1.Please remove the side lock adapters before installing this cage.
2.The cage in the kit is compatible with LUMIX S5 II / S5 IIX / G9 II cameras, but the HDMI & USB-C Cable Clamp is only compatible with LUMIX S1R II.
3.The cage is compatible with Panasonic DMW-XLR1 / XLR2, but the top handle in the kit is not. If you need to use Panasonic DMW-XLR1 / XLR2, we recommend you to use [SmallRig Top Handle for Sony XLR-K1M / K2M / K3M and Panasonic DMW-XLR1 / XLR2 3082]. Please remove the cable clamp on the bottom of the XLR before using the 3082.
IV. Compatibility
Panasonic LUMIX S1R II

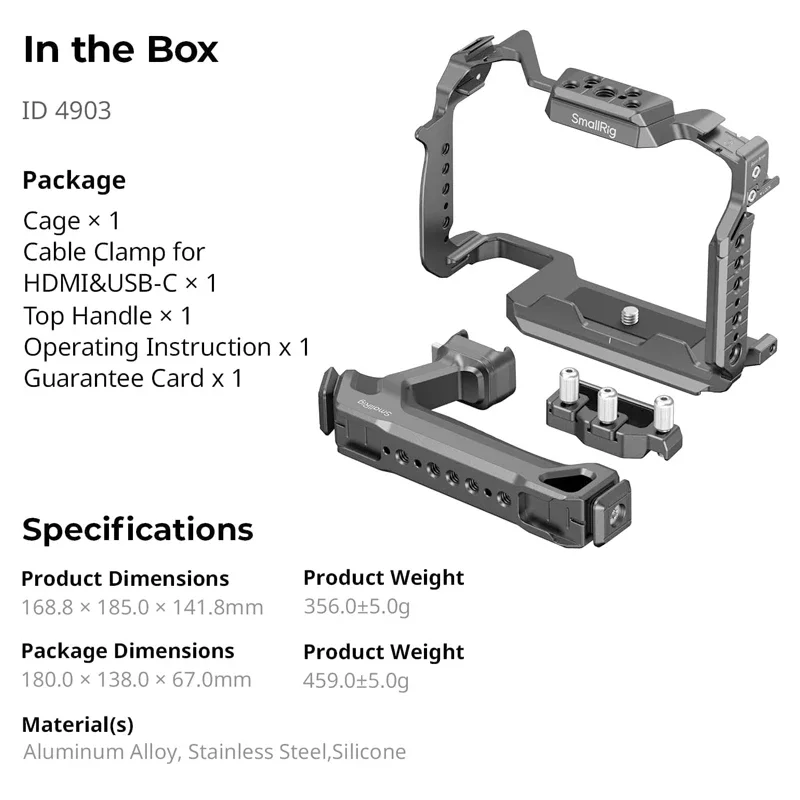

V. In the Box:
Cage × 1
HDMI&USB-C Cable Clamp × 1
Top Handle × 1
Operating Instruction x 1
Guarantee Card x 1
VI. Specifications

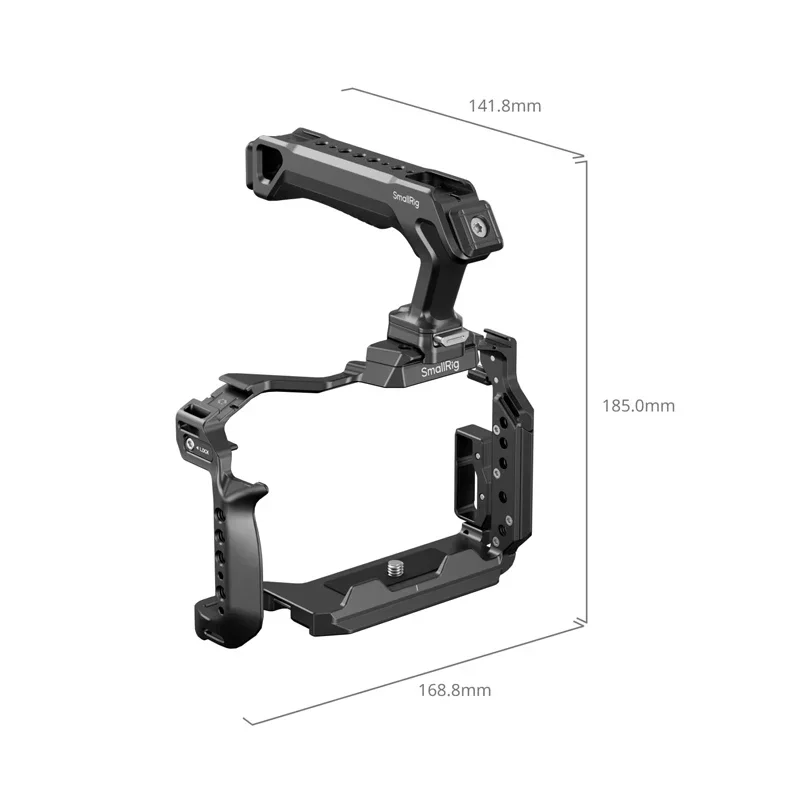

Product Dimensions: 168.8 × 185.0 × 141.8mm
Package Dimensions: 180.0 × 138.0 × 67.0mm
Product Weight: 356.0±5.0g
Package Weight: 459.0±5.0g
Material(s): Aluminum Alloy, Stainless Steel,Silicone
VII. Related Products
4902,5147,4702,3322,3082,4485,BSH2343

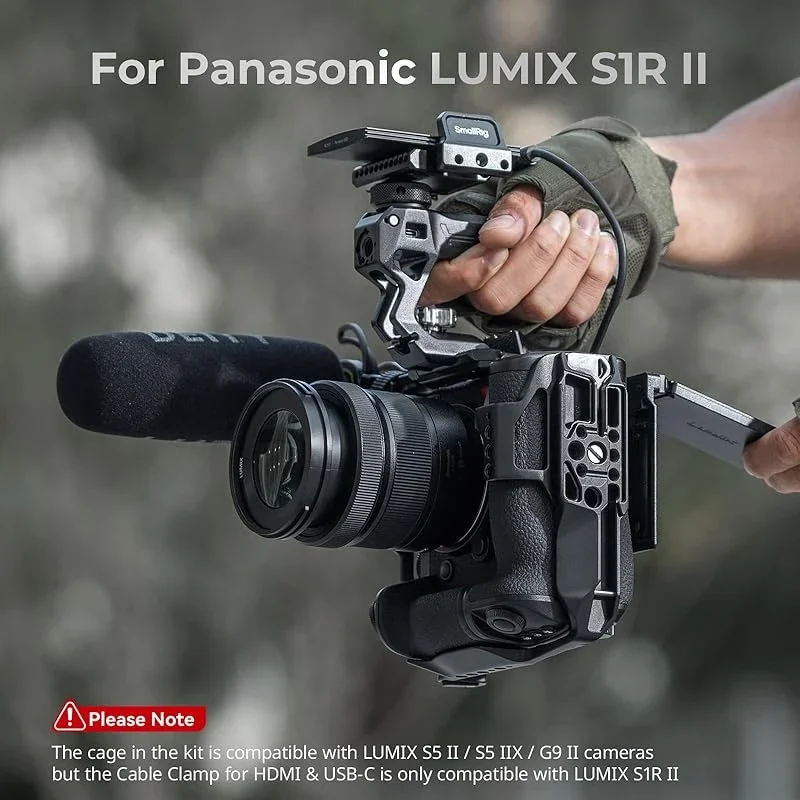

Please Note:
The cage in the kit is compatible with LUMIX S5 II / S5 IIX/ G9 II cameras but the Cable Clamp for HDMI & USB-C is only compatible with LUMIX S1R II.

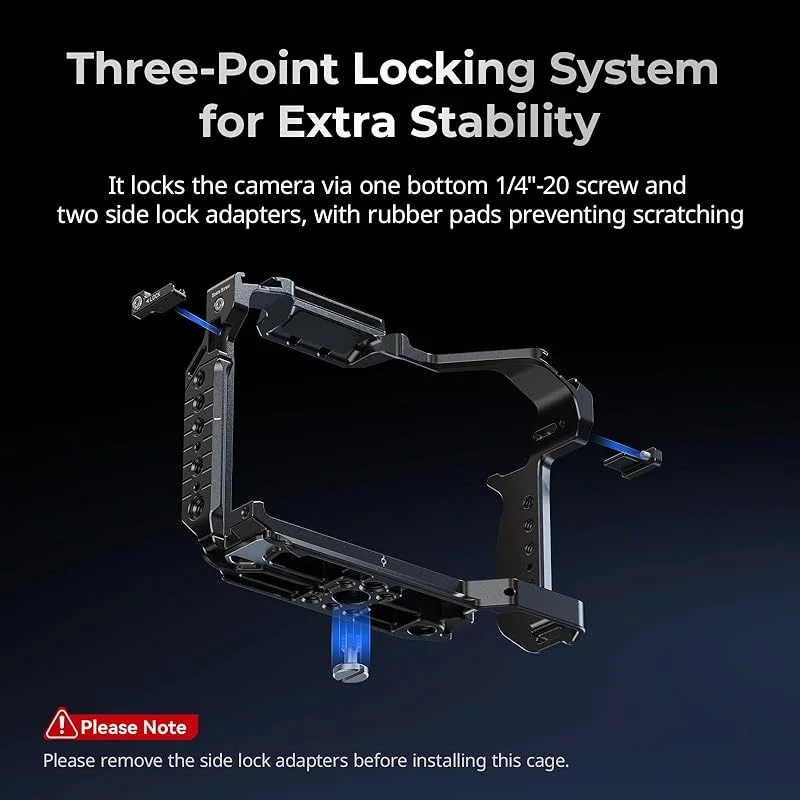

Three-Point Locking System for Extra Stability
It locks the camera via one bottom 1/4"-20 screw and two side lock adapters, with rubber pads preventing scratching.
Please Note
Please remove the side lock adapters before installing this cage.

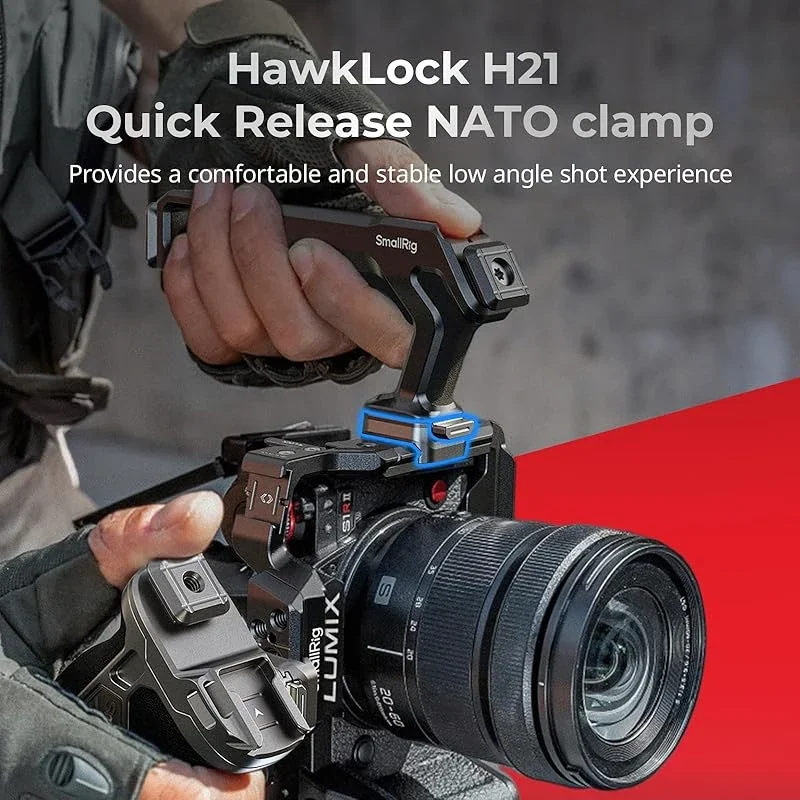

HawkLock H21
Quick Release NATO clamp
Provides a comfortable and stable low angle shot experience.
Support Multiple Scenarios
Please note
1. The cage in the kit is compatible with LUMIX S5 II / S5 IIX/ G9 II cameras, but the Cable Clamp for HDMI & USB-C is only compatible with LUMIX S1R II.
2. The cage is compatible with Panasonic DMW-XLR1 / XLR2, but the top handle in the kit is not. If you need to use DMW-XLR1 / XLR2, we recommend you to use [SmallRig Top Handle for Sony XLR-K1M / K2M / K3M and for Panasonic DMW-XLR1 /XLR2 3082. Please remove the cable clamp on the bottom of the XLR before using the 3082.
