Product Description

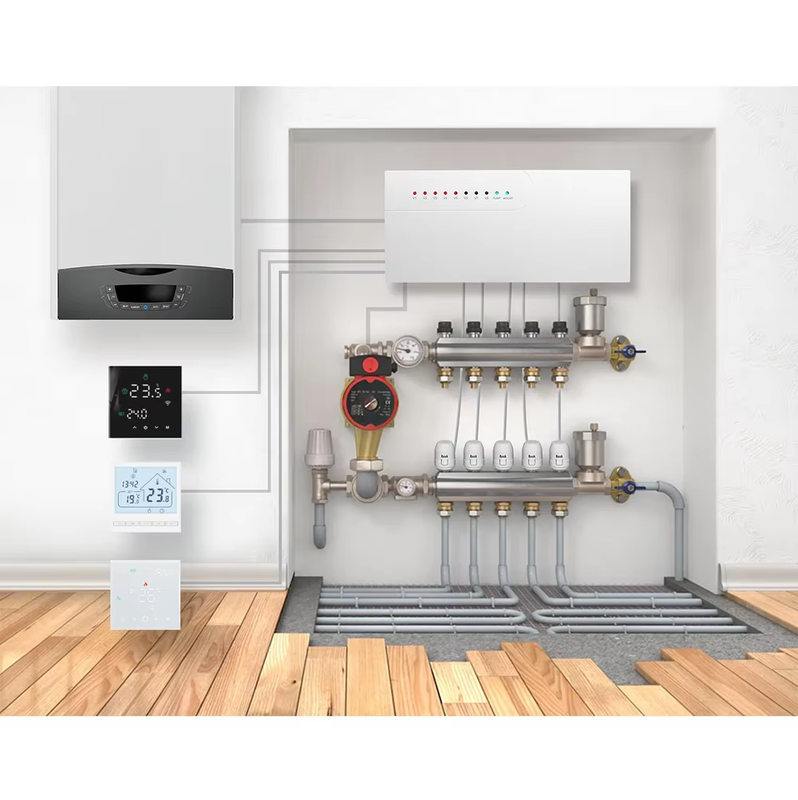

CCT-10 Underfloor Heating System
CCT-10 Hub Controllers is used in Gas Boiler underfloor heating system. It can control boile, circulating pump, thermostats and actuators.
According to user's set temperature, hub controller can control to open or close boiler/circulating pump/electric actuators to achieve the purpose of comfort and energy consumption saving.
One Hub can control 8 pcs thermostats and 20pcs electric thermal actuators.

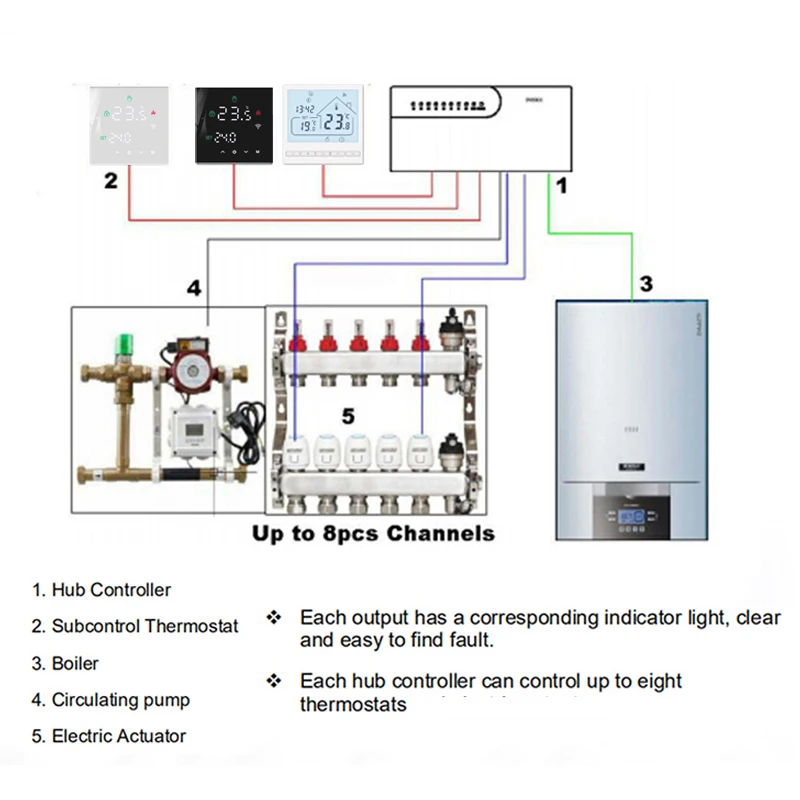

1. CCT-10 8-Channels Hub Controller
2.Tuya Smart WIFI Thermostat
3. The Boilers or Heaters (connected via "Dry Contact")
4.Circulating pump
5. Electric Thermal Actuators (NO or NC)

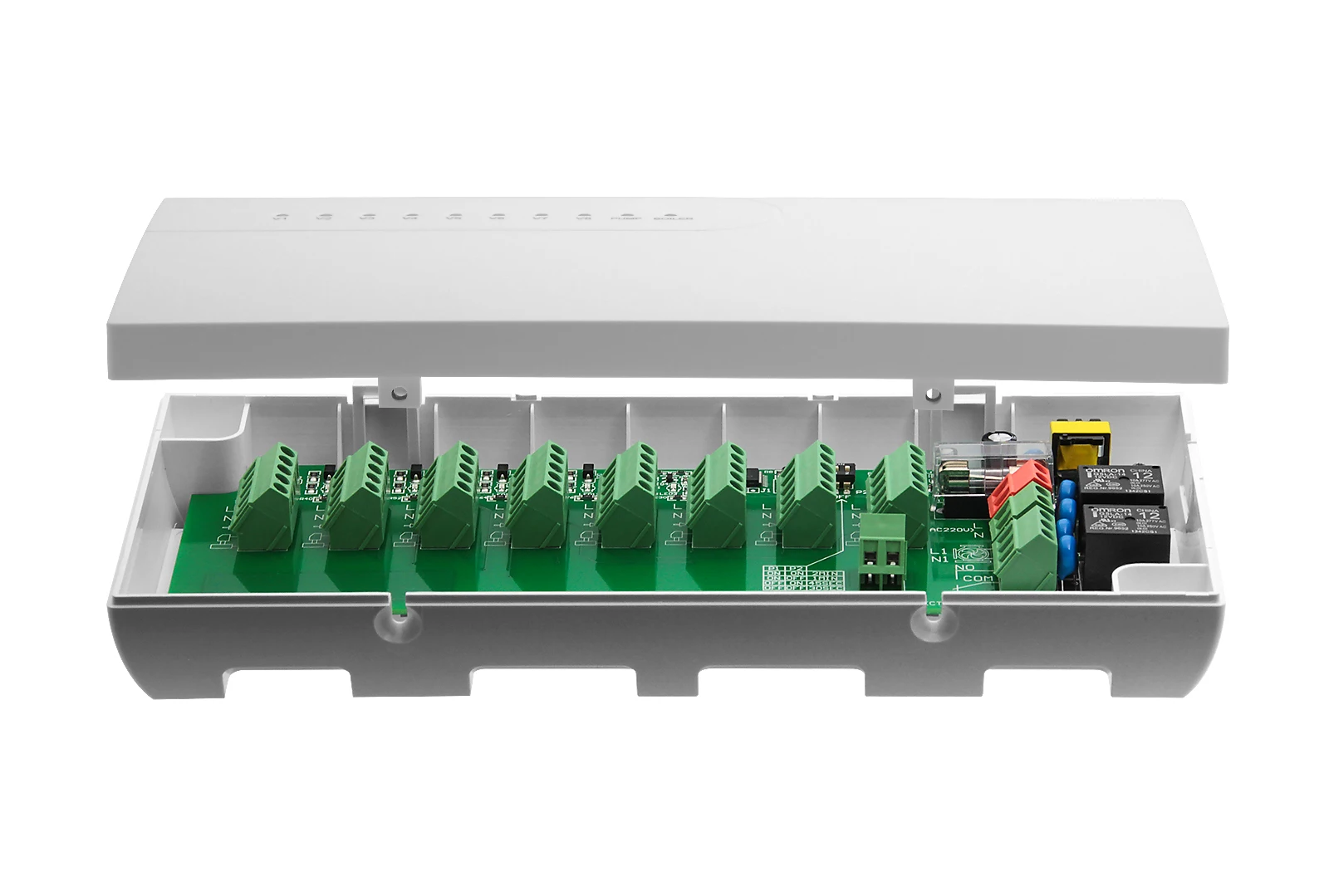

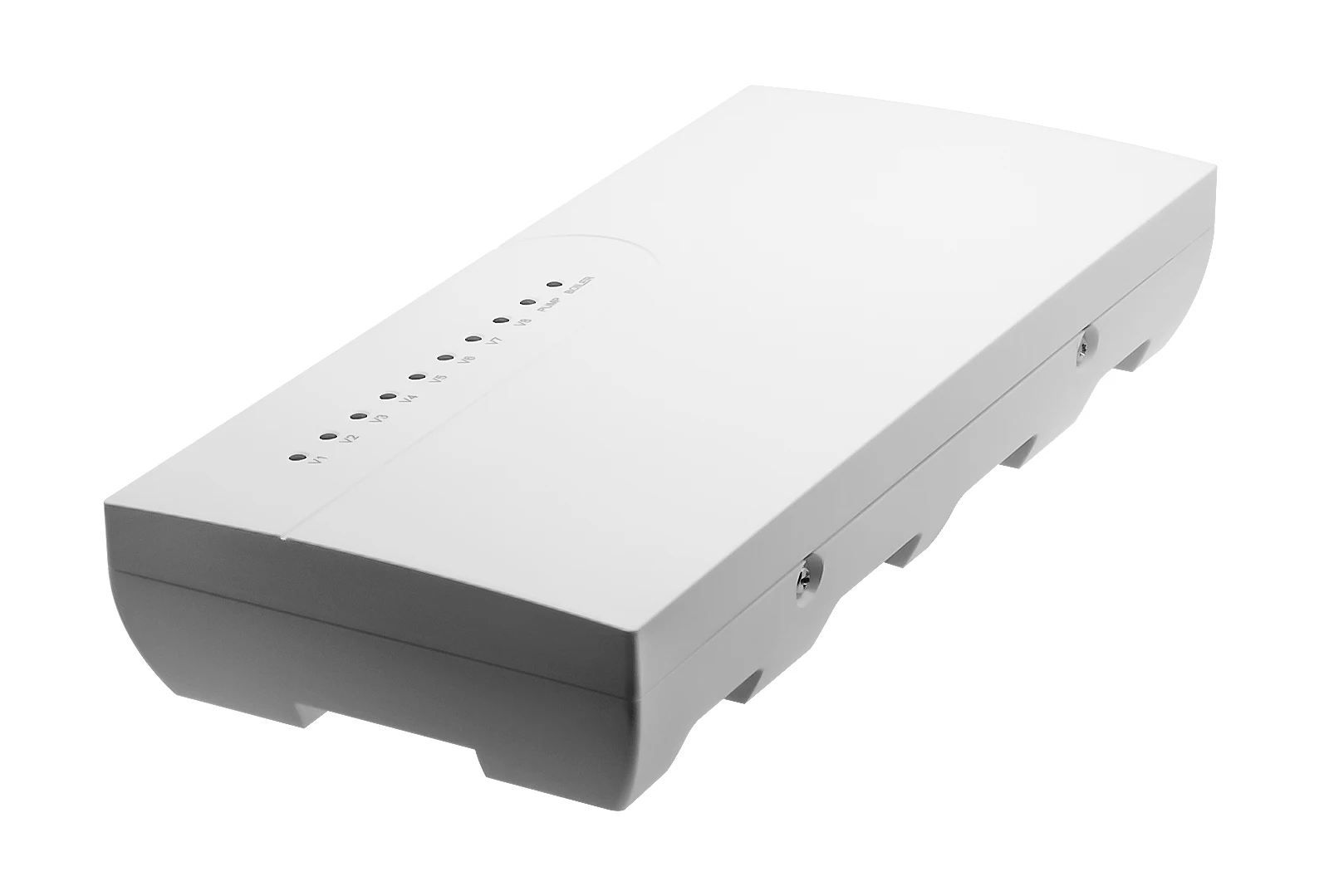

CCT-10 Hub Controller
Package list
hub controller *1
Technical Description
Power Supply: 170-240VAC 50\60HZ
Current Load: 3A

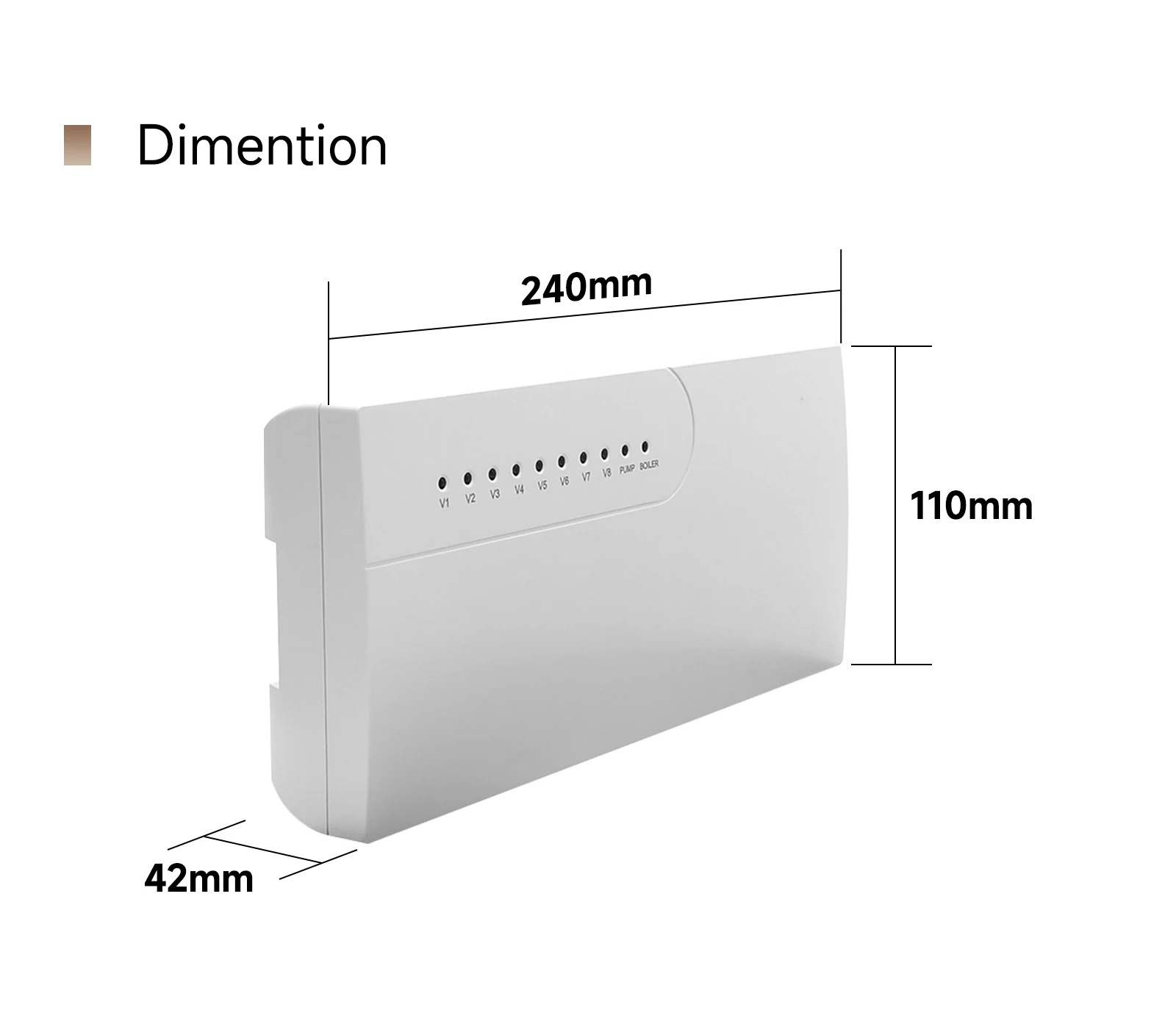

Size: 240mm X 110mm X 42mm
Working Temp: -20 - 60 celsius
Storage Temp: -20 - 70 celsius
Color: White
Delay Time : 30/60/90/120 Seconds delay can be set
Logo: Random delivery with and without logo (if you have your needs, please contact us)
Notice ! ! !
1. Due to product upgrades, the CCT-10(NC) hub controller is only used to connect Normally Closed(NC!!) electric thermal actuators!!!
the CCT-10(NO) hub controller is only used to connect Normally Opend(NO!!) electric thermal actuators!!!
2. This is wired hub controller, the hub and the thermostat and the actuator are all wired. WiFi means that the thermostat can be controlled by the mobile phone through the APP.
3.CCT-10 needs to be connected to the thermostat via wires, it cannot be connected to the thermostat via wifi or wireless signal
Before Use
(1) Before installation, removal, cleaning or maintenance of controller, you must cut off the main power, unplug the fuse or
turn off the switch circuit breaker;
(2) You must read the instruction in detail before installing the controller, and strictly operate thermostat accordance to
instruction;
(3) Controller should be installed by professional engineering company with appropriate safety knowledge;
(4) All wires connections should meet local and national standard;

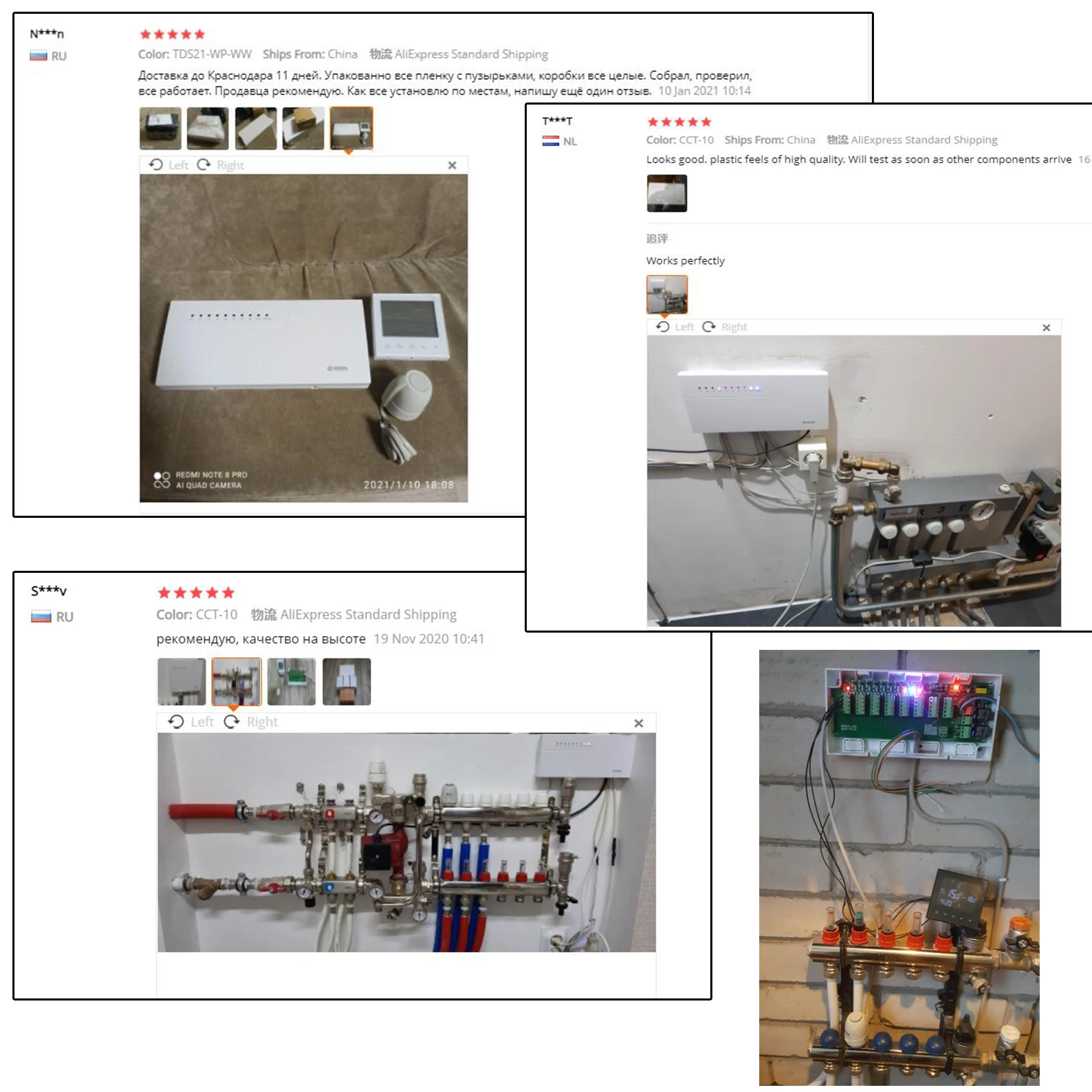

Buyer Show

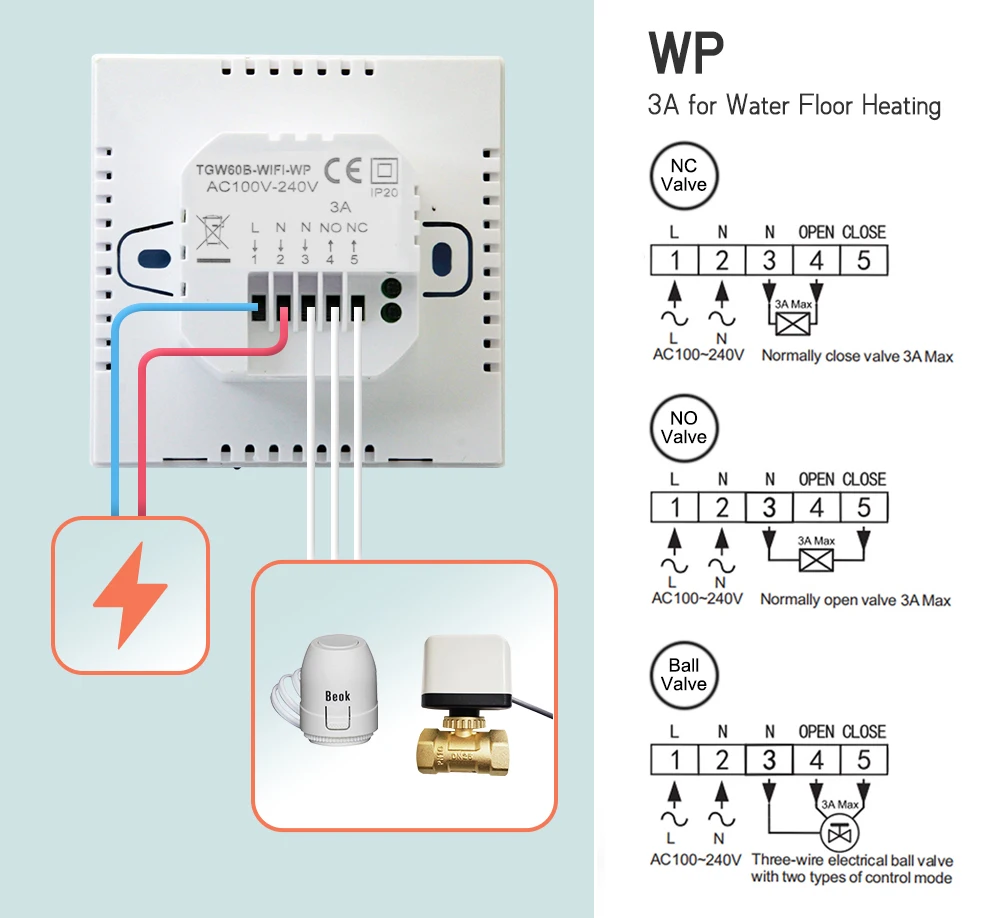

Tuya Smart Thermostat
The thermostat whose name contains "WIFI" can be controlled by mobile phone or voice assistant, and the thermostat whose name does not contain wifi does not include wifi function.
The thermostats in this link don't include floor sensor,
The Thermostat in this link can't work with floor sensor ! (if you need a thermostat that can work with floor sensor , please contact us in the store)
Main Functions
1. Large screen display and touch button
2. Power-off memory function
3. Real-time data save function
4. 5+2 or 6+1or 7days six periods program schedule
5. Anti-freezing function
6. Selectable 60mm European hidden box.
7. With child lock function
8. Smart Phone Remote Control via Tuya smart/Smart life App
9. Can be shared with family members, support multi-person control
10. Voice Control via Yandex Alice /Alexa / Google
Technical Description
Power Supply: 1100-240V; 50-60Hz
Current Load: ≤3A
Power Consumption: <0.3W
Warranty time : 2 years
External Material: PC+ABS (flame retardant)
Set Temp. Range: 5-60 Celsius
Floor Set Temp. Range: 5-95 Celsius
Accuracy: ±0.5 Celsius
Dimension: 86x86x45mm
Storage Temp.: -5~55Celsius
Certificate: CE/ROHS
Package list
Thermostat * 1
User Manual * 1
Screws * 2
(Don't include external floor sensor), please buy it in the store if you need it)

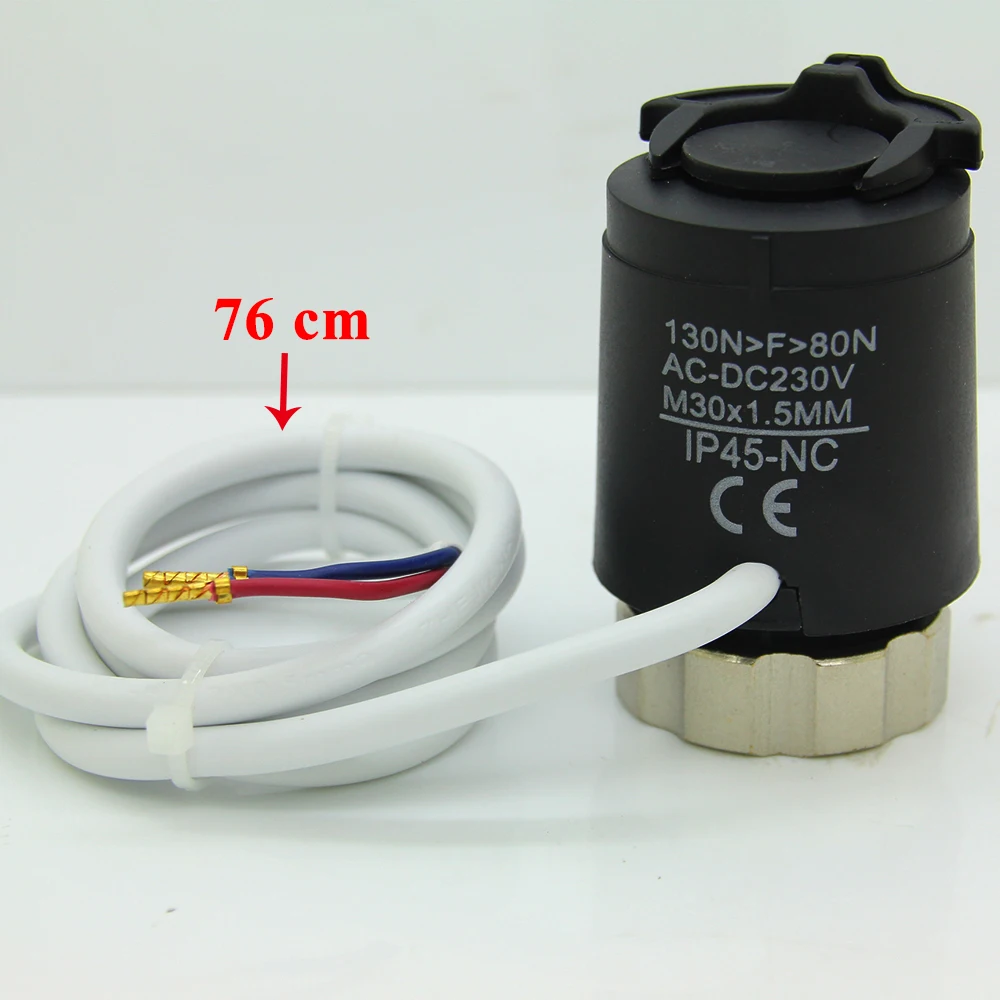

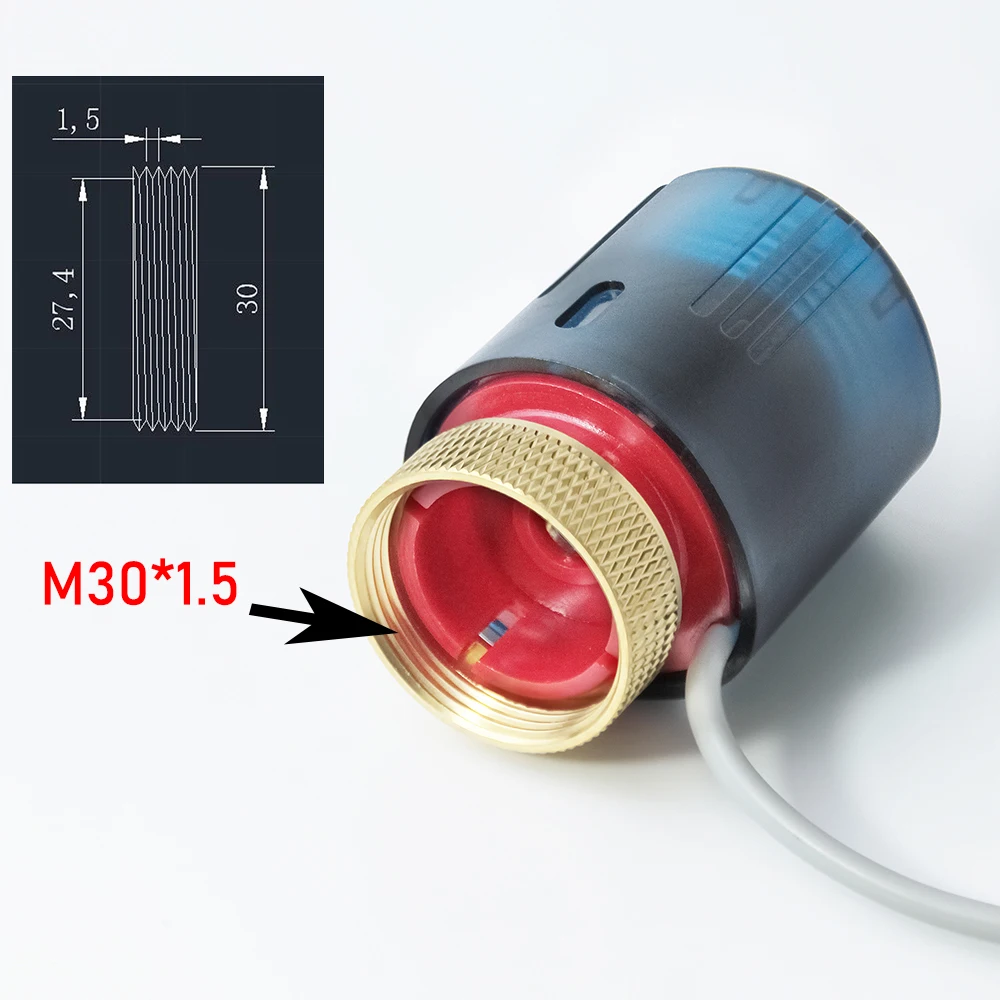

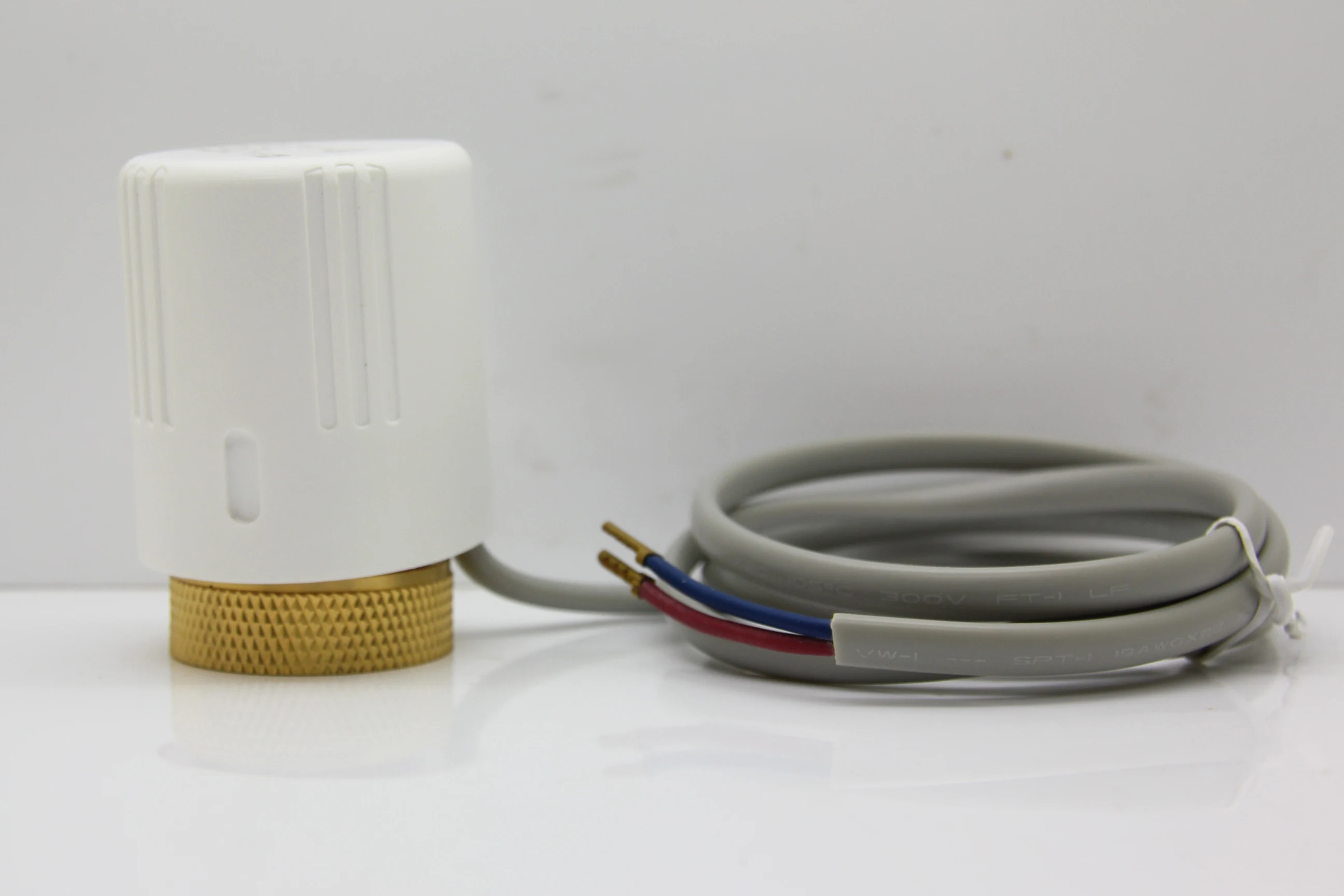

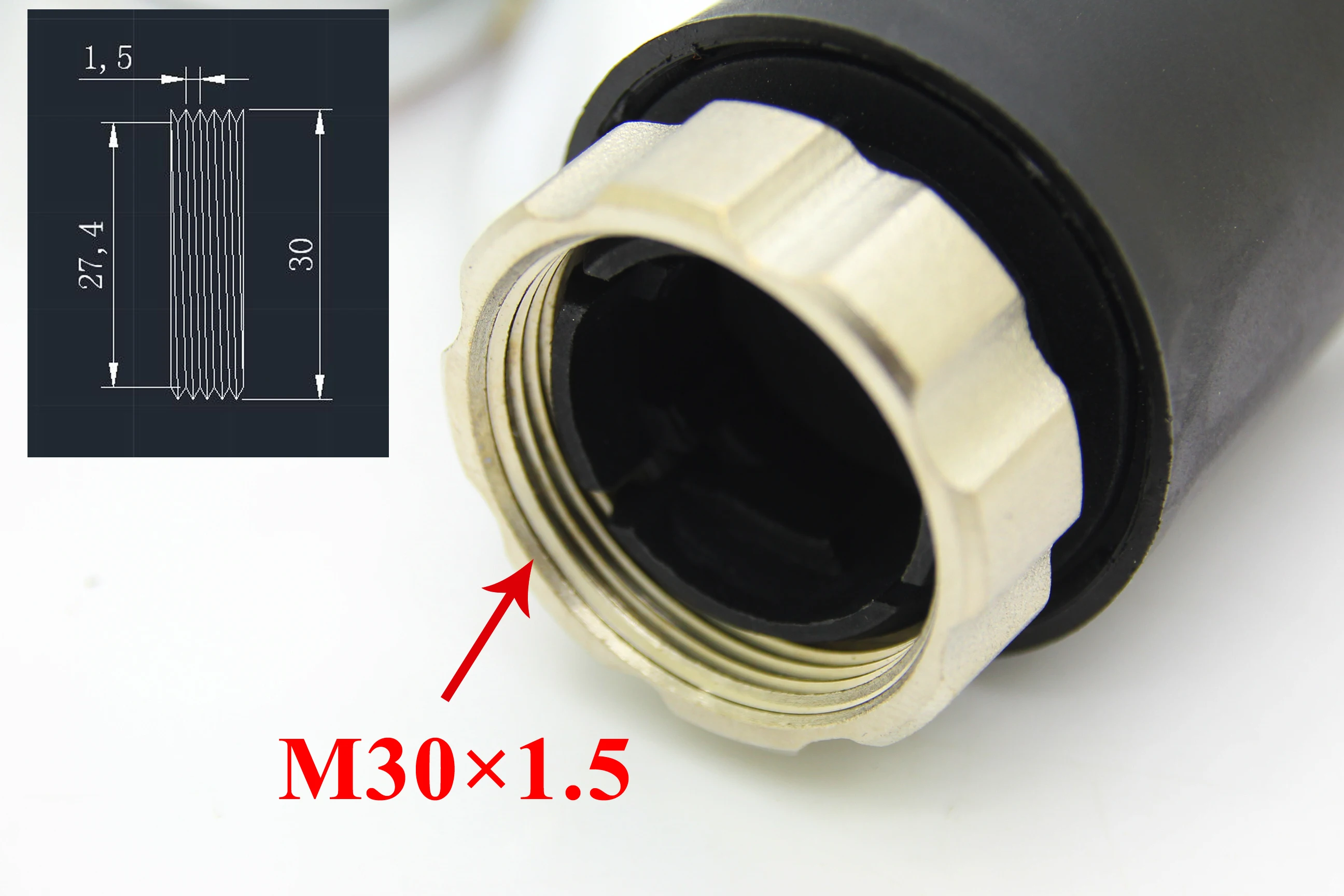

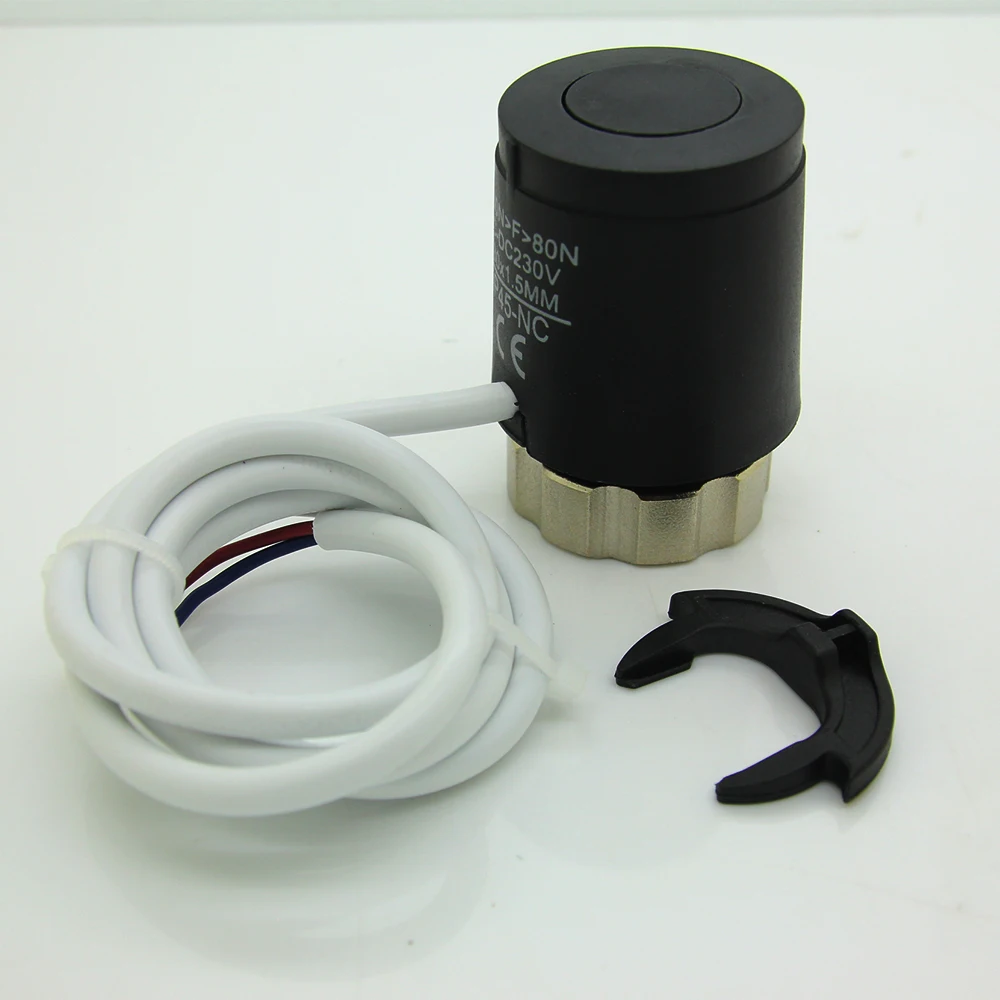

M30*1.5 Thermal Electric Actuator
RZ-AN-230 thermal actuator is a two point form switching device which has been tested by TUV. It is usually applied to control radiator, floor heating system or zone valves. It can close the flux of system under the control of room thermostat and otherelectrical switch automatically . This model only can be used as on-off administrator.
Package list
Normal Close actuator *1
Technical Description
Model:Normally Closed Avtuator
Working Voltage:230VAC±10%
Initial Current:About 50MA
Power Consumption:2W
Protection Grade:IP41
Working Journey:3.5~3.6mm
Working Temperature:-20~50
Storage Temperature:-25~60
Security Class:II(Double Insulation)
Cable Length:65cm
Running Time:180seconds (open-closed)
CE Standard:EN60730

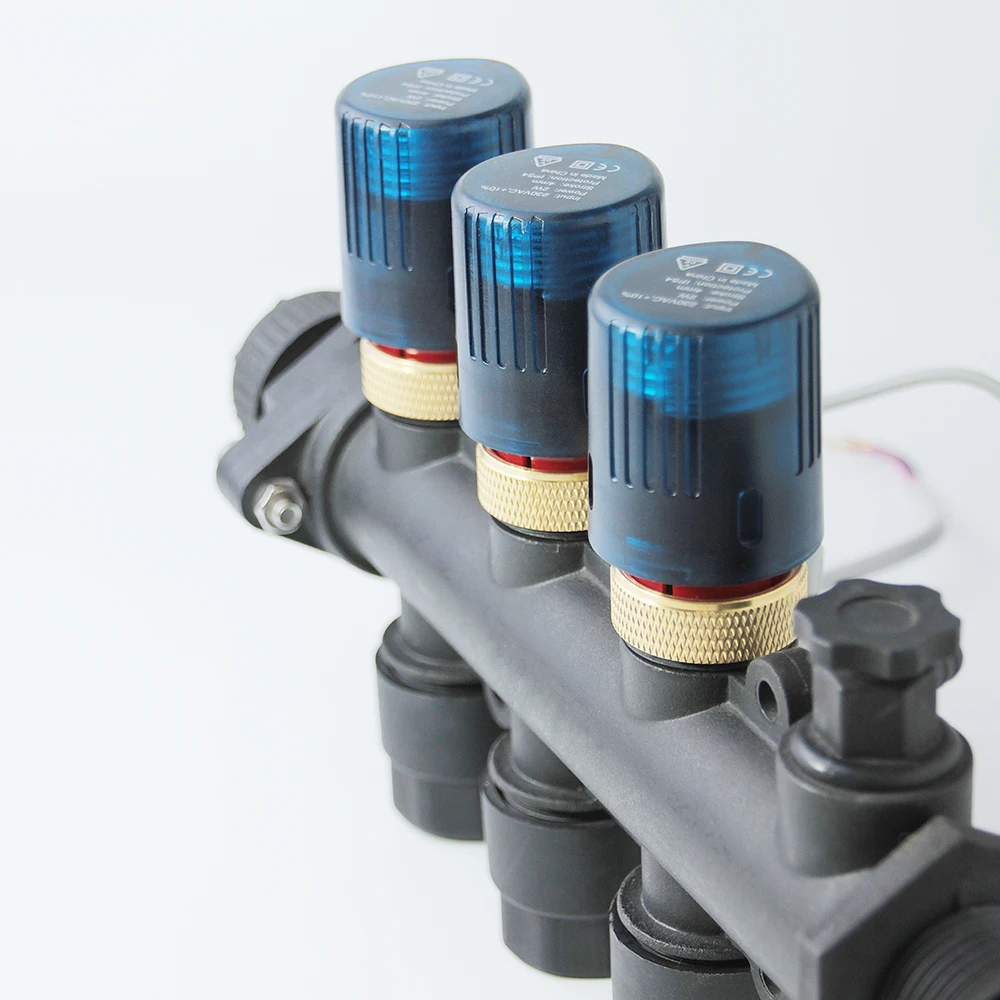

Actuators are used to Connect with Manifolds---
Product Advantage

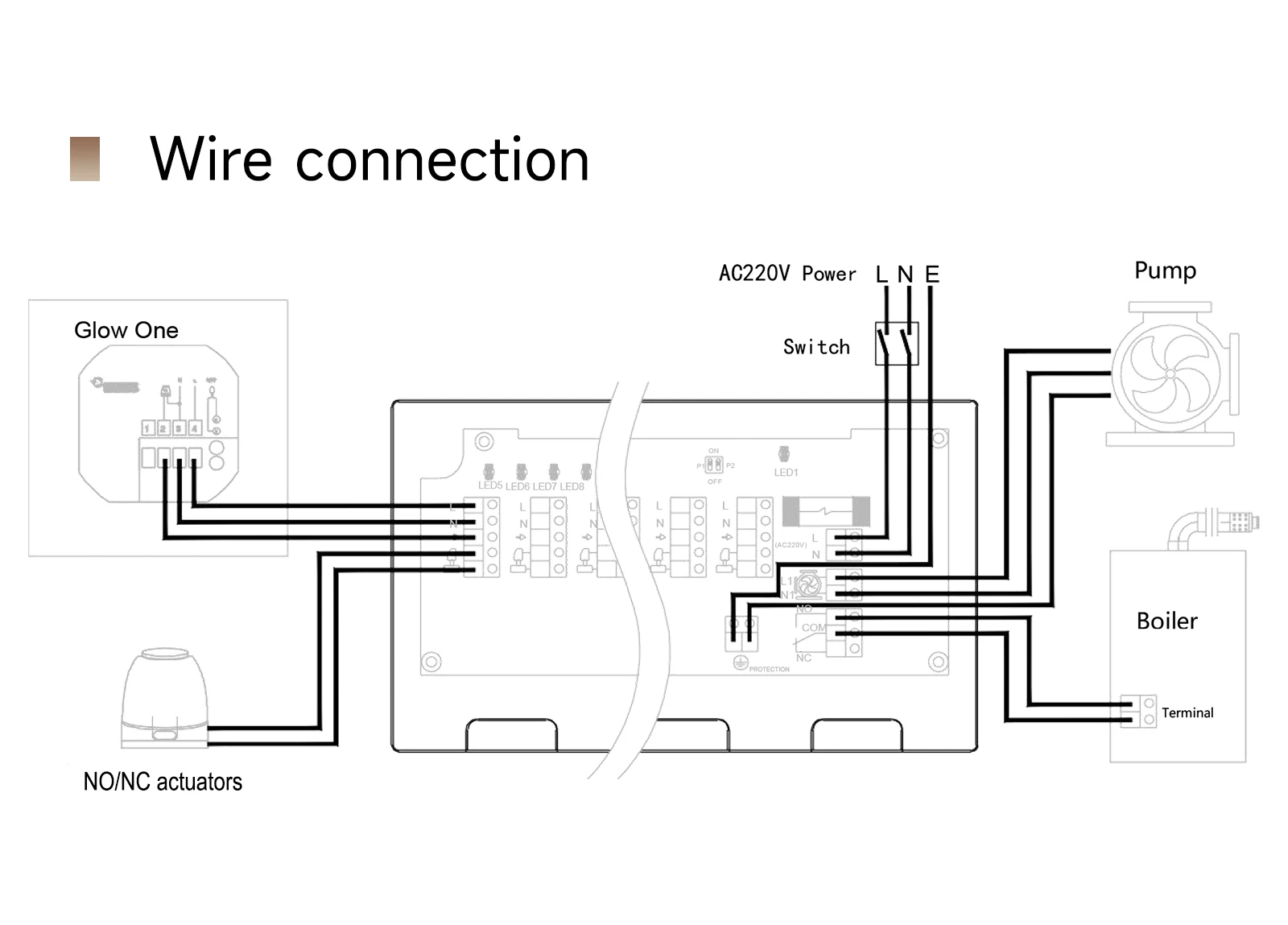

1. Easy to connect with power:
user only needs to reserve main supply in the place of manifold before installation, and directly connect one three-wires cable to
thermostats. So user do not need professional wiring workers;
2. Easy to connect wires: user only needs to connect wires according to wire colors;
3. Easy maintenance after installation: all wires are very clear and neat;
4. To protect boiler or pump:
because hub controller has time delay function, it opens boiler and pump only when water valve is totally opened, and closes boiler when temperature reaches requirements. Time delay to open boiler and pump when heating can realize the purpose of energy-saving;
5. To extend boiler and pump life:
hub controller only start boiler and pump in appropriate temperature, in this way, it will reduce boiler and pump running time, to
extend their working life.
We are not a unconditional return store, we do not accept return products because of appearance, color difference, or other non quality reasons. If product has a quality problem, after you receivet the products you ordered in 15 days, you can directly contact with us before a negative feedback. We will refund to you or resend a new one to you immediately!
1. If you are satisfied with our products and services, it is very kind of you to leave a five-star praise ^*^
2. If you have any questions or are not satisfied, please contact us without dispute or bad review, we will try our best to solve it for you!
