Product Description
These thermostats is divided into two parts, the controller and receiver. The controller and receiver can only be paired one-on-one and will not interfere with each other. It is a wireless boiler model product, also support to connect the actuators and pump.
Difference:
BOT-R5X-WIFI、BOT-R8X-WIFI、BOT-R7X-WIFI

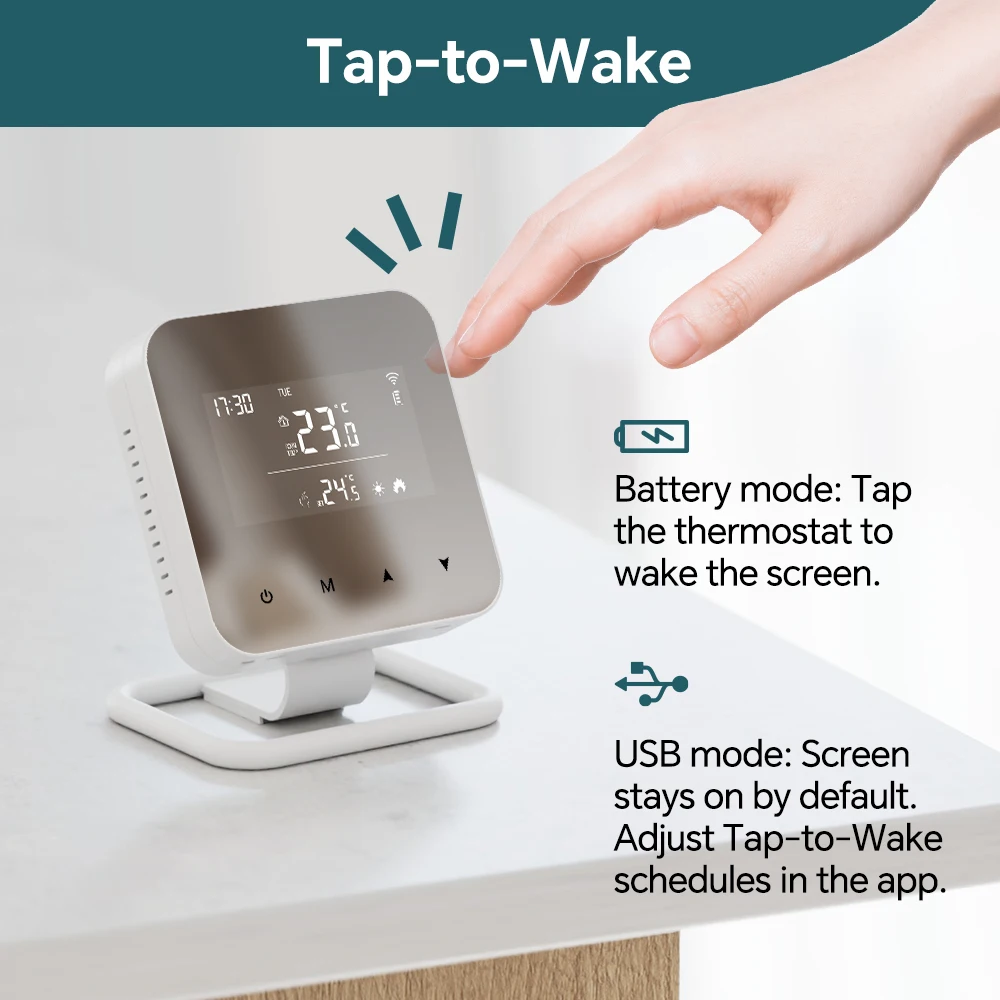

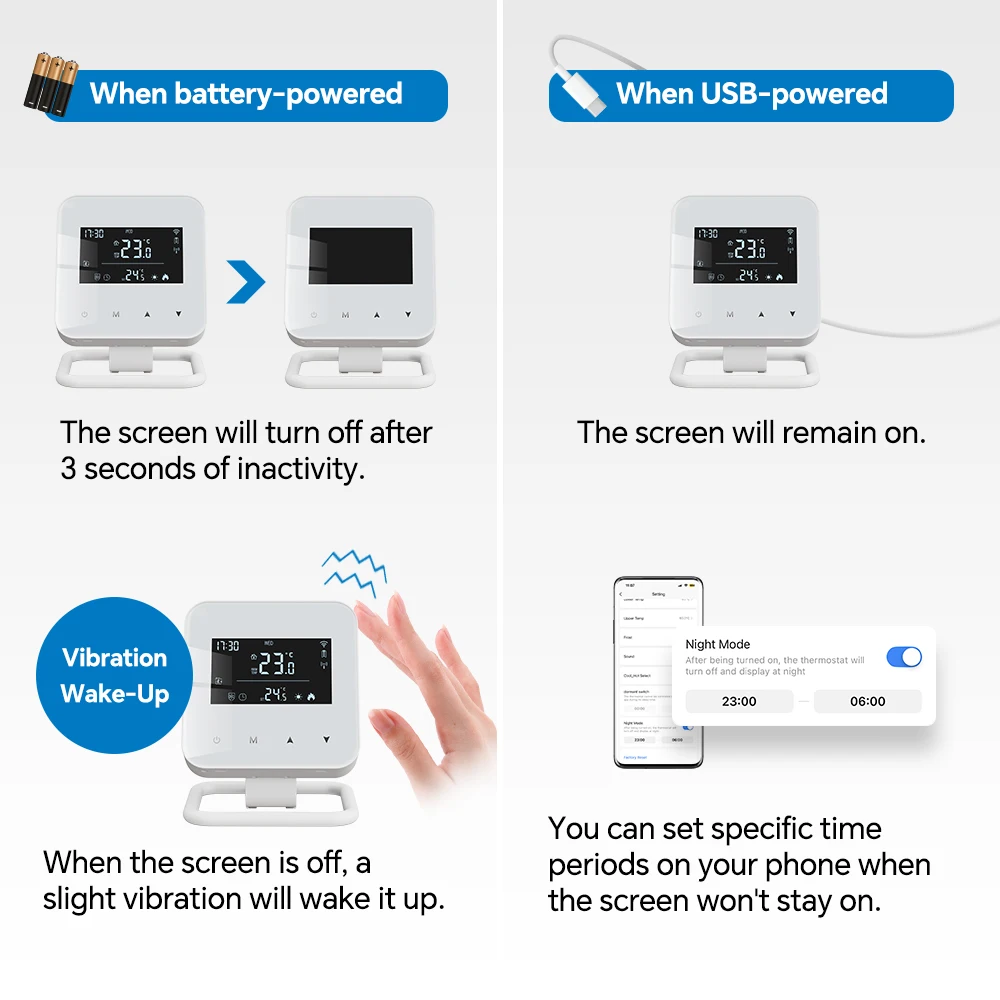

1. When powered by USB, the backlight is always on. When powered by battery, the backlight will turn off for about 3 seconds. But support vibration lighting function
2. Programming is supported on the thermostat, also can program on the APP(Support daily programming. There are 6 time periods that can be set every day)
3. The thermostat displays the time and supports adjustment

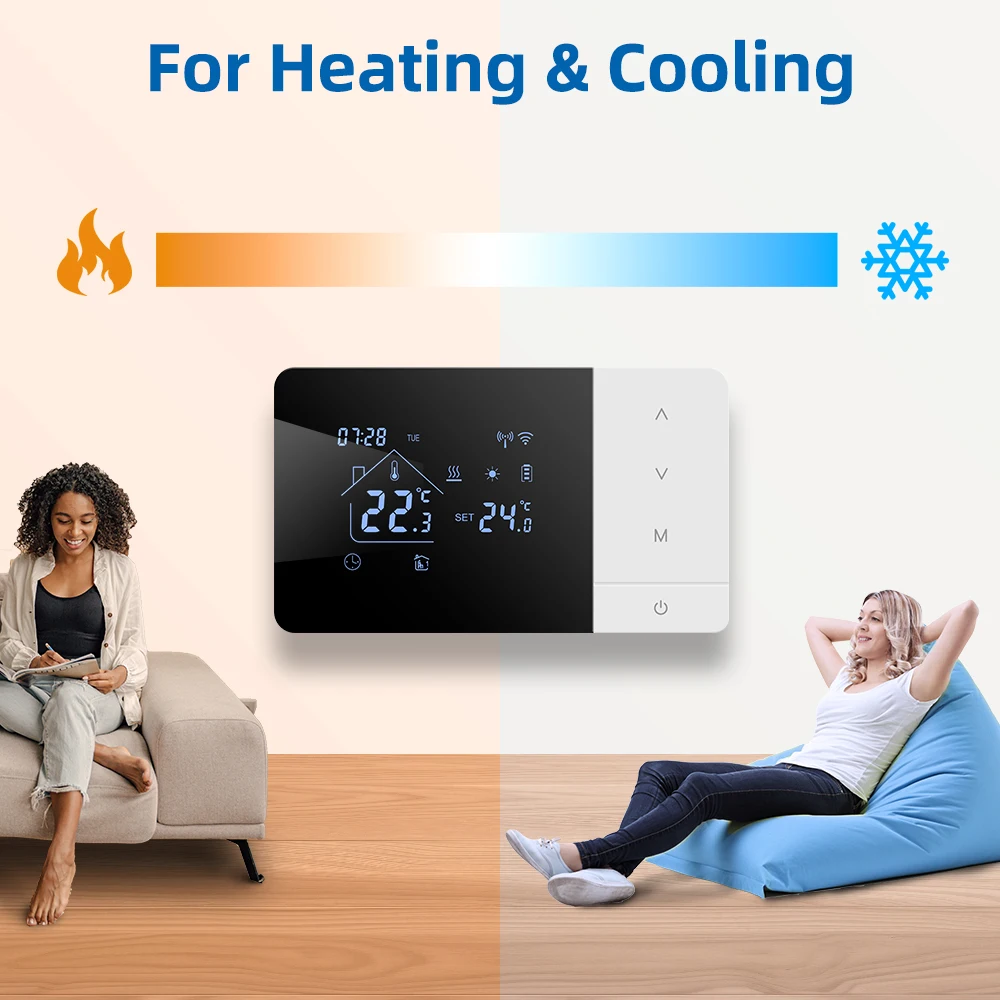

4.The thermostat supports cooling and heating
BOT-R15X-WIFI

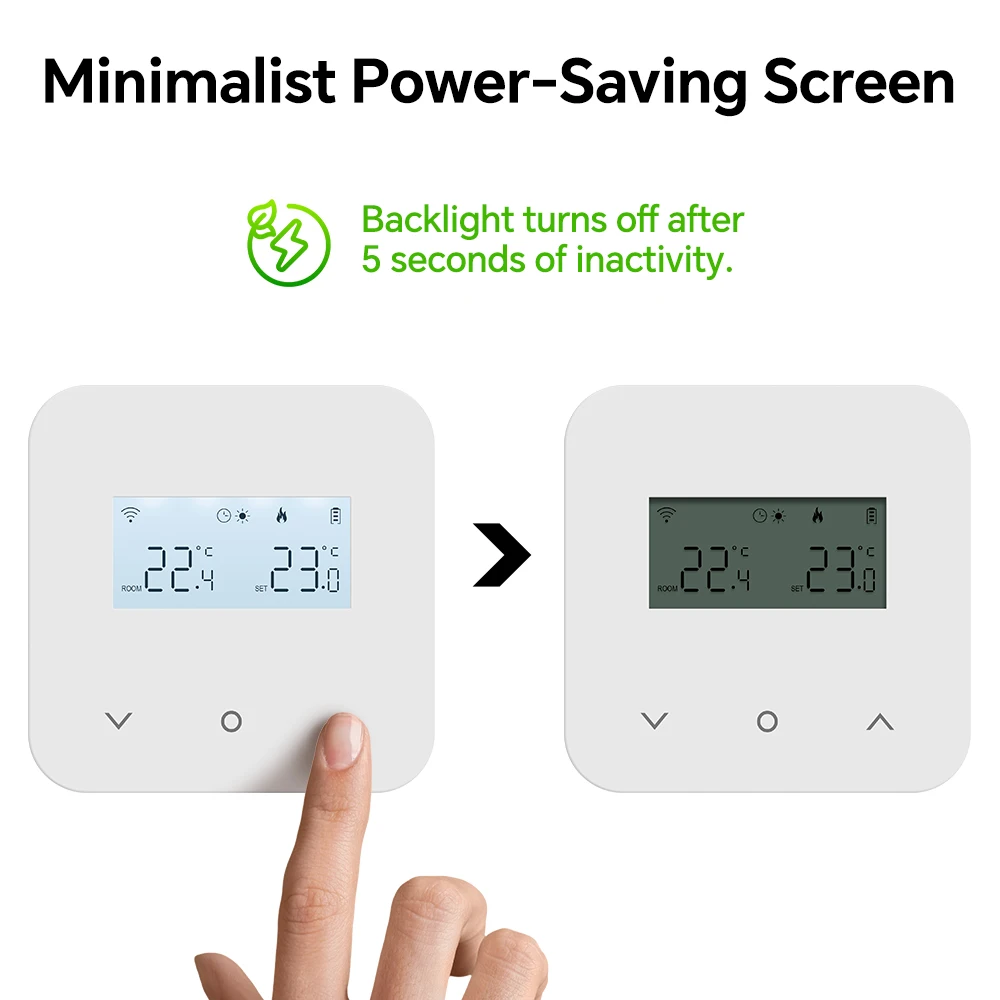

1.Wether the battery or USB powered, the screen will default to displaying numerical icons, and the temperature can be seen at any time. The separate backlight will turn off after about 3 seconds.
2. Programming is not supported on the thermostat, it needs to be programmed on the APP(Support daily programming. There are 6 time periods that can be set every day)
3. The thermostat does not display the time
4.The thermostat supports cooling and heating
BOT-R6X-WIFI
1.Wether the battery or USB powered, the screen will default to displaying numerical icons, and the temperature can be seen at any time. The separate backlight will turn off after about 3 seconds.
2. Programming is supported on the thermostat, also can program on the APP (Support 5+2/6+1/7 programming. There are 6 time periods that can be set on weekdays, and 2 time periods that can be set on rest days)
3. The thermostat displays the time and supports adjustment
4. 4.The thermostat don't supports cooling and heating. only for heating.
BOT-506X-WIFI
1. Black version: When powered by USB, the backlight is always on. When powered by batteries, the backlight will turn off after 3 seconds
White version: Whether powered by battery or USB, the screen defaults to displaying numerical icons, allowing you to check the temperature at any time.
2. Programming is supported on the thermostat, also can program on the APP(Support daily programming. There are 6 time periods that can be set every day)
3. The thermostat displays the time and supports adjustment
4.The thermostat supports cooling and heating
Common Functions:

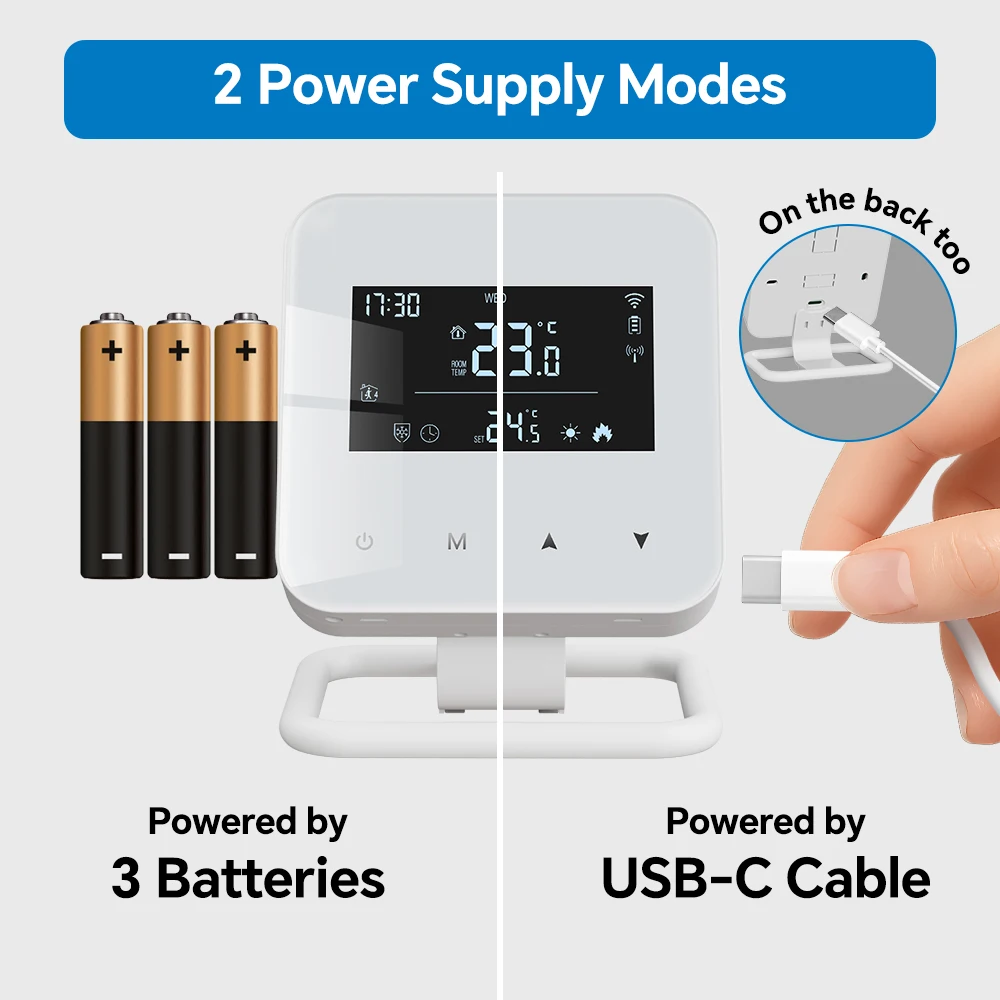

1. 2 power supply modes: USB power supply, battery power supply

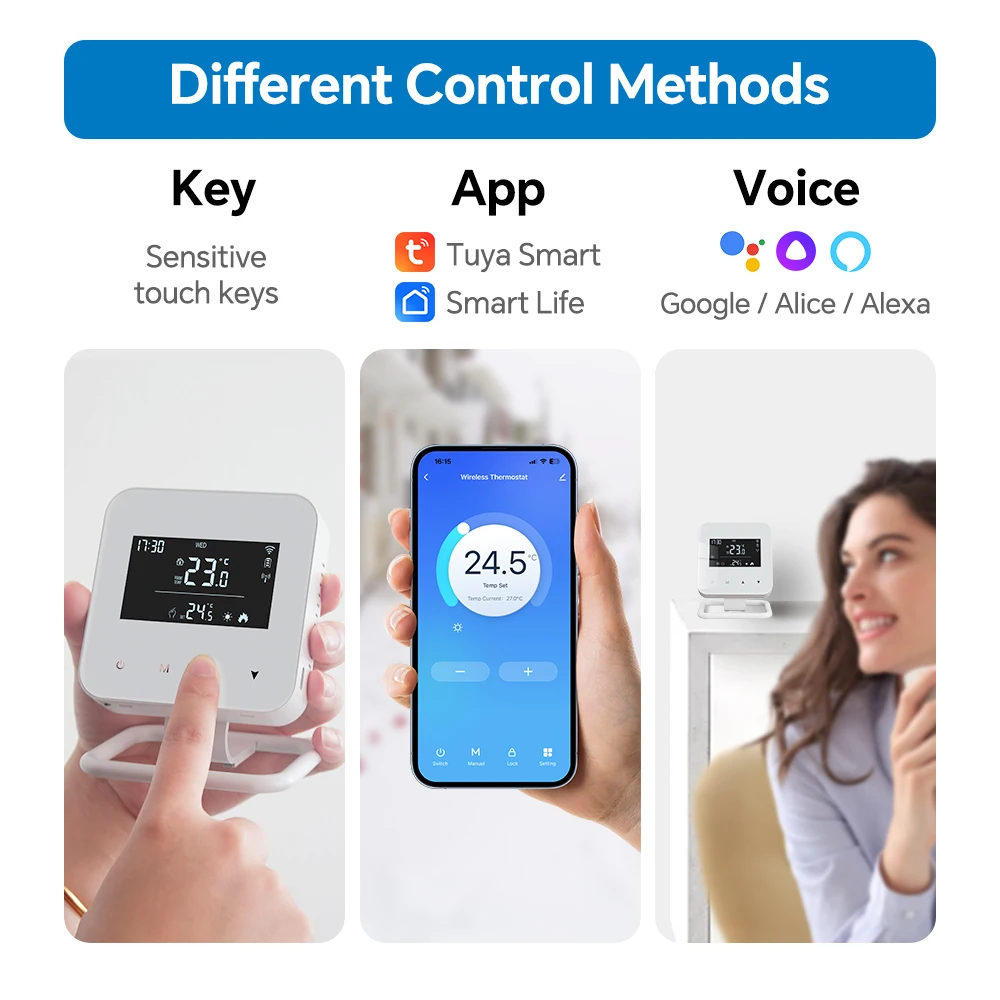

2. Support APP Control Voice Control
3. Programming
4. Child lock function
5. Anti freezing function
6. The button sound can be turned off
7. Can be placed on a table or installed on a wall
8. The receiver is the same, with consistent wiring methods
Installation & Powered & Wiring

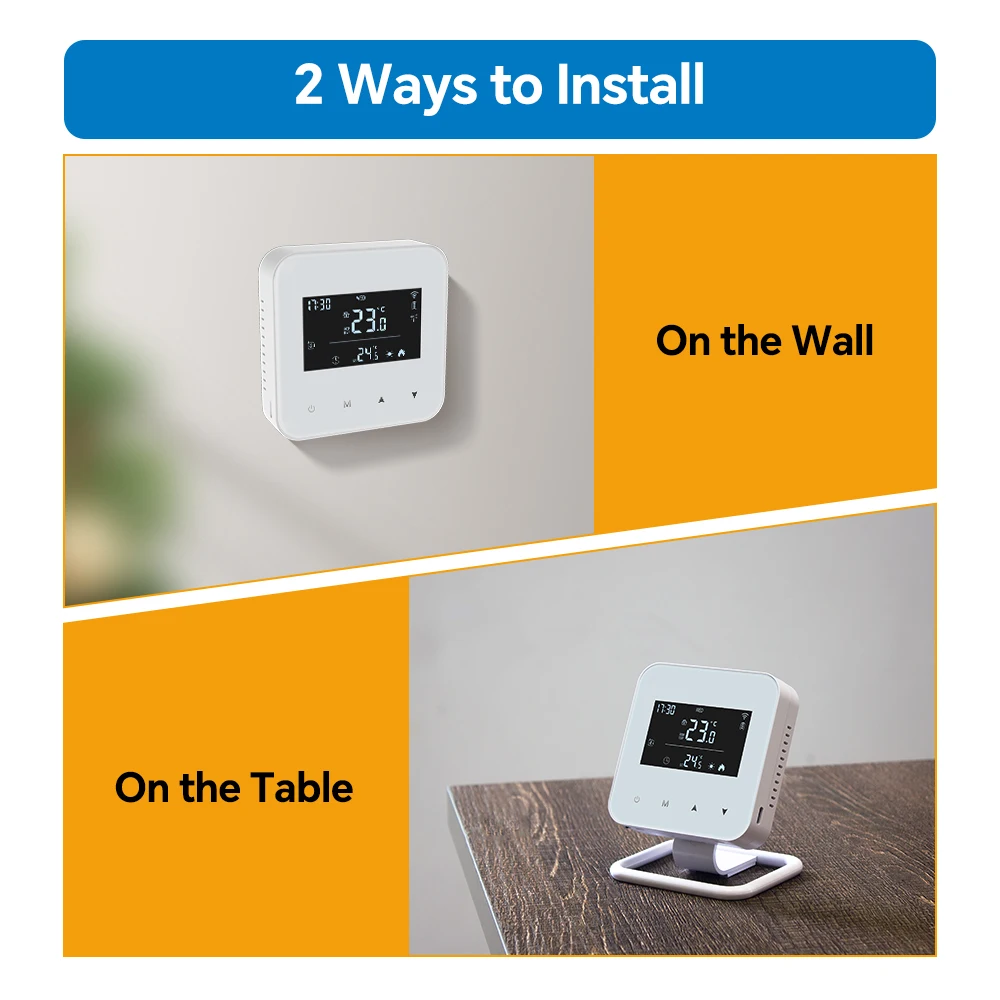

【Installation method】It can be installed on the wall or placed on a table.

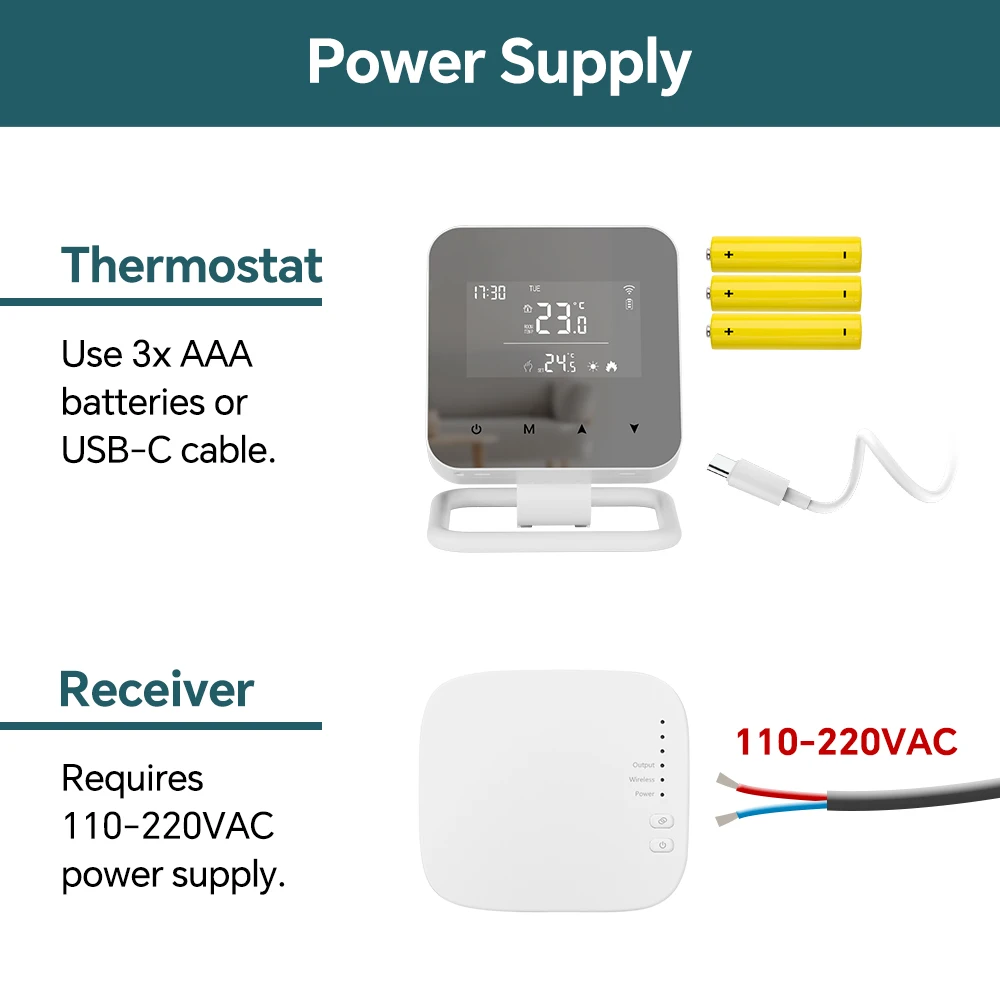

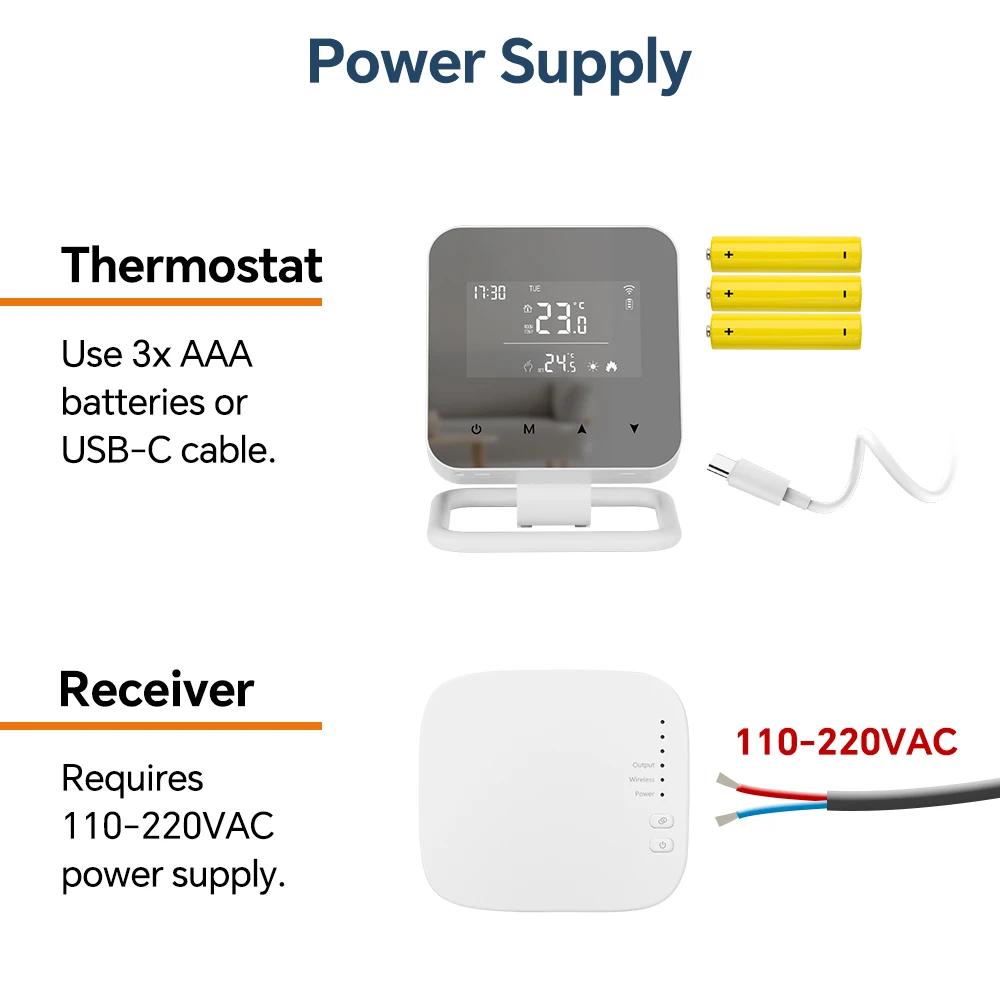

【Power supply method】The thermostat is battery powered or type c cable powered. Receiver need to connect to the 220V power.

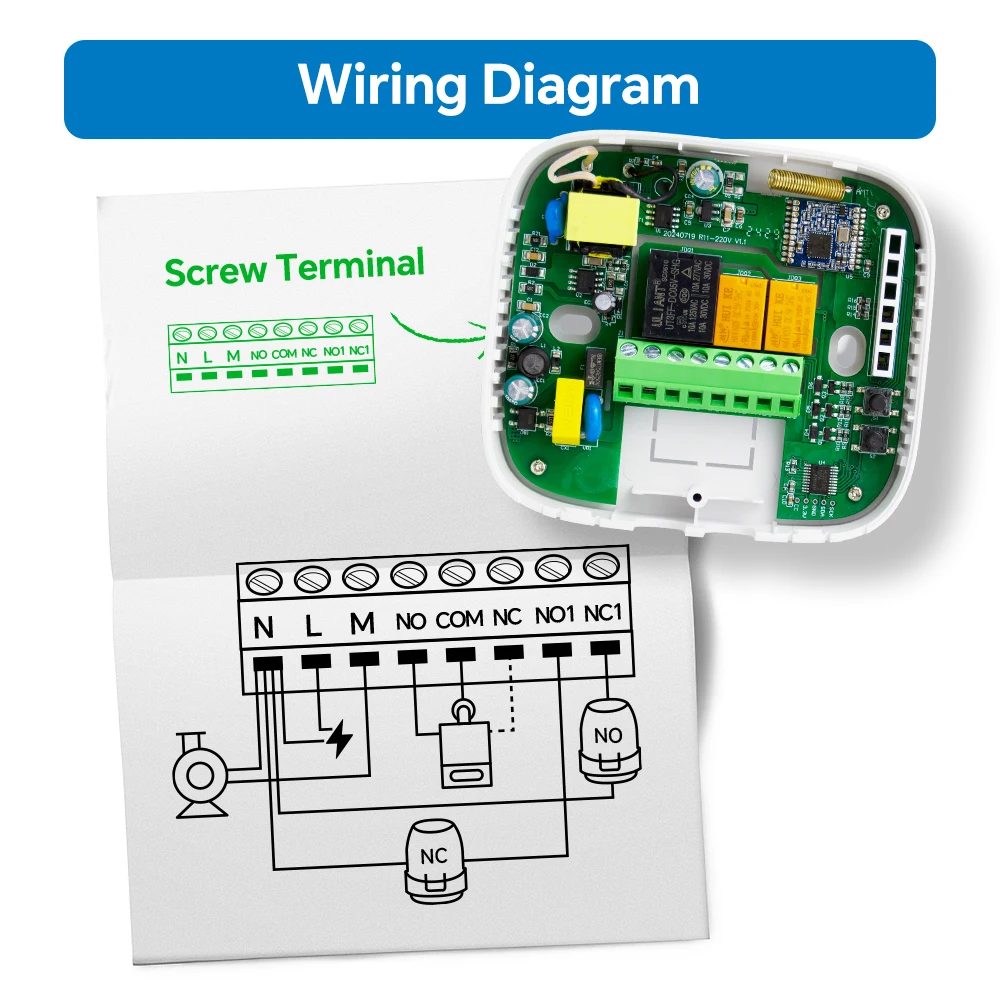

【Wiring diagram】Connect the 220V power supply to L.N, and connect the COM and NO to the "dry contact" boiler(Some boiler need to connect to the COM NC). Connect the pump to N.M, Connect the N NO1 to NC actuator, Connect the N NC1 to NO actuator.

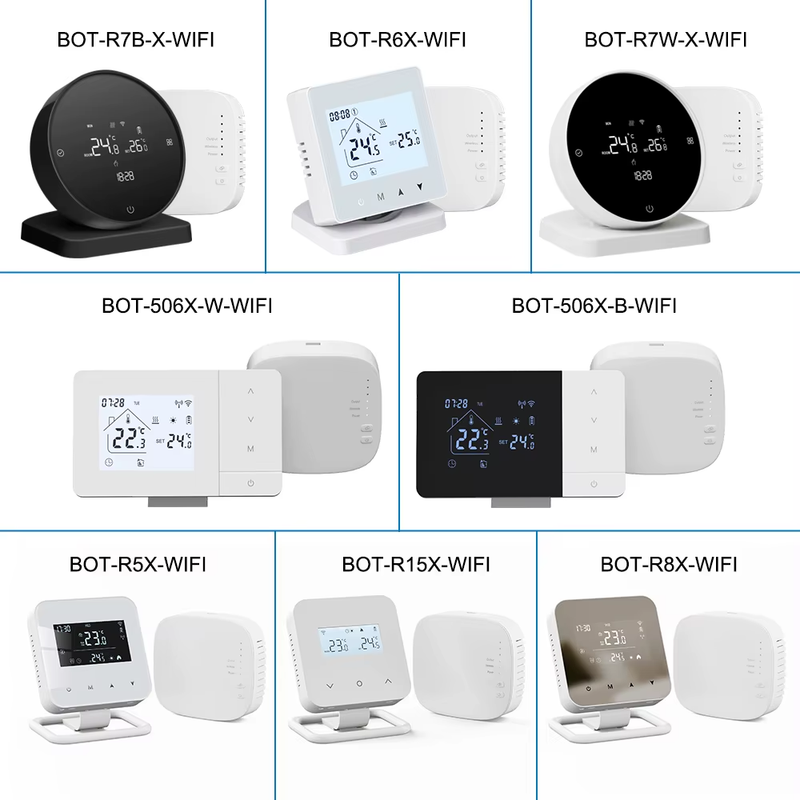

Product Show:
BOT-R5X-WIFI
BOT-R8X-WIFI

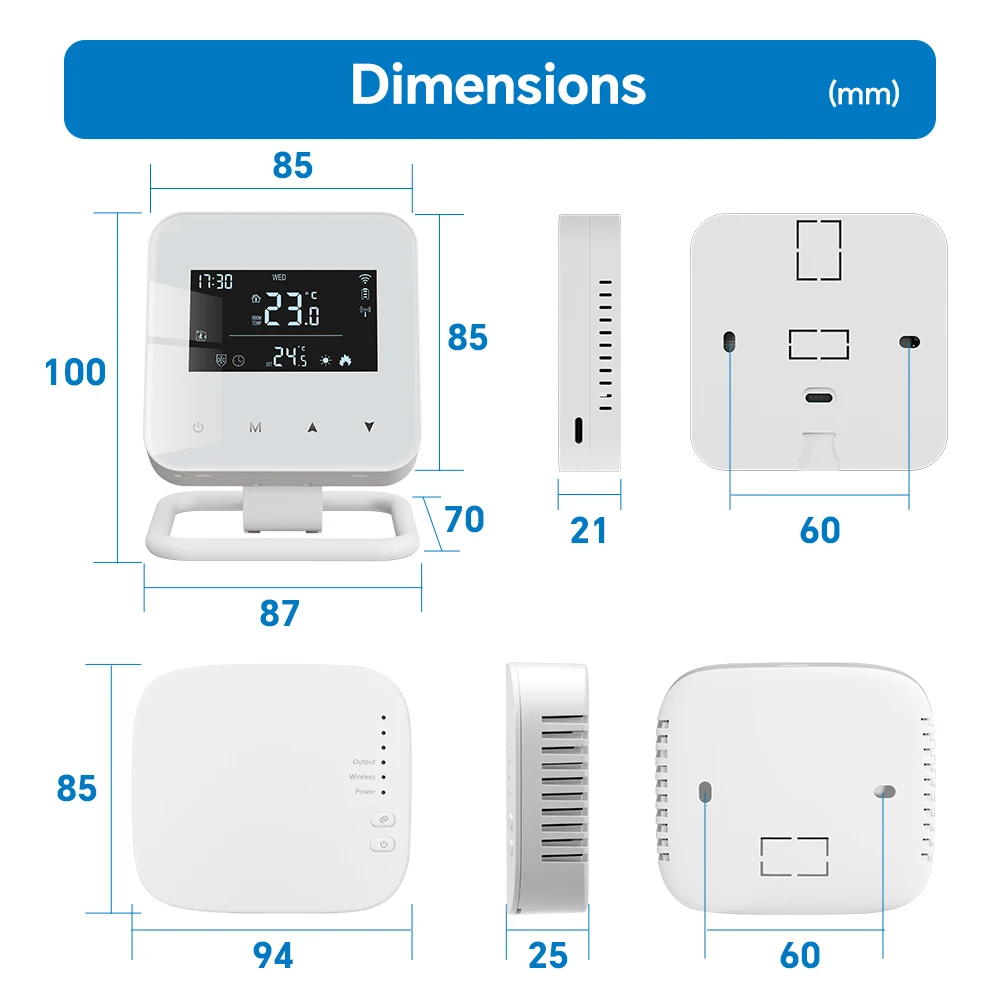

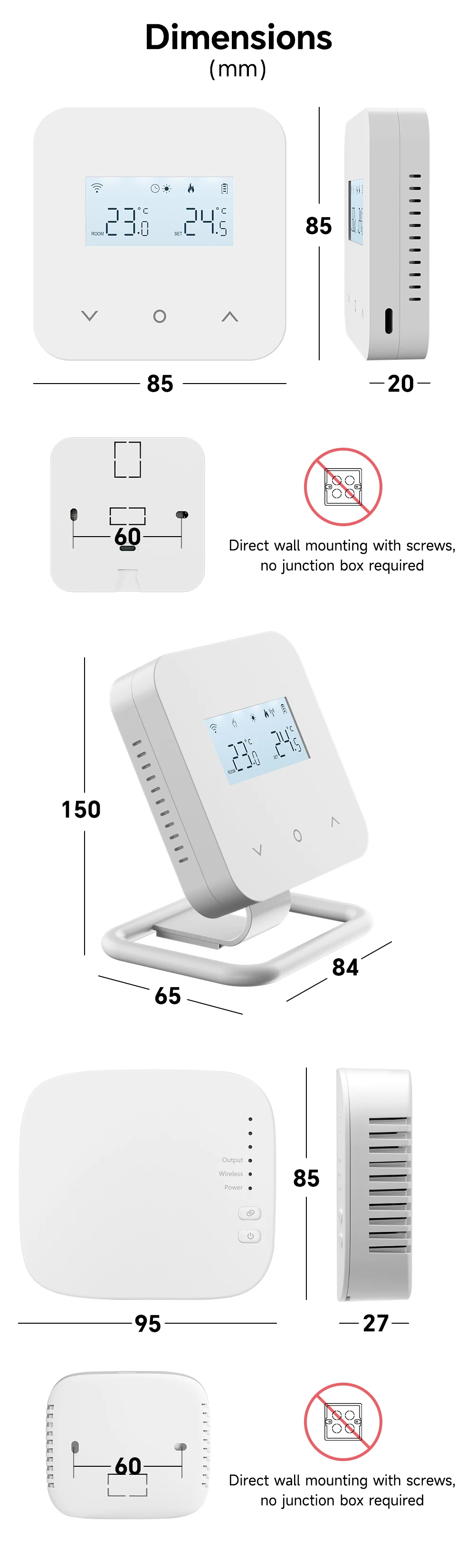

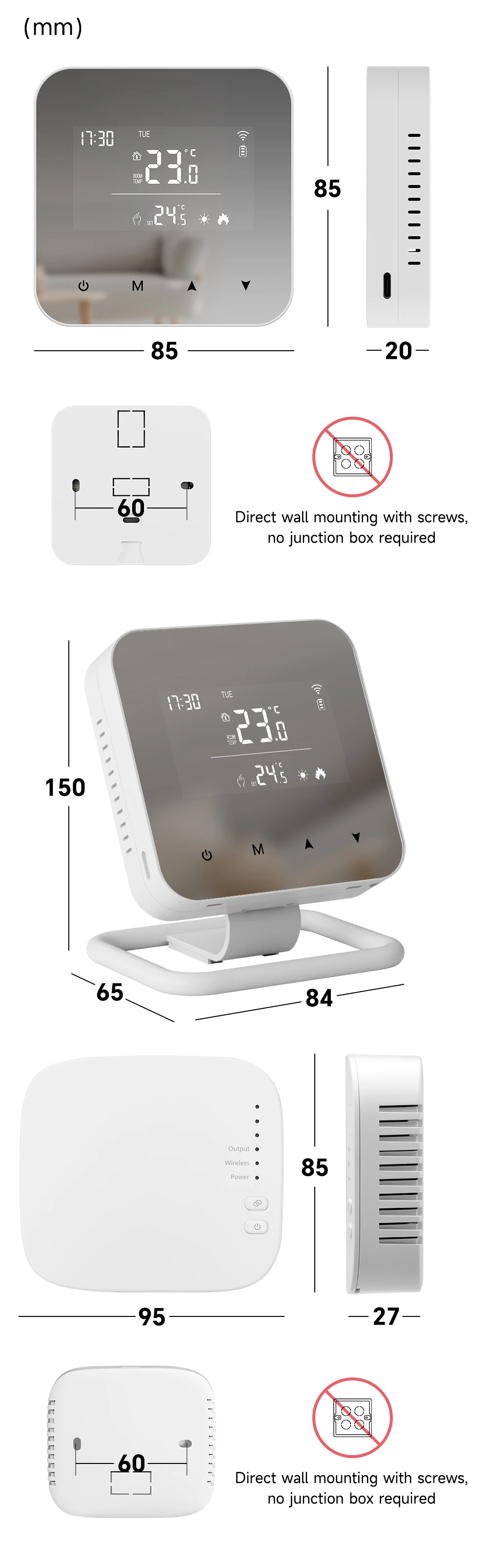

Size

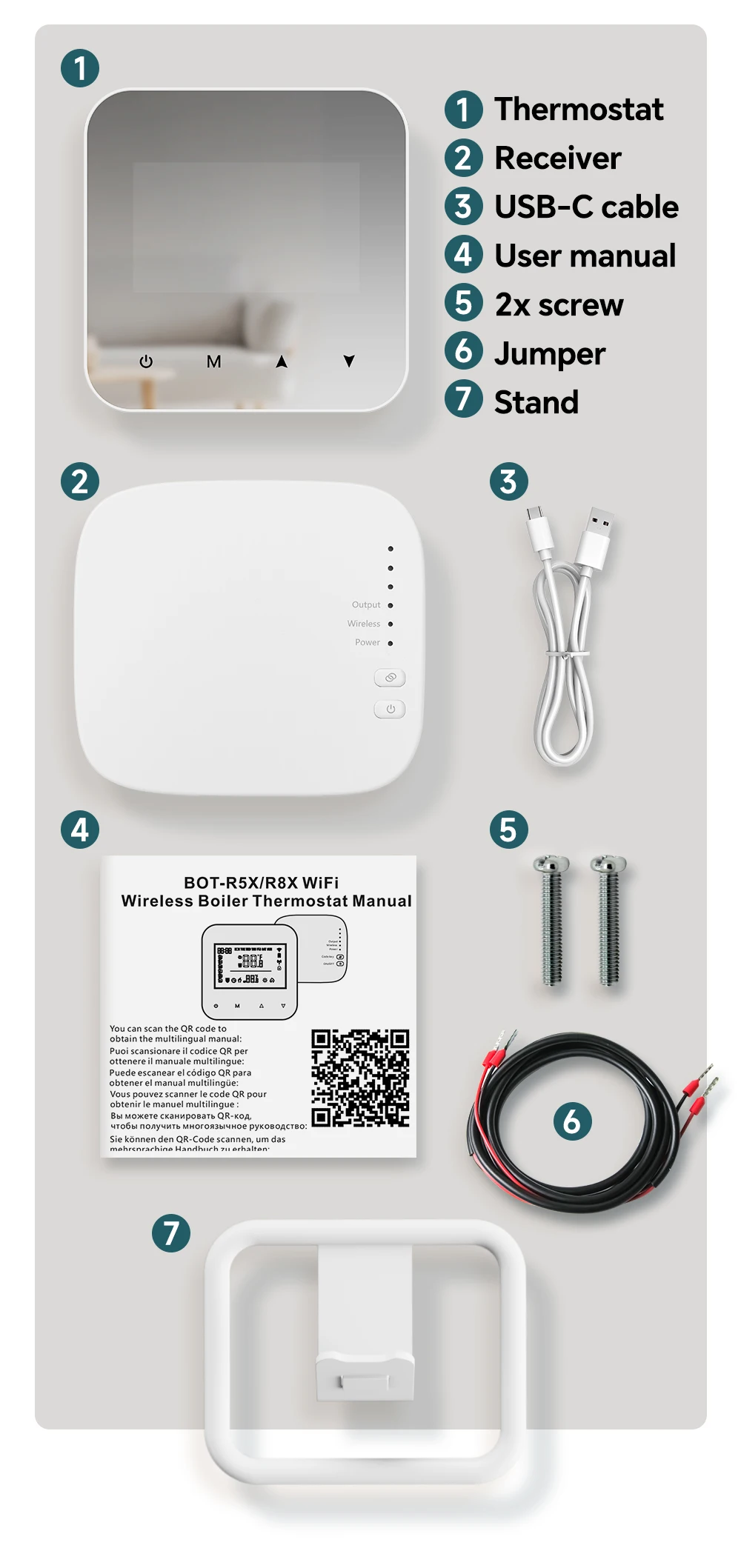

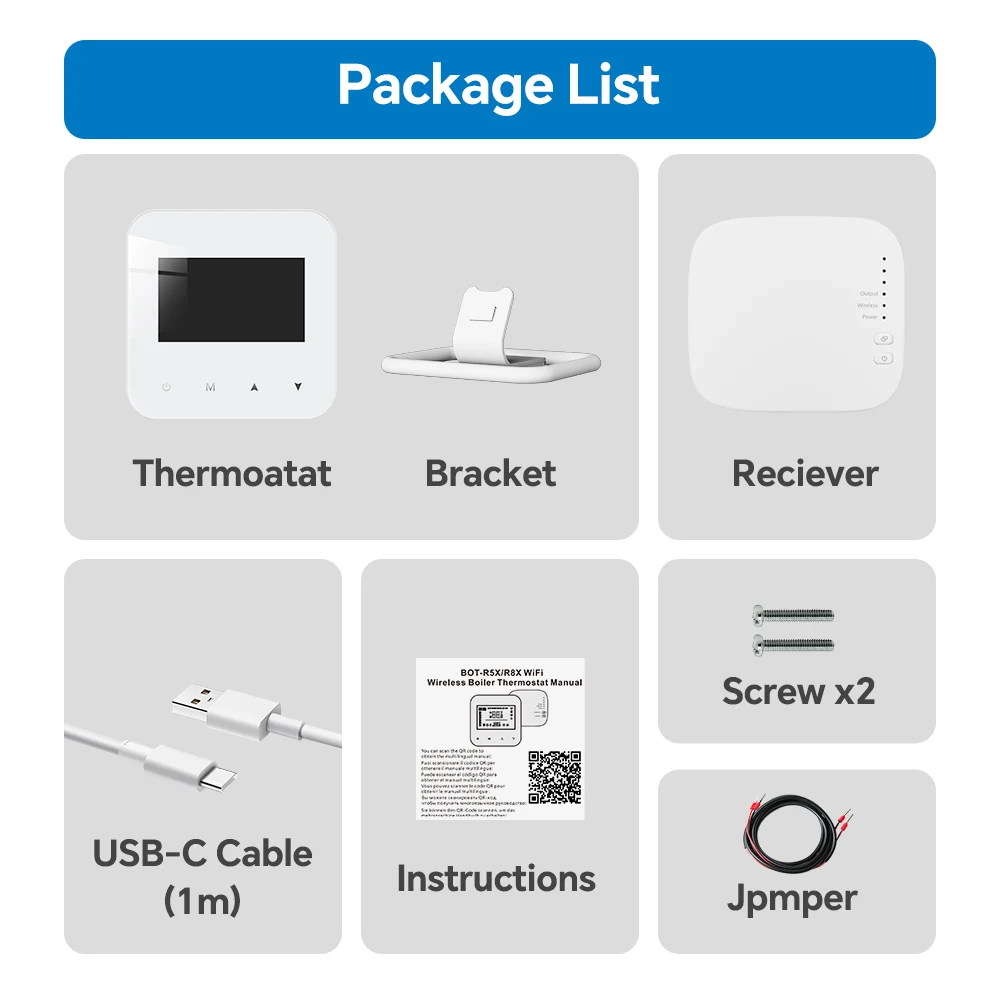

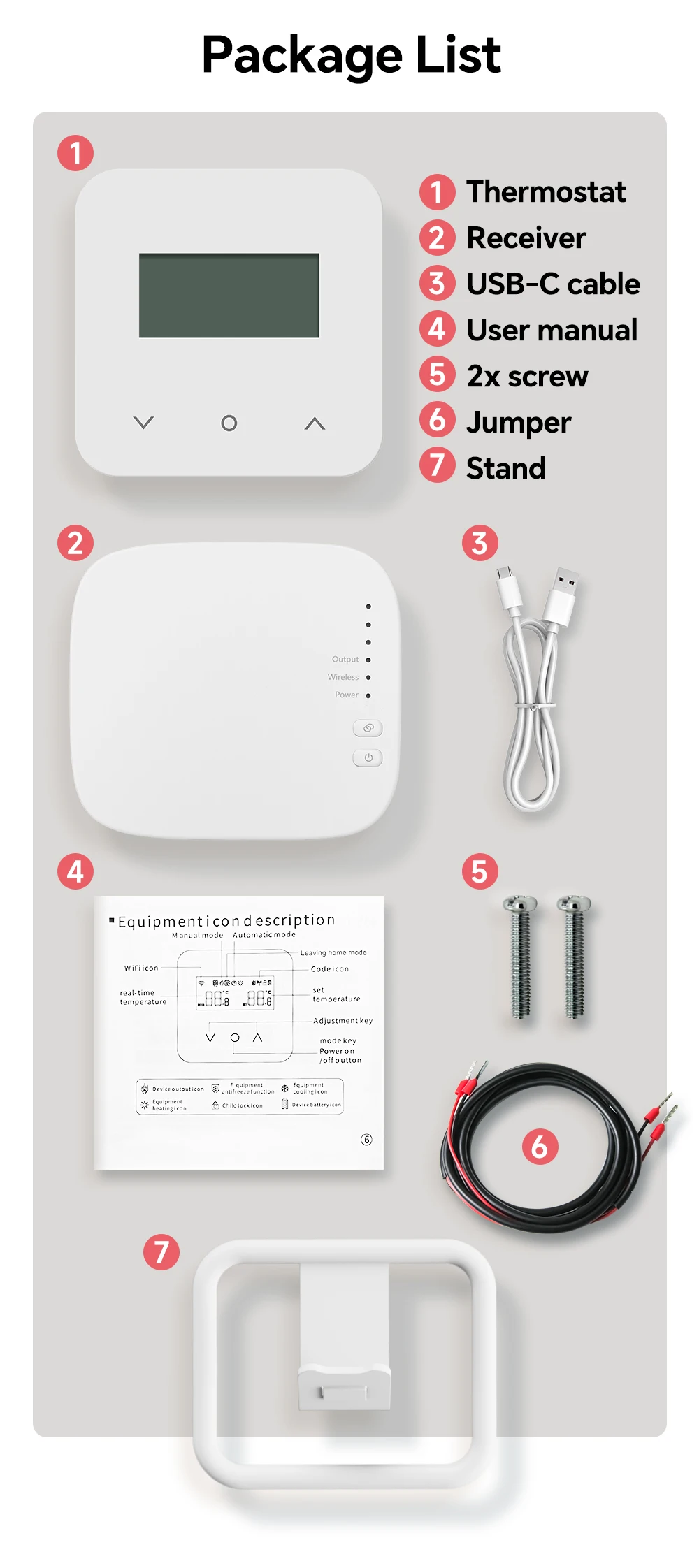

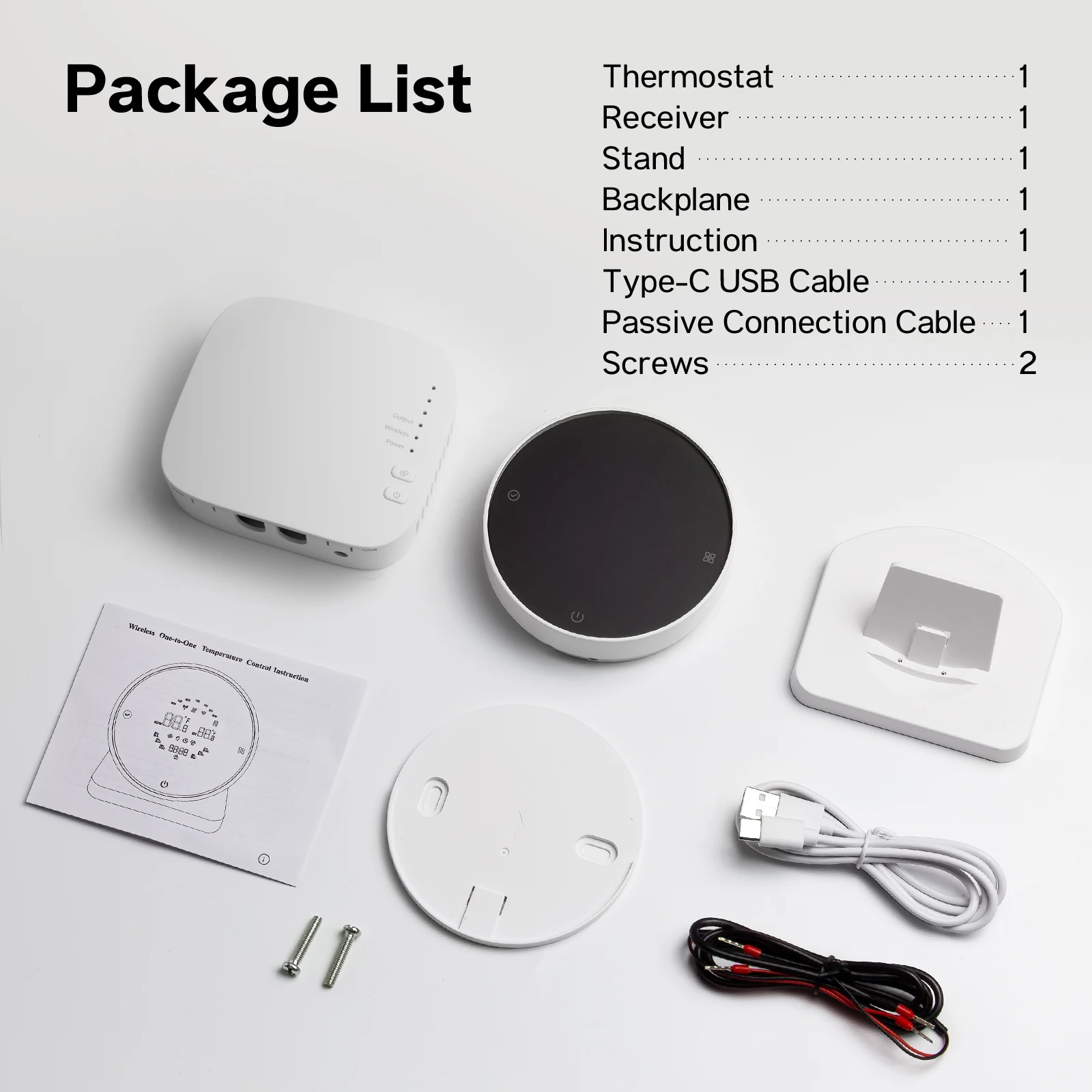

Package
BOT-R15X-WIFI
BOT-R7X-WIFI
BOT-506X-WIFI
BOT-R6X-WIFI
Specifications:
Thermostat Power supply： batteries or usb cable
Receiver voltage: 95-240VAC 50-60Hz
Current: 3A
Set temperature range: 5-60 ℃
Temperature hysteresis：0.5℃ (adjustable)
Installation: Wall mount/Desktop
Functions

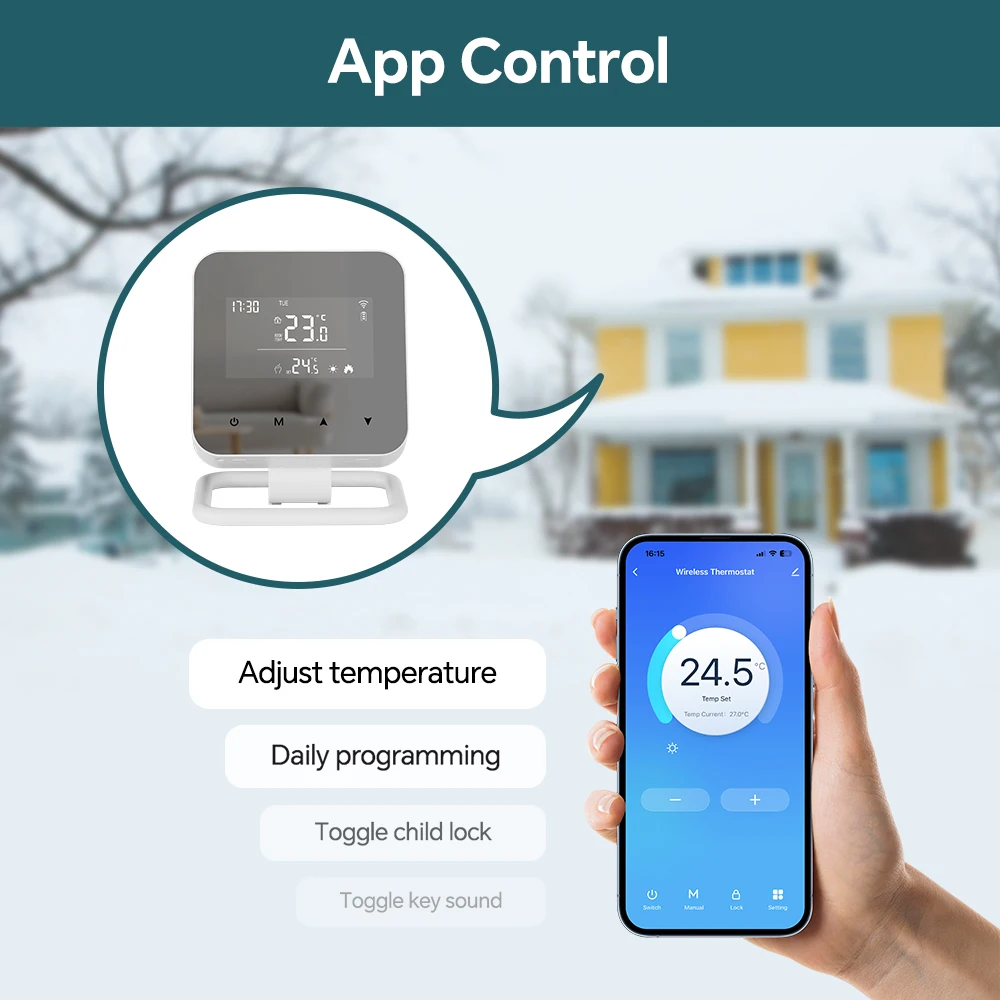

【App control】The thermostat can be connected to Tuya and Smart Home apps. As long as the thermostat is connected to WiFi, it can be remotely controlled through a mobile phone at any time.

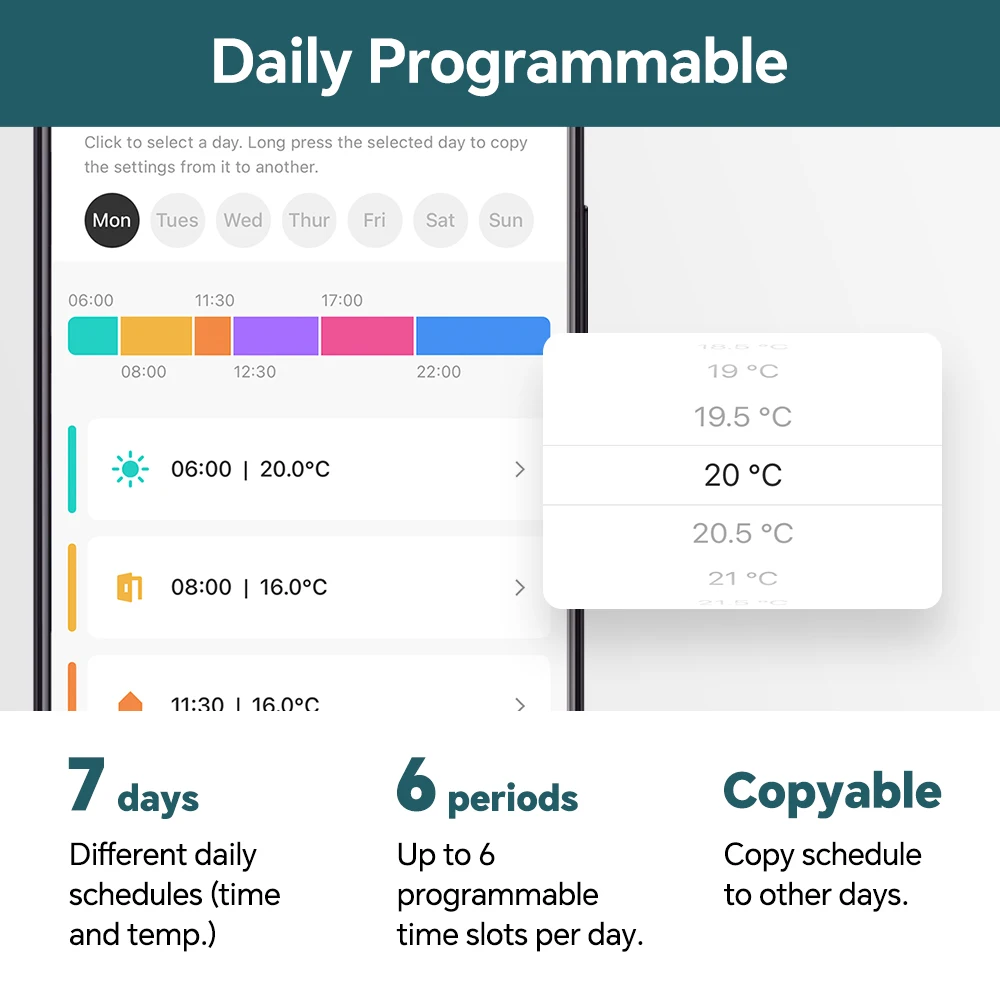

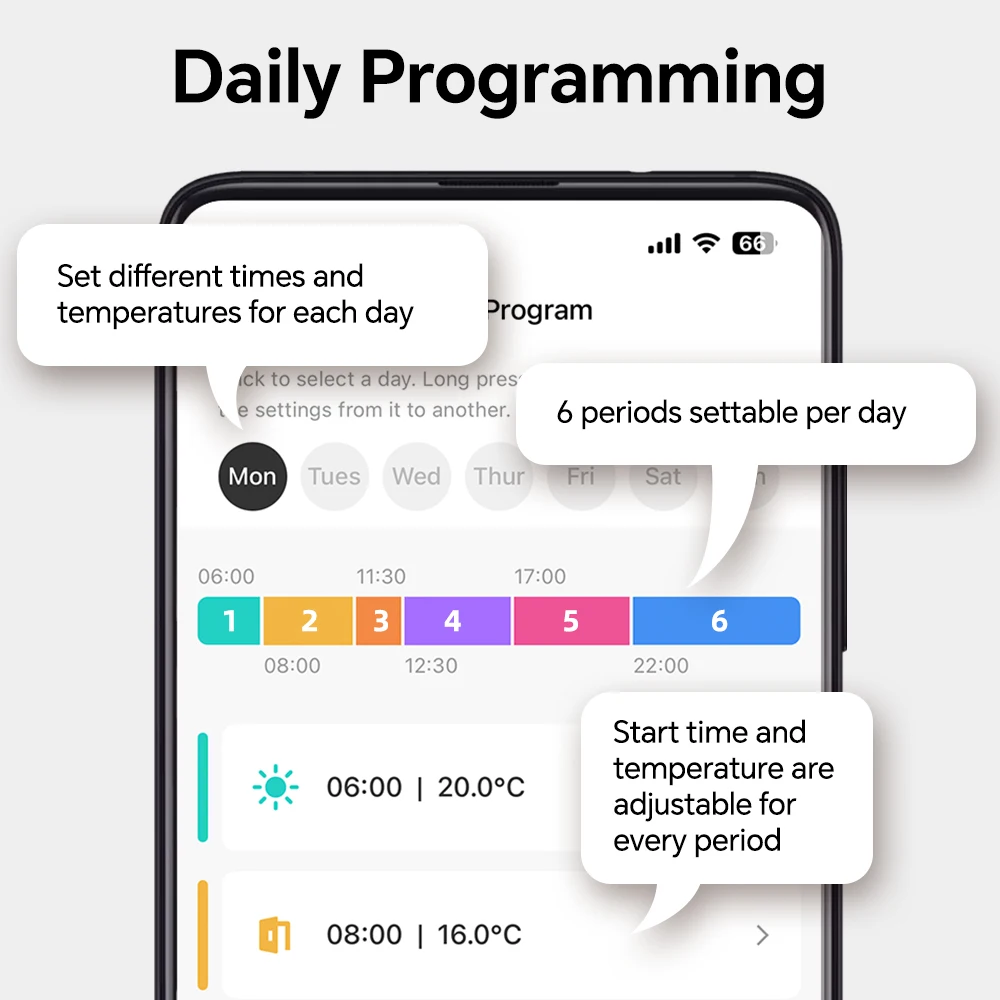

【Programmable】Programming mode: 7 days - Temperature can be set for 6 time periods without repetition every day.
It can also be programmed through a mobile app, which supports copying the current time to other time periods, such as copying the programming time from Tuesday to Thursday and Saturday.
【Memory function】After a power outage, the temperature controller will automatically remember the settings before the power outage, and continue to follow the previous settings after power on.
【Child Lock】Locking function is designed to prevent children from operating by mistake
【Temperature hysteresis:】±0.5℃,It can maintain a constant room temperature.
