Product Description

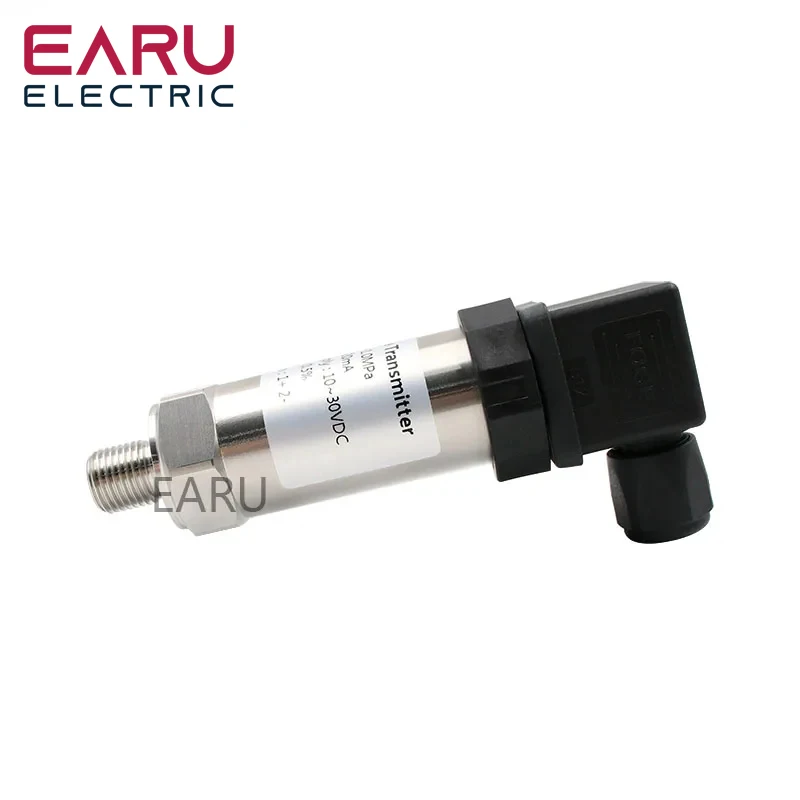

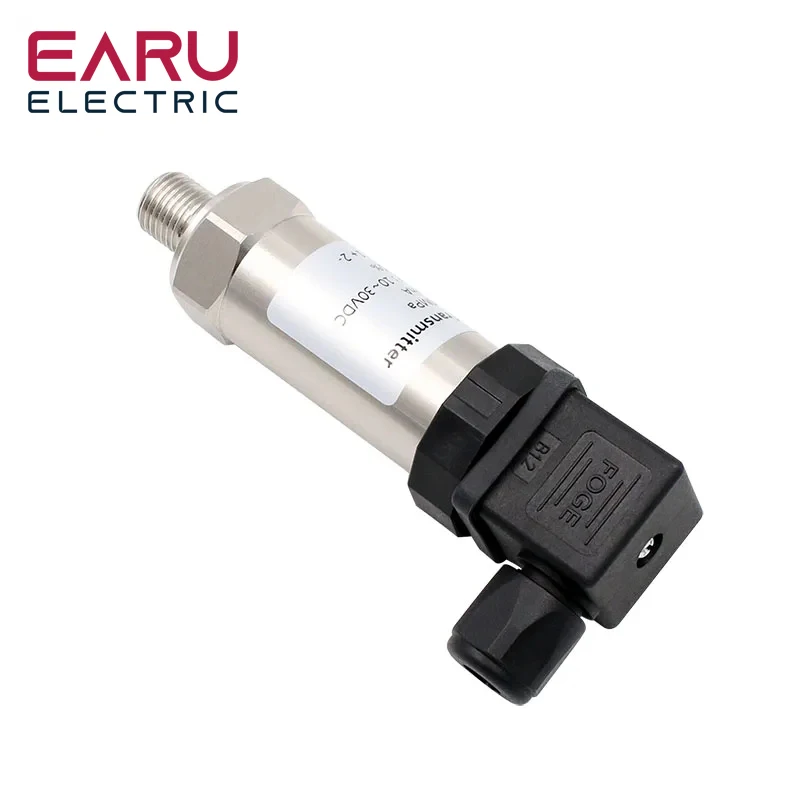

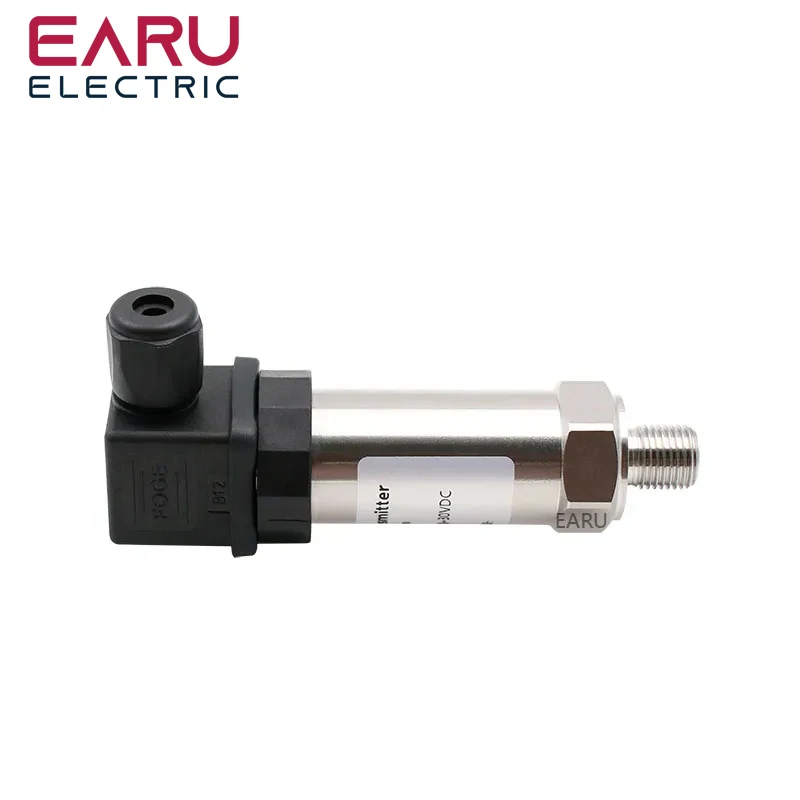

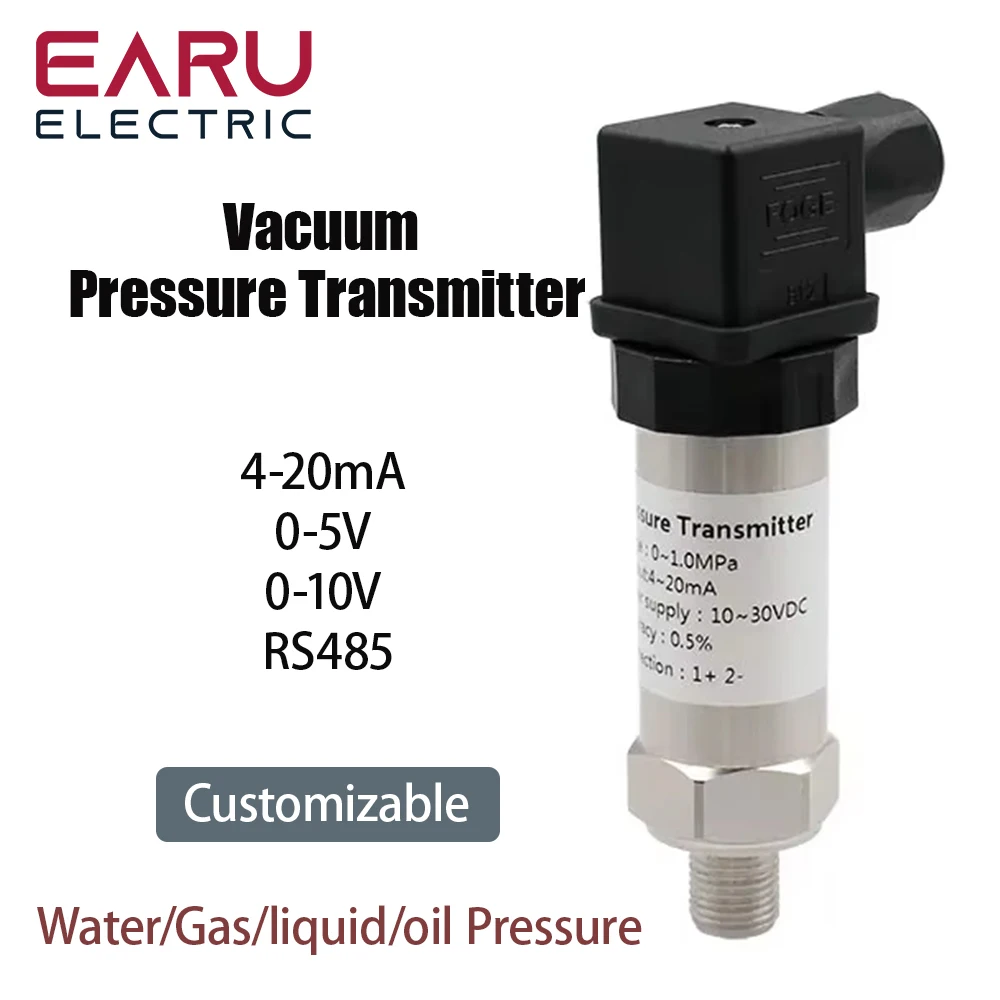

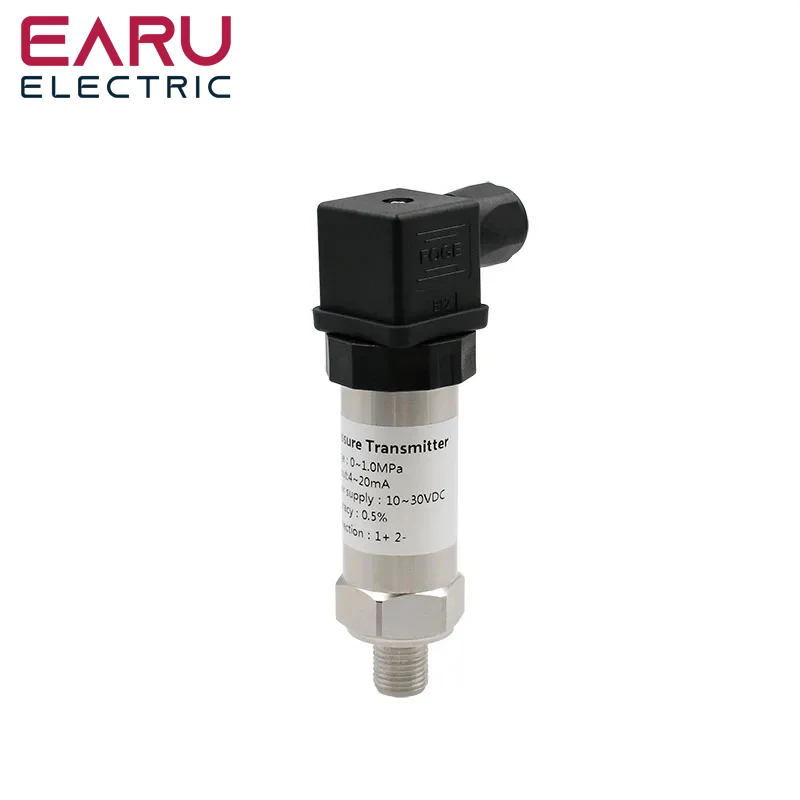

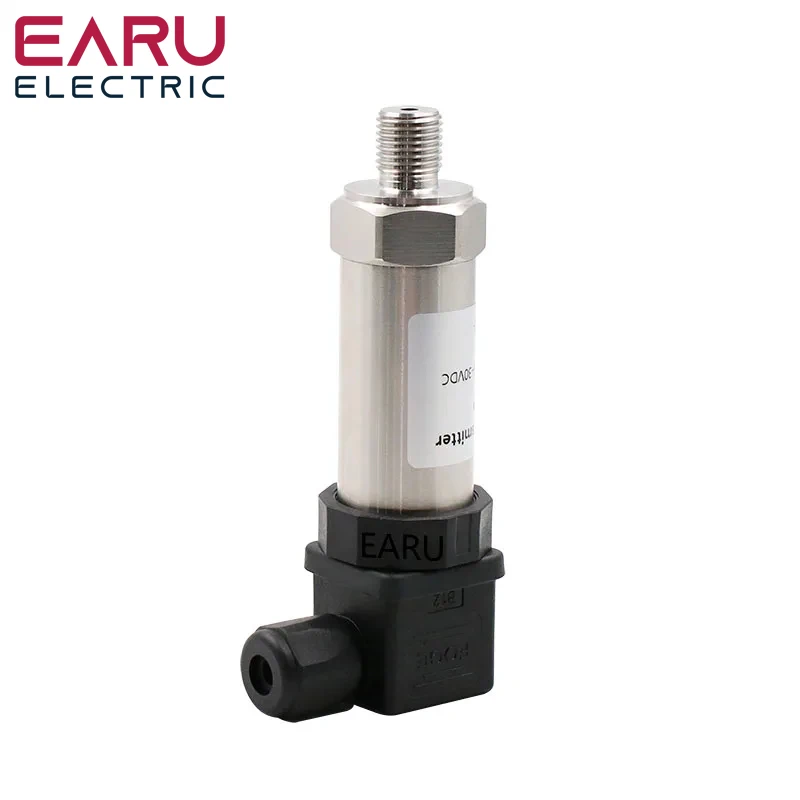

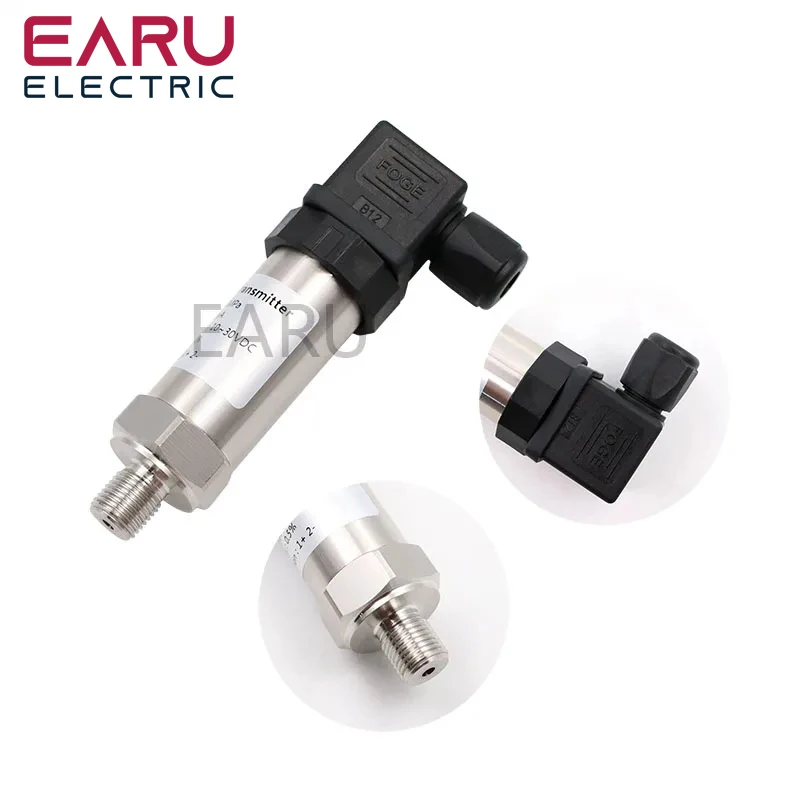

0-5V/0-10V/4-20mA Output -1~0~10bar/16bar/6bar/25bar 10-30VDC G1/4 Thread 0.5% Pressure Transmitter Pressure Transducer Sensor High Precision
Application:
Aerospace, electric power, sewage treatment, water supply system, petroleum chemical industry, pharmaceutical industry, power units, air conditioning units, refrigeration units, compressor unit, laboratory pressure detection and efficacy, industrial process control, internal combustion engine, engine, hydraulic and pneumatic system, constant pressure water supply system in sectors such as liquid, gas measurement and control

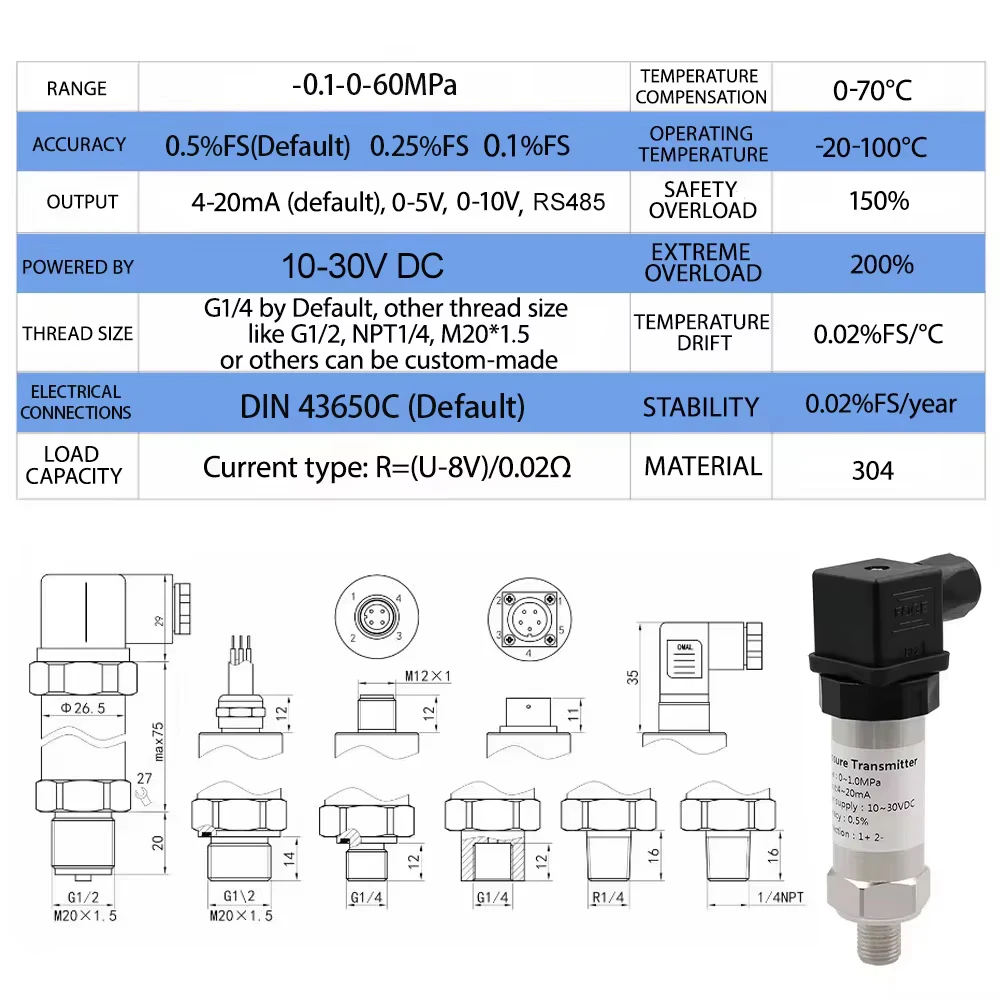

Technical parameterMeasuring Range | -1~400bar (can choose any range) | ||
Media | Air, Water, Oil, Refrigeration liquid, Other weak acid and alkalescent media | ||

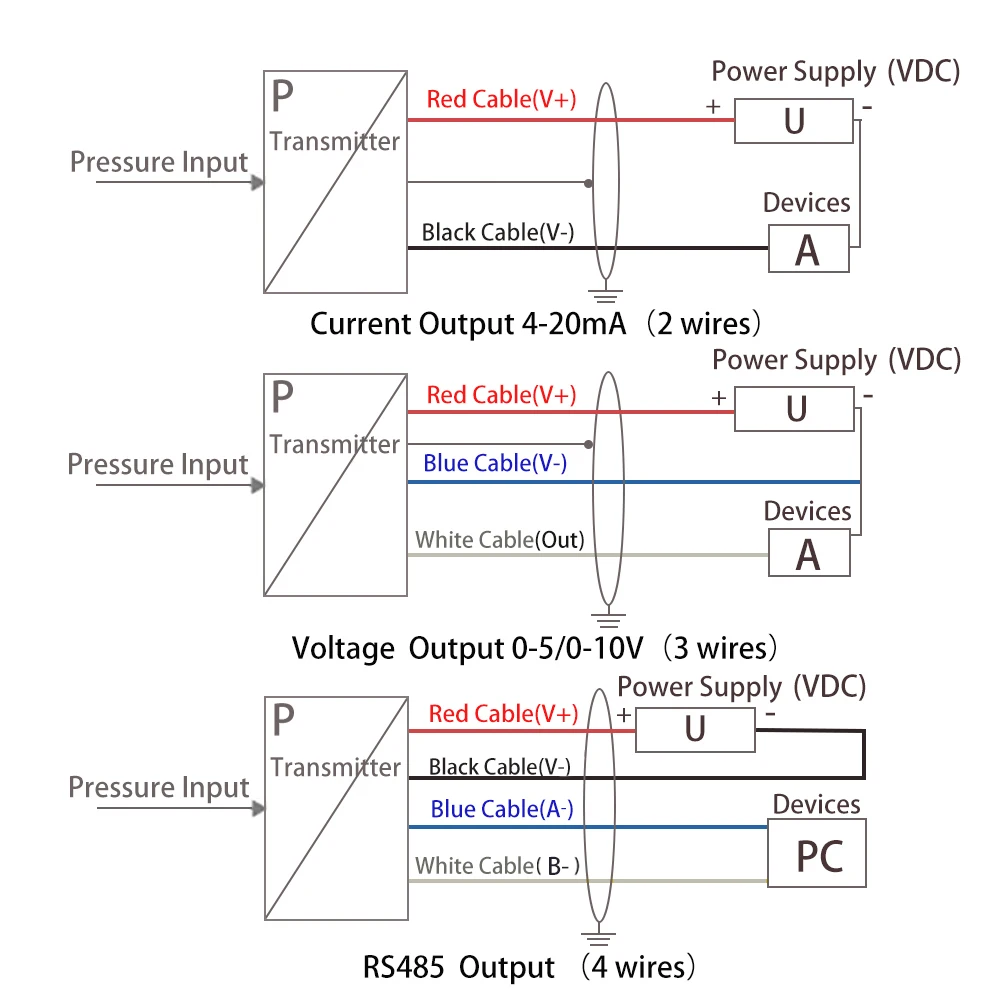

Output | 4~20mA (Default) | 0~5V | 0~10V |
Power Supply | 10~30V DC | 10~30V DC | 24V DC |
Accuracy | ±0.5%F.S | ||
Long Term Stability | ≤±0.2%F.S | ||
Overload Pressure | 200%F.S | ||
Resolution ratio | 1/100000 | ||
Zero temperature coefficient | Typical: ±0.02%FS/°; Maximum: ±0.05%FS/° | ||
Sensitivity temperature coefficient | Typical: ±0.02%FS/°; Maximum: ±0.05%FS/° | ||
Impact resistant | 100g, half sine of 11ms, duration | ||
Anti-vibration | ≤±0.01% F.S(X, Y, Z axis, 200Hz/g) | ||
Insulation resistance | > 100 MΩ, inspired 500 VDC | ||
Response time | ≤2ms | ||
Load | Current type: ≤[(U-7.5V)/0.02A]Ω Voltage type: ≥10kΩ | ||
Working Temperature | -20 °～+120 ° | ||
Pressure Connection | G1/4(Default),NPT1/4, 7/16-20UNF (Female and other connection available on request) | ||
Electrical Connection | DIN 43650C (Default) | Cable | Packard |
Protection Class | IP65 | IP67 | IP65 |
Pressure Form | Guage pressure | ||
Insulation | >100M(Ω)@50V | ||
Electromagnetic Compatibility | EN50081-1/-2; EN50082-2 |
