Product Description
New EA771 Din Rail 380V 3 Phase 4 Wire Energy Meter Power Consumption Monitor kWh Meter Wattmeter Bivolt 100A AC 50Hz 60Hz LCD Backlight
Features:
1. The meter is fully in conformity with the relevant technical requirements of GB/T17215.321-2008 national standard and the IEC62053-21 international standard of grade 1 or level 2 3-phase energy meter, which can directly and accurately measure active energy of the energy consumption.
2. 6+1 Digits LCD display shows the total power consumption.

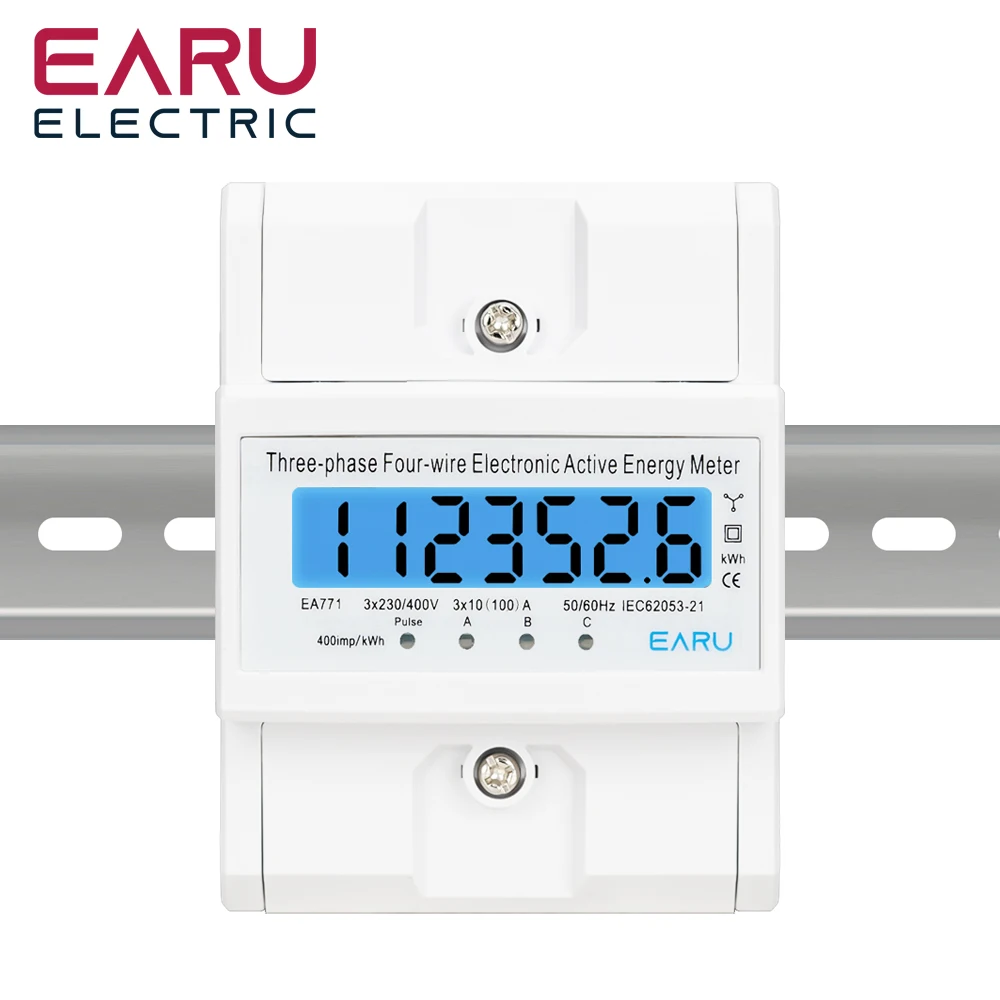

3. It features high reliability, small volume, light weight, beautiful appearance, advanced technology, and 35mm DIN standard guide rail installation, etc.
4. It has good anti-electromagnetic interference, low power consumption, high precision, high overload, high stability, anti electricity-stolen and long life.
5. This table is suitable for the measurement of rated frequency 50 Hz or 60 Hz single-phase ac active electricity, used for fixed installation indoors, apply to the environment temperature is -25 °C ~ 55 °C, relative humidity is ≤ 95%, and in the air does not contain corrosive gases and avoid dust, mold, salt fog, condensation, insects, etc.
Parameters:
Model Number:EA771
Materiel: Metal + ABS

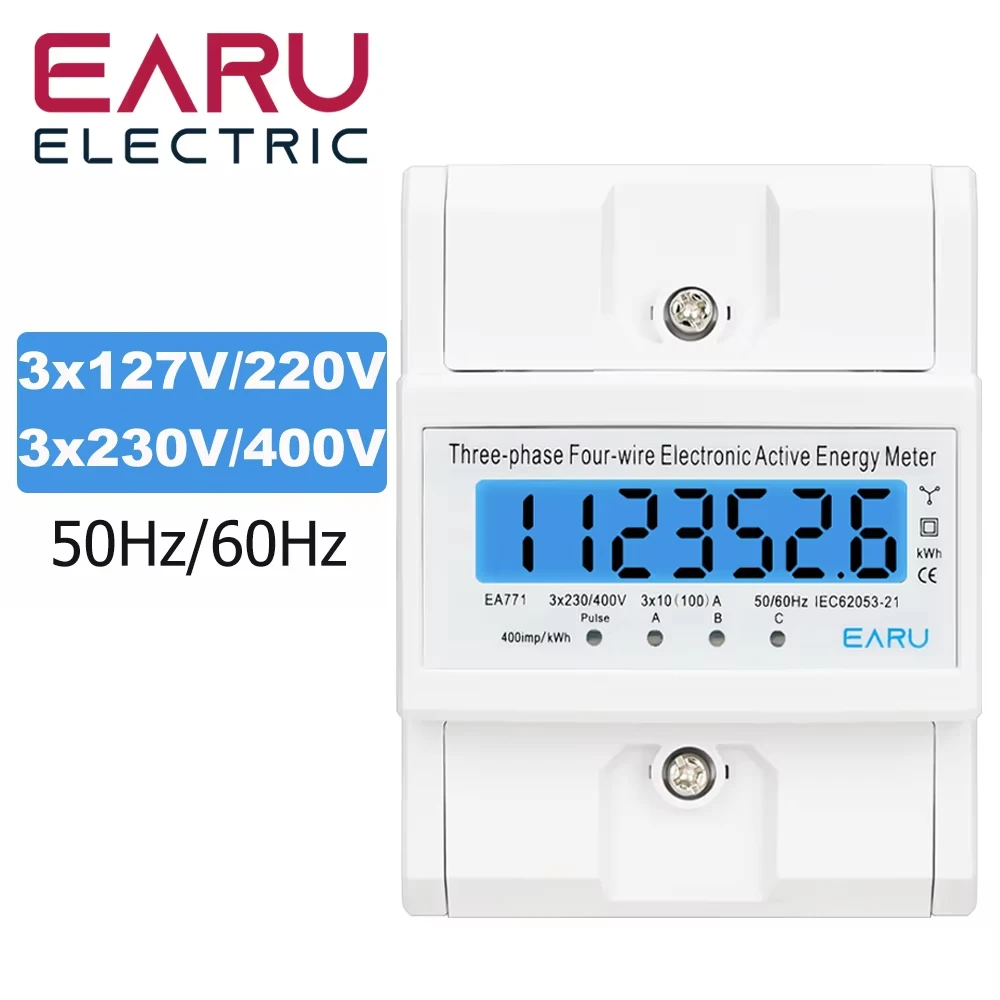

Reference Voltage: 3 X 127/220(V), 3 X 230/400(V)
Reference Current: 3 X 10(100A)
Accuracy Level: 1.0
Rated Frequency: 50/60 Hz
Constant Pulse: 400imp / kWh
Display: LCD 6 +1(999999,9kWh)
Power Consumption: ≤2W, 10VA
Starting Current: 0.004Ib
Operating Temperature: -20 ~ 55°
Storage Temperature: -25 ~ 70°
Operating Voltage: 0.9-1.1 Rated Voltage
Utmost Voltage: 0.7-1.2 Rated Voltage
Average Humidity Value of Year: ≤75%

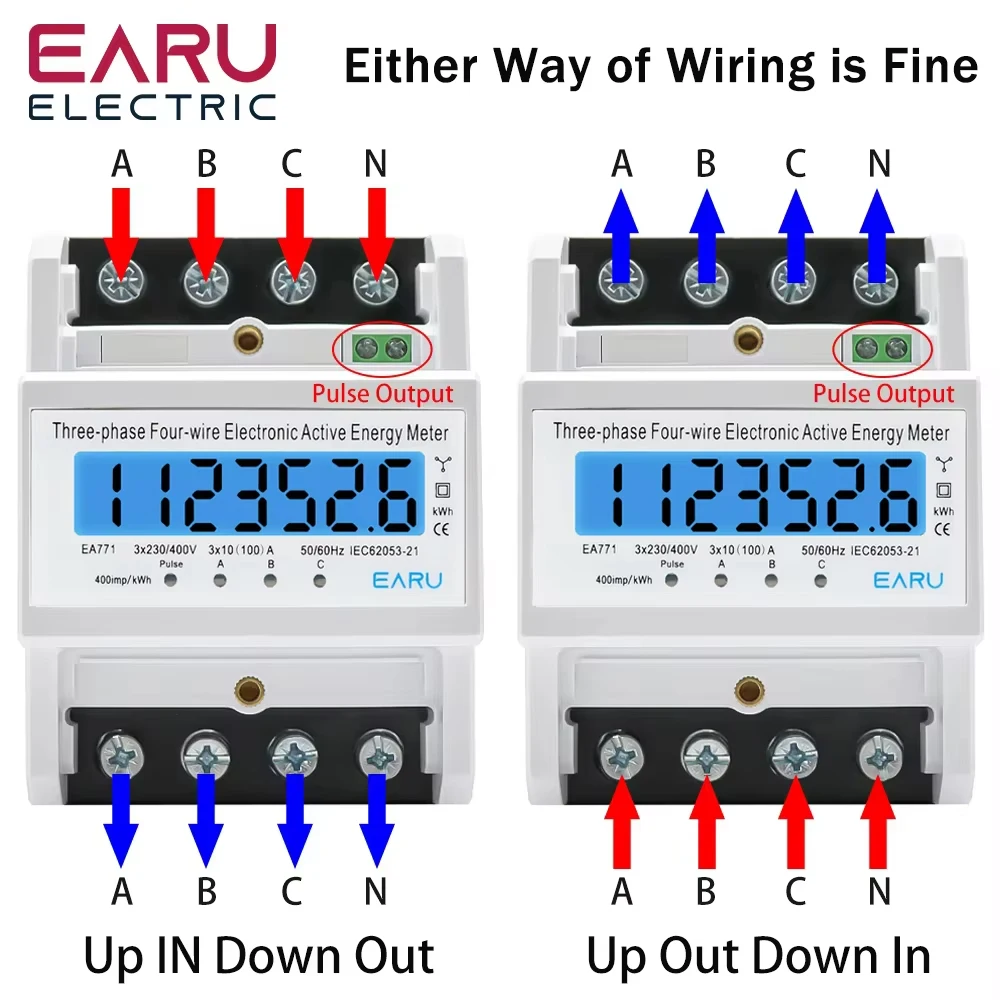

Type: Three Phase Four Wire Electronic Type
Degree of Protection:IP20
Weight: 400g

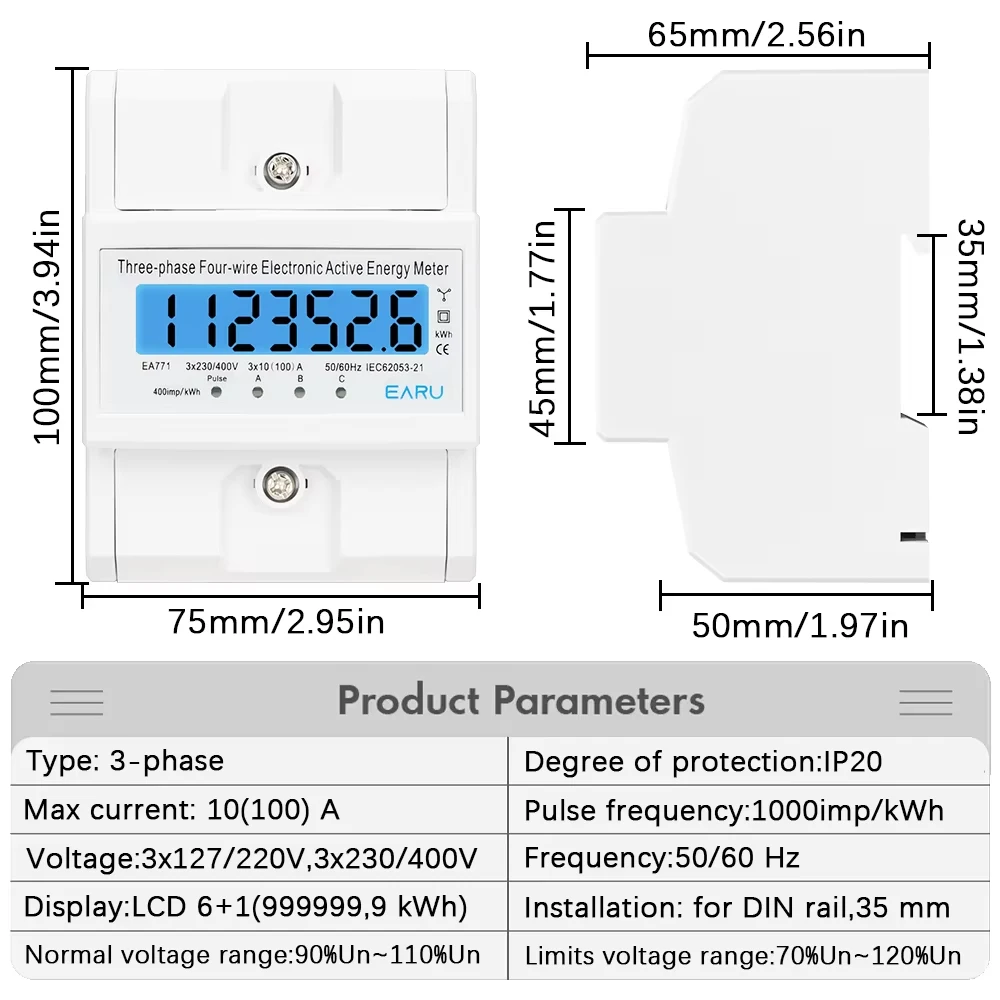

Dimensions:100mm*76*65mm
