Product Description
Electric ratings: DC 500V/800V/1000V
Application: Protect electric system and on-loading electrical apparatus from thunder and instantaneous over-voltage
Number of poles: 2
Electric ratings:DC 500V/800V/1000V
20-40KA/30-60KA
UP<2.2KV
Nominal Voltage | UN | 500/800/1000V DC |
Max.continuous d.c. voltage | Uc pv | 500/800/1000V DC |
Protection mode | CM/DM | |
Maximum discharge current (8/20μs) | Imax | 40kA/60KA |
Nominal discharge current (8/20μs) | In | 20kA/30KA |
Voltage protective level CM/DM at In | Up | ≤2.2kV |
Isolation resistance | Risol | >102MΩ |
Response time | tA | ≤25ns |
I/O Connections | By screw terminal:10-35mm2 | |
By connection bus | ||
Mounting | Symmetrical rail (EN50022/DIN46277-3) | |
Operation temperature range | -40c~+85c | |
Degree of protection | IP20 | |
Housing material | UL94V0 | |

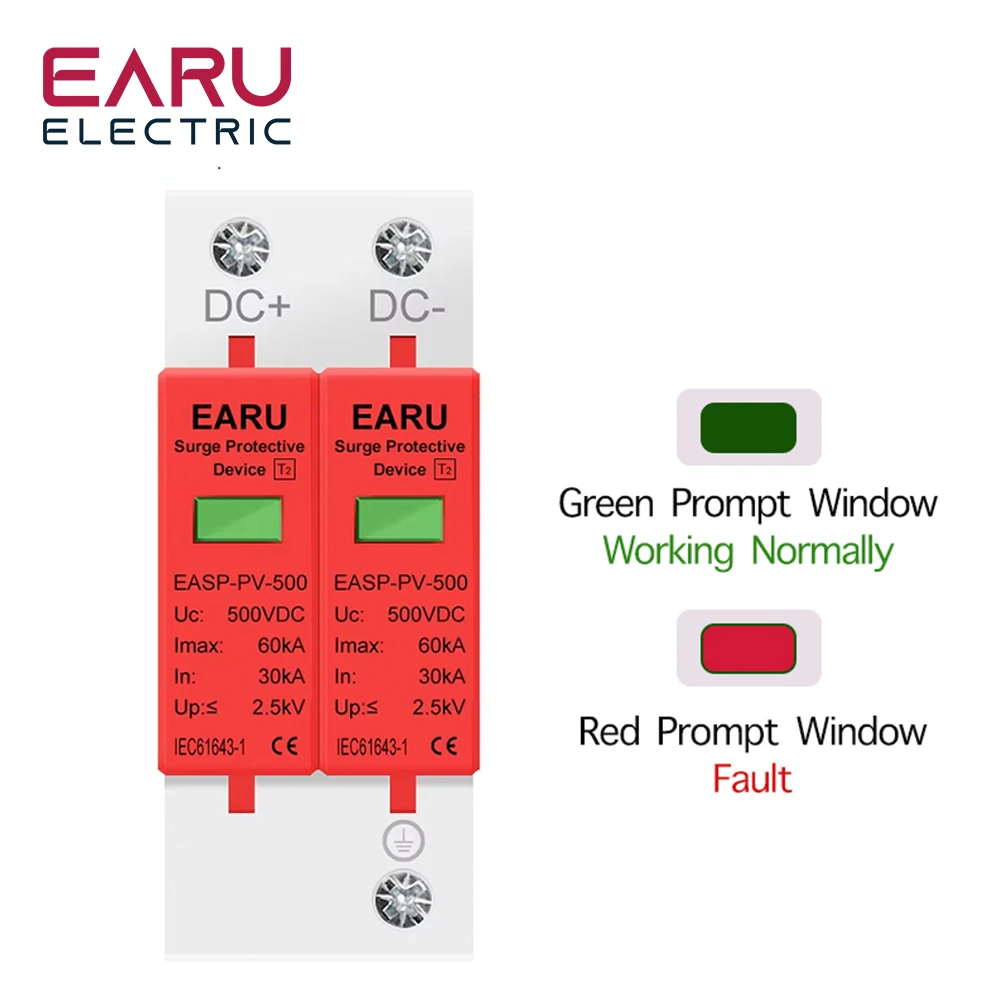

Disconnection indicator | Mechanical indicator | |
Remote control contact | No | |
Color | Gray | |
Isolation resistance | By screw terminal:10-35mm2 | |
By connection bus | ||
Response time | Symmetrical rail (EN50022/DIN46277-3) |
