Product Description

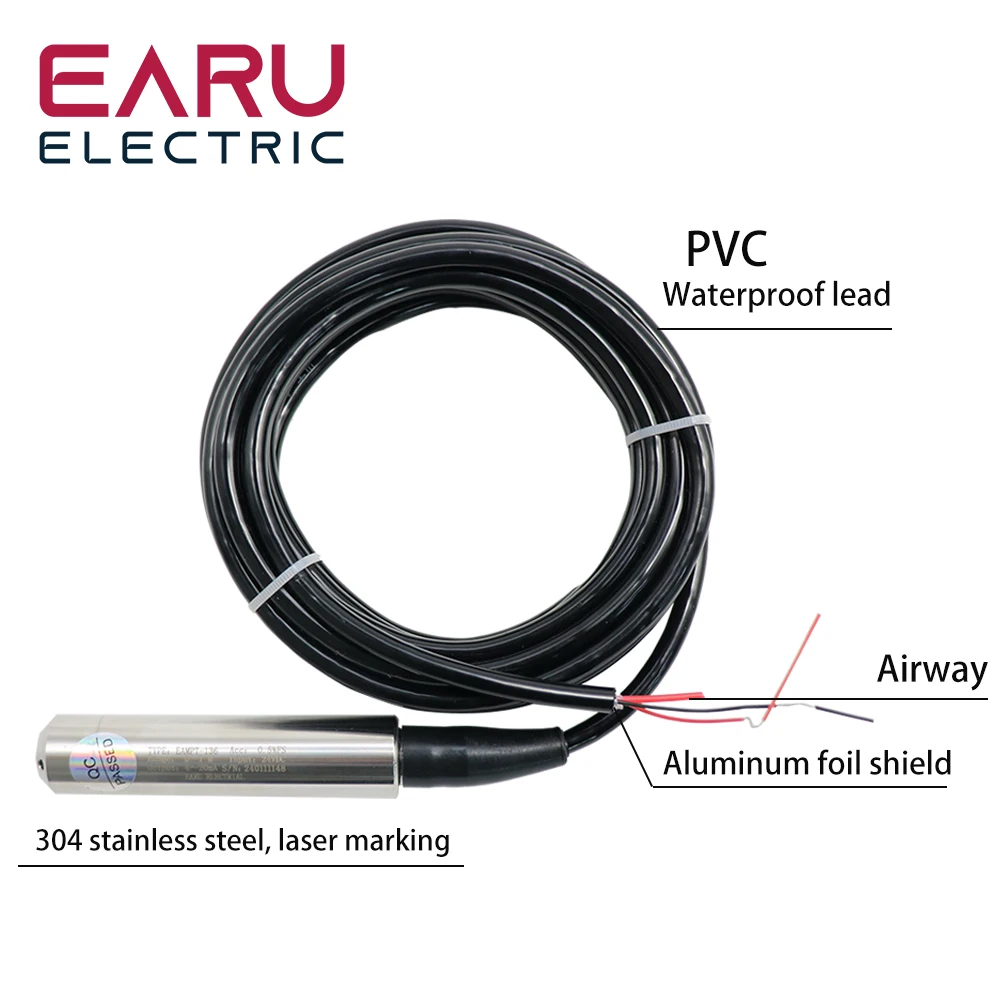

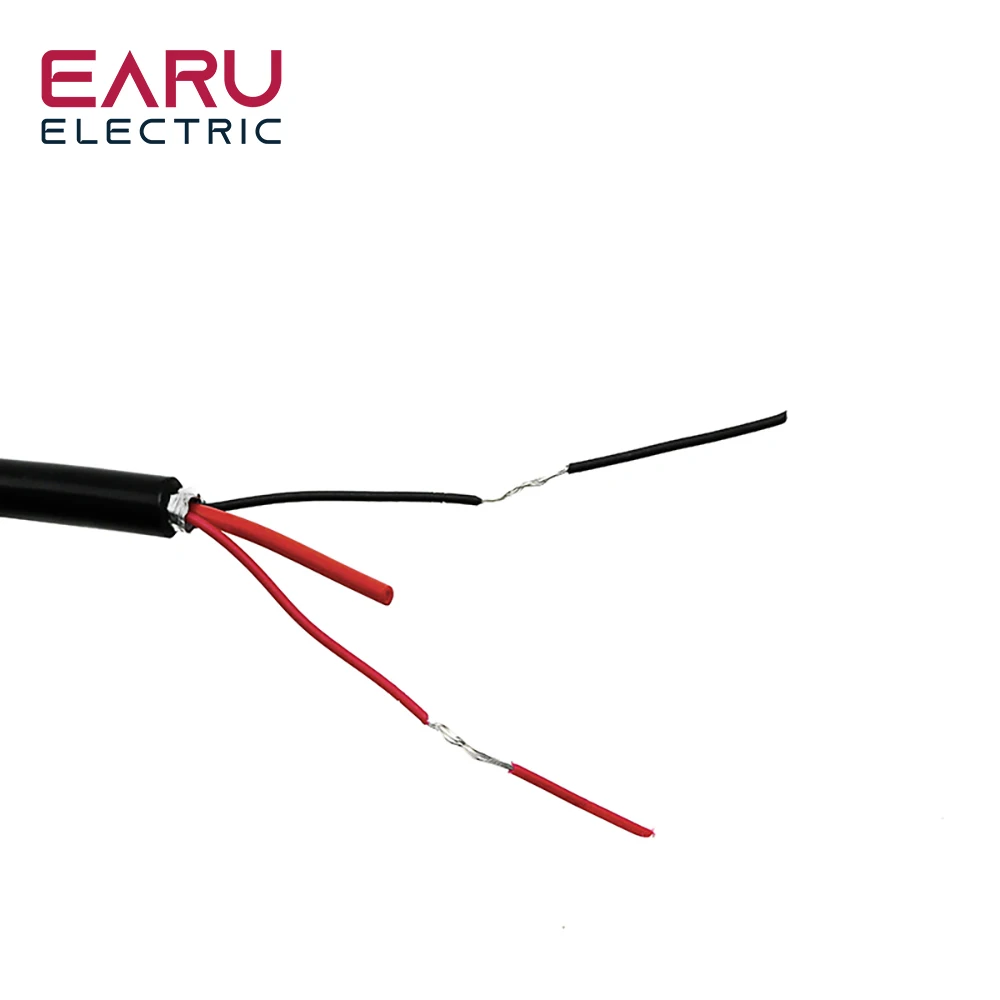

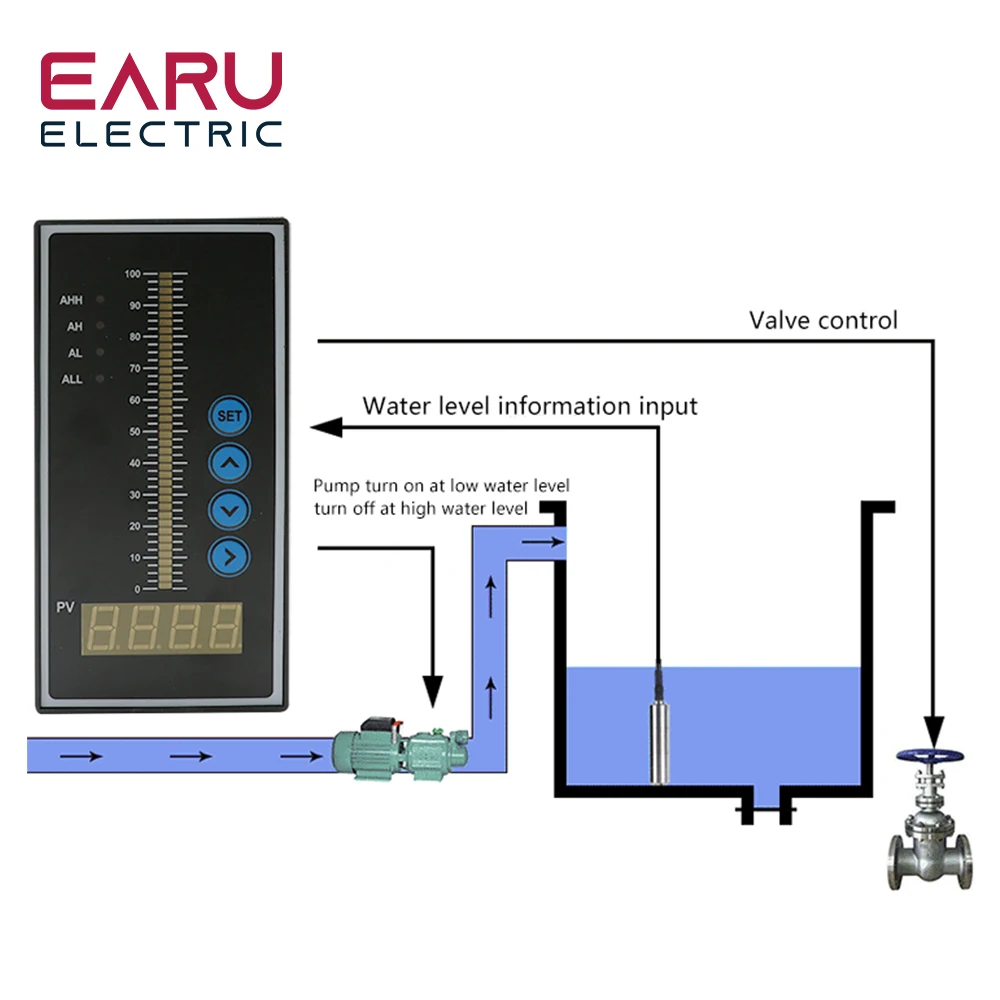

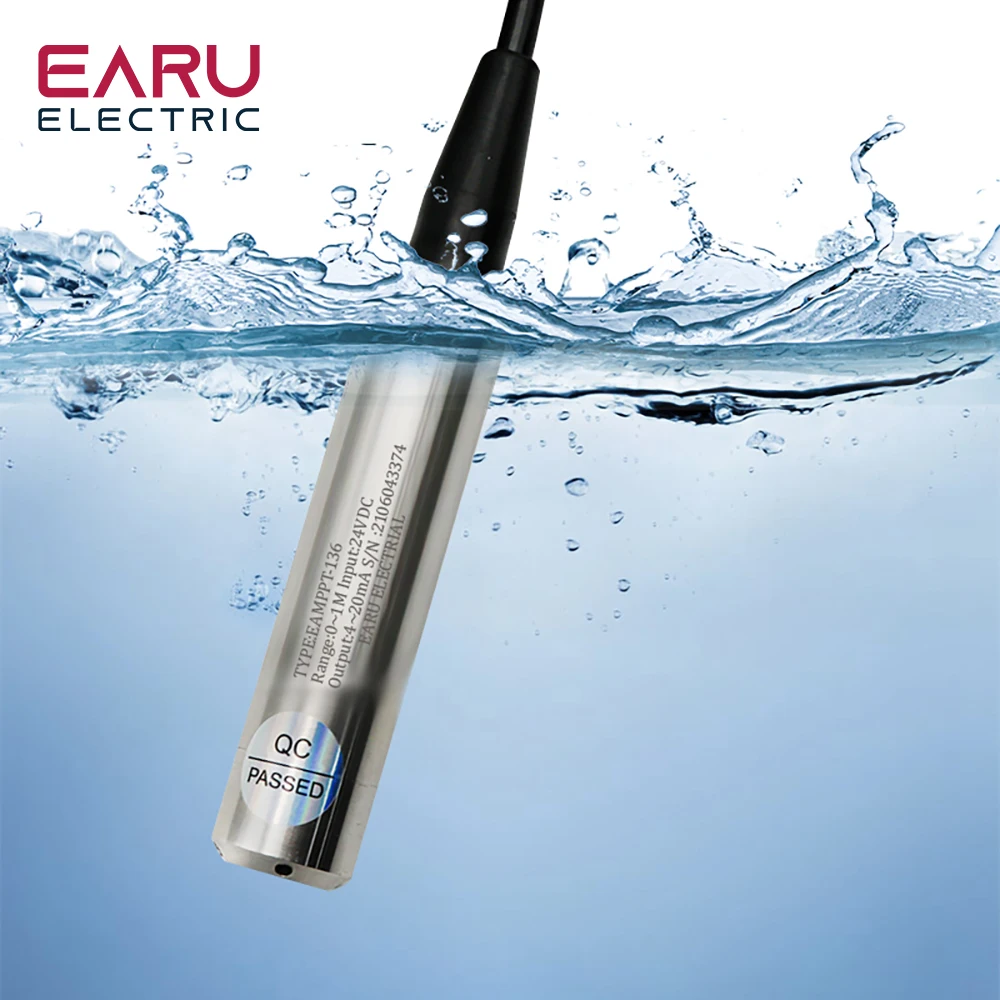

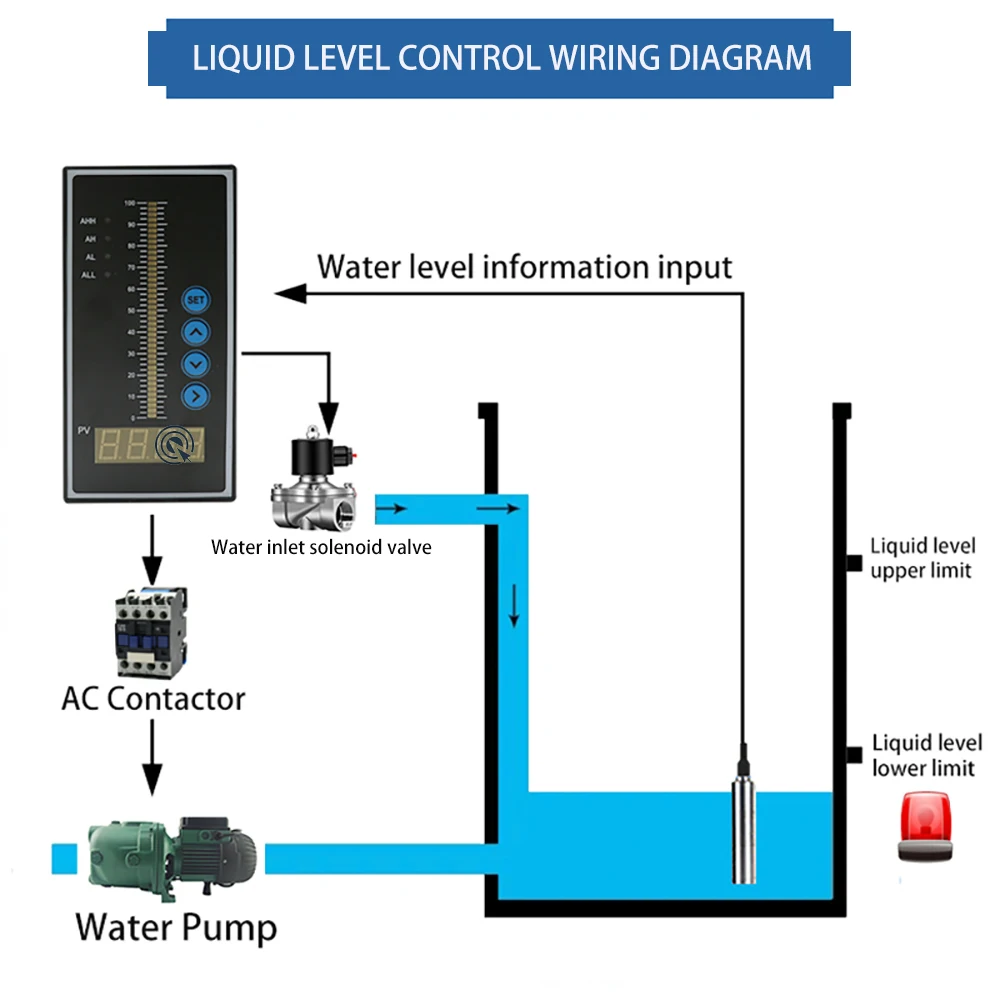

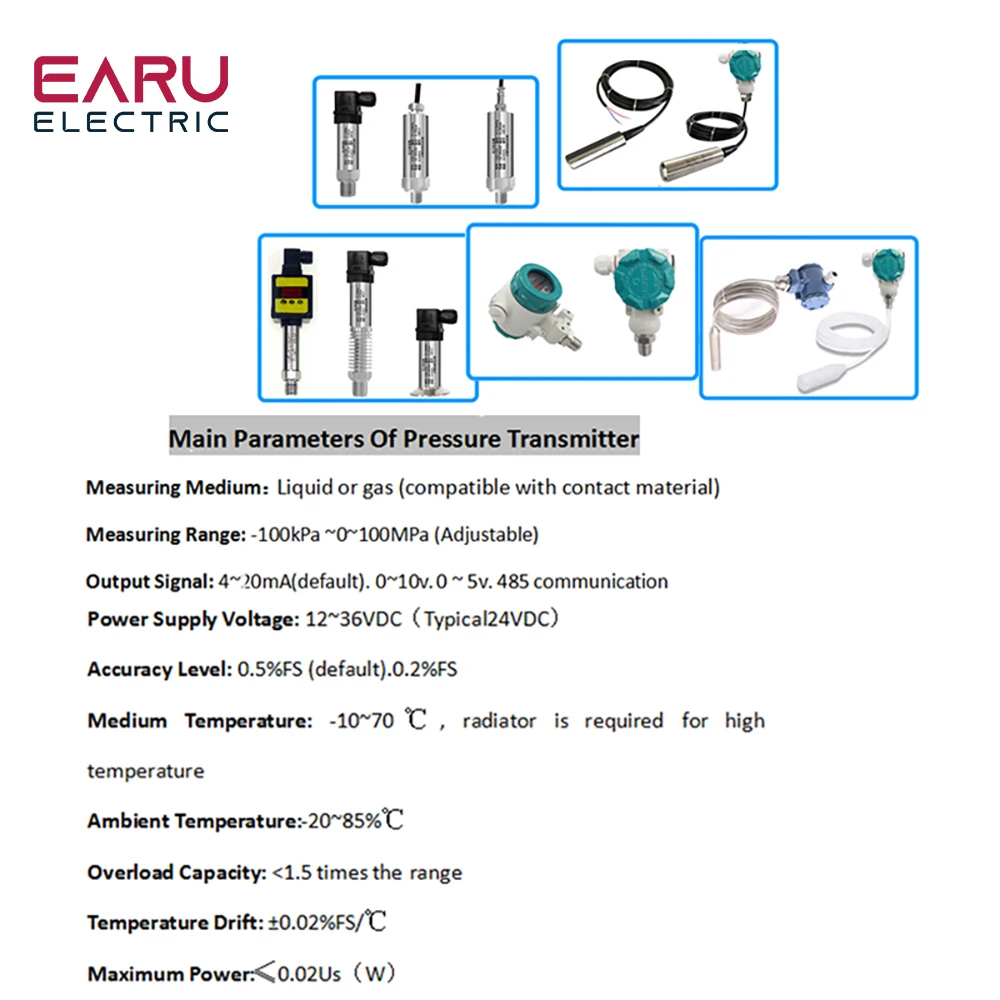

1. Product OverviewThe input level/water level transmitter uses a diffusion silicon chip to encapsulate the diffusion silicone oil-filled core in a stainless steel housing. The front end protective cap functions as a protective sensor diaphragm, and also allows the liquid to smoothly contact the diaphragm. Wire and housing are sealed and connected. The vent pipe is connected to the outside in the cable. The internal structure is designed to prevent condensation. Built-in micro signal processing circuit can be used for remote transmission. It has good stability and reliability.2. Application rangeWidely used in water plants, sewage treatment plants, urban water supply, high-rise pools, wells, mines, industrial pools, water tanks, oil pools, hydrogeology, reservoirs, rivers, oceans and other places3. Technical parameters◆ fully enclosed circuit, with moisture, condensation, anti-leakage function◆ Range: 0～200 meters◆ One-piece◆ Accuracy: 0.5%FS◆ Appearance size is about 145mm, diameter 28mm4. Technical parameters:Measurement form and range 0～1～200mH2OAllow overload 2 times full scale pressureWorking temperature -20～60°CTemperature compensation -10～60°CStorage temperature -40～80°COutput signal 4-20mAPower supply 10~30 VDC (standard voltage 24VDC)Shell Material 304 Stainless Steel(except we mark for 316 material ,others is 304)Cable waterproof breathable cableProtection class IP681m cable=1m range with 1m cable2m cable =2m range with 2m cable3m cable=3m range with 3m cable4m cable=4m range with 4m cable5m cable=1m or 2m or 3m or 4m or 5m range with 5m cable ,please choose which range you need .or we default 5m range with 5m cable
