Product Description
Our factory can provide OEM service to manufacture this device with your brand, logo, if you get any need, feel free to contact the buyer!

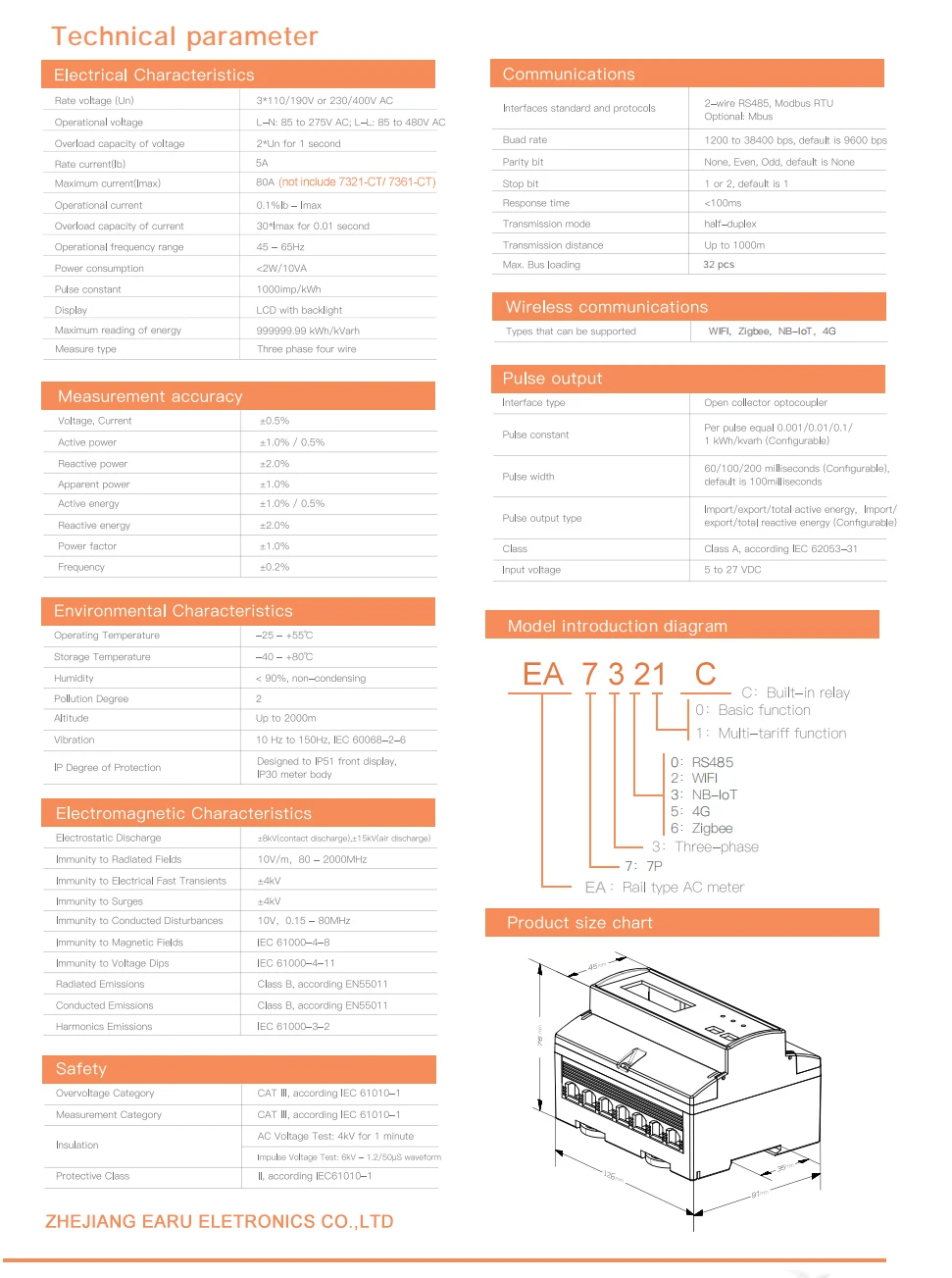

Specifications

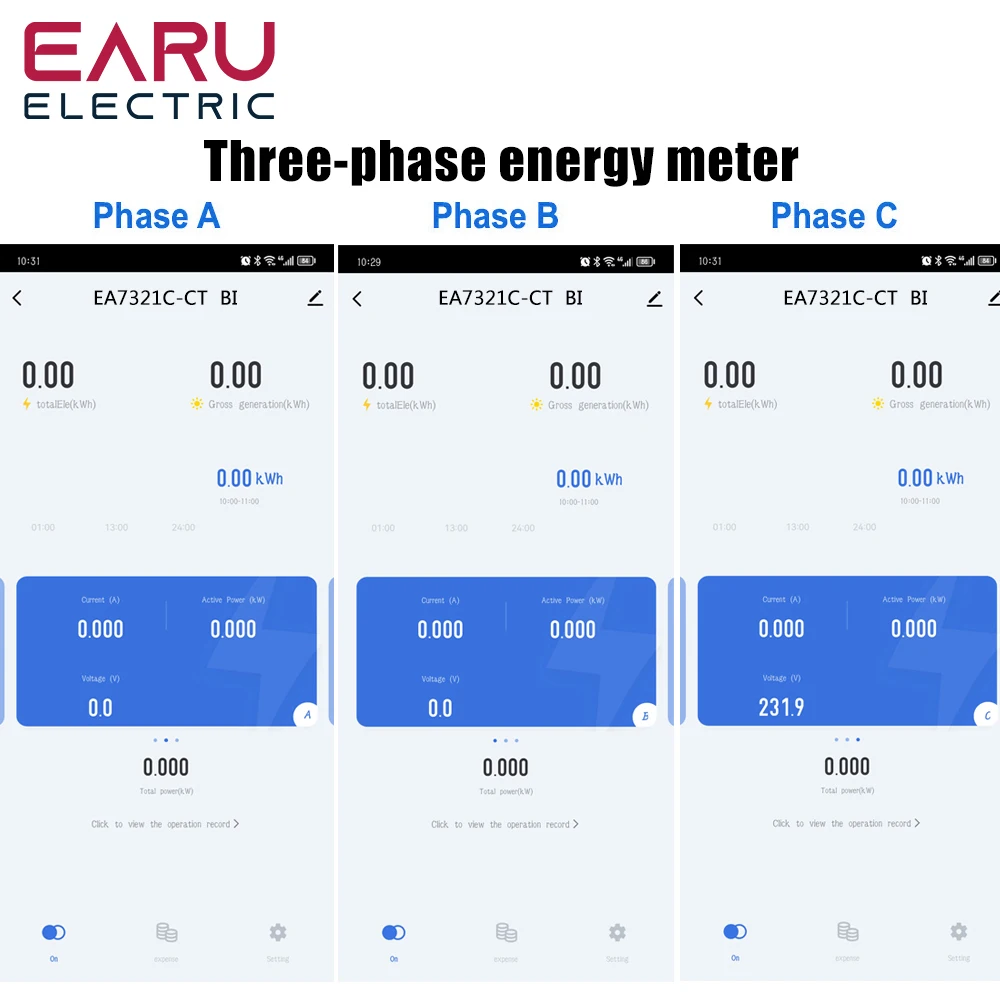

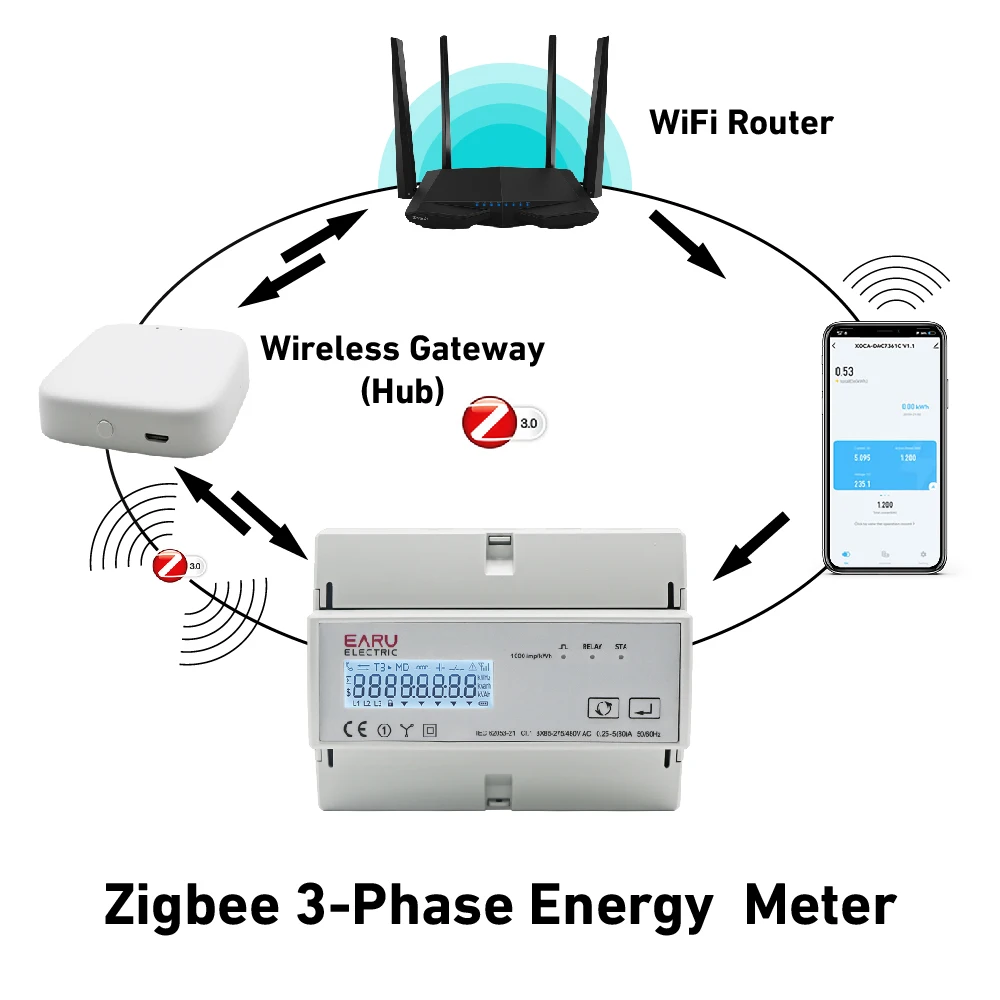

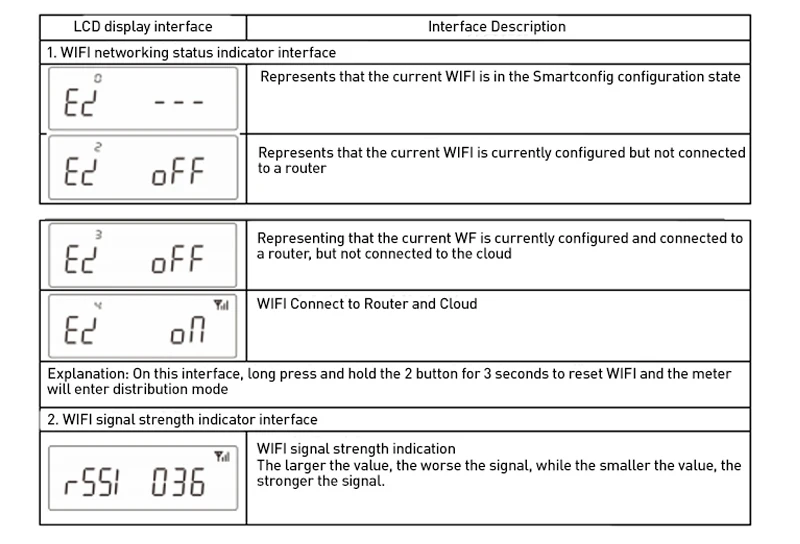

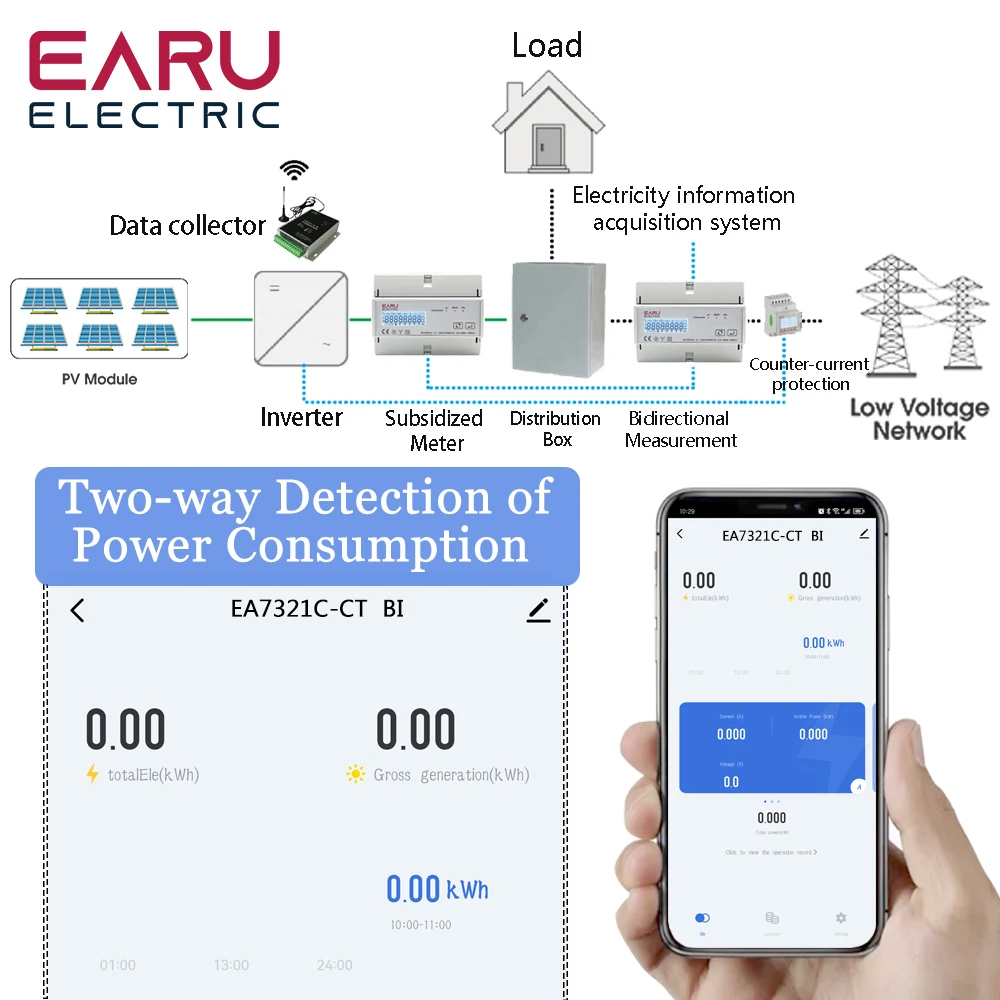

Equipped with Toodle Smart IoT platform, which can realize automatic wireless networking, remote meter reading and pull-close control.

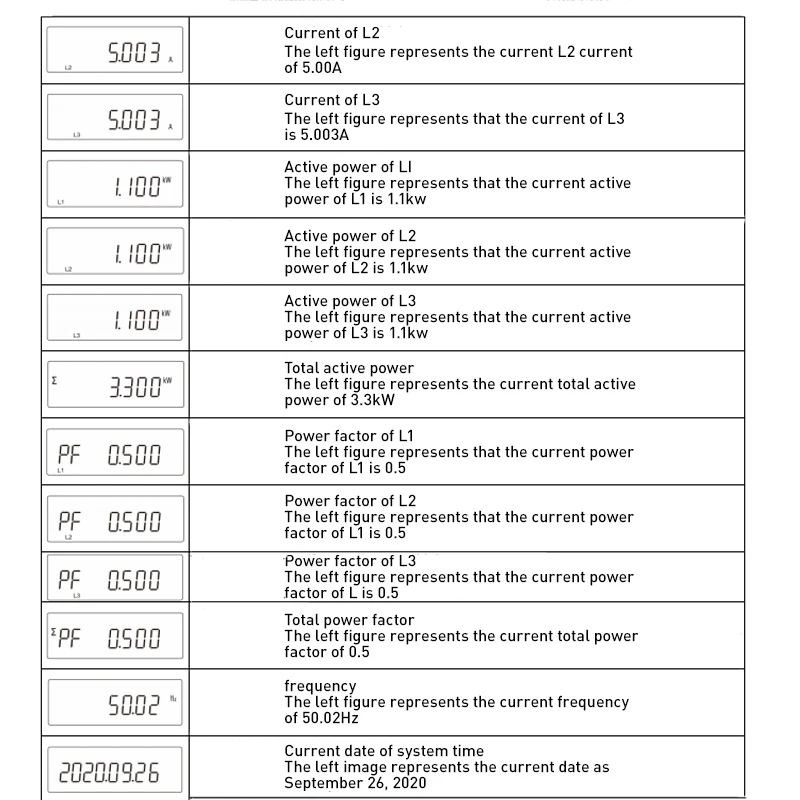

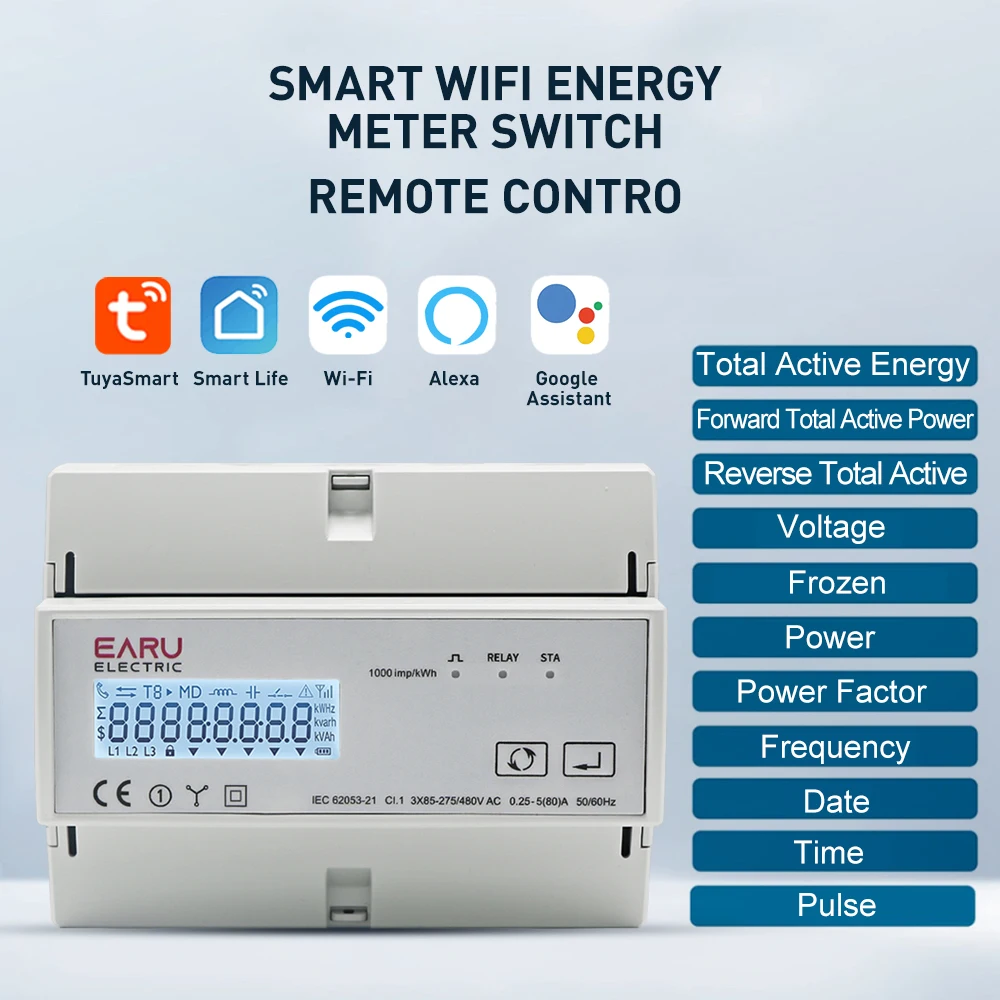

Multifunctional parameter measurement, providing voltage, current, active power, reactive power, apparent power, power factor, phase angle and other abundant.

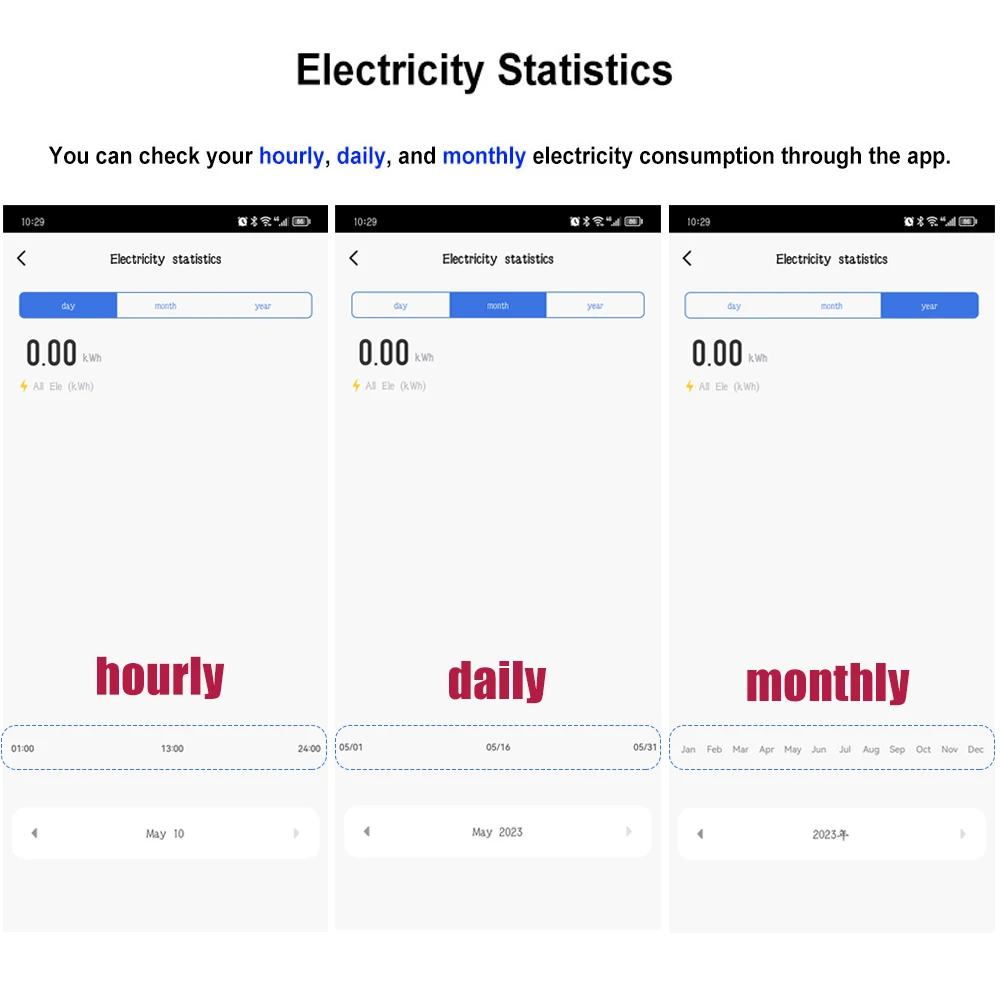

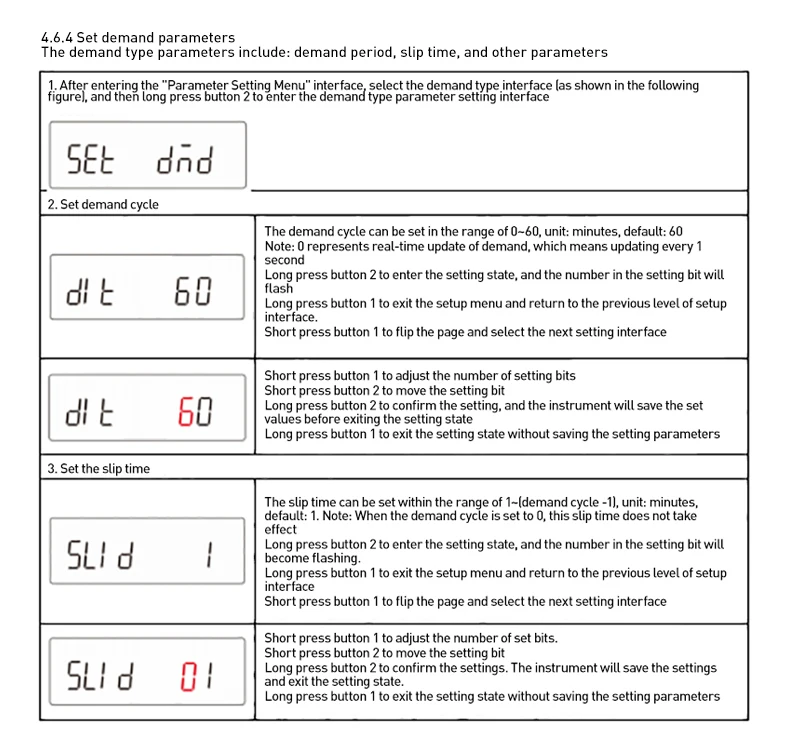

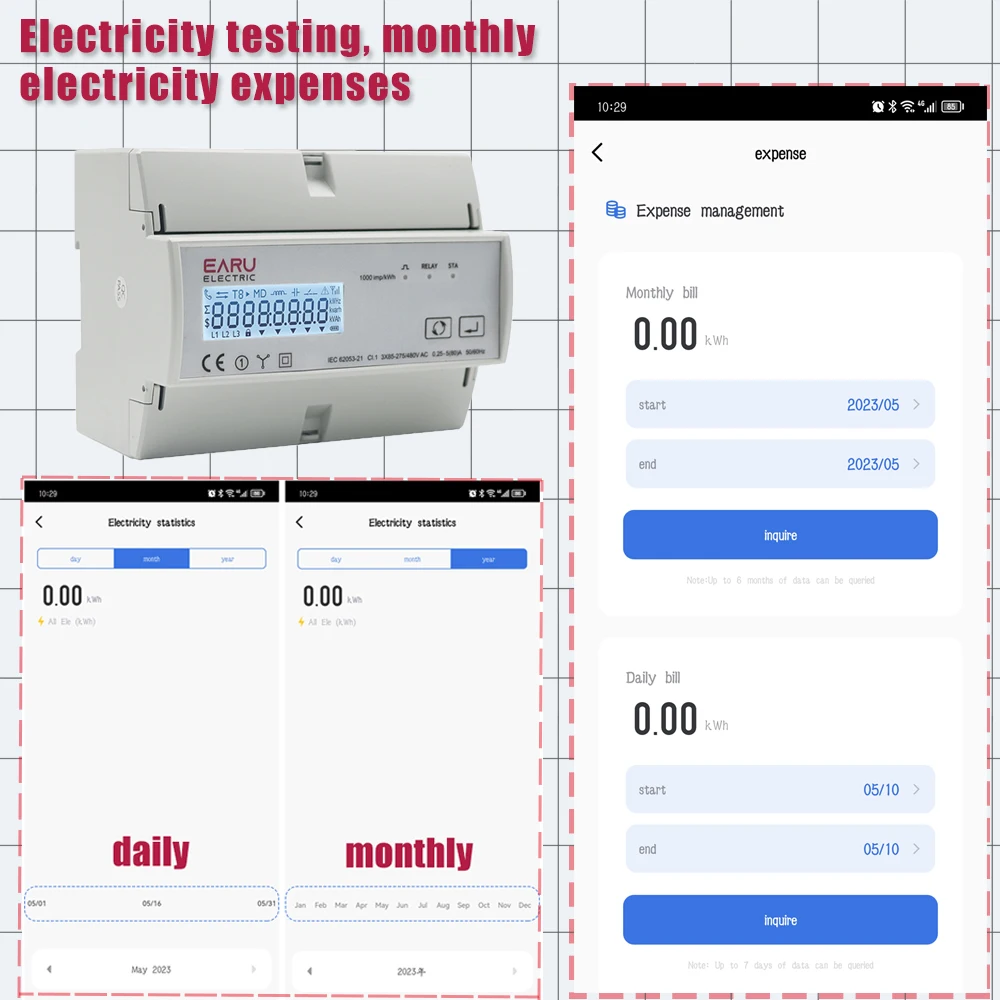

Provides a variety of statistics and local storage functions, such as bi-directional power, demand and other statistics; provides monthly statistics for the last 12 months and daily statistics for the last 31 days.Provides monthly electricity consumption statistics for the last 12 months and daily electricity consumption statistics for the last 31 days.
Provides a record of the last 50 relay operations and 10 SOE events.
Built-in relay, support remote pull-close control, and prepaid management control.

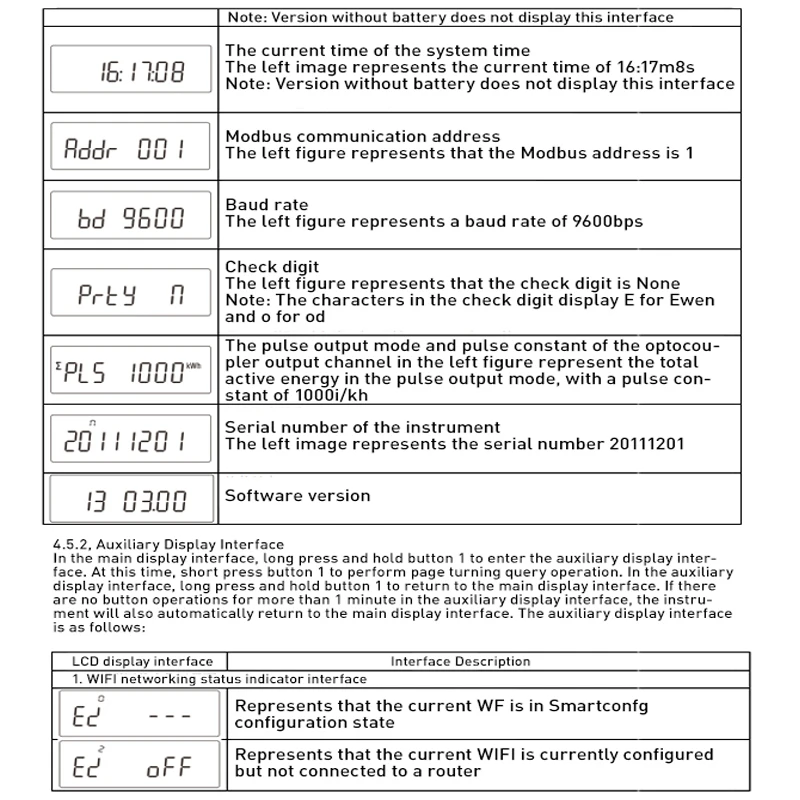

Support RS485 communication function, baud rate up to 9600bps, support Modbus RTU, DL/T645-2007 protocol.

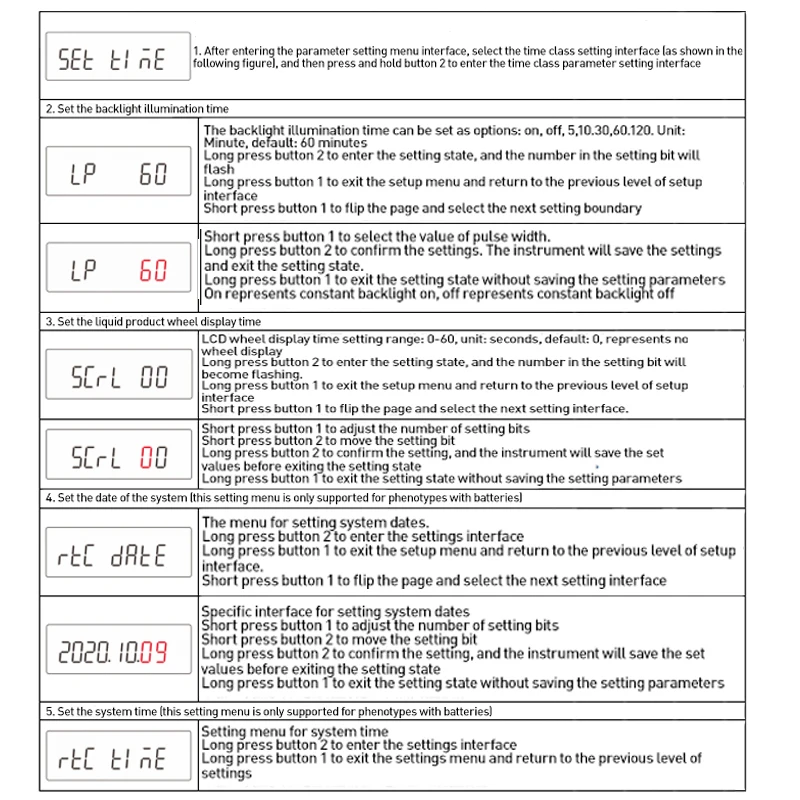

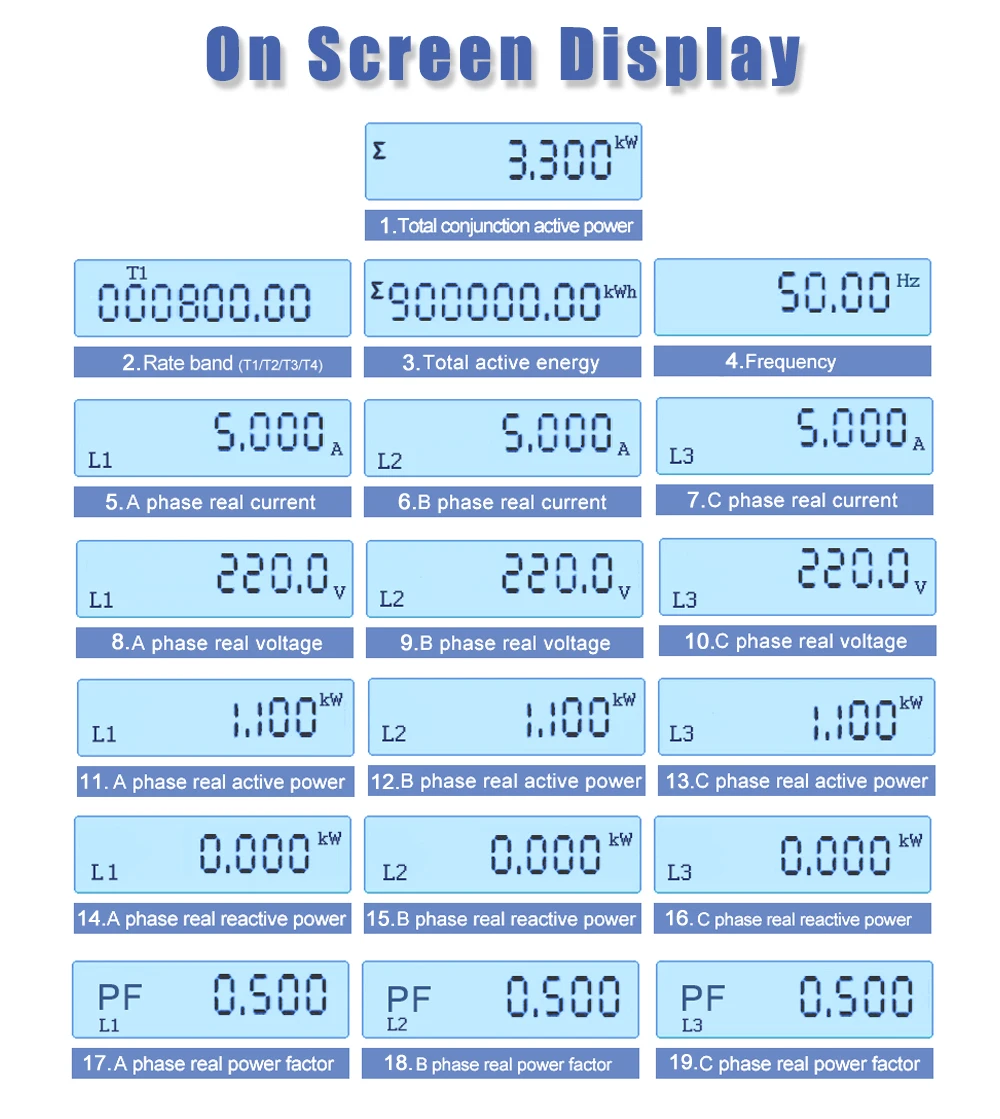

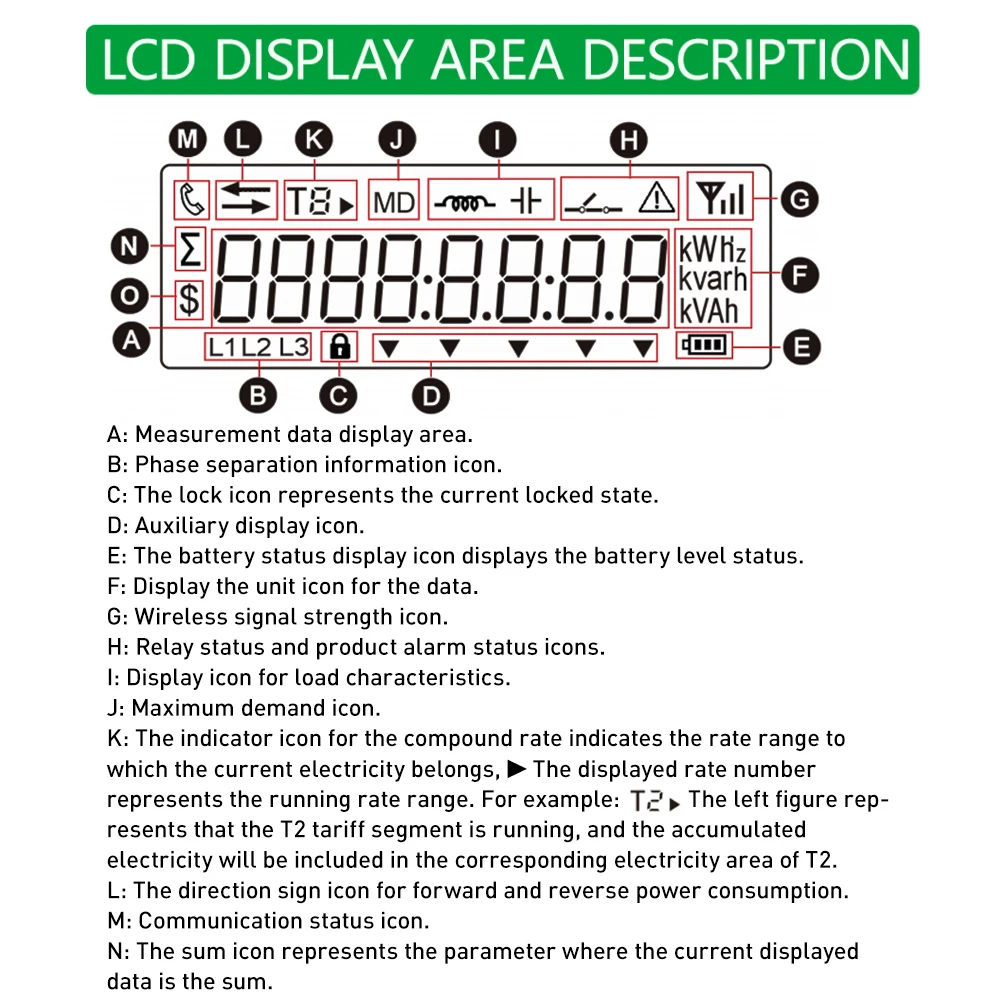

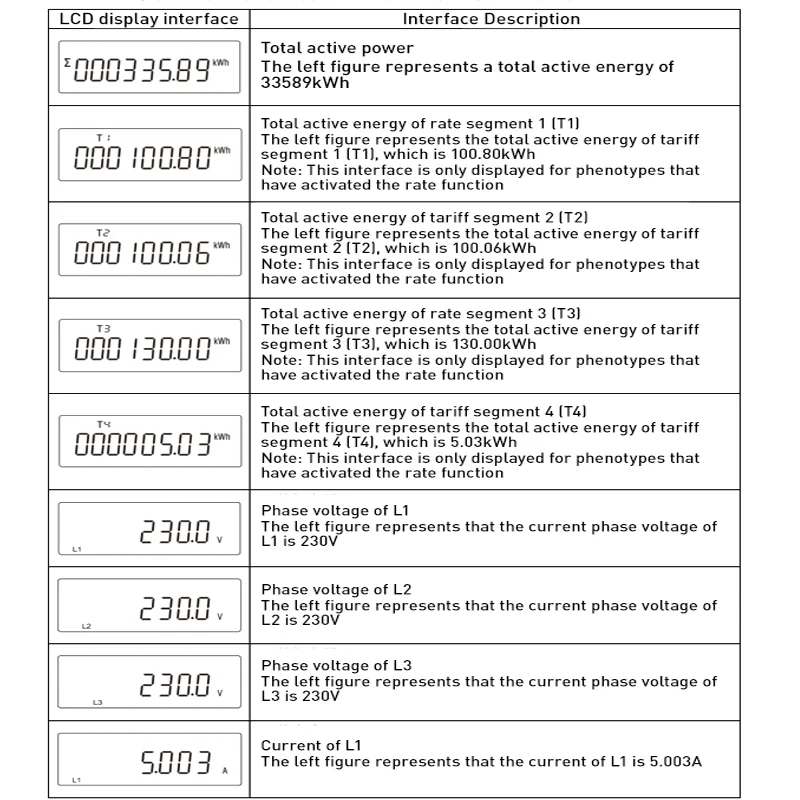

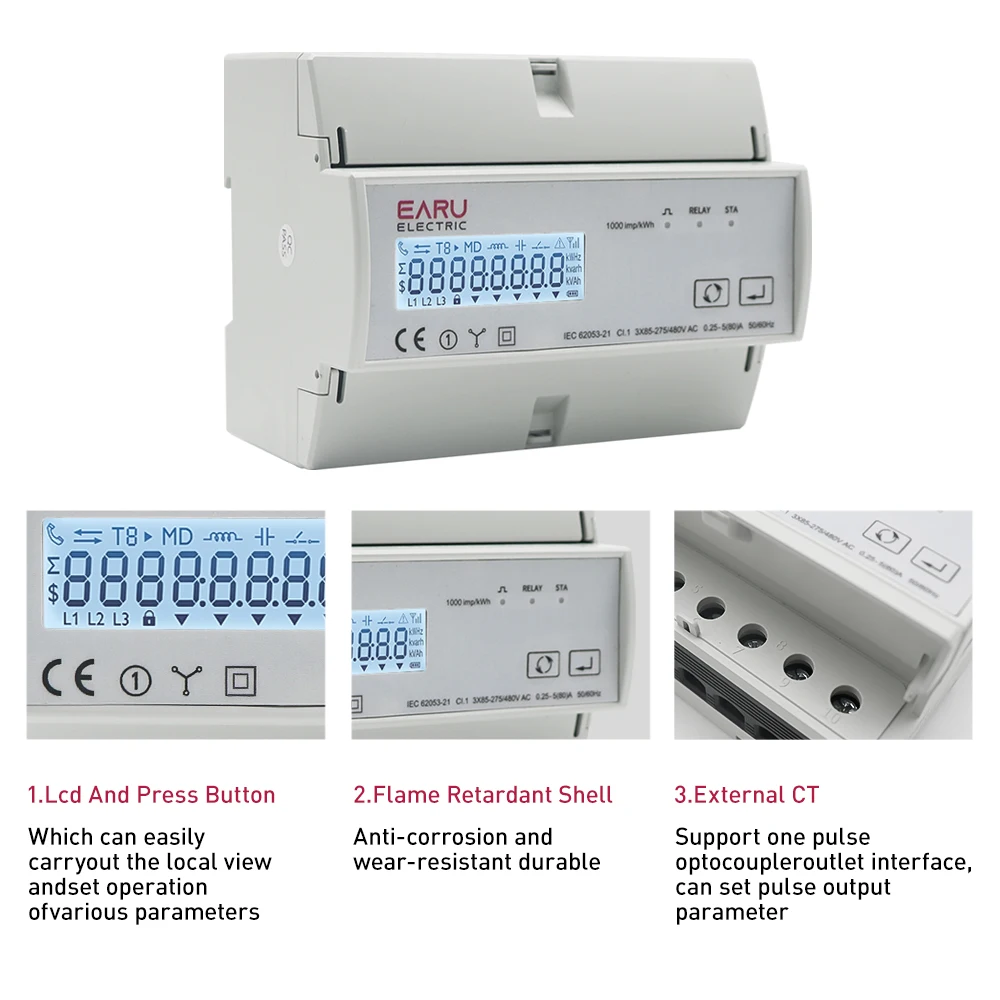

Large LCD display with white backlight and adjustable backlight illumination time.
Function
1. Voltage meter
2. Ammeter
3. Energy meter
4.ON/OFF
Mechanical Characteristics

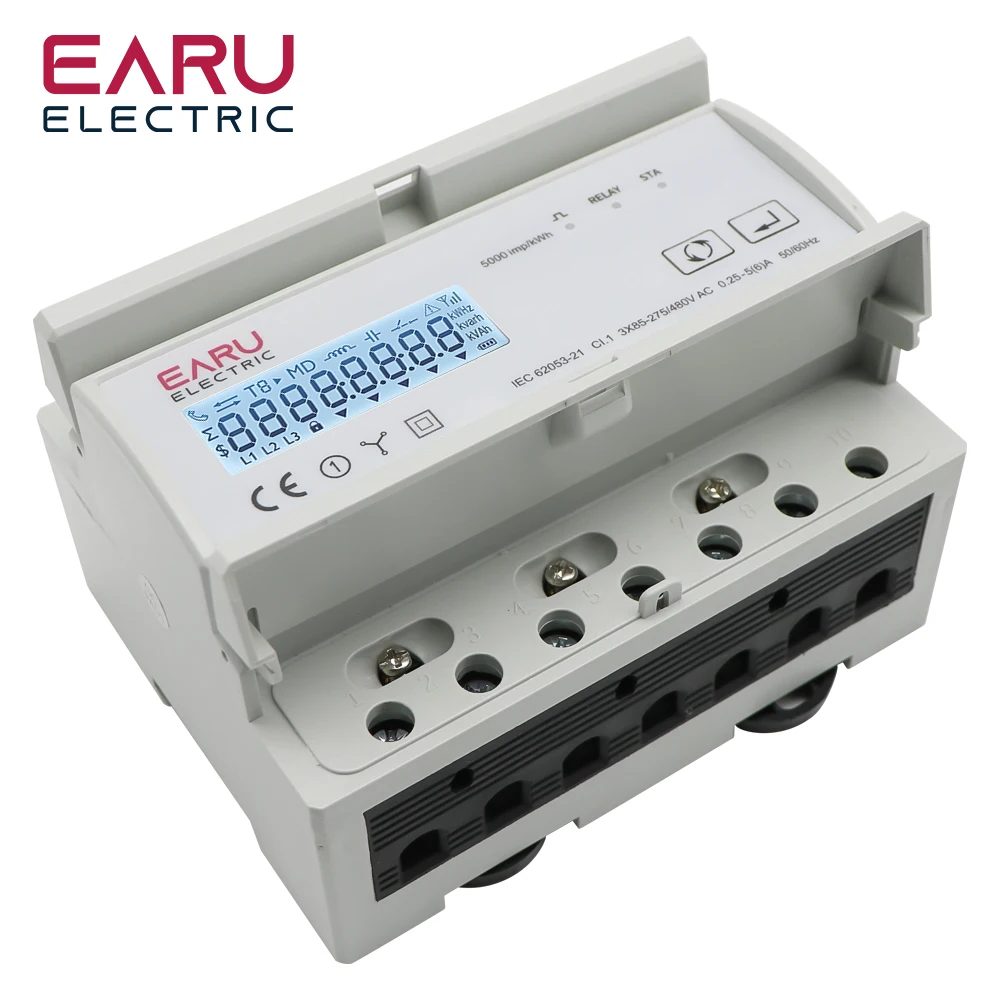

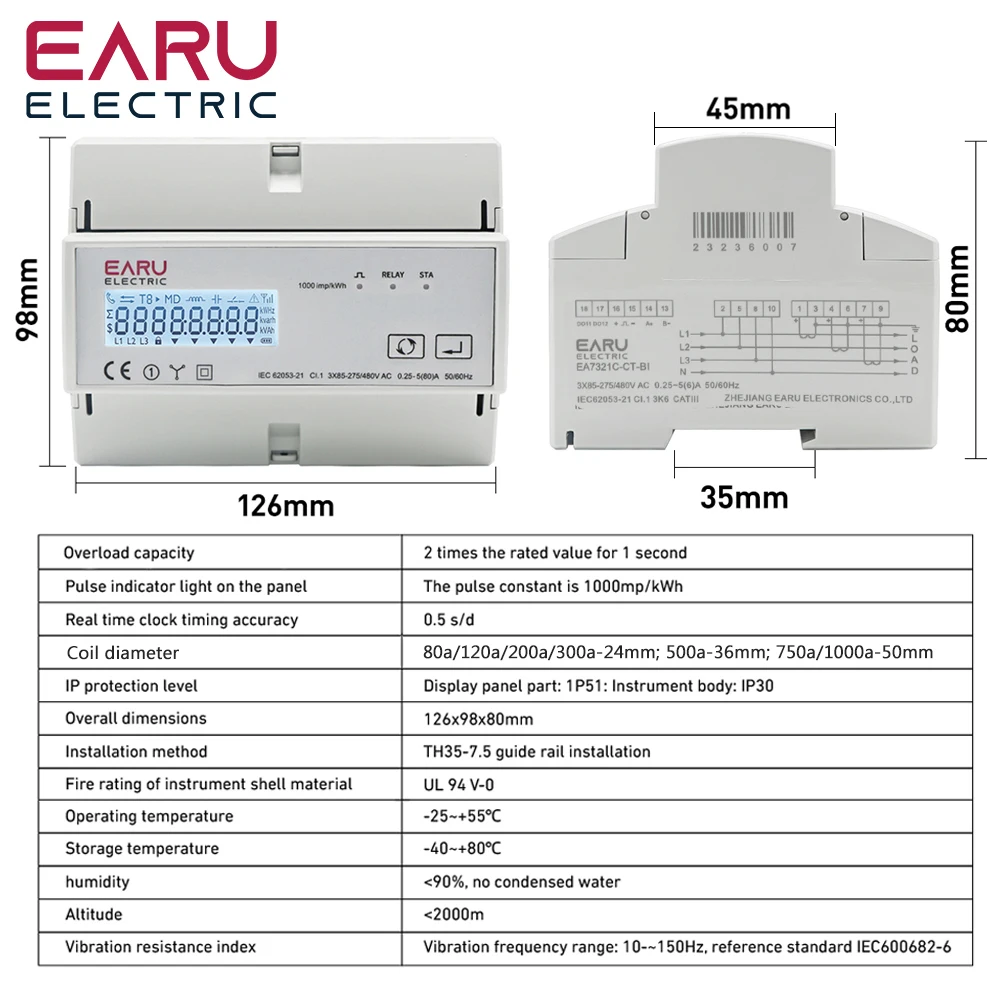

Dimensions (W * H * D)126 x 98 x 80 mm

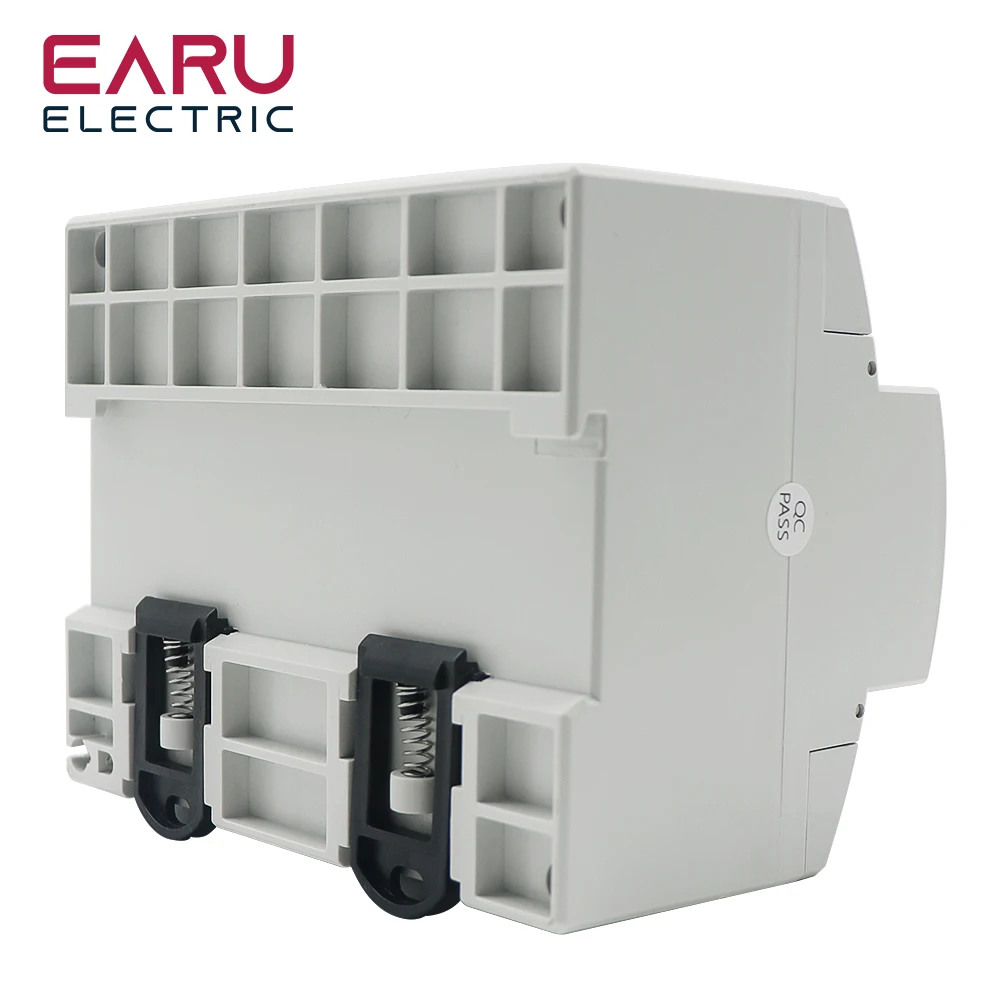

Mounting Position: TH35-7.5 din rail mounting
Material of Meter Case: UL 94 V-0
Operating Temperature: -25 to +55℃
Storage Temperature: -40 to +80℃
Humidity: < 90%, non-condensing
Pollution Degree: 2
Altitude: < 2000m
Vibration10 Hz to 150Hz, IEC 60068-2-6
Coil diameter：80A/120A/200A/300A-24MM; 500A-36MM; 750A/1000A-50MM
Electromagnetic Characteristics
Electrostatic Discharge Level 4, according IEC 61000-4-2(1)
Immunity to Radiated Fields Level 3, according IEC 61000-4-3(1)
Immunity to Electrical Fast Transients Level 4, according IEC 61000-4-4(1)
Immunity to SurgesLevel 4, according IEC 61000-4-5(1)
Immunity to Conducted Disturbances Level 3, according IEC 61000-4-6(1)
Immunity to Magnetic FieldsIEC 61000-4-8(1)
Immunity to Voltage DipsIEC 61000-4-11(1)
Radiated Emissions Class B, according EN55011
Conducted Emissions Class B, according EN55011
Harmonics IEC 61000-3-2(1)
Bus Communication Features

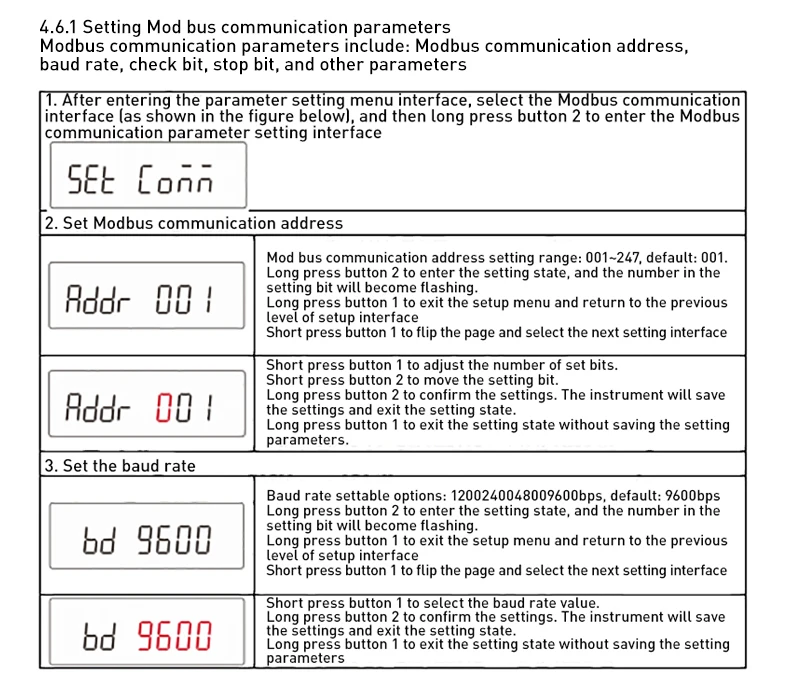

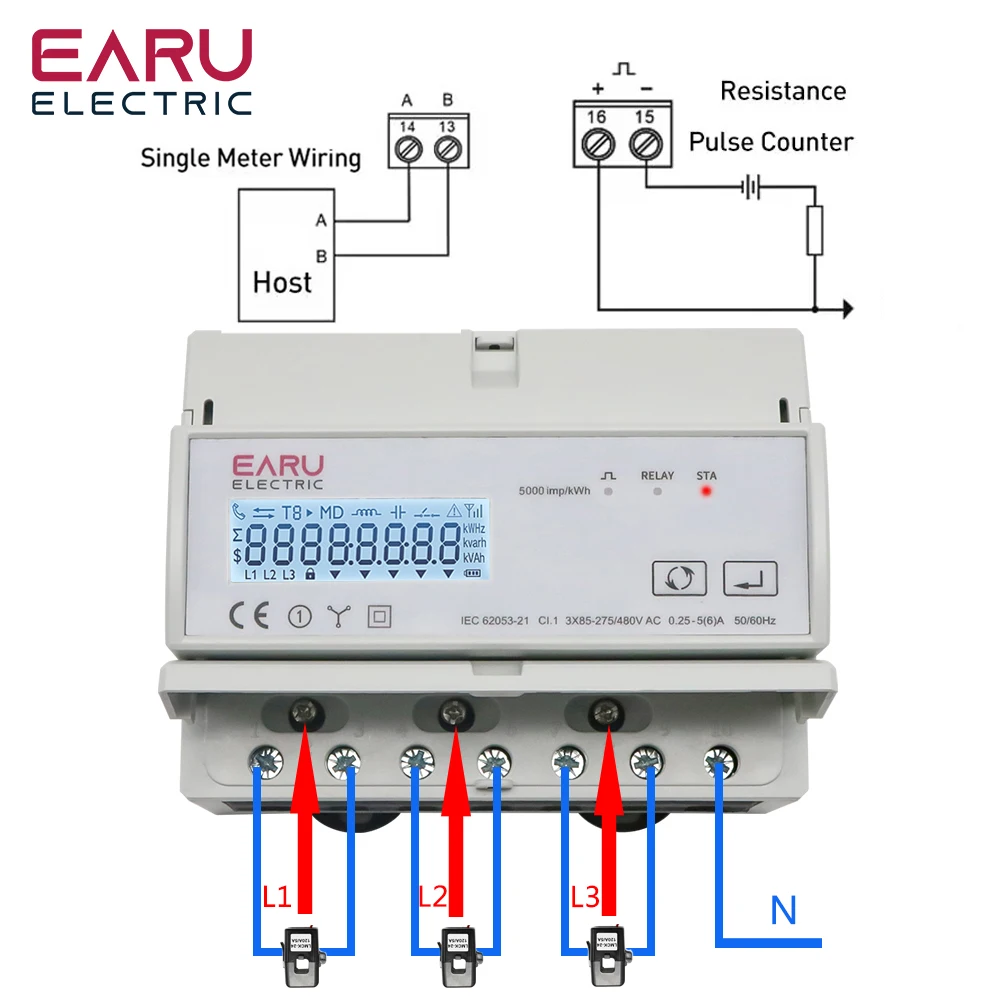

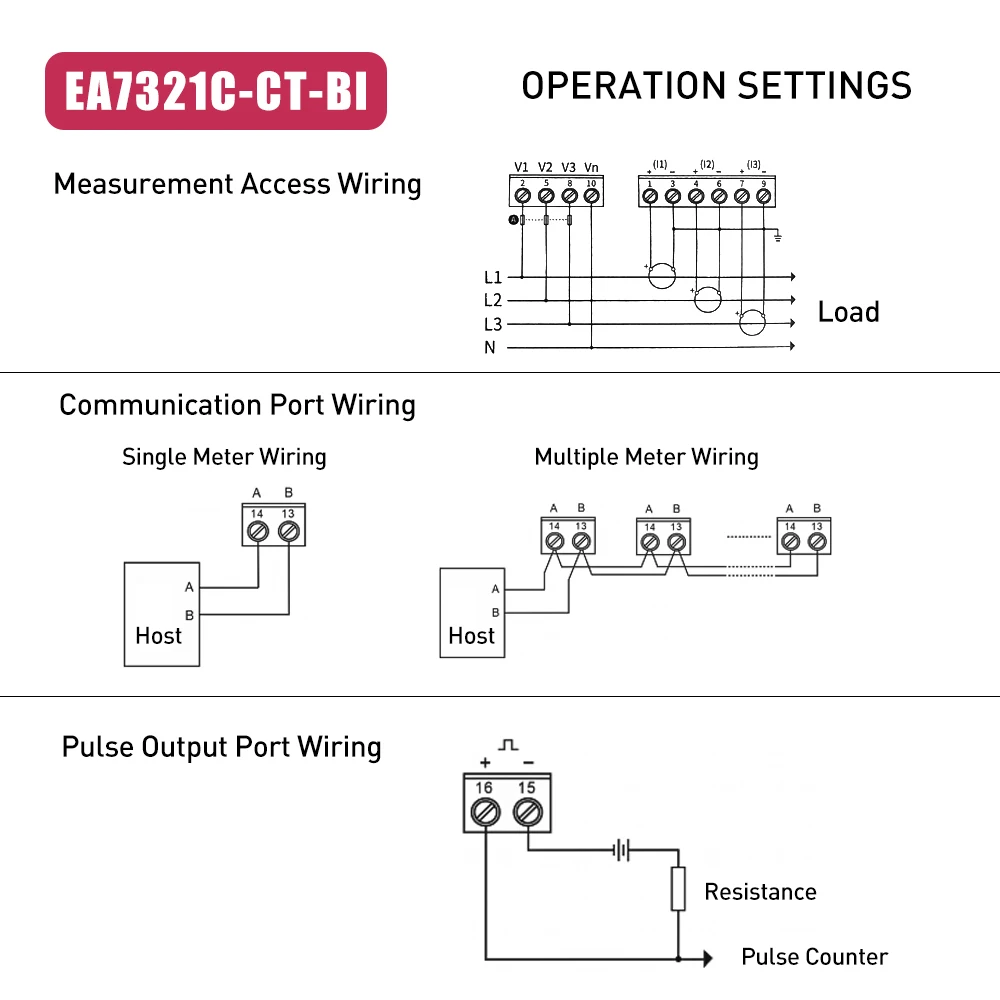

Interfaces & Protocols: Two-wire RS485; Modbus RTU (default), DL/T645-2007
Baud rate: 1200, 2400, 4800, 9600 bps (default)
