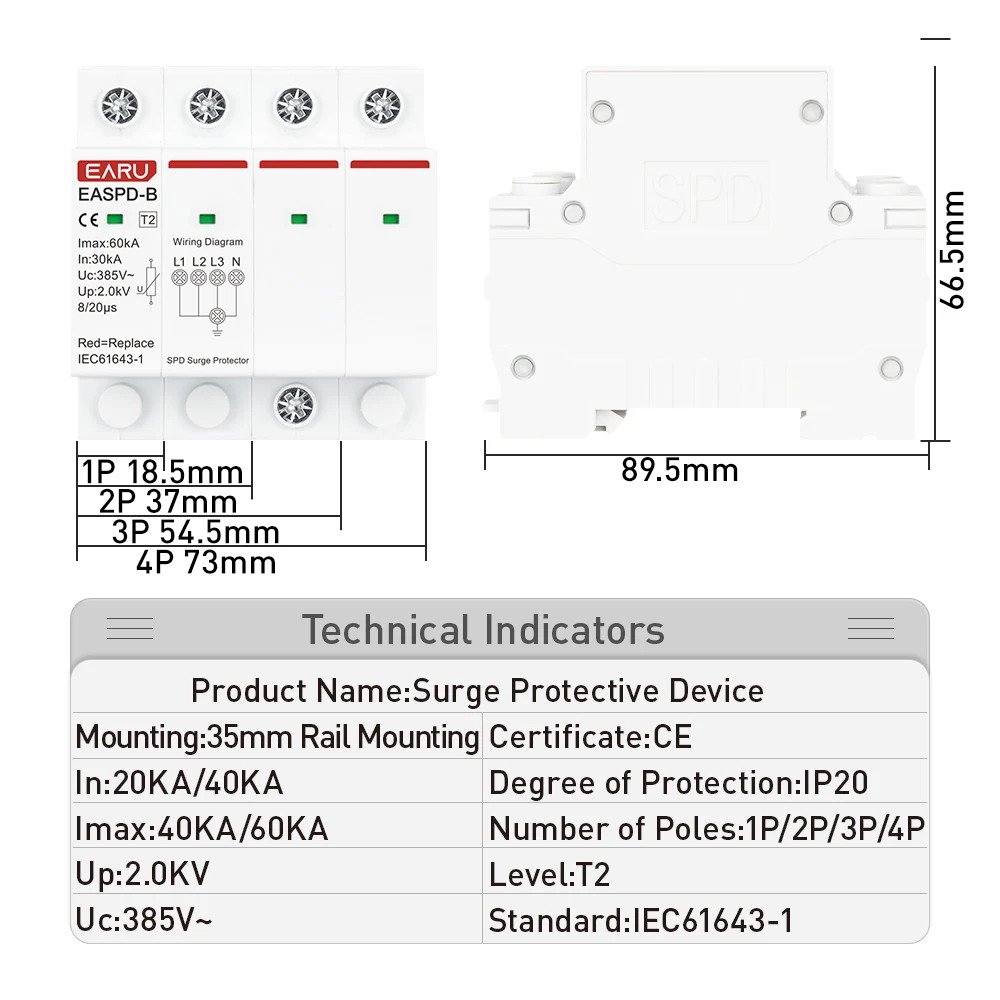

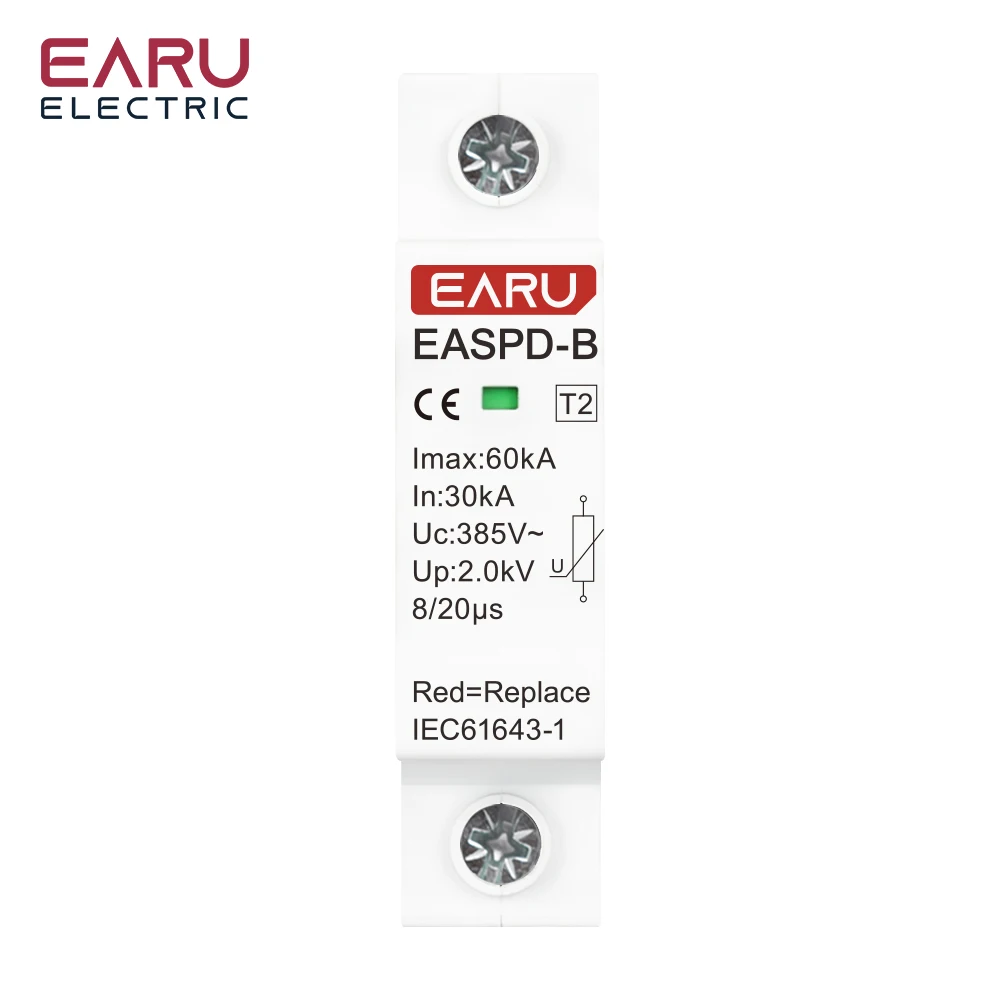

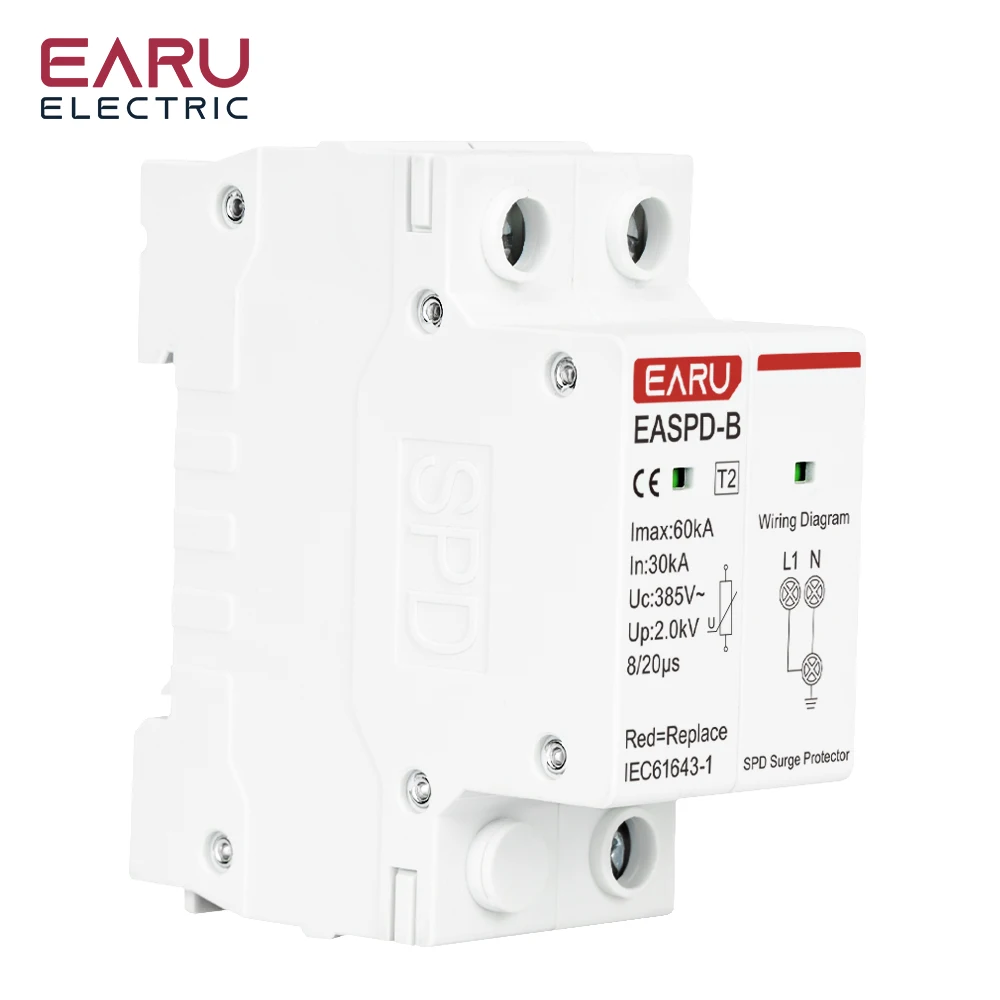

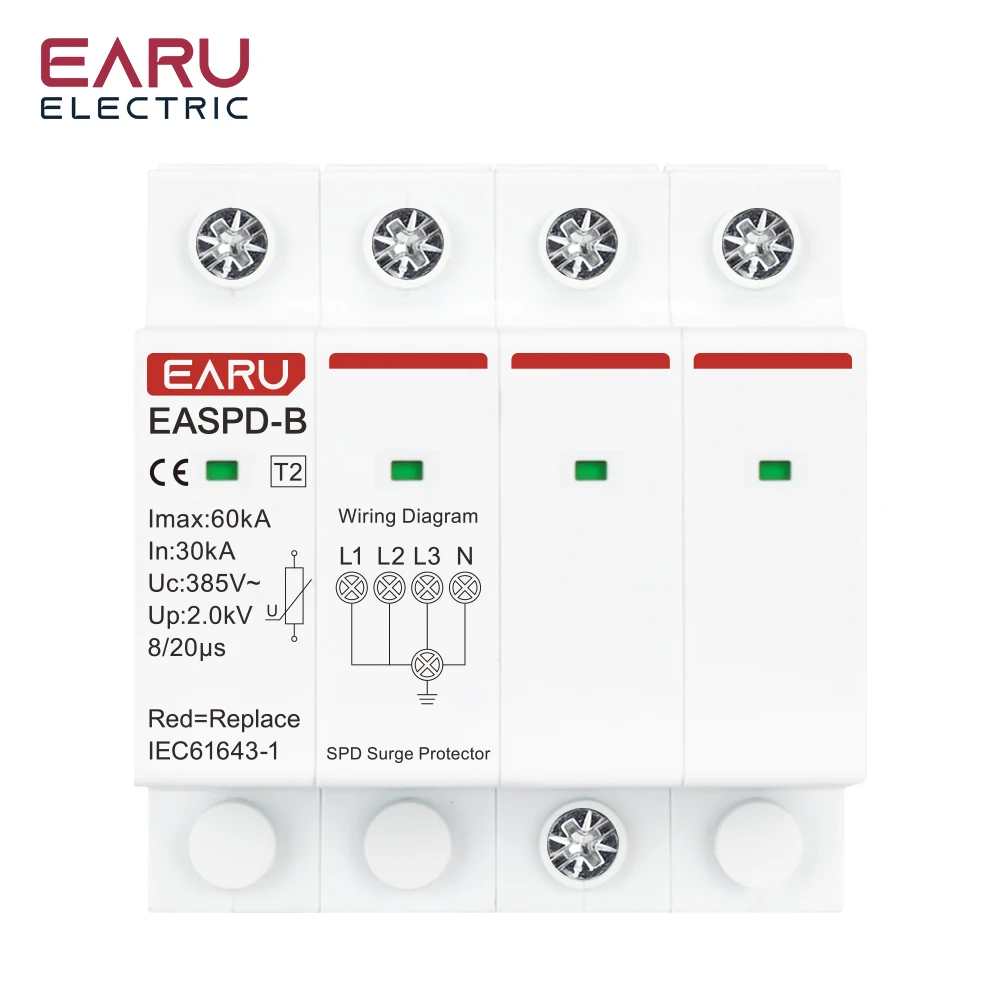

Product Description
Electric ratings: 240V/415V, AC50/60Hz, 3-phase;
Application: Protect electric system and on-loading electrical apparatus from thunder and instantaneous over-voltage;
Standard: IEC/EN 61643-1

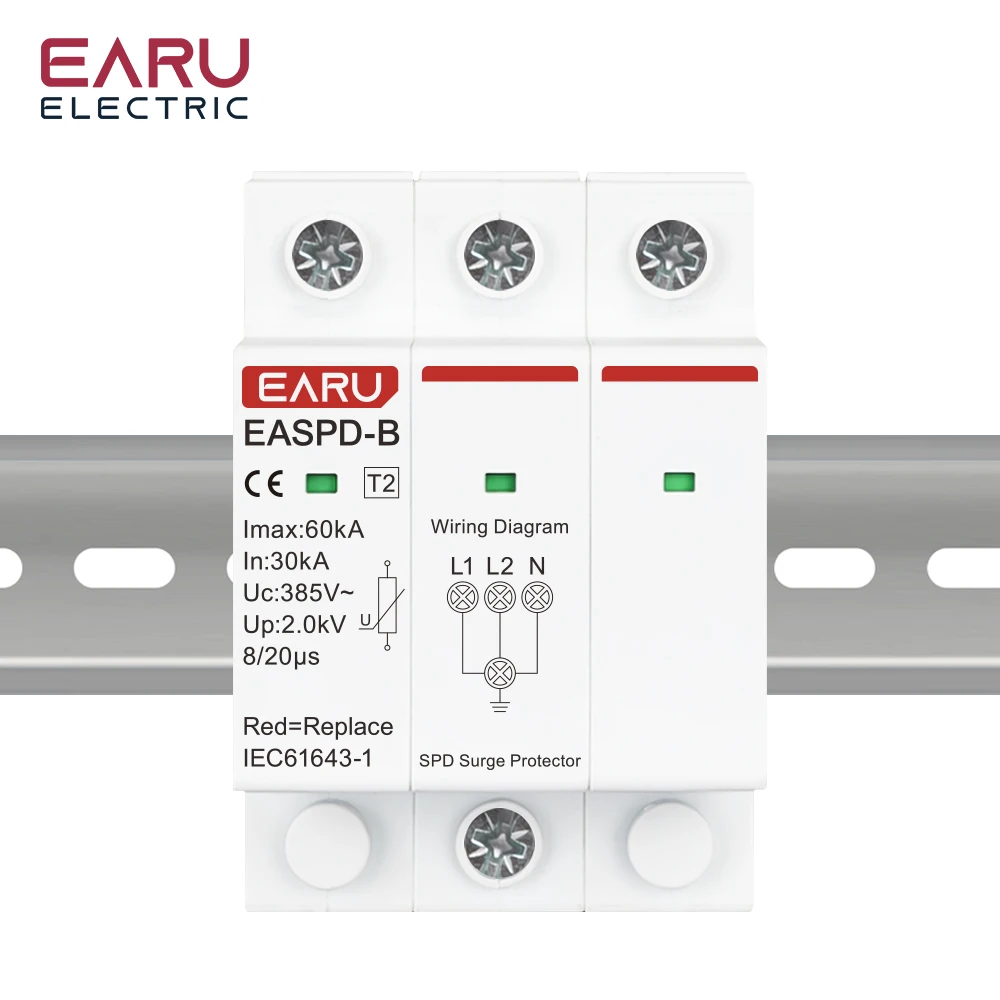

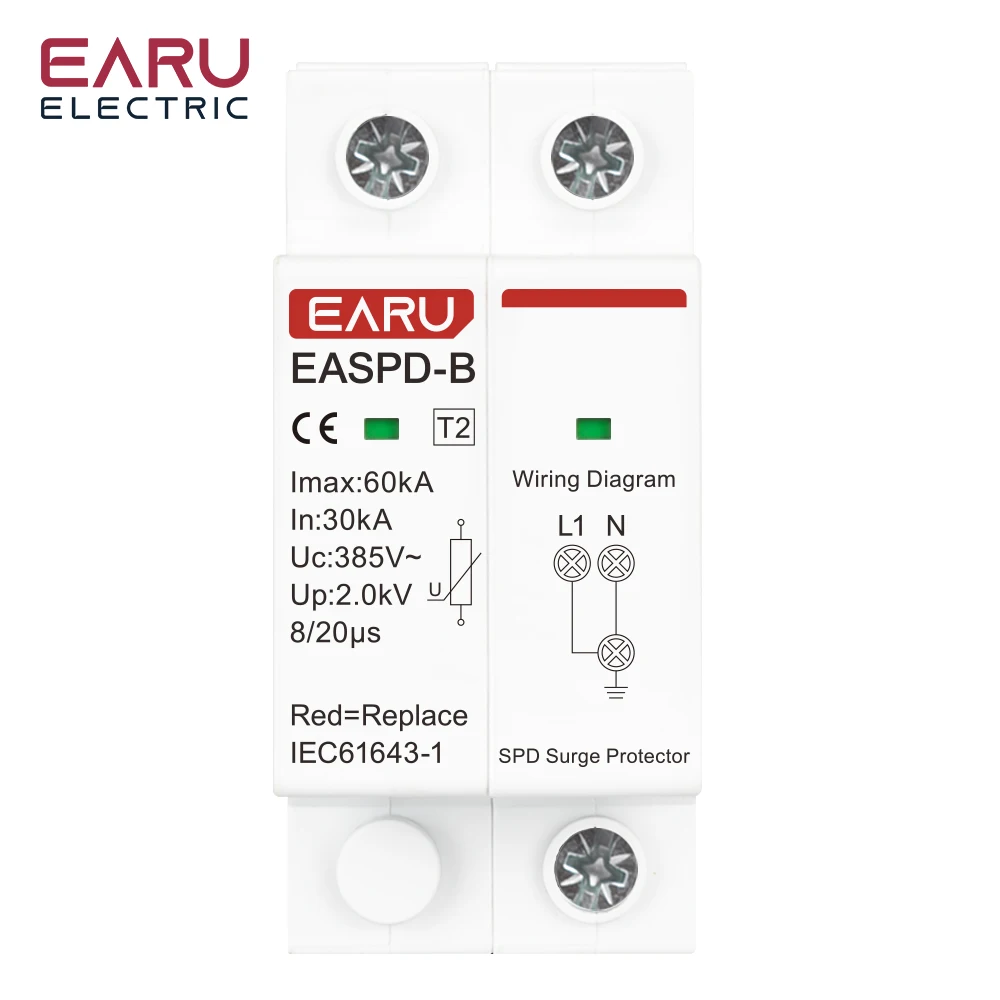

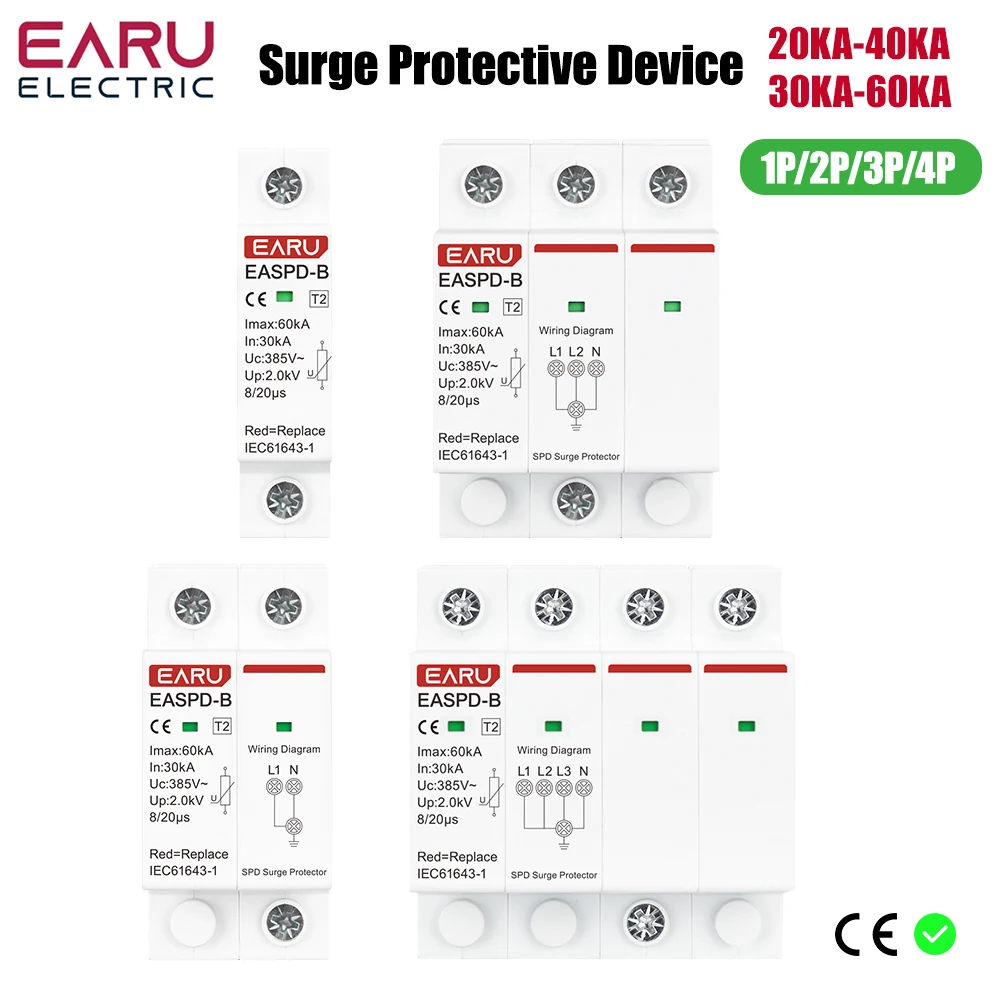

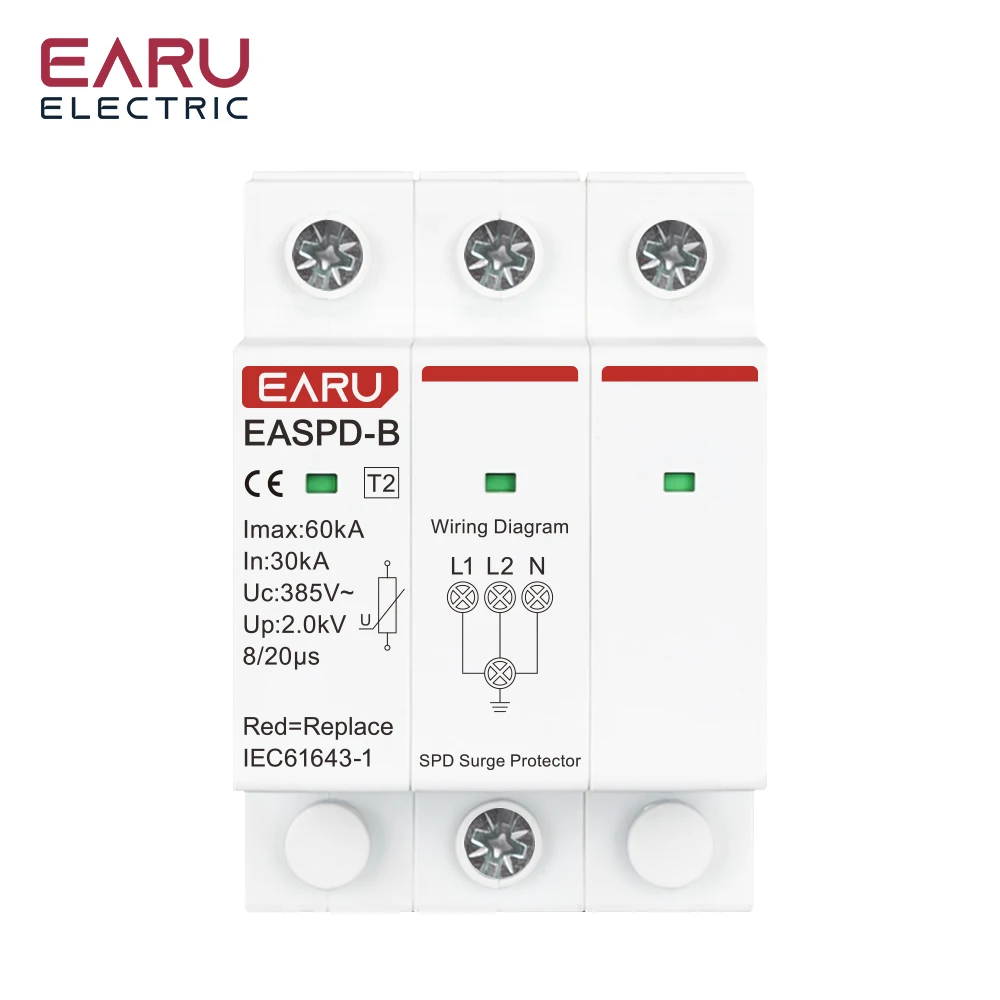

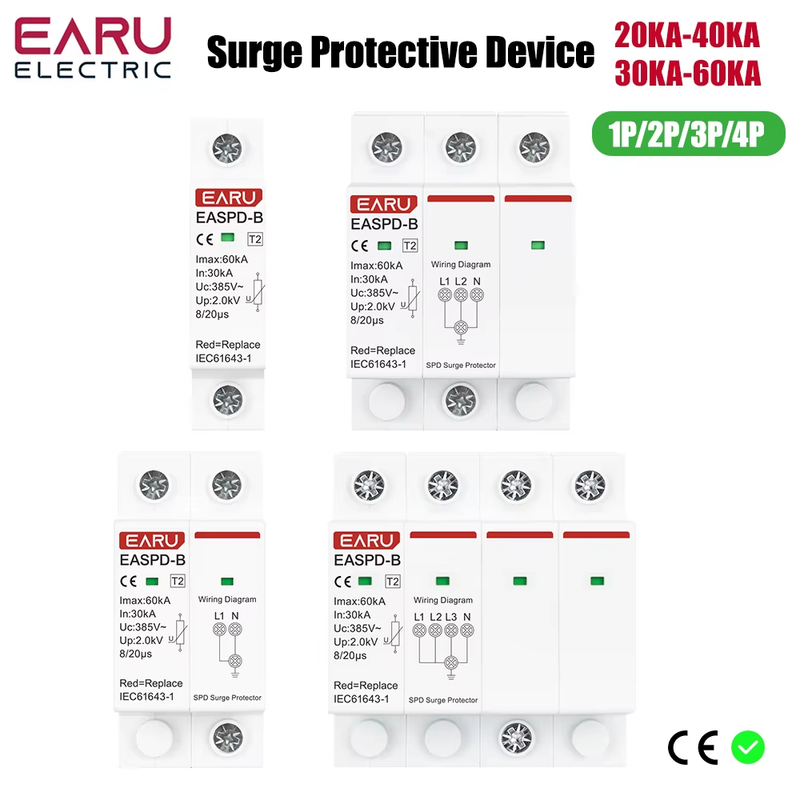

Number of poles: 1P, 2P,3P, 4P;
TYPE | EASPD-B-40KA | EASPD-B-60KA |
Max.Continuous Operating Voltage (Uc): | ~385VAC | ~385VAC |
Nominal Discharge Current (8/20μs) (In): | 20KA | 30KA |
Max. Discharge Current (8/20μs) (Imax.): | 40KA | 60KA |
Voltage Protection Level( Up): | 2.0KV | 2.0KV |
Response Time: | < 25ns | |
Leakage current: | ≤20μA | |
Working Environment: | Temperature -40°C +80°C; | |
Relative humidity<95%; | ||

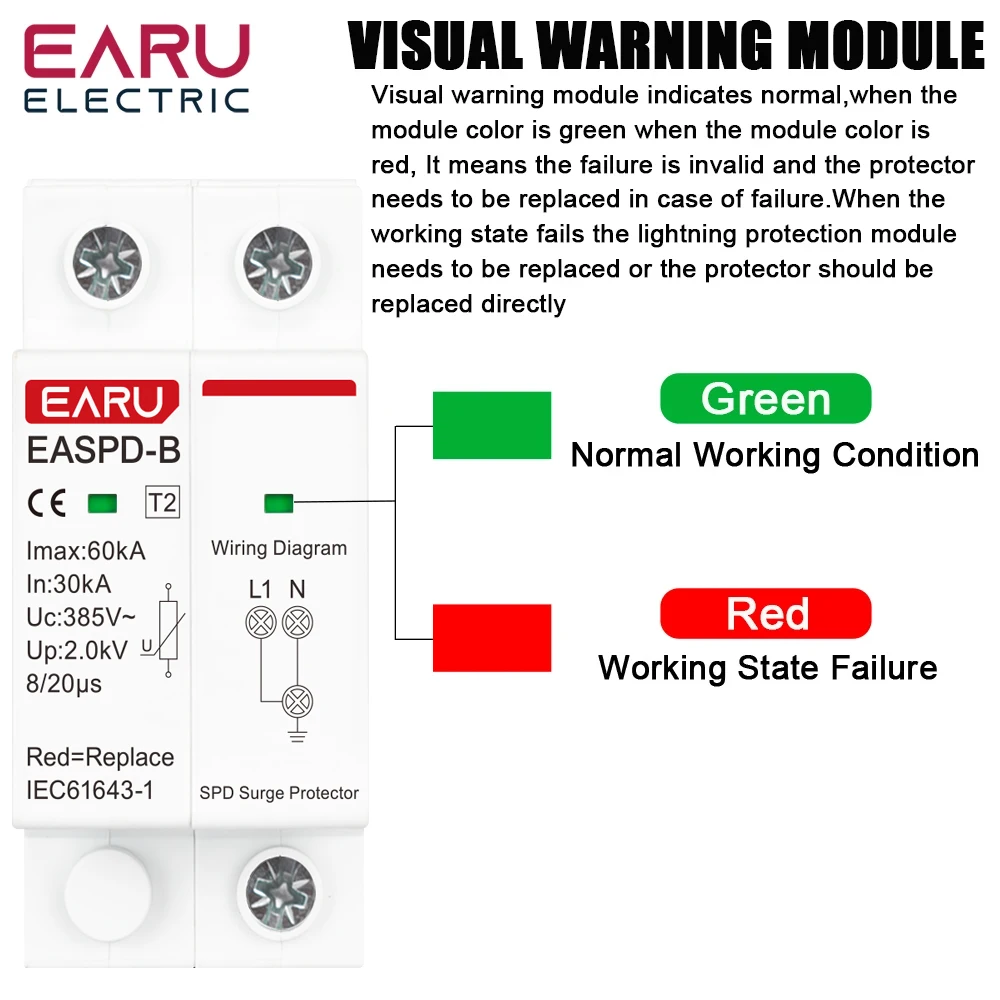

indicate deterioration: | green(normal),red(malfunction) | |

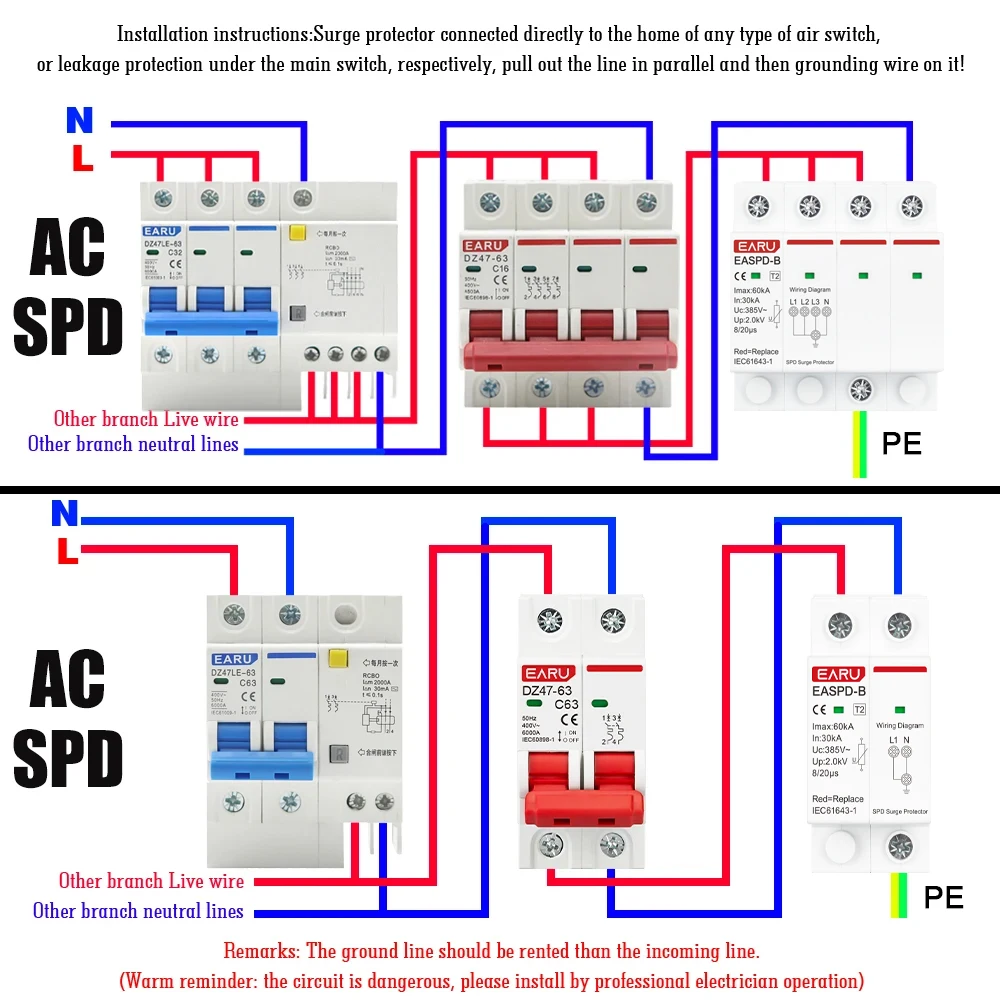

Protection Mode: | L-PE,N-PE (1P, 2P,3P,3P+N) | |
Material of Outer Shell: | Flame retardant materials |
