Product Description

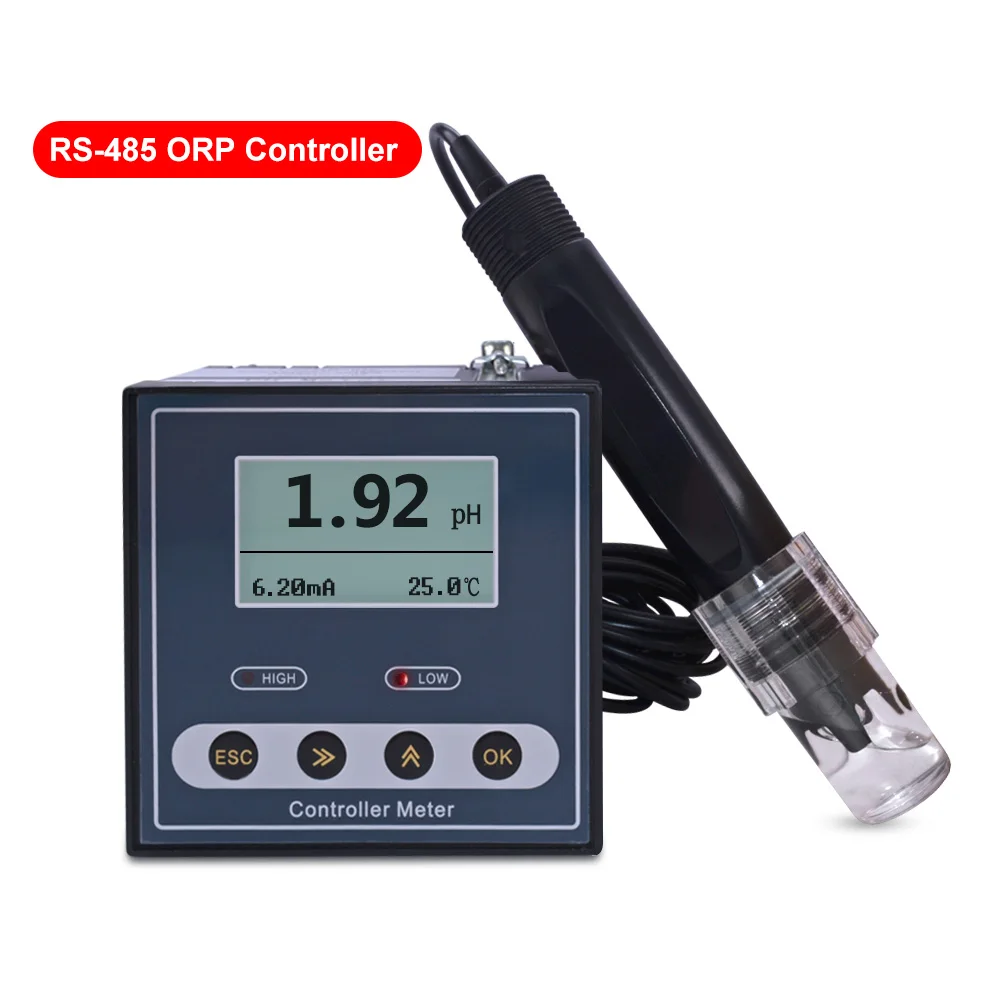

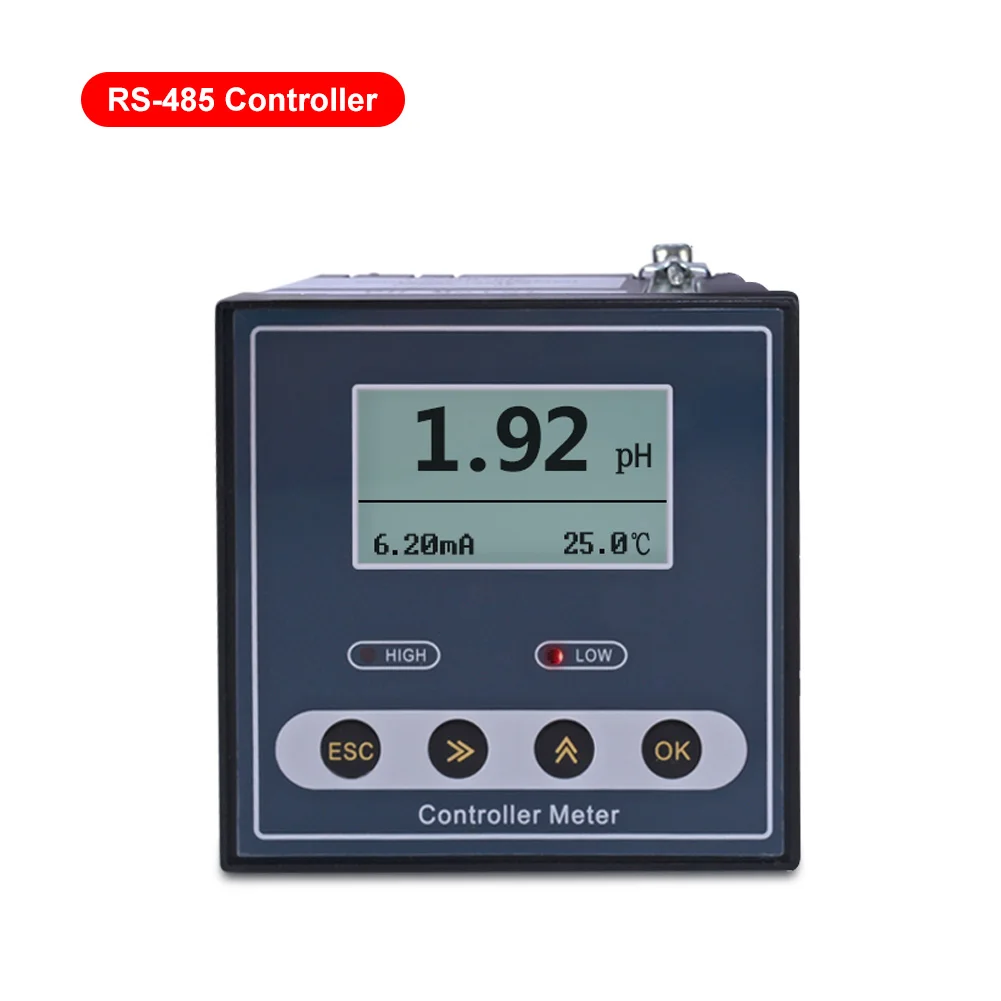

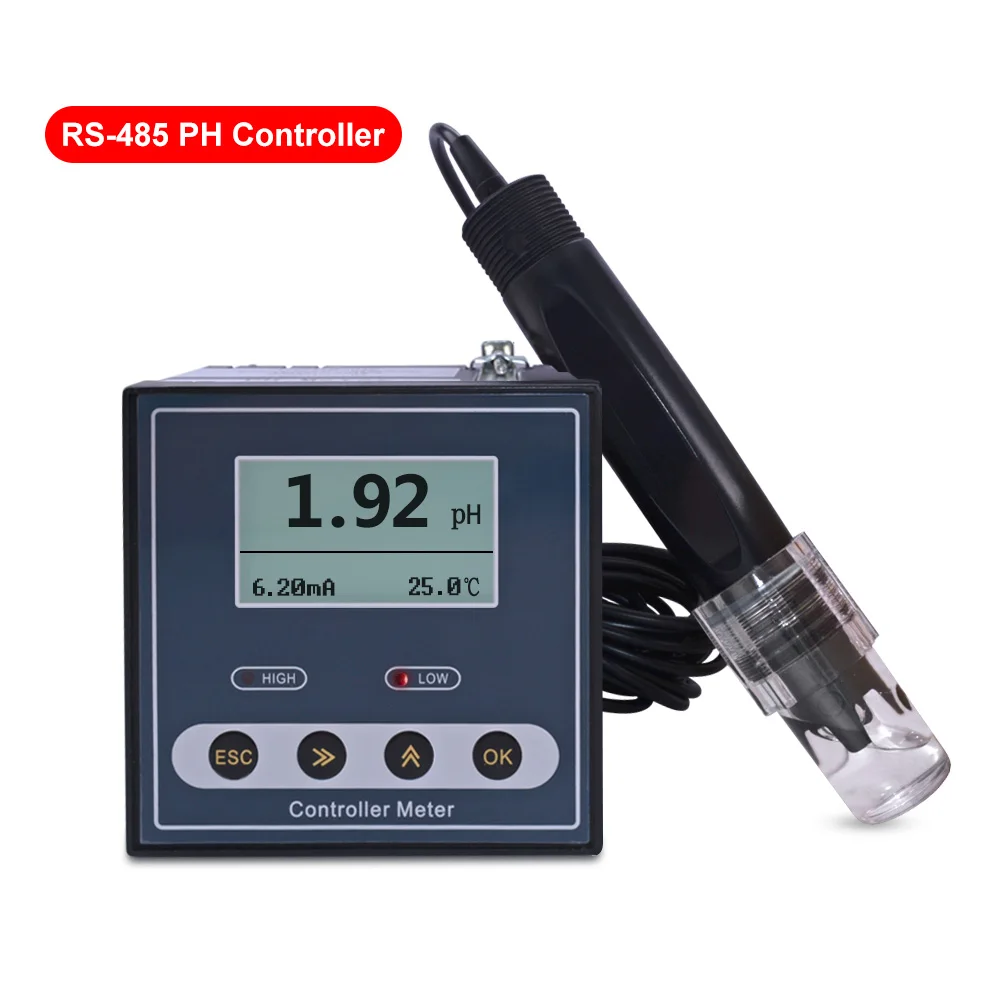

Yieryi Original Online Industrial PH Controller ORP Meter Monitor Digital 0.02 PH 1MV Upper Lower Limit Control Alarm PH Tester
I. Performance Characteristics :
PH-110 industrial pH meter intelligent industrial pH meter, is the upgrading of products, the pH value of sewage continuous measurement and control, the device is suitable for the field of city sewage treatment plant, chemical industry, papermaking, printing and dyeing, pharmaceutical, electroplating and environmental protection etc..
According to the environment and characteristics of the water industry, combined with the international power supply standard, the electrical design specification of the special environment is taken into consideration. The 220V, AC and safe low voltage 24V, AC, 24V and DC power options are added.
Two, The Main Features of This Product :
Factory standard, configuration Chinese interface, language menu, can switch between Chinese and English
PH/ORP measurements can be carried out, upper and lower limit control, current output, digital communication
Can be set to automatic temperature compensation or manual compensation
PH high limit alarm, low limit alarm, double relay, the amount of hysteresis can be adjusted freely
Instrument mode isolation port, maximum loop resistance greater than 300
The voice alarm switch function, through the interface options set on or off
Liquid crystal backlight can select energy saving mode and automatically shut down on time
High performance CPU with good EMC performance
Password management, to prevent non professional staff misoperation

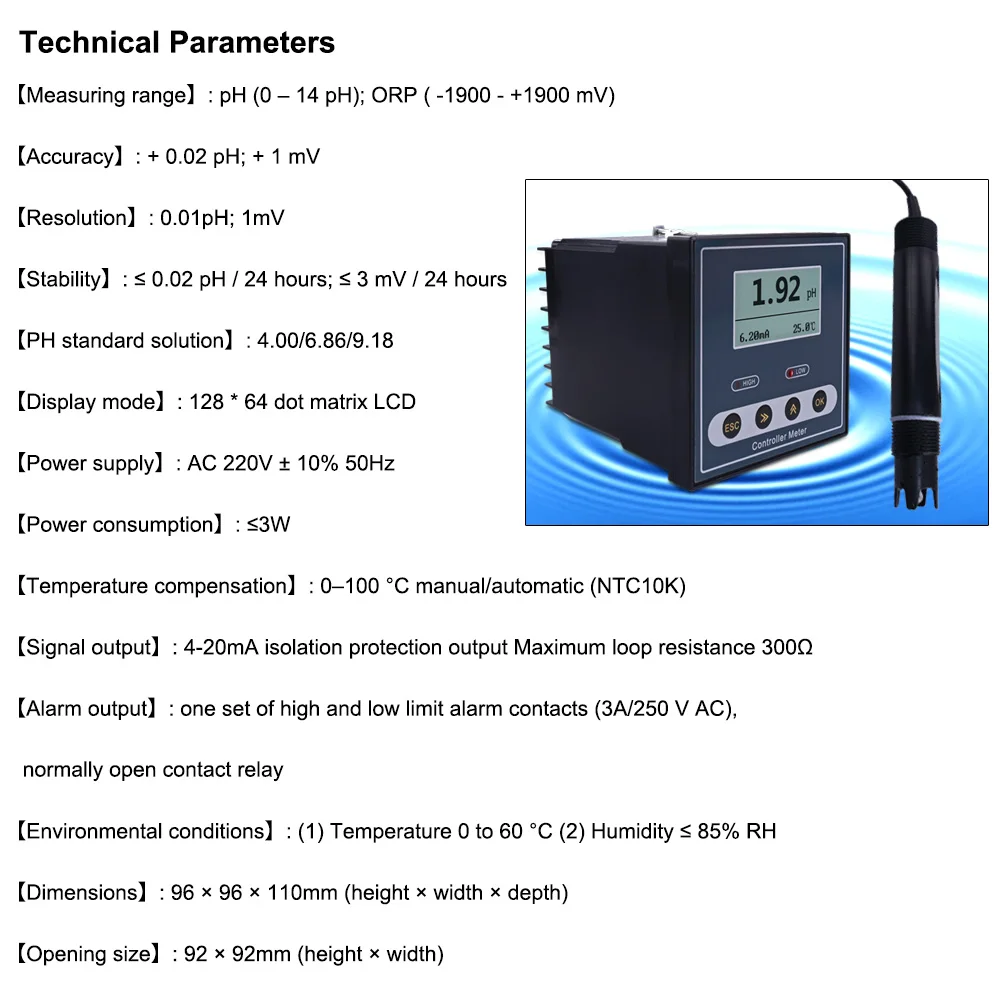

Three, The Main Technical Indicators :
Measuring Range: pH (0 - 14, pH); ORP (-1900 - +1900 mV)
Accuracy: + 0.02 pH + + 1 mV
Resolution: 0.01pH; 1mV
Stability: less than 0.02 pH/24 in less than 3 hours mV/24 hours;
PH standard solution: 4.00/6.86/9.18

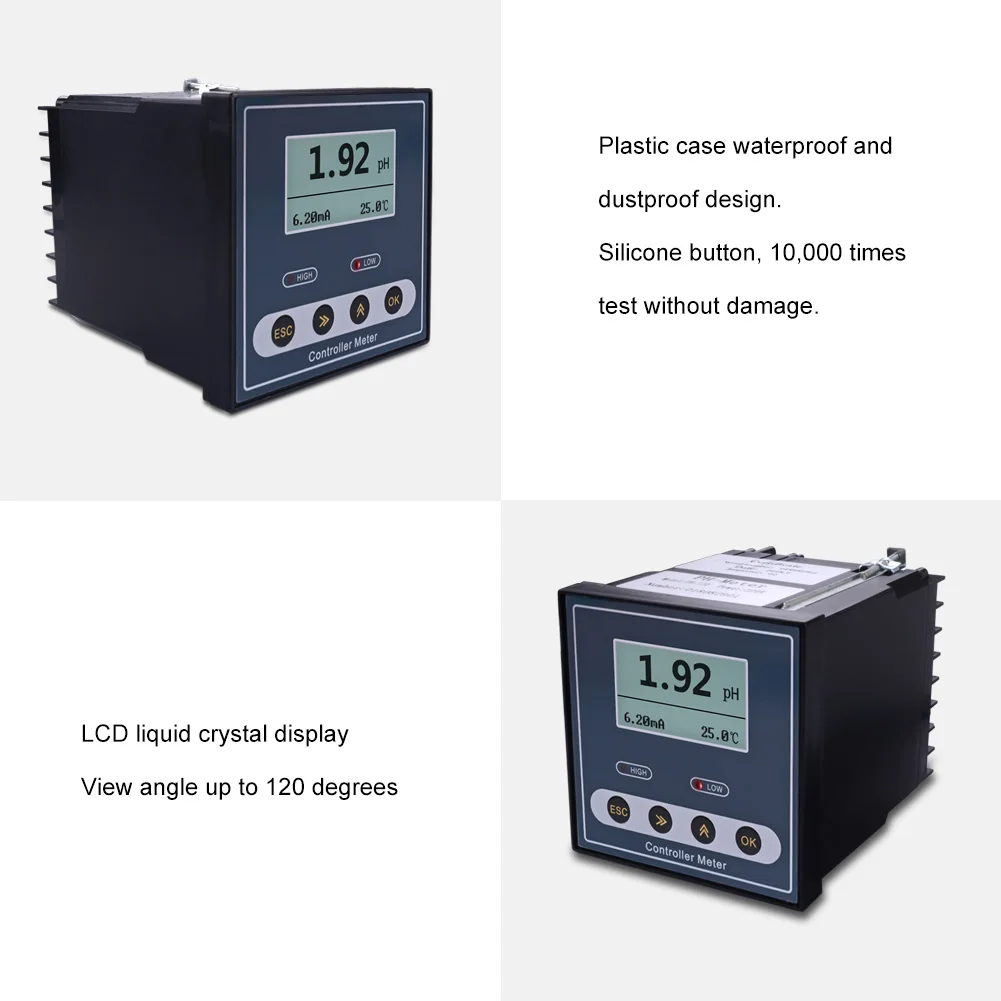

Display mode: 128 * 64 dot matrix LCD
Temperature compensation: 0 - 100 DEG C manual / automatic (NTC10K)
Signal output: 4-20mA isolation protection, output maximum loop resistance 300
Alarm output: high and low limit alarm contact each set (3A/250, V, AC), normally open contact relay
Power supply: AC 220V + 10% 50Hz
Power consumption: less than 3W
Environmental conditions: (1) the temperature of 0 to 60 C (2) humidity is less than or equal to 85%RH

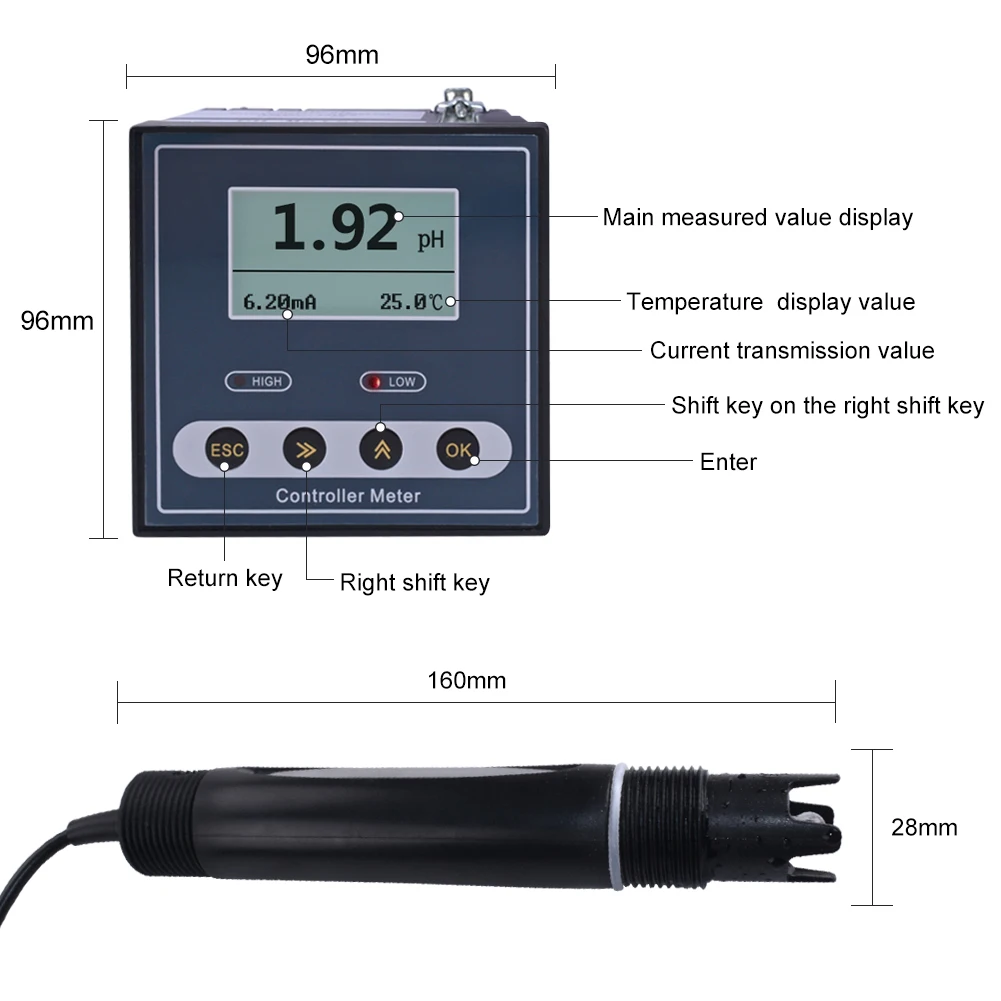

Size: 96 * 96 * 110mm (* * w * h)
Noted !

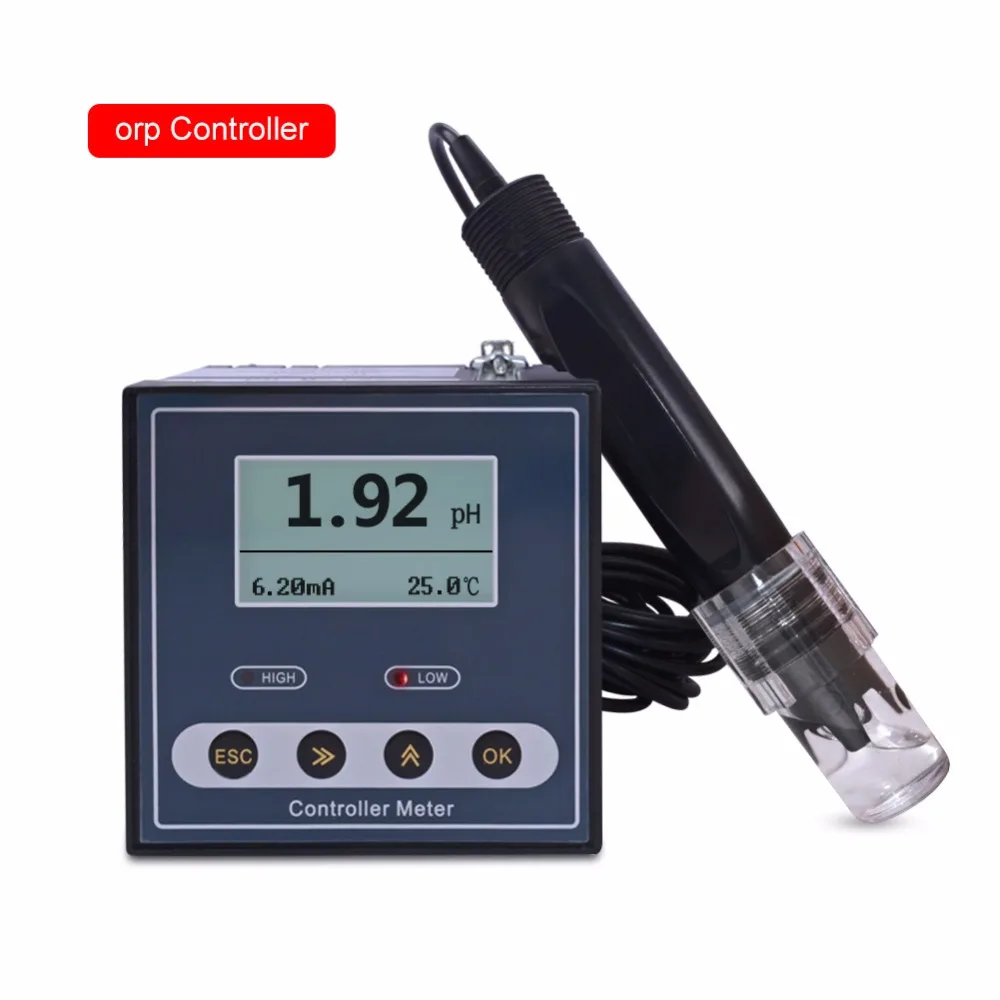

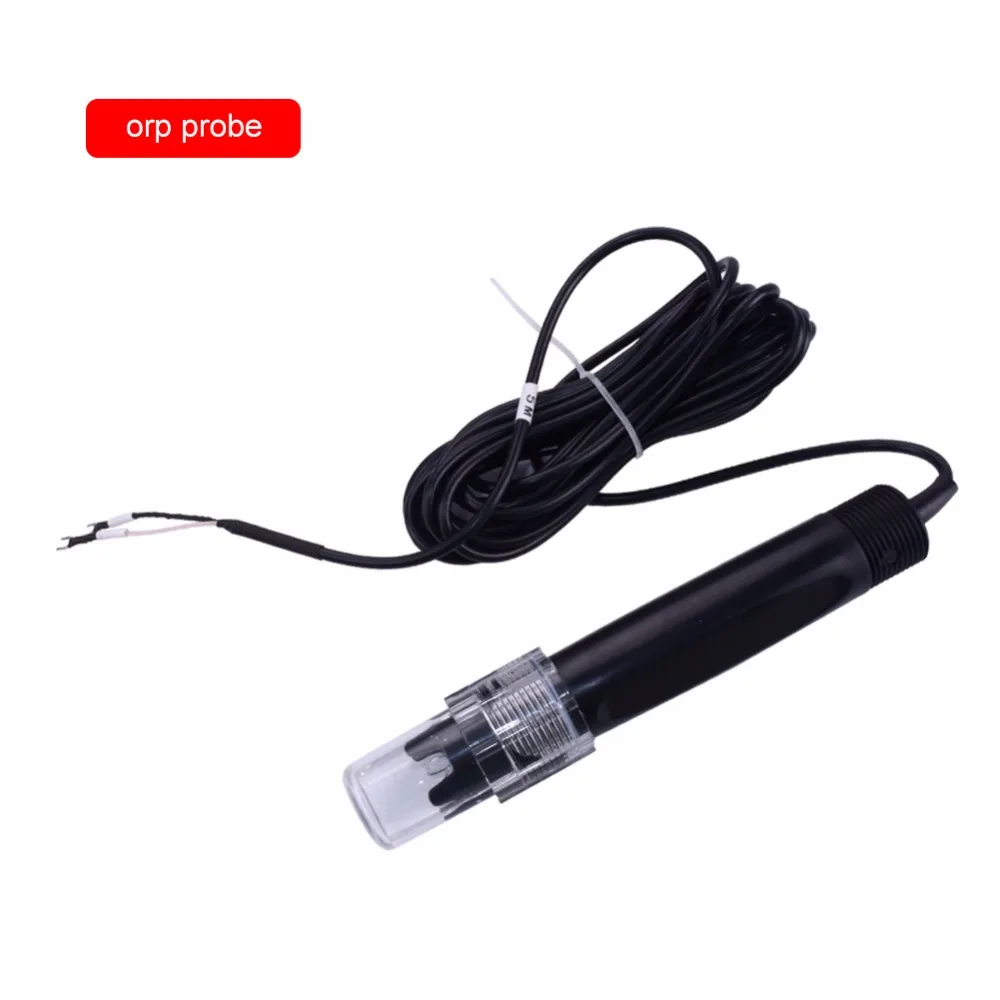

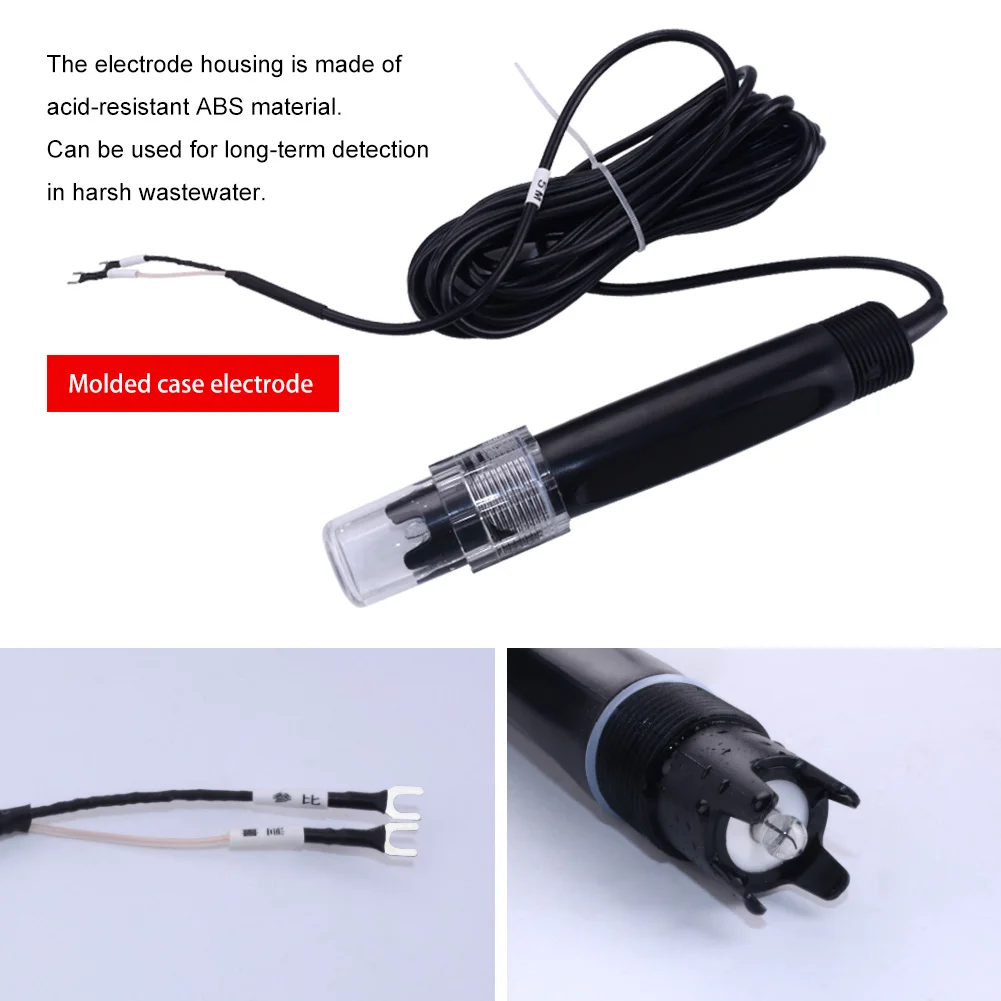

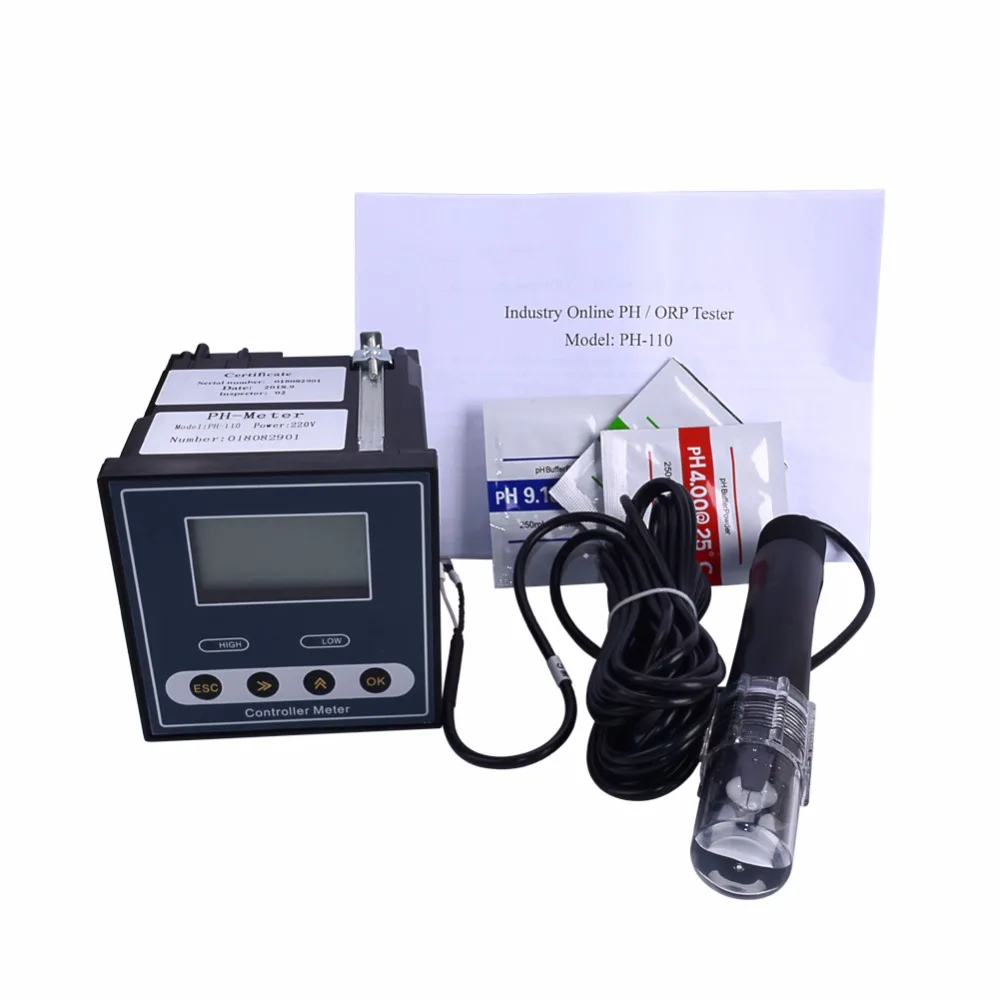

“ph Controller”=1 ph probe （5m and plastic）+ 1 controller
