Product Description

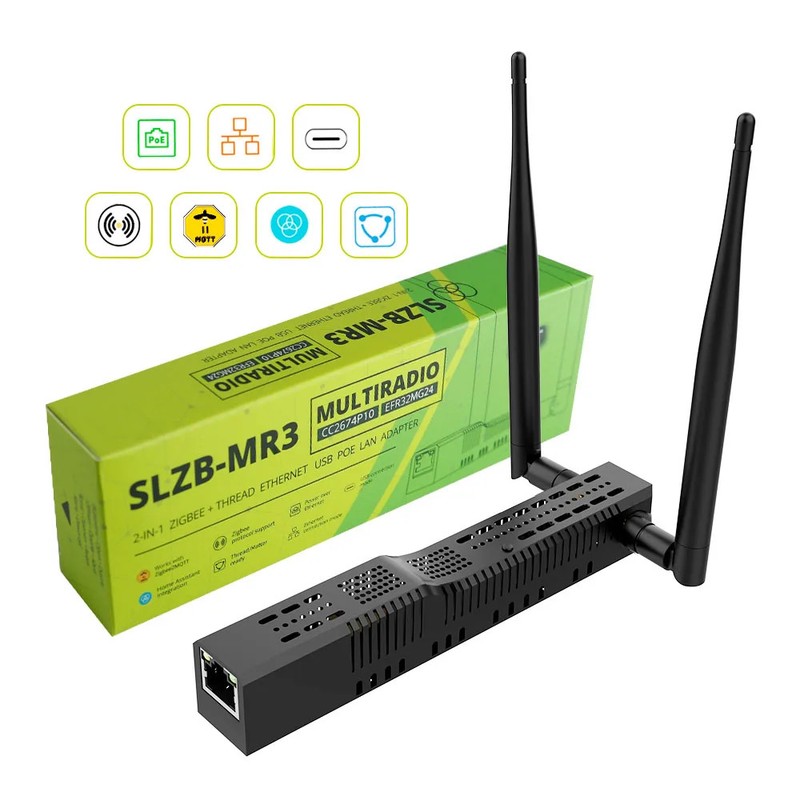

The SLZB-MR1, SLZB-MR2, SLZB-MR3 and SLZB-MR4 are SMLIGHT’s new coordinators, combining CC2674P10+EFR32MG26,
CC2674P10+EFR32MG24 or CC2652P7+EFR32MG21 chips in a single device to deliver full support for both Zigbee and Thread networks. Designed to work seamlessly with Zigbee2MQTT and ZHA, the SLZB-MR1, SLZB-MR2, SLZB-MR3 and SLZB-MR4 offer unmatched flexibility for your smart home setup. Whether you're building a pure Zigbee network, experimenting with Matter over Thread, or want the freedom to switch between ecosystems, this multiradio coordinator brings it all together - in one powerful solution.
Where Design Came From
Zigbee and Thread - alongside other popular smart home and IoT protocols such as Z-Wave, Wi-Fi, and Bluetooth - are widely used in modern ecosystems. Many users build their smart environments using a combination of these protocols. However, managing such a diverse setup often requires multiple dedicated devices: for example, a Zigbee coordinator for Zigbee networks and a Thread Border Router for Thread.
While some commercial solutions support both Zigbee and Thread simultaneously, they are typically locked into specific vendors or ecosystems (a lot of such hubs with Zigbee+Trhead available on the market). This vendor lock-in, despite showcasing the technical feasibility of coexisting Zigbee and Thread radios in the same hardware device, limits flexibility and user choice.
With the SLZB-MRx series, we set out to change that. Our goal was to empower smart home enthusiasts and developers with a multiradio device that enables native, vendor-agnostic access to both Zigbee and Thread protocols. “MR” stands for MultiRadio - this series allows users to freely choose their preferred ecosystem and integration path, leveraging the full capabilities of open-source smart home software and platforms.
------------------------------
🚀 SLZB-MRW10 - Multiprotocol Smart Home Adapter (Beta Test Samples)
CALL FOR BETA TESTERS
We are currently in the beta testing phase for SLZB-MRW10. During this stage, we are evaluating performance and functionality of the device in real-world use. Once this evaluation phase is complete, we plan to apply for full Z-Wave certification.
These early production units are made available strictly for evaluation and testing purposes only. This is non-Z-Wave certified samples.
Device is based on CC2674P10 (for Zigbee and Thread) + EFR32ZG23 (for Z-Wave prototyping) + ESP32 (for Wi-Fi and Bluetooth).
The device is distributing for beta testers only. The expected retail price (RRP) is $75.
------------------------------
Technical Specifications – SLZB-MR1, SLZB-MR2, SLZB-MR3 and SLZB-MR4
Radio Chips:
Texas Instruments MR4, MR3 - CC2674P10 (CC2652P7 for MR1 and CC2652P for MR2).
- Zigbee 3.0 support (Zigbee2MQTT & ZHA compatible).
- Thread (Matter-over-Thread) support (Open Thread Border Router) .
- Ideal for Zigbee networks, works perfect also with Thread networks.
- +20 dBm TX power with built-in PA.
Silicon Labs EFR32MG26 for MR4, EFR32MG24 for MR3 and EFR32MG21 for MR1 and MR2.
- Zigbee 3.0 support (Zigbee2MQTT & ZHA compatible).
- Thread (Matter-over-Thread) support (Open Thread Border Router).
- Ideal for Thread networks, works perfect also with Zigbee networks.
- +20 dBm TX power.
- 96 KB RAM, 1024 KB Flash.
Supported Protocols:
Zigbee 3.0 (Zigbee2MQTT, ZHA), at the same time with Thread.
Thread (Matter-over-Thread), at the same time with Zigbee.
Supports simultaneous or switchable operation for multiradio environments.
Wi-Fi.
Bluetooth.
Ethernet.
Connectivity:
USB-C for data and power
Ethernet connection
Firmware:
Radio firmware support
- Compatible with TI Z-Stack (for CC2674P10 and CC2652P7)
- Compatible with SL Ember/EZSP stack (for EFR32MG26, EFR32MG24 and EFR32MG21).
Radio firmware Updating via web-interface
SLZB-OS
- Compatible with SLZB-OS versions 2.6.8dev26 and up for MR1 and 2.8.7 and up for MR3.
- SLZB-OS supported functionality: VPN, 20+ languages, Scripts support, Network settings, Security, Dashboard, zHub mode, mode switcher, OTA firmware updates etc.
Antenna:
Dual external antenna SMA female connectors (one for each radio SoC)
PCB antenna for Wi-Fi and Bluetooth.
2x pre-packed high-gain 2.4 GHz antennas included
Power Supply:
PoE powered, POE 48V supported
Powered via USB-C (5V DC)
Low power consumption up to 1.5W (if both radio SoCs are running)
Enclosure:
Compact, durable ABS case with ventilation
DIN rail and wall-mount compatible (3D models)
Easy sticking with two-sided adhesive tapes
Easy mounting with screws with screw set (screws, screw driver, ruler) included.
LED Indicators and peripheral:
Independent status LEDs for each radio (6 service LEDs in total: 2 LEDs for Core SoC, 2 LEDs for CC26X SoC, 2 LEDs for EFR32XX SoC,)
Multibutton: supports many functions (mode switch, reset etc).
