Product Description
Universal Speed Sensor Adapter GPS Antenna GPS Speed Sender Odometer Compensation Speedometer Gauge Signal 5000ppk Pulse

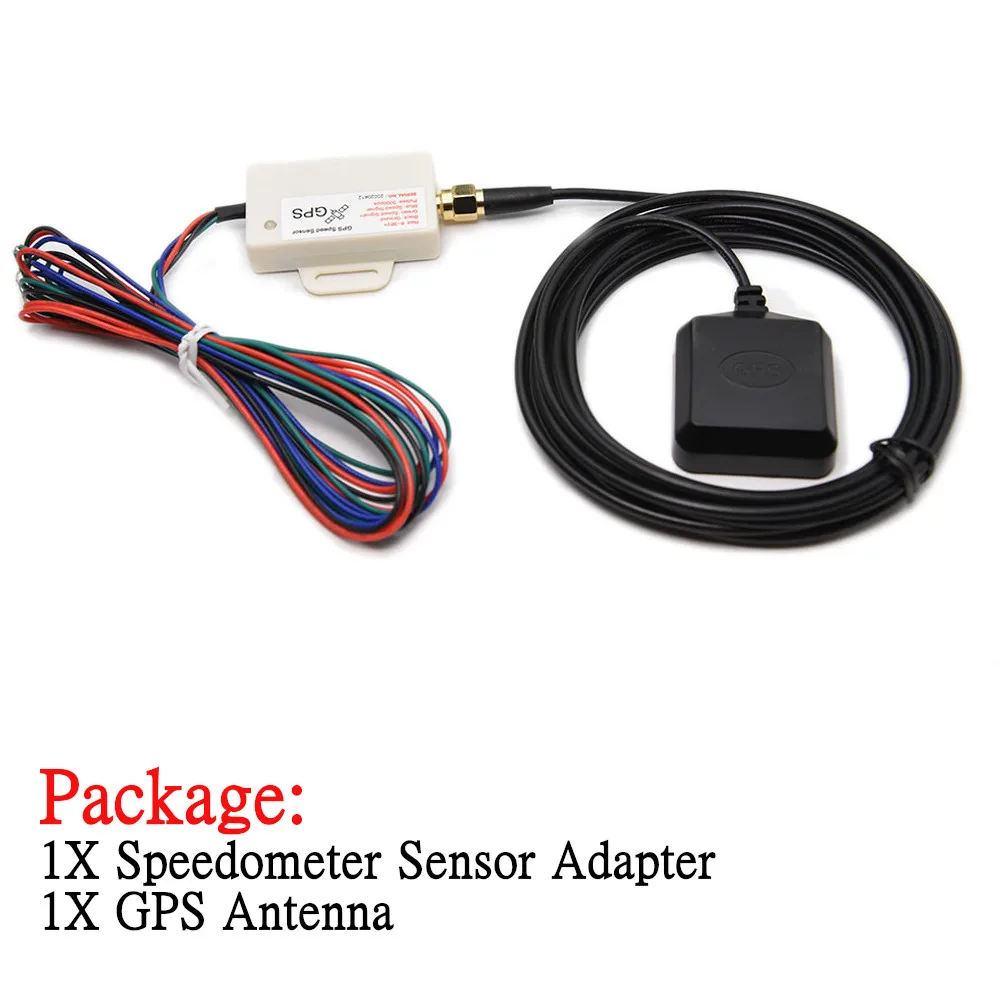

Package 1:as the picture shown

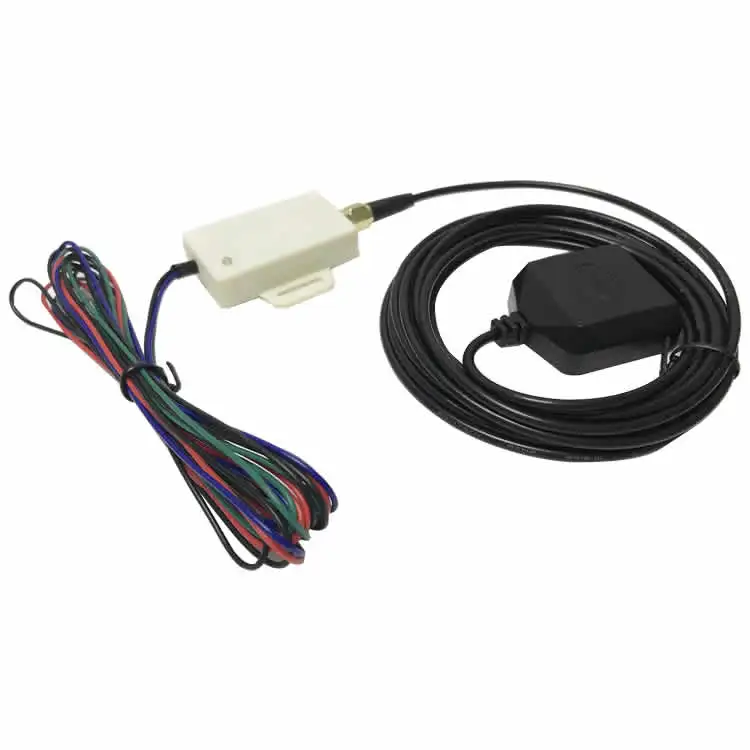

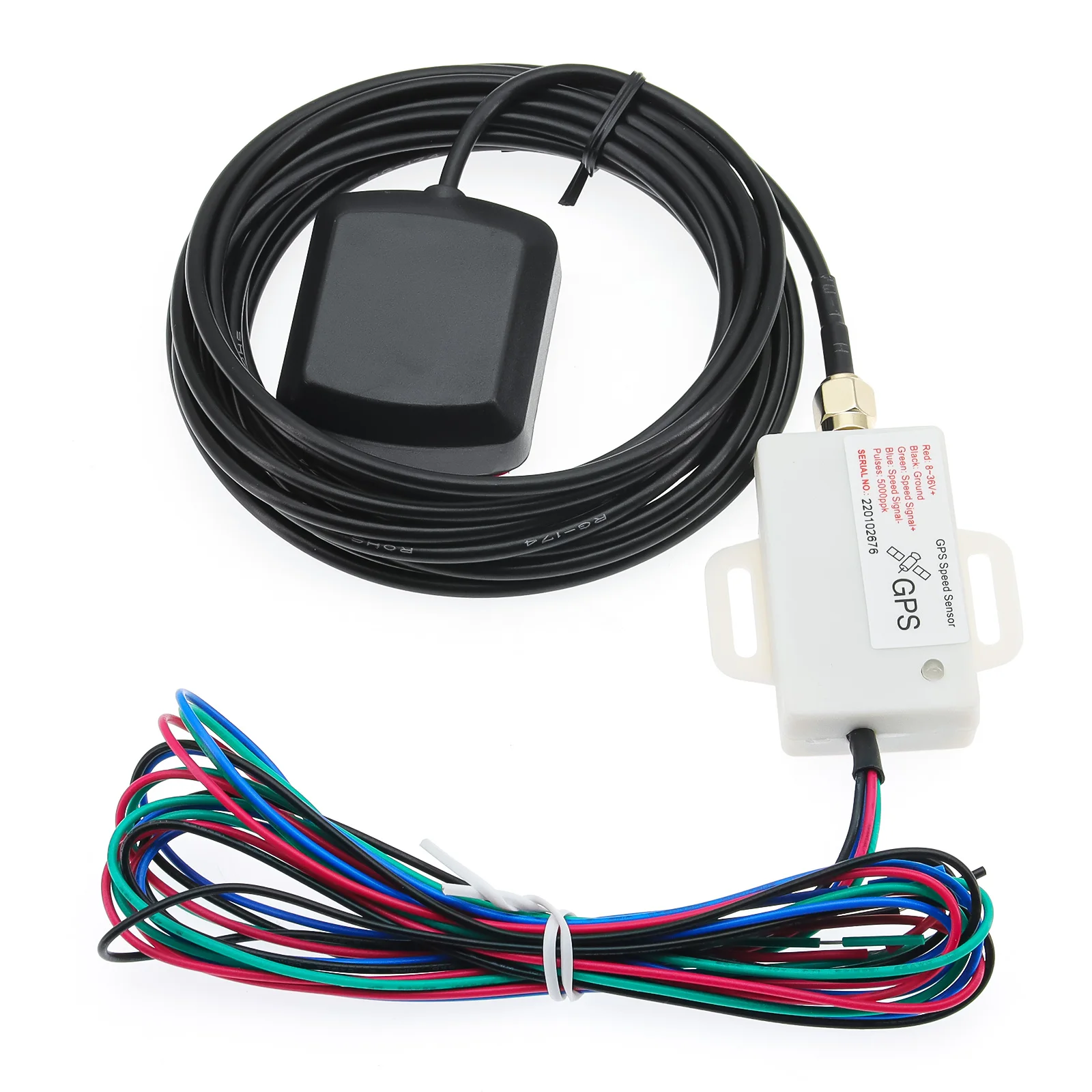

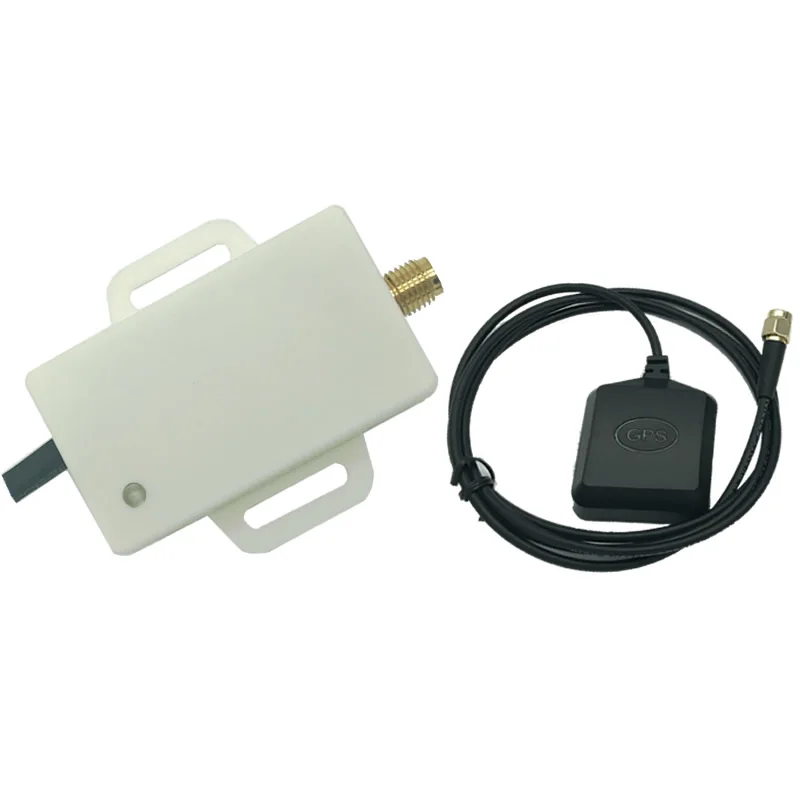

1 X Speedometer Sensor Adapter
1 X GPS Antenna
Specifications:

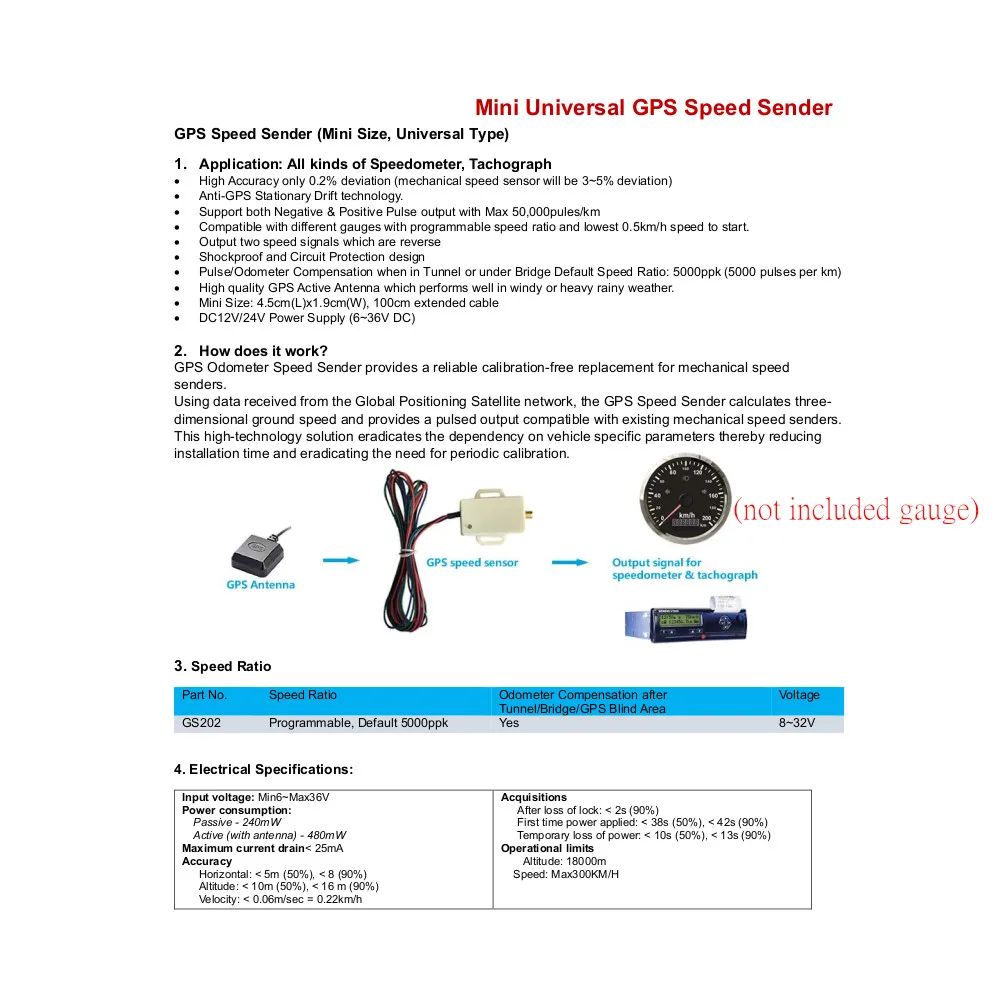

Mini Universal GPS Speed Sender
GPS Speed Sender (Mini Size, Universal Type)
1. Application: AlI kinds of Speedometer, Tachograph
2. High Accuracy only 0. 2% deviation (mechanical speed sensor will be 3~5% deviation)
3. Anti-GPS Stationary Drift technology.
4. Support both Negative & Positive Pulse output with Max 50,000pules/km

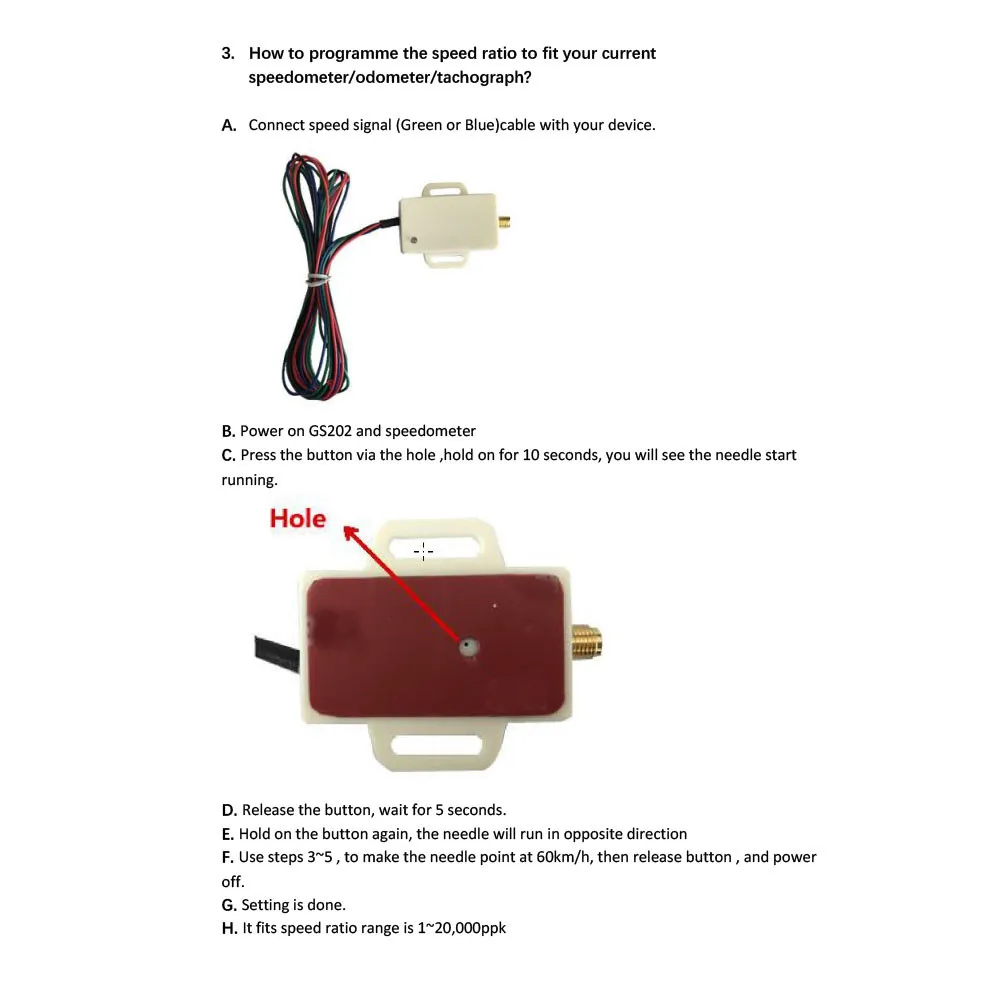

5. Suitable for different gauges with programmable speed ratio and lowest 0.5km/h speed to start.
6. Output two speed signals which are reverse
7. Shockproof and Circuit Protection design
Pulse/Odometer Compensation when in Tunnel or under Bridge Default Speed Ratio: 5000ppk (5000 pulses per km)
8. High quality GPS Active Antenna which performs well in windy or heavy rainy weather.
9. Mini Size: 4. 5cm(L)x1.9cm(W), 100cm extended cable
10. DC12V/24V Power Supply (6- 36V DC)

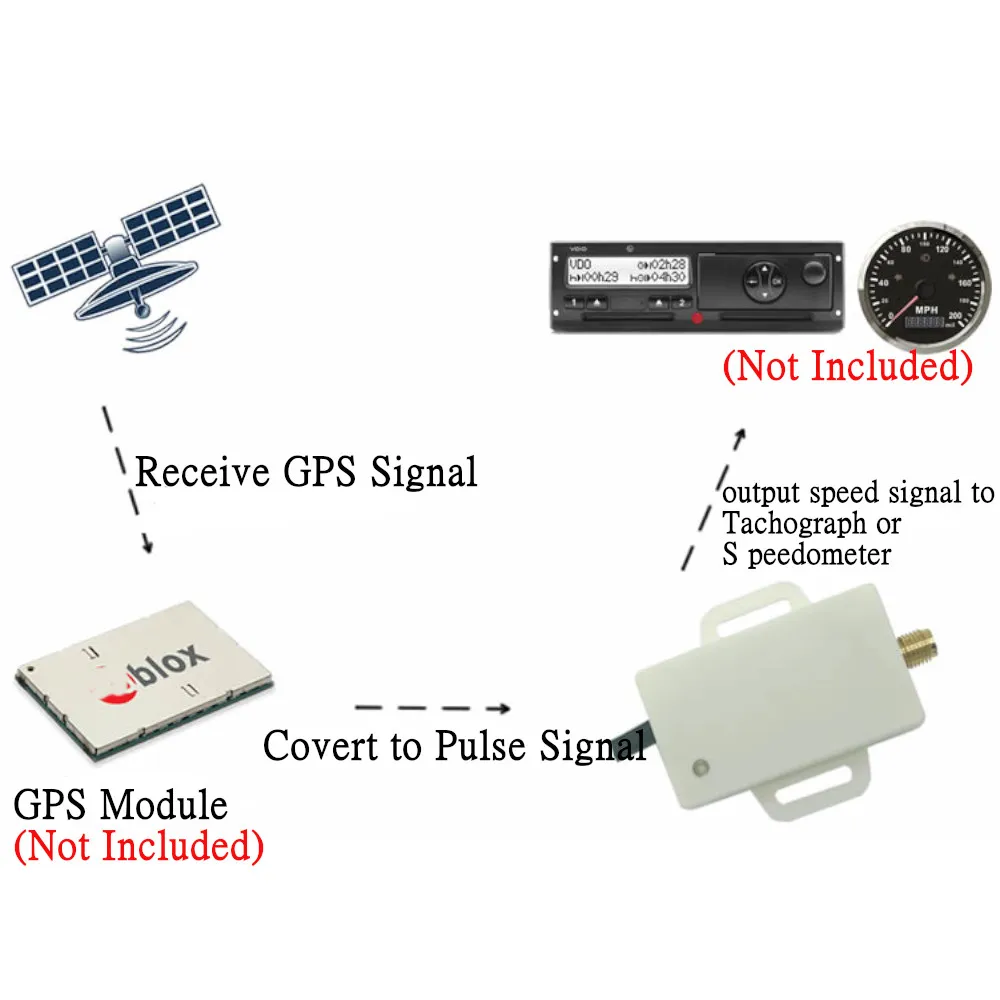

How does it work?
1. GPS Odometer Speed Sender provides a reliable calibration-free replacement for mechanical speed senders.
2. Using data received from the Global Positioning Satellite network, the GPS Speed Sender calculates three-dimensional ground speed and provides a pulsed output Suitable for existing mechanical speed senders.
3. This high-technology solution eradicates the dependency on vehicle specific parameters thereby reducing installation time and eradicating the need for periodic calibration.

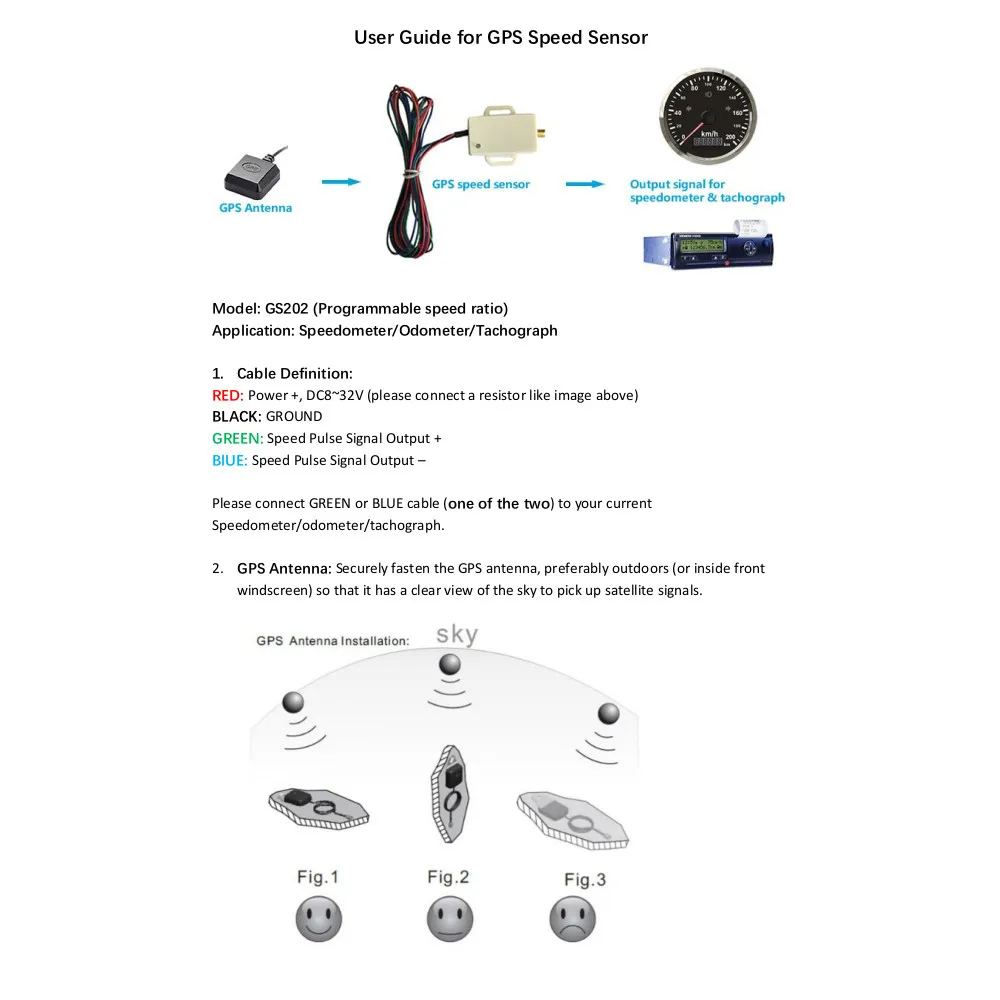

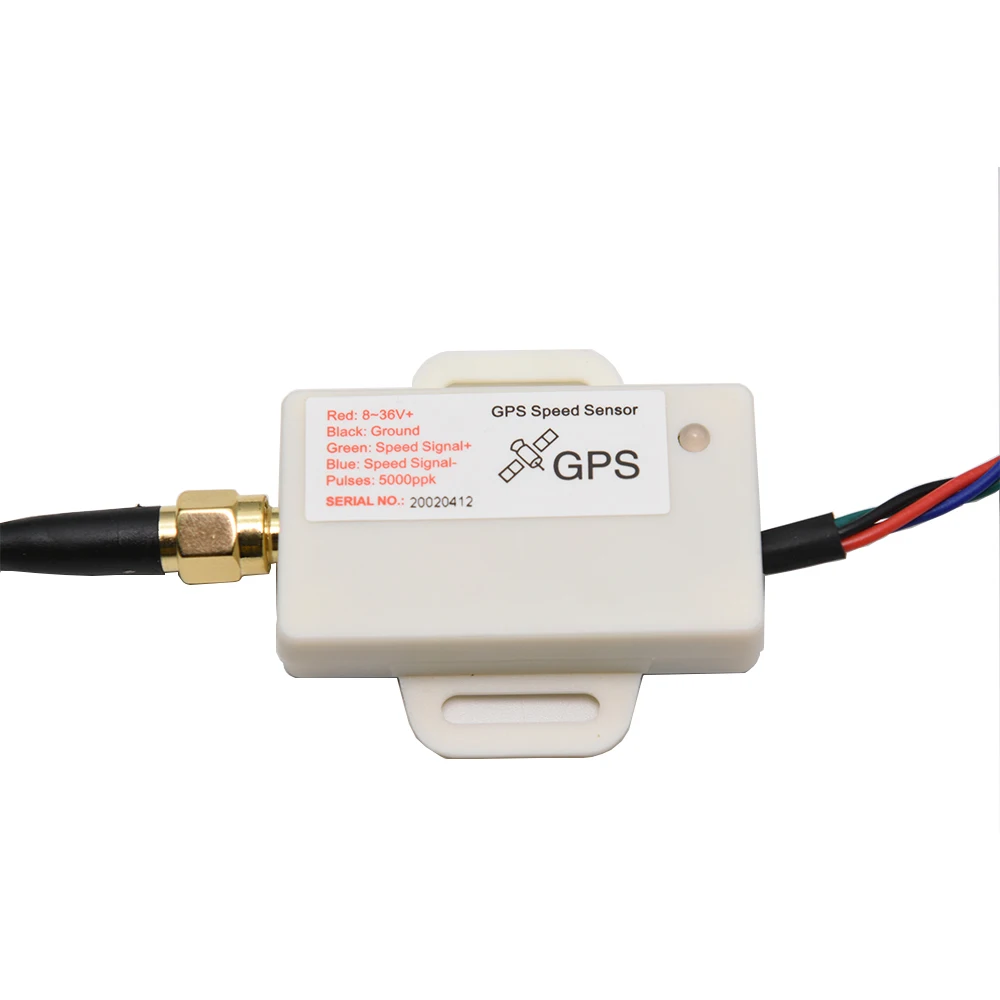

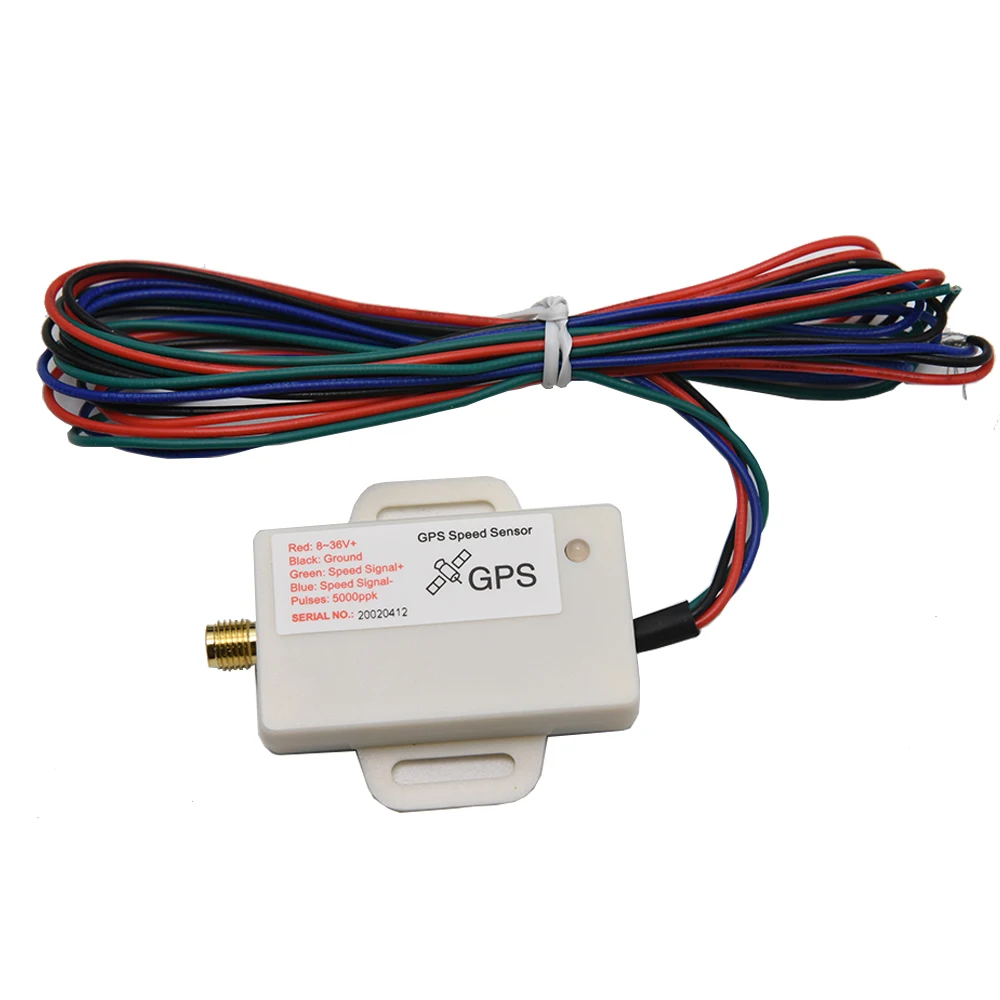

Cable Definition:
RED: Power +, DC8~32V
BLACK: GROUND
GREEN: Speed Pulse Signal Output +
BIUE: Speed Pulse Signal Output-
Please connect GREEN or BLUE cable (one of the two) to your current
Speedometer/odometer/tachograph.
Wholesale and Drop shipping
- For wholesale, we will offer the discount or free express shipping which only takes 3-7 days to arrive.
- For drop shipping, We could send the goods to your customers directly and won't leave information about us if youd like to.

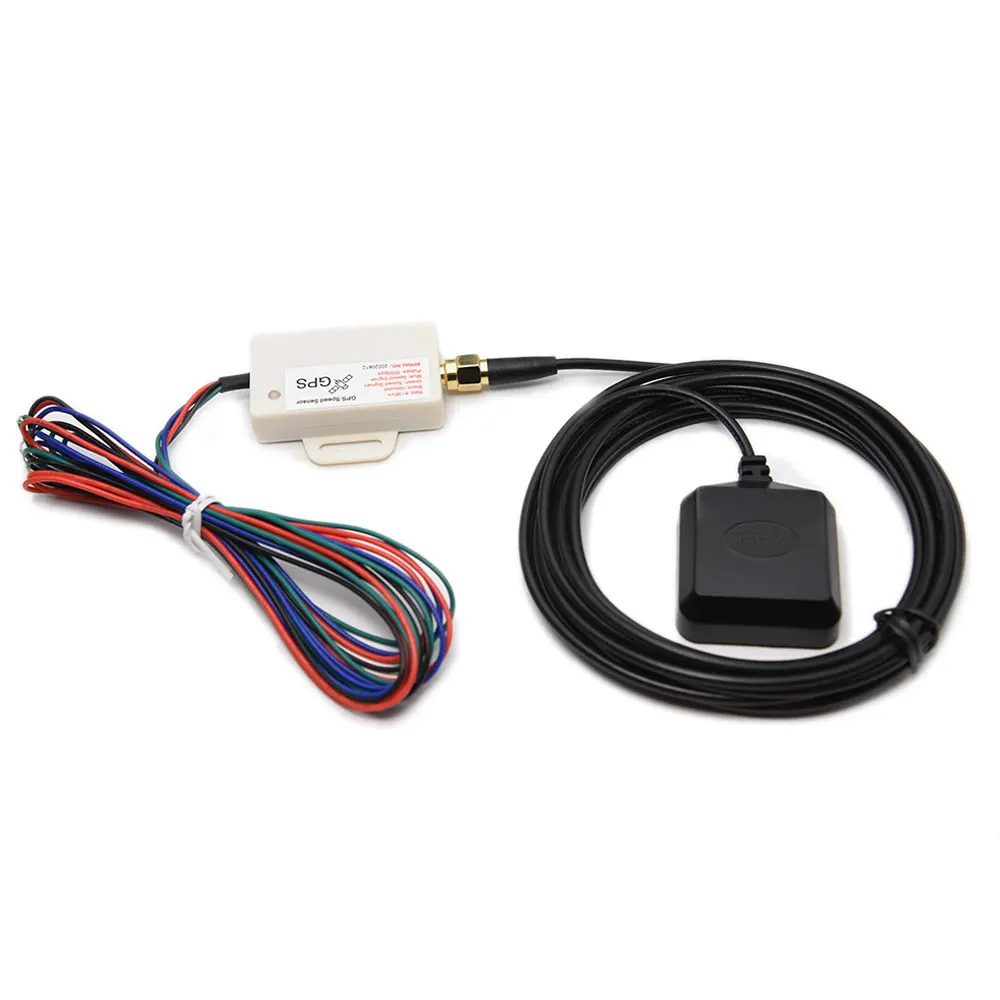

Speedometer Sensor Adapter+GPS Antenna
