Product Description
Note:1).WS2812B Led Panel Must Use DC5V Power Supply,if When ues usb wire connected to a computer, the power is insufficient, and additional power is needed, otherwise it will affect the operation.2).If you encounter confusion during operation, contact customer service in time to provide quality after-sales service！Package Include:

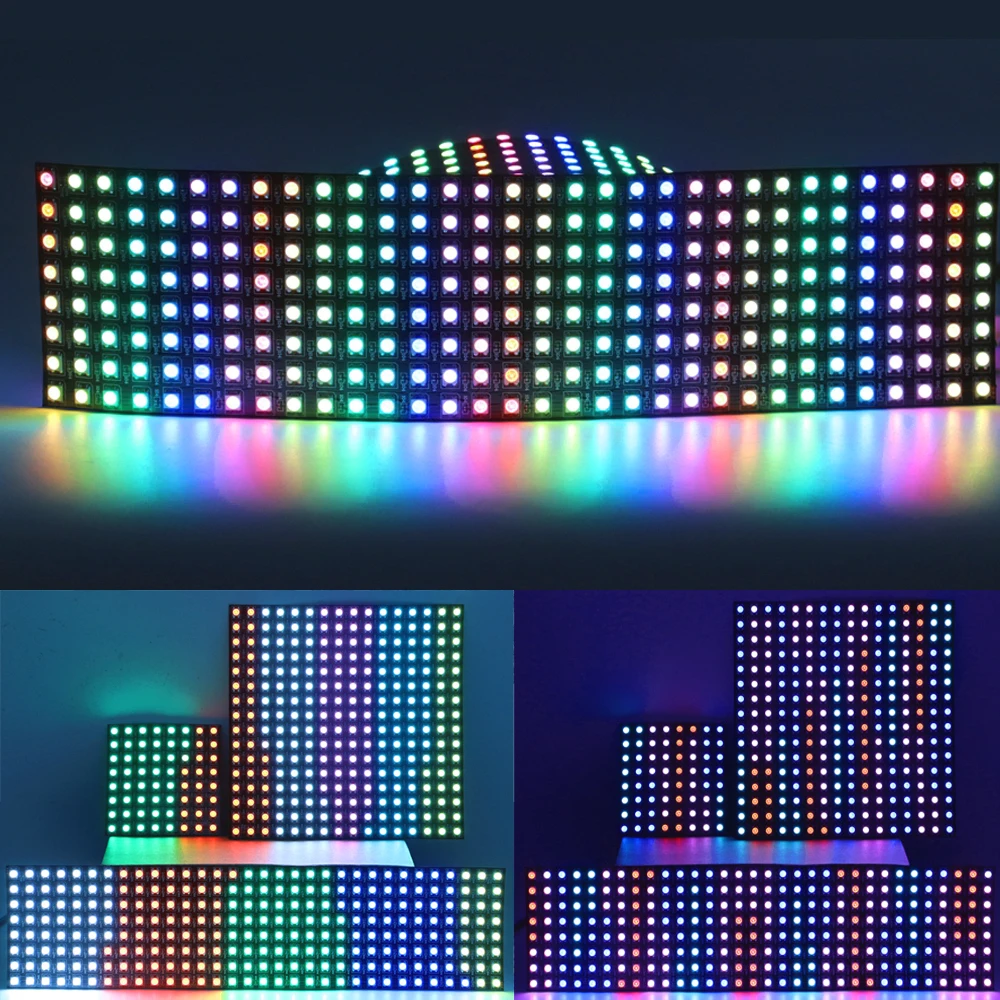

8X8 Led Screen + SP110E Controller+USB Connector16X16 Led Screen+SP110E Controller/16x16 Led Screen+SP110E+5V 8A Power
8X32 Led Screen+ SP110E Controller/8x32 Led Screen+SP110E+5V 8A PowerOnly SP110E Blooth Controller

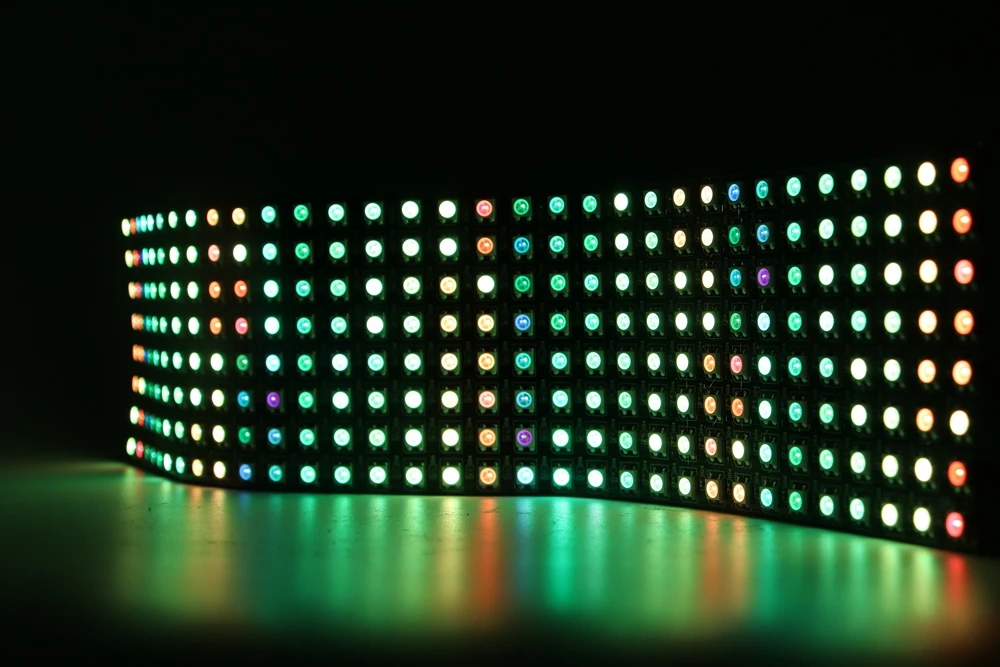

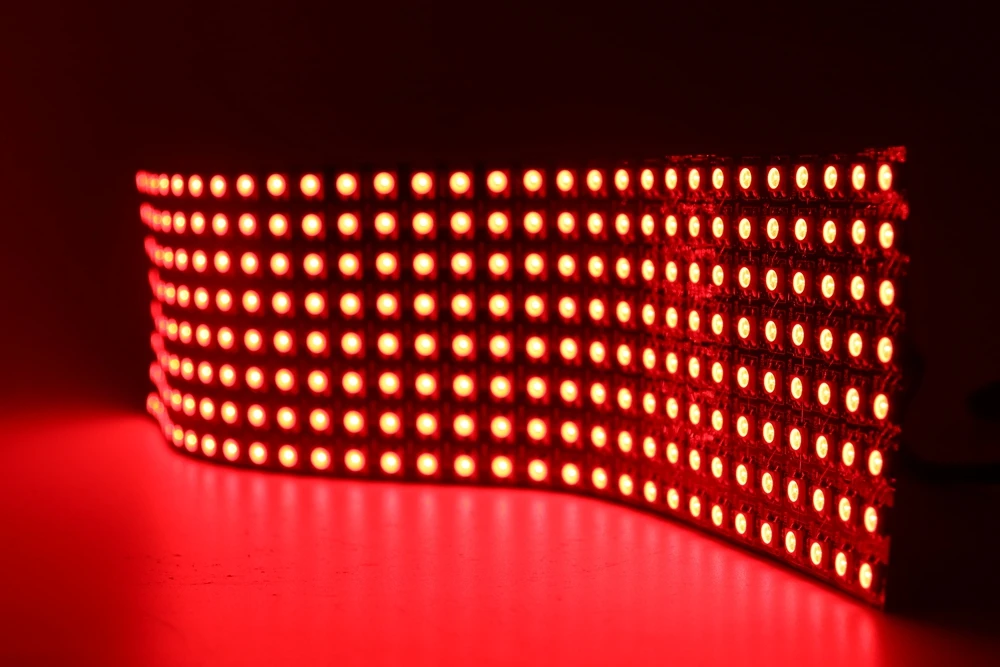

WS2812 led digital flexible panel light(ws2811 IC controlled),DC5V input
Work with the programmable SD controller(not included), it can make flexible LED screen
Arduino IC Digital Addressable Dream Color RGB LED Strip
Arduino compatible.You can control the strip by your programmable arduino.
Technology advantages
The WS2811 SMD5050 RGB LED, every led built-in(embedded) an WS2811 IC, therefore every one led lignting effect can be control, every rgb led is digital addressable.
Easy installation

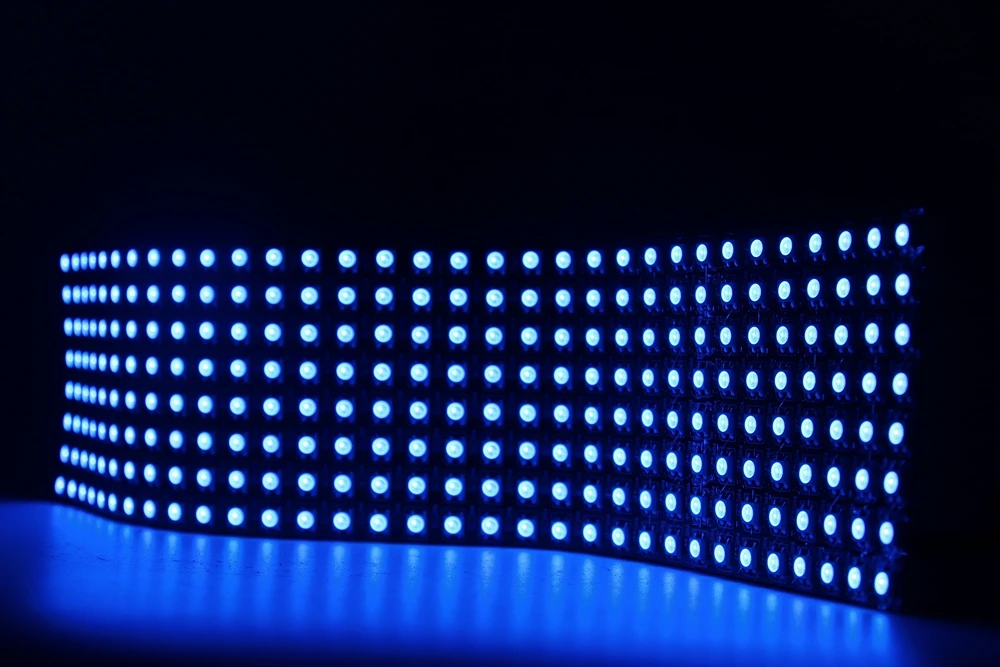

Every one LED lamp can be arbitrary cut off, good flexibility, easy installation, can be arbitrary bending.
Dream color lighting
Match use controller can appear colorful curtain-up/ flow water/raindrop/jump flash and so on hundreds of lighting effect, you can also edit animation effect by Coreldraw/Flash/LedEdit software.
Application

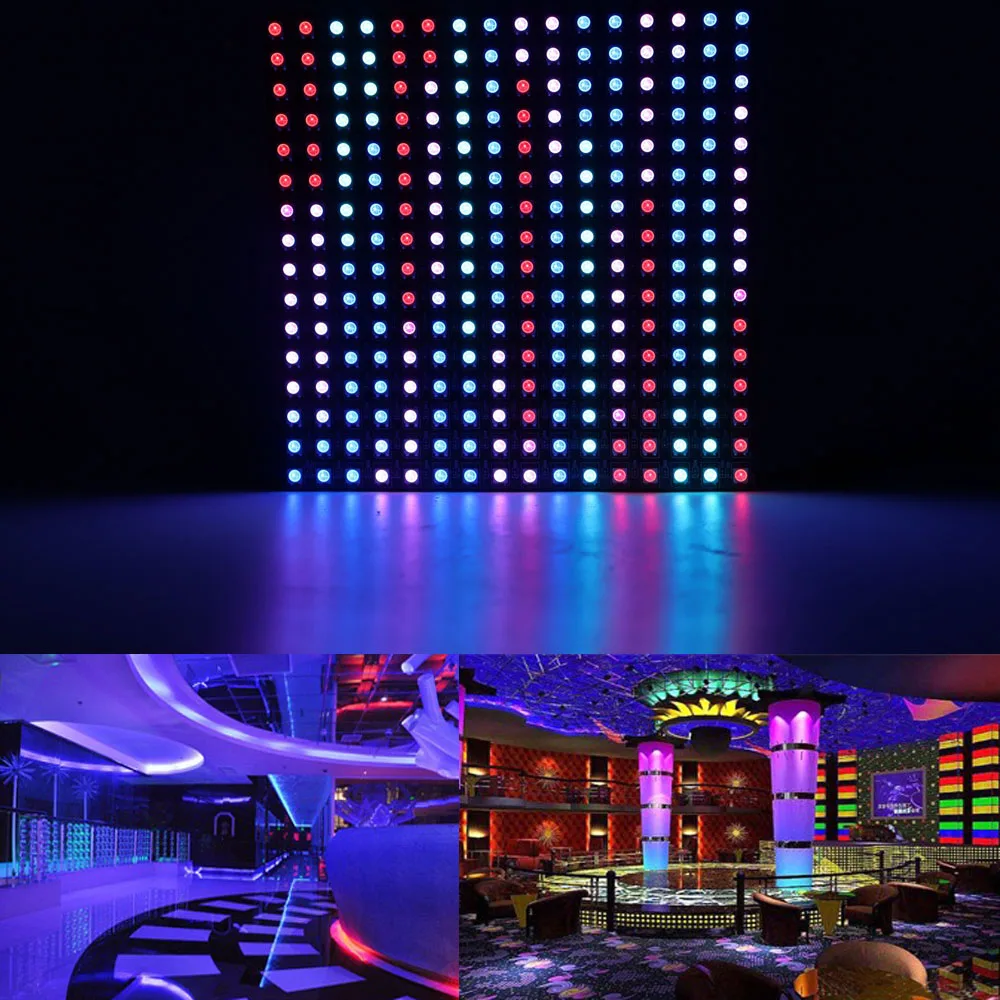

Making led screen, led wall, advertising board. Apply to hotel, KTV, bars, advertisement company, decoration company, the city lighting project, entertainment and leisure places lighting.
1. Emitting color: pixel RGB , IC WS2812
2. Work voltage: DC5V
3. Power: 0.3W/pixel
4. waterproof level: Non-waterproof
5. Working mode: external controller Arduino compatible.

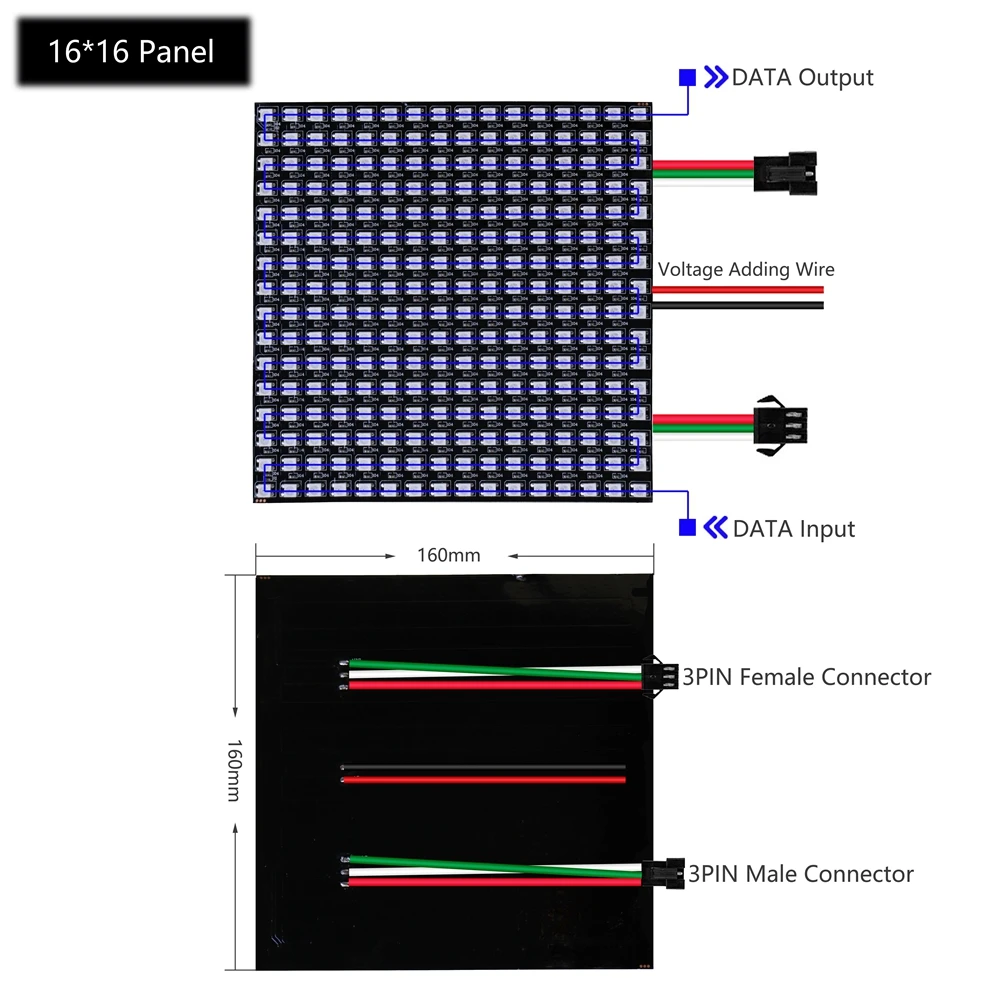

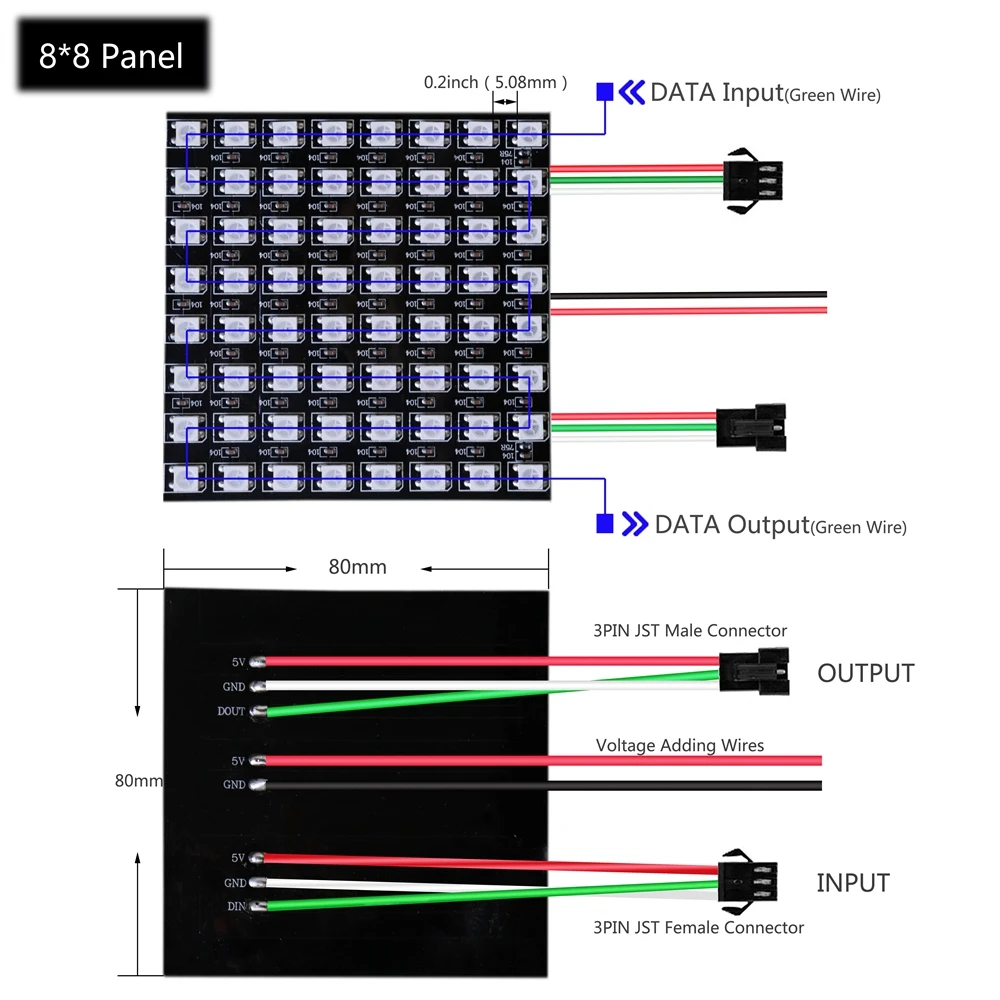

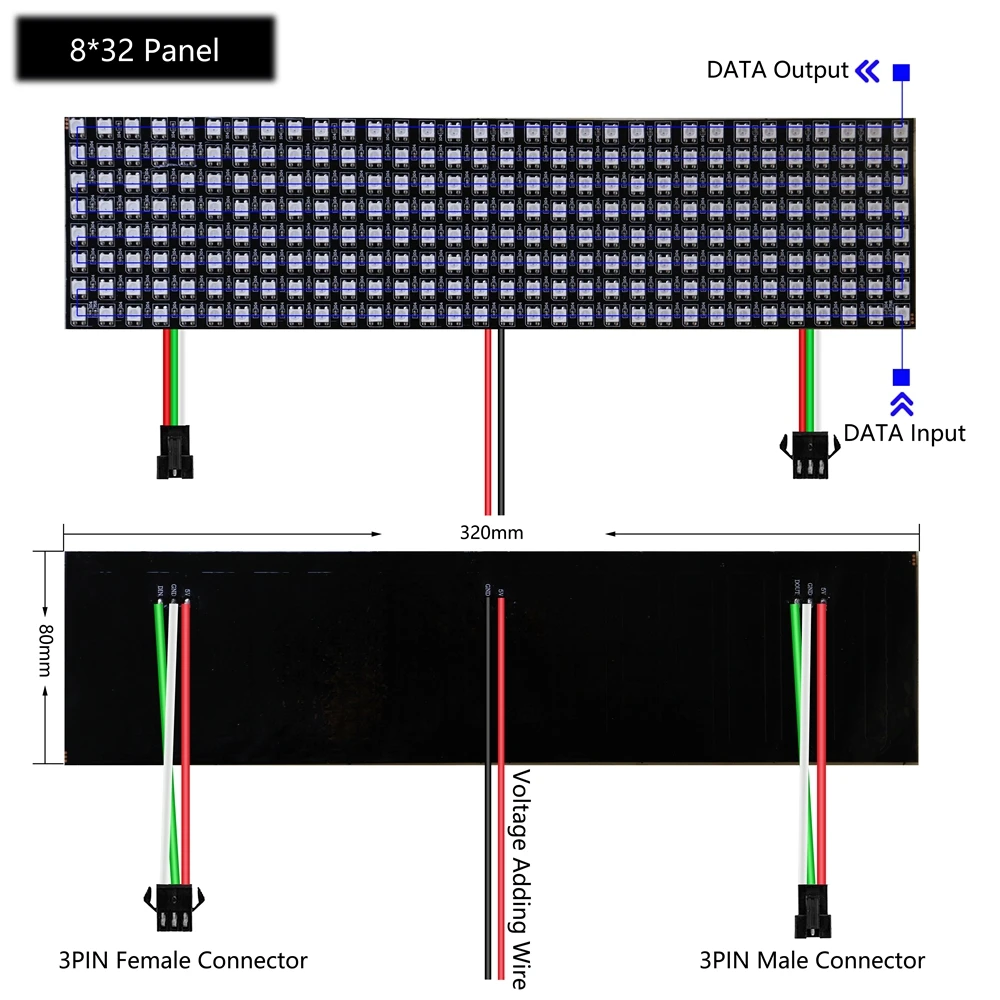

6. Connection: VCC: RED; GND:BLACK/WHITE; DAT:BLUE
1, LED Chip Material:
9pcs Pure Gold Line, Copper Bracket (WS2812B).
2, LED IV Value Brightness:
Red: 400-700mcd, Green: 1000-1500mcd, Blue: 200-400mcd (WS2812B).3, Warranty Period of Led Strip:
36 Months (WS2812B)
4, Suggestions on Product Application:

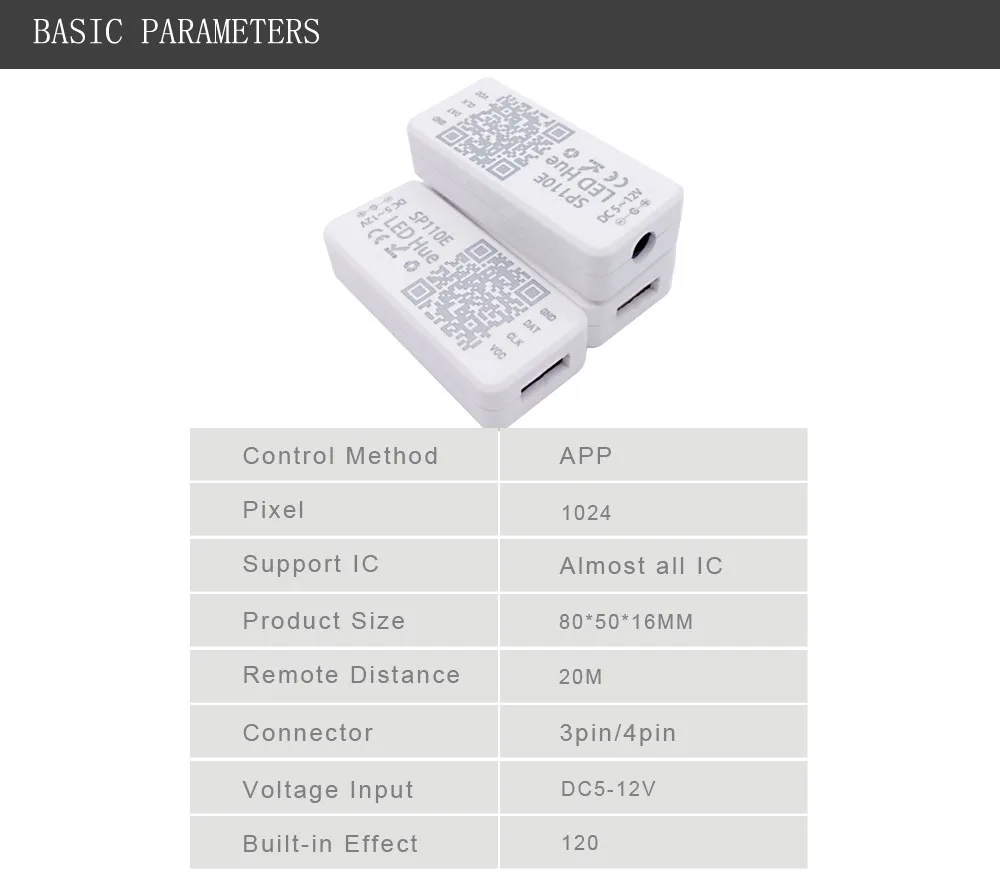

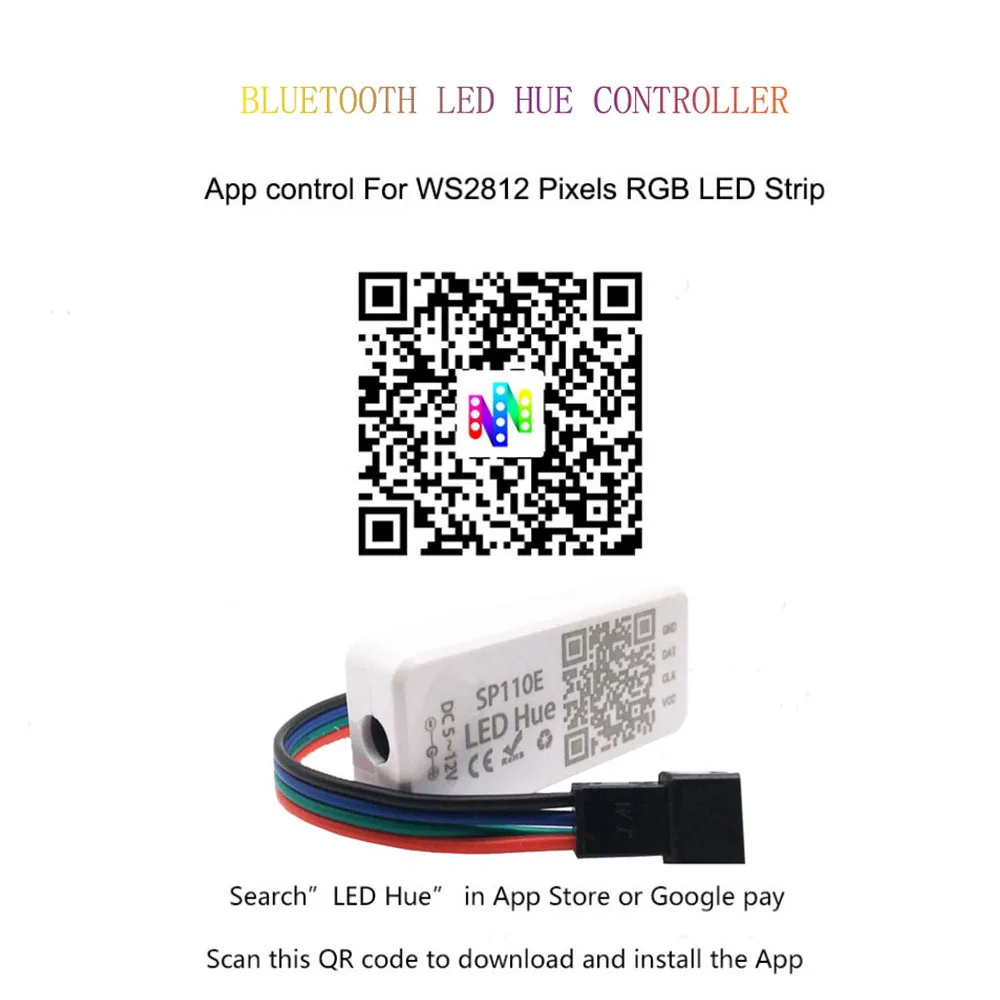

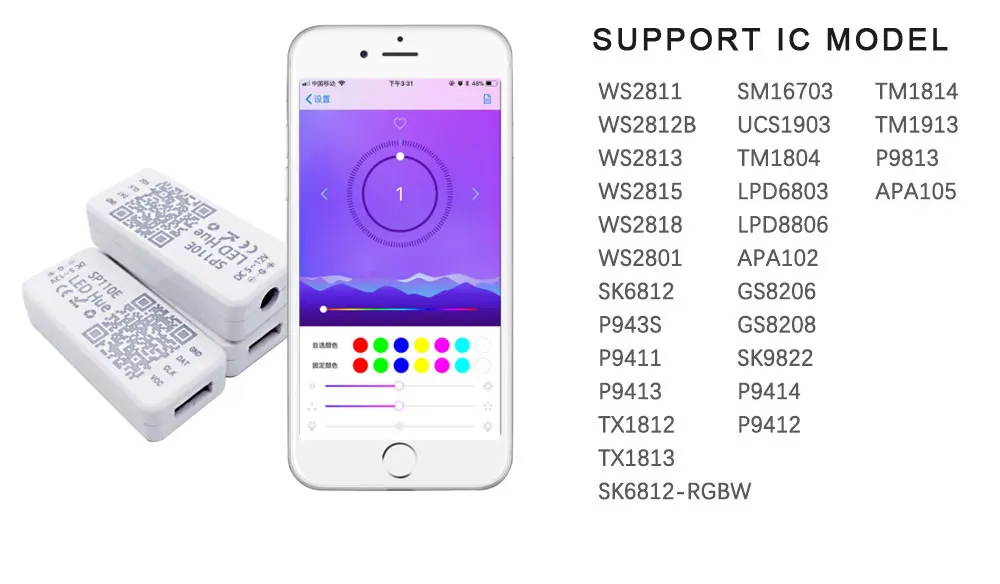

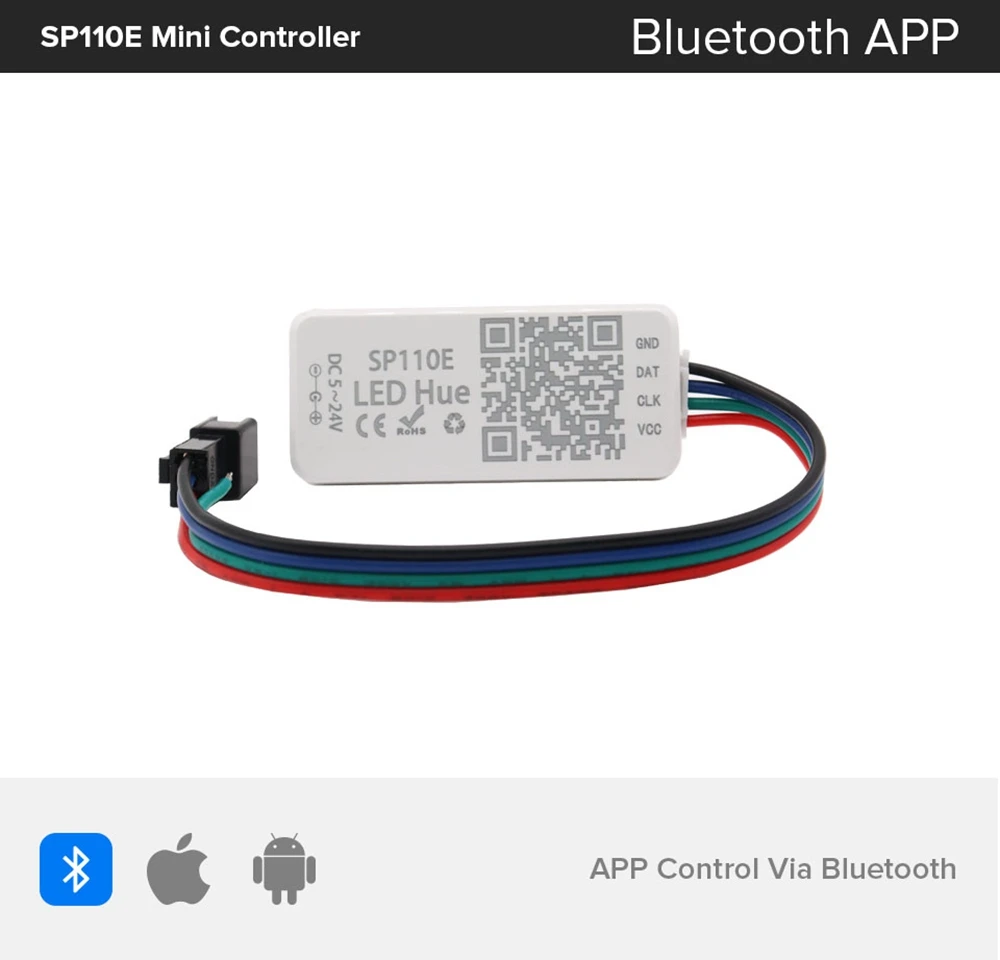

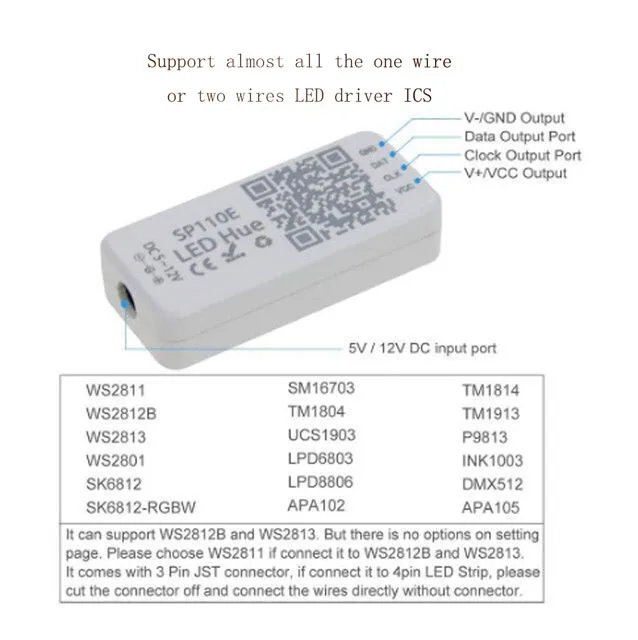

Such as Park, Square, Hotel, Airport, Office Building, Shopping Mall, Coffee Bar, KTV, Supermarket, etc (WS2812B).SP110E Bluetooth Led ControllerControl Method: APP-BluetoothInput Voltage: DC 5-24VPixel: 1024Connector: 3PinControl Distance: 20mProduct weight : 20g ;Product size : 85mm*45mm*22mm;Support IC: WS2811 WS2812B WS2813 WS2801 SK6812 SM16703 TM1804 UCS1903 LPD8806 APA102 APA105 DMX512 TM1914 TM1913 P9813 INK1003 P943S P9411 P9413 TX1812 TX1813 GS8206 GS8208 SK9822 TM1814 SK6812-RGBW P9414 P9412
Basic connection process:

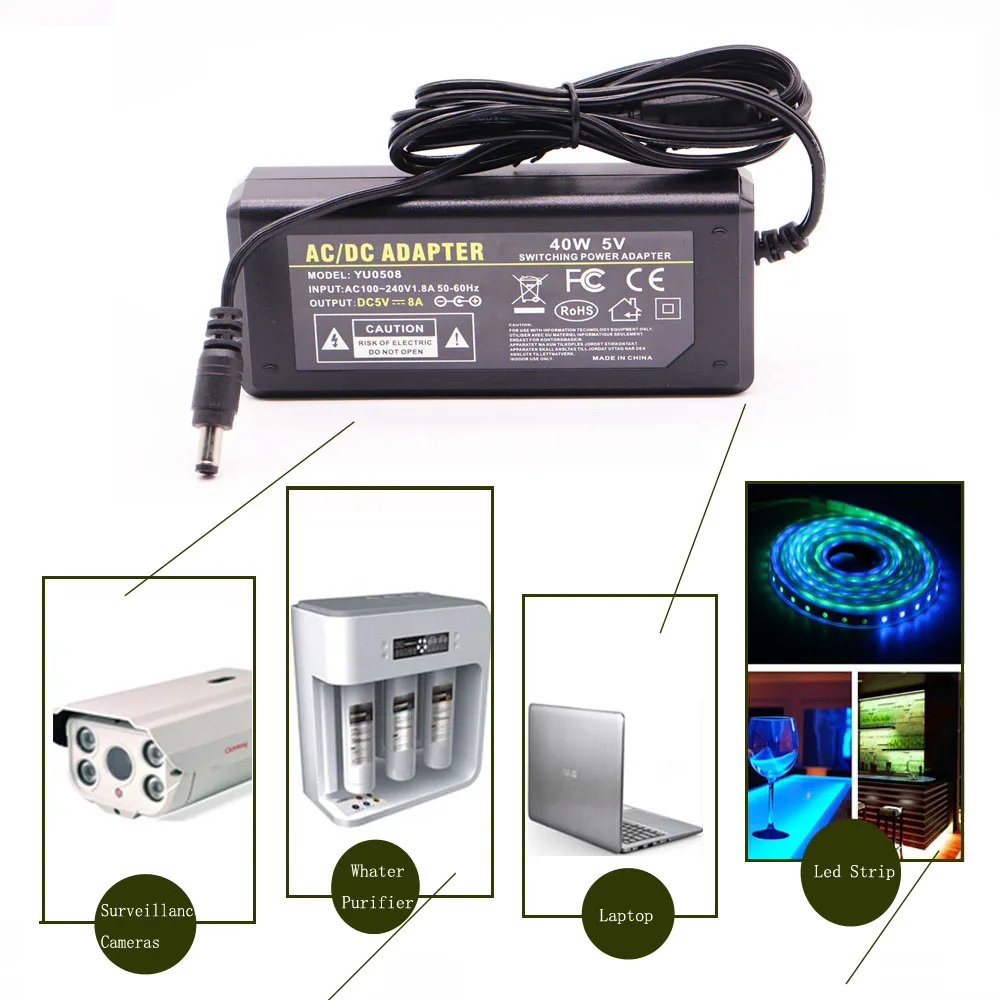

1》Determine the 5V power supply, and judge whether the power supply is sufficient according to the number of lamp beads of the pixel screen with a value of 0.24W/pcs, so as not to affect the operation, such as 8X32 pixel screen,（ the power is
256X0.24W=61.44W, then need about 8a power） When the pixel screen is connected, it is always bright white light without color change. At this time, it is necessary to consider the supplementary voltage.

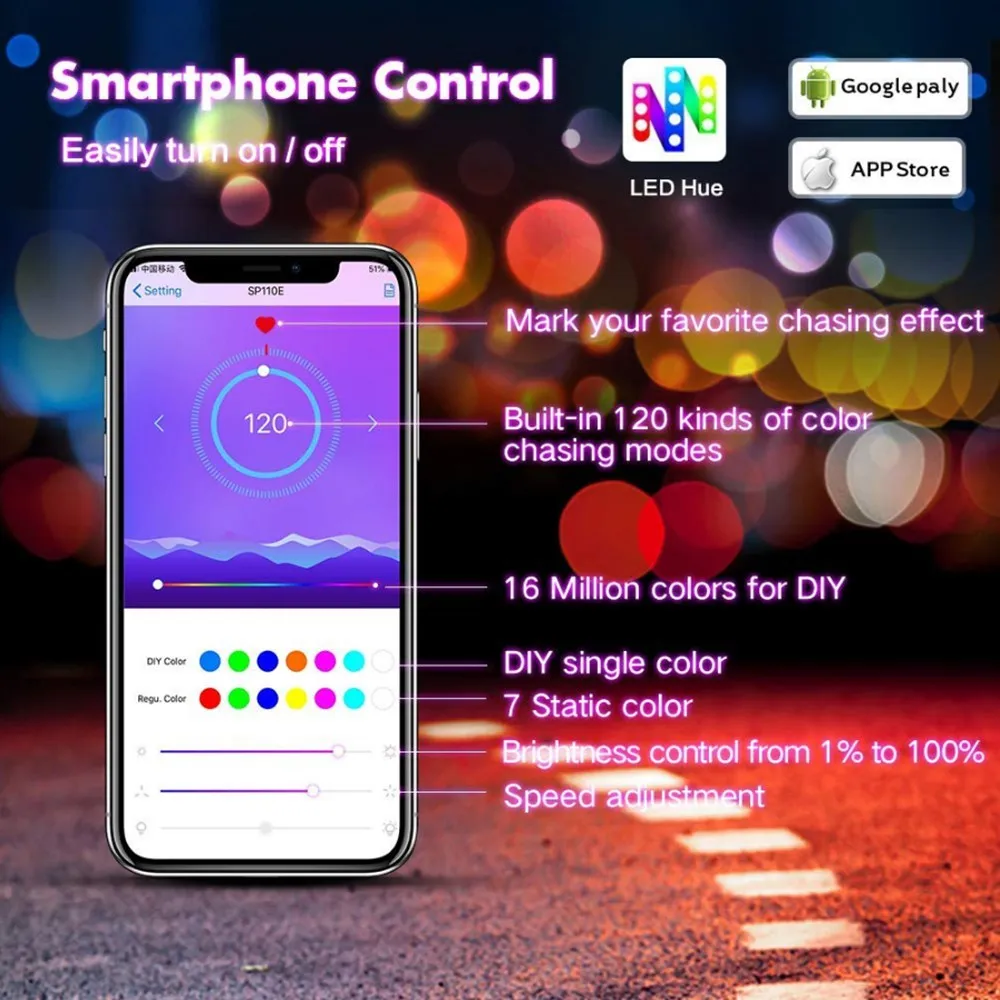

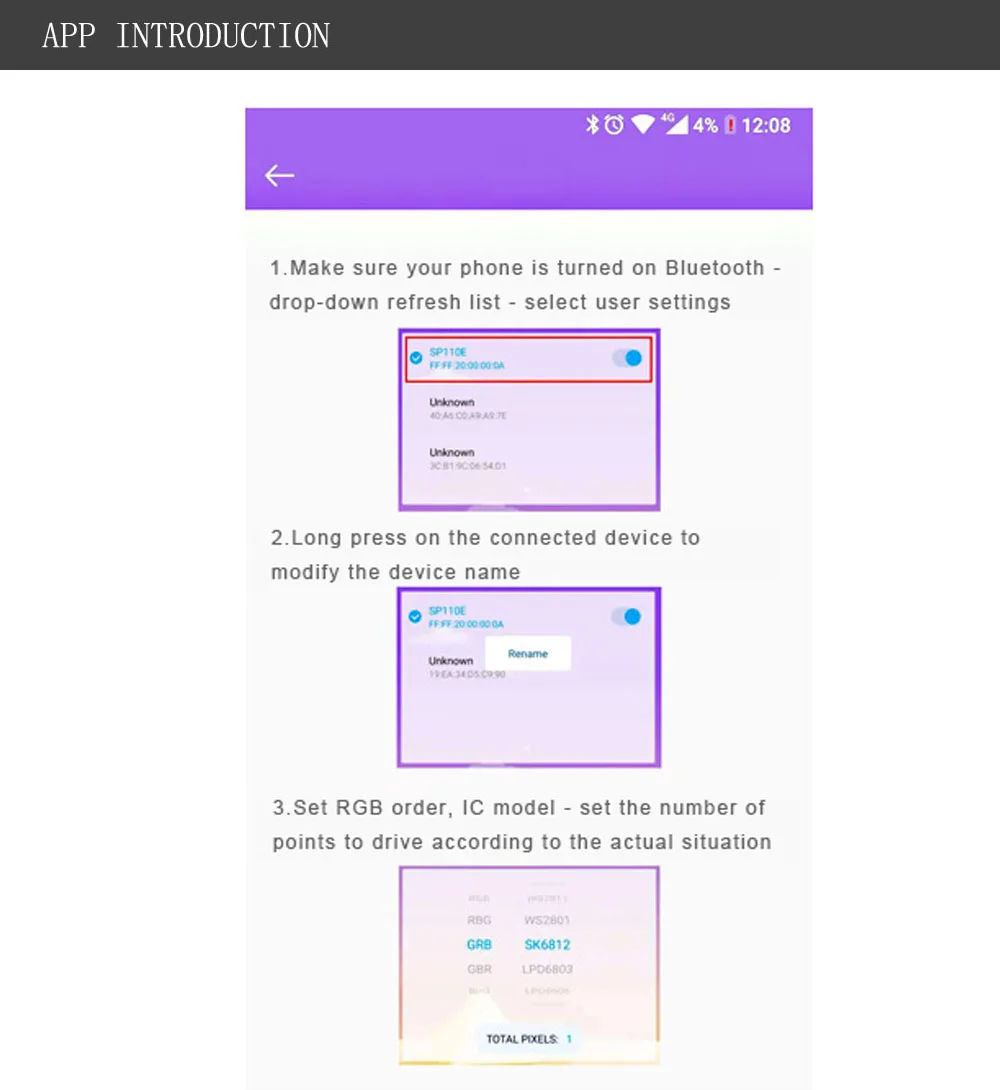

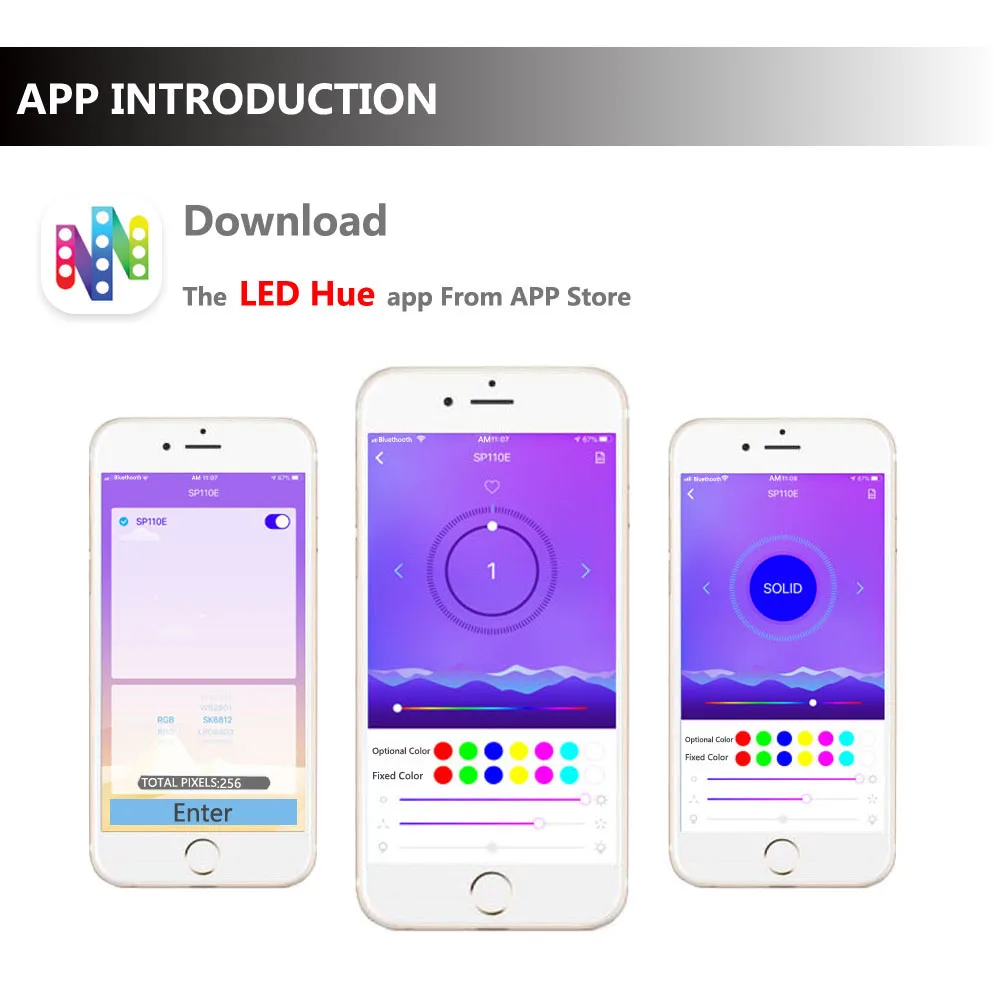

3》After the power controller and controller are connected to the pixel screen, open the controller APP, and then the SP110E page appears on the phone display, click to enter, that time enter the total number of pixel screens (8X8=64/16X16=256/8x32=256), then you can operate.but note a poit is Pixel screen has not changed，we need three color lines displayed on the SP110E operation page need to be adjusted and then operated. For specific situations, you can contact customer service to prompt the operation at any time.
