Product Description
Product Name: MCIO PCIe 5.0 to PCIe x16 Adapter Kit
This product is a high-speed MCIO 5.0 to PCIe x16 extension adapter kit, designed for 2U servers, industrial computers, workstation chassis, compact PC builds and PCIe expansion applications.
It is mainly used to extend or transfer PCIe x16 signals through MCIO cables, allowing PCIe x16 devices to be installed in a different position inside the chassis.
Package Options:
1.MCIO 5.0 Cable
Total length: 500 mm / 19.69 inch
High-speed MCIO cable for PCIe signal extension
Suitable for connecting MCIO adapter cards and PCIe x16 backplanes
2.MCIO to PCIe x16 Backplane
Size: 145 x 37 mm / 5.71 x 1.46 inch
Converts MCIO interface to PCIe x16 slot
Used to install PCIe x16 devices such as graphics cards, network cards, capture cards or other PCIe expansion cards

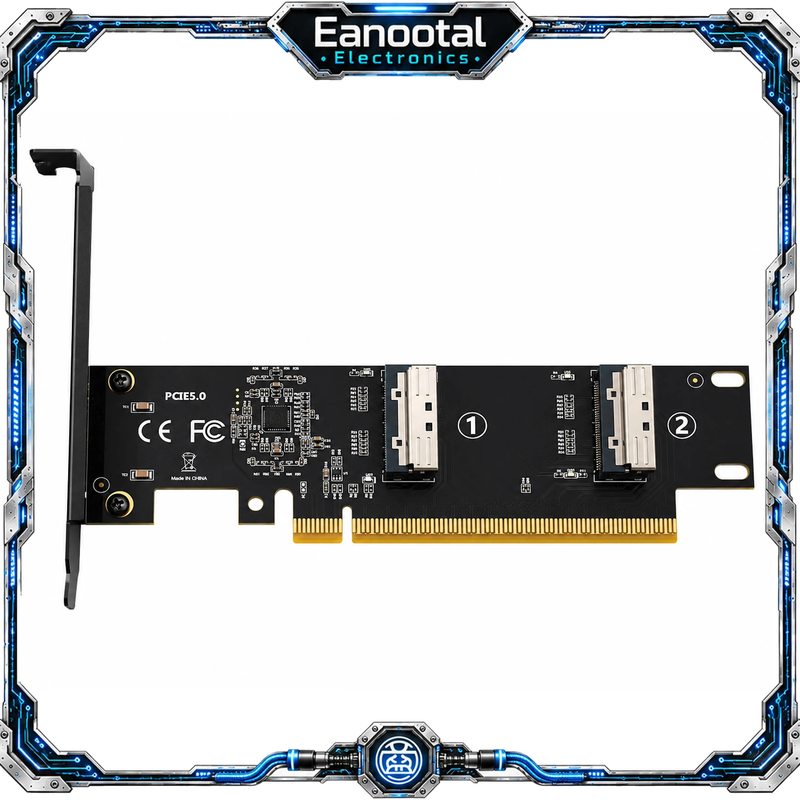

3.MCIO to PCIe x16 2U Adapter Card
Size: 150 x 120 mm / 5.91 x 4.72 inch
Designed for 2U server and compact chassis installation
Used as the main adapter card for MCIO to PCIe x16 expansion

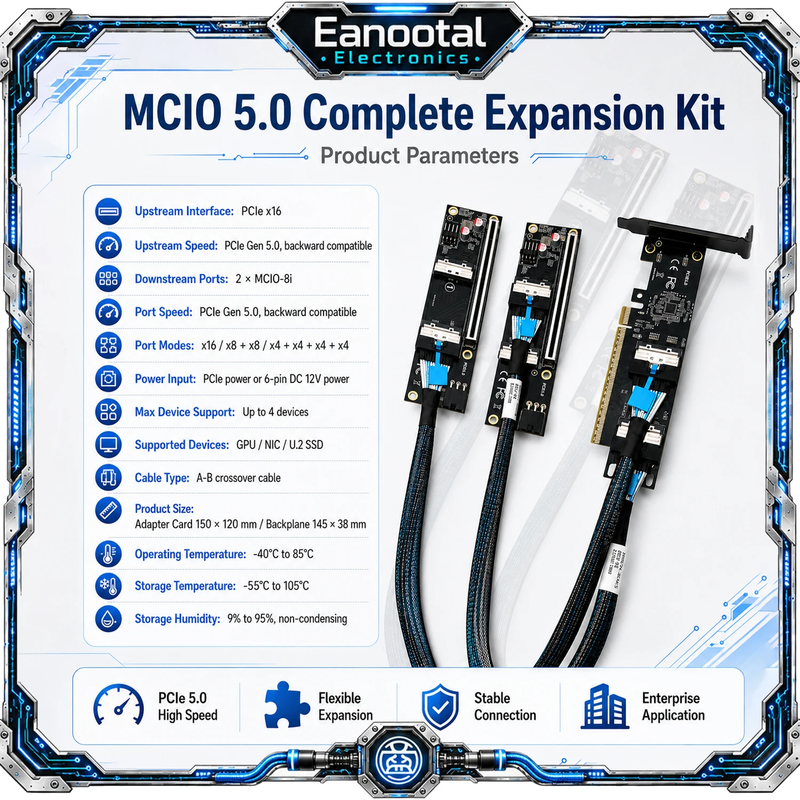

4.Complete MCIO 5.0 Adapter Kit
Includes:
1 x MCIO to PCIe x16 2U Adapter Card
2 x MCIO to PCIe x16 Backplanes
2 x MCIO 5.0 Cables, 500 mmSuitable for users who need a complete MCIO PCIe x16 extension solution
Main Features:
MCIO 5.0 high-speed interface
Supports PCIe x16 signal extension
Suitable for PCIe Gen5 / Gen4 / Gen3 devices, depending on your motherboard, CPU, BIOS and PCIe device support
No driver required, plug and play after correct installation
Compact structure, suitable for 2U server chassis and limited-space builds
Useful for GPU extension, PCIe expansion card relocation, server internal wiring and industrial computer applications
Stable connection for high-speed PCIe signal transmission when used with compatible hardware
Application Scenarios:
2U server GPU extension
PCIe x16 device relocation
Workstation internal PCIe expansion
Industrial computer PCIe signal transfer
Compact chassis installation
Server GPU, network card, RAID card, capture card or other PCIe card extension
Important Compatibility Notice:
This product is for PCIe signal extension via MCIO interface. It does not convert SATA, SAS or other non-PCIe signals.
Please confirm that your motherboard or host device MCIO interface supports PCIe signal output before purchase. Some MCIO interfaces may have different pin definitions and may not be compatible.
If you use two PCIe x16 backplanes at the same time, the motherboard may need to support PCIe bifurcation, such as x8 + x8 mode. Please check your motherboard BIOS before purchase.
The actual speed depends on the lowest PCIe generation among the motherboard, CPU, adapter card, cable and PCIe device. For example, if one device only supports PCIe 4.0, the system will run at PCIe 4.0 speed even when using a PCIe 5.0 cable.
For high-power graphics cards, please connect the external GPU power cable correctly. Do not rely only on the PCIe slot power.
This product does not support hot plugging. Please turn off the computer power before installation or removal.
Please avoid excessive bending, pulling or twisting of the MCIO cable. High-speed PCIe cables require careful installation to maintain stable signal transmission.
If the device is not detected after installation, please check the following:
Confirm the MCIO cable direction and connection
Check whether the motherboard supports PCIe bifurcation
Try setting BIOS PCIe speed to Gen4 or Gen3 for compatibility testing
Confirm that the PCIe device and power supply are working correctly
Reinsert the adapter card, backplane and cable
Please Note:
This product is suitable for professional users with knowledge of PCIe expansion, server hardware or industrial computer installation. Please confirm your device interface, PCIe lane mode and chassis space before ordering.
Package Includes:
Complete Kit:
1 x MCIO to PCIe x16 2U Adapter Card
2 x MCIO to PCIe x16 Backplanes
2 x MCIO 5.0 Cables, 500 mm
Single product options may include only the cable, only the backplane or only the adapter card. Please choose the correct option before placing an order.
