Product Description

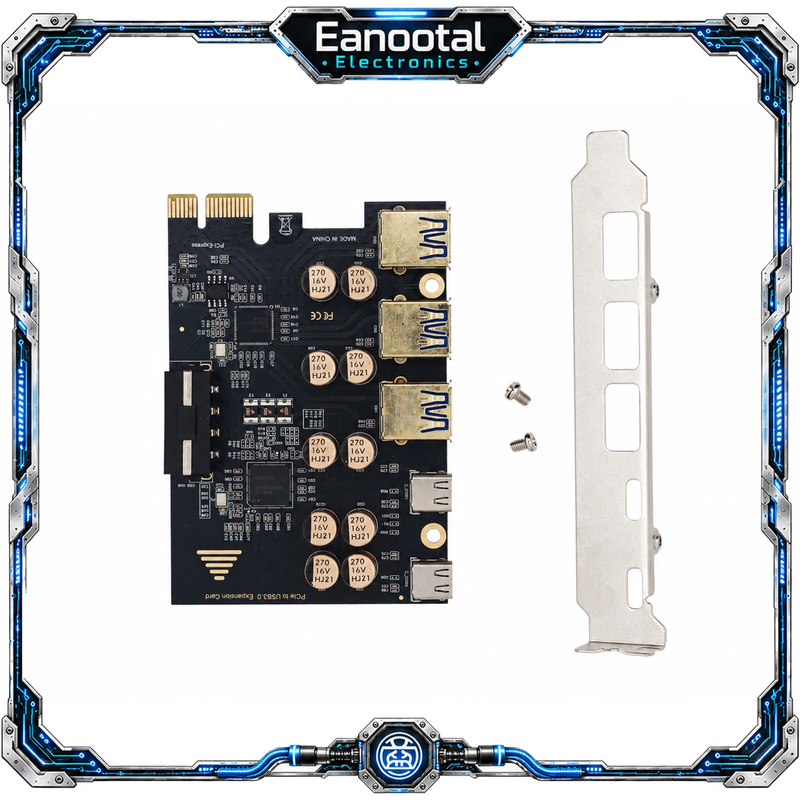

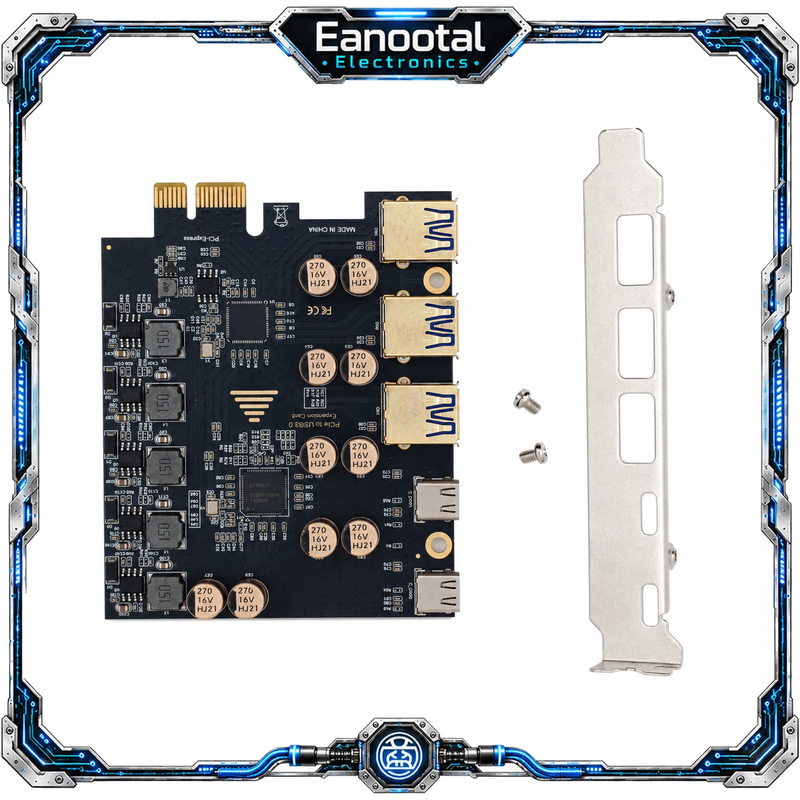

PCIe x1 to 5-Port USB 3.2 Gen 1 Expansion Card3 x USB-A + 2 x USB-C | Up to 5Gbps | Desktop PC Internal Adapter
Upgrade your desktop computer with 5 additional high-speed USB ports. This PCIe USB expansion card adds 3 x USB-A ports and 2 x USB-C ports through a standard PCIe slot, helping solve the problem of limited USB connectivity on desktop PCs.
Built with a Renesas D720201 + D720210 dual-chip solution, this USB expansion card is designed for stable data transmission and convenient multi-device connectivity. It is suitable for connecting external SSDs, USB flash drives, keyboards, mice, card readers, webcams, printers, game controllers, USB audio devices, and other compatible USB peripherals.
Main Features• 5-Port USB Expansion
Adds 3 x USB-A ports and 2 x USB-C ports to your desktop computer.
• USB 3.2 Gen 1 High-Speed Transfer
Supports transfer speeds up to 5Gbps. USB 3.2 Gen 1 is also commonly known as USB 3.0 / USB 3.1 Gen 1.
• PCIe x1 Interface
The PCIe x1 connector can be installed in compatible PCIe x1, x4, x8, and x16 slots.
• Renesas Dual-Chip Design
Uses D720201 + D720210 controller chips for efficient USB expansion and stable device connection.
• 10 Solid Capacitors
Equipped with 10 high-quality solid capacitors for stable power delivery and reliable long-term operation.
• Three Power Versions Available
Choose from No External Power, 4-Pin Auxiliary Power, or SATA Power according to your desktop PC setup and connected USB devices.
Product Type: PCIe USB Expansion Card
Host Interface: PCIe x1
PCIe Slot Compatibility: PCIe x1 / x4 / x8 / x16
External Ports: 3 x USB-A + 2 x USB-C
USB Standard: USB 3.2 Gen 1
Maximum Transfer Speed: Up to 5Gbps
Controller Chip: Renesas D720201 + D720210
Capacitors: 10 Solid Capacitors
Operating Temperature: -40°C to 50°C
Compatible Systems: Windows 98 / 2000 / XP / Vista / Windows 7 / Windows 8 / Windows 10
Note: Legacy operating systems may require a compatible driver. Please confirm your operating system and motherboard compatibility before purchase.
Choose the Correct Power Version 1. No External Power Version
This version does not require an additional SATA or 4-Pin power connection.
Recommended for low-power USB devices, such as:
• Keyboard
• Mouse
• USB receiver
• USB flash drive
• Card reader
• Basic webcam
• Low-power USB accessories
Please note: This version is not recommended for connecting multiple high-power USB devices at the same time.
2. 4-Pin Auxiliary Power Version
This version includes a 4-Pin auxiliary power input for improved power stability.
Recommended for:
• Multiple USB devices connected simultaneously
• External SSDs
• USB hard drives
• USB capture devices
• Higher-power USB peripherals
Please check whether your desktop power supply has a matching 4-Pin power connector before selecting this version.
3. SATA Power Version
This version uses a SATA power connector to provide additional power support.
Recommended for:
• Multiple external hard drives
• External SSDs
• High-power USB peripherals
• Multi-device desktop workstations
• Users who need improved power stability during multi-device use
Please check whether your desktop power supply has an available SATA power connector before selecting this version.
Important: Auxiliary power helps improve power supply stability for connected USB devices. It does not increase the USB data transfer speed beyond the supported 5Gbps specification.
Important Notes Before Purchase• This product is designed for desktop computers with an available PCIe slot.
• It is not designed for laptops, mini PCs without PCIe slots, or external USB use.
• The USB-C ports are for USB data connection. Do not use this product as a video output card.
• This card does not add HDMI, DisplayPort, Thunderbolt, or USB-C display output functionality.
• The maximum 5Gbps bandwidth is shared when multiple high-speed USB devices are used at the same time.
• Actual transfer speed depends on the connected device, USB cable, motherboard, operating system, and system configuration.
• For multiple high-power USB devices, choose the SATA Power or 4-Pin Power version for better power stability.
• Please shut down the computer before installing the card or connecting auxiliary power cables.
• Please confirm that your motherboard has an available PCIe slot and that your computer case has an available rear expansion slot.
