Product Description
Internal USB 2.0 9-Pin Header HubSelling Point 1
1-to-2 or 1-to-4 Expansion
Expand one motherboard USB 2.0 9-pin header into two or four internal headers.
Selling Point 2
For Internal USB Devices
Ideal for AIO cooler controllers, RGB hubs, fan controllers and other internal PC accessories.
Selling Point 3
USB 2.0 up to 480 Mbps
Supports standard USB 2.0 data transmission. All connected headers share the upstream bandwidth.
Selling Point 4
30 cm Flexible Cable
Provides more installation freedom and helps keep cables organized inside the PC case.
Selling Point 5
Adhesive PCB Mounting
Attach the compact expansion board to a clean and flat surface inside the case.
Expand a limited motherboard USB 2.0 header into multiple internal USB 2.0 headers.
This internal USB header hub is designed for desktop computers that do not have enough onboard USB 2.0 9-pin connectors. It allows one motherboard USB 2.0 9-pin header to be expanded into two or four internal 9-pin headers, making it easier to connect multiple internal USB devices.
Two versions are available:
- 1-to-2 Version: 1 input to 2 internal USB 2.0 9-pin headers
- 1-to-4 Version: 1 input to 4 internal USB 2.0 9-pin headers
It is suitable for AIO cooler controllers, RGB lighting controllers, fan hubs, internal display modules, card readers and other compatible internal USB 2.0 devices.
Main Features
Expand One Header into Multiple Headers
Convert one available motherboard USB 2.0 9-pin header into two or four internal USB 2.0 headers.
It provides a practical solution for PC systems with limited internal USB connectors.
USB 2.0 Data Connection
Supports USB 2.0 data transfer with a maximum theoretical speed of up to 480 Mbps.
Please note that all connected output headers share the bandwidth and power supplied by the original motherboard USB 2.0 header.
Two Expansion Options
Choose the version that matches your PC build:
- 1-to-2 Header Hub: Suitable for connecting a small number of internal USB devices
- 1-to-4 Header Hub: Suitable for gaming PCs, RGB builds and systems using multiple internal controllers

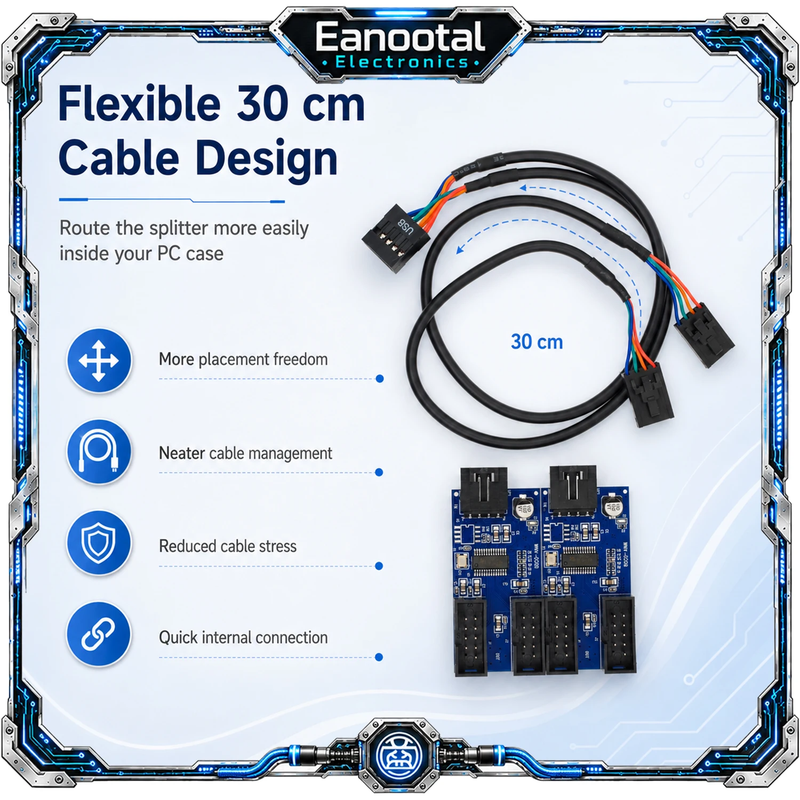

30 cm Extension Cable
The approximately 30 cm cable provides more flexibility when positioning the expansion board inside the computer case.
It also helps with cable routing and reduces stress around the motherboard USB header.
3M Adhesive Backing
The PCB is equipped with adhesive backing, allowing it to be attached to a clean and flat surface inside the PC case.
No drilling is required, helping keep the internal installation neat and organized.
Compact PCB Design
The compact circuit board takes up little space inside the computer case and is suitable for different desktop PC configurations.
Designed for Internal PC Devices
Compatible with many devices that use a standard internal USB 2.0 9-pin motherboard connection, including:
- AIO liquid cooler controllers
- RGB lighting controllers
- Fan controllers and fan hubs
- Internal USB display modules
- Internal card readers
- PC case accessories
- Internal Bluetooth or Wi-Fi adapters with USB 2.0 headers
- Other compatible internal USB 2.0 devices
Compatibility
Please check your motherboard connector before purchasing.
This product is designed for a standard internal USB 2.0 9-pin motherboard header.
It is not designed for:
- USB 3.0 19-pin motherboard headers
- USB 3.2 headers
- Front-panel USB Type-C headers
- External USB-A ports
- External USB-C ports
The device connected to the expansion board must also use a compatible internal USB 2.0 9-pin connector.
Installation Steps
- Shut down the computer completely.
- Disconnect the power cable from the PC.
- Locate an available USB 2.0 9-pin header on the motherboard.
- Check the missing pin position and connector orientation.
- Connect the input cable to the motherboard USB 2.0 header.
- Connect your internal USB devices to the output headers.
- Clean a flat mounting area inside the PC case.
- Remove the protective film from the adhesive backing.
- Attach the PCB firmly to the selected position.
- Check all connections before powering on the computer.
Do not force the connector into the motherboard. Incorrect alignment may damage the connector or motherboard pins.
Important Notes
- This product only expands the number of available internal USB 2.0 headers. It does not upgrade USB 2.0 devices to USB 3.0 speed.
- The maximum theoretical USB 2.0 speed is up to 480 Mbps. Actual performance may vary depending on the motherboard, connected devices and system configuration.
- All output headers share the bandwidth and available power of the connected motherboard USB 2.0 header.
- This product does not include an additional SATA or Molex power connector. Avoid connecting multiple high-power USB devices at the same time.
- Please confirm that your motherboard has a compatible internal USB 2.0 9-pin header before ordering.
- The missing pin position must match the motherboard header. Do not force the connector.
- Product color and small PCB markings may vary slightly between production batches without affecting normal use.
