Product Description

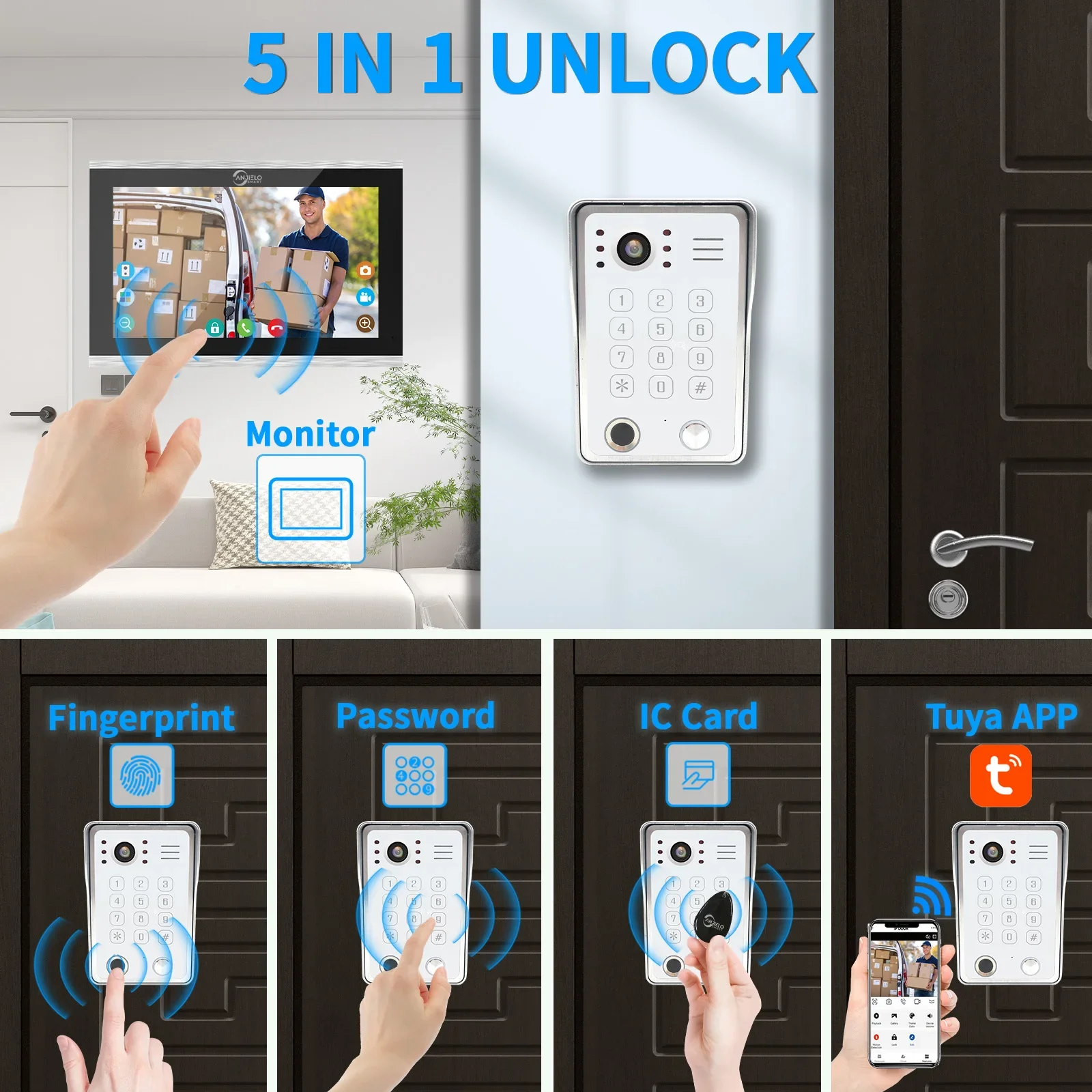

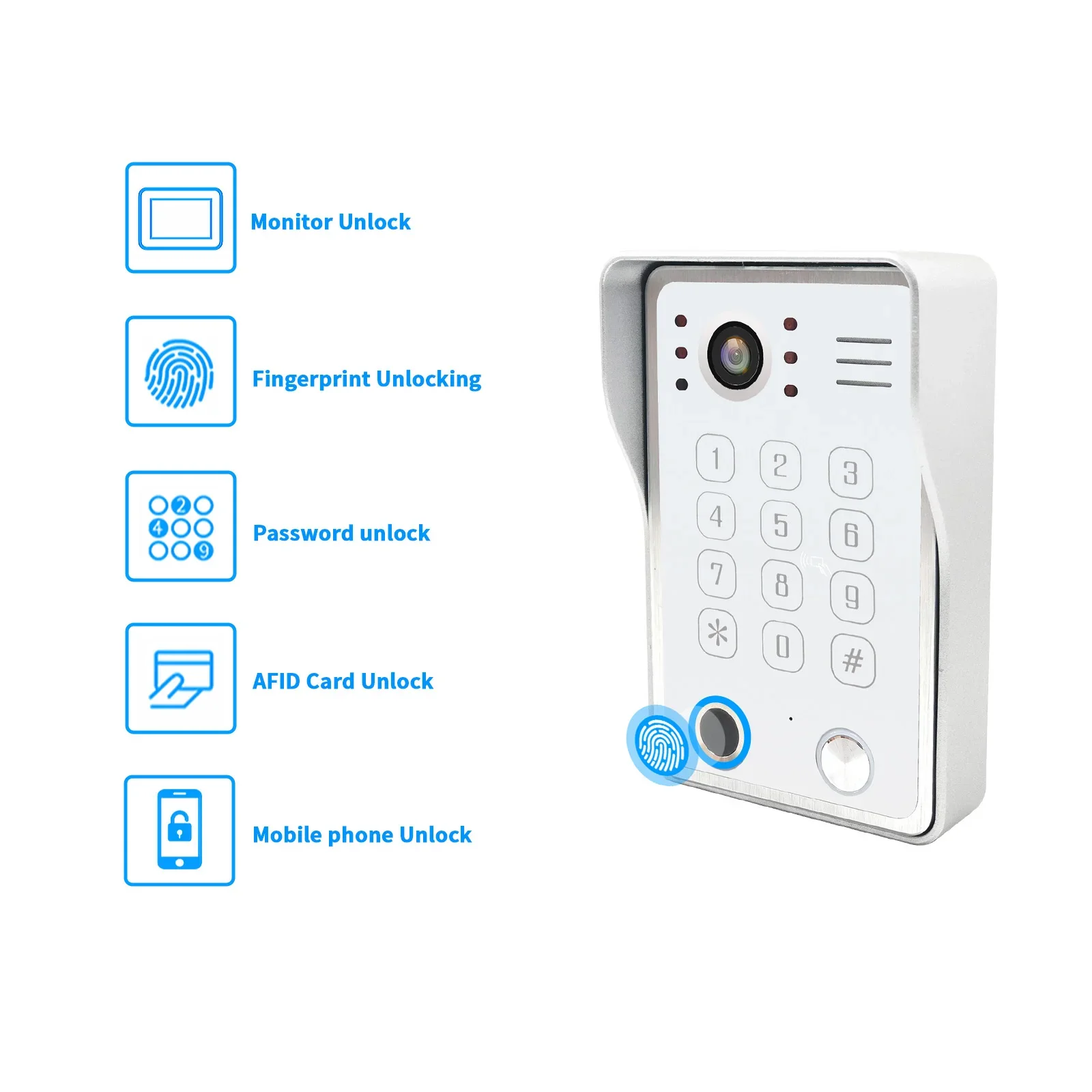

5 in 1 Unlock

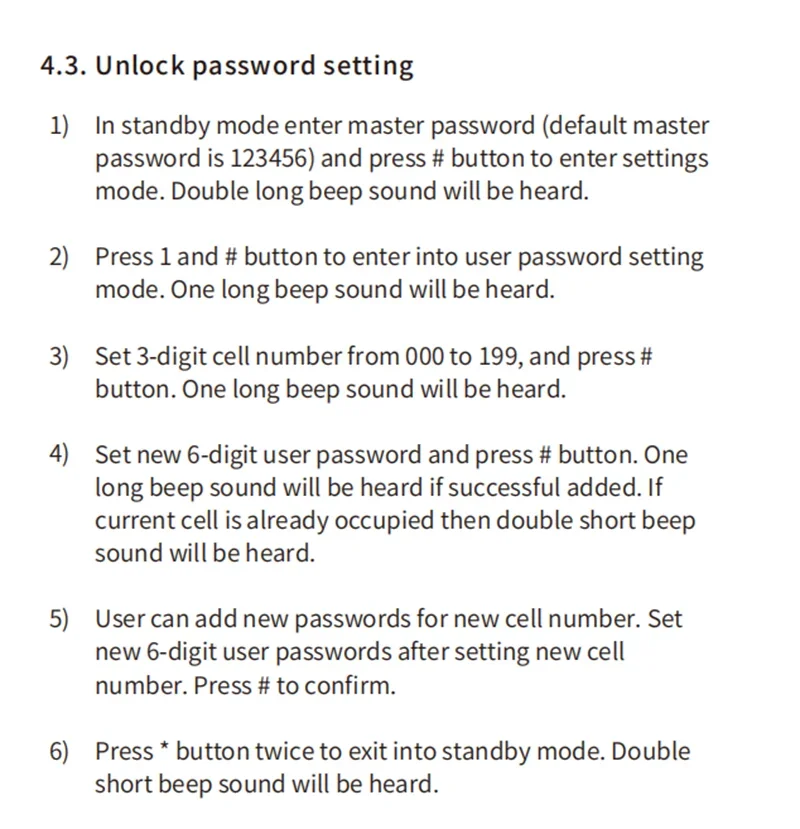

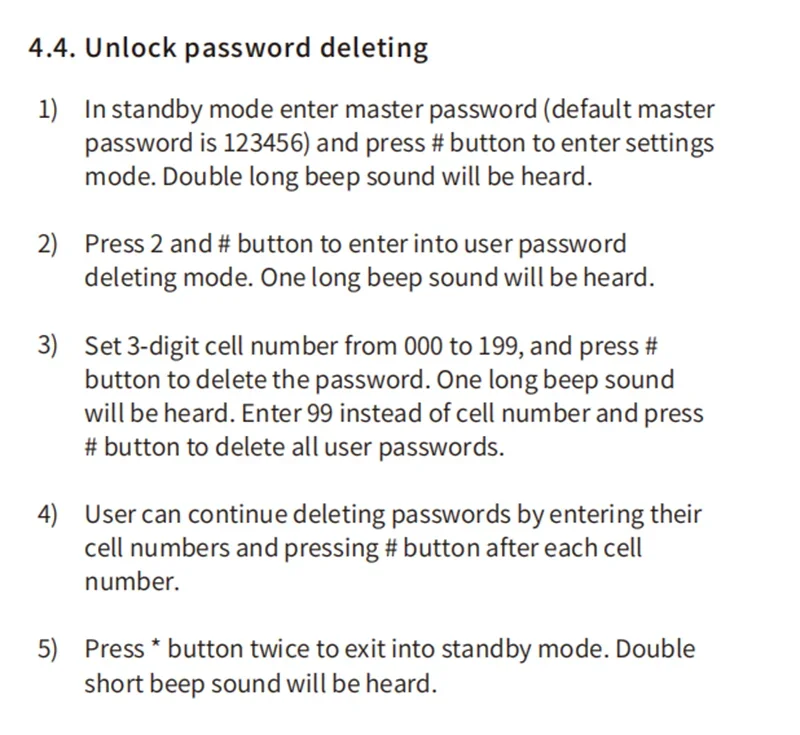

This device has various unlocking methods. You can unlock by password, monitor, IC card, APP and screen. It is very convenient and flexible.
Fingerprint Unlocking
The outdoor hood is equipped with fingerprint capability and supports up to 200 fingerprints. Unlocking and access more convenient.
Phone unlocking

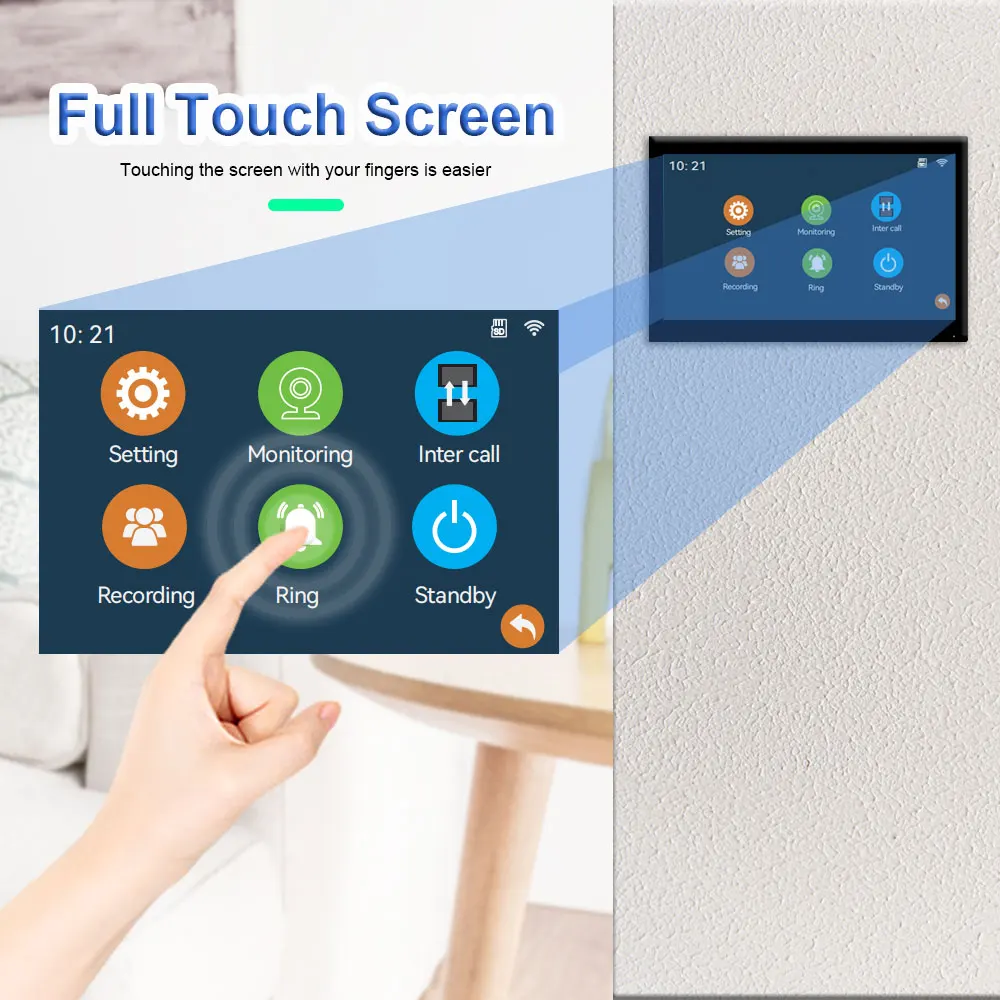

If you forget to bring your key when you go out, you can use your phone to unlock it. With your phone, you can operate all the functions on the screen, making future technology extremely convenient
See More People:

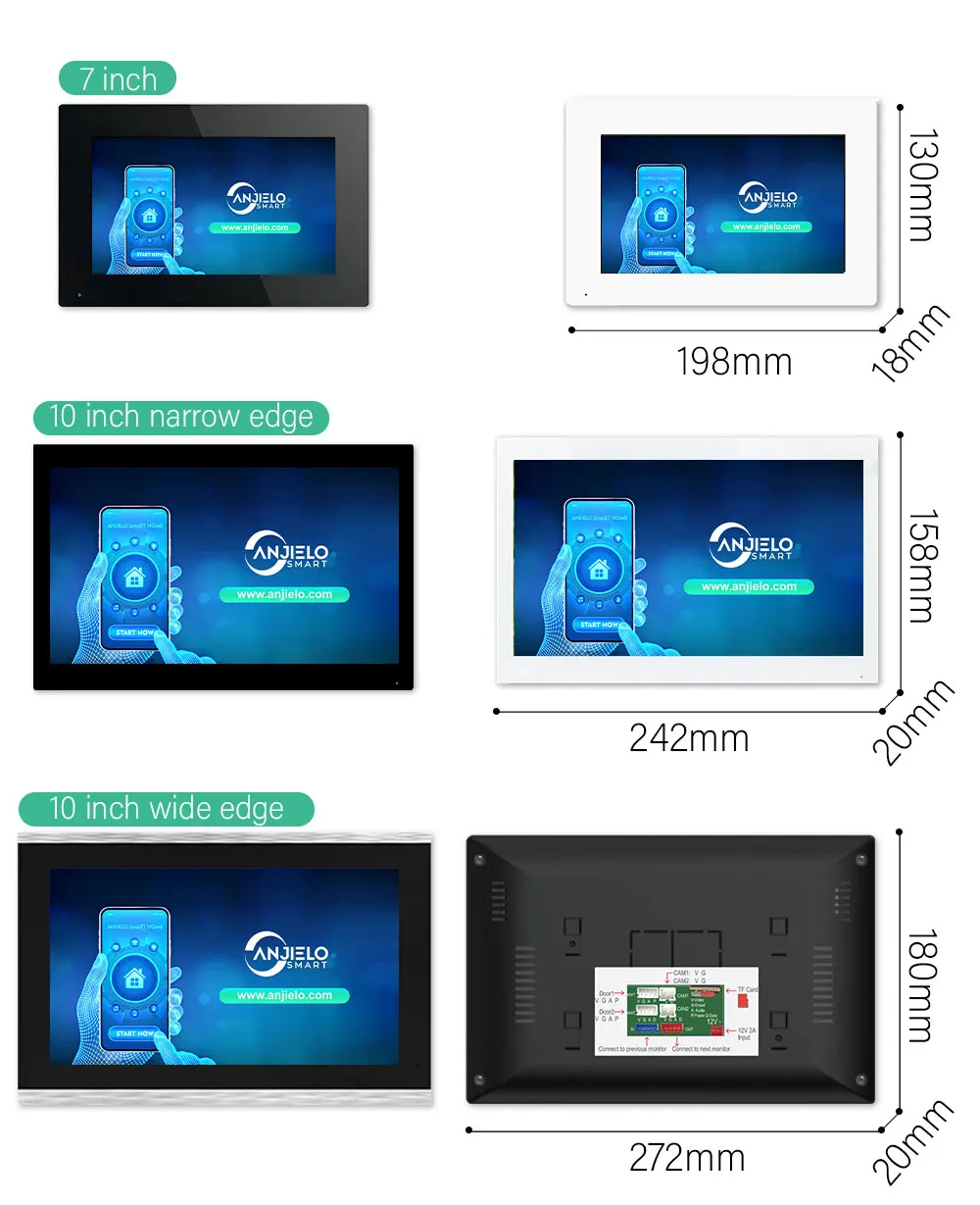

Video door phone with camera and monitor, 7inch /10 inch TouchMonitor, HD camera with IR night vision, 148°ultra wide angle, expanding the field of view, clearly displaying the visitor's whole body, you can see more visitors at the door.About Wifi connection:
Please note the wifi video intercom system not mean it's don't need any cable. The monitor support WIFI network,but the indoor monitor and doorbell is Wired connect.
The doorbell and camera can be extended with RVV4/Cat5/Cat6/RG59 wire, Network cables. The maximum distance can exceed 300ft.
The indoor monitor and doorbell wired connections, works stably. You don't need to worry about the network signal anymore.
15 Language:
It supports Chinese, English, Russian, French, Spanish, German, Arabic, Italian, Polish, Portuguese, Turkish, Vietnamese, Dutch, Ukrainian, Hebrew
Express delivery or visitors will not miss:
When someone rings the doorbell, we can hear the doorbell, talk to the guests outside through our phone or screen, and even have a full conversation and unlock with our phone
Automatic recording
When visitors press the doorbell or motion detection is triggered, the doorbell camera will automatically record videos or snapshots and save them to the additional Micro SD card to protect your home every day.

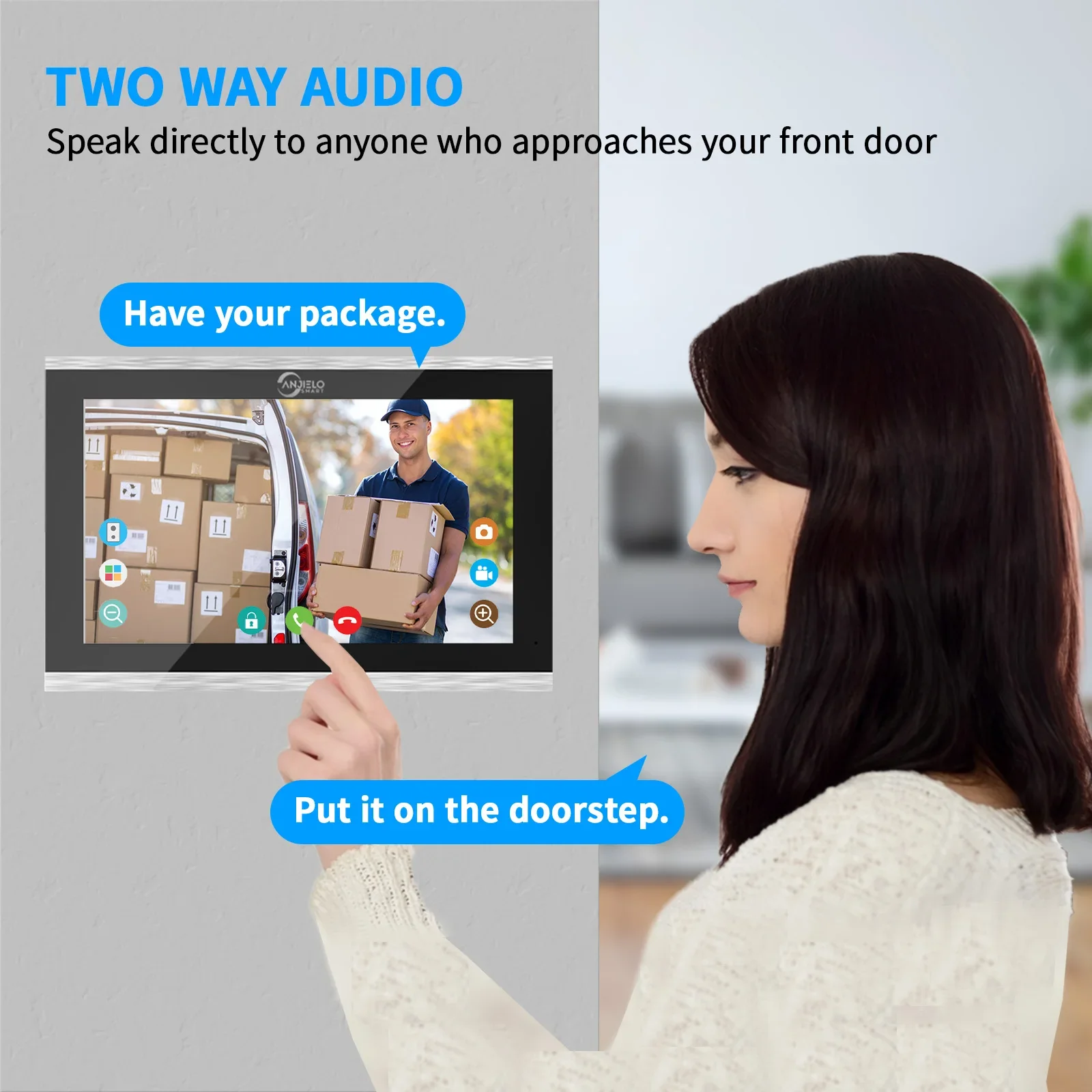

TWO WAY AUDIO
Speak directly to anyone who approaches your front door
AHD 1080P OUTDOORFINGERPRINT DOORBELL

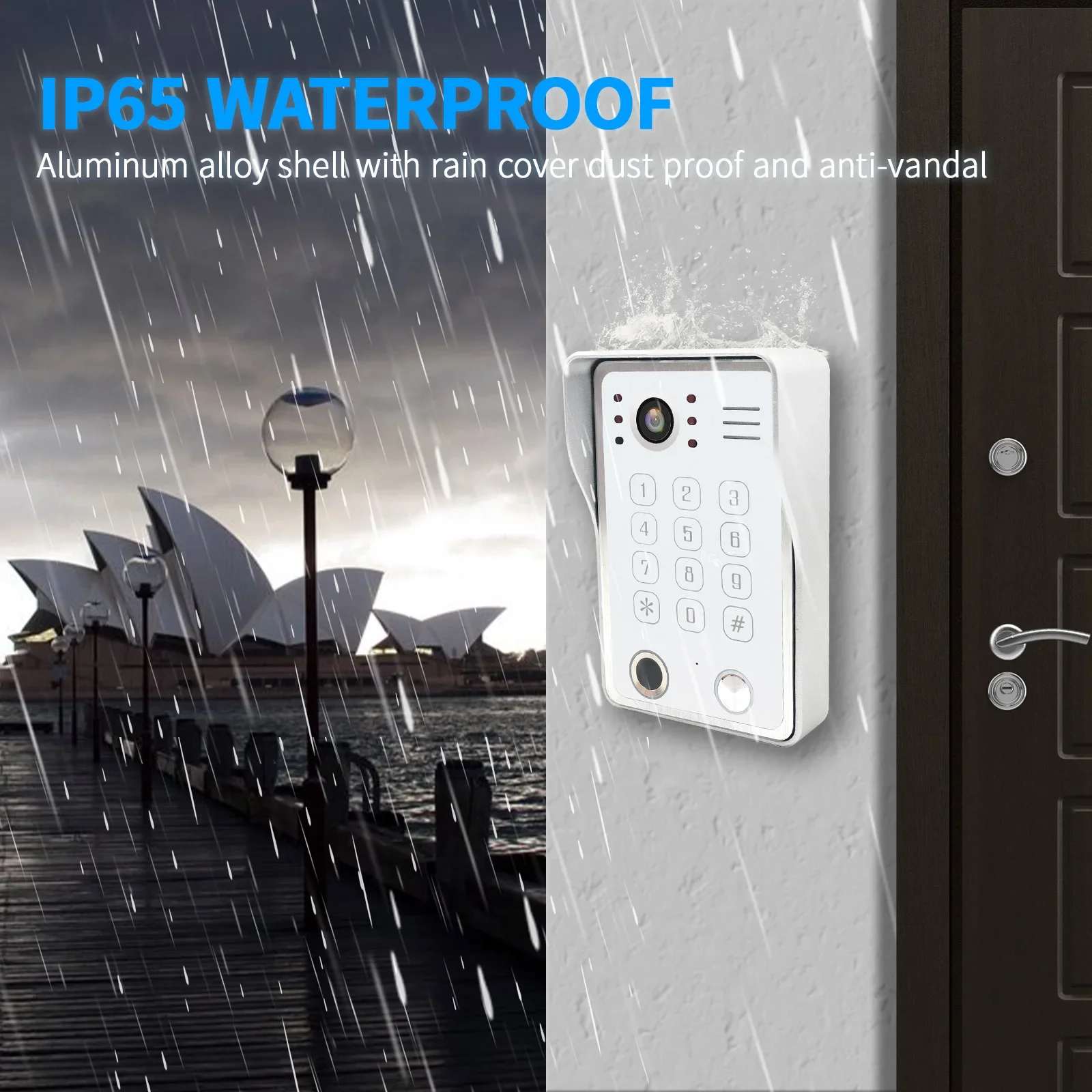

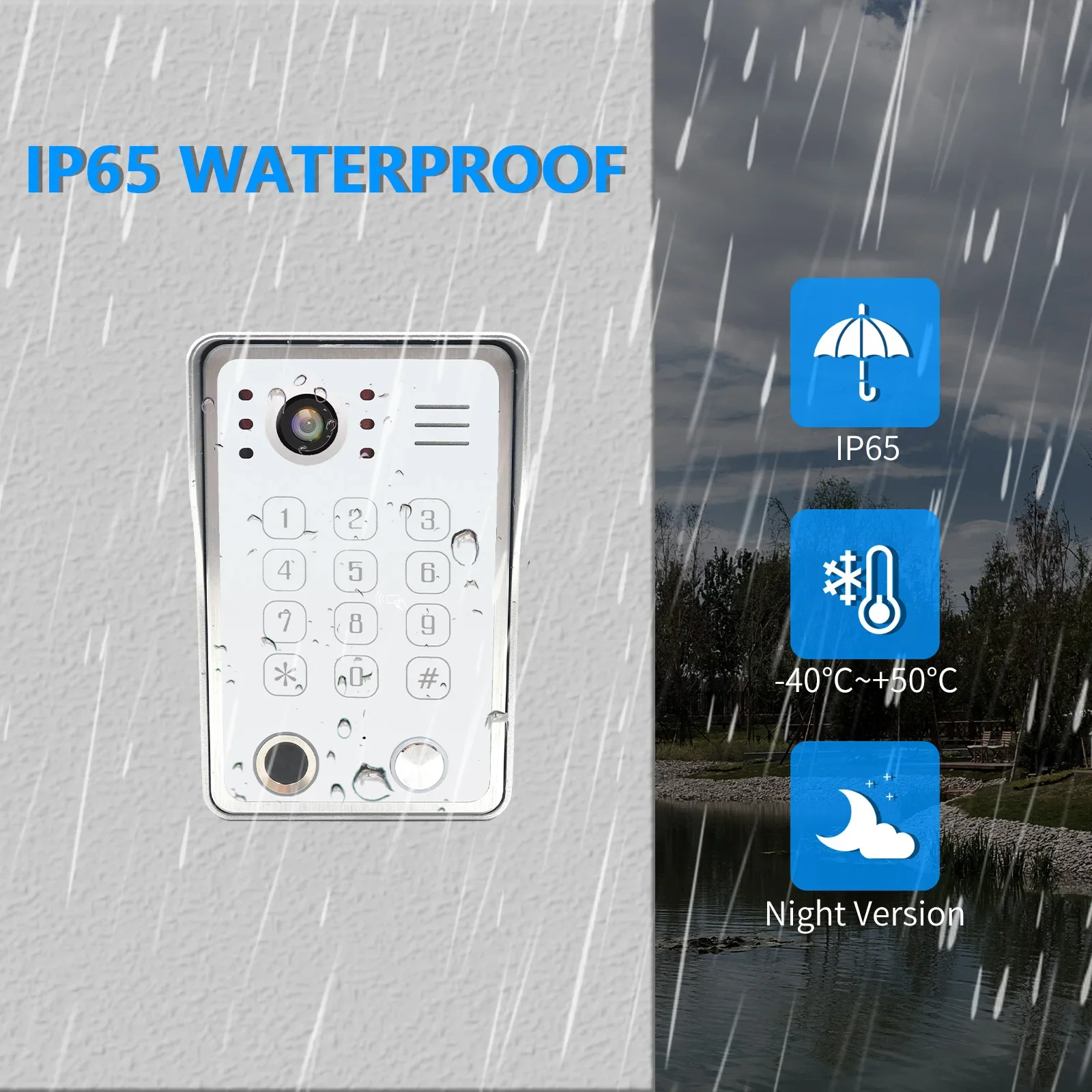

1. Waterproof IP65
2. View-angle 148 degree
3. Night Vision
4. Support Connect With Exit button
5. Access Control Function Optional.Support RFID and Password Unlockand Fingerprint
Product Features:
2.0MP Camera, 148 degrees wide view angle.
2-way communication between indoor and outdoor unit. Support 2 way communication between monitors.
Support iOS & Android smart phone with Tuya Smart APP, When somebody call at outdoor, your monitor and smartphone will ring at the same time.
Motion Detect, When motion detect is triggered,the camera will recording or capture a picture,even though nobody press the doorbell.
The indoor unit has an external 32G SD card (supports photo or video).
Note: 4 wires cable connection doorbell and monitor, The monitor support WIFI network, but the indoor monitor and doorbell is Wired.
Automatic Recording
1080P camera with 148º wide view angle, Visitors at the door can be seen clearly.
Camera built-in microphone and speaker, When visitors press the doorbell or motion detect is triggered, doorbell camera will Automatically record videos or snapshot pictures and save them in monitor micro SD card.
Features
Wide angle camera
Aluminum Alloy Case;IP65
IR LED offset lighting can obtain better evening viewing
Unique waterproof ,dustproof ,anti-thunderstorm design
Call indoor monitor ,video intercom
Support connect with Exit button , With IR-CUT
With password ,fingerprit & IC card unlock function, capacity 200PCS
Support switch signal from 1080P-720P-CVBS

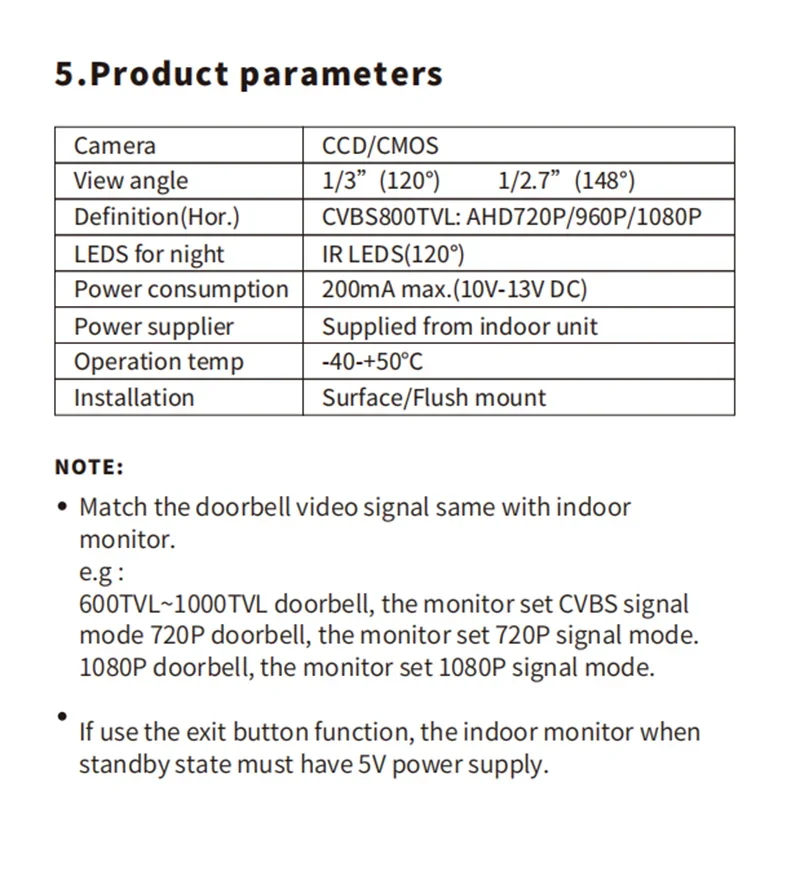

Specifications
Camera Sensor 1 / 2.7" CMOS
Denfinition 1080P
Lens 3.2mm
View angle 148°
LEDs for night LED IR LEDs（120°）
Power consumption 200mA max.
Power Supply Supplied from indoor unit
Operating Temp. -40℃~+50℃
Installation Surface mount

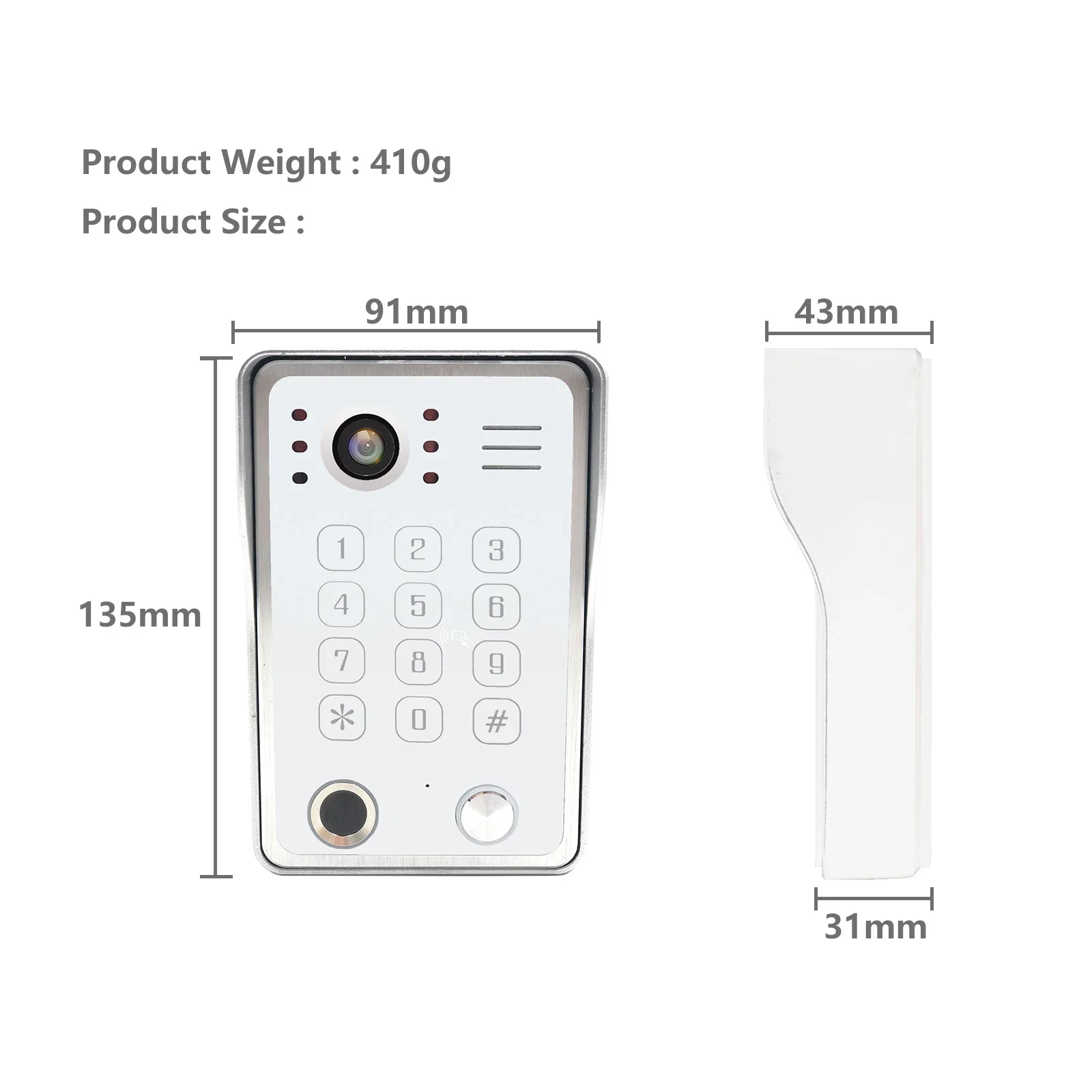

Size 137mm*85.5mm*23.5mm
Accessory Rain Cover

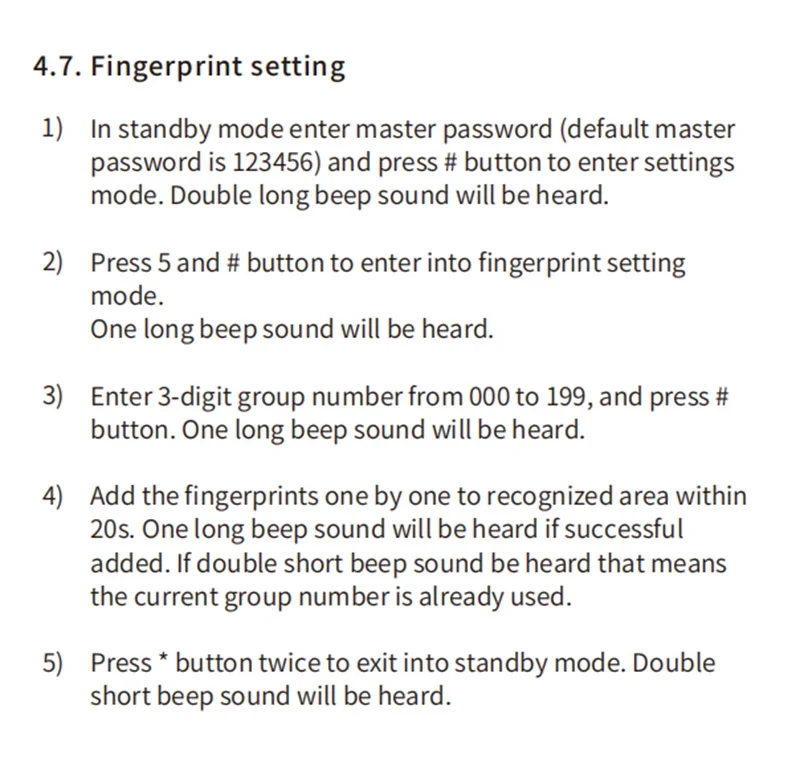

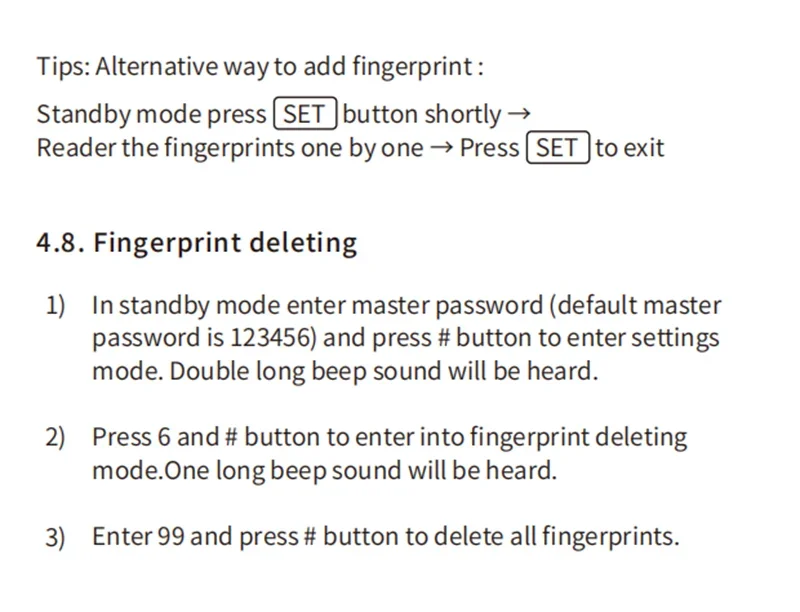

Add fingerprint:
Step 1. PressSET button, please put your finger on the fingerprint module, a longBEEP means successful, please add another finger.
Step 2. PressSETbutton when you complete the fingerprint addition.
Tips:
The addition time is 20s, after 20s you will hear a longBEEP, if you need to add other fingers, please try step 1 again.

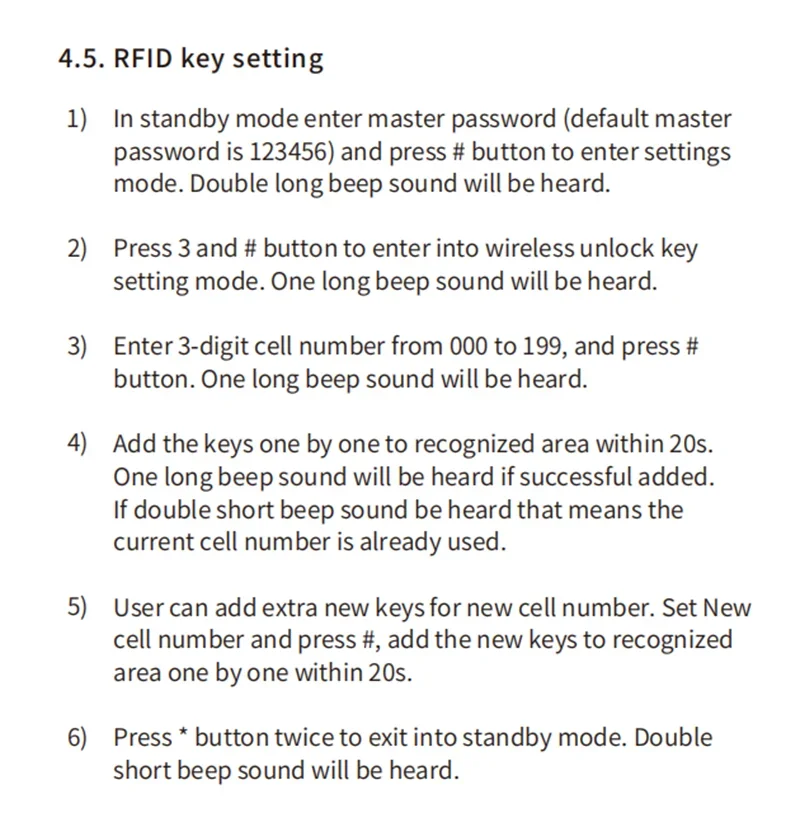

Add IC card:
Step 1. PressSET button, please put the IC card on the recognition module, a longBEEP means successful, please add another IC card.
Step 2. PressSET button when you complete the IC card addition.
Tips:
The addition time is 20s, after 20s you will hear a longBEEP, if you need to add other IC cards, please try step 1 again.

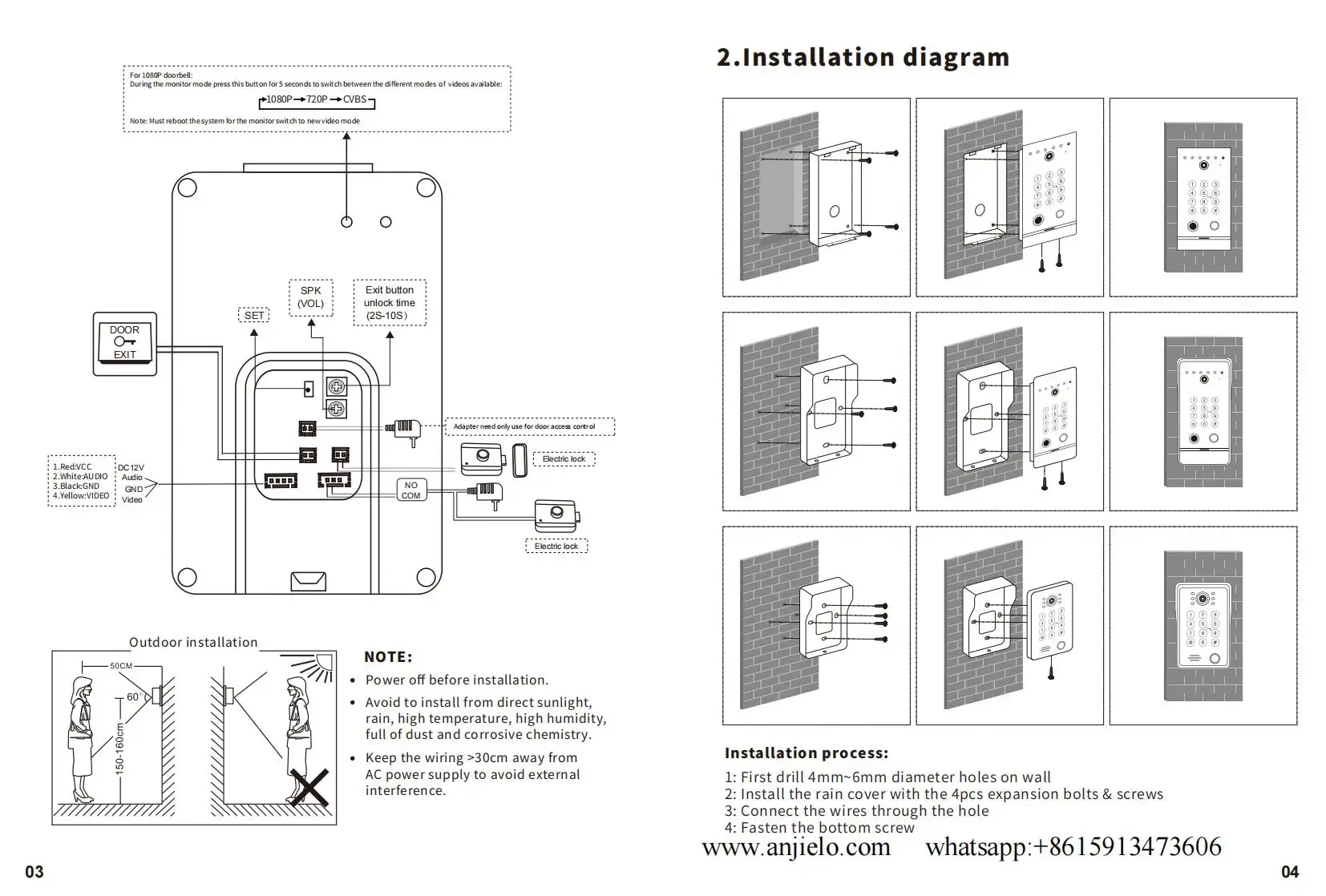

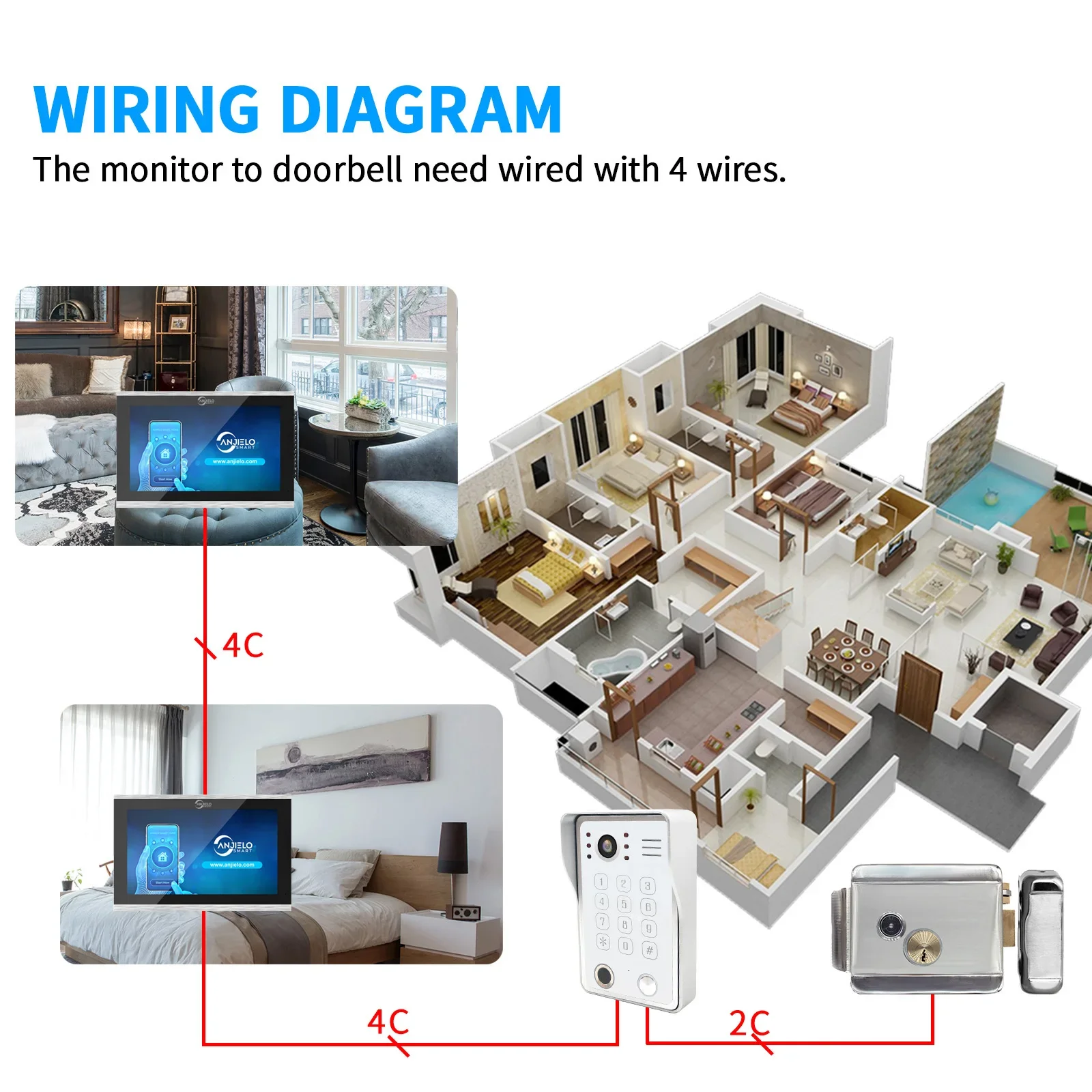

WIRING DIAGRAM
The monitor to doorbell need wired with 4 core wireOne outdoor station can connect to more than two monitor, you can choose to add monitors accordingly, max support 6 monitor connect. Here is the pairing for your reference:

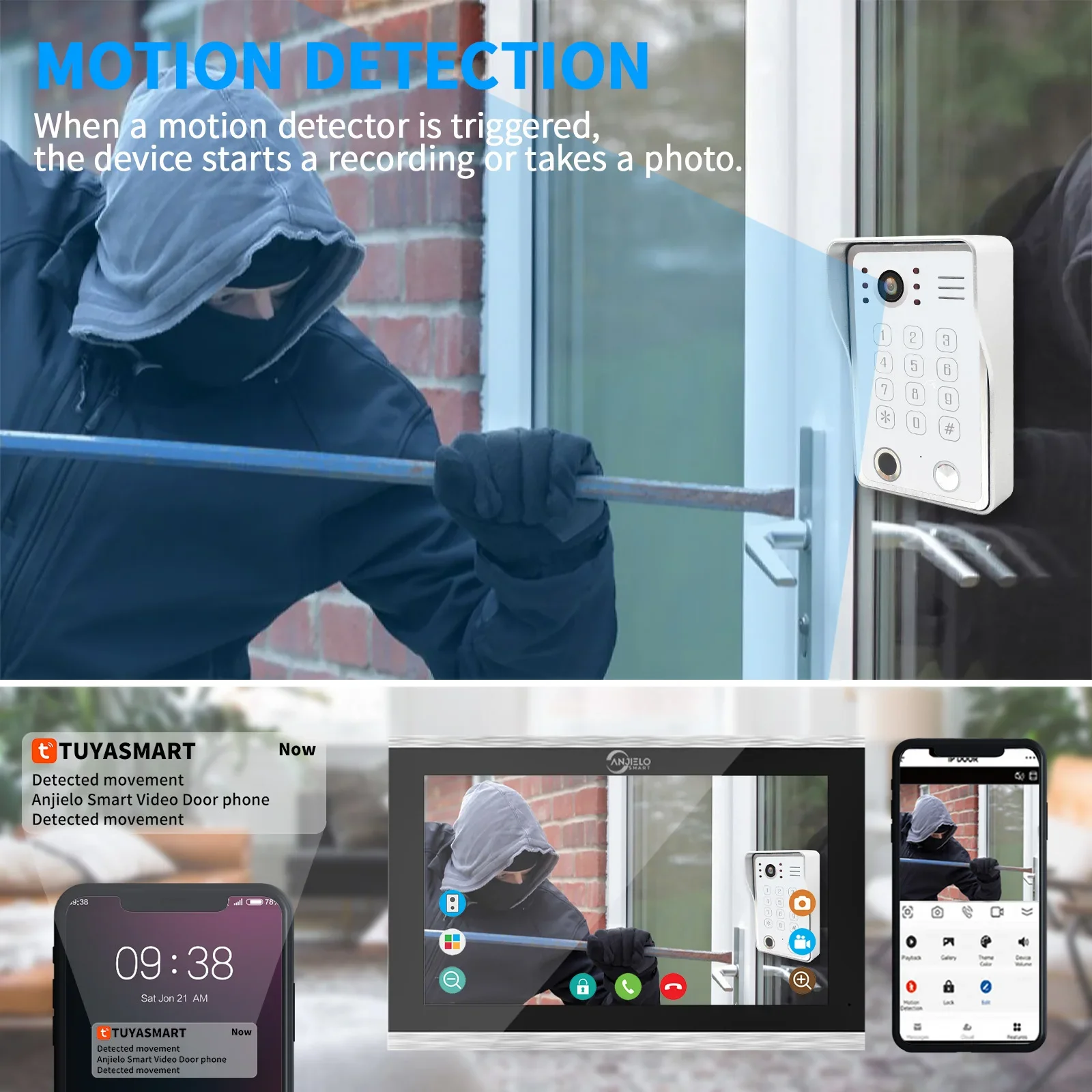

MOTION DETECTION
When a motion detector is triggered,the device starts a recordingor takes a photo
