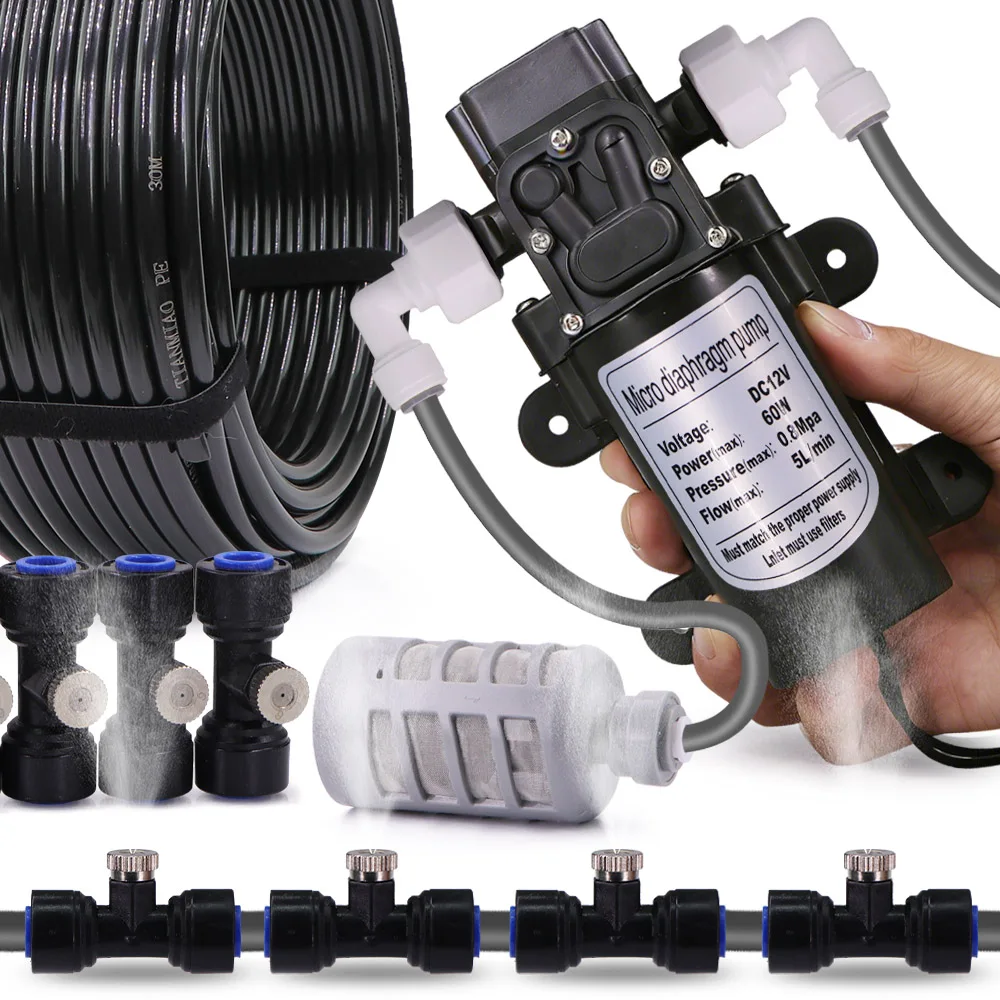

60W Misting Cooling System Pump Kit w/ Smart Timer 0.8mm Fine Spray Nozzles 1/4"

Product Description

⭐ 60W Self-Priming Misting Cooling & Irrigation Kit – w/ Power Supply / Timer / Filter

Works Without a Fixed Water Source | Just a Bucket of Water to Start Misting

🔌 Important – Plug & Socket Standard

Please read carefully before purchasing:

• Pump Power Adapter: Default comes with EU plug. Please note: after removing the EU plug adapter, the base plug is a US standard plug.

• Timer Socket Standard: The timer comes with an EU standard socket (input: EU plug, output: EU socket).

⚠️ Please check the plug/socket standards carefully before ordering to ensure compatibility with your local power outlets.

✅ Kit Highlights

• 60W Self-Priming Diaphragm Pump: DC12V, flow rate 5L/min, working pressure 165 psi / 0.8MPa, max lift 80 meters

• Wide-Voltage Power Adapter: 110-240V input

• No Fixed Water Source Needed: Just use a bucket – perfect for courtyards, greenhouses, farms, etc.

• Optional Pump Timer: Supports up to 16 on/off programs, min setting 1 minute, with red LED indicator

• Plug & Play Kit: Includes filter, hose adapters, PE tubing – no extra parts needed

✅ Misting Nozzle Features

• Nozzle Orifice: 0.8mm (default), copper-nickel plated with tee adapter – oxidation and corrosion resistant

• Extreme Weather Resistant: Stable operation in high temperature / frost conditions

• Mist Particle Size: 3–7 microns – evaporation efficiency increased by 40%, cools 3–10℃ in summer

• Even Spraying: Effectively regulates watering amount, saves water

• Pressure Resistance: Slide-lock design, withstands up to 10kg water pressure without breaking

✅ Faucet Adapter & End Nozzle Pressure Optimization

• Includes faucet adapter – supports 1-way or 2-way diversion

• Effectively solves poor misting caused by insufficient water pressure at end nozzles

✅ Wide Range of Applications

Ideal for:

• Humidification, disinfection, cooling systems

• Garden watering, agricultural irrigation

• Dust suppression (sports venues, shopping malls, factories, mining areas, etc.)

• Courtyards, greenhouses, farms, pesticide/liquid fertilizer spraying

✅ Pump Specifications

Parameter

Value

Model

60W Micro Diaphragm Self-Priming Pump

Voltage

DC12V

Current

10A

Max Working Pressure

0.8MPa

Open Flow Rate

5L/min

Lift

80 meters

Inlet/Outlet Size

1/2″ Male Thread (20mm diameter)

Connection Type

DC5521 female jack – plug & play

⚠️ A filter must be installed at the water inlet (included in the kit)

✅ System Installation & Usage

• Expandable: Compatible with 4/6mm standard irrigation tubing (PU/PE/nylon), can be connected in series using tee adapters

• Max Nozzle Support: Up to 30 nozzles (0.8mm orifice)

• Recommended Working Pressure: 2kg–10kg (Do not exceed 12kg of water pressure)

• Single Nozzle Water Consumption: Approx. 100ml/min (measured at 9bar pressure)

• Flexible Water Intake: The inlet hose can be used in self-priming mode (placed in a bucket), or connected directly to a faucet for a fixed water source – ensure water quality is clean

• Recommendation: Test the pump and nozzles after receiving the goods. If you have any issues, please contact us first – do not open a dispute immediately

✅ Installation & Anti-Vibration Design

• 4 rubber pads at the pump base to reduce noise and vibration

• Can be mounted on wood, walls, or other flat surfaces using self-tapping screws

⚠ Important Notes

1. Residual water pressure after turning off the faucet: The nozzle may drip briefly – just wait a moment for the pressure to discharge

2. Insufficient end nozzle pressure: If too many nozzles are connected, the misting at the end will be reduced – please plan accordingly

3. Timer settings: Adjust according to season or weather (timer has a built-in non-removable battery)

4. Maintenance tips:

   • After pumping viscous liquids or pesticides, flush the pump with clean water for at least 3 minutes

   • Do not submerge the pump in water

   • Regularly inspect the filter and adapter screens to keep them clear

📦 Kit Contents

📌 Pump Kit Length Options: 30m / 20m / 10m
Please check the pictures carefully to confirm the accessories included with each length, and choose according to your actual usage scenario.

📌 Please Choose Carefully Before Purchasing

We offer the following two kit options, designed to give you flexibility based on your needs:

• Pump + Timer Kit: Includes pump and dedicated timer – suitable for automatic cycle control

• Pump-Only Kit: Includes pump and related accessories – timer not included

⚠️⚠️⚠️ Please double-check which version you are selecting. Mistakes in selection may lead to unnecessary disputes and losses for our orders. Thank you for your understanding and support!
