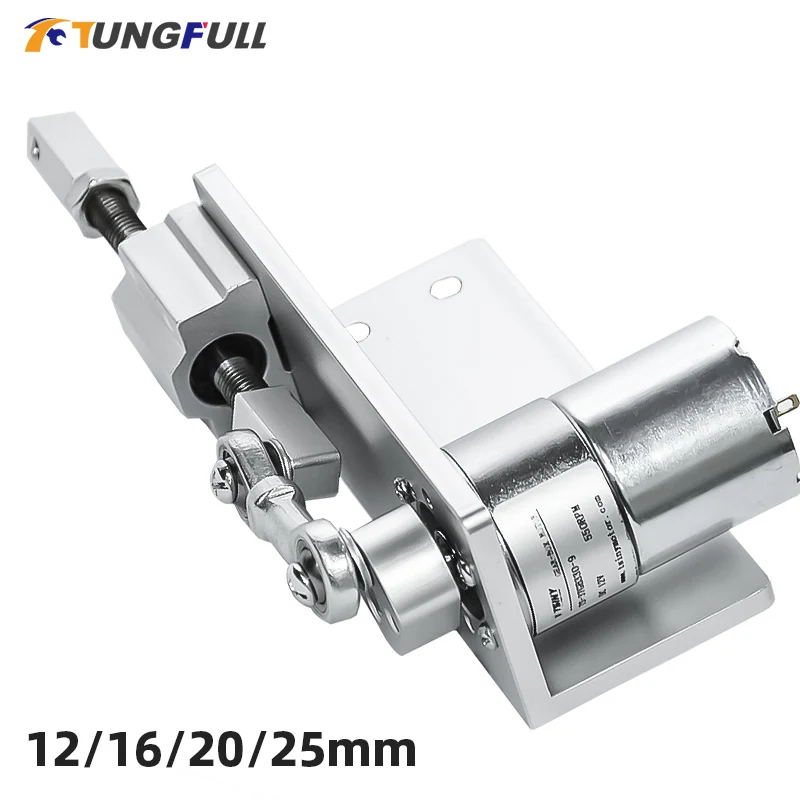

DC 12V/24V Small DIY Design Reciprocating Cycle Linear Actuator 5~1000 Rpm Teles

Product Description

Reciprocating Cycle Linear Actuator

Voltage: DC 12V/24V

No-load Speed: 5-1000pm

Power: 5W

No-load Current : 0.02-0.13A

Continuous working time: 24 Hours

Stroke: 12,16,20,25mm

Output Shaft : 6*14mm

Adjustment Speed: Yes (Requires additional speed controller)

CW/CCW: Yes

Application: Shale shaker, Vibrating screen, Incense machine, Squirt machine Spraying Machine, Pellet machine, Particle-making Experiment

1. About the stroke of the reciprocating motor:

The stroke can be adjusted by yourself, but the torque of each stroke is different. The longer the stroke, the smaller the force. Pay attention to the load weight

2. What is the speed regulation range of the reciprocating motor after using the governor? What is the torque after speed regulation?

In the case of speed regulation, the number of revolutions selected when placing an order is the maximum number of revolutions of the motor. The number of revolutions can only be adjusted as the number of revolutions is lower, and the number of revolutions cannot be increased. When the number of revolutions is reduced, the torque of the motor becomes smaller. Do not ignore the torque and choose a high speed. The right number of revolutions is important!

3. What is the number of revolutions when the reciprocating motor does not use the governor without speed regulation? What is the torque?

In the case of no speed regulation, the number of revolutions of the motor is the number of revolutions when you place an order. The torque of the motor can be seen in the parameter table below. There is a column of the load torque corresponding to the stroke. You can select the number of revolutions and stroke to see the corresponding torque. That's it!

Different revolutions and strokes are different torques and different powers. The parameter table in the following details is stated, as well as the size chart and the real shot.

This link does not contain a speed controller

Good rigidity, low friction coefficient, low noise, high wear-resistant bearing.

Four kinds of bearings are adjustable.

Powerful, stable and reliable.
