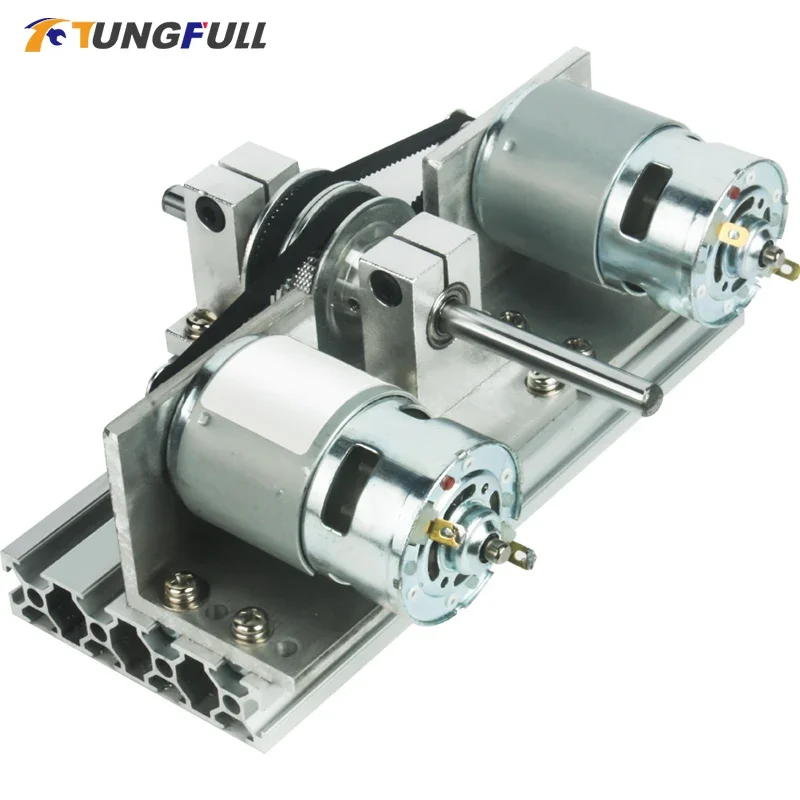

DC 12V 24V Dual Motor Drive 775 795 895 Dual DC Motor Belt Drive System Kit, DIY

Product Description

Dual motor synchronous motor, it is better to use two motors in series. After the series connection, the voltage of the two motors is superimposed. Among them, 775 and 895 require a 48 volt power supply of at least 200 watts, while 795 uses a 24 volt power supply of at least 200 watts. It is best to use a speed regulator to control the dual motors

775 24V * 2=48V Need 48V power supply, at least 200W or more

895 24V * 2=48V Need 48V power supply, at least 200W or more

795 12V * 2=24V Need 24V power supply, at least 200W or more

The dual motor drive increases torque output, with a maximum speed of 12000 and low noise. It can be fixed for use and can be used to install various grinding wheels, cutting, chucks, chucks, and other tools. If you need to adjust the speed and switch between forward and reverse rotation, you can purchase our store's forward and reverse speed switch. You can contact customer service to purchase it. If there is no power supply, you can contact customer service to purchase a power supply. The machine comes with shock absorption leather feet. If you need to use it in a fixed way, you can contact customer service to replace the four fixed corner codes, This device has no specific usage plan and can be used where you need it!

Dual motor device, power generation wiring scheme, if the governor or power supply is connected to one motor for operation, the other motor can generate electricity, and the actual output voltage is about 1V lower than the input voltage! The higher the rotational speed, the greater the voltage and power generated, and the generated electricity is DC!

Dual motor driven 8mm shaft device

Designed to enhance power

High speed with low noise and high synchronization rate, can be used for power generation or as a power output shaft

The voltage used for a single 775 motor and an 895 motor is within 24V, while the voltage used for a 795 motor is within 12V. Please provide a reasonable voltage

There are two options for synchronous wheels, one is 60 teeth with 16 teeth, with a speed ratio of 1 to 3.75, and the other is 80 teeth with a speed ratio of 1 to 5. If the motor speed is 1, the output shaft speed is 3.75 or 5 times

Two motors can be connected in series for power supply, which will ensure synchronous operation of the motors

The length of Timing belt is 200mm and the perimeter is 280mm

The total length of the output shaft is 130mm, the diameter is 8mm, and the material is quenched hard shaft, with high accuracy

There are 4 shock absorbing leather feet installed at the bottom, which slow down vibration and eliminate noise very well
