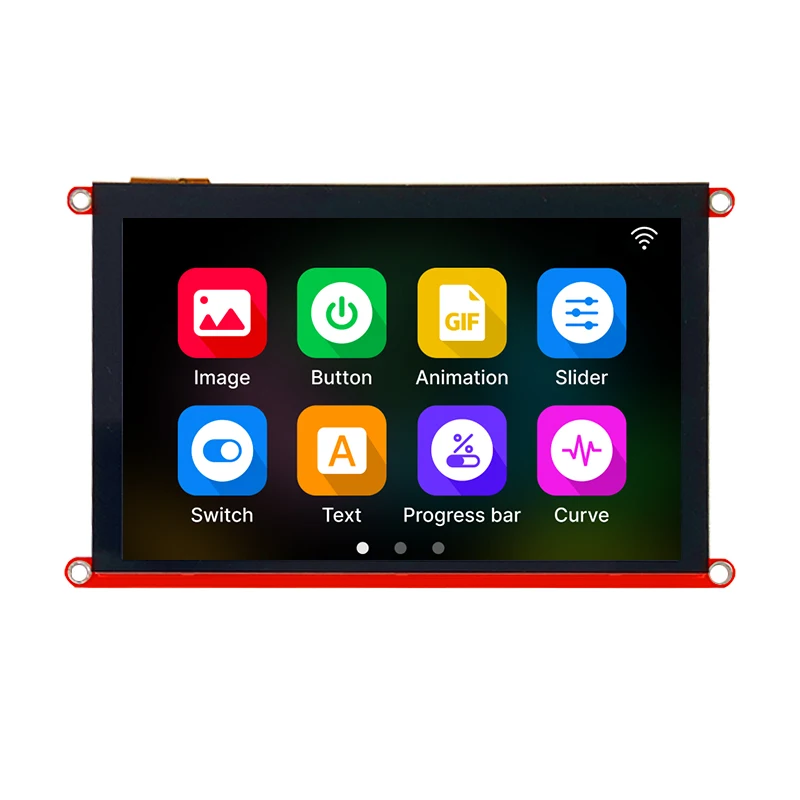

HMI interface screen 5.0 inch capacitive touch IPS or without touch 800x480 400M

Product Description

Note: WiFi is not standard. To get WiFi, choose a model with WiFi

[400MHz main frequency HMI 5.0-inch display] TFT IPS LCD touch free or capacitive touch display, resolution 800 * 480, frequency up to 400MHz, 16M FLASH, supports audio and video, optional wireless communication 2.4 GHz Wi Fi;

[Upper level software development interface] Supports upper level software development interface, drag and drop method, rich controls, simple development, three minute manual interface development, online compilation, supports simulation;

【 Rich interfaces, easy to use 】 Rich peripheral interfaces and extended functions, plug and play, enable it to meet the needs of different fields.

Description

The GUITION JC8048Q350 monitor is a powerful HMI touch screen (capacitive touch screen is optional) with an 800 * 480 resolution LCD display. It uses a 400MHz chip as the main control processor, with optional WiFi and onboard RTC functions. It has audio and video capabilities and reserved multiple IO for users to use, with powerful performance and wide applications, suitable for IoT application devices and other human-machine interface display scenarios.

This module includes a 5.0-inch LCD display and a driver board. In addition, the board also reserves TF card slots, multiple peripheral interfaces, Type-C interfaces, and speaker interfaces, providing more expansion possibilities. It supports the upper software development interface of GUITION, which can communicate with the user MCU through serial port. This allows developers to not only customize their own UI interface, but also quickly and easily create interesting projects, greatly shortening the development cycle.

The GUITION JC8048Q350 monitor 5.0-inch module is suitable for various scenarios, such as automotive HMI, medical equipment, industrial control, power, civil electronics, automation, GPS, new energy, and IoT application devices. Its rich interface and extended functions enable it to meet the needs of different fields and provide users with more comprehensive solutions.

Support GUITION upper software environments

It supports GUITION upper software development environment, Developing software is permanently free, with rich controls and easy to use, to meet the needs of different developers and make every project development simpler.

Powerful functionality and abundant peripherals

Application Scenario

Hardware Overview

Specification

● Model: JC8048Q350 display

● Main Processor: D121BBV 400MHz

● Resolution: 800*480

● Touch Type: Capacitive Touch Screen OR Without Touch

● Display Type: IPS Panel

● Screen: TFT-LCD Screen

● Display driver: ST7262

● External power supply: DC5V-2A

●Interface: 1*TF Card Slot, 6* GPIO, 1*Speak, 1* UART0

● Button: BOOT Button and Reset Button

● Active Area: 108.0*64.8mm(W*H)

Package List

• 1x JC8048Q350 display

• 1x Plastic packaging box
