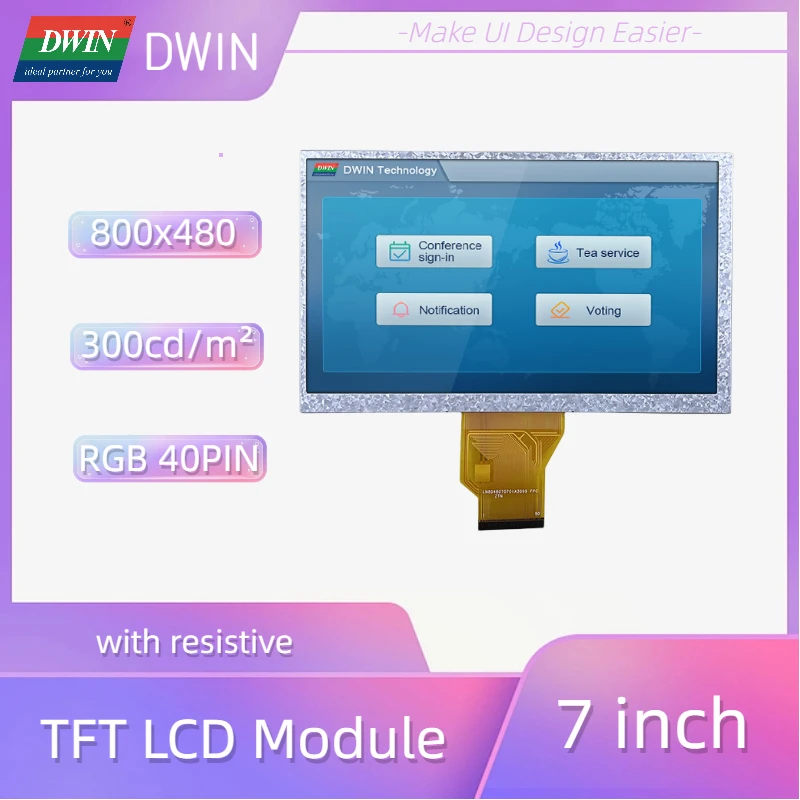

Hot-selling 7 Inch 800x480 RGB 50PIN 300nit TN TFT LCD Display With Resistive To

Product Description

DWIN Hot-selling 7 Inch 800x480 RGB 50PIN 300nit TN TFT LCD Display With Resistive Touch LN80480T070IA3098

High standard: OEM A-grade glass, 30 days charged aging, no bad pixels and full inspection

Support customization for TFT LCD, such as interface, luminance, wide temperature, FPC length&shape, Anti-glare

Prodcut Specification

Feature

Description

Unit

Display Spec.

Size

7.0

inch

Resolution

800(H)*480(V)

pixels

Pixel Configuration

RGB stripe

-

Pixel Pitch

0.1926(H)*0.1790(V)

mm

Viewing Direction

6 o’clock

-

Mechanical

Characteristics

Outside Dimension

165.0(W)*100.0(H)*3.5(D)

mm

Active Area

154.08(W)*85.92(H)

mm

Luminance

300

cd/m²

LED Numbers

21 LEDS

-

Pin Order

From left to right

50PIN_0.5mm

-

Weight

-

g

Electrical
Characteristics

Interface

RGB_24bi\t

-

Color Depth

16.7M

colors

Driver Condition

3.3(Type)

V

Driver IC

ILI5960/EK73002AB2+ILI6122/ILI6137A-00T004/EK9713CA

-

Temperature

Range

Operating Temp.

-20~70

℃

Storage Temp.

-30~80

℃

Electrical Characteristics

Item

Symbol

Min.

Typ.

Max.

Unit

Remark

Digital Voltage

DVDD

2.8

3.3

3.6

V

Gate Driver High Voltage

VGH

14.5

15

15.5

V

Gate Driver Low Voltage

VGL

-10.5

-10

-9.5

V

Analog Voltage

AVDD

10.2

10.4

10.6

V

Input Signal Voltage

VCOM

3.54

(4.04)

4.54

V

Input Logic High Voltage

VIH

0.7DVDD

-

DVDD

V

Input Logic Low Voltage

VIL

GND

-

0.3DVDD

V

Output Logic High Voltage

VOH

DVDD-0.3

-

DVDD

V

Output Logic Low Voltage

VOL

GND

-

0.4

V

Item

Symbol

Min.

Typ.

Max.

Unit

Remark

Forward Voltage

VF

8.4

9.0

9.9

V

Forward Current

IF

-

160

-

mA

Luminance

Lv

-

250

-

cd/m2

Power Consumption

PLED

-

1260

-

mW

Uniformity(withL/G)

Avg

75

80

-

%

LED Life-Time

Hr

-

30000

-

Hour

Input/Output Terminals

PIN NO.

Symbol

Function

Remark

1-2

LEDA

Backlight anode

3-4

LEDK

Backlight cathode

5

GND

Ground

6

VCOM

For external VCOM DCinput

7

DVDD

Digital Power

8

MODE

DE/SYNC mode select

9

DE

Data ENABLE signal

10

VS

Frame synchronizing signal

11

HS

Line synchronizing signal

12-19

B7-B0

Data bus

20-27

G7-G0

Data bus

28-35

R7-R0

Data bus

36

GND

Ground

37

DCLK

Dot clock signal

38

GND

Ground

39

L/R

Source right or left sequencecontrol.

40

U/D

Gate up or down scancontrol

41

VGH

Positive Power for TFT

42

VGL

Negative Power for TFT

43

AVDD

Analog Power

44

RESET

Global reset signal pin. Active low to enterresetstate. Suggest toconnecting with an RC resetcircuitfor stability. Normally pullhigh.

45

NC

Not connect

46

VCOM

Forexternal VCOM DCinput

47

DITHB

Dithering setting. DITH= “H” 6bitresolution;DITH= “L” 8bit resolution (default setting)

48

GND

Ground

49

NC

Not connect

50

NC

Not connect

Optical Characteristics

Item

Symbol

Condition

Min.

Typ.

Max.

Unit

Remark

Viewing Angle

Top

CR≧10

-

70

-

Deg.

Bottom

-

50

-

Left

-

70

-

Right

-

70

-

Contrast Ratio

CR

θ=0°

500

800

-

Response Time

Tr+Tf

θ=0°

-

25

50

ms

Color Chromaticity

(CIE1931)

Wx

θ=0°

0.290

0.310

0.330

Wy

0.310

0.330

0.350

Rx

0.561

0.581

0.601

Ry

0.291

0.311

0.331

Gx

0.291

0.311

0.331

Gy

0.535

0.555

0.575

Bx

0.116

0.136

0.156

By

0.099

0.119

0.139

Color Gamut

NTSC

θ=0°

41

51

-

%

Resistive Touch Parameters(LN80480T070IA3098-TR)

Feature

Description

Type

RTP (Resistive touch panel)

Structure

ITO Film+ ITO Glass+ FPC

Outline Size(mm)

163.8(L)*97.8(W)*1.5(T)

Active Area(mm)

153.68(L)*86.18W)

Surface Hardness

3H

Light Transmittance

78%±3%

Operating Temperature

-20~70℃

Storage Temperature

-30~80℃

Life

Over 1,000,000 times touch
