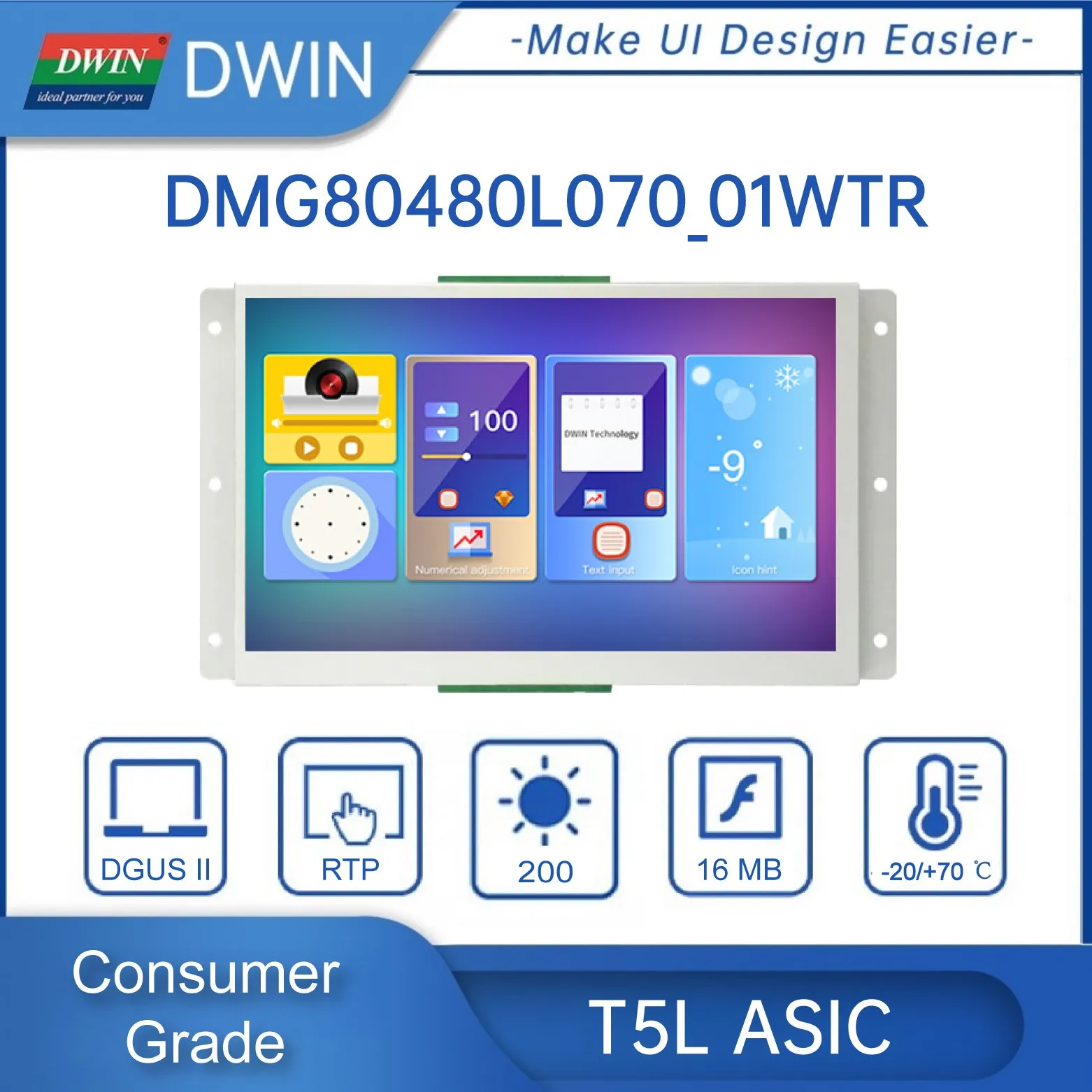

7.0 Inch Display LCD HMI Intelligent Module, Resistive Touch Panel, 800*RGB*480,

Product Description

Features

• T5L platform , 7.0 Inch, 16.7M Colors, 800*480 Pixel TFT LCD

• Resistive touch panel

• TTL/RS232 available

• 8Pin_2.0mm connection wire

• Two Development modes: DGUS II/ TA(Instruction set)

• Support animation ,data ,text ,curve display and so on ,without any code

• Independent GUI and OS kernal ,OS can be programmed by DWIN OS language or Keil C51


Display parameters

LCD Type

TN, TFT LCD

Viewing Angle

Normal viewing angle, 70°/70°/50°/70° (L/R/U/D)

Resolution

800×480 pixels (0°/90°/180°/270°)

Color

24-bit 8R8G8B

Active Area (A.A.)

153.8mm (W) ×85.6mm (H)

Visual Area (V.A.)

156.4mm (W) ×88.5mm (H)

Backlight Mode

LED

Backlight Service Life

>10000 hours (Time of the brightness decaying to 50%on theconditionofcontinuous working with the maximum brightness)

Brightness

200nit

Brightness Control

0~100 grade (When the brightness is adjusted to 1%~30%of themaximumbrightness, flickering may occur and is not recommended to use in thisrange)

Serial interface parameters

Mode

Mode is determined by Jumper: (Default to TTL/CMOS mode)
ON =TTL/CMOS; OFF=RS232

Voltage Level

Test Condition

Min

Typ

Max

Unit

Output 1, Iout = -4mA

4.78

5.0

-

V

Output 0, Iout = 4mA

-

-

0.4

V

Input 1

2.5

5.0

-

V

Input 0

-

-

1.0

V

Baud Rate

3150~3225600bps, typical value of 115200bps

Data Format

N81

Interface Cable

8Pin_2.0mm

Electrical specifications

Rated Power

<5W

Operating Voltage

6.0~15.0V, typical value of 12V

Operating Current

200mA

VCC=12V, max backlight

80mA

VCC=12V, backlight off

Recommended power supply: 12V 1A DC

Operating environment

Operating Temperature

-20℃~70℃(12V @ 60% RH)

Storage Temperature

-30℃~80℃

Conformal Coating

None

Operating Humidity

10%~90%RH, typical value of 60% RH

FAQ

Question 1:

How can I start development with a DWIN LCD Module? Can I assemble it directly on my machine?
Answer:

No, you should update the program to LCD at first, and then assemble it.
Step 1, check the software platform of the screen, it mentioned in datasheet.
Step 2, use the correct development SDK (different platform use different SDK) to finish developing.
Step 3, update software program and test
Step 4, when test OK, assemble it on machine.

Question 2:

What industries are DWIN LCD used in?
Answer:

Beauty machine, Physical therapy, Health and fitness, Medical treatment, Air treatment, Air control, Transportation (Car &ship instruments), instruments and apparatus automation, Electricity, Water treatment, IC design and manufacture, Kitchen appliances (Juicer, oven, ice machine, ice-cream machine, kitchen ventilator), New energy(Photovoltaic, Wind electricity, Charging Pile), Household appliances…

Question 3:

Does DWIN product need a MOQ when purchase?
Answer:

No MOQ for standard product.

Question 4:

Will DWIN have online technical support?
Answer:

Yes,of course, below ways you can get technical support.

- Whatsapp: +86 19192113166
- Customer service email: dwinhmi@dwin.com.cn

- DWIN Developer Forum:

International website:

- Development tool:

- Development guide:

- DGUS video tutorial:
- Leave messages to us on Aliexpress.
