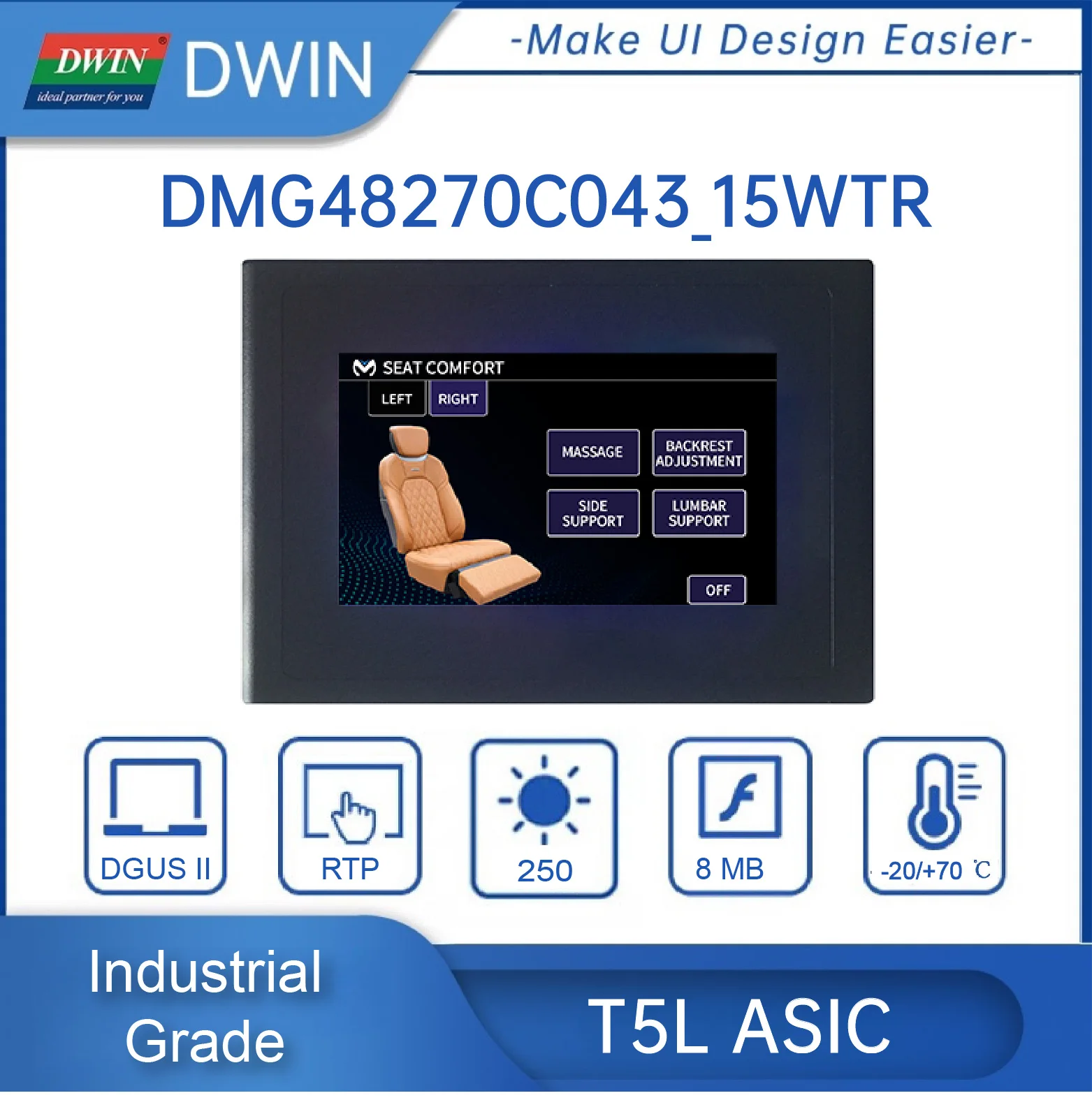

4.3-inch LCM TFT LCD 480*272 Commercial Grade HMI Display Module RGB Interface T

Product Description

Features

• Based on T5L0, running DGUS II system, commercial grade.

• 4.3-inch, 480*272 pixels resolution, 262K colors, TV-TN-TFT-LCD.

• Resistive touch screen.

• 8MB memory, With enclosure.

• Note: You need to change the line sequence of the cable (HDL65011 and HDL65013) to use.

Display parameters

LCD Type

TV-TN, TFT LCD

Viewing Angle

TV viewing angle, 70°/70°/40°/30°（L/R/U/D）

Resolution

480×272 pixels (support 0°/90°/180°/270°)

Color

18-bit 6R6G6B

Active Area (A.A.)

95.00mm (W)×53.90mm (H)

Backlight Mode

LED

Backlight Service Life

>10000 hours (Time of the brightness decaying to 50%on the condition of continuous working with the maximum brightness)

Brightness

200nit

Brightness Control

100-level brightness adjustment (Flickering may occur at 1%-30%of max brightness; not recommended for use in this range)

Touch parameters

Type

RTP (Resistive touch panel)

Structure

ITO film + ITO glass

Touch Mode

Single point touch, support continuous sliding touch

Surface Hardness

3H

Light Transmittance

78%±3%

Serial interface parameters

Mode

UART2: RS232
UART4: RS485( Only available after OS configuration)

UART2
Voltage Level

Test Condition

Min

Typ

Max

Unit

Output 1

-

-5.0

-3.0

V

Output 0

3.0

5.0

-

V

Input 1

-15.0

-5.0

-

V

Input 0

-

5.0

15.0

V

UART2
Baud Rate

3150~3225600bps, typical value of 115200bps

UART4
Voltage Level

Test Condition

Min

Typ

Max

Unit

Output 1

2.5

5.0

-

V

Output 0

-

-5.0

-2.5

V

Input 1

0

2.5

-

V

Input 0

-

-2.5

-0.2

V

UART4
Baud Rate

3150~921600bps, typical value of 115200bps

Data Format

UART2: N81
UART4: N81/E81/O81/N82 ,4 modes (OS configuration)

Interface Cable

8Pin_2.0mm

Electrical specifications

Rated Power

<5W

Operating Voltage

9-36V, typical value of 12V

Operating Current

103mA

VCC=12V, max backlight

50mA

VCC=12V, backlight off

Recommended power supply: 12V 1A DC

Operating environment

Operating Temperature

-20℃~70℃(12V @ 60% RH)

Storage Temperature

-30℃~80℃

Conformal Coating

No

Operating Humidity

10%~90%RH, typical value of 60% RH

Dimensions

Form Factor

140.00mm (W)×98.00mm (H) ×22.10mm (T)

Net Weight

185g

FAQ

Question 1:

How can I start development with a DWIN LCD Module? Can I assemble it directly on my machine?
Answer:

No, you should update the program to LCD at first, and then assemble it.
Step 1, check the software platform of the screen, it mentioned in datasheet.
Step 2, use the correct development SDK (different platform use different SDK) to finish developing.
Step 3, update software program and test
Step 4, when test OK, assemble it on machine.

Question 2:

What industries are DWIN LCD used in?
Answer:

Beauty machine, Physical therapy, Health and fitness, Medical treatment, Air treatment, Air control, Transportation (Car &ship instruments), instruments and apparatus automation, Electricity, Water treatment, IC design and manufacture, Kitchen appliances (Juicer, oven, ice machine, ice-cream machine, kitchen ventilator), New energy(Photovoltaic, Wind electricity, Charging Pile), Household appliances…

Question 3:

Does DWIN product need a MOQ when purchase?
Answer:

No MOQ for standard product.

Question 4:

Will DWIN have online technical support?
Answer:

Yes,of course, below ways you can get technical support.
- Whatsapp: +86 19192113166
- Customer service email: dwinhmi@dwin.com.cn

- DWIN Developer Forum:

International website:
- Leave messages to us on Aliexpress.
