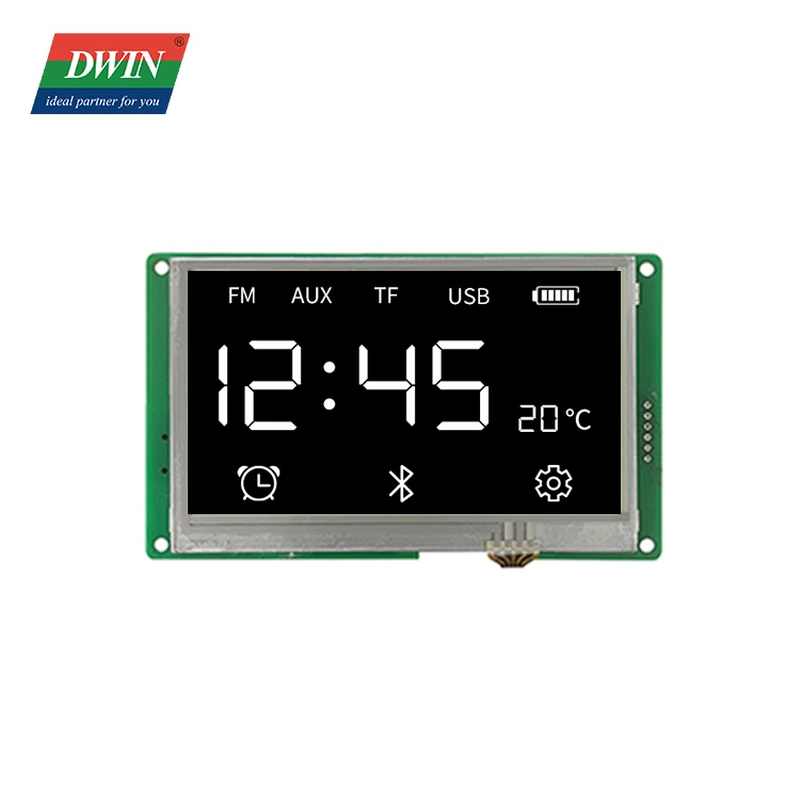

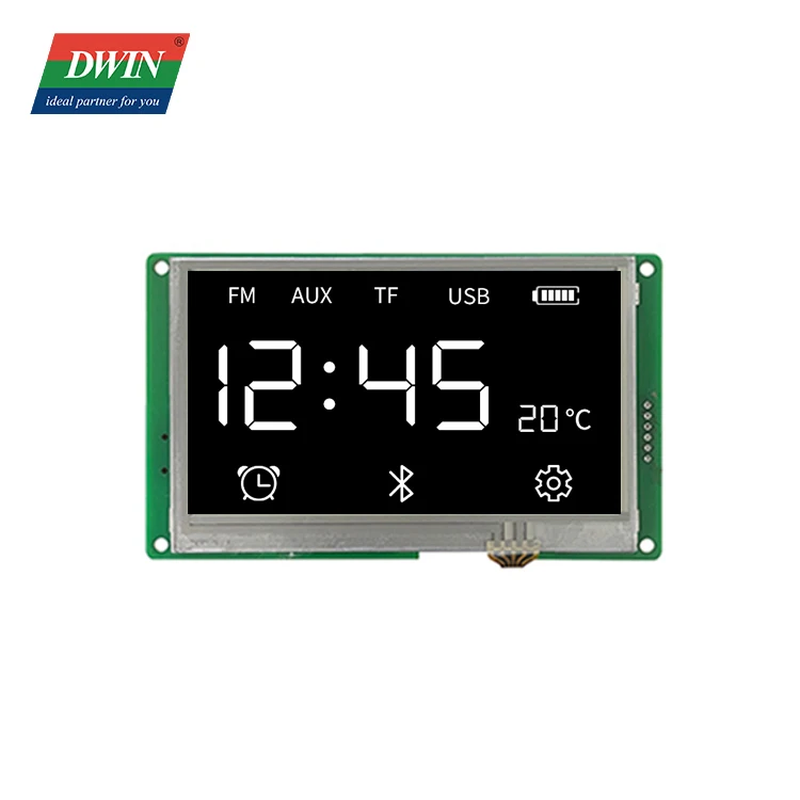

4.3 inch 480*272 Pixels Resolution 262K Colors TV-TN-TFT-LCD Commercial Grade D

Product Description

Features

• Based on T5L0, running DGUS II system, commercial grade.

• 4.3-inch, 480*272 Pixels resolution, 262K Colors, TV-TN-TFT-LCD.

Display parameters

LCD Type

TV-TN, TFT LCD

Viewing Angle

TV viewing angle, 70°/70°/40°/30°(L/R/U/D)

Resolution

480×272 pixels (0°/90°/180°/270°)

Color

18-bit 6R6G6B

Active Area (A.A.)

95.04mm (W)×53.86mm (H)

Backlight Mode

LED

Backlight Service Life

>10000 hours (Time of the brightness decaying to 50% on the condition of continuous working with the maximum brightness)

Brightness

WTC:250nit
WTR:200nit
WN:300nit

Brightness Control

0~100 grade (When the brightness is adjusted to 1%~30% of the maximum brightness, flickering may occur and is not recommended to use in this range)

Serial interface parameters

Mode

UART2: ON=TTL/CMOS; OFF=RS232
UART4: ON=TTL/CMOS; OFF=RS232 (Only available after OS configuration)

Voltage Level

Test Condition

Min

Typ

Max

Unit

Output 1, Iout = -4mA

2.7

3.2

-

V

Output 0, Iout = 4mA

-

0.1

0.4

V

Input 1

2.4

3.3

5.5

V

Input 0

0

-

1.0

V

Baud Rate

3150~3225600bps, typical value of 115200bps

Data Format

UART2: N81
UART4: N81/E81/O81/N82 , 4 modes (OS configuration)

Interface Cable

10Pin_1.0mm

Electrical specifications

Rated Power

<5W

Operating Voltage

4.5~5.5V, typical value of 5V

Operating Current

200mA

VCC=5V, max backlight

70mA

VCC=5V, backlight off

Recommended power supply: 5V 1A DC

Operating environment

Operating Temperature

-10℃~60℃(5V @ 60% RH)

Storage Temperature

-20℃~70℃

Conformal Coating

None

Operating Humidity

10%~90%RH, typical value of 60% RH

Dimensions

Form Factor

WTC:121.92mm (W)×73.15mm (H)×15.60mm (T)
WTR:121.92mm (W)×73.15mm (H)×15.30mm (T)
WN:121.92mm (W)×73.15mm (H)×13.80mm (T)

Installation Dimensions

Positioning hole: 106.50(+0.3mm)×68.30(+0.3mm)

Net Weight

WTC:125g
WTR:115g
WN:105g

FAQ

Question 1:

How can I start development with a DWIN LCD Module? Can I assemble it directly on my machine?
Answer:

No, you should update the program to LCD at first, and then assemble it.
Step 1, check the software platform of the screen, it mentioned in datasheet.
Step 2, use the correct development SDK (different platform use different SDK) to finish developing.
Step 3, update software program and test
Step 4, when test OK, assemble it on machine.

Question 2:

What industries are DWIN LCD used in?
Answer:

Beauty machine, Physical therapy, Health and fitness, Medical treatment, Air treatment, Air control, Transportation (Car &ship instruments), instruments and apparatus automation, Electricity, Water treatment, IC design and manufacture, Kitchen appliances (Juicer, oven, ice machine, ice-cream machine, kitchen ventilator), New energy(Photovoltaic, Wind electricity, Charging Pile), Household appliances…

Question 3:

Does DWIN product need a MOQ when purchase?
Answer:

No MOQ for standard product.

Question 4:

Will DWIN have online technical support?
Answer:

Yes,of course, below ways you can get technical support.
- Whatsapp: +86 19192113166
- Customer service email: dwinhmi@dwin.com.cn

- DWIN Developer Forum:

- International website:
- Leave messages to us on Aliexpress.
