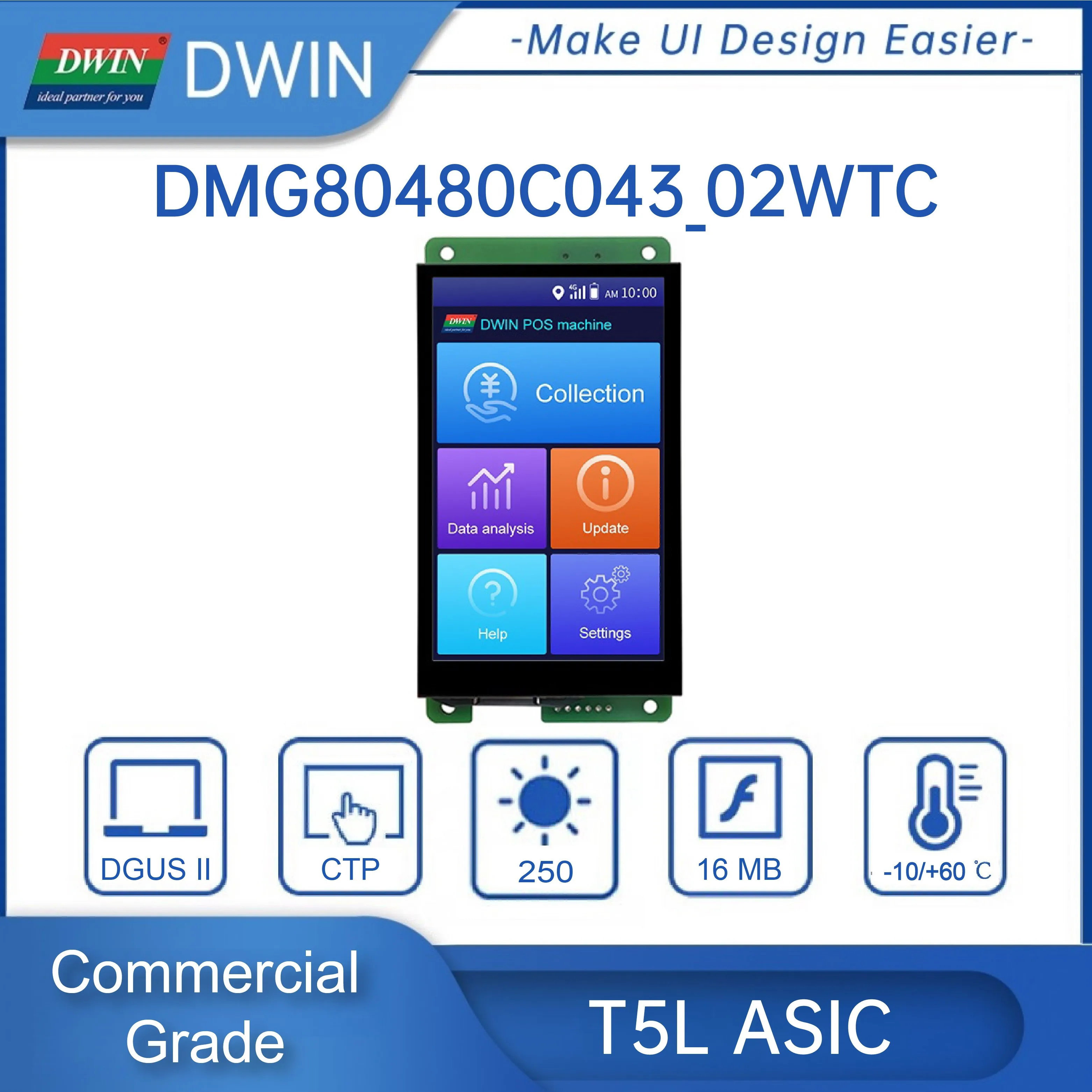

4.3 Inch 480*800 TFT LCD HMI Display Module TTL UART IPS Capacitive/Resistive To

Product Description

Features

• Based on self-designed T5L1 ASIC, 16.7M Color, 24bit, 480*800 Pixel TFT LCD

• No touch screen/Resistive touch screen/Capacitive touch screen Optional

• TTL Interface,10Pin1.0mm FCC connection wire

• Download via SD card or on-line serial port

• Easy-to-use DWIN DGUS II GUIs Development, no coding skills required

• Dual Development System: DGUS II/ TA(Instruction set)

• IPS View Angle: 85/85/85/85 (L/R/U/D)

DMG80480C043_02W

Display parameters

LCD Type

IPS, TFT LCD

Viewing Angle

Wide viewing angle, 85°/85°/85°/85°（L/R/U/D）

Resolution

480×800 pixels (support 0°/90°/180°/270°)

Color

24-bit 8R8G8B

Active Area (A.A.)

56.16mm (W) ×93.6mm (H)

View Area (V.A.)

WTC:56.6mm (W) ×94.0mm (H)
WTR&WN:-

Backlight Mode

LED

Backlight Service Life

>10000 hours (Time of the brightness decaying to 50% on the condition of continuous working with the maximum brightness)

Brightness

WTC:250nit
WTR:250nit
WN:300nit

Brightness Control

0~100 grade (When the brightness is adjusted to 1%~30% of the maximum brightness, flickering may occur and is not recommended to use in this range)

Serial interface parameters

Mode

UART2: ON=TTL/CMOS
UART4: ON=TTL/CMOS(Only availableafter OS configuration)

Voltage Level

Test Condition

Min

Typ

Max

Unit

Output 1, Iout = -4mA

3.0

3.3

-

V

Output 0, Iout = 4mA

-

0

0.3

V

Input 1

2.4

3.3

5.0

V

Input 0

0

-

0.5

V

Baud Rate

3150~3225600bps, typical value of 115200bps

Data Format

UART2: N81
UART4: N81/E81/O81/N82 ,4 modes (OS configuration)

Interface Cable

10Pin_1.0mm

Electrical specifications

Rated Power

<5W

Operating Voltage

4.5~5.5V, typical value of 5V

Operating Current

260mA

VCC=5V, max backlight

80mA

VCC=5V, backlight off

Recommended power supply: 5V 1A DC

Operating environment

Operating Temperature

-10℃~60℃(5V @ 60% RH)

Storage Temperature

-20℃~70℃

Conformal coating

None

Operating Humidity

10%~90%RH, typical value of 60% RH

Electrostatic discharge test

Test temperature: 25°C. Test humidity: 50%RH.
Test process: the product was placed on the test bench to perform contact and air discharge in turn of the serial screen iron frame and display area . During the experimental process, it was observed whether the screen is dead, black, white, splash, or reboot. According to the experiment results,the performance is in line with the criteria GB/T 17626.2 B level and above.

Discharge Type

Discharge Value

Result

Contact discharge

±4KV

Normal operation

Air discharge

±4KV

Normal operation

Packaging & dimensions

Form Factor

WTC:63.0mm (W)×120.7mm (H)×14.1mm (T)
WTR:63.0mm (W)×120.7mm (H)×13.8mm (T)
WN:63.0mm (W)×120.7mm (H)×12.3mm (T)

Installation Dimensions

WTC:Positioning hole: 103.7(+0.3mm)×63.0(+0.3mm)
WTR&WN:Positioning hole: 103.7(+0.3mm)×62.0(+0.3mm)

Net Weight

WTC:105g
WTR:100g
WN:80g

Packaging Standards

Model

Dimensions

Layer

Quantity/Layer

Quantity(Pcs)

Carton1：

220mm(L)×160mm(W)×47mm (H)

1

2

2

Carton2：

250mm(L)×200mm(W)×80mm (H)

2

2

4

Carton3：

320mm(L)×270mm(W)×80mm (H)

2

4

8

Carton4：

450mm(L)×350mm(W)×300mm(H)

2

30

60

Carton5：

600mm(L)×450mm(W)×300mm(H)

3

40

120

FAQ

Question 1:

How can I start development with a DWIN LCD Module? Can I assemble it directly on my machine?
Answer:

No, you should update the program to LCD at first, and then assemble it.
Step 1, check the software platform of the screen, it mentioned in datasheet.
Step 2, use the correct development SDK (different platform use different SDK) to finish developing.
Step 3, update software program and test
Step 4, when test OK, assemble it on machine.

Question 2:

What industries are DWIN LCD used in?
Answer:

Beauty machine, Physical therapy, Health and fitness, Medical treatment, Air treatment, Air control, Transportation (Car &ship instruments), instruments and apparatus automation, Electricity, Water treatment, IC design and manufacture, Kitchen appliances (Juicer, oven, ice machine, ice-cream machine, kitchen ventilator), New energy(Photovoltaic, Wind electricity, Charging Pile), Household appliances…

Question 3:

Does DWIN product need a MOQ when purchase?
Answer:

No MOQ for standard product.

Question 4:

Will DWIN have online technical support?
Answer:

Yes,of course, below ways you can get technical support.

- Whatsapp: +86 19192113166
- Customer service email: dwinhmi@dwin.com.cn

- DWIN Developer Forum:

International website:

- Development tool:

- Development guide:

- DGUS video tutorial:
- Leave messages to us on Aliexpress.
