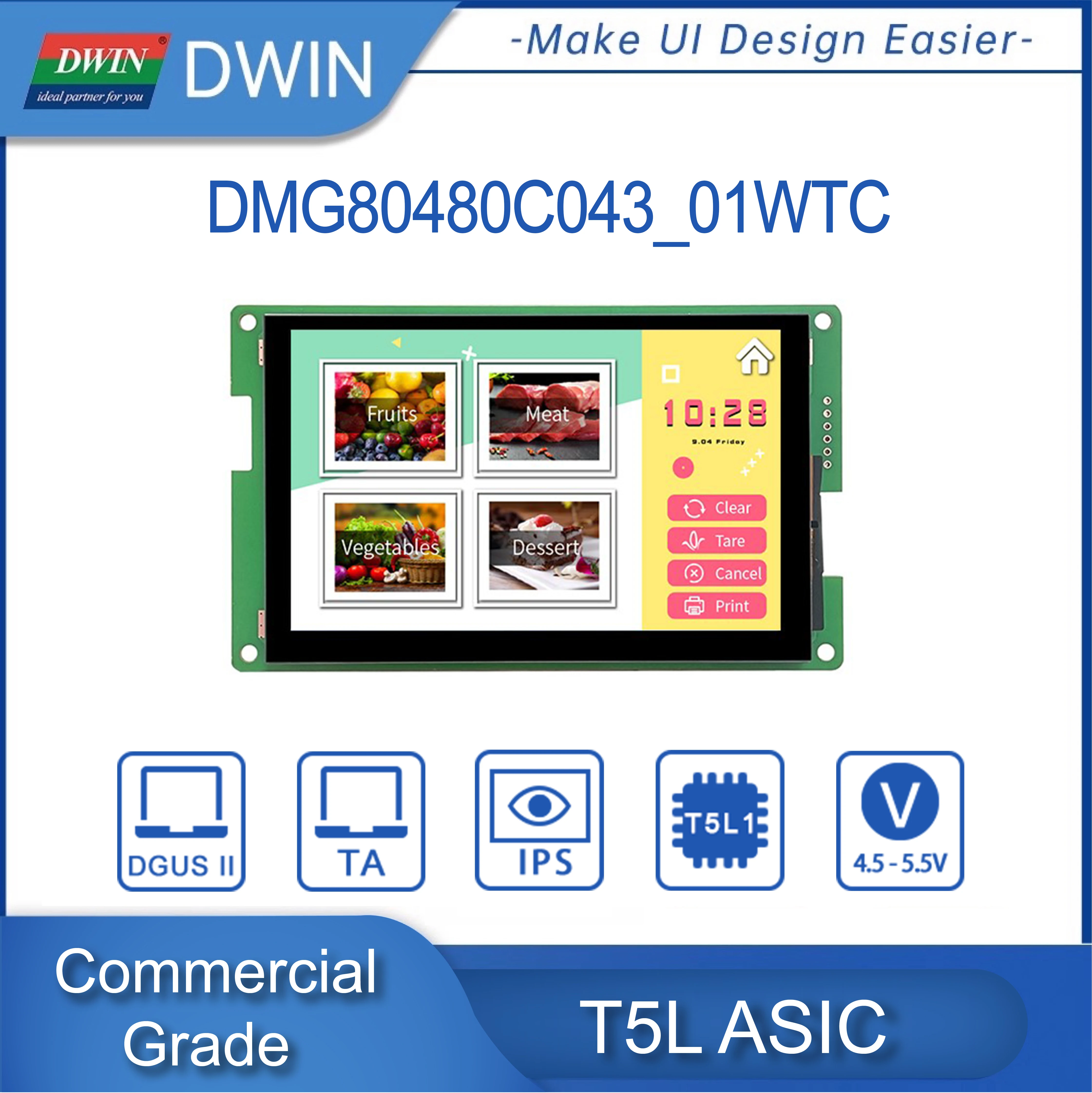

4.3 Inch TFT LCD Module 800*480 Pixel Commercial Touch Screen TTL Smart Didplays

Product Description

Features:

● Based on T5L1, running DGUS II system, commercial grade.

● 4.3-inch, 480*800 pixels resolution, 16.7M colors, IPS-TFT-LCD, wide viewing angle.

● DMG80480C043_02W: Narrow border.

● No touch screen: DMG80480C043_01WN, DMG80480C043_02WN.

● Resistive touch screen: DMG80480C043_01WTR, DMG80480C043_02WTR.

● Capacitive touch screen: DMG80480C043_01WTC, DMG80480C043_02WTC.

DMG80480C043_01WN

DMG80480C043_01WTR

DMG80480C043_01WTC

DMG80480C043_02WN

DMG80480C043_02WTR

DMG80480C043_02WTC

DMG80480C043_01W

Hardware and interface description

T5L1 ASIC

Developed by DWIN. Mass production in 2019,1MBytes Nor Flash on the chip, 512KBytes used to store the user database. Rewrite cycle: over 100,000 time.

LCM interface

FPC40_0.5mm, RGB interface

User interface

10Pin_1.0mm latching socket for power supply and serial communication. Download rate(typical value): 12KByte/s

Flash

16MBytes NOR Flash, for fonts, pictures and audio files. Rewrite cycle: over 100,000 times

Buzzer

3V passive buzzer. Power: <1W

SD interface

FAT32. Download files by SD interface can be displayed in statistics. Download rate: 4Mb/s

Reserved module interface

Wi-Fi module: connect to the cloud platform to update remotely
USB module: download files by USB flash disk

PGT05 interface

When product crashes by accident, you can use PGT05 to update DGUS kernel and make the product return to normal

Display

Color

24-bit 8R8G8B

LCD Type

IPS-TFT-LCD

Viewing Angle

Wide viewing angle, 85°/85°/85°/85° (L/R/U/D)

Active Area (A.A.)

93.6mm (H) ×56.16mm (W)

View Area (V.A.)

DMG80480C043_01WN, DMG80480C043_01WTR: 94.4mm (H) ×57.0mm (W)
DMG80480C043_01WTC: -

Resolution

480*800 pixels (0°/90°/180°/270°)

Backlight

LED

Backlight Service Life

>20000 hours (Time of the brightness decaying to 50% on the condition of continuous working with the maximum brightness)

Brightness

DMG80480C043_01WN: 300 nit

DMG80480C043_01WTR, DMG80480C043_01WTC: 250 nit

Touch parameters

DMG80480C043_01WN: No Touch

DMG80480C043_01WTR

Type

RTP (Resistive touch screen)

Structure

ITO film + ITO glass

Touch Mode

Support point touch and drag

Surface Hardness

3H

Light Transmittance

Over 80%

Life

Over 1,000,000 times touch

DMG80480C043_01WTC

Type

CTP (Capacitive touch panel)

Structure

G+G structure with surface cover of Asahi tempered glass

Touch Mode

Support point touch and drag

Surface Hardness

6H

Light Transmittance

Over 90%

Life

Over 1,000,000 times touch

Serial interface parameters

Mode

UART2: TTL/CMOS;
UART4: TTL/CMOS; (Only available after OS configuration)

Voltage Level

Output 1, Iout = 1mA;3.0~3.3 V

Output 0, Iout =-1mA;0~0.3V

Input 1, lin=1mA, 2.4~5.0V

Input 0, lin=-1mA, 0~0.5V

Baudrate

3150~3225600bps, typical value of 115200bps

Data Format

UART2: N81
UART4: N81/E81/O81/N82 ,4 mods(OS configuration)

Interface Cable

10Pin_1.0mm

Electrical specifications

Rated Power

<5W

Operating Voltage

4~4.5V, typical value of 5V

Operating Current

VCC=5V, max backlight, 250mA

VCC=5V, backlight off, 80mA

Recommended power supply: 5V 1A DC

Operating environment

Operating Temperature

-20~70℃(5V @ 60% RH)

Storage Temperature

-30~80℃

Operating Humidity

10%~90%RH, typical value of 60% RH

Dimensions

Form Factor

DMG80480C043_01WN: 121.9mm (W)×73.2mm (H)×12.5mm(T)
DMG80480C043_01WTR: 121.9mm (W)×73.2mm (H)×14.1mm(T)
DMG80480C043_01WTC:121.9mm (W)×73.2mm (H)×14.3mm (T)

Installation Dimensions

Positioning hole: 106.50(+0.3mm)×68.30(+0.3mm)

Net Weight

DMG80480C043_01WN: 95g
DMG80480C043_01WTR: 110g
DMG80480C043_01WTC: 125g

DMG80480C043_02W

Hardware and interface description

T5L1 ASIC

Developed by DWIN. Mass production in 2019,1MBytes Nor Flash on the chip, 512KBytes used to store the user database. Rewrite cycle: over 100,000 time.

LCM interface

FPC40_0.5mm, RGB interface

User interface

10Pin_1.0mm latching socket for power supply and serial communication. Download rate(typical value): 12KByte/s

Flash

16MBytes NOR Flash, for fonts, pictures and audio files. Rewrite cycle: over 100,000 times

Buzzer

3V passive buzzer. Power: <1W

SD interface

FAT32. Download files by SD interface can be displayed in statistics. Download rate: 4Mb/s

Reserved module interface

Wi-Fi module: connect to the cloud platform to update remotely
USB module: download files by USB flash disk

PGT05 interface

When product crashes by accident, you can use PGT05 to update DGUS kernel and make the product return to normal

Display

Color

24-bit 8R8G8B

LCD Type

IPS-TFT-LCD

Viewing Angle

Wide viewing angle, 85°/85°/85°/85° (L/R/U/D)

Active Area (A.A.)

56.16mm (W) ×93.6mm (H)

Resolution

480*800 pixels (0°/90°/180°/270°)

Backlight

LED

Backlight Service Life

>10000 hours (Time of the brightness decaying to 50% on the condition of continuous working with the maximum brightness)

Brightness

DMG80480C043_02WN: 300 nit

DMG80480C043_02WTR, DMG80480C043_02WTC: 250 nit

Touch parameters

DMG80480C043_02WN: No Touch

DMG80480C043_02WTR

Type

RTP (Resistive touch )

Structure

ITO film + ITO glass

Touch Mode

Support point touch and drag

Surface Hardness

3H

Light Transmittance

Over 80%

Life

Over 1,000,000 times touch

DMG80480C043_02WTC

Type

CTP (Capacitive touch panel)

Structure

G+G structure with surface cover of Asahi tempered glass

Touch Mode

Support point touch and drag

Surface Hardness

6H

Light Transmittance

Over 90%

Life

Over 1,000,000 times touch

Serial interface parameters

Mode

UART2: TTL/CMOS;
UART4: TTL/CMOS; (Only available after OS configuration)

Voltage Level

Output 1, Iout = 1mA;3.0~3.3 V

Output 0, Iout =-1mA;0~0.3V

Input 1, lin=1mA, 2.4~5.0V

Input 0, lin=-1mA, 0~0.5V

Baudrate

3150~3225600bps, typical value of 115200bps

Data Format

UART2: N81
UART4: N81/E81/O81/N82 ,4 mods(OS configuration)

Interface Cable

10Pin_1.0mm

Electrical specifications

Rated Power

<5W

Operating Voltage

4~4.5V, typical value of 5V

Operating Current

VCC=5V, max backlight, 260mA

VCC=5V, backlight off, 80mA

Recommended power supply: 5V 1A DC

Operating environment

Operating Temperature

-20~70℃(5V @ 60% RH)

Storage Temperature

-30~80℃

Operating Humidity

10%~90%RH, typical value of 60% RH

Dimensions

Form Factor

DMG80480C043_02WN, DMG80480C043_02WTR: 63.0mm (W)×120.7mm (H)×13.8mm(T)
DMG80480C043_02WTC: 63.0mm (W)×120.7mm (H)×14.1mm(T)

Installation Dimensions

Positioning hole: 103.7(+0.3mm)×62.0(+0.3mm)

Net Weight

DMG80480C043_02WN: 80g
DMG80480C043_02WTR: 100g
DMG80480C043_02WTC: 105g

FAQ

Question 1:

How can I start development with a DWIN LCD Module? Can I assemble it directly on my machine?
Answer:

No, you should update the program to LCD at first, and then assemble it.
Step 1, check the software platform of the screen, it mentioned in datasheet.
Step 2, use the correct development SDK (different platform use different SDK) to finish developing.
Step 3, update software program and test
Step 4, when test OK, assemble it on machine.

Question 2:

What industries are DWIN LCD used in?
Answer:

Beauty machine, Physical therapy, Health and fitness, Medical treatment, Air treatment, Air control, Transportation (Car &ship instruments), instruments and apparatus automation, Electricity, Water treatment, IC design and manufacture, Kitchen appliances (Juicer, oven, ice machine, ice-cream machine, kitchen ventilator), New energy(Photovoltaic, Wind electricity, Charging Pile), Household appliances…

Question 3:

Does DWIN product need a MOQ when purchase?
Answer:

No MOQ for standard product.

Question 4:

Will DWIN have online technical support?
Answer:

Yes,of course, below ways you can get technical support.

- Whatsapp: +86 19192113166
- Customer service email: dwinhmi@dwin.com.cn

- DWIN Developer Forum:

International website:

- Development tool:

- Development guide:

- DGUS video tutorial:
- Leave messages to us on Aliexpress.
