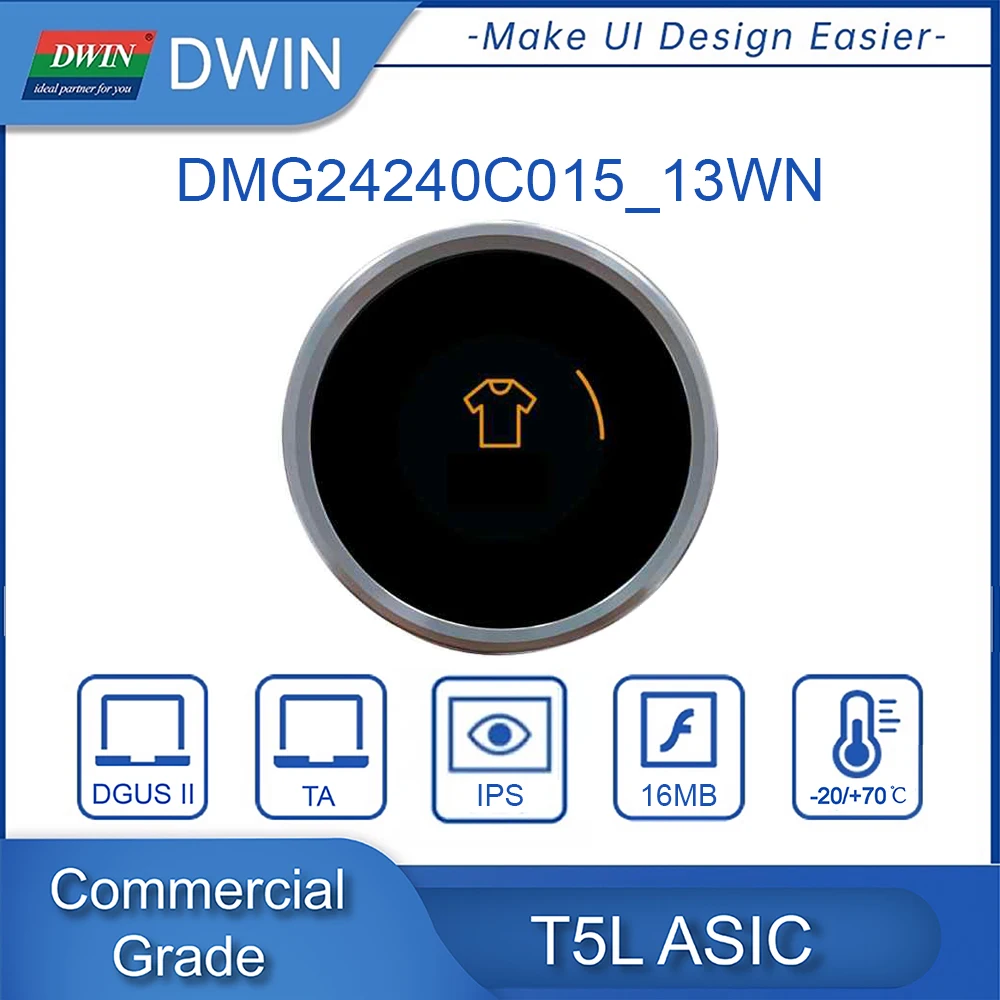

1.54 Inch Display UART Circular Rotary Screen With Encoder Shell 240*240 Pixels

Product Description

Features

• Based on T5L0, running DGUS II system, commercial grade

• Circular rotary screen with encoder shell

• 240*240 Pixels resolution, 262K Colors, IPS-TFT-LCD, Wide viewing angle

• Active Area (A.A.): Diameter = 26.8mm

• >20000 hours (Time of the brightness decaying to 50% on the condition of continuous working with the maximum brightness)

• Note: The new and old PCB versions are shipped at random

Based on T5L0, running DGUS II system

Display parameters

LCD Type

IPS, TFT LCD

Viewing Angle

Wide viewing angle,85°/85°/85°/85°(L/R/U/D)

Resolution

240×240 pixels (0°/90°/180°/270°)

Color

18-bit 6R6G6B

Active Area (A.A.)

Diameter=26.8mm

Backlight Mode

LED

Backlight Service Life

>20000 hours (Time of the brightness decaying to 50% on the condition of continuous working with the maximum brightness)

Brightness

-

Brightness Control

Non adjustable

Mechanical characteristics

Detent torque

Only suitable for C.C, equipment.: 300±100gf.cm

Number and Position of detents

Only suitable for C.C, equipment.: 24 detents (Step angle : 15°±3°)

Rotational life

The shaft of encoder shall be rotated to 30,000 cycles at a speed of 600~1000/h without electrical load, after which measurements shall be made

Switch circuit and Number of pulse

Single pole and single throw (push on)

Travel of switch

1.7±0.5mm

Operating force

6±3N (610±306gf)

Serial interface parameters

Mode

UART2: TTL/CMOS;

Voltage Level

Test Condition

Min

Typ

Max

Unit

Output 1, Iout = -4mA

3.0

3.3

-

V

Output 0, Iout = 4mA

-

0

0.3

V

Input 1

2.4

3.3

5.0

V

Input 0

0

-

0.5

V

Baud Rate

3150~3225600bps, typical value of 115200bps

Data Format

N81

Interface Cable

6Pin_2.0mm

Electrical specifications

Rated Power

<1W

Operating Voltage

4.5~5.5V, typical value of 5V

Operating Current

62mA

VCC=5V, max backlight

-

VCC=5V, backlight off

Recommended power supply: 5V 0.2A DC

Operating environment

Operating Temperature

-20℃~70℃(5V @ 60% RH)

Storage Temperature

-30℃~80℃

Conformal coating

None

Operating Humidity

10%~90%RH, typical value of 60% RH

Dimensions

Form Factor

59mm diameter * 41.2mm height

Installation Dimensions

51mm diameter * 22mm depth

Net Weight

60g

FAQ

Question 1:

How can I start development with a DWIN LCD Module? Can I assemble it directly on my machine?
Answer:

No, you should update the program to LCD at first, and then assemble it.
Step 1, check the software platform of the screen, it mentioned in datasheet.
Step 2, use the correct development SDK (different platform use different SDK) to finish developing.
Step 3, update software program and test
Step 4, when test OK, assemble it on machine.

Question 2:

What industries are DWIN LCD used in?
Answer:

Beauty machine, Physical therapy, Health and fitness, Medical treatment, Air treatment, Air control, Transportation (Car &ship instruments), instruments and apparatus automation, Electricity, Water treatment, IC design and manufacture, Kitchen appliances (Juicer, oven, ice machine, ice-cream machine, kitchen ventilator), New energy(Photovoltaic, Wind electricity, Charging Pile), Household appliances…

Question 3:

Does DWIN product need a MOQ when purchase?
Answer:

No MOQ for standard product.

Question 4:

Will DWIN have online technical support?
Answer:

Yes,of course, below ways you can get technical support.

- Whatsapp: +86 19192113166
- Customer service email: dwinhmi@dwin.com.cn

- DWIN Developer Forum:

International website:

- Development tool:

- Development guide:

- DGUS video tutorial:
- Leave messages to us on Aliexpress.
