7 Inch 800x480 TFT LCD HMI Display Module TN TTL/RS232 Resistive Touch Pane For

Product Description

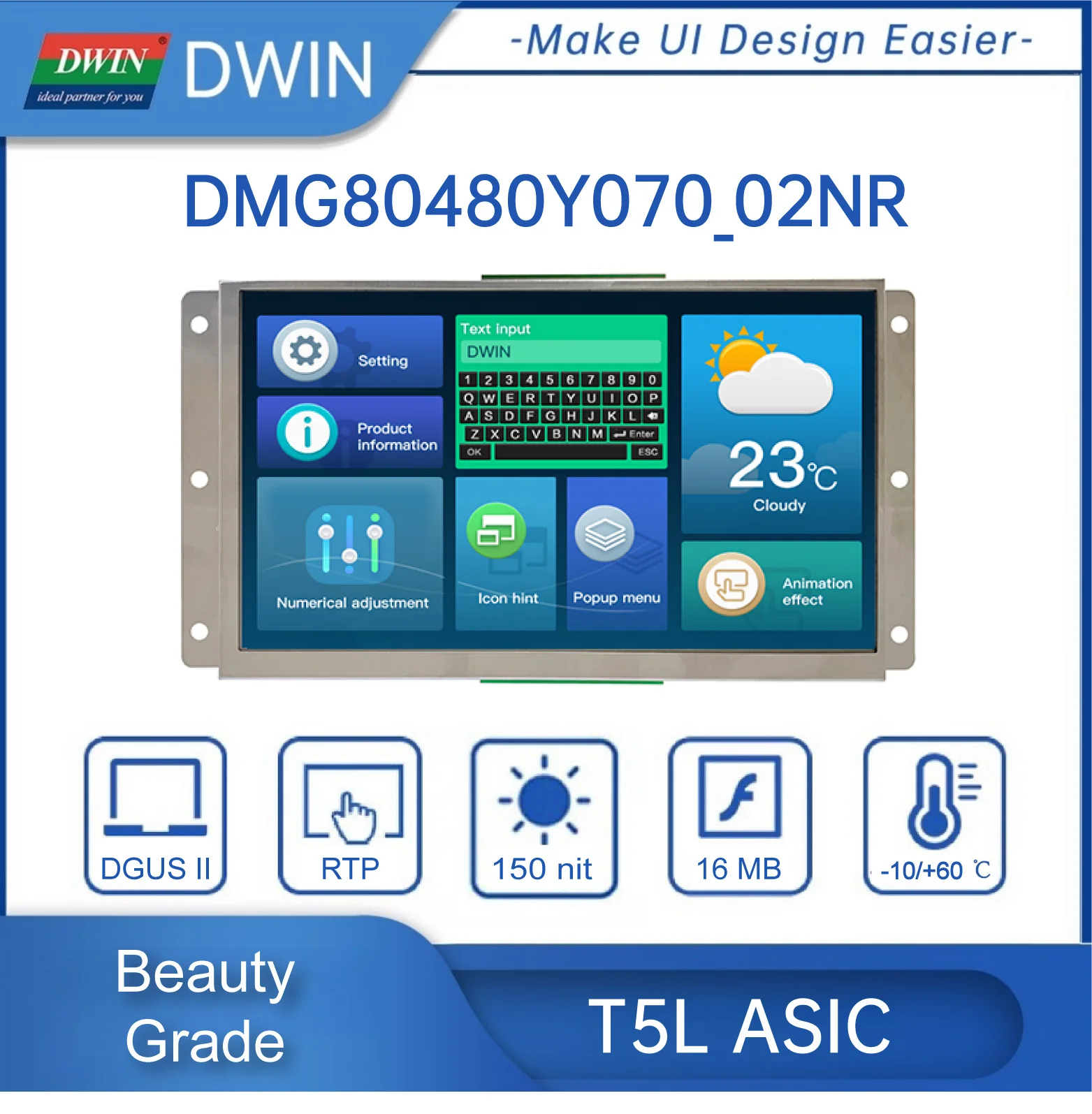

DWIN 7 Inch 800x480 TFT LCD HMI Dispaly Module TN TTL/RS232 Resistive Touch Pane For Arduino DMG80480Y070_02NN/NR

Features

• 7 inch HMI touch screen with T5L0 ASIC drive IC;

• Resistive touch panel/ No touch panel;

• Interface Mode is determined by Jumper,TTL/RS232 available;

• 8Pin 2.0mm Socket (TX, RX, GND included);

• 150/200nit Brightness with 1% interval adjustment;

• Best Choice for Beauty Devices/Equipments with cost-saving;

• Free and easy to use DWIN GUI software, No Code needed for GUI Design and Interaction

Specifications

Display

Item

Parameter

Description

Color

262K（262144）colors

18 bit color 6R6G6B

Panel Type

TV-TN

TN TFT LCM , normal viewing angle

Viewing Angle

70/70/40/30(L/R/U/D)

-

Active Area

154.1mm (W) ×85.9mm (H)

800x480 Pixels

Resolution

800x480

Support 0°/90°/180°/270°rotated display

Backlight

LED

≥ 10000H(Continuous working with maximum brightness, time of brightness halves)

Brightness

200nit（NN）
150nit（NR）

TA system:64 levels adjustment;
DGUSⅡsystem:100 levels adjustment (It's not recommend to set brightness to 1%~30% of the maximum, which may lead a flicker)

Voltage & Current

Item

Conditions

Min

Typ

Max

Unit

Power Voltage

-

7.0

12.0

15.0

V

Operation Current

VCC = +12V, Backlight on

-

190

-

mA

VCC = +12V, Backlight off

-

60

-

mA

Reliability Test

Item

Conditions

Min

Typ

Max

Unit

Working

Temperature

60%RH at 12V voltage

-10

25

60

℃

Storage

Temperature

-

-20

25

70

℃

Working Humidity

25℃

10%

60%

90%

RH

Interface

Item

Conditions

Min

Typ

Max

Unit

Baud Rate

UART1

3150

115200

3225600

bps

Output Voltage
（TXD）

Output 1，Iout = -4mA

2.7

3.2

-

V

Output 0，Iout = 4mA

-

0.1

0.4

V

Input Voltage
（RXD）

Input 1

2.4

3.3

5.5

V

Input 0

0

-

1.0

V

UART Mode

Mode is determined by Jumper：ON=N81, 5V TTL/COMS；OFF=N81,RS232.

User Interface

8Pin_2.0mm Socket

USB Interface

None

SD Card Interface

Yes (Micro SDHC(TF) card /FAT32 Format)

Memory

Item

Typical value

Features

Typ value

Unit

Description

FLASH

16Mbytes

Space of Font

4-12

Mbytes

A single font of 256Kbytes,store
font, icon libraries,and other binary files

Picture Storage
（.ICL file)

12-4

Mbytes

JPEG format(Picture quantity
relate to JPEG size，size of a
single JPEG image file should
not exceed 248 Kbytes)

RAM

128Kbytes

Variable Storage
Space

-

-

Data is not saved when power down

Nor Flash

512Kbyte

User database

-

-

Data is not saved when power down

UI & Peripheral

UI Version

TA / DGUSⅡ

Peripheral

DMG80480Y070_02NN: buzzer
DMG80480Y070_02NR:Resistive touch screen, buzzer

Packing Capacity & Dimension

Dimension

Dimension

DMG80480Y070_02NN:189.1(W) × 106.3(H) × 14.5mm（T）
DMG80480Y070_02NR:189.1(W) × 106.3(H) × 14.5mm（T）

Net Weight

DMG80480Y070_02NN:210
DMG80480Y070_02NR:250g

FAQ

Question 1:

How can I start development with a DWIN LCD Module? Can I assemble it directly on my machine?
Answer:

No, you should update the program to LCD at first, and then assemble it.
Step 1, check the software platform of the screen, it mentioned in datasheet.
Step 2, use the correct development SDK (different platform use different SDK) to finish developing.
Step 3, update software program and test
Step 4, when test OK, assemble it on machine.

Question 2:

What industries are DWIN LCD used in?
Answer:

Beauty machine, Physical therapy, Health and fitness, Medical treatment, Air treatment, Air control, Transportation (Car &ship instruments), instruments and apparatus automation, Electricity, Water treatment, IC design and manufacture, Kitchen appliances (Juicer, oven, ice machine, ice-cream machine, kitchen ventilator), New energy(Photovoltaic, Wind electricity, Charging Pile), Household appliances…

Question 3:

Does DWIN product need a MOQ when purchase?
Answer:

No MOQ for standard product.

Question 4:

Will DWIN have online technical support?
Answer:

Yes,of course, below ways you can get technical support.

- Whatsapp: +86 19192113166
- Customer service email: dwinhmi@dwin.com.cn

- DWIN Developer Forum:

International website:

- Development tool:

- Development guide:

- DGUS video tutorial:
- Leave messages to us on Aliexpress.
