7 Inch 4 Wire RTP Resistive Touch Panel YF07002

Product Description

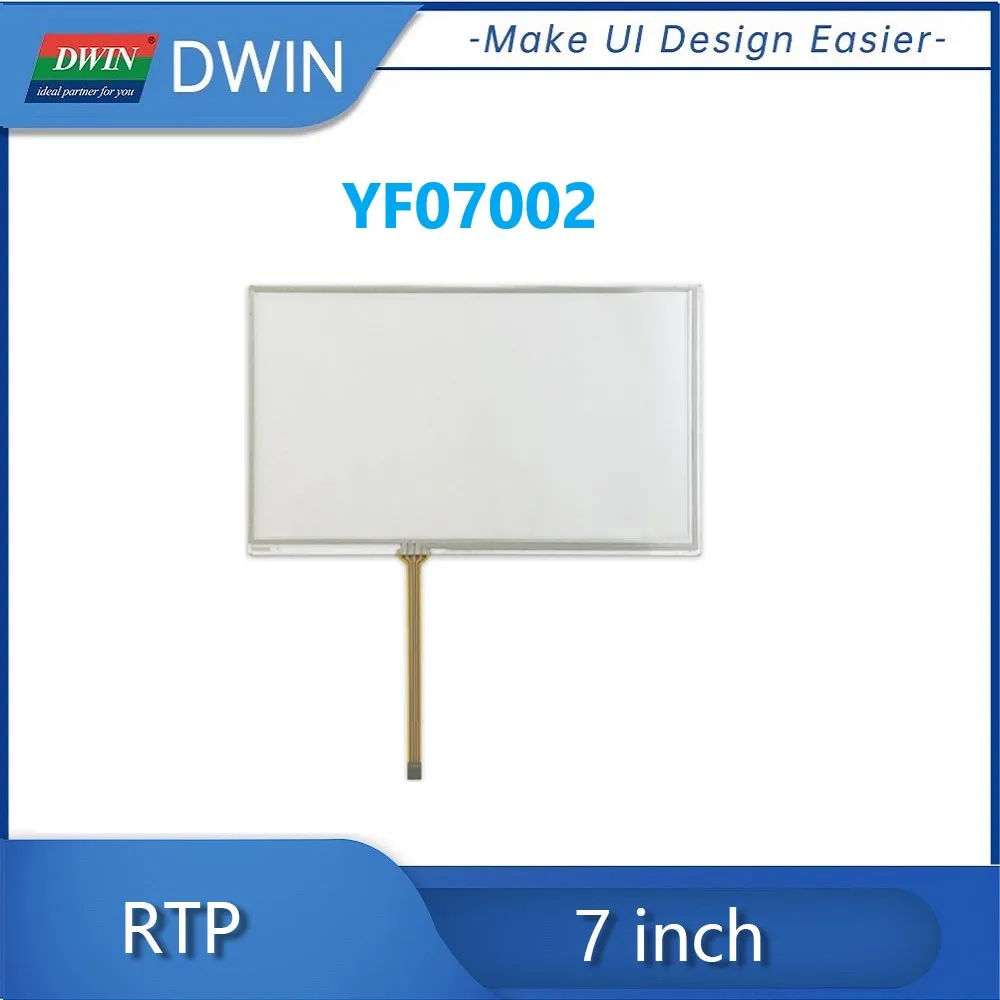

DWIN 7 Inch 4 Wire Resistive Touch Panel YF07002

Support customization for touch panel, such ashigh temperature, high humidity and anti-UV

Structure

Materials

Description

Top Circuit

ITO Film

Thickness: 0.188mm

ITO Film with Anti-glare Hard
Coating&Anti-Newton Ring

Bottom Circuit

ITO Glass

Thickness: 1.1mm

ITO Glass with Anti-reflection

Tail Type

FPC

Thickness: 0.3mm

Item

Description

Unit

Type

Four-Wire Resistive

-

Screen Size

7

inch

Physical Dimension

163.8(W)*97.8(H)*1.50(D)

mm

Active Area

153.68(W)*86.18(H)

mm

Tail Length

80±0.5

mm

Input Method

Press

-

Surface Hardness

3H

-

Life

≥1,000,000 times 150g N

-

Humidity

20%~90% non dew condensation

Operating Temperature

-20~70

℃

Storage Temperature

-30~80

℃

PIN

Signal

Description

1

XL

X-(Left)

2

YD

Y-(Down)

3

XR

X-(Right)

4

YU

Y-(Up)

Item

Value

Remark

Light Transmittance

78%±3%

Item

Value

Remark

Rated Voltage

≤5V

Current

-

Terminal Impedance

X: 400-1100Ω

Y: 100-450Ω

Linearity

X direction: within ±1.5℅

Testing method as Figure 1

Y direction: within ±1.5℅

Insulation Resistance

DC 25V 20MΩ above

Connect X+～X-and Y+～Y-, apply 25V DC

Between X and Y for perform measurements
