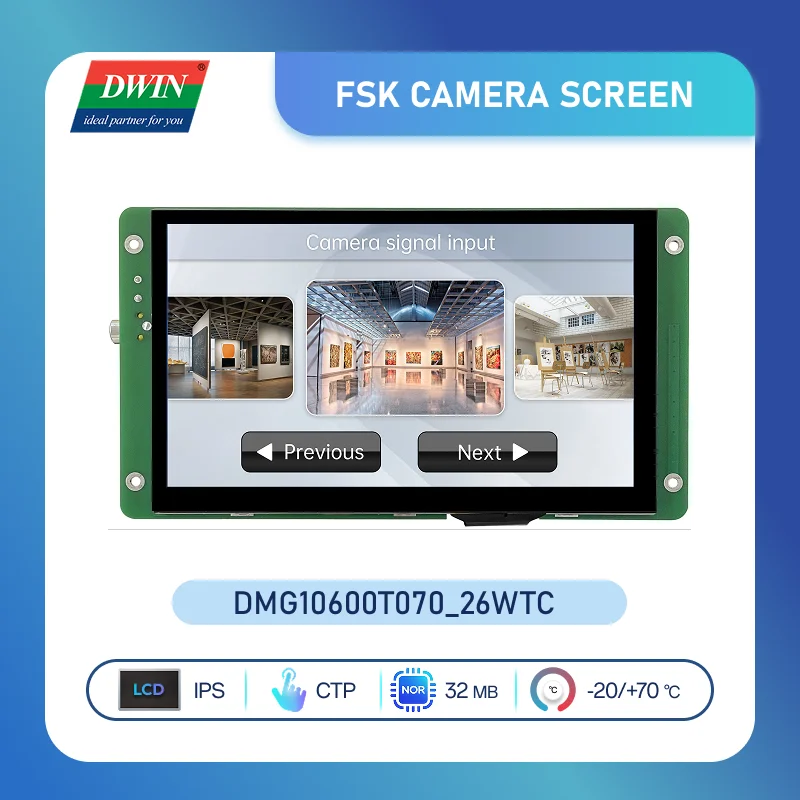

7 inch 1024*600 Pixels Resolution 16.7M Colors IPS TFT LCD Display Supports FSK

Product Description

Features

• Based on T5L2, running DGUS II system, industrial grade.

• 7.0-inch, 1024*600 pixels resolution, 16.7M colors, IPS-TFT-LCD, wide viewing angle.

• FSK bus camera scheme screen.

• Capacitive touch screen.


Display parameters

LCD Type

IPS, TFT LCD

Viewing Angle

Wide viewing angle,85°/85°/85°/85°(L/R/U/D)

Resolution

1024×600 pixels (support 0°/90°/180°/270°

Color

24-bit 8R8G8B

Active Area (A.A.)

154.08mm (W)×85.92mm (H)

Backlight Mode

LED

Backlight Service Life

>30000 hours (Time of the brightness decaying to 50% on the condition of continuous working with the maximum brightness)

Brightness

250nit

Brightness Control

0~100 grade (When the brightness is adjusted to 1%~30% of the maximum brightness, flickering may occur and is not recommended to use in this range)

Serial interface parameters

Mode

UART2: ON=TTL/CMOS; OFF=RS232 ( Defaulted RS232)
UART4: ON=TTL/CMOS; OFF=RS232 (Only available after OS configuration)

Voltage Level

Test Condition

Min

Typ

Max

Unit

Output 1, Iout = -4mA

2.7

3.2

-

V

Output 0, Iout = 4mA

-

0.1

0.4

V

Input 1

2.4

3.3

5.5

V

Input 0

0

-

1.0

V

Baud Rate

3150~3225600bps, typical value of 115200bps

Data Format

UART2: N81
UART4: N81/E81/O81/N82 , 4 modes (OS configuration)

Interface Cable

8Pin_2.0mm

Electrical specifications

Rated Power

<5W

Operating Voltage

12~36V, typical value of 12V

Operating Current

260mA

VCC=12V, max backlight

110mA

VCC=12V, backlight off

Recommended power supply: 12V 1A DC

Operating environment

Operating Temperature

-20℃~70℃(12V @ 60% RH)

Storage Temperature

-30℃~80℃

Conformal Coating

Yes

Operating Humidity

10%~90%RH, typical value of 60% RH

FAQ

Question 1:

How can I start development with a DWIN LCD Module? Can I assemble it directly on my machine?
Answer:

No, you should update the program to LCD first, and then assemble it.
Step 1, check the software platform of the screen, mentioned in the datasheet.
Step 2, use the correct development SDK (different platforms use different SDKs) to finish developing.
Step 3, update the software program and test
Step 4, when test OK, assemble it on the machine.

Question 2:

What industries are DWIN LCD used in?
Answer:

Beauty machines, Physical therapy, Health and fitness, Medical treatment, Air treatment, Air control, Transportation (Car &ship instruments), instruments and apparatus automation, Electricity, Water treatment, IC design and manufacture, Kitchen appliances (Juicer, oven, ice machine, ice-cream machine, kitchen ventilator), New energy(Photovoltaic, Wind electricity, Charging Pile), Household appliances…

Question 3:

Does DWIN product need a MOQ when purchase?
Answer:

No MOQ for standard product.

Question 4:

Will DWIN have online technical support?
Answer:

Yes, of course, below are ways you can get technical support.

- Whatsapp: +86 19192113166
- Customer service email: dwinhmi@dwin.com.cn
- Leave messages to us on Aliexpress.
