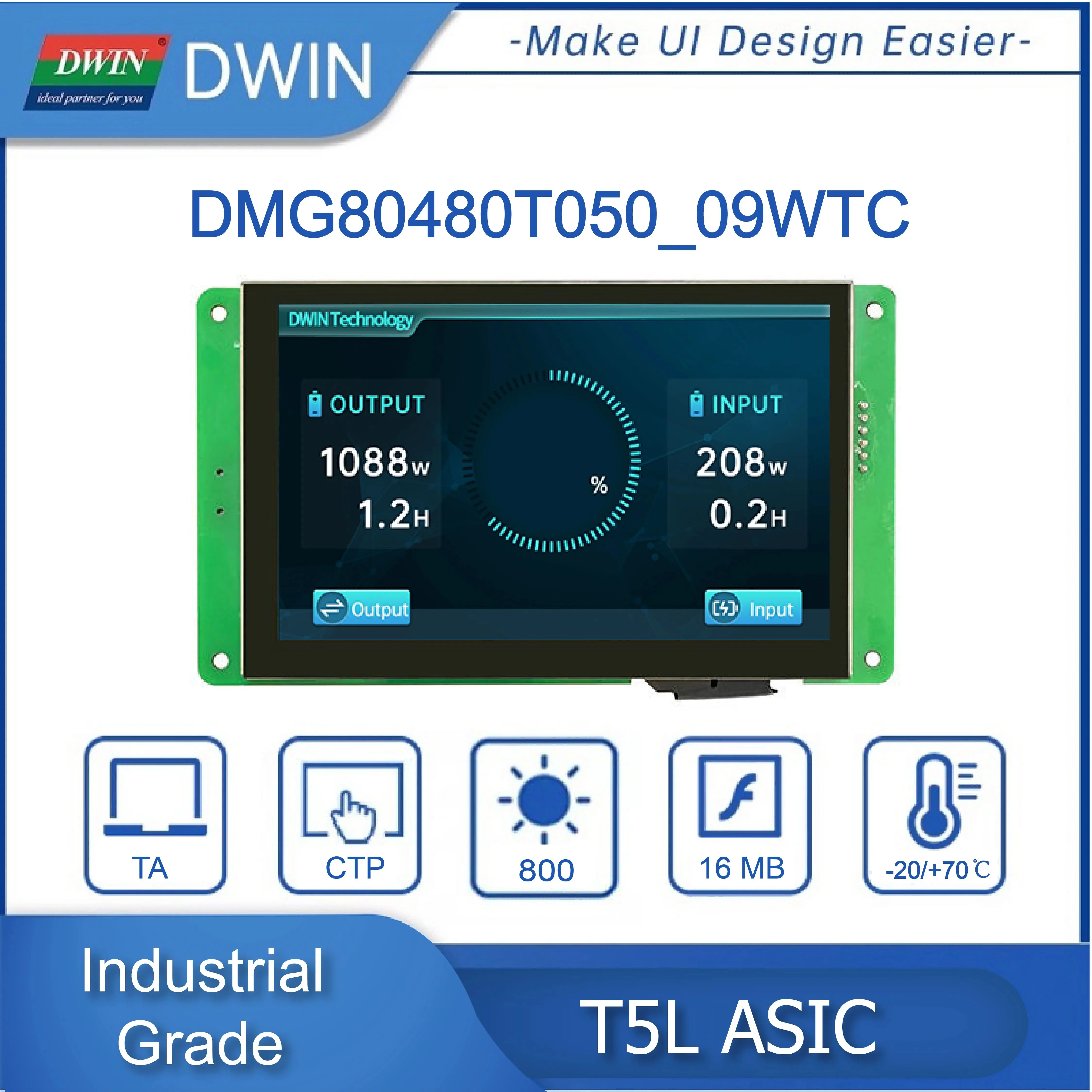

5.0 Inch 800*480 HMI TFT LCD IPS Module Capacitive Touch Screen TTL/RS232 UART2/

Product Description

Features

• Based on T5L0, running DGUS II system, industrial grade.

• 5-inch, 800*480 Pixels resolution, 262K Colors, IPS-TFT-LCD, wide viewing angle.

• High brightness.

• With conformal coating.

DMG80480T050_09W

Display parameters

LCD Type

IPS, TFT LCD

Viewing Angle

Wide viewing angle, 85°/85°/85°/85°（L/R/U/D）

Resolution

800×480 pixels (support 0°/90°/180°/270°)

Color

18-bit 6R6G6B

Active Area (A.A.)

108.0mm (W)×64.8mm (H)

View Area (V.A.)

-

Backlight Mode

LED

Backlight Service Life

>30000 hours (Time of the brightness decaying to 50%on the condition of continuous working with the maximum brightness)

Brightness

WTC:800nit
WTR:750nit
WN:900nit

Brightness Control

0~100 grade (When the brightness is adjusted to 1%~30%of the maximum brightness, flickering may occur and is not recommended to use in this range)

Serial interface parameters

Mode

UART2: TTL/CMOS
UART4: TTL/CMOS(Only available after OS configuration)

Voltage Level

Test Condition

Min

Typ

Max

Unit

Output 1, Iout = -4mA

4.78

5.0

-

V

Output 0, Iout = 4mA

-

-

0.4

V

Input 1

2.5

5.0

-

V

Input 0

-

-

1.0

V

Baud Rate

3150~3225600bps, typical value of 115200bps

Data Format

UART2: N81
UART4: N81/E81/O81/N82,4 modes (OS configuration)

Interface Cable

8Pin_2.0mm

Electrical specifications

Rated Power

<10W

Operating Voltage

9~36V, typical value of 12V

Operating Current

210mA

VCC=12V, max backlight

100mA

VCC=12V, backlight off

Recommended power supply: 12V 1A DC

Operating environment

Operating Temperature

-20℃~70℃(12V @ 60% RH)

Storage Temperature

-30℃~80℃

Anti-UV

Yes

Conformal coating

Yes

Operating Humidity

10%~90%RH, typical value of 60% RH

Electrostatic discharge test

Test temperature: 25°C. Test humidity: 50%RH.
Test process: the product was placed on the test bench to perform contact and air discharge in turn of the serial screen iron frame and display area . During the experimental process, it was observed whether the screen is dead, black, white, splash, or reboot. According to the experiment results,the performance is in line with the criteria GB/T 17626.2 B level and above.

Discharge Type

Discharge Value

Result

Contact discharge

±6KV

Normal operation

Air discharge

±8KV

Normal operation

EFT test

Test temperature: 25°C. Test humidity: 50%RH.
Test process: the product was placed on the test bench to perform contact and the smart screen is energized by the power supply coupled with a EFT generator. During the experimental process,itwas observed whether abnormal reset, display or touch phenomena occurs. According to the experiment results,the performance is in line with the criteria GB/T 17626.2 B level and above.

Test Item

Test Standard

Result

Power supply

±2KV;100KHz

Normal operation

Packaging & dimensions

Form Factor

WTC:143.4mm (W)×80.8mm (H)×15.8mm (T)
WTR:143.4mm (W)×80.8mm (H)×15.4mm (T)
WN:143.4mm (W)×80.8mm (H)×13.8mm (T)

Installation Dimensions

Positioning hole: 121.8(+0.3mm)×76.9(+0.3mm)

Net Weight

WTC:160g
WTR:145g
WN:135g

FAQ

Question 1:

How can I start development with a DWIN LCD Module? Can I assemble it directly on my machine?
Answer:

No, you should update the program to LCD first, and then assemble it.
Step 1, check the software platform of the screen, mentioned in the datasheet.
Step 2, use the correct development SDK (different platforms use different SDKs) to finish developing.
Step 3, update the software program and test
Step 4, when test OK, assemble it on the machine.

Question 2:

What industries are DWIN LCD used in?
Answer:

Beauty machines, Physical therapy, Health and fitness, Medical treatment, Air treatment, Air control, Transportation (Car &ship instruments), instruments and apparatus automation, Electricity, Water treatment, IC design and manufacture, Kitchen appliances (Juicer, oven, ice machine, ice-cream machine, kitchen ventilator), New energy(Photovoltaic, Wind electricity, Charging Pile), Household appliances…

Question 3:

Does DWIN product need a MOQ when purchase?
Answer:

No MOQ for standard product.

Question 4:

Will DWIN have online technical support?
Answer:

Yes, of course, below are ways you can get technical support.

- Whatsapp: +86 19192113166
- Customer service email: dwinhmi@dwin.com.cn

- DWIN Developer Forum:

International website:

- Development tool:

- Development guide:

- DGUS video tutorial:
- Leave messages to us on Aliexpress.
