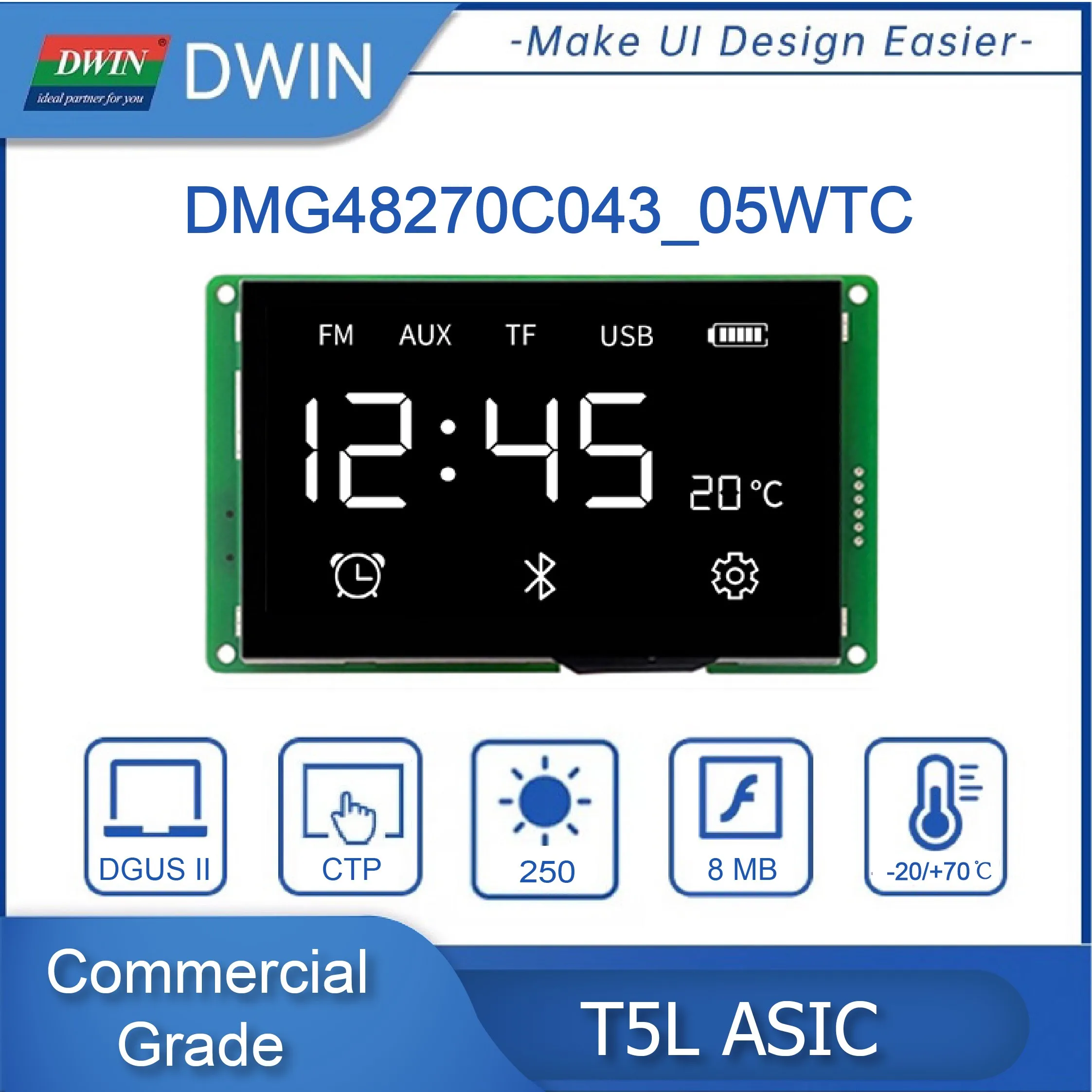

4.3 Inch 480*272 Pixels Resolution IPS TFT LCD For Arduino ESP32 Smart UART Disp

Product Description

Features

• Based on T5L0, running DGUS II system, commercial grade.

• 4.3-inch, 480*272 Pixels resolution, 262K Colors, IPS LCD screen.

• 8MB memory, cost-effective.

• Resistive touch/Capacitive touch/No touch are optional.

Display parameters

LCD Type

IPS, TFT LCD

Viewing Angle

Wide viewing angle (85°/85°/85°/85° typical), high contrast, and good color reproduction.

Resolution

480×272 (0°/90°/180°/270°)

Active Area (A.A.)

95.04mm (W)×53.86mm (H)

Backlight Mode

LED

Backlight Service Life

>20000 hours

Brightness

WTC:250nit
WTR:250nit
WN:300nit

Brightness Control

100-level brightness adjustment (Flickering may occur at 1%-30% of max brightness; not recommended for use in this range)

Serial interface parameters

Mode

UART2: ON=TTL/CMOS; OFF=RS232
UART4: ON=TTL/CMOS; OFF=RS232 (Only available after OS configuration)

Voltage Level

Test Condition

Min

Typ

Max

Unit

Output 1, Iout = -4mA

2.7

3.2

-

V

Output 0, Iout = 4mA

-

0.1

0.4

V

Input 1

2.4

3.3

5.5

V

Input 0

0

-

1.0

V

Baud Rate

3150~3225600bps, typical value of 115200bps

Data Format

UART2: N81
UART4: N81/E81/O81/N82 , 4 modes (OS configuration)

Interface Cable

10Pin_1.0mm

Electrical specifications

Rated Power

<5W

Operating Voltage

4.5~5.5V, typical value of 5V

Operating Current

210mA

VCC=5V, max backlight

70mA

VCC=5V, backlight off

Recommended power supply: 5V 1A DC

Operating environment

Operating Temperature

-20℃~70℃(5V @ 60% RH)

Storage Temperature

-30℃~80℃

Conformal Coating

None

Operating Humidity

10%~90%RH, typical value of 60% RH

Dimensions

Form Factor

WTC:121.92mm (W)×73.15mm (H)×15.60mm (T)
WTR:121.92mm (W)×73.15mm (H)×15.30mm (T)
WN:121.92mm (W)×73.15mm (H)×13.80mm (T)

Installation Dimensions

Positioning hole: 106.50(+0.3mm)×68.30(+0.3mm)

Net Weight

WTC:115g
WTR:115g
WN:105g

FAQ

Question 1:

How can I start development with a DWIN LCD Module? Can I assemble it directly on my machine?
Answer:

No, you should update the program to LCD at first, and then assemble it.
Step 1, check the software platform of the screen, it mentioned in datasheet.
Step 2, use the correct development SDK (different platform use different SDK) to finish developing.
Step 3, update software program and test
Step 4, when test OK, assemble it on machine.

Question 2:

What industries are DWIN LCD used in?
Answer:

Beauty machine, Physical therapy, Health and fitness, Medical treatment, Air treatment, Air control, Transportation (Car &ship instruments), instruments and apparatus automation, Electricity, Water treatment, IC design and manufacture, Kitchen appliances (Juicer, oven, ice machine, ice-cream machine, kitchen ventilator), New energy(Photovoltaic, Wind electricity, Charging Pile), Household appliances…

Question 3:

Does DWIN product need a MOQ when purchase?
Answer:

No MOQ for standard product.

Question 4:

Will DWIN have online technical support?
Answer:

Yes,of course, below ways you can get technical support.

- Whatsapp: +86 19192113166
- Customer service email: dwinhmi@dwin.com.cn

- DWIN Developer Forum:

International website:

- Development tool:

- Development guide:

- DGUS video tutorial:
- Leave messages to us on Aliexpress.
