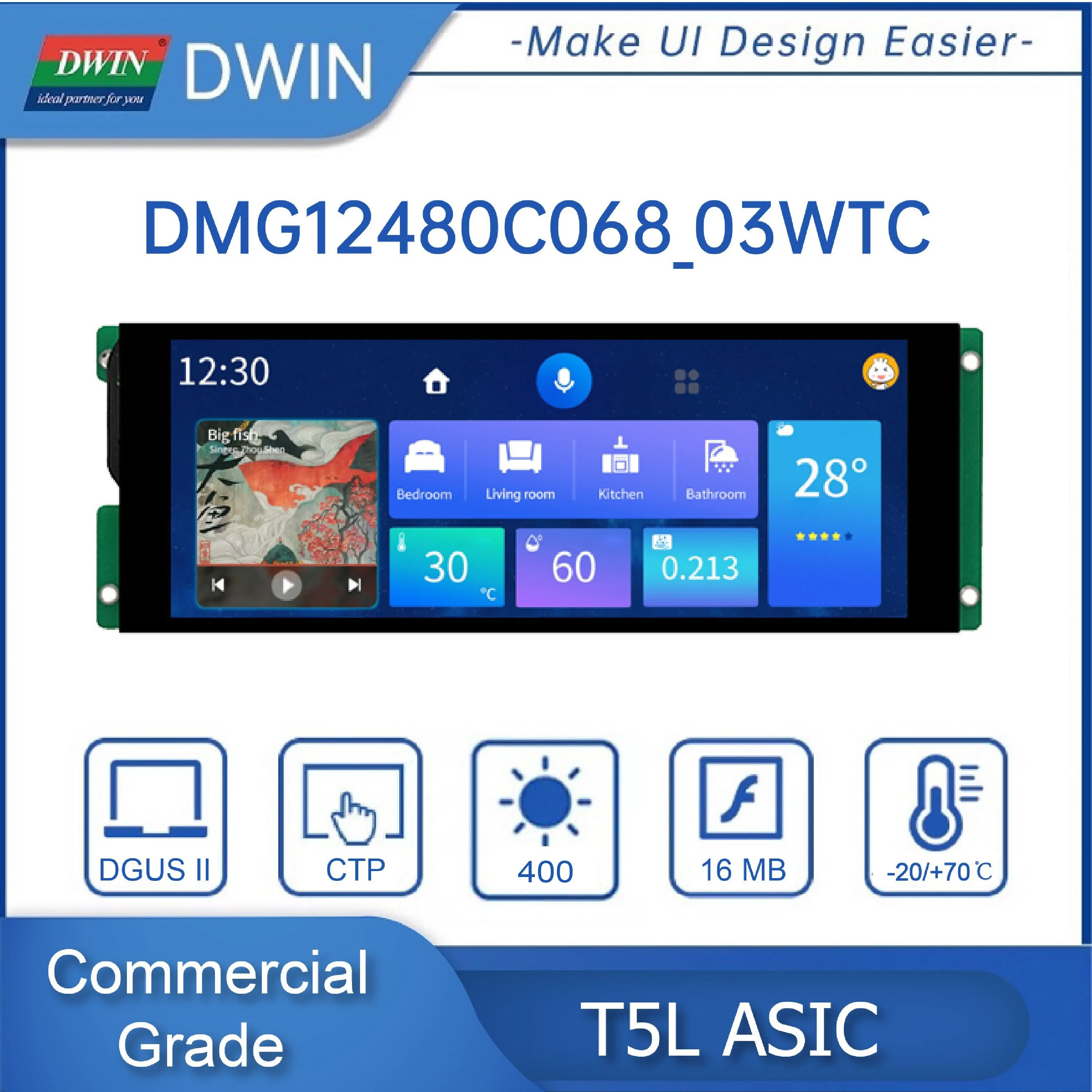

6.8 Inch Bar Style IPS TFT LCD Module UART Intelligent Display Touch Screen HMI

Product Description

Features

• Based on T5L2, running DGUS II system, commercial grade.

• 6.8-inch, 480*1280 pixels resolution, 16.7M colors, IPS-TFT-LCD, wide viewing angle.

• Resistive touch/Capacitive touch/No touch are optional.

DMG12480C068_03WTC/WTR/WN

Display parameters

LCD Type

IPS, TFT LCD

Viewing Angle

wide viewing angle, 85°/85°/85°/85°(L/R/U/D)

Resolution

480×1280 pixels (support 0°/90°/180°/270°)

Color

24-bit 8R8G8B

Active Area (A.A.)

160.59mm (W)×59.72mm (H)

View Area (V.A.)

-

Backlight Mode

LED

Backlight Service Life

>20000 hours (Time of the brightness decaying to 50% on the condition of
continuous working with the maximum brightness)

Brightness

DMG12480C068_03WN: 450nit
DMG12480C068_03WTR: 350nit
DMG12480C068_03WTC:400nit

Brightness Control

0~100 grade (When the brightness is adjusted to 1%~30% of the maximum
brightness, flickering may occur and is not recommended to use in this range)

Serial interface parameters

Mode

UART2: ON=TTL/CMOS; OFF=RS232
UART4: ON=TTL/CMOS; OFF=RS232 ( Only available after OS configuration)

Voltage Level

Test Condition

Min

Typ

Max

Unit

Output 1, Iout = -4mA

4.78

5

-

V

Output 0, Iout = 4mA

-

-

0.4

V

Input 1

2.5

5.0

-

V

Input 0

-

-

1

V

Baud Rate

3150~3225600bps, typical value of 115200bps

Data Format

UART2: N81
UART4: N81/E81/O81/N82,4 modes (OS configuration)

Interface Cable

8Pin_2.0mm

Electrical specifications

Rated Power

<5W

Operating Voltage

9~36V, typical value of 12V

Operating Current

208mA

VCC=12V, max backlight

78mA

VCC=12V, backlight off

Recommended power supply: 12V 1A DC

Operating environment

Operating Temperature

-20℃~70℃(5V @ 60% RH)

Storage Temperature

-30℃~80℃

Conformal coating

None

Operating Humidity

10%~90% RH, typical value of 60% RH

Packaging & dimensions

Packaging Standards

Model

Dimensions

Layer

Quantity/Layer

Quantity(Pcs)

Carton1：

220mm(L)×160mm(W)×47mm (H)

1

1

1

Carton2：

250mm(L)×200mm(W)×80mm (H)

2

1

2

Carton3：

320mm(L)×270mm(W)×80mm (H)

2

2

4

Carton4：

450mm(L)×350mm(W)×300mm(H)

-

-

-

Carton5：

600mm(L)×450mm(W)×300mm(H)

1

10

10

FAQ

Question 1:

How can I start development with a DWIN LCD Module? Can I assemble it directly on my machine?
Answer:

No, you should update the program to LCD first, and then assemble it.
Step 1, check the software platform of the screen, mentioned in the datasheet.
Step 2, use the correct development SDK (different platforms use different SDKs) to finish developing.
Step 3, update the software program and test
Step 4, when test OK, assemble it on the machine.

Question 2:

What industries are DWIN LCD used in?
Answer:

Beauty machines, Physical therapy, Health and fitness, Medical treatment, Air treatment, Air control, Transportation (Car &ship instruments), instruments and apparatus automation, Electricity, Water treatment, IC design and manufacture, Kitchen appliances (Juicer, oven, ice machine, ice-cream machine, kitchen ventilator), New energy(Photovoltaic, Wind electricity, Charging Pile), Household appliances…

Question 3:

Does DWIN product need a MOQ when purchase?
Answer:

No MOQ for standard product.

Question 4:

Will DWIN have online technical support?
Answer:

Yes, of course, below are ways you can get technical support.

- Whatsapp: +86 19192113166
- Customer service email: dwinhmi@dwin.com.cn

- DWIN Developer Forum:

International website:

- Development tool:

- Development guide:

- DGUS video tutorial:
- Leave messages to us on Aliexpress.
