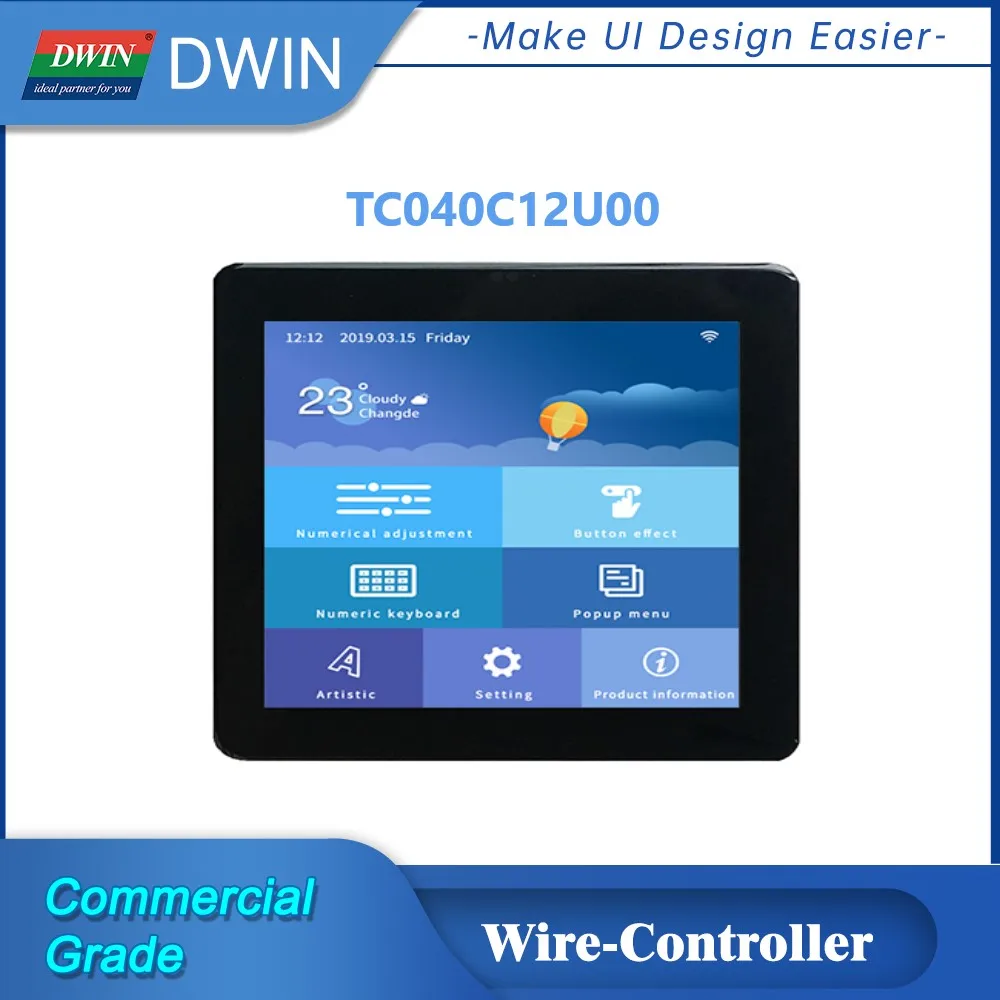

4.0 Inch 480*480 IPS Screen Smart Home Wall Mounted HMI IOT Wire Controller LCD

Product Description

About DWIN

Basic on Human-Machine-Interaction, DWIN technology mainly for Industrial LCD Panel, TFT LCD Module, HMI Display and Touch Screen, provide the Whole Product Line Solution, technical consultation and after sale service for all kinds of display module, offer HMI Panel, Industrial Displays, interactive touch panel, capacitive/resistive touch screens. Our touch panels size ranging from 2inch to 21.5inch, can be applied to new energy, financial equipment, engineering machinery, medical instruments, industrial equipment and consumer electrical products. We can be your Best Partner for the Double Win.

Description

DWIN 4.0 Inches 480*480 Resolution IPS screen Smart Home Wall mounted HMI IOT Wire Controller LCD Touch Panel.

Product Specification

Display

Item

Parameter

Description

Color

16.7M (16777216) colors

24 bit color 8R8G8B

Active Area (A.A.)

71.86mm (W) * 67.96mm (H)

480*480

Resolution

480 * 480

Support 0°/90°/180°/270°rotated display

Backlight

LED

≥10000H(Continuous working with maximum brightness, time of brightness halves)

Brightness

250nit

100 levels adjustment(It's not recommended to set brightness to 1%~30% of the maximum, which may lead a flicker)

Note: You can use dynamic screen saver wallpapers to avoid afterimages caused by fixed page display for a long time.

Voltage & Current

Item

Condition

Min

Typ.

Max

Unit

Power Voltage

-

9

12

36

V

Operation Current

VCC = +12V, Backlight on

-

100

-

mA

VCC = +12V, Backlight off

-

40

-

mA

Operating Environment

Item

Condition

Min

Typ.

Max

Unit

Working Temperature

60%RH at 12V Voltage

-20

25

70

℃

Storage Temperature

-

-30

25

80

℃

Working Humidity

25℃

0%

60%

90%

RH

Protective paint

-

-

None

-

-

Interface

Item

Condition

Min

Typ.

Max

Unit

Baud Rate

User Set

3150

115200

3225600

bps

(V_AB)

Output 1

2.5

5

-

V

Output 0

-

-5

-2.5

V

(V_AB)

Input 1

0

2.5

-

V

Input 0

-

-2.5

-0.2

V

Interface

RS485 (UART2 & UART5 Multiplexing)

Socket

4PIN_2.0mm

USB Interface

None

SD Card Slot

Yes (SDHC/FAT32 file format)

Memory

Item

Typical value

Features

Typ.

Unit

Description

FLASH

16Mbytes

Space of Font

4-12

Mbytes

A single font of 256Kbytes,store font, icon libraries, and other binary files

Picture Storage

12-4

Mbytes

JPEG format(Picture quantity relate to JPEG size, size of a single JPEG image file should not exceed 252 Kbytes)

RAM

128Kbytes

Variable Storage

Space

/

/

Data is not saved when power down

Nor Flash

512Kbytes

User database

/

/

Data is saved when power down

UI ＆ Peripheral

UI Version

TA / DGUSⅡ ( DGUSⅡ pre-installed )

Peripherals

Capacitive touch screen, Built-in Speaker, Built-in WIFI

Packing Capacity & Dimension

Dimension

88.0mm(W) * 88.0mm (H) * 18.13 (T)mm

Net Weight

131g

Packing Capacity

Model

Size

Layer

Quantity/Layer

Quantity(Pcs)

Carton1:

220mm(L)*160mm(W)*47mm(H)

1

2

2

Carton2:

250mm(L)*200mm(W)*80mm(H)

2

2

4

Carton3:

320mm(L)*270mm(W)*80mm(H)

2

4

8

Carton4:

450mm(L)*350mm(W)*300mm(H)

-

-

-

Carton5:

600mm(L)*450mm(W)*300mm(H)

1

56

56
