7 Inch 1024x600 24bit RGB Capacitive Touch Screen IPS TFT LCD Display Module

Product Description

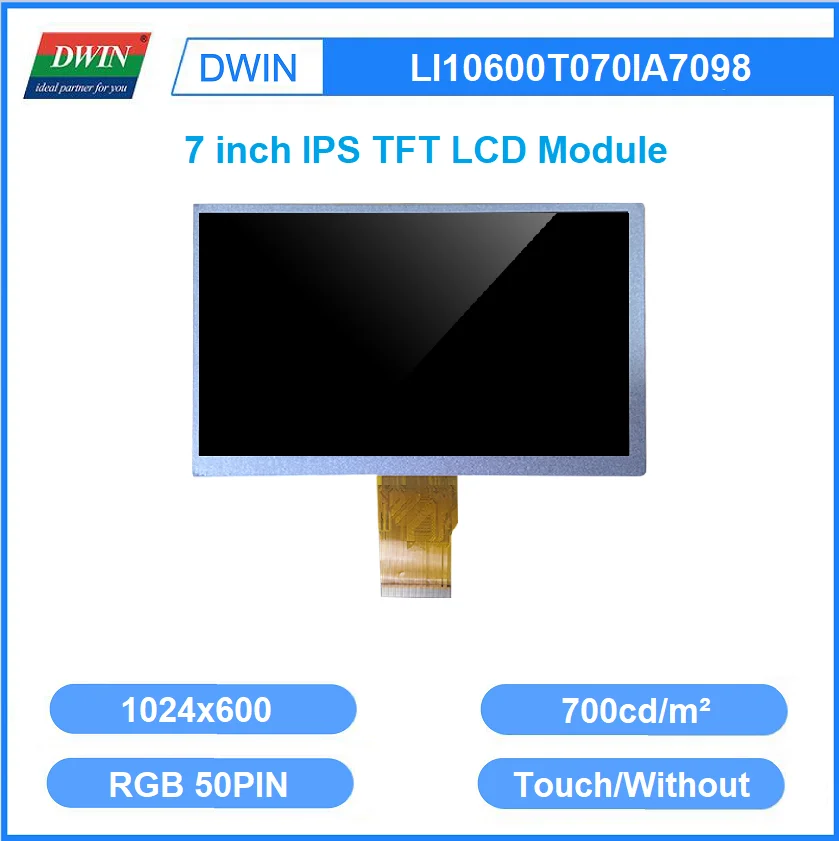

DWIN 7 Inch 1024x600 24bit RGB Capacitive Touch Screen IPS TFT LCD Display Module

Prodcut Specification

Feature

Description

Unit

Display Spec.

Size

7.0

inch

Resolution

1024(H)*600(V)

pixels

Pixel Configuration

RGB island

-

Pixel Pitch

0.0642(H)*0.1790(V)

mm

Viewing Direction

ALL

-

Mechanical

Characteristics

Outside Dimension

164.9(W)*100.0(H)*2.8(D)

mm

Active Area

154.21(W)*85.92(H)

mm

Luminance

700

cd/m²

LED Numbers

30 LEDS

-

Pin Order

From left to right

50PIN_0.5mm

-

Weight

-

g

Electrical
Characteristics

Interface

RGB_24bit

-

Color Depth

16.7M

colors

Driver Condition

3.3(Type)

V

Driver IC

HX8696-A01APD300/

HX8282-A11DPD300

-

Temperature

Range

Operating Temp.

-20~70

℃

Storage Temp.

-30~80

℃

Electrical Characteristics

Item

Symbol

Min.

Typ.

Max.

Unit

Remark

Digital Voltage

DVDD

3.0

3.3

3.6

V

Analog Voltage

AVDD

10.2

10.4

10.6

V

Gate Driver High Voltage

VGH

15

17.0

19

V

Gate Driver Low Voltage

VGL

-9.0

-7.0

-5.0

V

Input Signal Voltage

VCOM

4.35

5.35

6.35

V

Input logic High Voltage

VIH

0.7DVDD

-

DVDD

V

Input logic High Voltage

VIL

0

-

0.3DVDD

V

Item

Symbol

Min.

Typ.

Max.

Unit

Remark

Forward Current

IF

-

-

25

mA

Reverse Voltage

VR

-

-

1.2

V

Voltage for LED Backlight

VL

8.4

9.3

10.2

V

Note 1

Current for LED Backlight

IL

150

200

250

mA

Luminance

LV

600

700

-

cd/m2

Power Consumption

PLED

-

1.674w

-

mW

Uniformity(withL/G)

Avg

75

80

-

%

LED Life-Time

Hr

-

20000

-

Hour

Note 2

Optical Characteristics

Item

Symbol

Condition

Min.

Typ.

Max.

Unit

Remark

Viewing Angle

Top

CR≧10

-

80

-

Deg.

Note 2

Bottom

-

80

-

Left

-

80

-

Right

-

80

-

Contrast Ratio

CR

θ=Φ=0°

800

1000

-

Response Time

TON

-

10

20

ms

Note 4

TOFF

-

15

30

ms

Color Chromaticity

Wx

0.26

0.31

0.36

Note 5

Wy

0.28

0.33

0.38

Capacitive Touch Parameters(LI10600T070IA7098-TCF)

Feature

Description

Type

CTP (Capacitive touch panel)

Structure

G+G

Outline Size(mm)

164.6(L)*99.7(W)*1.6(T)

View Area(mm)

154.08(L)*85.92W)

Control Type

GT911

Surface Hardness

6H

Light Transmittance

≥85%

Operating Temperature

-10~60℃

Storage Temperature

-20~70℃
