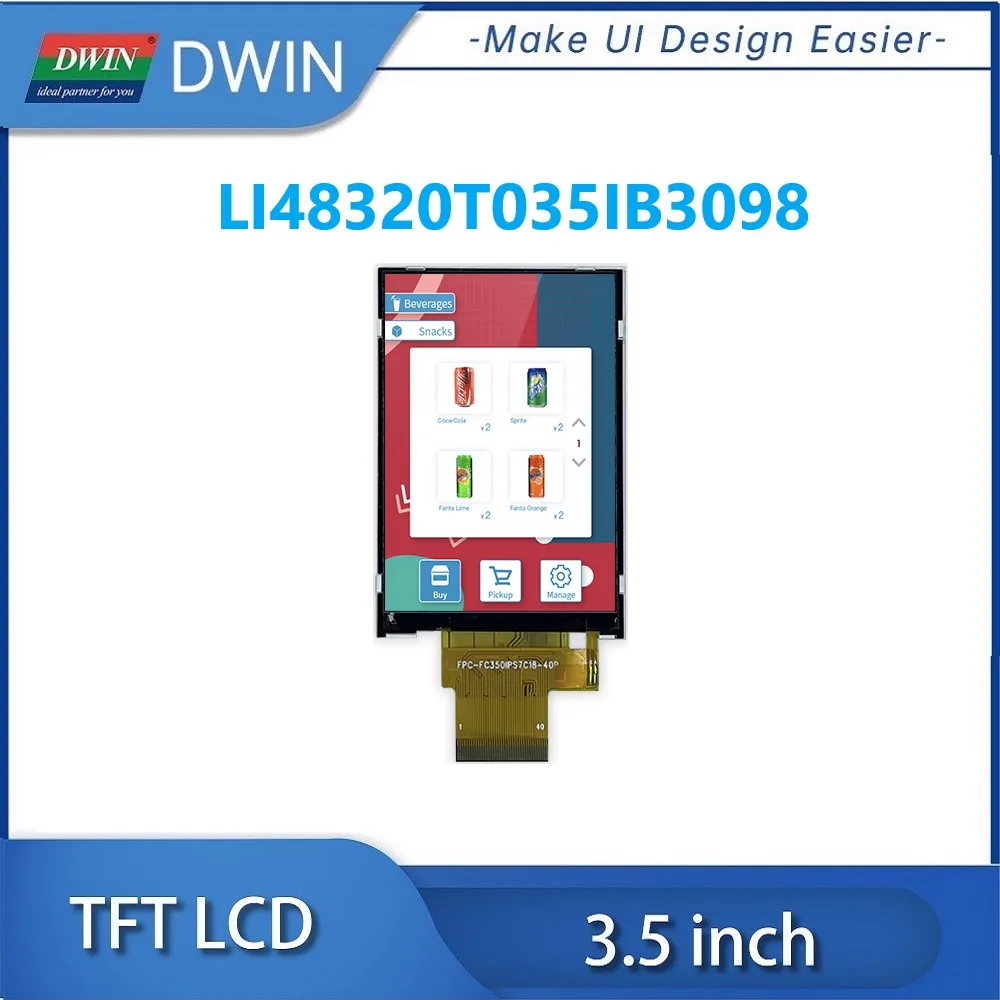

3.5 Inch 320x480 IPS 300nit TFT LCD Display ST7796-G4 Driver IC With Capacitive

Product Description

DWIN 3.5 Inch 320x480 IPS 300nit TFT LCD Display ST7796-G4 Driver IC With Capacitive Resistive Touch LI48320T035IB3098

Prodcut Specification

Feature

Description

Unit

Display Spec.

Size

3.5

inch

Resolution

320(H)*480(V)

pixels

Pixel Configuration

RGB stripe

-

Pixel Pitch

0.153(H)*0.153(V)

mm

Viewing Direction

ALL

-

Mechanical

Characteristics

Outside Dimension

54.5(W)*83.0(H)*2.1(D)

mm

Active Area

48.96(W)*73.44(H)

mm

Luminance

300

cd/m²

LED Numbers

6 LEDS

-

Pin Order

From left to right

40PIN_0.5mm

-

Weight

-

g

Electrical
Characteristics

Interface

RGB_24bit

-

Color Depth

262K

colors

Driver Condition

2.8(Type)

V

Driver IC

ST7796-G4

-

Temperature Range

Operating Temp.

-20~70

℃

Storage Temp.

-30~80

℃

Electrical Characteristics

Item

Symbol

Min.

Typ.

Max.

Unit

Remark

Analog Voltage

VCC

2.6

2.8

3.3

V

Input Logic High Voltage

VIH

0.7VCC

-

VCC

V

Input Logic Low Voltage

VIL

GND

-

0.3VCC

V

Output Logic High Voltage

VOH

0.8VCC

-

VCC

V

Output Logic Low Voltage

VOL

GND

-

0.2VCC

V

Item

Symbol

Min.

Typ.

Max.

Unit

Remark

Forward Voltage

VF

8.4

9.3

10.2

V

Forward Current

IF

-

40

-

mA

Luminance

Lv

-

300

-

cd/m2

Power Consumption

PLED

-

372

-

mW

Uniformity(with L/G)

Avg

75

80

-

%

LED Life-Time

Hr

-

30000

-

Hour

Input/Output Terminals

PIN NO.

Symbol

Function

Remark

1

LEDK

Back light cathode

2

LEDA

Back light anode

3

GND

Ground

4

VCC

Power supply

5-12

R0-R7

Data bus

13-20

G0-G7

Data bus

21-28

B0-B7

Data bus

29

GND

Ground

30

DCLK

Clock signal

31

NC

Not connect

32

HS

Line synchronizing signal

33

VS

Frame synchronizing signal

34

DE

Data ENABLE signal

35

NC

Not connect

36

GND

Ground

37

SCL

Serial clock input for SPI interface

38

SDA

Serial data input/output bidirectional pin for SPI interface

39

CS

A Chip Select signal

40

RESET

Reset Signal pin

Optical Characteristics

Item

Symbol

Condition

Min.

Typ.

Max.

Unit

Remark

Viewing Angle

Top

CR≧10

-

85

-

Deg.

Bottom

-

85

-

Left

-

85

-

Right

-

85

-

Contrast Ratio

CR

θ=0°

-

700

-

Response Time

Tr+Tf

θ=0°

-

30

-

ms

Color Chromaticity

(CIE1931)

Wx

θ=0°

-

0.309

-

Wy

-

0.332

-

Rx

-

0.660

-

Ry

-

0.325

-

Gx

-

0.277

-

Gy

-

0.568

-

Bx

-

0.145

-

By

-

0.072

-

Transmittance

Trans

θ=0°

-

4.3

-

%

Resistive Touch Parameters(LI48320T035IB3098-TR)

Feature

Description

Type

RTP (Resistive touch panel)

Structure

ITO Film+ ITO Glass+ FPC

Outline Size(mm)

53.5(L)*82(W)*1.6(T)

Active Area(mm)

49.06(L)*73.53(W)

Life

Dot >1,000,000; Stroke >100,000

Surface Hardness

3H

Light Transmittance

78%±3%

Operating Temperature

-20~70℃

Storage Temperature

-30~80℃

Capacitive Touch Parameters(LI48320T035IB3098-TC)

Feature

Decription

Type

CTP (Capacitive touch panel)

Structure

G+G

Outline Size(mm)

55.5(L)*83.0(W)*1.6(T)

View Area(mm)

49.36(L)*73.84(W)

Control Type

GT911

Surface Hardness

6H

Light Transmittance

≥85%

Operating Temperature

-20~70℃

Storage Temperature

-30~80℃
