7.0 Inch 16.7M Colors TN Display TFT LCD Touch Screen Module With 800*480 Resolu

Product Description

Features

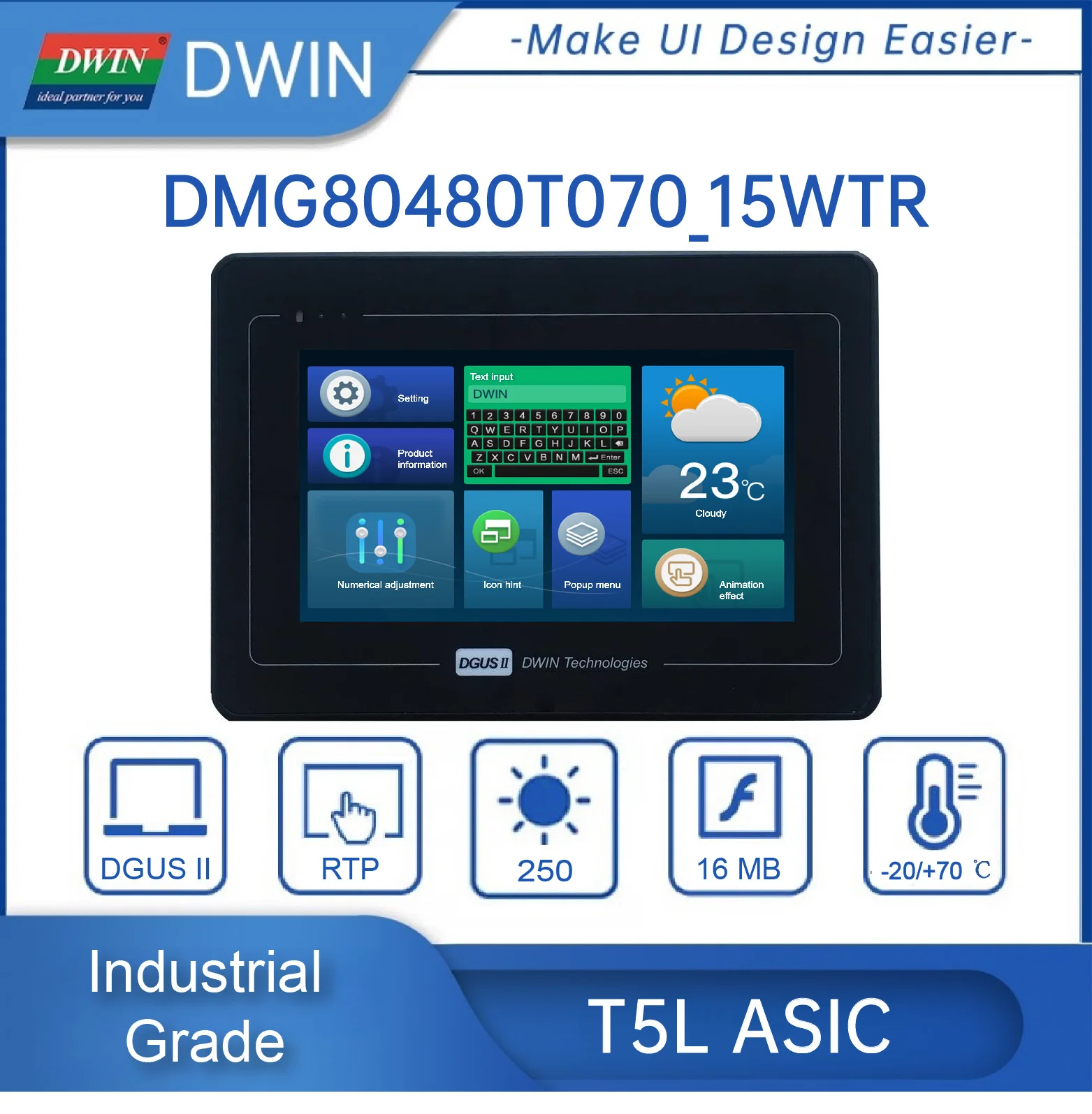

• Based on T5L1, running DGUS II system, industrial grade.

• 7.0-inch, 800*480 pixels resolution, 16.7M colors, TN-TFT-LCD, normal viewing angle.

• With built-in speaker, LED lamp and Photosensitive sensor.

• With conformal coating, with shell.

DMG80480T070-15WTR

Display parameters

LCD Type

TN, TFT LCD

Viewing Angle

Normal viewing angle, 70°/70°/50°/70° (L/R/U/D)

Resolution

800×480 pixels (support 0°/90°/180°/270°)

Color

24-bit 8R8G8B

Active Area (A.A.)

154.20mm (W) ×85.88mm (H)

View Area (V.A.)

155.1mm (W) ×86.9mm (H)

Backlight Mode

LED

Backlight Service Life

>30000 hours (Time of the brightness decaying to 50% on the condition of continuous working with the maximum brightness)

Brightness

250nit

Brightness Control

0~100 grade (When the brightness is adjusted to 1%~30% of the maximum brightness, flickering may occur and is not recommended to use in this range)

Serial interface parameters

Mode

UART2: RS232
UART4: RS232（Only available after OS configuration)
UART5: RS485（Only available after OS configuration)

UART2,4
Voltage Level

Test Condition

Min

Typ

Max

Unit

Output 1

-

-5.0

-3.0

V

Output 0

3.0

5.0

-

V

Input 1

-15.0

-5.0

-

V

Input 0

-

5.0

15.0

V

UART2,4
Baud Rate

3150~3225600bps, typical value of 115200bps

UART5
Voltage Level

Test Condition

Min

Typ

Max

Unit

Output 1

2.5

5.0

-

V

Output 0

-

-5.0

-2.5

V

Input 1

0

2.5

-

V

Input 0

-

-2.5

-0.2

V

UART5
Baud Rate

3150~921600bps, typical value of 115200bps

Data Format

UART2: N81
UART4: N81/E81/O81/N82 ,4 modes (OS configuration)
UART5: N81/E81/O81/N82 ,4 modes (OS configuration)

Interface Cable

8Pin_3.81mm Socket；

Electrical specifications

Rated Power

<5W

Operating Voltage

7~36V, typical value of 12V

Operating Current

280mA

VCC=12V, max backlight

130mA

VCC=12V, backlight off

Recommended power supply: 12V 1A DC

Operating environment

Operating Temperature

-20℃~70℃(12V @ 60% RH)

Storage Temperature

-30℃~80℃

Operating Humidity

10%~90%RH, typical value of 60% RH

Conformal Coating

Yes

Protective Level

IP65 (Front)

Packaging & dimensions

Form Factor

210.0mm (W)×150.0mm (H)×26.9mm (T)

Net Weight

490g

FAQ

Question 1:

How can I start development with a DWIN LCD Module? Can I assemble it directly on my machine?
Answer:

No, you should update the program to LCD at first, and then assemble it.
Step 1, check the software platform of the screen, it mentioned in datasheet.
Step 2, use the correct development SDK (different platform use different SDK) to finish developing.
Step 3, update software program and test
Step 4, when test OK, assemble it on machine.

Question 2:

What industries are DWIN LCD used in?
Answer:

Beauty machine, Physical therapy, Health and fitness, Medical treatment, Air treatment, Air control, Transportation (Car &ship instruments), instruments and apparatus automation, Electricity, Water treatment, IC design and manufacture, Kitchen appliances (Juicer, oven, ice machine, ice-cream machine, kitchen ventilator), New energy(Photovoltaic, Wind electricity, Charging Pile), Household appliances…

Question 3:

Does DWIN product need a MOQ when purchase?
Answer:

No MOQ for standard product.

Question 4:

Will DWIN have online technical support?
Answer:

Yes,of course, below ways you can get technical support.

- Whatsapp: +86 19192113166
- Customer service email: dwinhmi@dwin.com.cn

- DWIN Developer Forum:

International website:

- Development tool:

- Development guide:

- DGUS video tutorial:
- Leave messages to us on Aliexpress.
