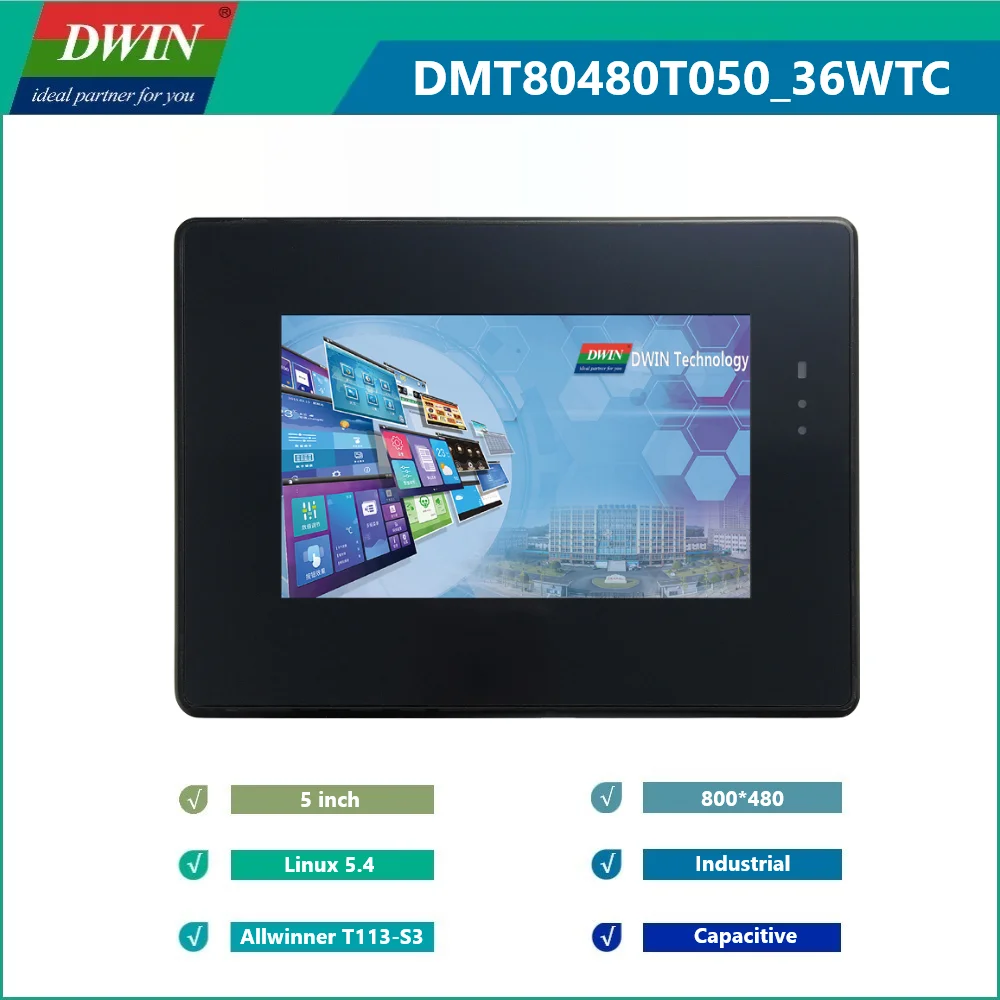

Linux Touch Display Linux5.4 Dual-core 5.0-inch 800*480 Pixels Industrial Grade

Product Description

Features:

● Industrial Linux intelligent display terminal based on T113, running Linux5.4 operating system, adopt QT

for secondary development.

● 5.0-inch, 800*480 pixels resolution, 16.7M colors, IPS-TFT-LCD, wide viewing angle, capacitive / resistive

touch, with shell.

● Adopt QT environment for secondary development.

● Available for multi-language, vector font library, picture library, video library and audio library.

● Compatible with network cable connection with PC to download update project.

● Available for RS232, RS485 and CAN port to connect and communicate with external devices.

Master Control Parameters

Properties

Parameters

Motherboard Level

Industrial

CPU

Dual-core ARM CortexTM-A7 Processor

OS

Linux 5.4

FLASH

8GBytesEMMC

RAM

128MBytes DDR3

Display Parameters

Properties

Parameters

Description

Color

16.7M (16777216) colors

24 bit color 8R8G8B

Panel Type

IPS

IPS process, TFT LCM with wide viewing angle

Viewing Angle

85/85/85/85 (L/R/U/D)

Best view: symmetrical

Active Area (A.A.)

108.8mm (W)*65.6mm (H)

-

Resolution

800*480

Available for 0°/90°/180°/270°rotated display

Backlight

LED

≥30000H(time of the brightness decaying to 50% on the condition of continuous working with the maximumbrightness)

Brightness

Capacitive touch:300nit
Resistive touch:250nit

100 levels adjustment(It's not recommend to set brightness to 1%~30% of the maximum, which may lead to LCD flicker.)

Note: You can use dynamic screen saver wallpapers to avoid afterimages caused by fixed page display for a long time.

Voltage & Current

Properties

Conditions

Min

Typ.

Max

Unit

Power Voltage

-

9

12

23

V

Operation Current

VCC = +12V, Backlight on

-

200

-

mA

VCC = +12V, Backlight off

-

100

-

mA

Recommended power supply: 12V 0.5A DC

Reliability Test

Properties

Conditions

Min

Typ.

Max

Unit

Working Temperature

60%RH at 12V voltage

-20

25

70

℃

Storage Temperature

-

-30

25

80

℃

Working Humidity

25℃

10%

60%

90%

RH

Conformal Coating

Yes

ESD

Air discharge±8KV

EFT

Group pulse interference ±2KV

Peripherals and Interfaces

Properties

Parameters

Description

Interface

2-way RS232

UART2 & UART3

2-way RS485

UART4 & UART5

CAN Interface

2-way

2Pin_2.0mminterface (CAN0, CAN1)

USB Interface

2-way

HOST*2

SD Card Interface

1-way

Drawer type card slot(Max 64G)

Ethernet Interface

1-way

10/100Mbps

RTC

Built-in

Super-capacitor RTC. Accuracy: ±20ppm @25℃

Buzzer

Built-in

3V passive buzzer

Interface

Properties

Conditions

Min

Typ.

Max

Unit

Baud Rate

User-defined

3150

115200

3225600

bps

Output Voltage
(TXD)

Output 1

-

-5

-3

V

Output 0

3

5

-

V

Input Voltage
(RXD)

Input 1

-15

-5

-

V

Input 0

-

5

15

V

Interface

RS232*2RS485*2

Socket

12Pin_2.54mm

Dimension

Dimension

160.0 (W) *118.0(H)*26.7(T)mm

Net Weight

340g

Packing Capacity

Model

Size

Layer

Quantity/Layer

Quantity(Pcs)

Carton1:

220(L)*160(W)*47(H)mm

1

1

1

Carton2:

250(L)*200(W)*80(H)mm

1

2

2

Carton3:

320(L)*270(W)*80(H)mm

2

2

4

Carton4:

450(L)*350(W)*300(H)mm

1

20

20

Carton5:

600(L)*450(W)*300(H)mm

1

34

34
