7 Inch High Brightness 900nit 800x480 EK73002+EK9713/ ILI6122+ILI5960 Driver TFT

Product Description

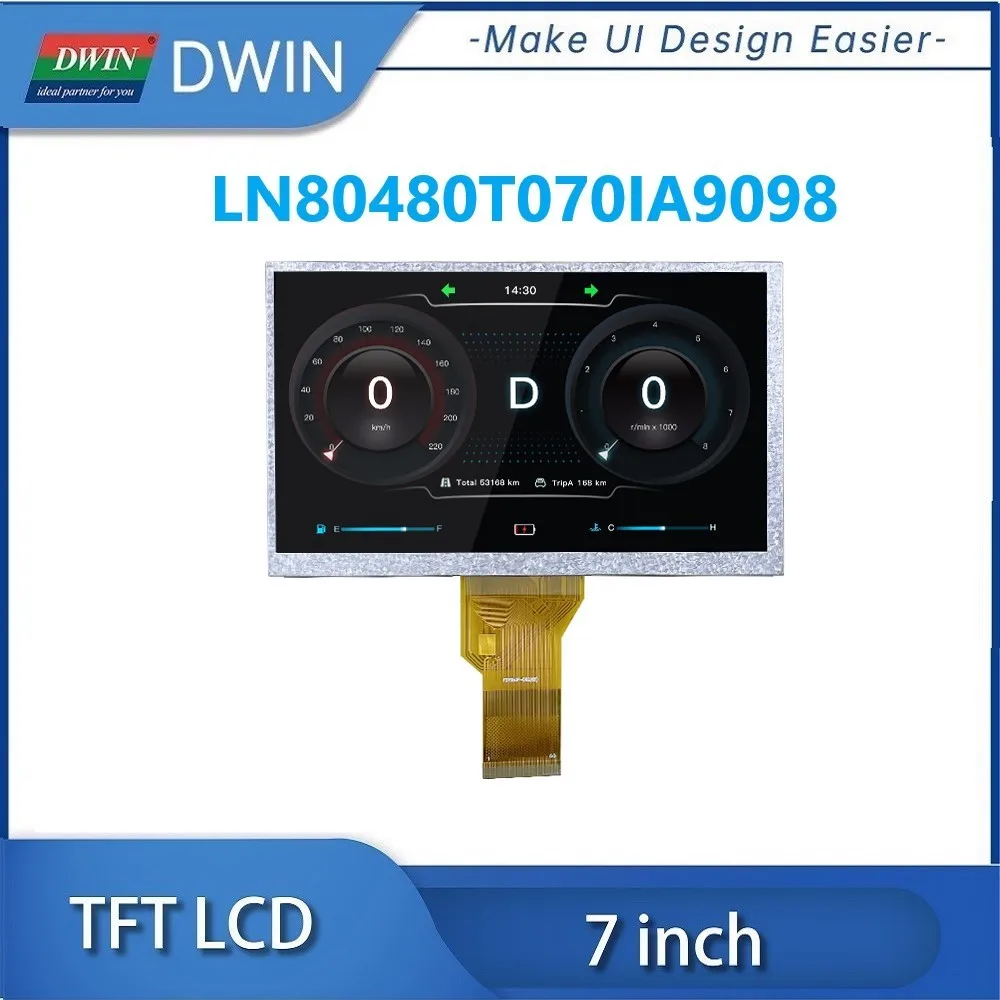

DWIN 7 Inch 800x480 EK73002+EK9713/ ILI6122+ILI5960 Driver Industrial TN TFT LCD Display 900 Nit RGB Interface LN80480T070IA9098

Product Specification

Feature

Description

Unit

Remark

Display Spec.

Size

7

inch

Resolution

800(H)*480(V)

pixels

Pixel Configuration

RGB Vertical stripe

-

Pixel Pitch

0.193(W)*0.179(H)

mm

Viewing Direction

6 o’clock

-

Mechanical
Characteristics

Outside Dimension

165.0(W)*100.0(H)*5.5(D)

mm

Active Area

154.08(W)*85.92(H)

mm

Luminance

900

cd/m²

LED Numbers

30 LEDS

-

Pin Order

From left to right
50PIN_0.5mm

-

Weight

-

g

Electrical
Characteristics

Interface

RGB_24bit

-

Color Depth

16.7M

colors

Driver Condition

3.3(Type)

V

Driver IC

EK73002+EK9713/ILI6122+ILI5960

-

Temperature Range

Operating Temp.

-20~70

℃

Storage Temp

-30~80

℃

Electrical Characteristics

Item

Symbol

Min.

Typ.

Max.

Unit

Remark

Digital Power Voltage

DVDD

2.8

3.3

3.6

V

Power for Analog Circuit

AVDD

10.2

10.4

10.6

V

Gate on Voltage

VGH

14.5

15.0

15.5

V

Gate off Voltage

VGL

-10.5

-10

-9.5

V

Common Voltage

VCOM

3.54

4.54

5.54

V

Item

Symbol

Min.

Typ.

Max.

Unit

Remark

Voltage for LED Backlight

VL

8.4

9.0

9.9

V

Current for LED Backlight

IL

-

200

-

mA

Luminance

Lv

-

900

-

cd/m²

Input/Output Terminals

Pin NO.

Symbol

Function

1-2

LEDA

Back light anode

3-4

LEDK

Back light cathode

5

GND

Ground

6

VCOM

Fo rexternal VCOM DC input

7

DVDD

Digital Power

8

MODE

DE/SYNC mode select

9

DE

Data enable signal

10

VS

Frame synchronizing signal

11

HS

Line synchronizing signal

12-19

B7-B0

Data bus

20-27

G7-G0

Data bus

28-35

R7-R0

Databus

36

GND

Ground

37

DCLK

Dotclock signal

38

GND

Ground

39

GND

Source right or left sequence control

40

U/D

Gate up or down scan

41

VGH

Positive Power for TFT

42

VGL

Negative Power for TFT

43

AVDD

Analog Power

44

RESET

Global reset signal pin. Active low to enter reset state. Suggest to connecting with an RC reset circuit for stability. Normally pull high.

45

NC

Not connect

46

VCOM

For external VCOM DC input

47

DITHB

Dithering setting. DITH=“H”6bit
resolution; DITH=“L”8bit resolution(default setting)

48

GND

Ground

49

NC

Notconnect

50

NC

Notconnect

Optical Characteristics

Item

Symbol

Condition

Min.

Typ.

Max.

Unit

Remark

Viewing Angle

Top

CR≧10

-

60

-

Deg.

Note 2

Bottom

-

70

-

Left

-

70

-

Right

-

70

-

Contrast Ratio

CR

θ=0°

500

800

-

Color Temperature

Tc

-

7900

-

K

Note 3

Color Chromaticity
(CIE1931)

Wx

0.290

0.310

0.330

Note 1

Wy

0.310

0.330

0.350

Rx

0.561

0.581

0.601

Ry

0.291

0.311

0.331

Gx

0.291

0.311

0.331

Gy

0.535

0.555

0.575

Bx

0.116

0.136

0.156

By

0.099

0.119

0.139

Resistive Touch Parameters(LN80480T070IA9098-TR)

Feature

Description

Type

RTP (Resistive touch panel)

Structure

ITO Film+ ITO Glass+ FPC

Outline Size(mm)

163.8(L)*97.8(W)*1.5(T)

Active Area(mm)

153.68(L)*86.18W)

Life

Dot >1,000,000; Stroke >100,000

Surface Hardness

3H

Light Transmittance

78%±3%

Operating Temperature

-20~70℃

Storage Temperature

-30~80℃

Capacitive Touch Parameters(LN80480T070IA9098-TCF)

Feature

Description

Type

CTP (Capacitive touch panel)

Structure

G+G

Outline Size(mm)

164.6(L)*99.7(W)*1.6(T)

View Area(mm)

154.08(L)*85.92W)

Control Type

GT911

Surface Hardness

6H

Light Transmittance

≥85%

Operating Temperature

-10~60℃

Storage Temperature

-20~70℃
